Features:
1.Direct replacement to your original unit
2.Plug-and-play, direct fit, easy installation.
3.Highest grade lamination materials.

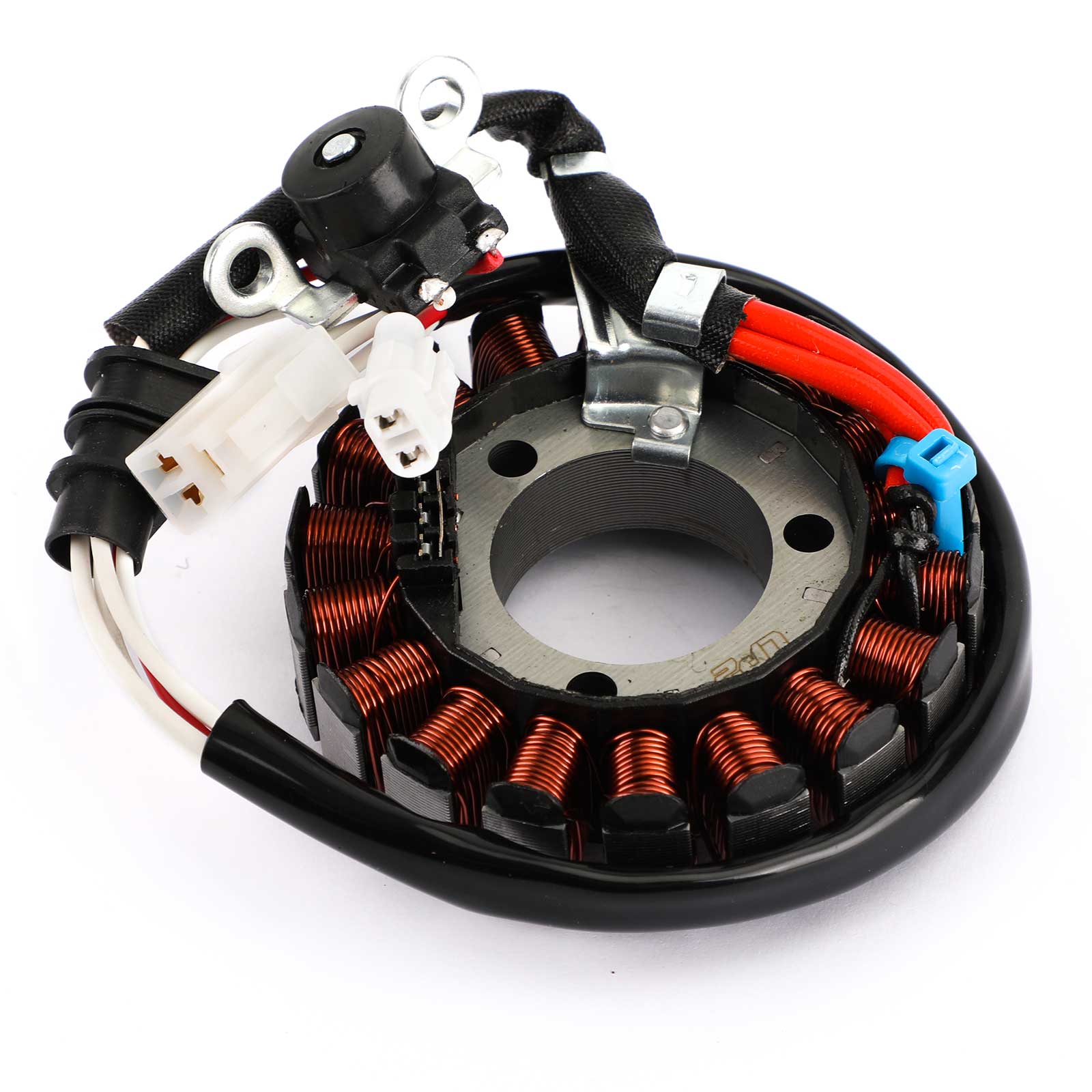

4.Highest grade copper windings, resistant to 200 degrees Celsius.
5.Pick up pulsar coil included.
6.Connector included.
7.All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

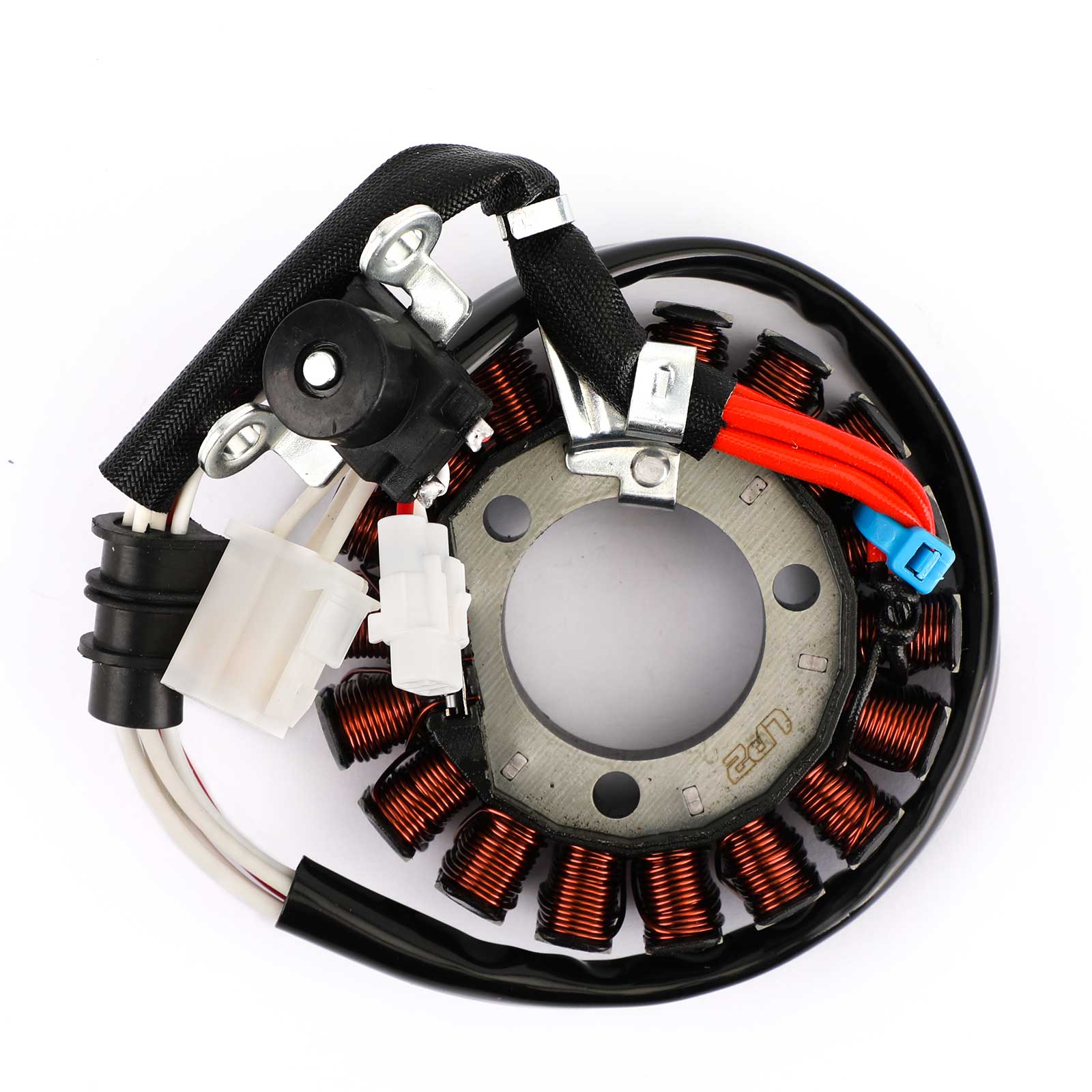

Type: Generator Stator Coil

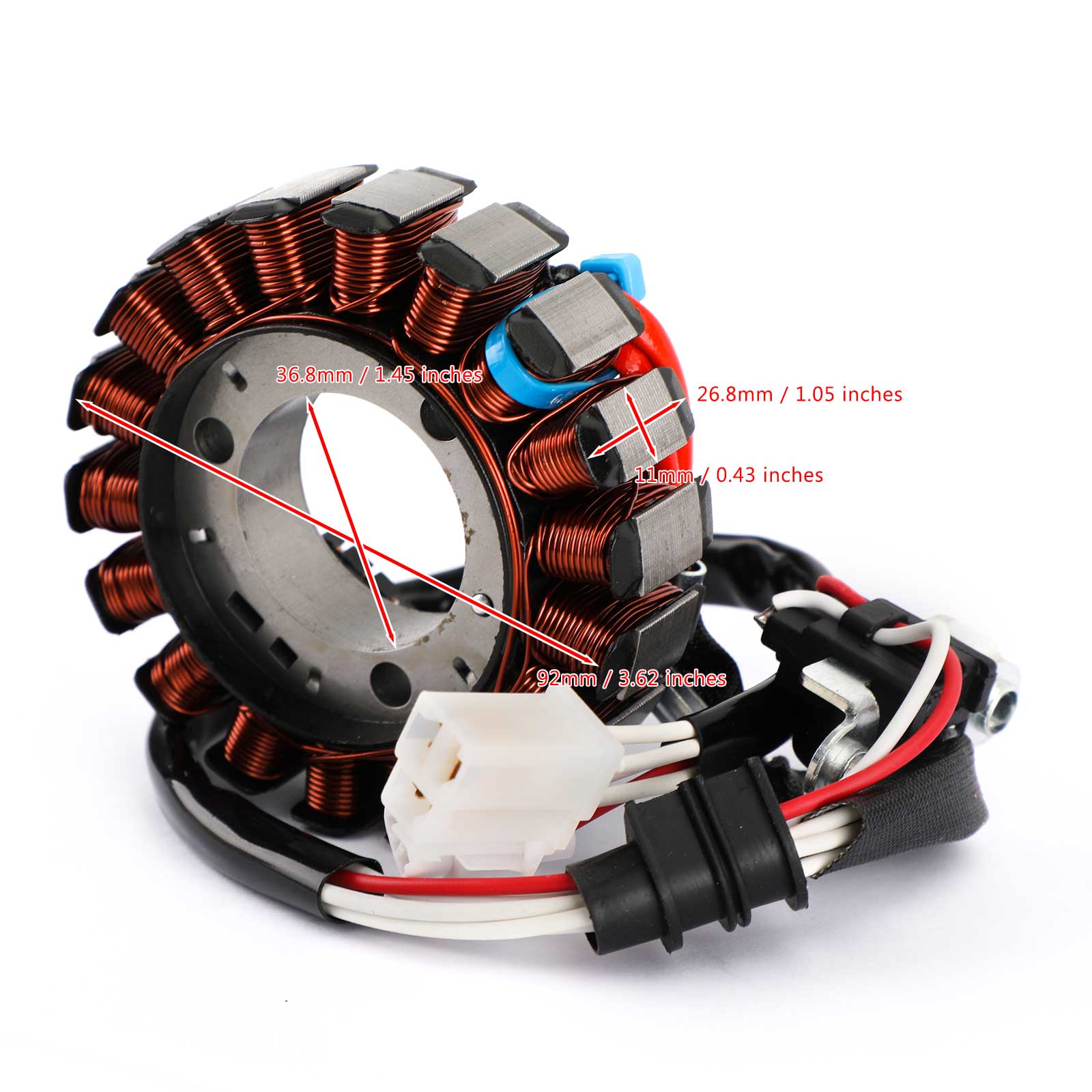

Dimensions :
Interior diameter : 36.8mm / 1.45 inches
Exterior diameter : 92mm / 3.62 inches
Pole's Thickness : 26.8mm / 1.05 inches
Pole's Width : 11mm / 0.43 inches
Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 18
PART NUMBER:
22B-H1410-00-00
3C1-H1410-11-00
Note: Please check the Manufacturer Part Number before ordering.

Applicable Models:
Fit for Yamaha MT125 MT-125 2015-2016
Fit for Yamaha MT125 MT-125 ABS 2015-2019
Fit for Yamaha WR125 WR125R 2009-2014
Fit for Yamaha WR125 WR125X 2009-2014
Fit for Yamaha YZF R125 YZF-R 125 2014-2016
Fit for Yamaha YZF-R125 ABS 2015-2018
Fit for Yamaha YZF R15 2011-2014
Fit for Yamaha YZF R15 SP 2014
Fit for Yamaha FZ150

Product Size Chart:


Please note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Package Included:
1x Generator Stator Coil
