Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

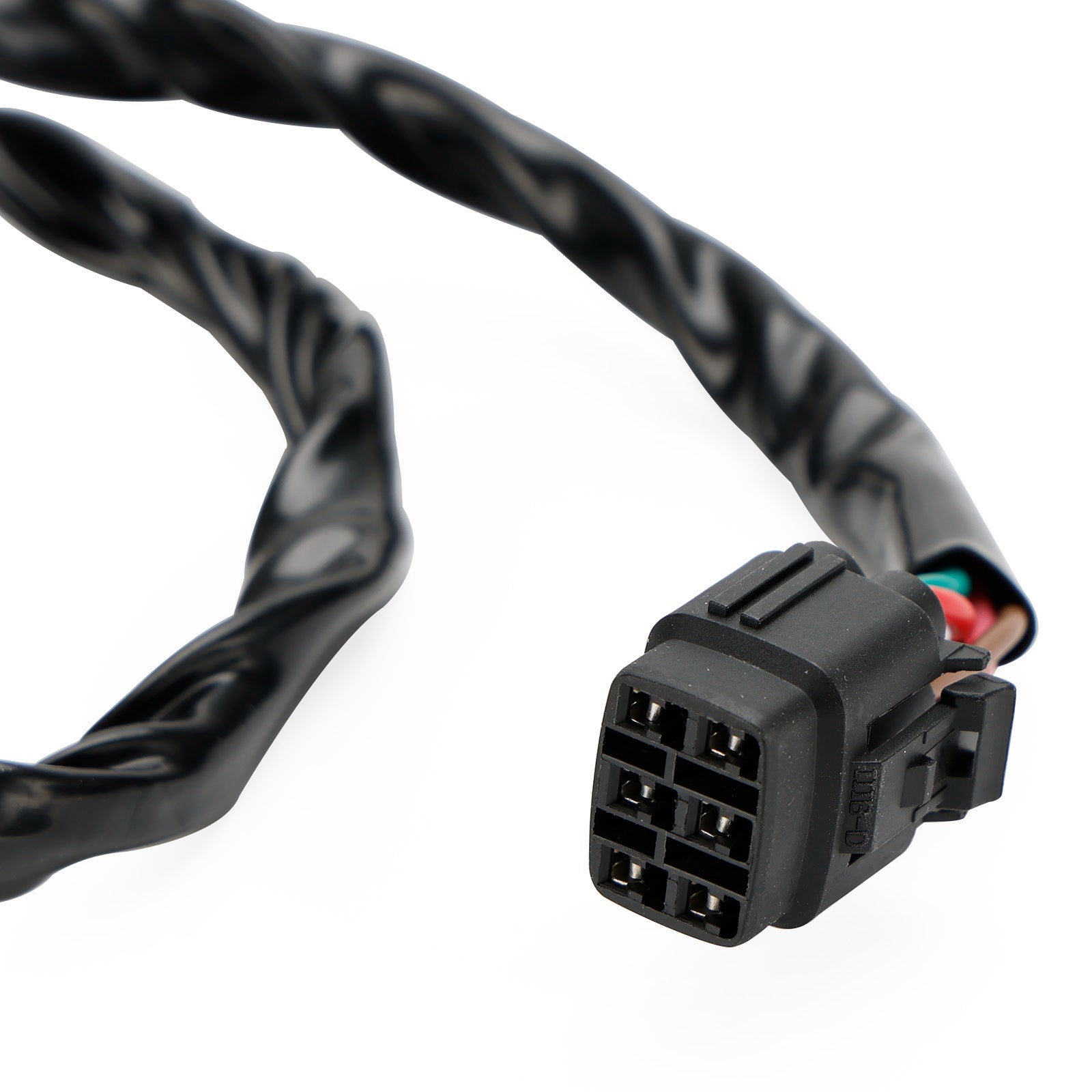

Connector included.
Precision die cast base plate (where fitted).
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

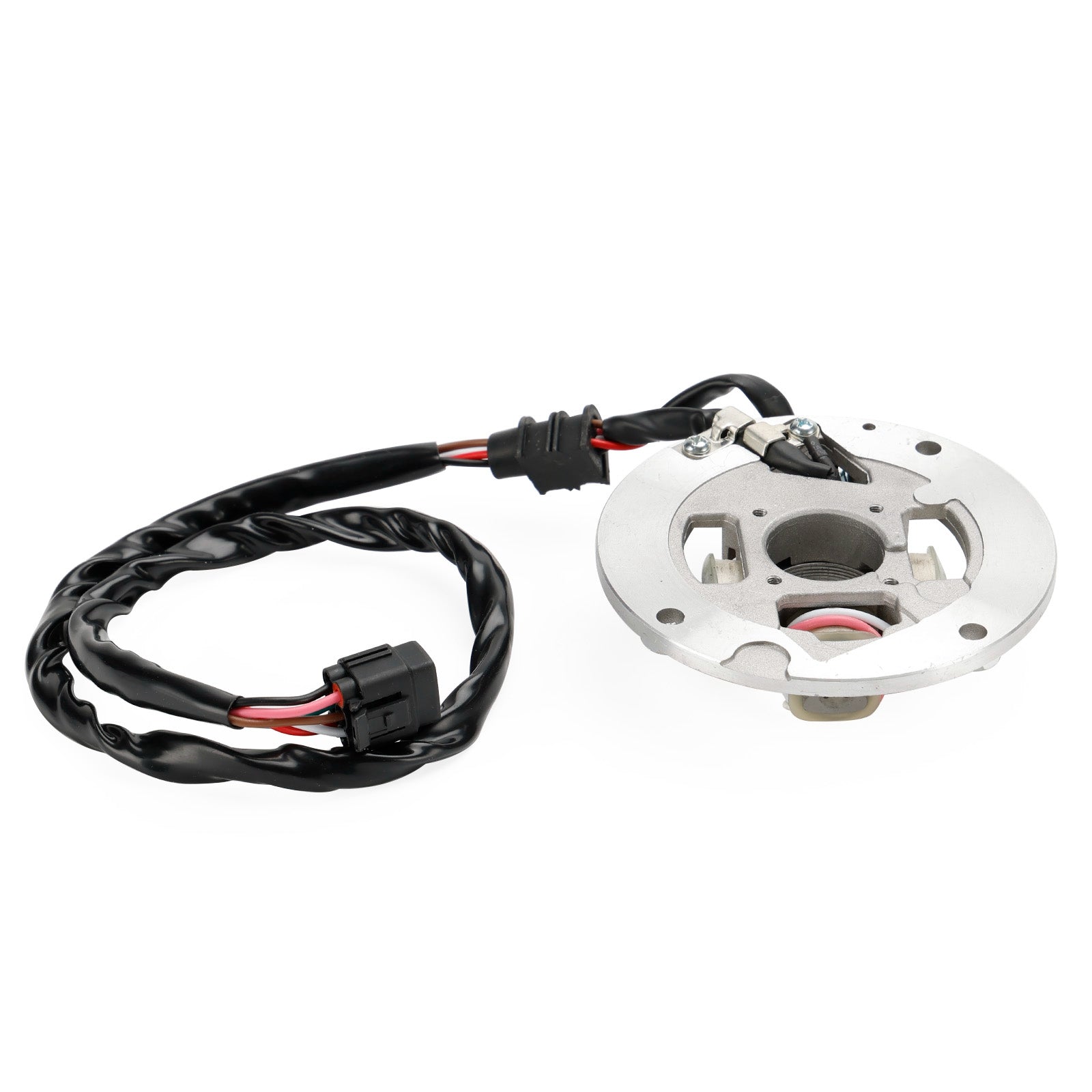

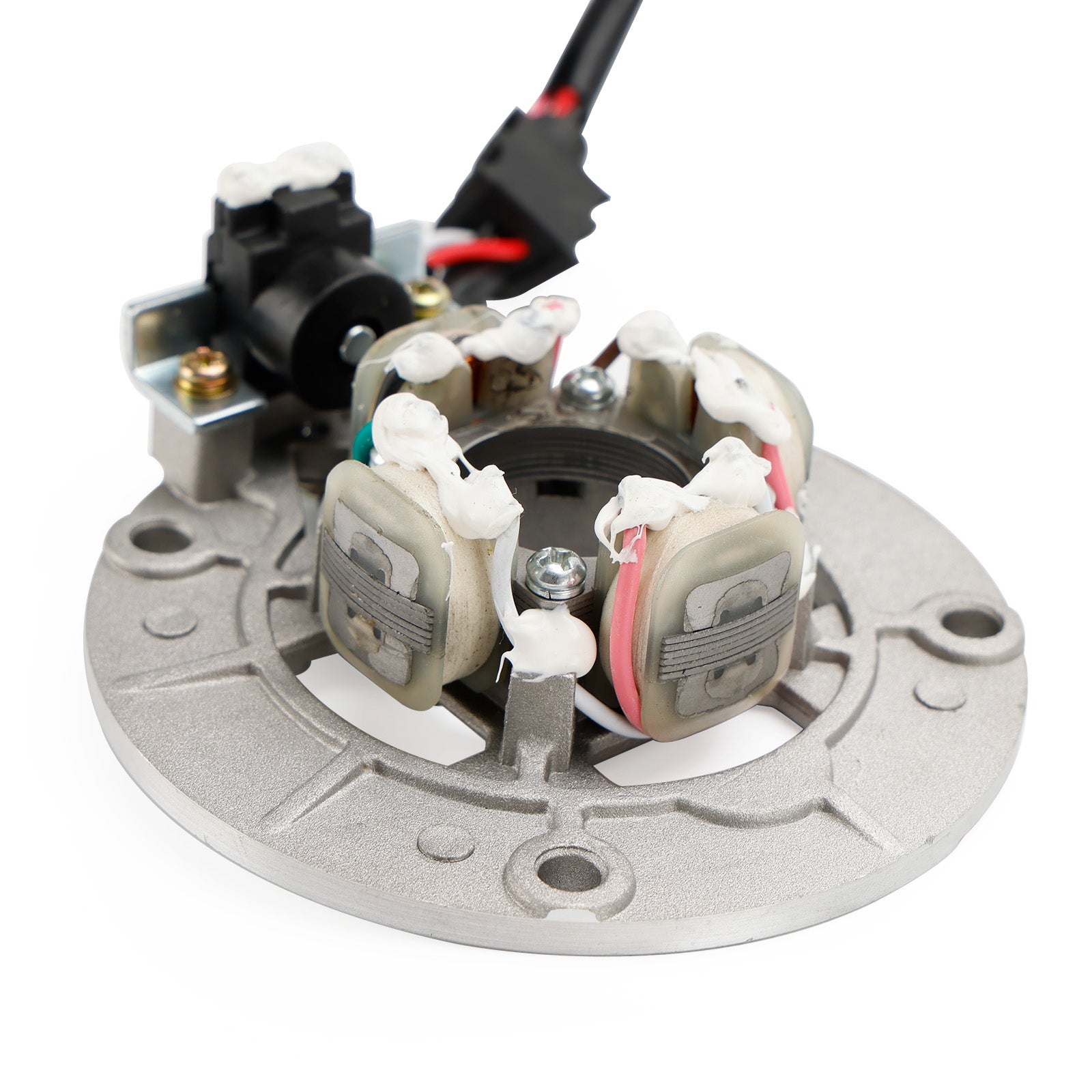

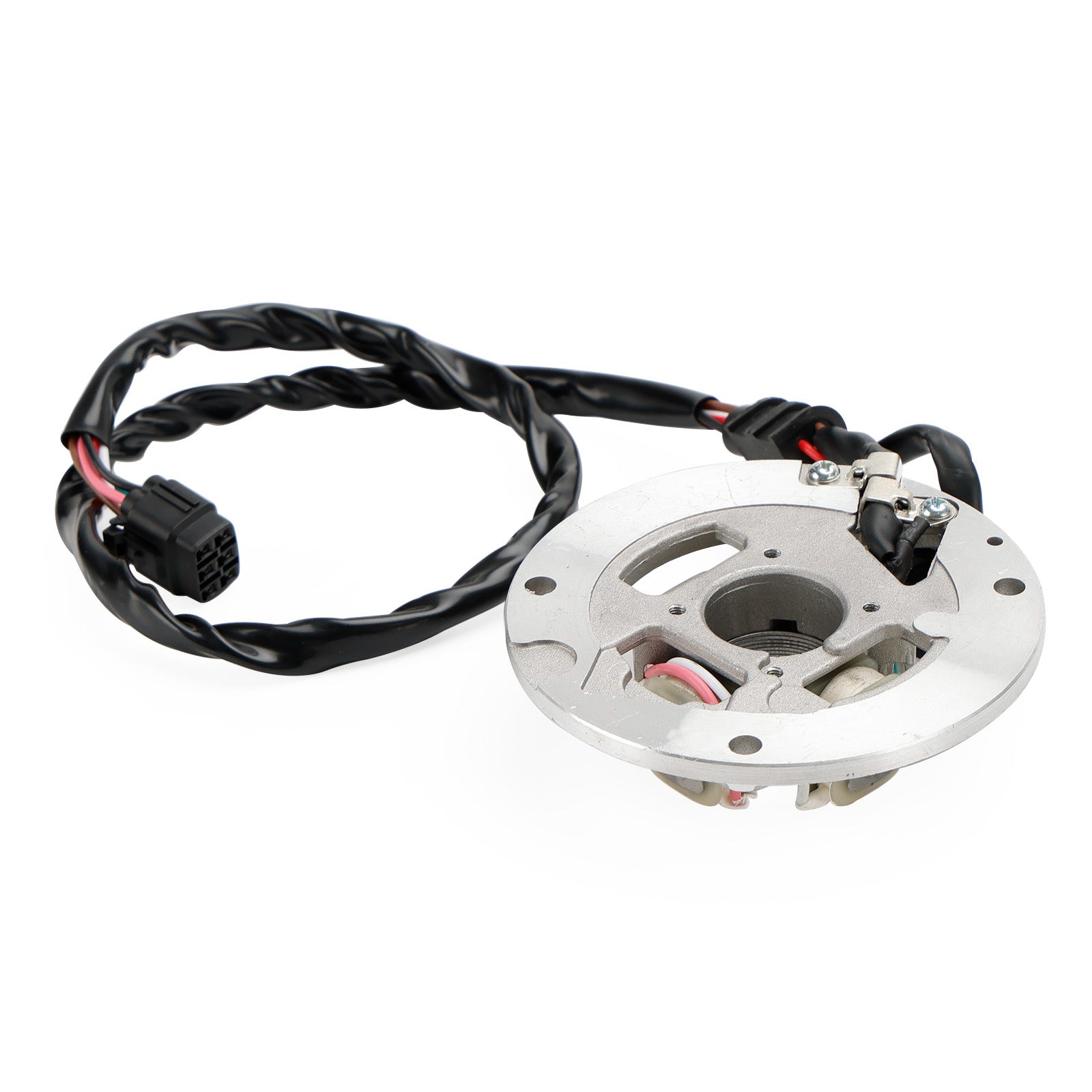

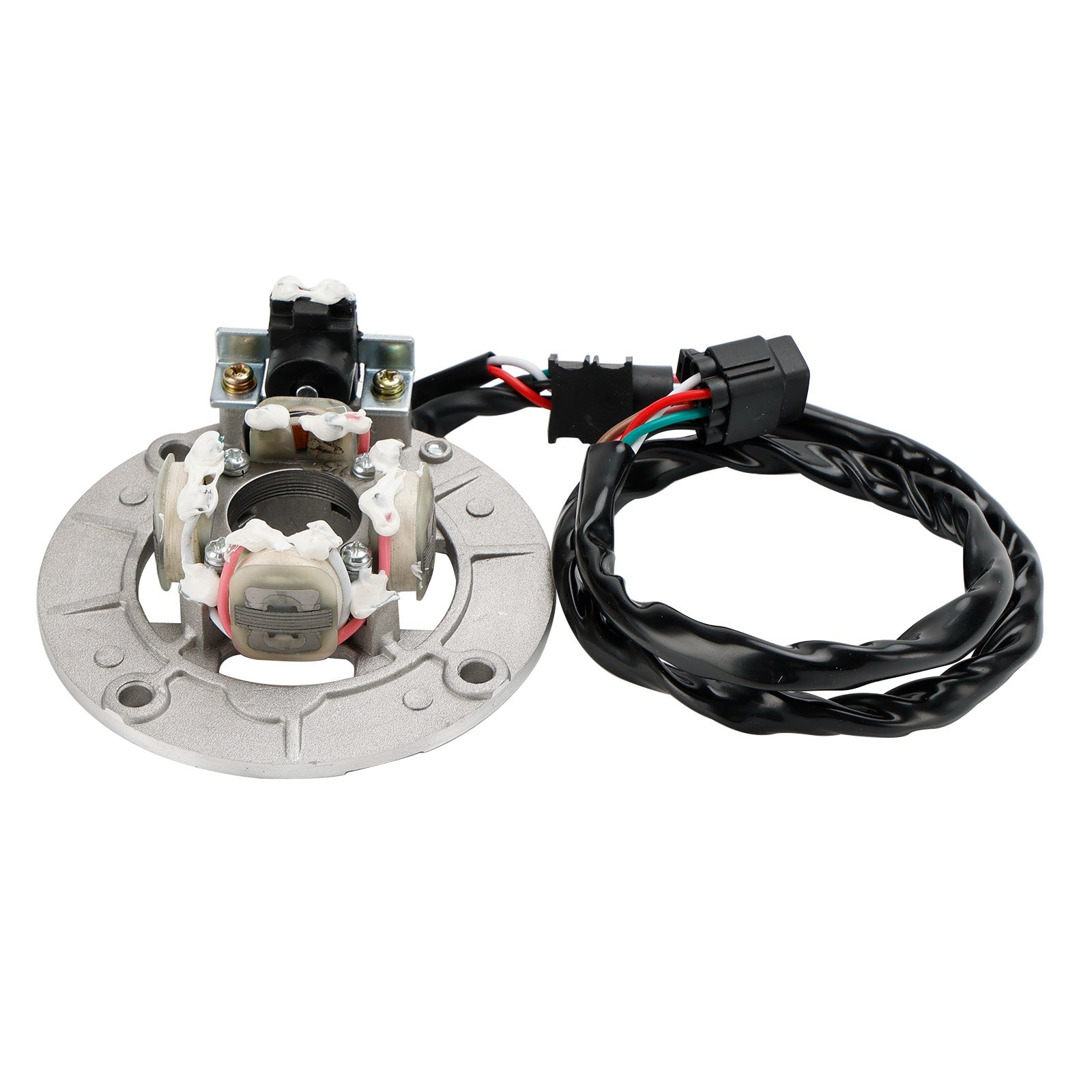

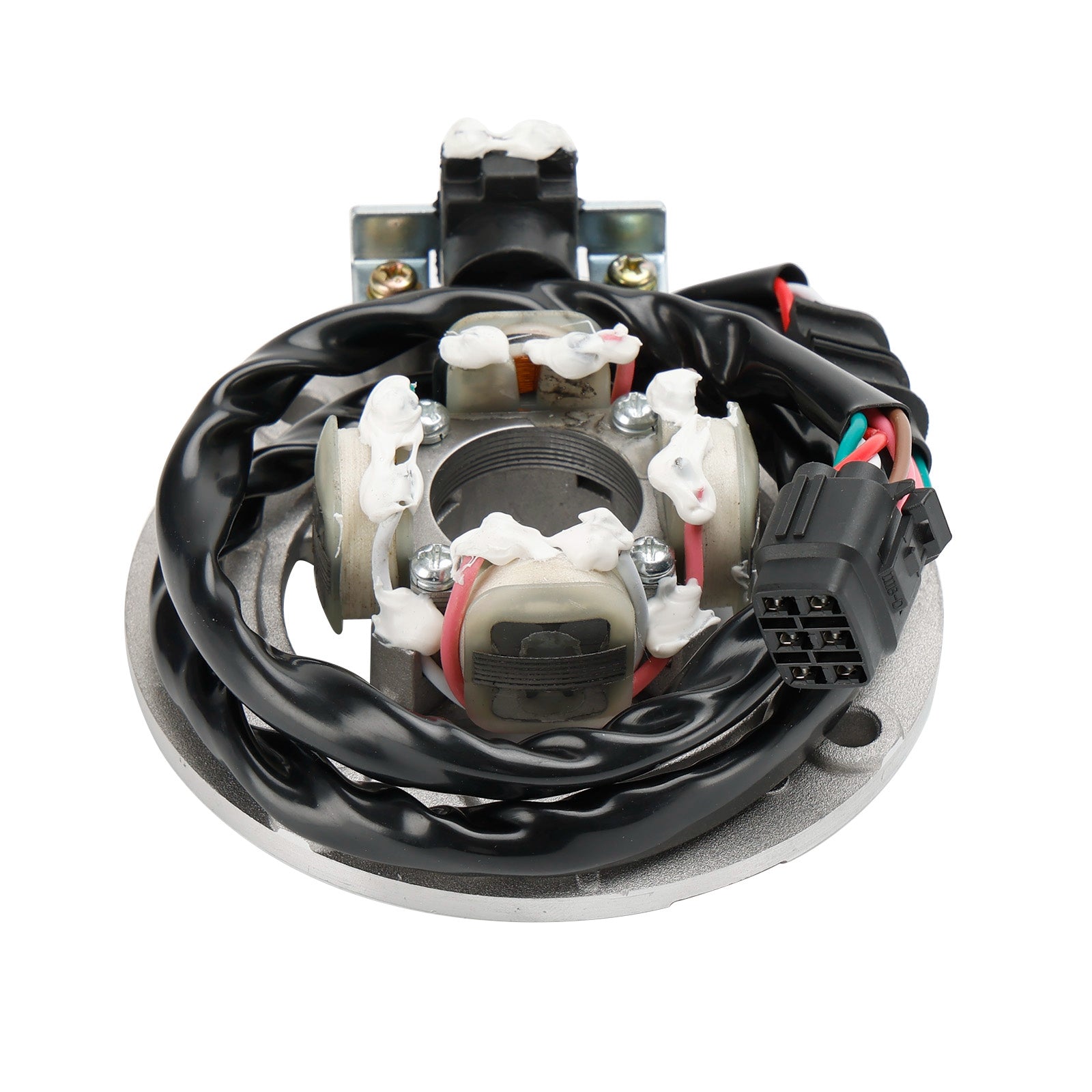

Type: Ignition Stator Plate

other specifications:
Number of wires: 6
Number of plugs: 1
Number of pins: 6

Replacement Part Number:
17D-85560-51

Fits Models:
Fit for Yamaha YZ250F YZ250FZL 2010
Fit for Yamaha YZ250F YZ250FZW 2010
Fit for Yamaha YZ250F YZ250FAL 2011
Fit for Yamaha YZ250F YZ250FAB 2011
Fit for Yamaha YZ250F YZ250FBL 2012
Fit for Yamaha YZ250F YZ250FBW 2012
Fit for Yamaha YZ250F YZ250FDL 2013
Fit for Yamaha YZ250F YZ250FDW 2013

Package included:
1x Ignition Stator Base Assy

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
Battery condition is extremely important. No stator can work correctly with a bad or weak battery.
Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
