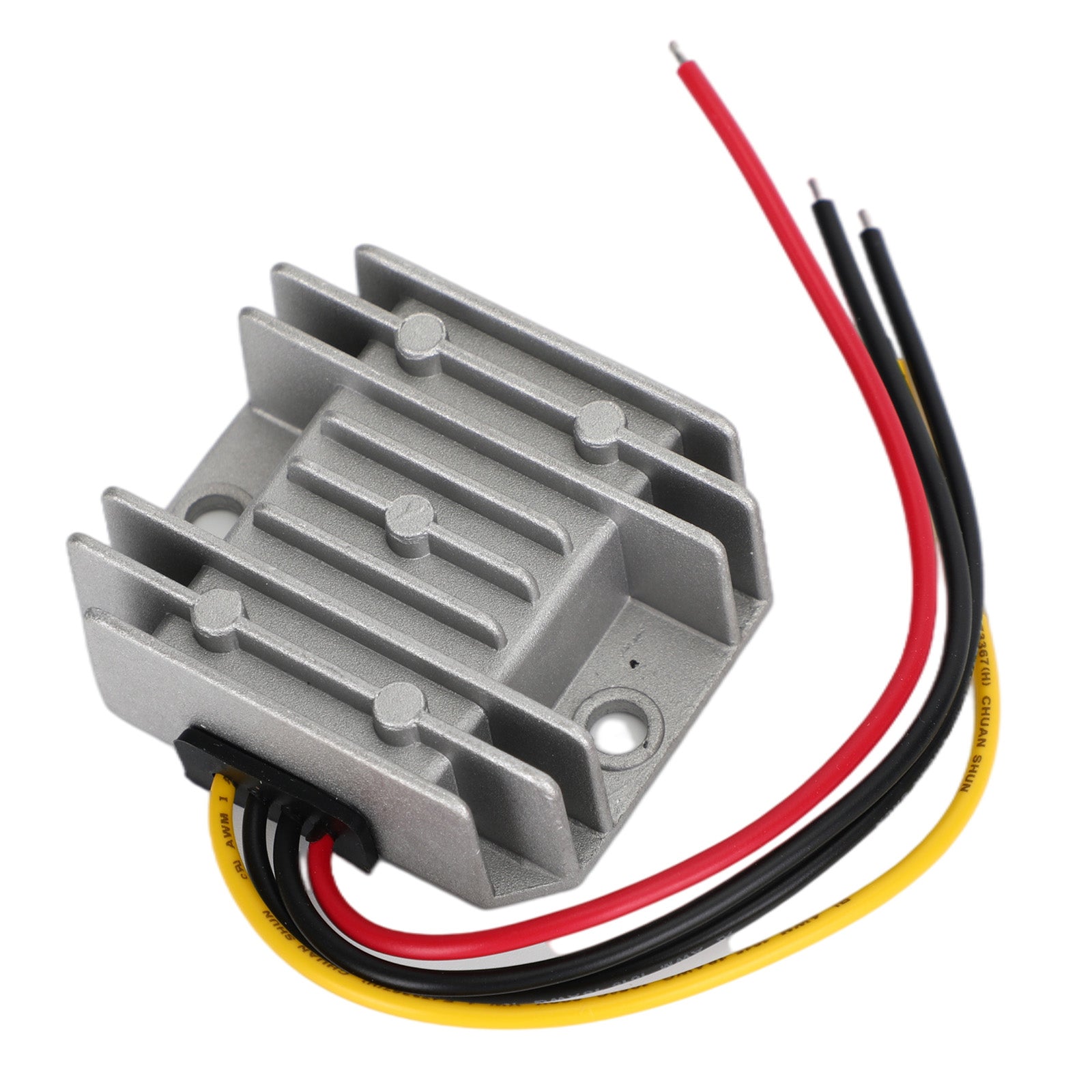

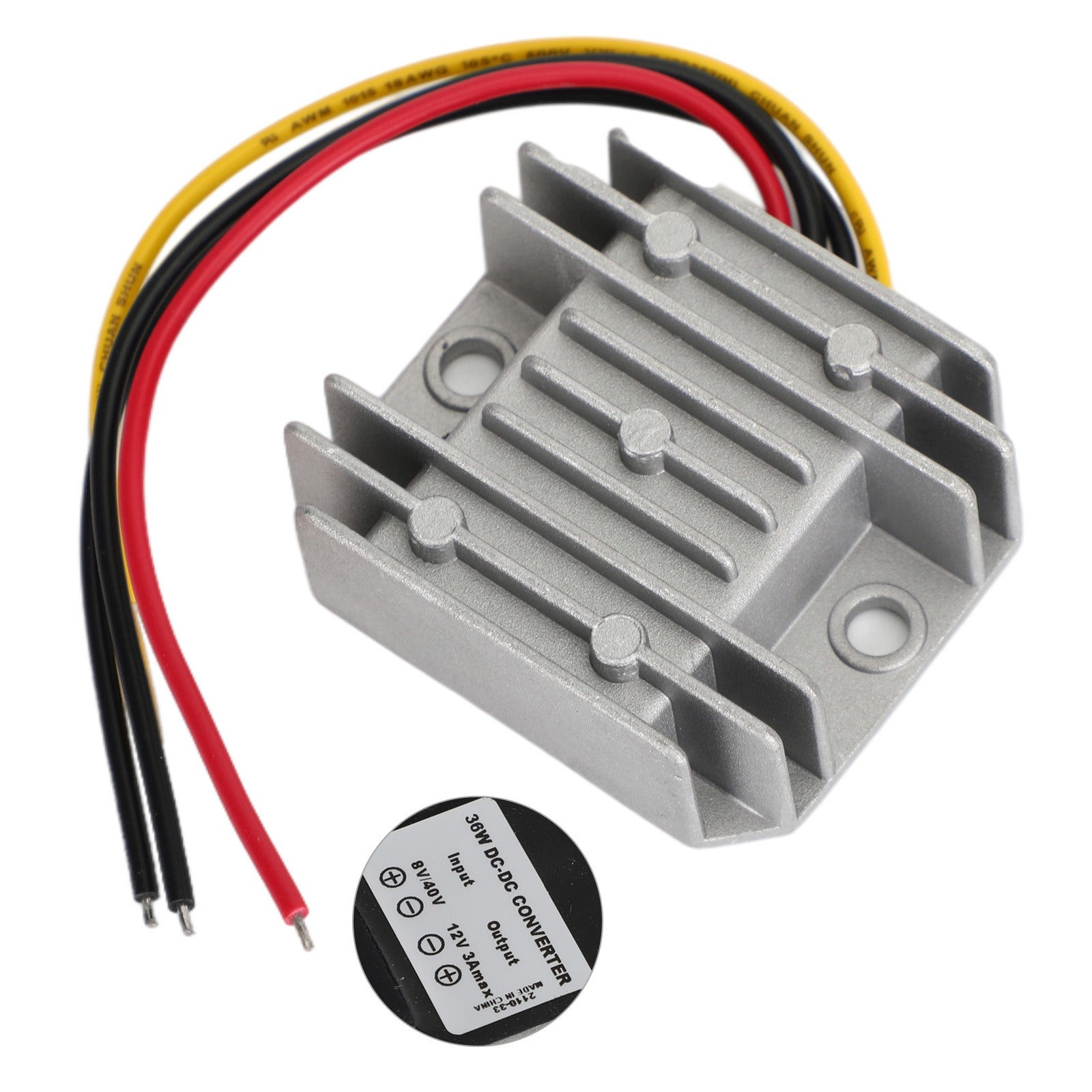

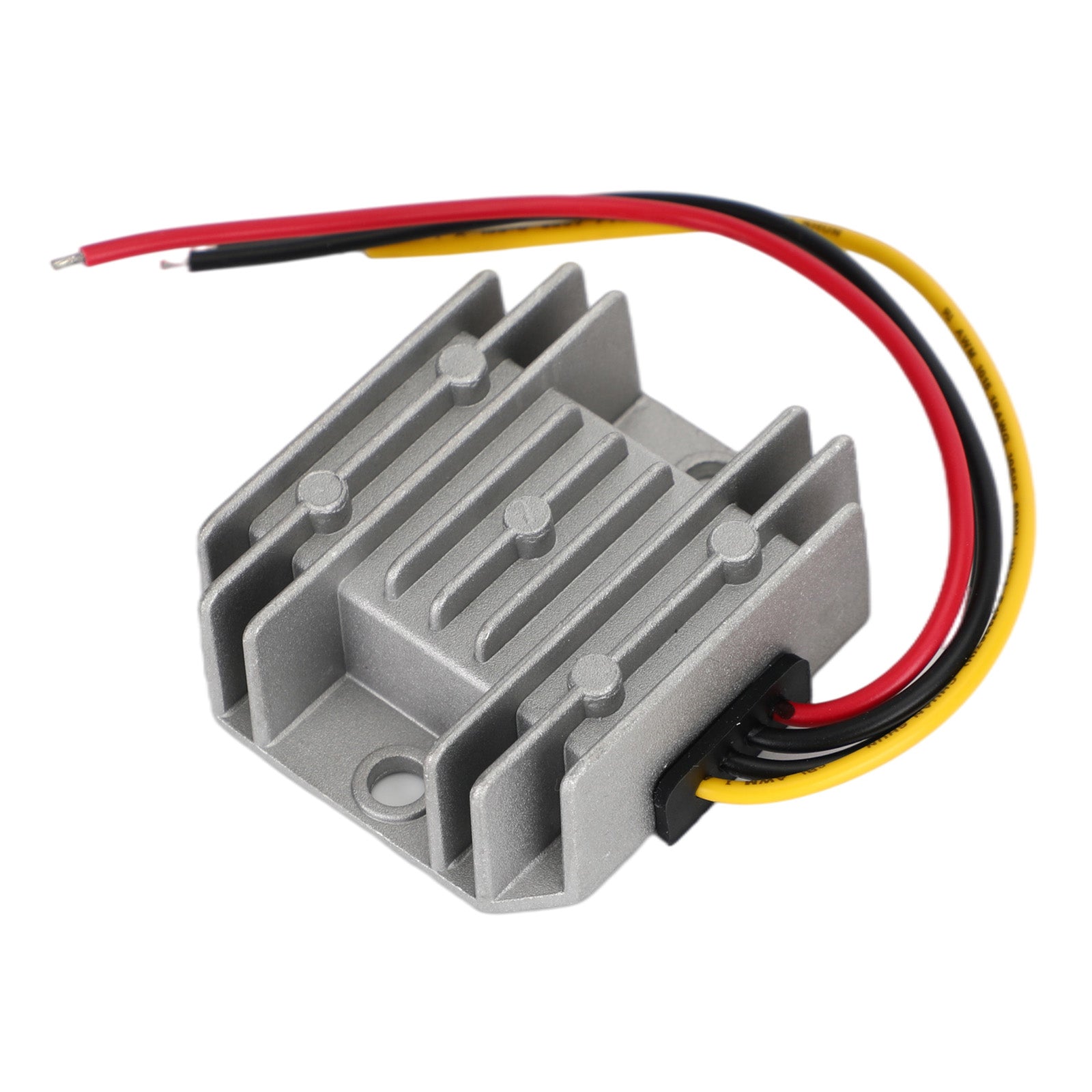

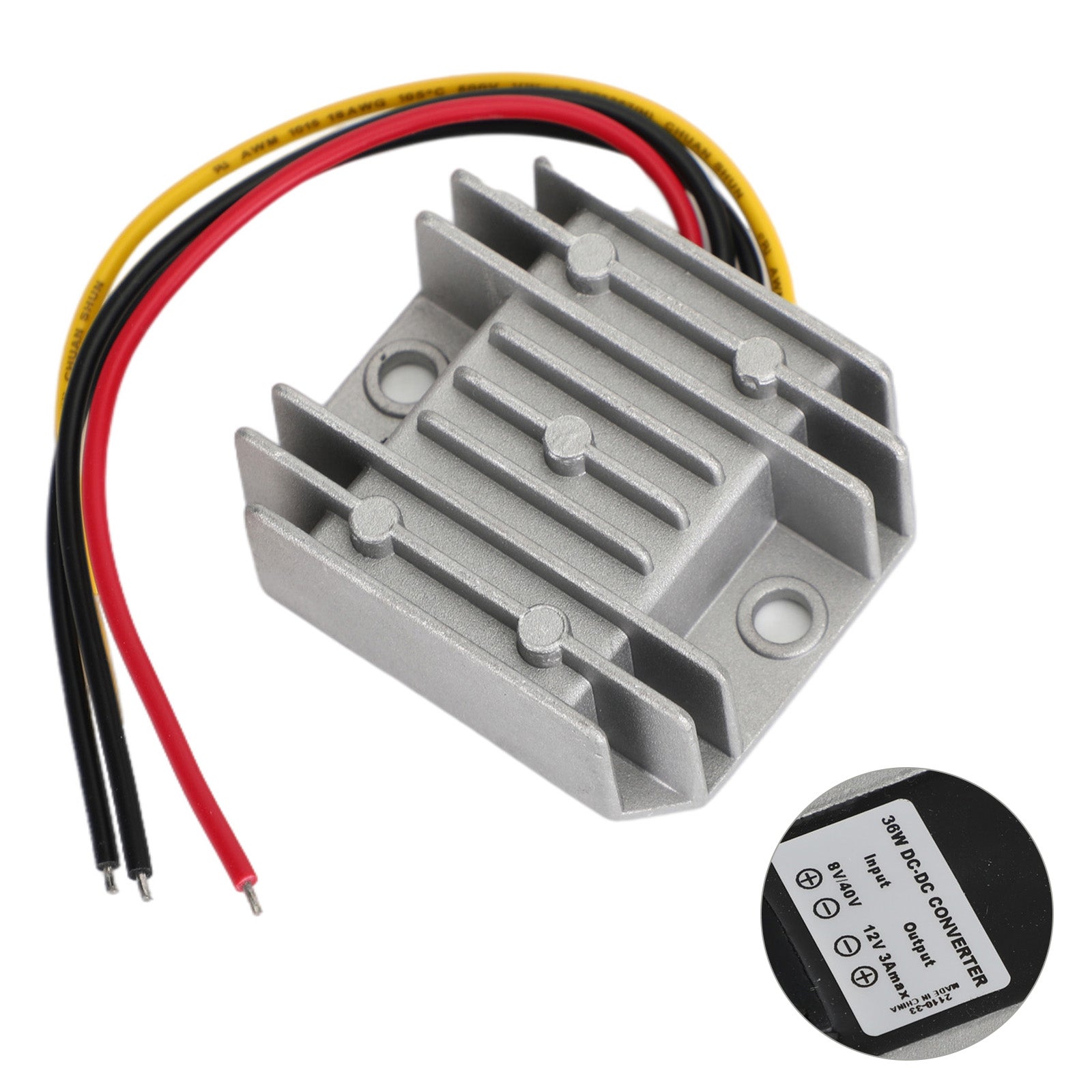

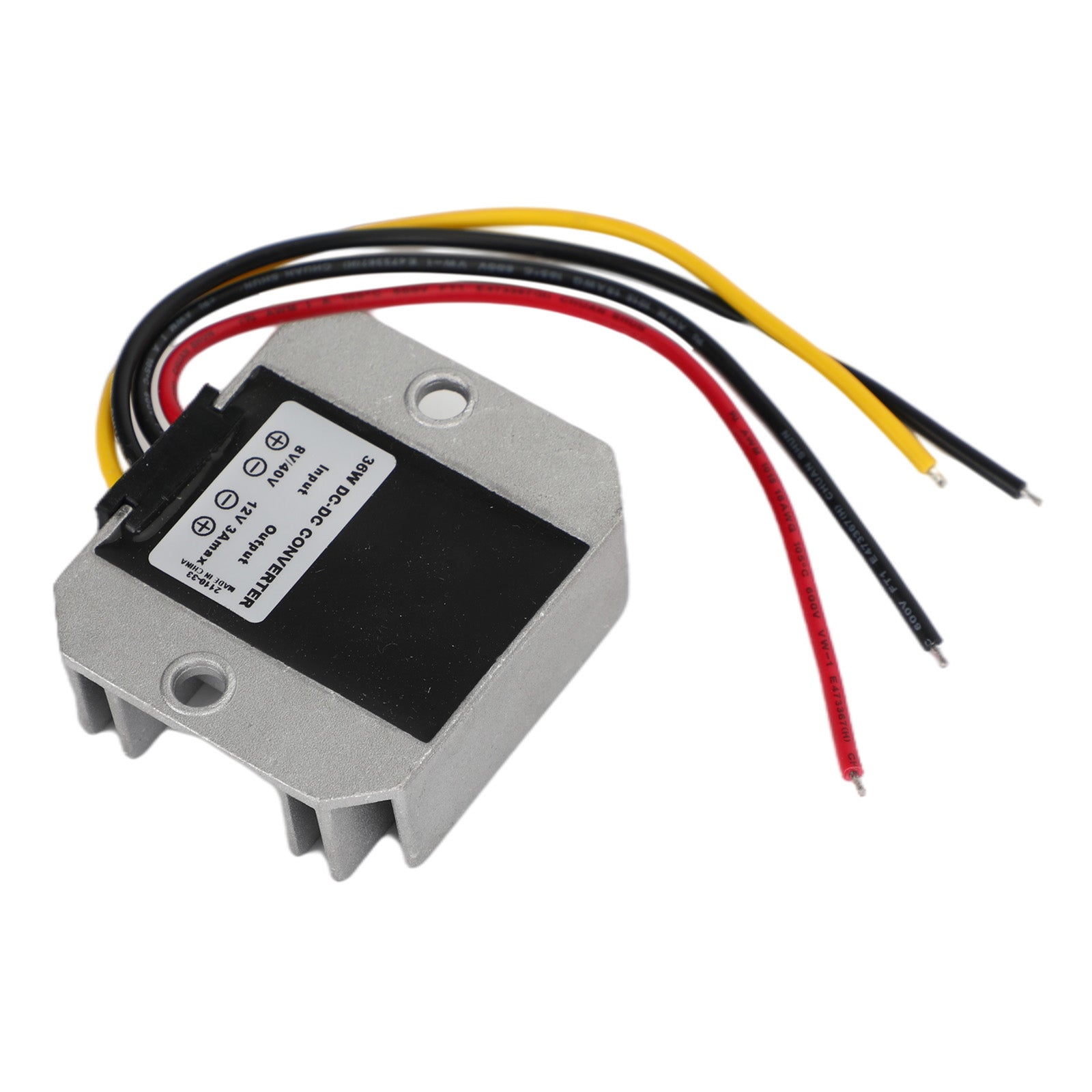

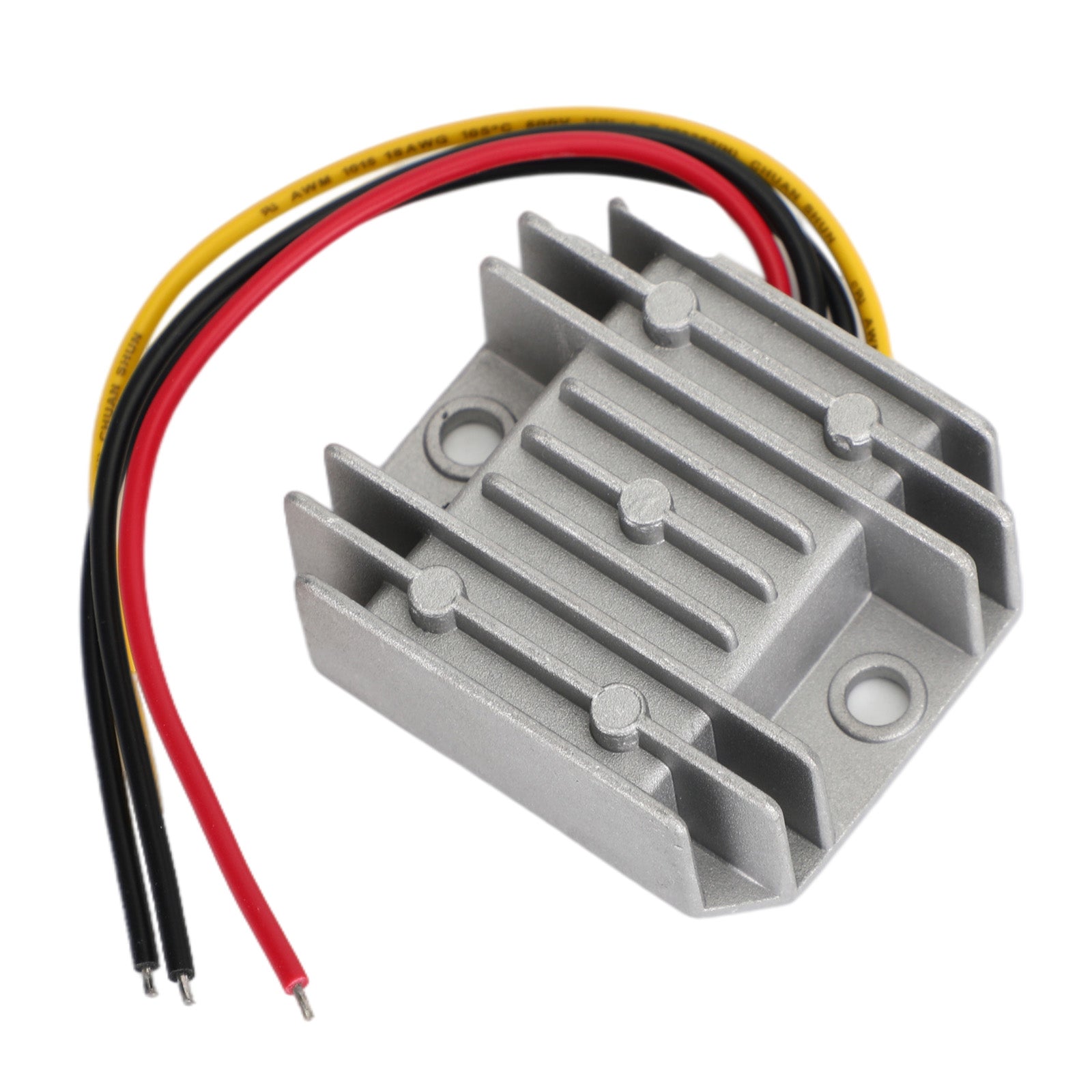

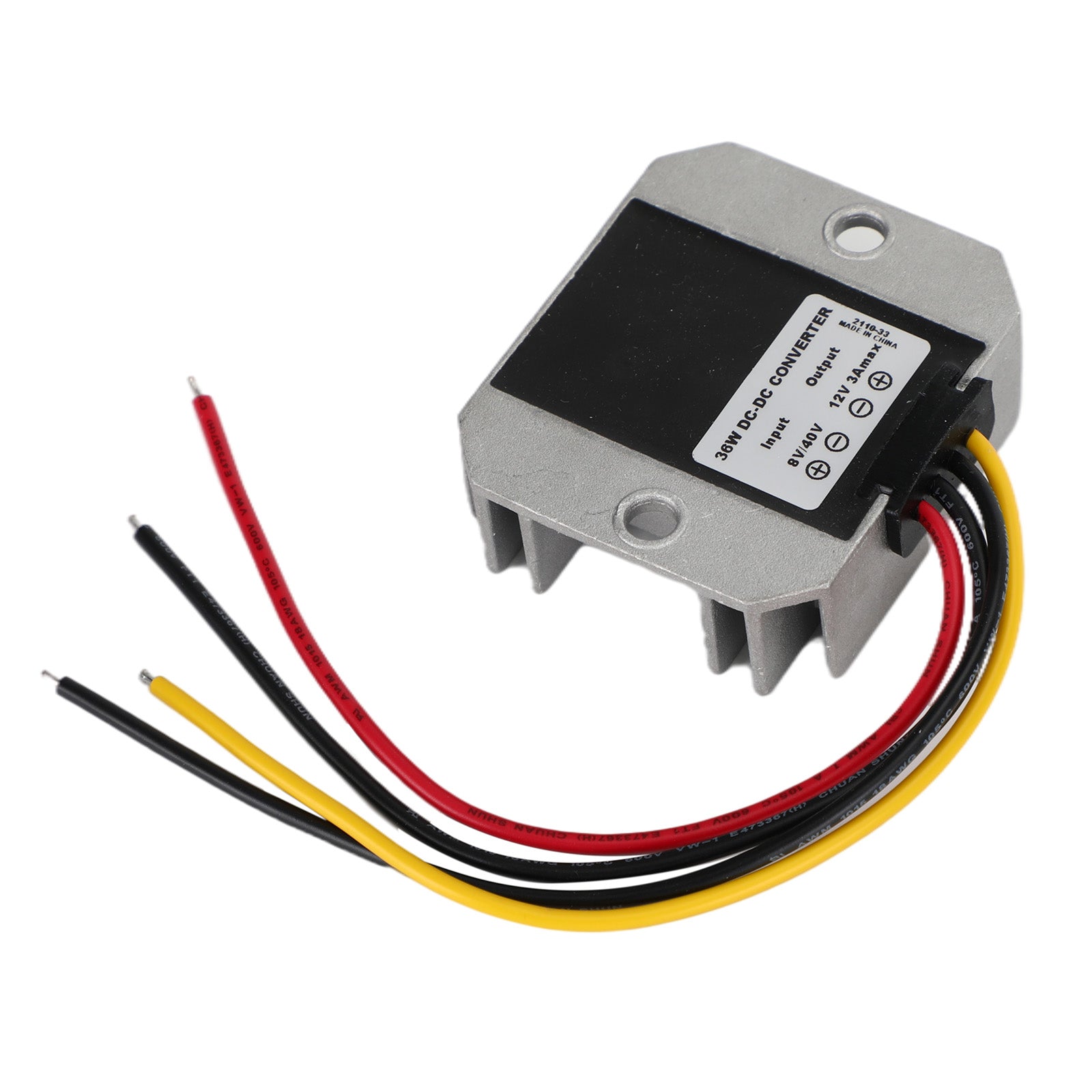

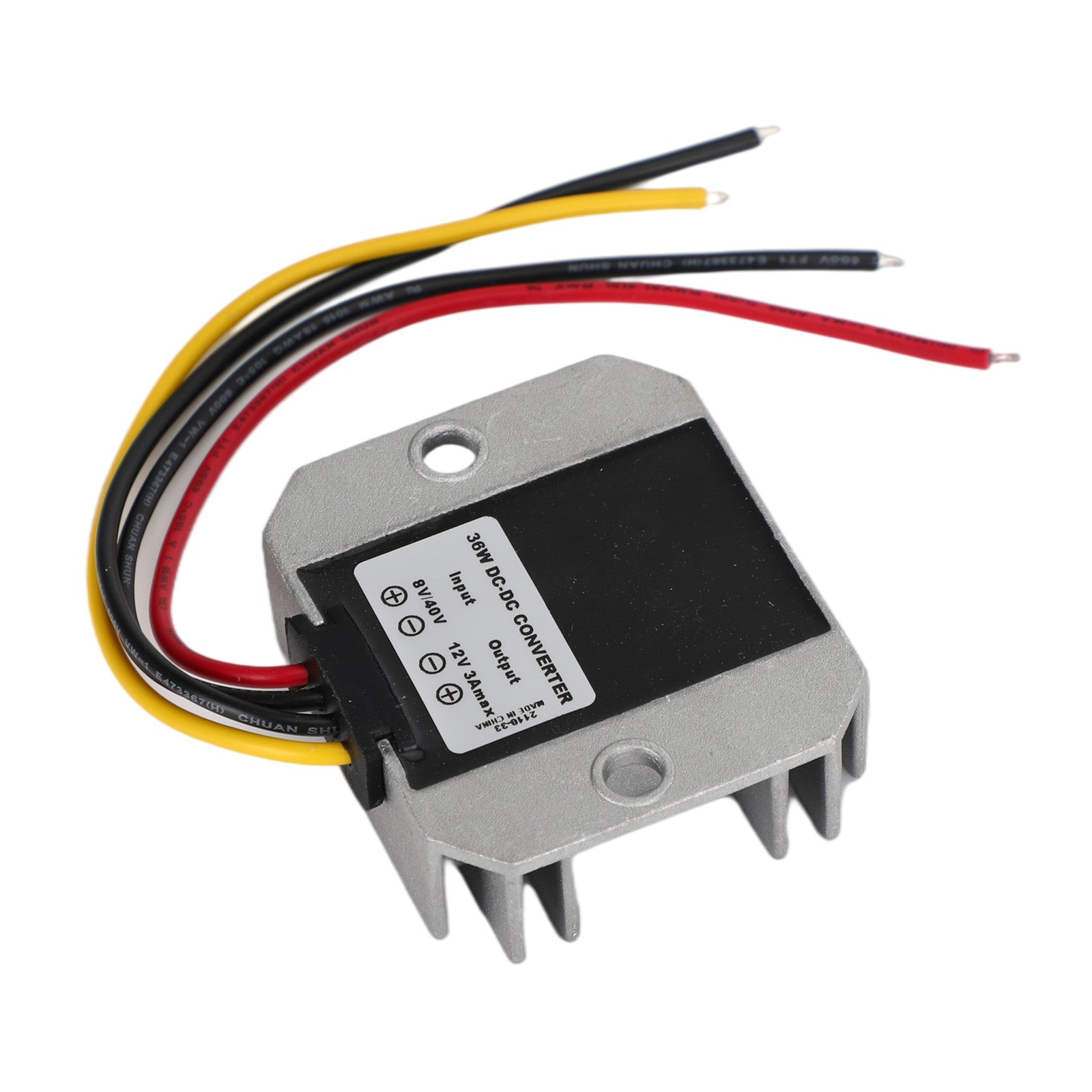

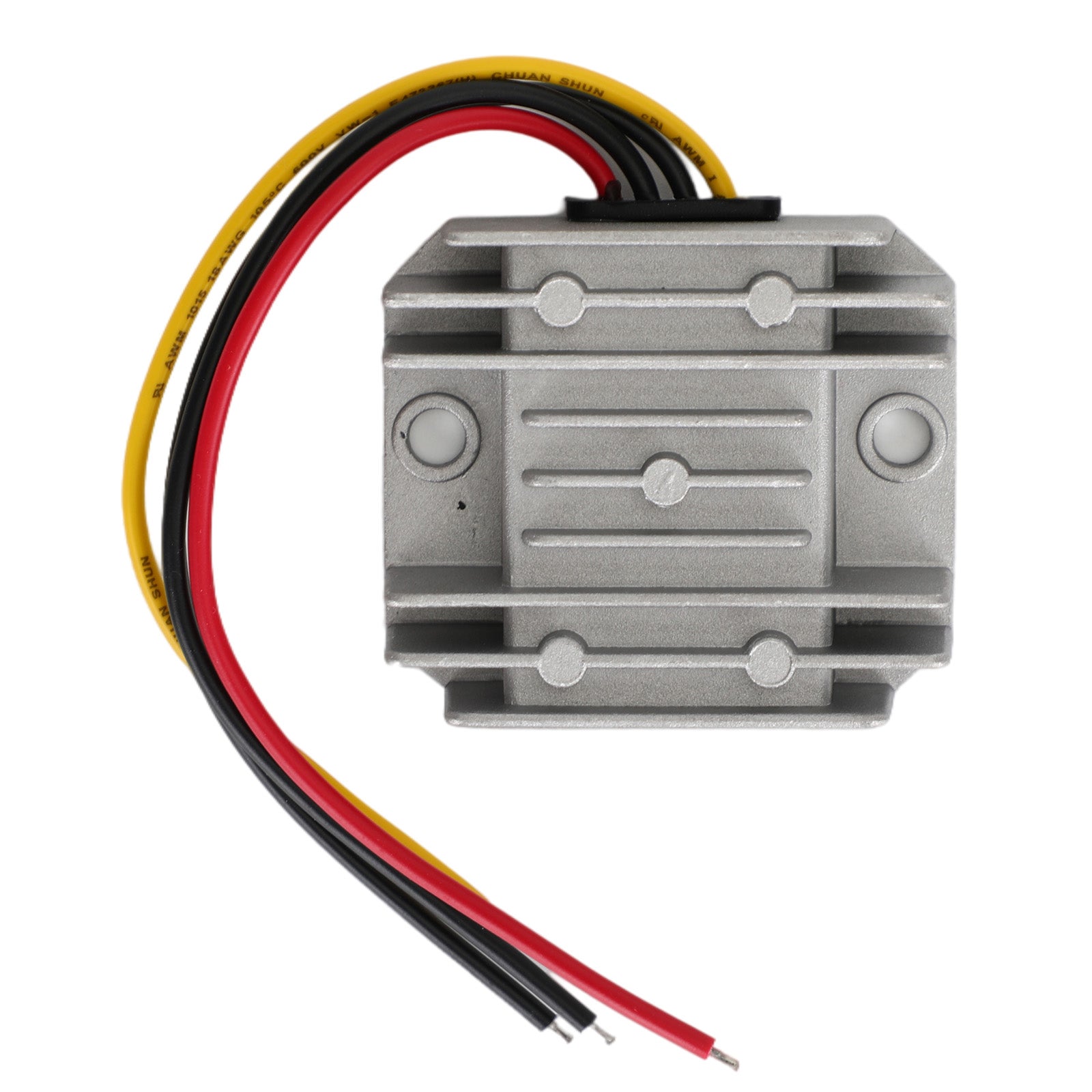

WaterProof (8V/40V to 12V 3A 36W) DC/DC Step DOWN Power Converter Regulator

Feature:
1:High quality thermal silica potting, waterproof, dust-proof, shockproof effect
2:Aluminum Outer Case material, long term stable and reliable.
3:With overvoltage,overcurrent overheating protection
4:Waterproof, Shockproof Design.
5:Easy to install.

Specifics:
Condition: 100% Brand New
Shell Material: Die-Cast Aluminum Alloy
Input voltage: DC 8V-40V
Input voltage Range: 8V - 40V
Output voltage: 12V
Output Current: 3A
Output power: 36W
Soft start time: ~500mS
Conversion efficiency: >85%
Load regulation: +/- 2%
Voltage regulation: +/- 1%

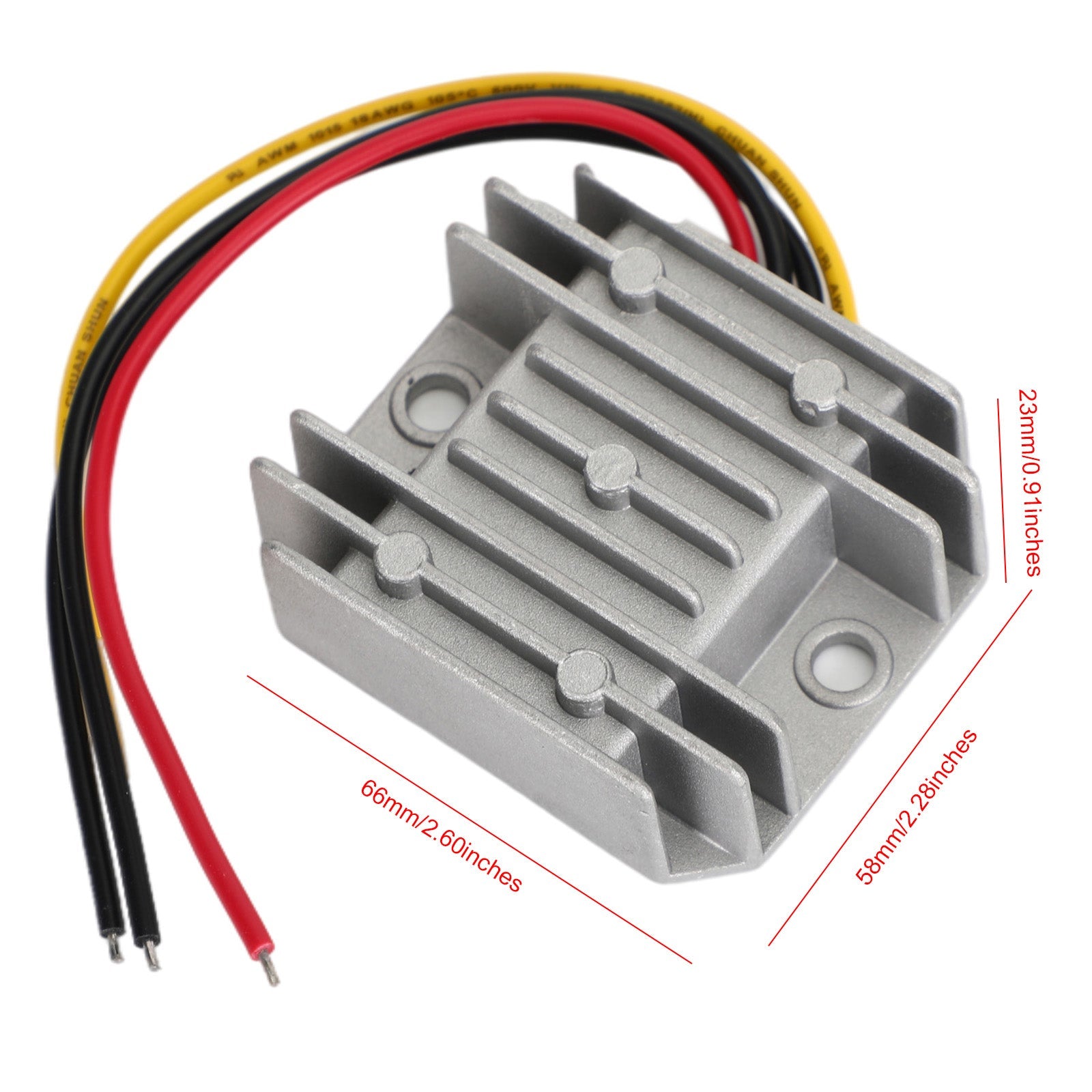

Size: 66 x 58 x 23 mm/2.60inches*2.28inches*0.91inches
Weight:approx.130g

Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
5.Please allow 1-3mm difference due to manual measurement.

Package Included:
1x DC/DC Converter Regulator
