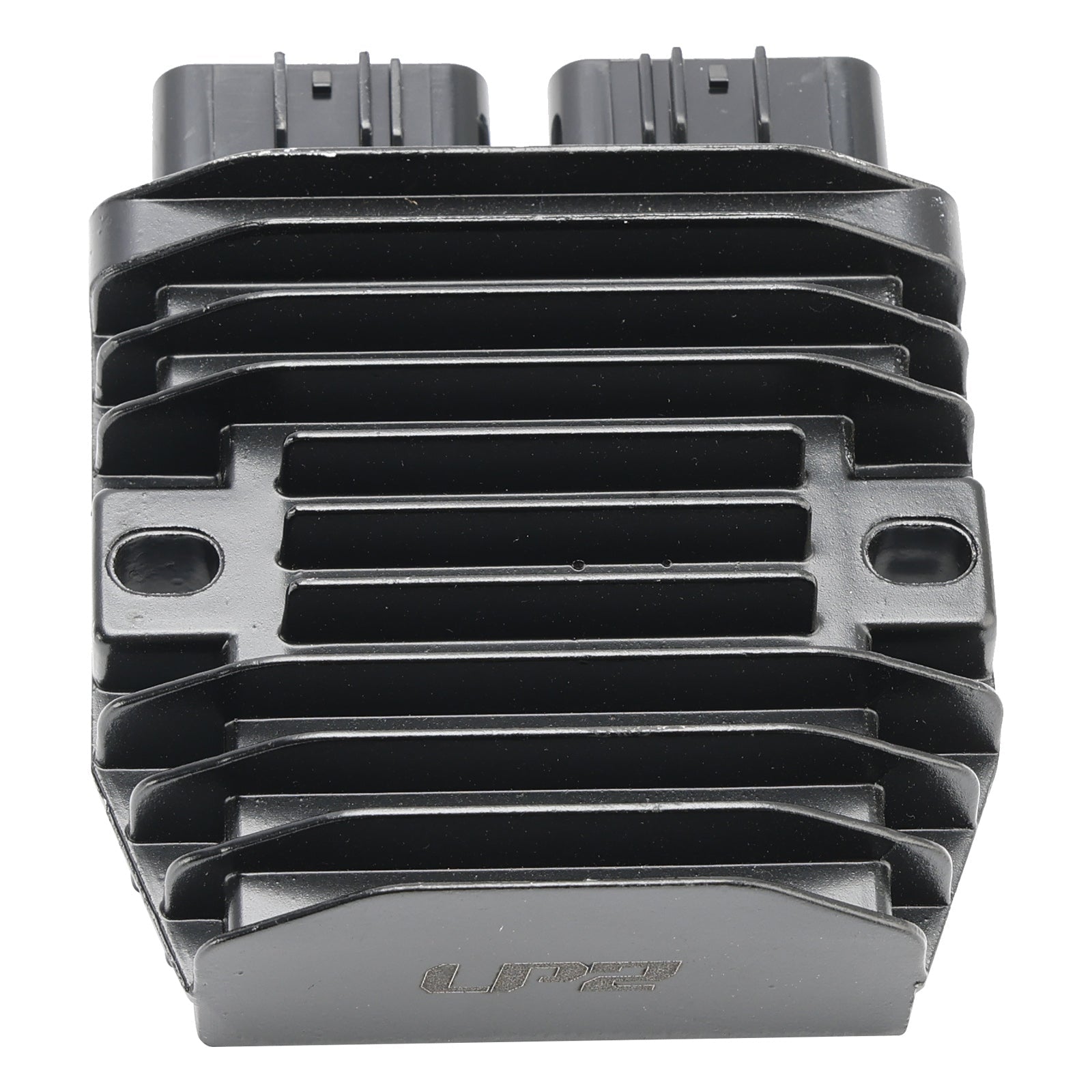

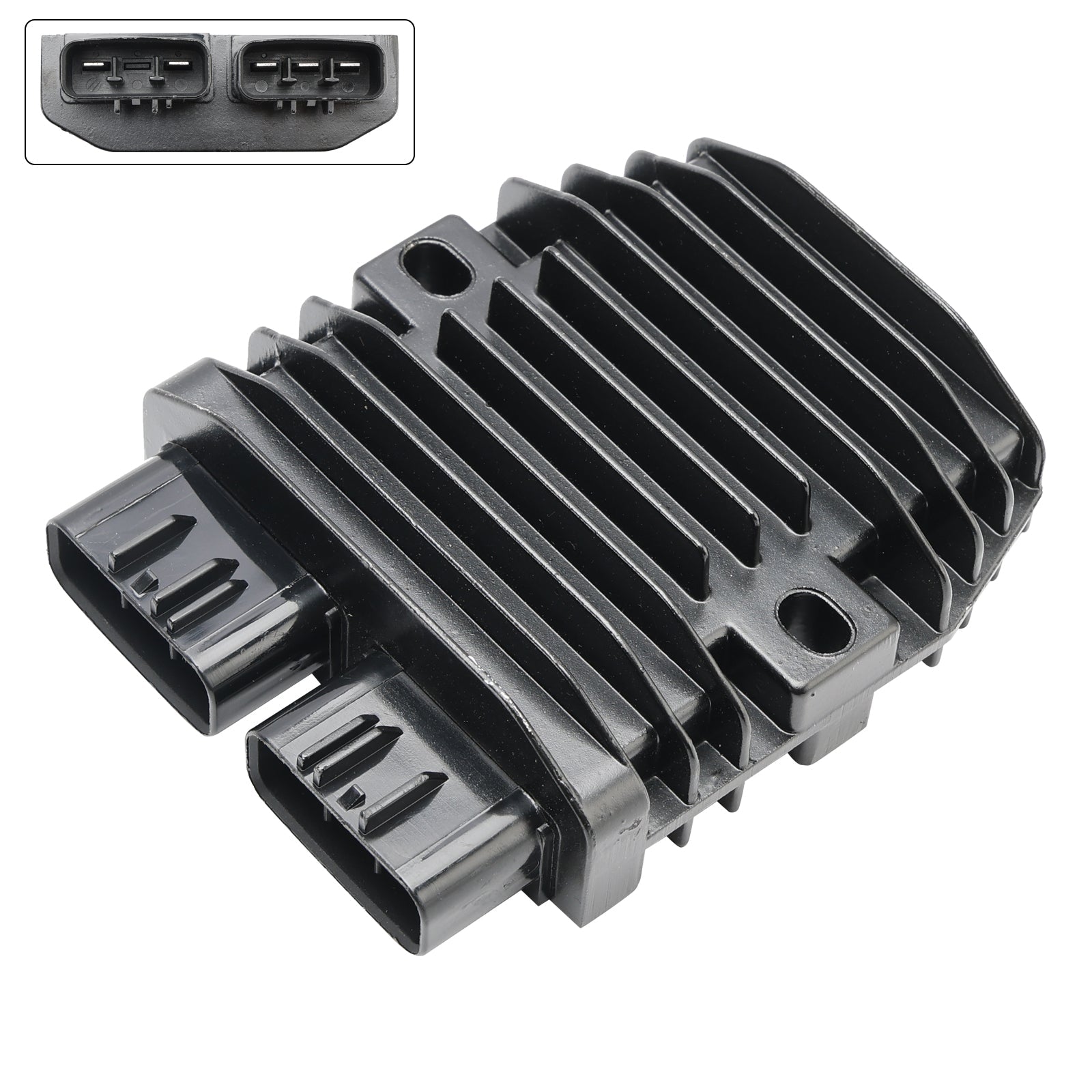

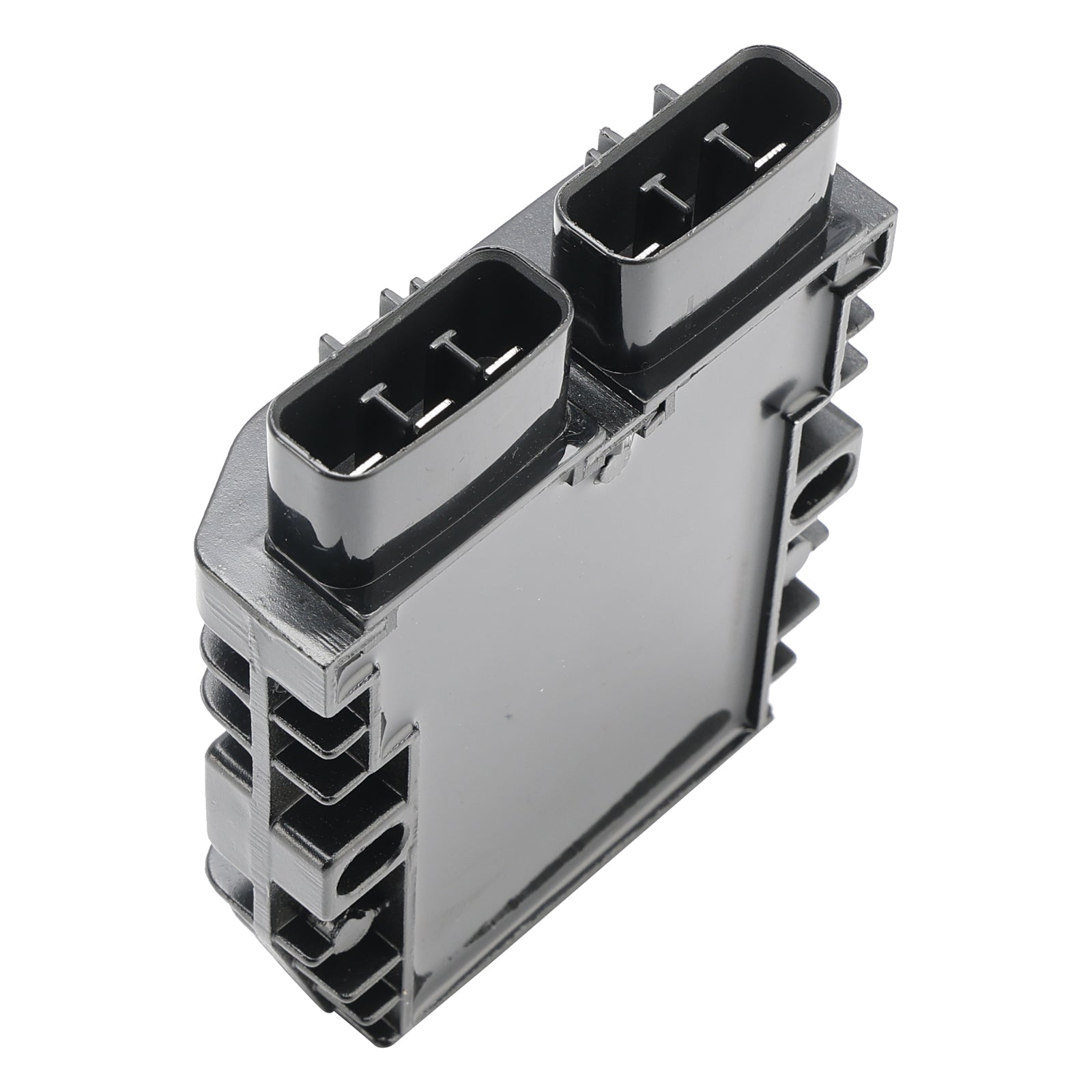

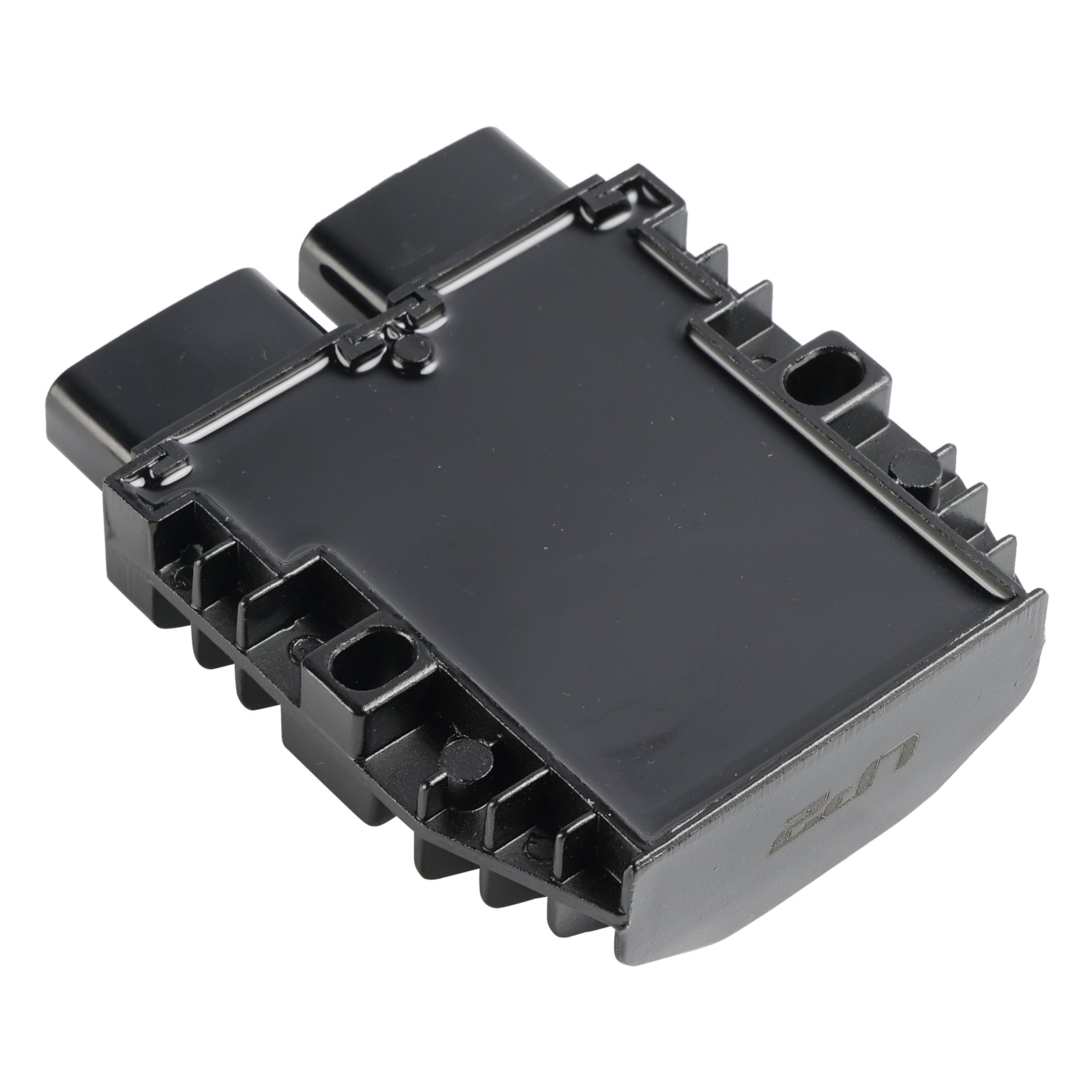

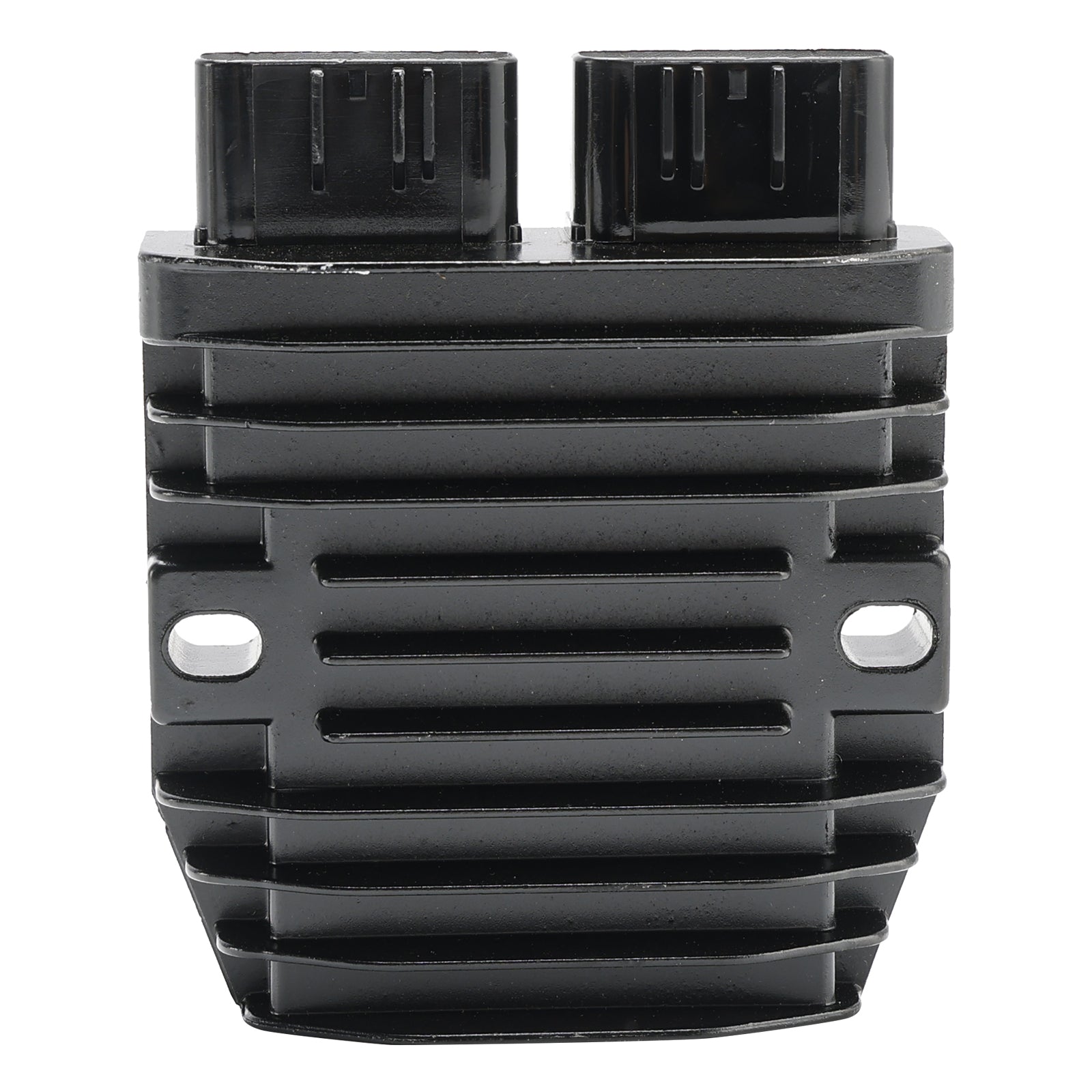

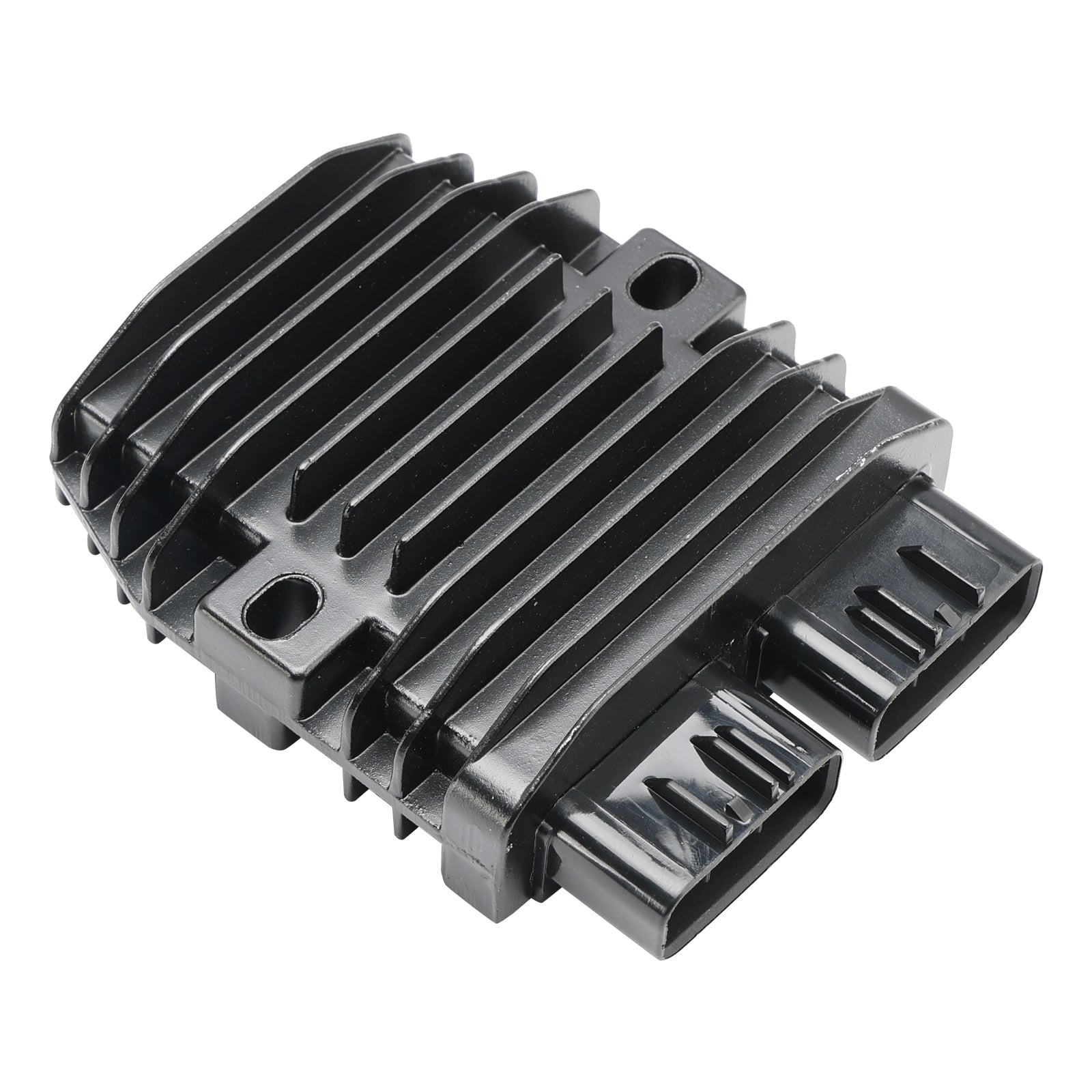

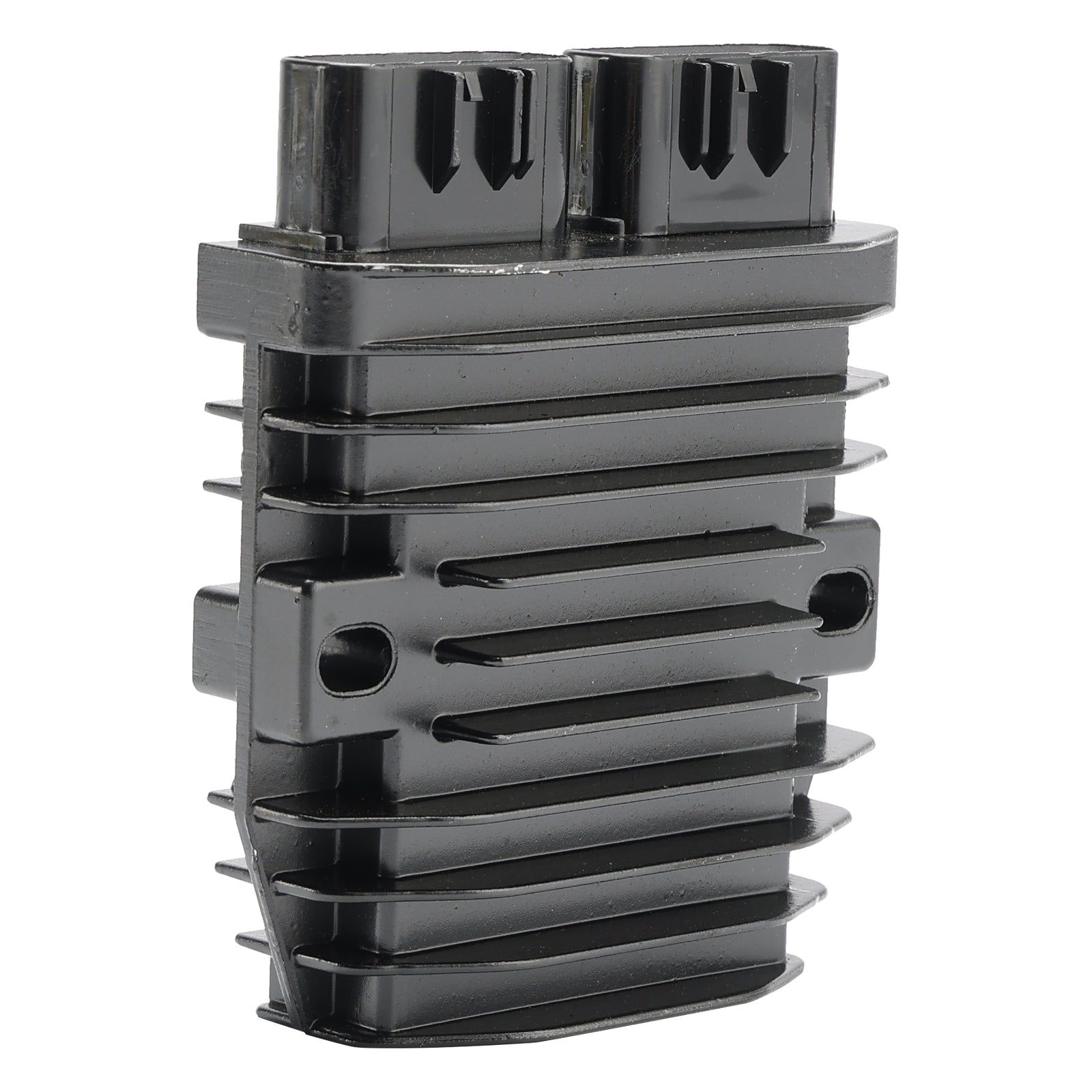

5-Pin Voltage Regulator Rectifier Fit for CFMoto UForce CForce 600 800 1000 ZForce 950 2020-2023

Features:
OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
All products shipped are tested.
Instruction is NOT included.

Attention:
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Regulator / Rectifier

Size(approx):
Regulator Size: 119mm x 132mm
Mount spacing Hole: 101mm
Plug Size: 41.5mm x 11.7mm
Spacing between plug and plug: approx. 4.5mm

Please check and see if your original plug as same as our, there are multi-version, make sure this is what you want.
Check the spacing between the plug and the plug, our's about 6.5mm, that will NOT fit if yours spacing much longer or shorter than us.

Other specifications:

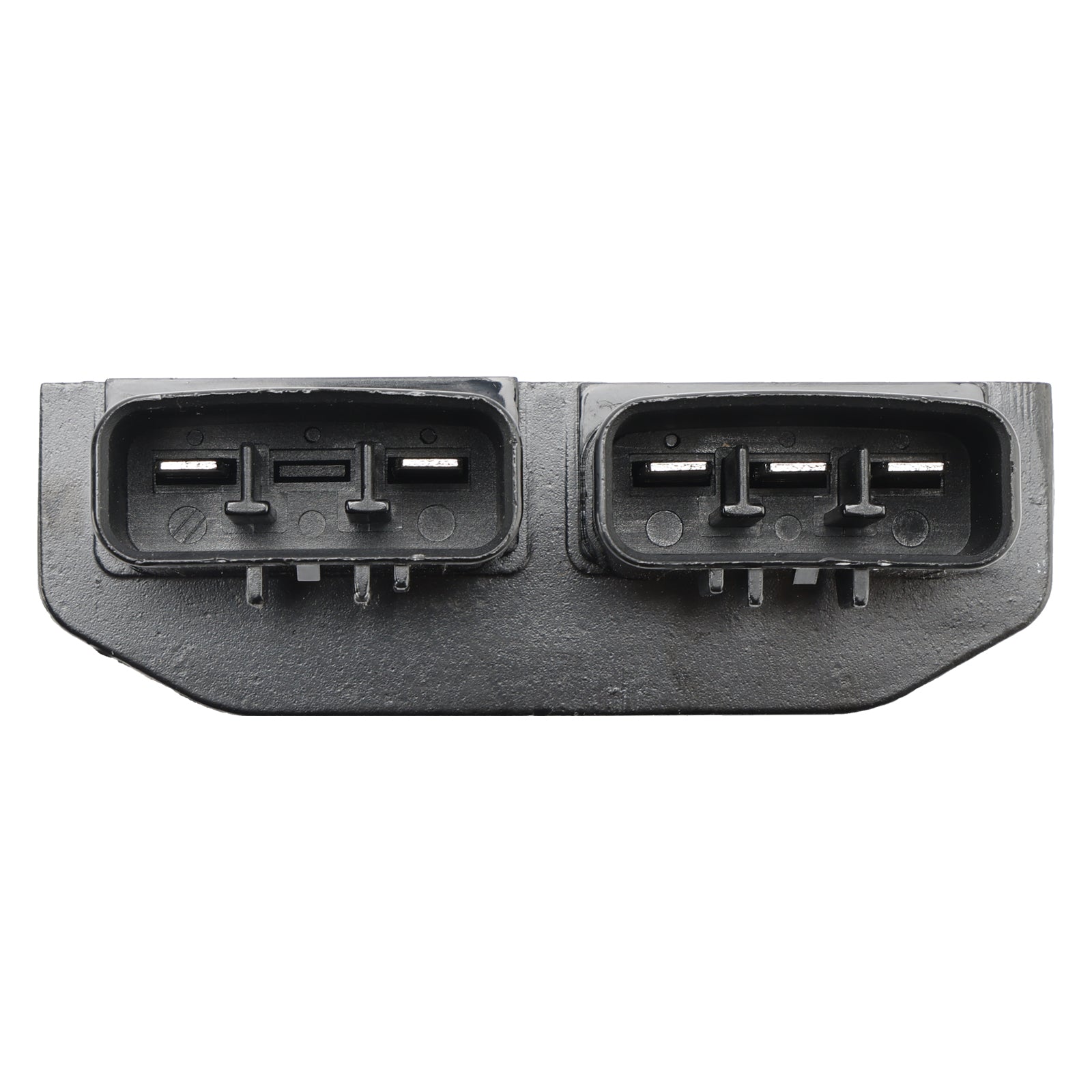

Number of plugs: 2
Number of pins: 2 + 3

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
103008120000
0800-177000-30000

(Use the part number to verify fitment to your application. )

Fits Make/Model:
103008120000
Fit for Massimo UTV WARRIOR 1000 MXD
Fit for Massimo UTV WARRIOR 1000 MXD CREW

0800-177000-30000
Fit for CFMoto UFORCE 600 2021-2022
Fit for CFMoto UFORCE 600 CF600UU 2022
Fit for CFMoto CFORCE 600 CF600AU-3S 2020-2022
Fit for CFMoto CFORCE 600 Touring CF600AU-3L 2020-2022
Fit for CFMoto CFORCE 800 XC CF800AU-2A 2021-2022
Fit for CFMoto ZFORCE 800 Trail CF800SZ-2 2023
Fit for CFMoto ZFORCE 950 HO EX CF1000SZ-D 2022
Fit for CFMoto ZFORCE 950 HO Sport CF1000SZ-E 2022-2023
Fit for CFMoto ZFORCE 950 Sport CF1000US-A 2020-2022
Fit for CFMoto ZFORCE 950 Sport (G2) CF1000SZ-3A 2023
Fit for CFMoto ZFORCE 950 Trail (G2) CF1000SZ-3 2023
Fit for CFMoto CFORCE 1000 2021
Fit for CFMoto CFORCE 1000 Overland CF1000AU 2022
Fit for CFMoto UFORCE 1000 CF1000UU 2021-2022
Fit for CFMoto UFORCE 1000 XL CF1000UZ-2 2022

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x 5-Pin Regulator Rectifier

Note:
Signs that your regulator needs replacing:
Depending on the location of the regulator rectifier, the part can easily overheat. Other causes for a dead regulator rectifier center on the battery. Ground connections are important for good voltage, and if there is a faulty voltage, the regulator rectifier can run hot. Bad grounding, corroded battery connection and poor or loose battery connections will cause faulty voltage too.

There are generally two ways for the regulator rectifier to fail:
The first deals with diode burnout, resulting in battery drain. It is easy to assume that the issue is a bad battery because of symptoms such as dimming headlights and poor starts. Checking the voltage with a voltmeter versus relying on symptoms alone will prove highly beneficial. If the voltage drops below 13 volts, the motorcycle will begin to drain the battery and eventually the engine will stop. Check for bad connections and corrosion; these can also cause voltage issues.
The other failure type is shunt regulator burnout, where the regulator rectifier fails to control the voltage, resulting in battery overcharge. Again, a voltmeter will be useful for diagnosis. Though generally, readings above 17 volts mean the regulator rectifier is not converting the excess power correctly and all of that excess voltage may cause the headlights to become extremely bright and then blow.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
