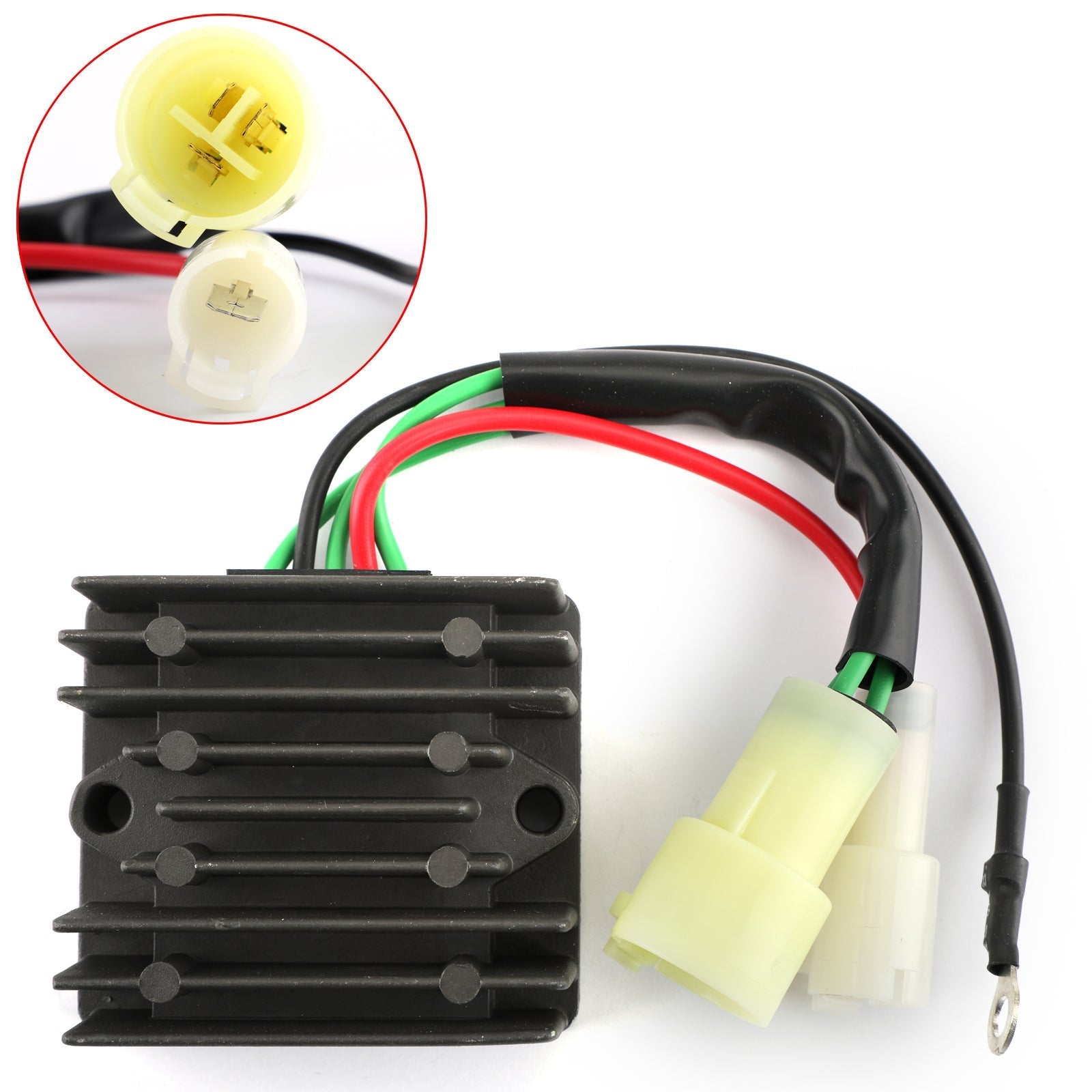

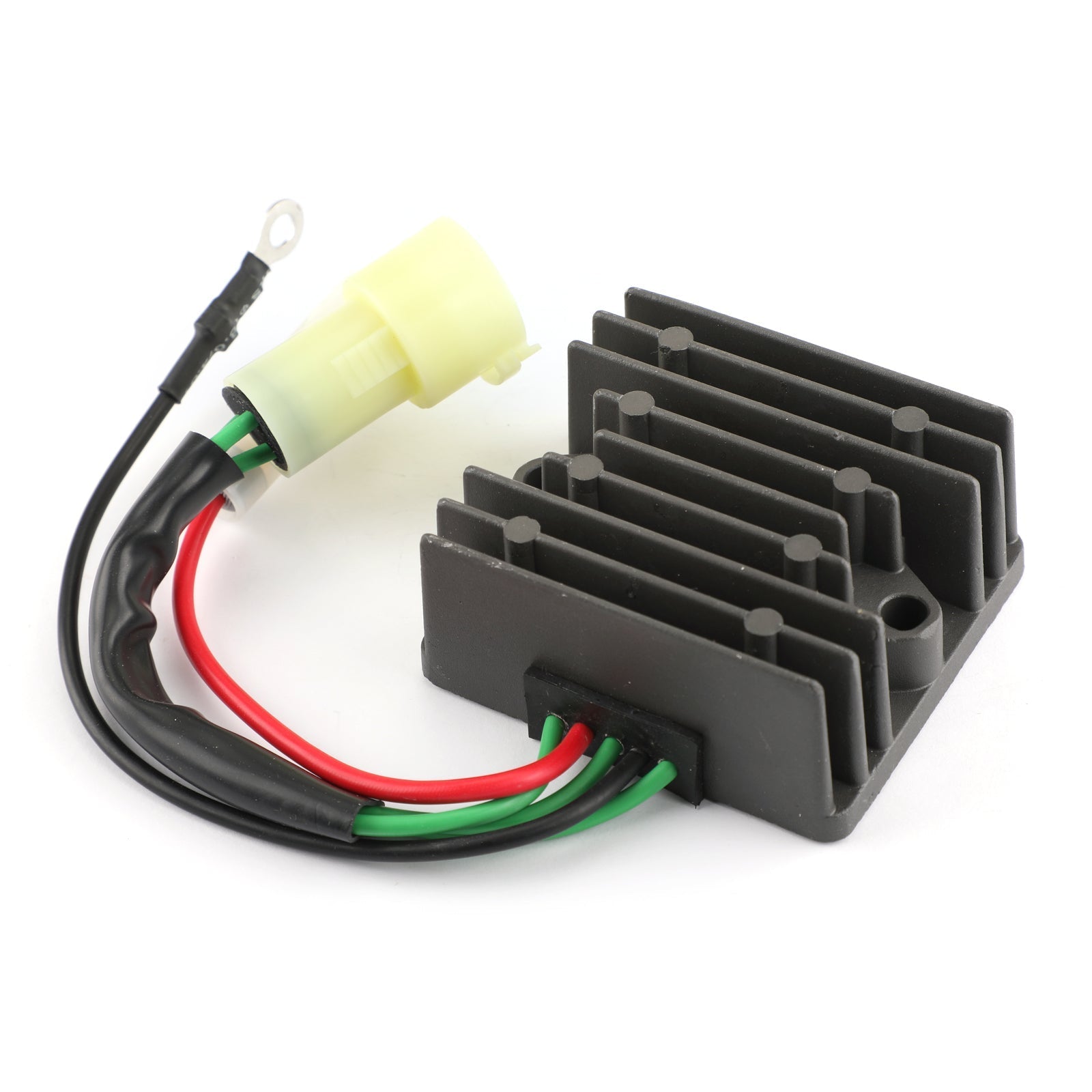

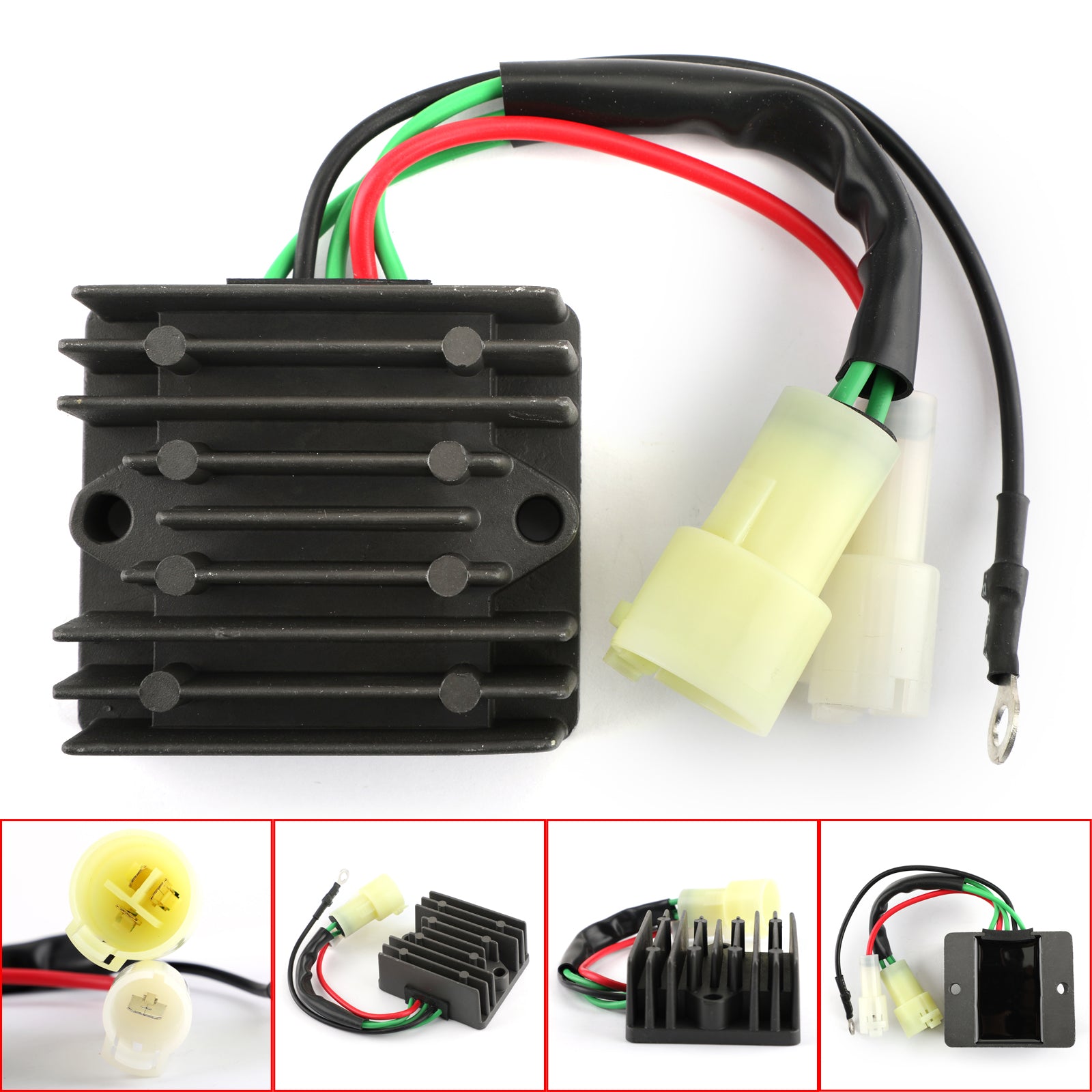

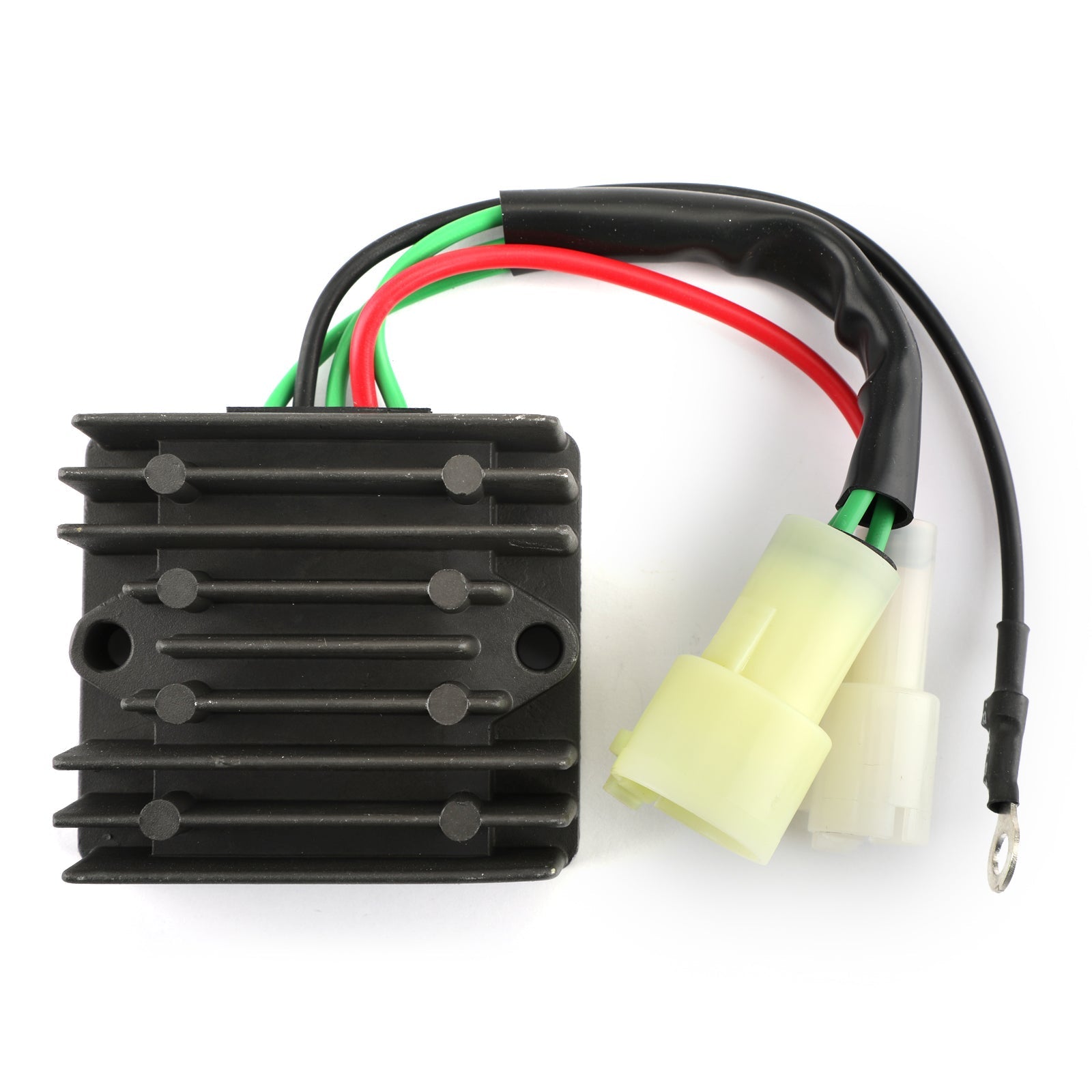

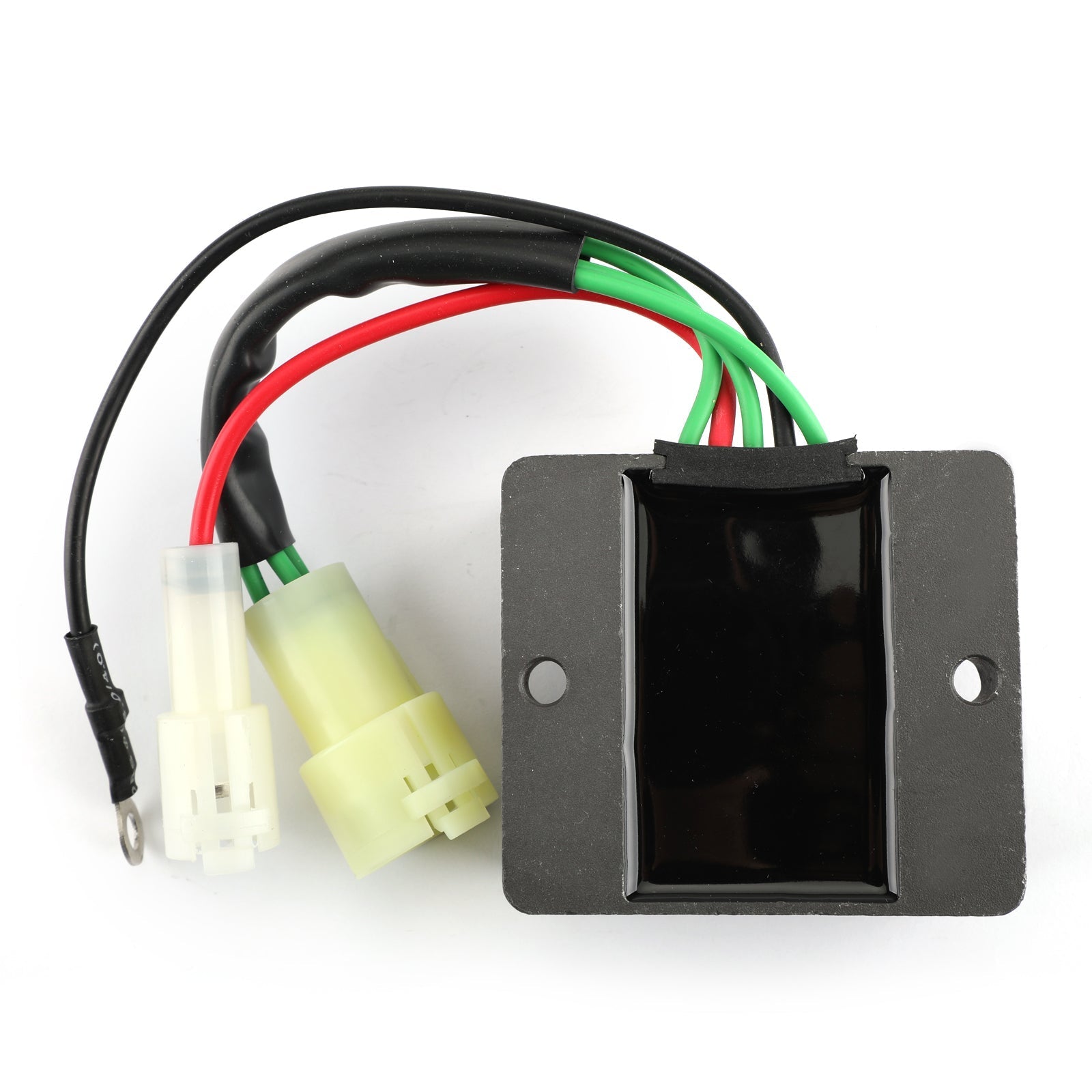

Voltage Regulator Rectifier For Yamaha Outboard 115-225 HP 197-0001 6R3-81960-10-00 6R3-81960-00-00

FEATURES:
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required.
Higher grade of electric components.

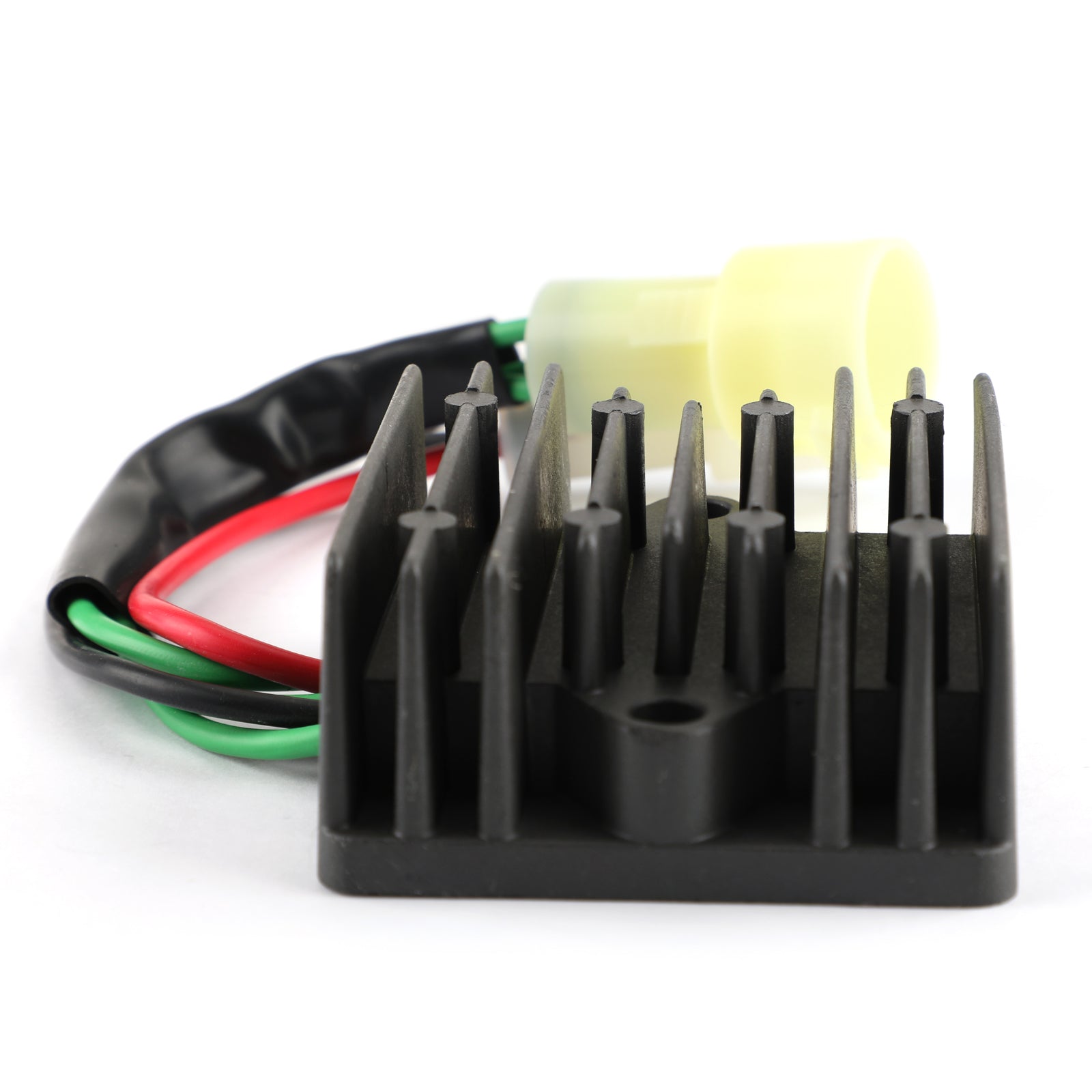

Improved heat sink and charging capabilities.
The quality exceeds or meet the OEM equipment.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator Rectifier
Replacement Part Number/(MPN): 6R3-81960-10,6R3-81960-00

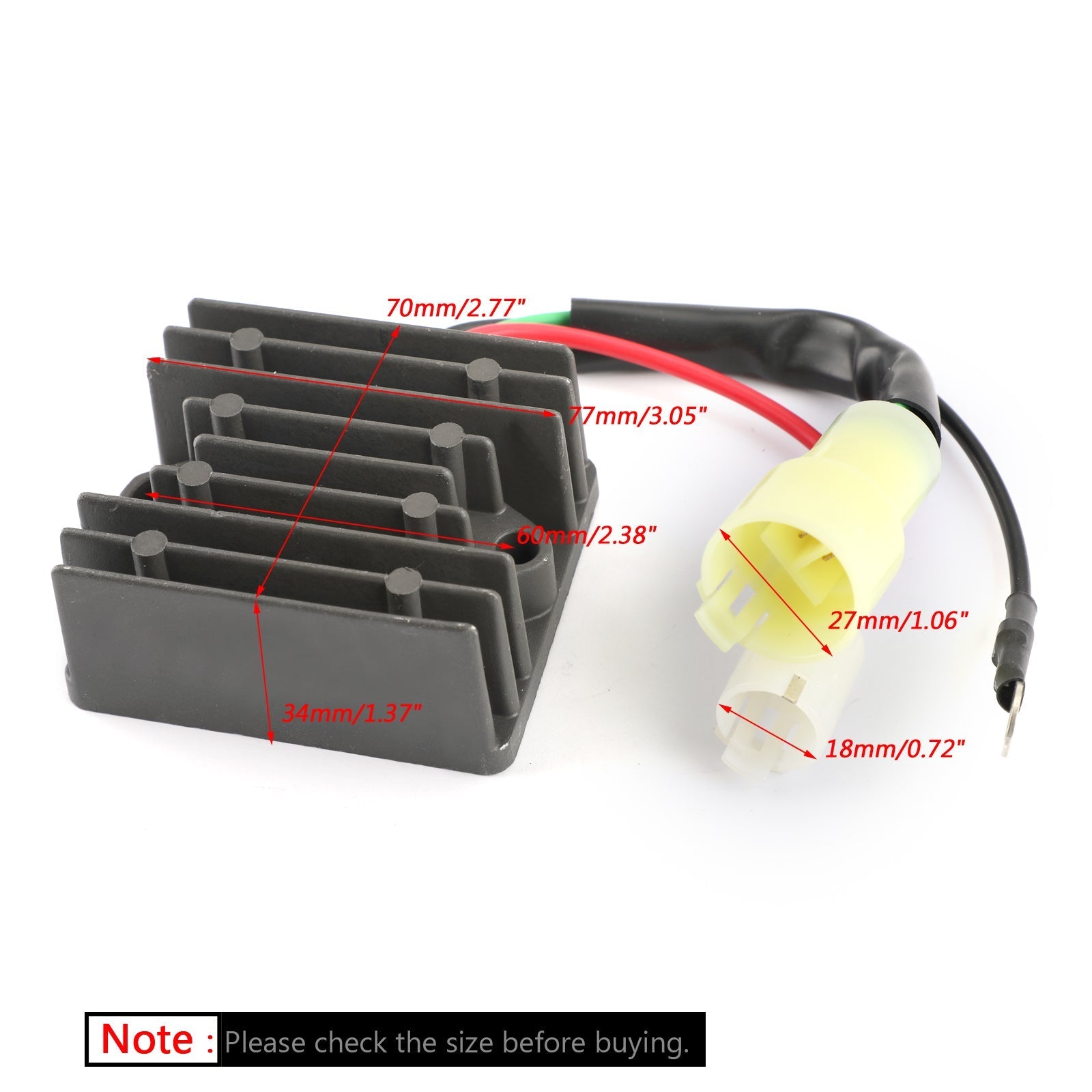

Dimensions :
Width : 70mm/2.77"
Length : 77mm/3.05"
Height: 34mm/1.37"
Fixation holes center to center : 60mm/2.38"

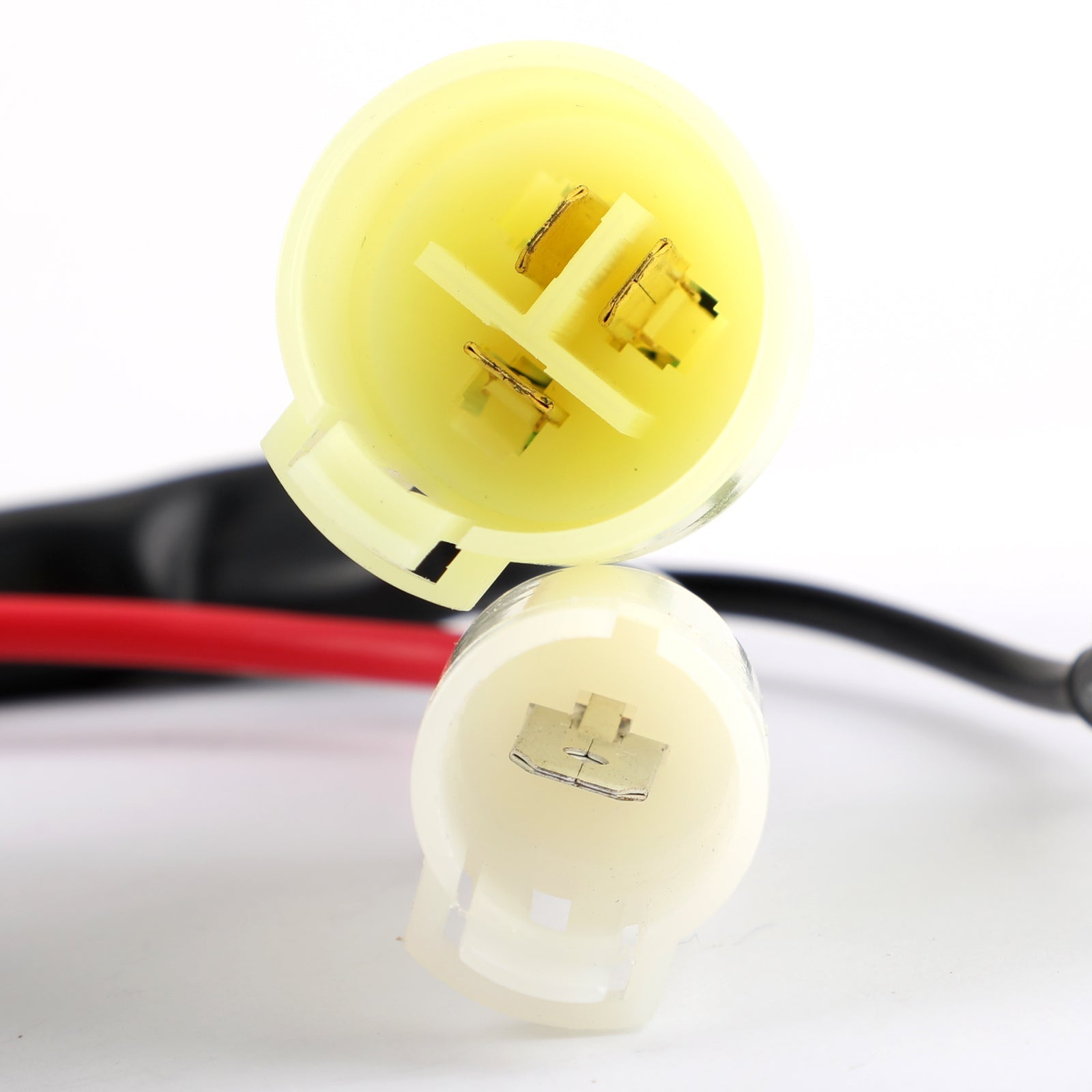

Number of plug interface pins: 5
Number of Plug:2(+1)
Number of Wires:5

Plug's Length(Long Wires One):27mm/1.06"
Plug's Width(Long Wires One):27mm/1.06"

Plug's Length(Short Wires One):18mm/0.72"
Plug's Width(Short Wires One):18mm/0.72"

FITMENT:
For Yamaha 115 TLR 1991-1998/2000-2006
For Yamaha 130 TLR 1991-2005
For Yamaha 115 TXR 1991-1995/2000-2006
For Yamaha 115 TJR 1991-2001
For Yamaha 150 TXR 1991-1994/2000-2006
For Yamaha L130 TXR 1991-2001
For Yamaha 130 TXR 1991-1995/2000-2004
For Yamaha 150 TLR 1991-19982000
For Yamaha L150 TXR 1991-1999
For Yamaha L200 TXR 1991-1999
For Yamaha P150 TLR 1991-1999
For Yamaha P200 TLR 1991-1999
For Yamaha 200 TLR 1991-1998
For Yamaha V150 TLR 2000-2006
For Yamaha 150 TJR 1994-1997/1999-2000
For Yamaha 175 TLR 1991-1995/2000
For Yamaha 175 TXR 1991-1995/2000
For Yamaha 225 TLR 1991-1993/1995-1997
For Yamaha P175 TLR 1994-1999
For Yamaha 200 TXR 1991-1995
For Yamaha ETX 25 in. 200 HP 1990
For Yamaha L150 ETX 1990
For Yamaha L200 ETX 1990
For Yamaha P115 TLR 1993-1996
For Yamaha Pro-V 150 L 1990
For Yamaha S115 TLR 1996-1999
For Yamaha S115 TXR 1996-1999
For Yamaha S130 TLR 1996-1999
For Yamaha S130 TXR 1996-1999
For Yamaha S150 TLR 1996-1999
For Yamaha S150 TXR 1996-1999
For Yamaha S175 TXR 1996-1999
For Yamaha S200 TXR 1996-1999
For Yamaha 130 ETL 1990
For Yamaha 200 TJR 1991-1992/1995
For Yamaha 225 TXR 1991-1993
For Yamaha D150 TLR 1997-1999
For Yamaha 115 TRR 1993
For Yamaha 130 TRR 1993
For Yamaha 225 ETL 1990
For Yamaha C115 TLR 2000
For Yamaha C115 TXR 2000
For Yamaha L130 ETX 1990
For Yamaha L130 TLR 1991
For Yamaha P115 TRS 1994
For Yamaha V175 TLR 2000
For Yamaha B115 TLR 1998-1999

PACKAGE INCLUDED:
1x Voltage Regulator Rectifier

NOTICE:
Before installing your new voltage regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
