Voltage Regulator Rectifier For Yamaha TZR125 '87-'94 RD125LC '82-'84 RZ125 SR125 SR185 '81-'98 5H0-81960-A0

FEATURES:
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required.
Higher grade of electric components.
Improved heat sink and charging capabilities.
The quality exceeds or meet the OEM equipment.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator Rectifier
Replacement Part Number/(MPN): 5H0-81960-A0

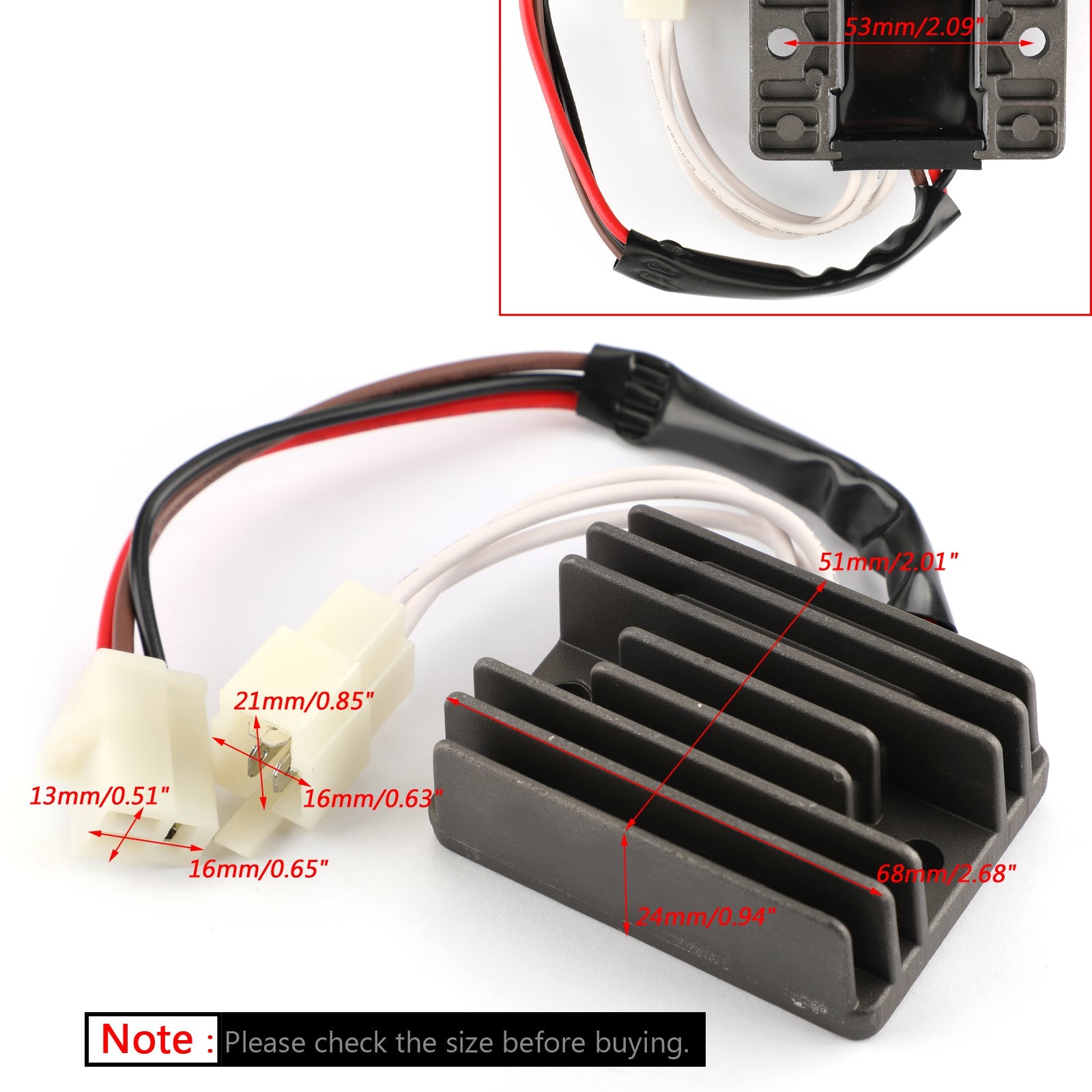

Dimensions :
Width : 51mm/2.01"
Length : 68mm/2.68"
Height: 24mm/0.94"
Fixation holes center to center : 53mm/2.09"

Number of plug interface pins: 6
Number of Plug:2

Plug's Length(Long Wires One):16mm/0.65"
Plug's Width(Long Wires One):13mm/0.51"

Plug's Length(Short Wires One):21mm/0.85"
Plug's Width(Short Wires One):16mm/0.63"

FITMENT:
For Yamaha TZR125 1987-1994
For Yamaha RD125LC 1982-1984
For Yamaha RZ125 1982-1985
For Yamaha SR125 1987-1998
For Yamaha SR185 1981-1982

PACKAGE INCLUDED:
1x Voltage Regulator Rectifier

NOTICE:
Before installing your new voltage regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
