Cylinder Jug Fit for Honda 05-11 TRX500 Foreman FPE FPM FE FM TM Piston Rings Gasket Top End Kit

Features:
Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 92.00mm.
All of the components within this kit are bolt-on ready for a hassle free installation.

Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 475cc
Bore Size: STD 92 mm
Piston diameter: 91.96 mm
Piston height: 59.23 mm
Piston pin diameter: 20 mm
Piston pin height: 62 mm

Replaces Part Number:
Cylinder: 12100-HP0-A00
Cylinder Base Gasket: 12191-HP0-A00
Cylinder Head Gasket: 12251-HP0-A00
Cylinder Head Cover Gasket: 12315-HP0-A00
Ring Set: 13010-HP0-A01
Pin, Piston: 13111-HN2-000

Fitment:
Fit for Honda 2005-2011 TRX500FM/FE Fourtrax Foreman 4x4/S/ES
Fit for Honda 2007-2011 TRX500FPE/FPM Fourtrax Foreman 4x4/ES/EPS
Fit for Honda 2005-2006 TRX500TM Fourtrax Foreman 2x4

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

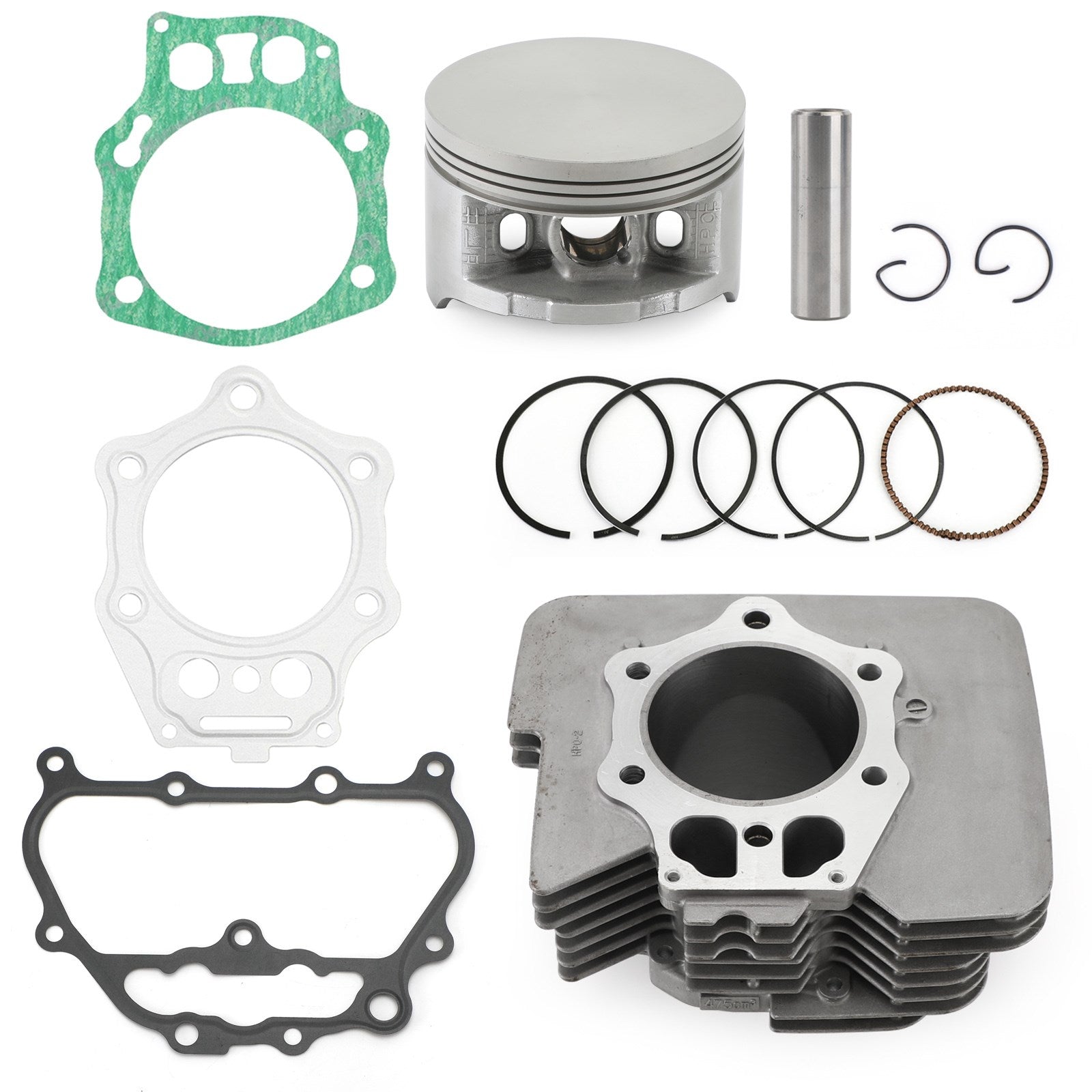

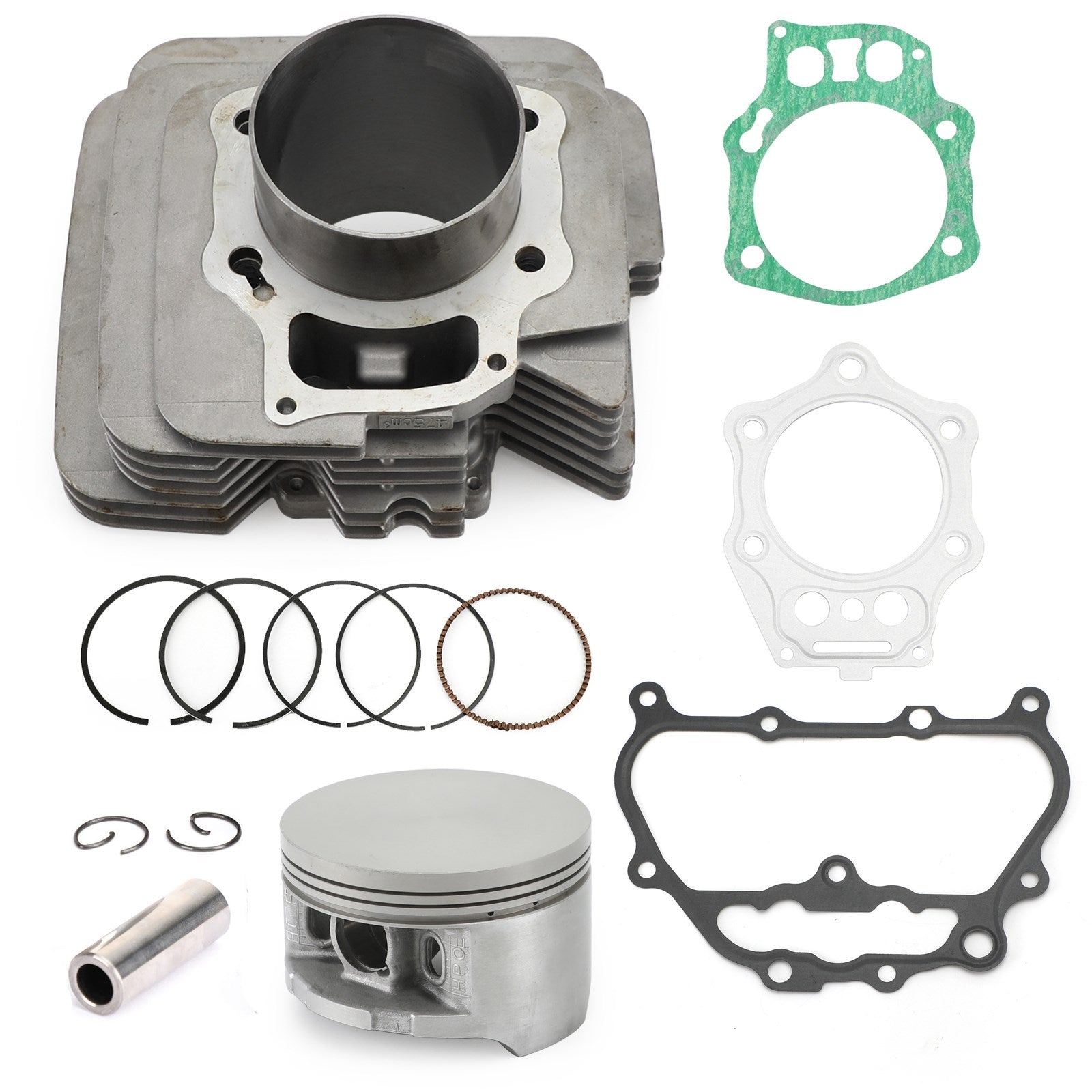

Package Includes:

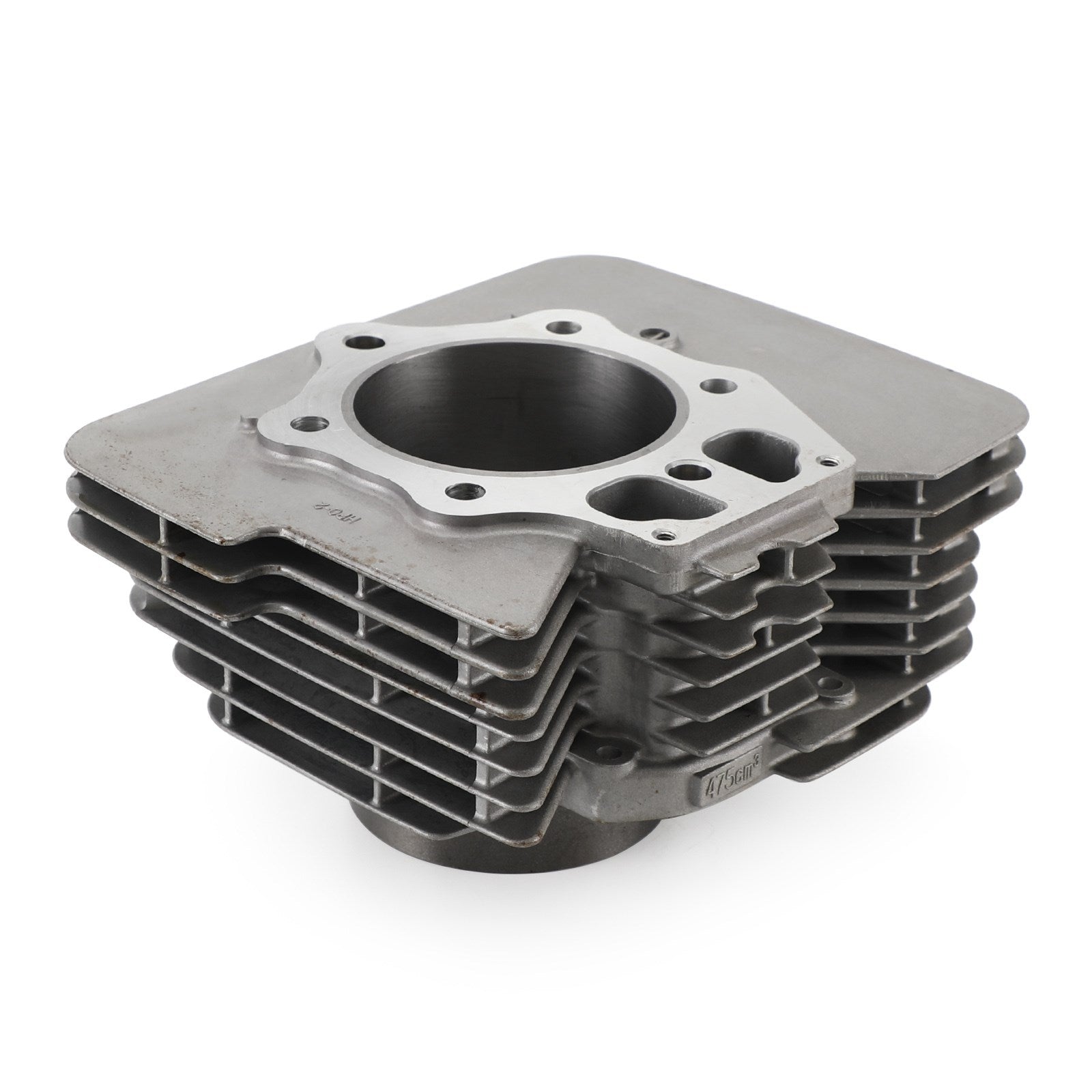

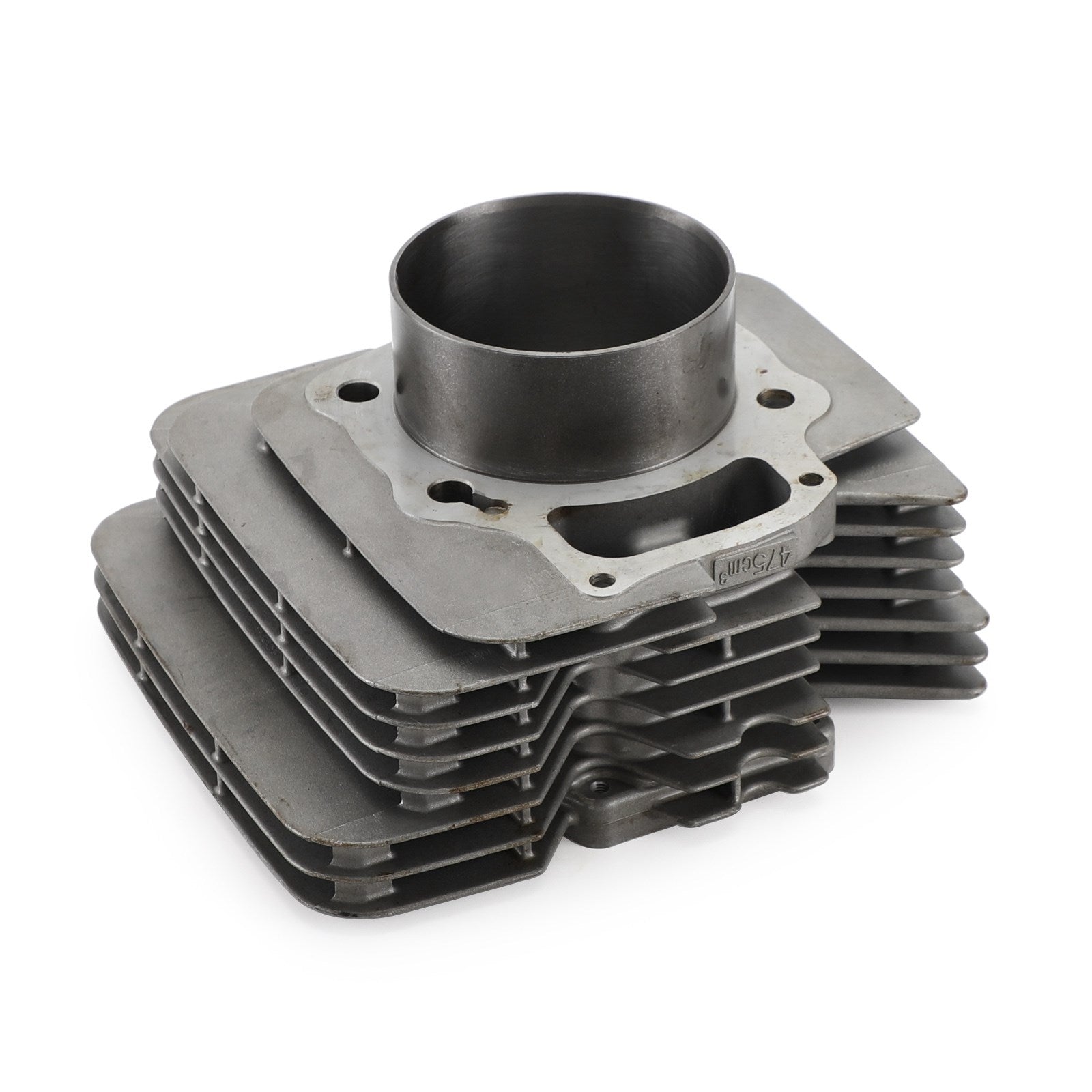

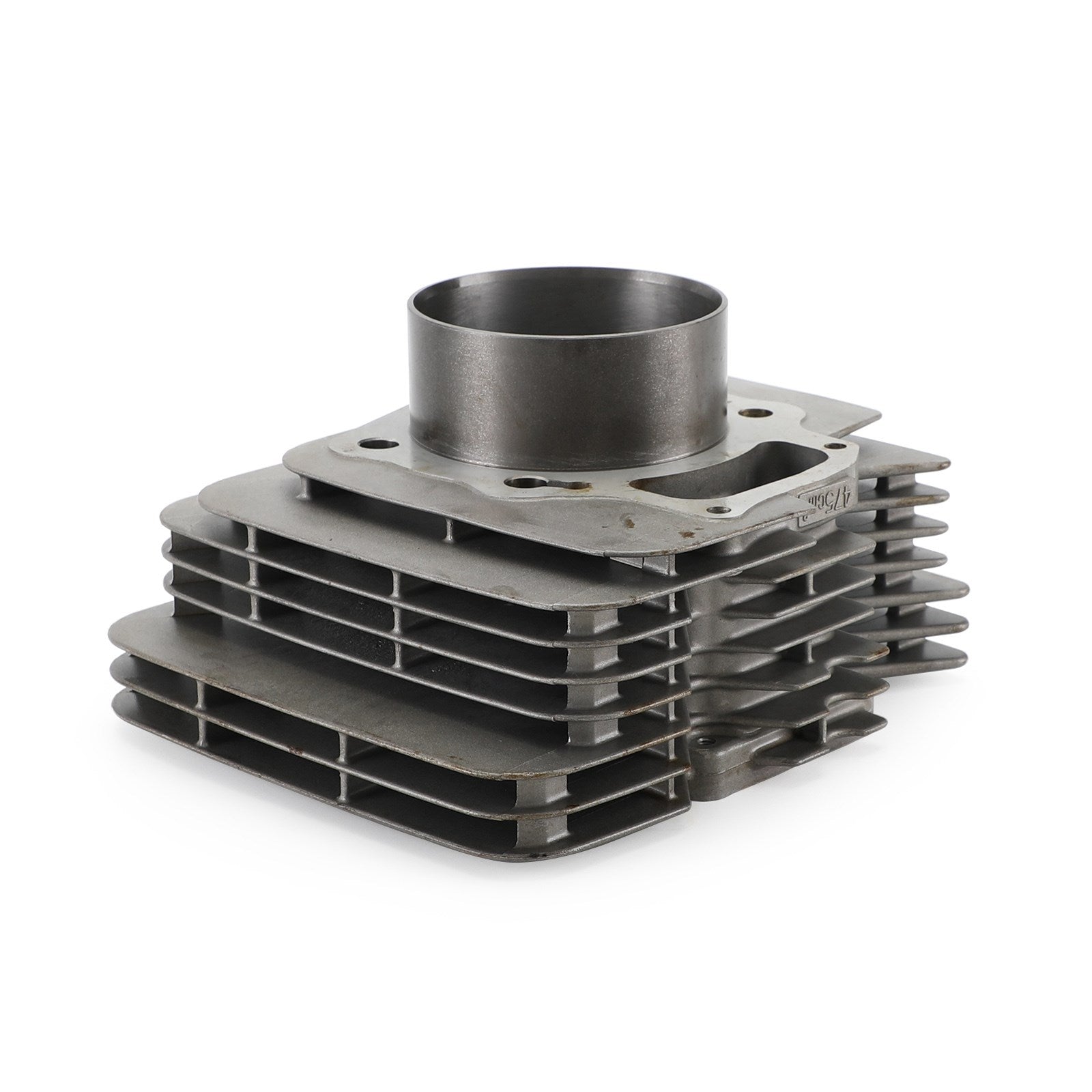

1x Cylinder

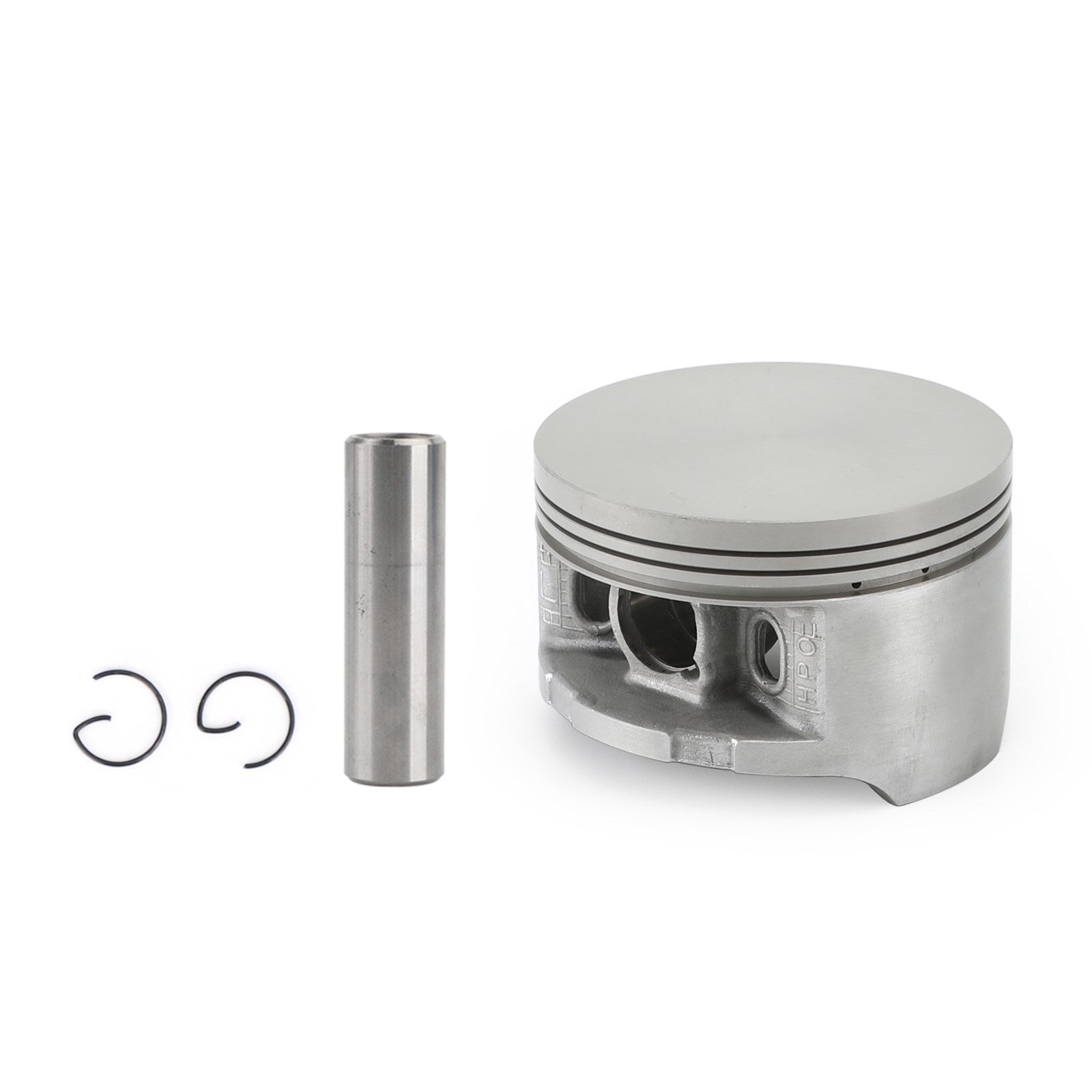

1x Piston(STD)

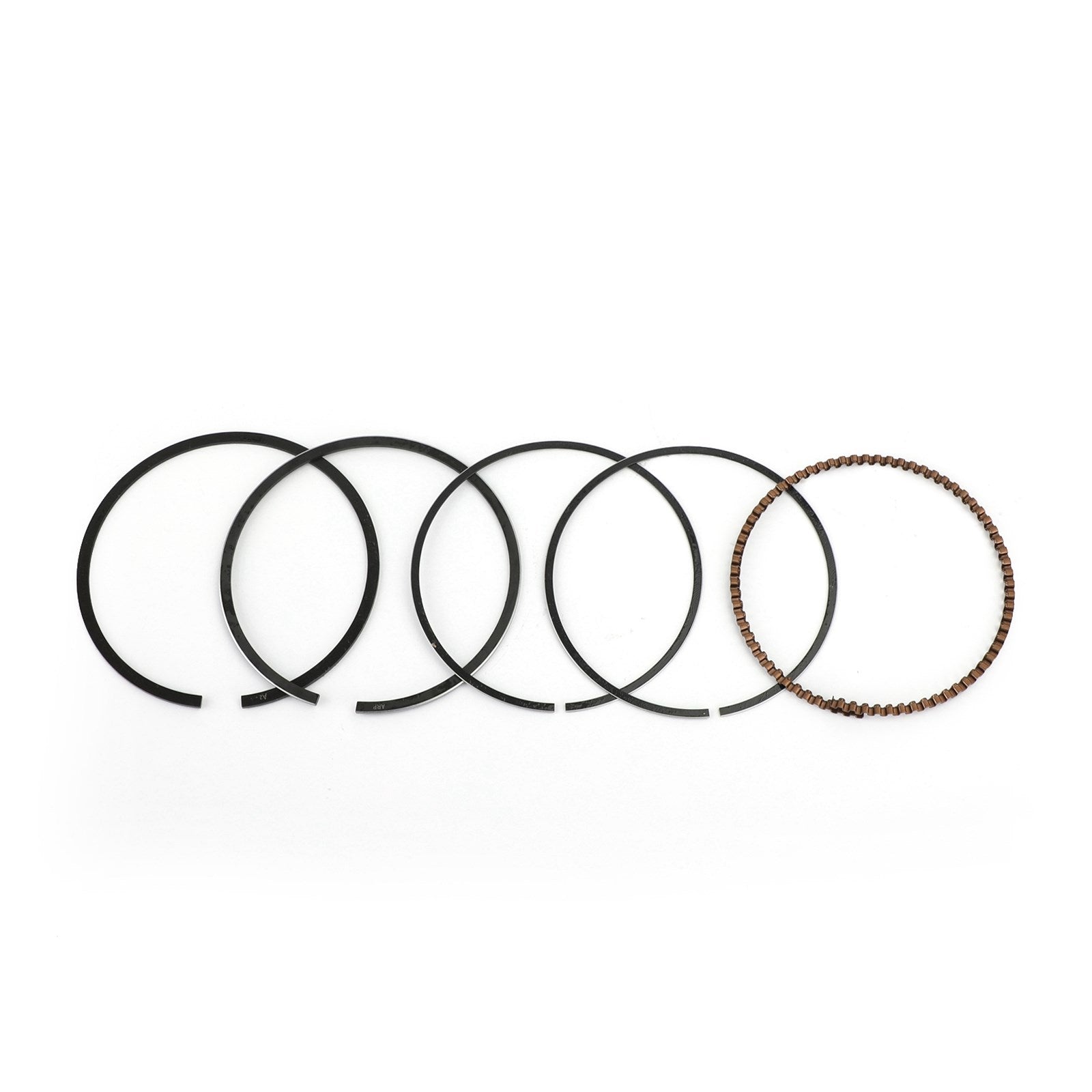

1x Piston Ring Set
1x Wristpin
1x Circlip(2)

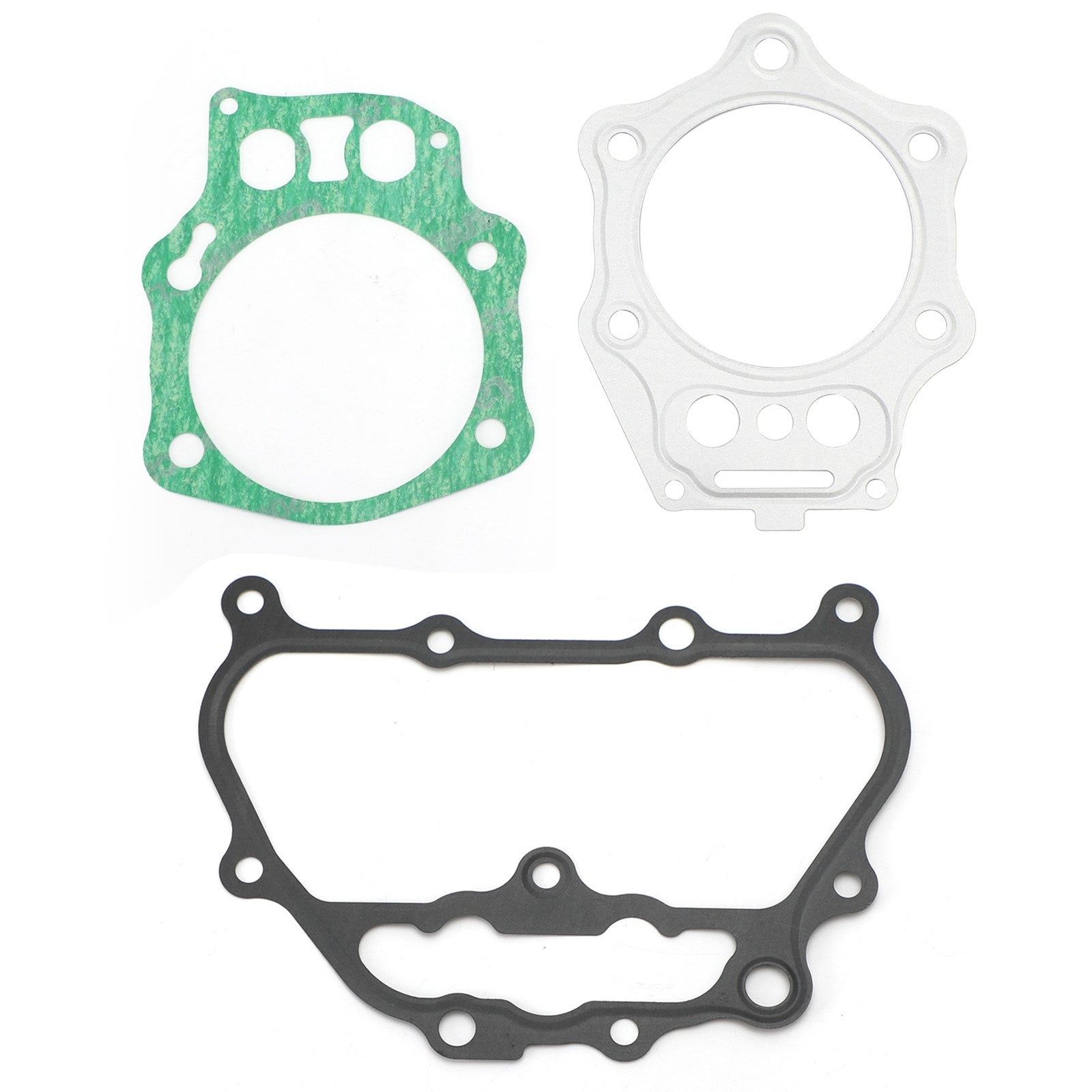

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Cylinder Head Cover Gasket

Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
