Magneto Coil Stator + Voltage Regulator + Gasket Assy For Yamaha XT500 3BJ XT600 2KF 2NK 3PW

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:
Stator
Number of wires: 7
Number of plugs: 4
Number of pins: 1 + 1 + 3 + 2
Number of fixation holes: 4
Number of poles: 12
Exterior diameter: 115mm
Interior diameter: 54mm

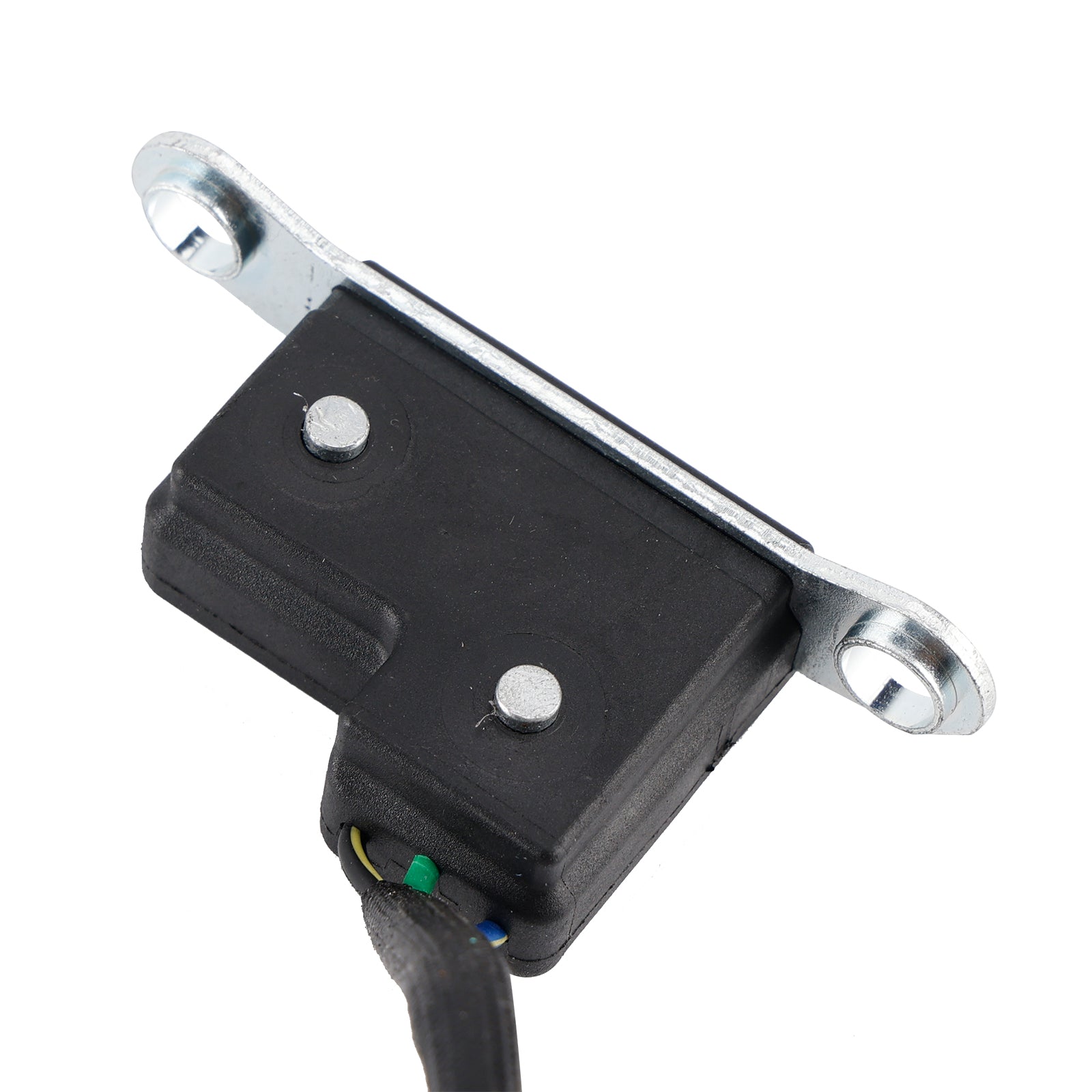

Pick up pulsar coil included.

Regulator
Number of plugs: 1
Number of pins: 4

Pin diagram:
Power Coil
Power Coil
Power Coil
Battery (+)
Case - GND

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: 1JK-85510-50, 1JK-85510-51, 34L-81410-51
Rectifier, regulator: 1JK-81960-A0, 1JK-81960-A1
Gasket, generator cover: 5Y1-15451-01, 3SW-15451-00

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Yamaha SRX400 1985/1988
Fit for Yamaha SRX600S 1986
Fit for Yamaha SRX600SC 1986
Fit for Yamaha SRX600 1986-1987
Fit for Yamaha SRX600H 1986-1987
Fit for Yamaha SRX600N 1986-1987
Fit for Yamaha XT500T 3BJ1 1988
Fit for Yamaha XT500T 3BJ2 1989
Fit for Yamaha XT600 2KF 1987
Fit for Yamaha XT600N 2NF 1987
Fit for Yamaha XT600H 2KF 1987
Fit for Yamaha XT600 2WJ1 1988
Fit for Yamaha XT600 2WJ2 1989
Fit for Yamaha XT600 3PW1 1989
Fit for Yamaha XT600N 3PX1 1989
Fit for Yamaha XT600H 3PW1 1989

Only fits Yamaha XT600 2KF 2NK 3PW (Stator Size:- 115/54/20mm) Kick Start models. NOT for Electric Start Models.

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

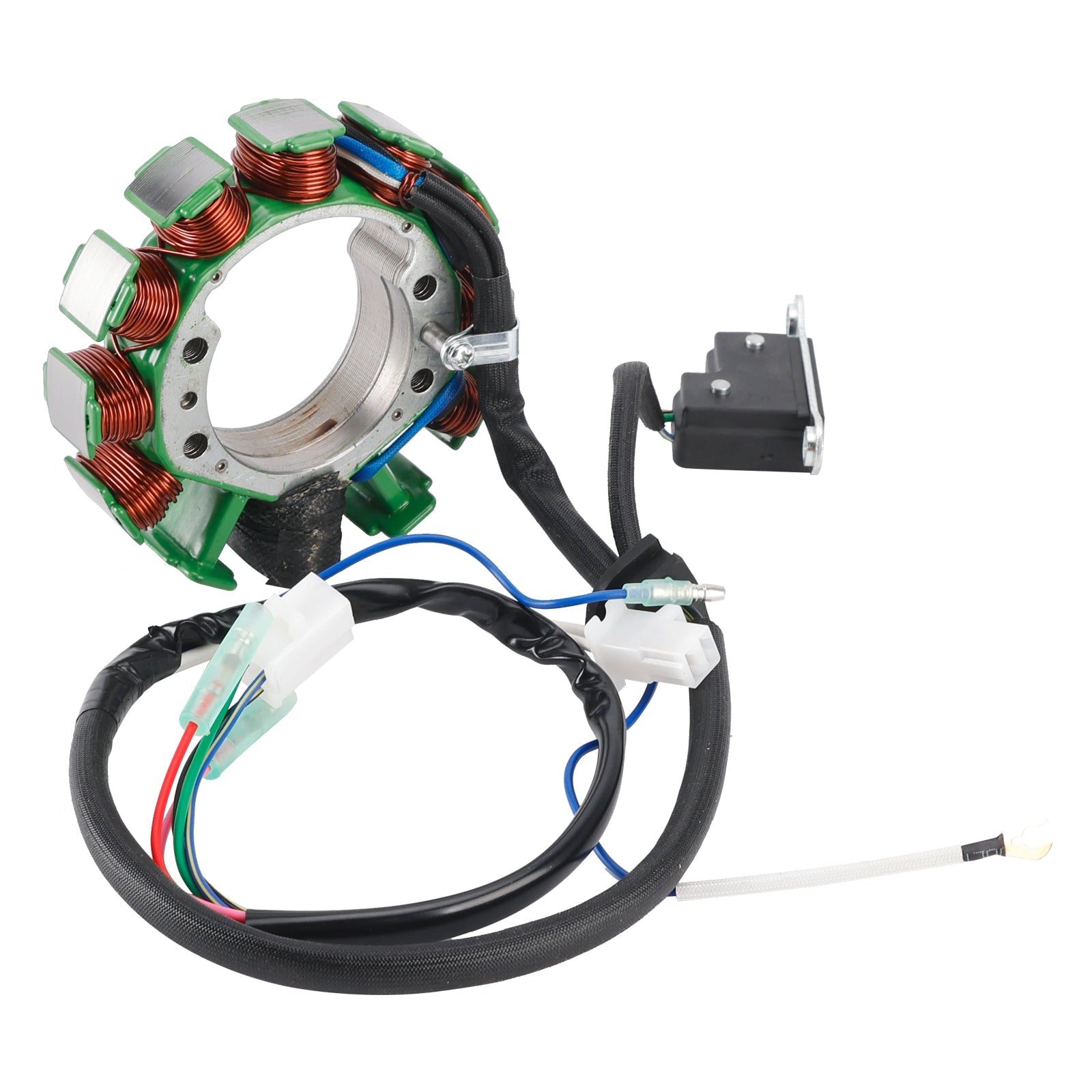

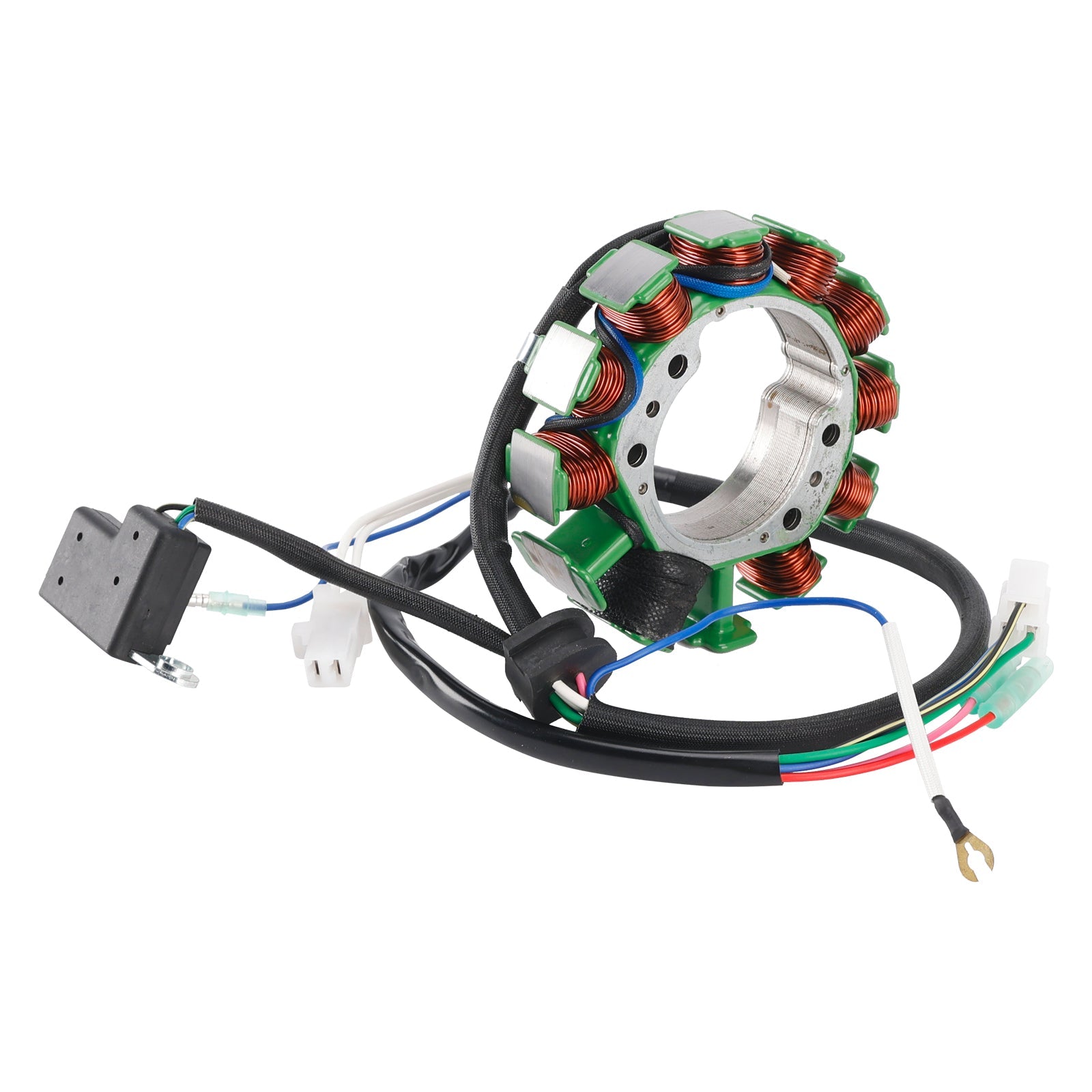

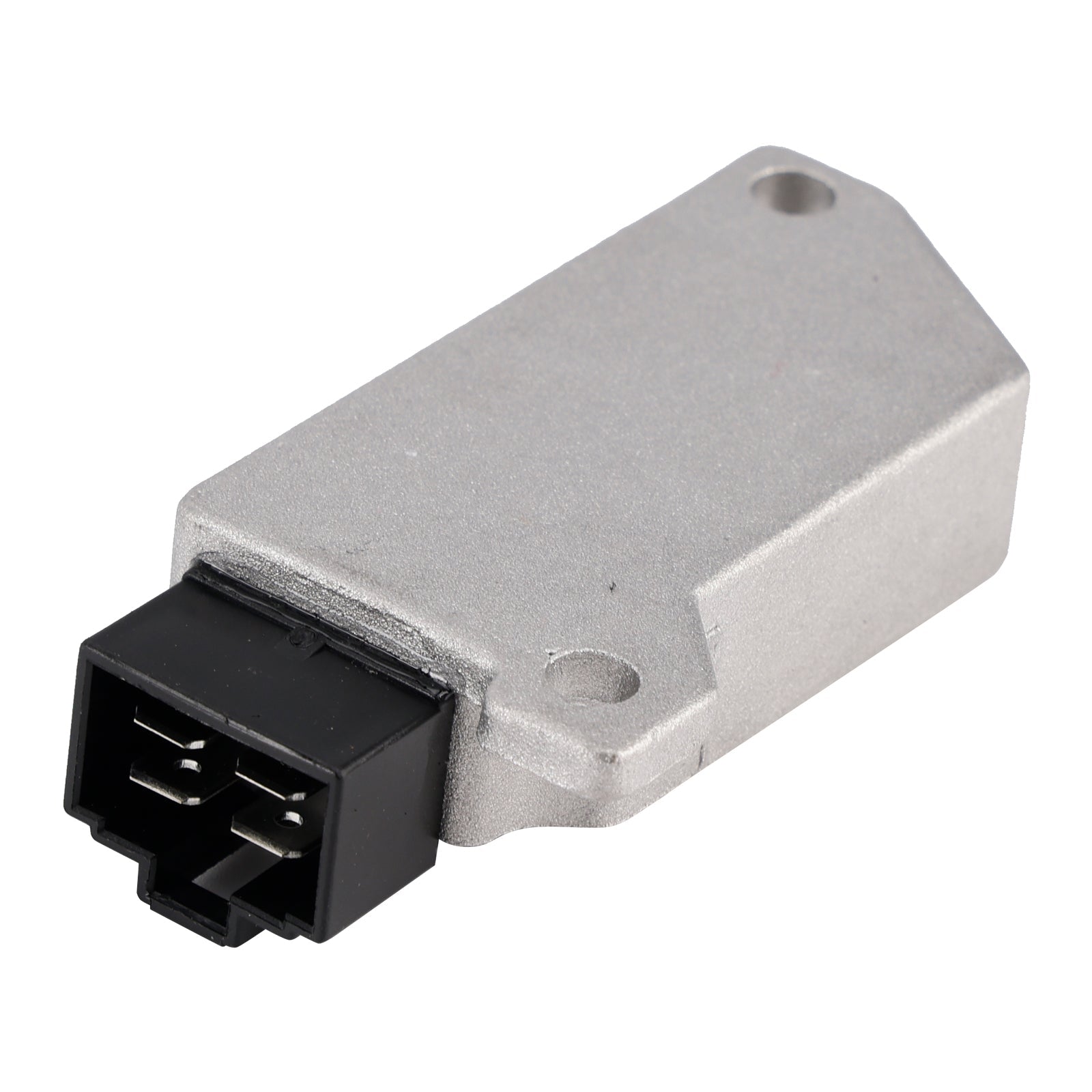

1 x 115mm Generator Stator

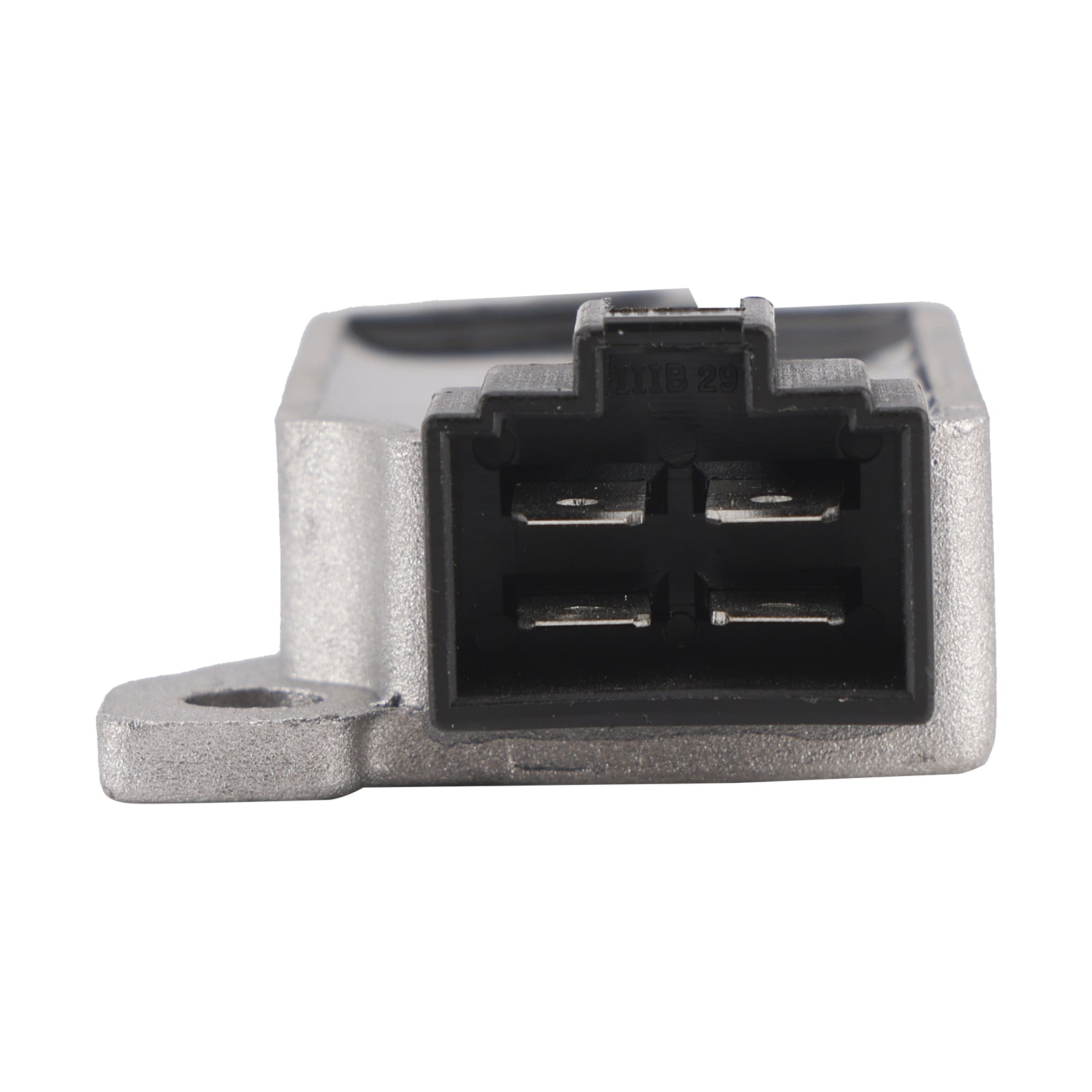

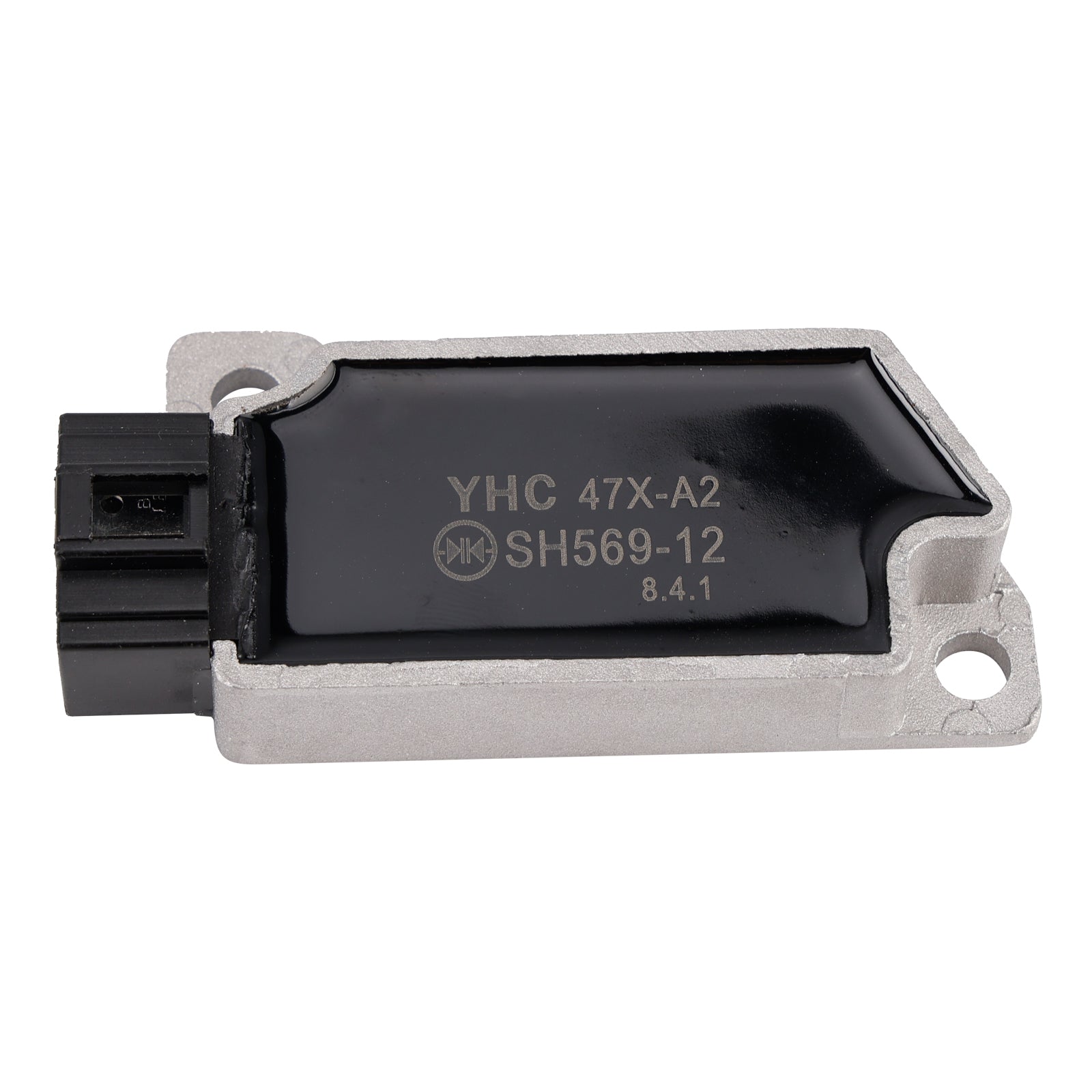

1 x 4-Pin Voltage Regulator

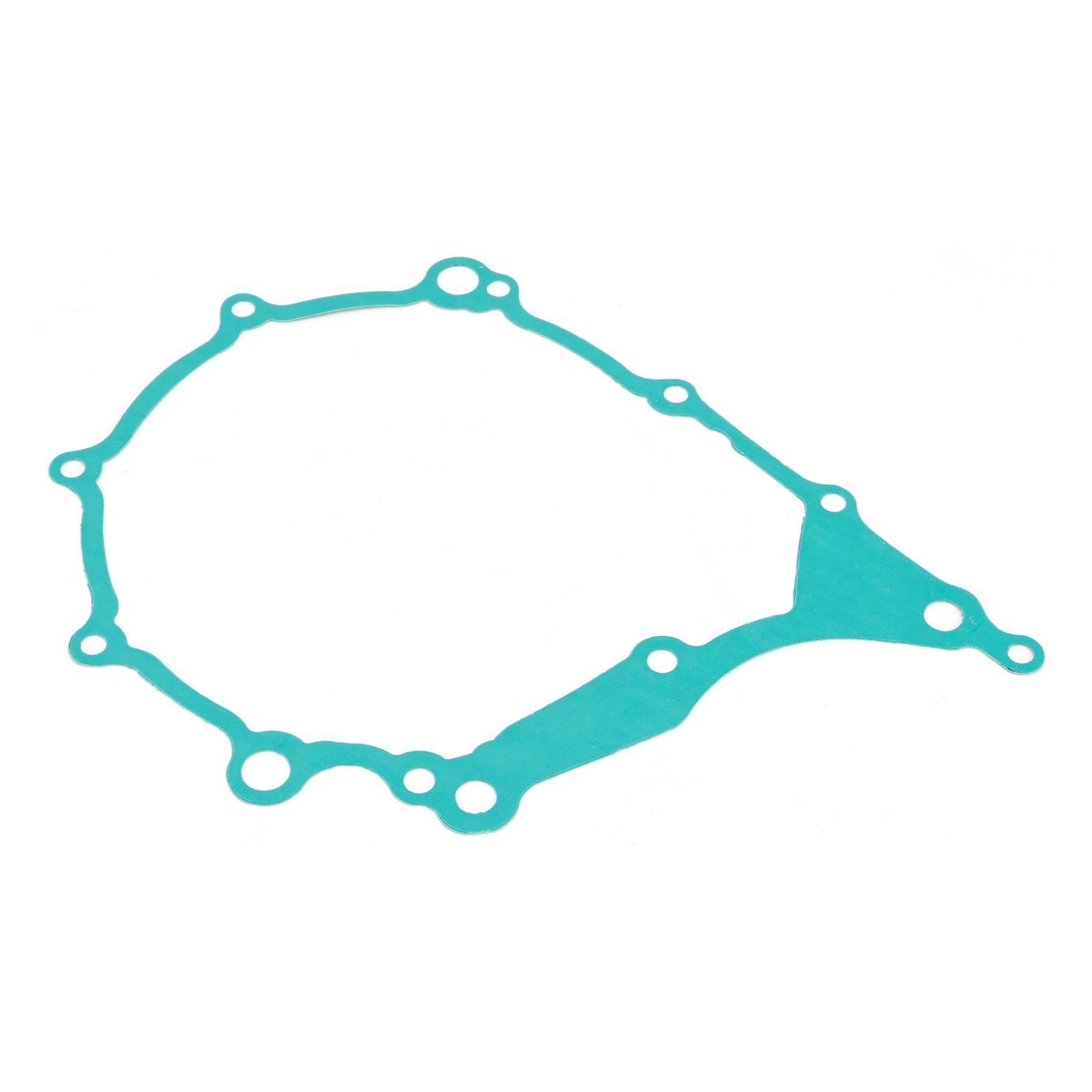

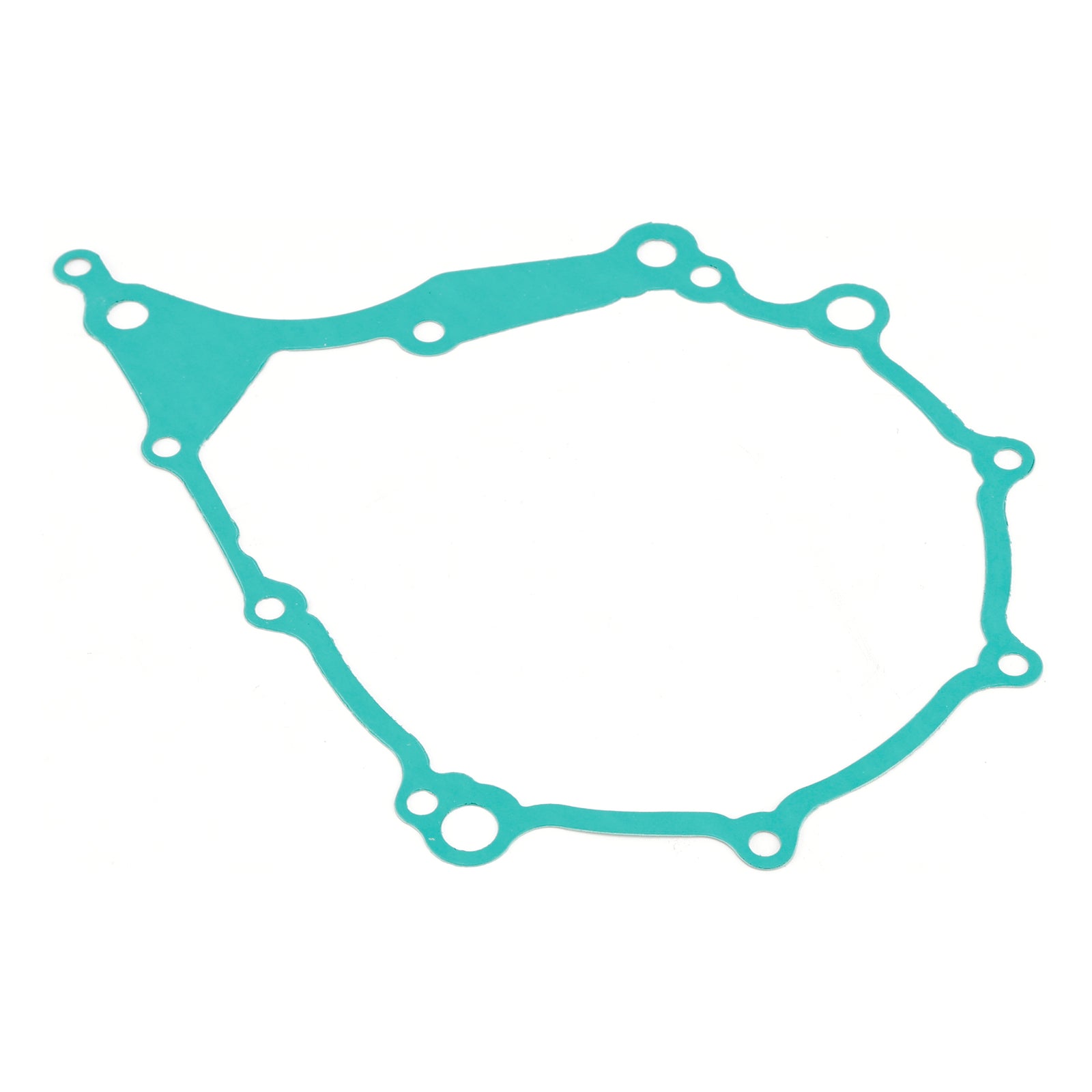

1 x Crankcase Gasket

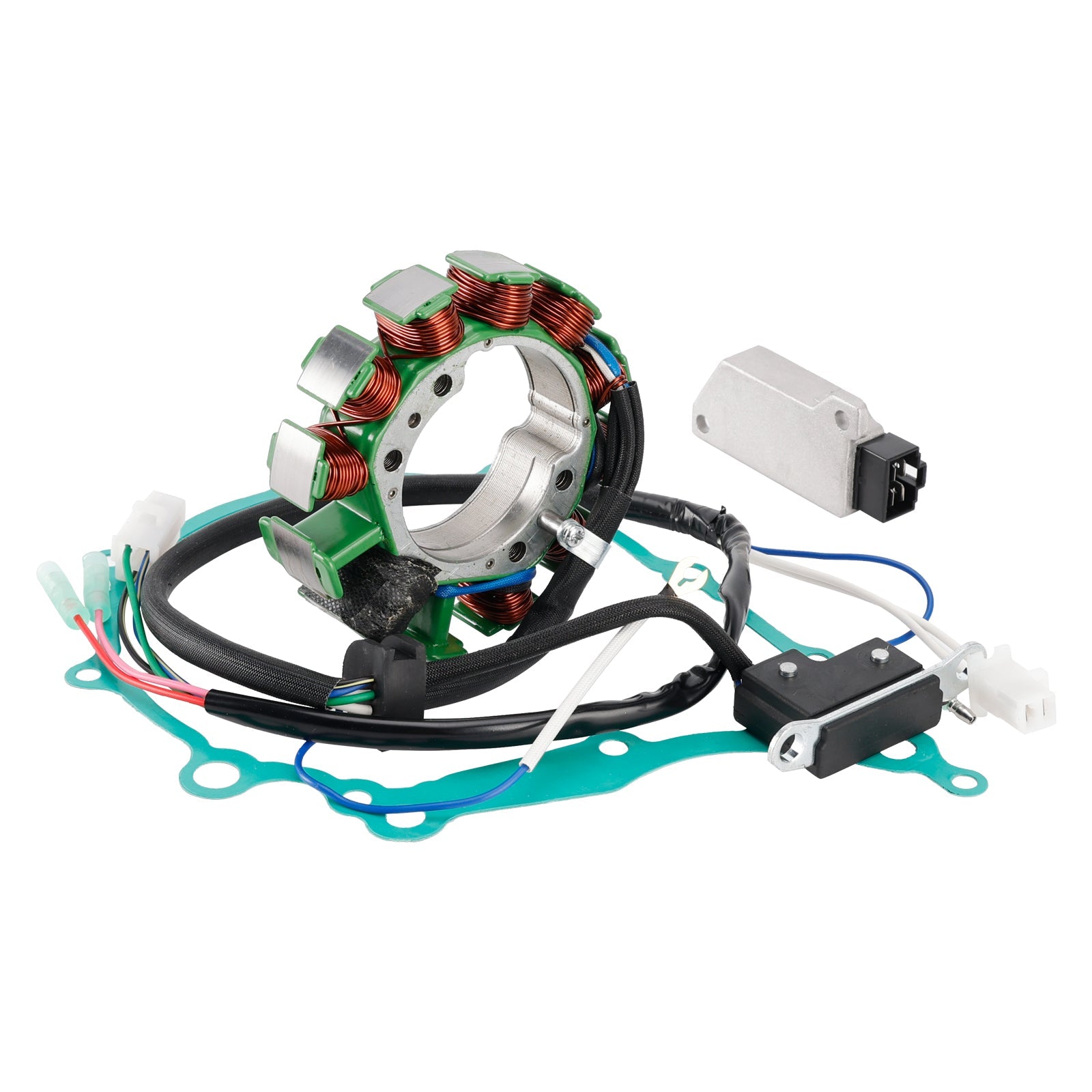

(Comes exactly as pictured.)
