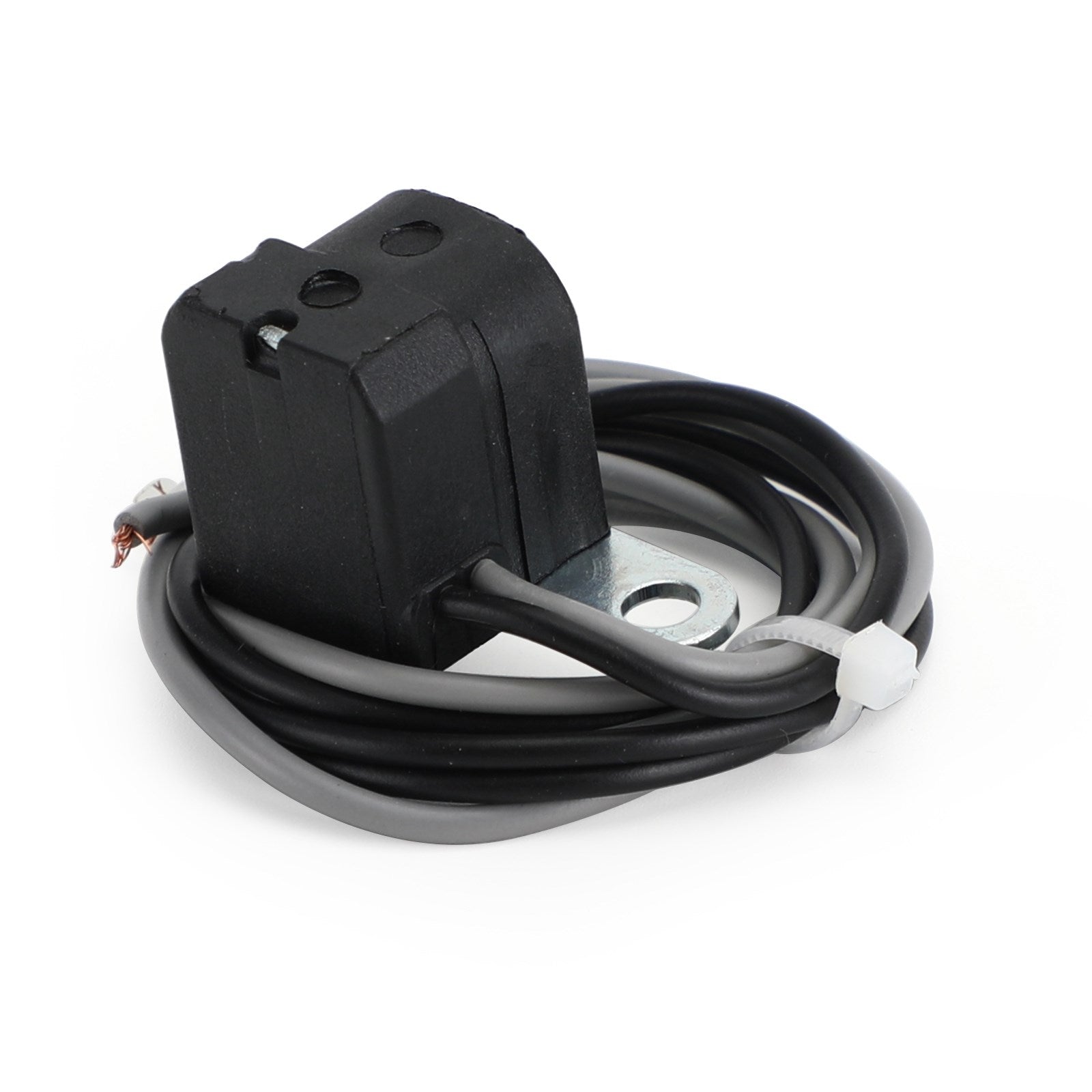

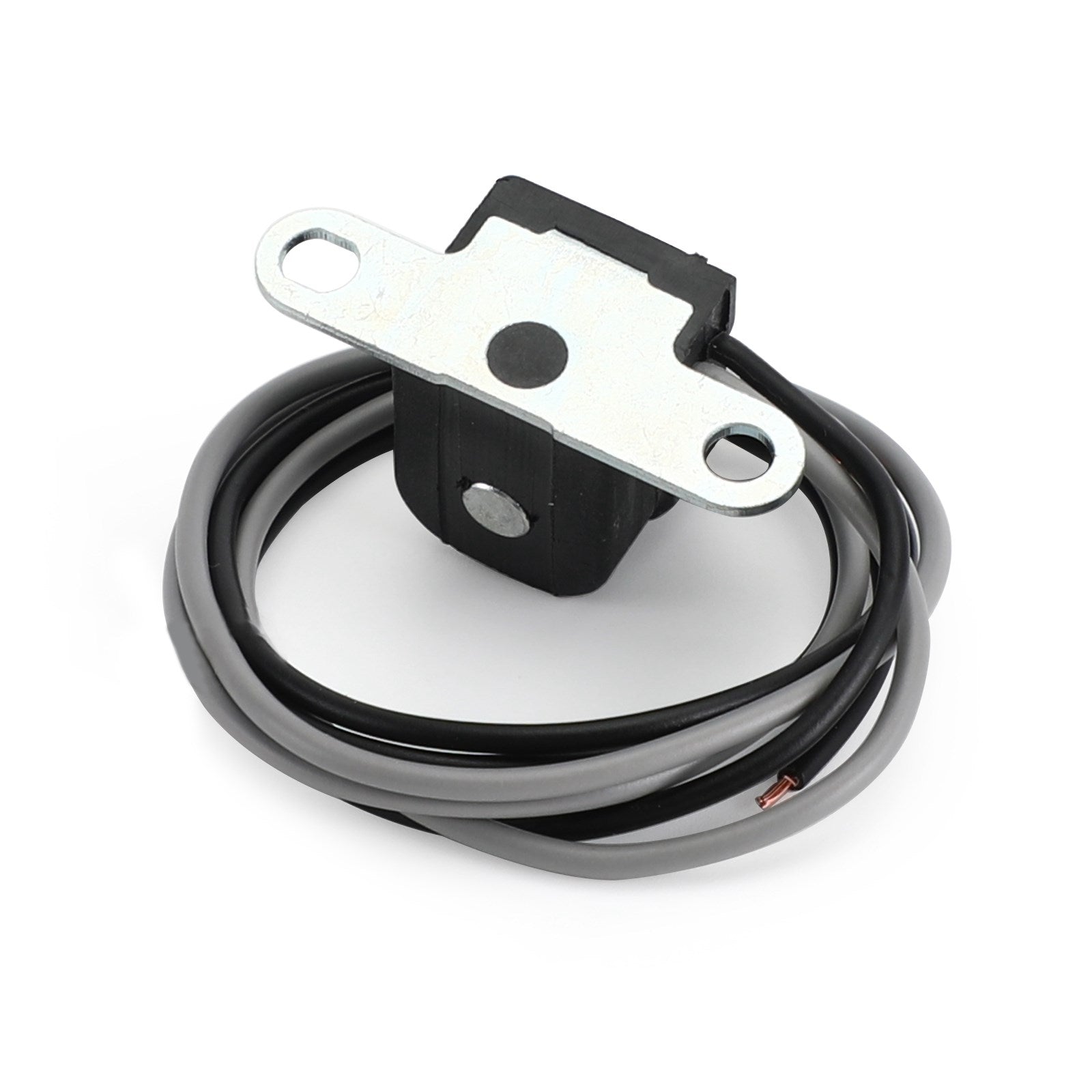

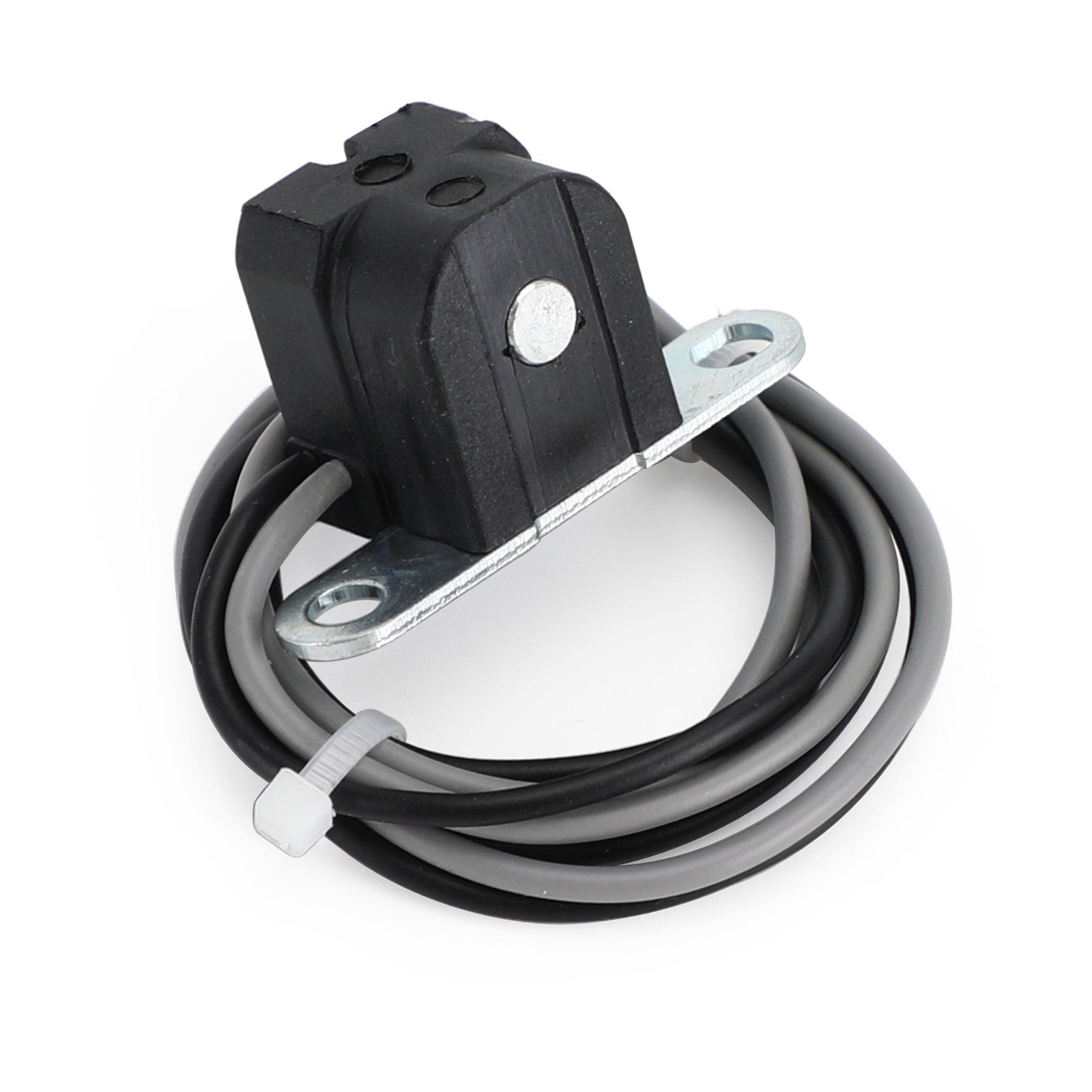

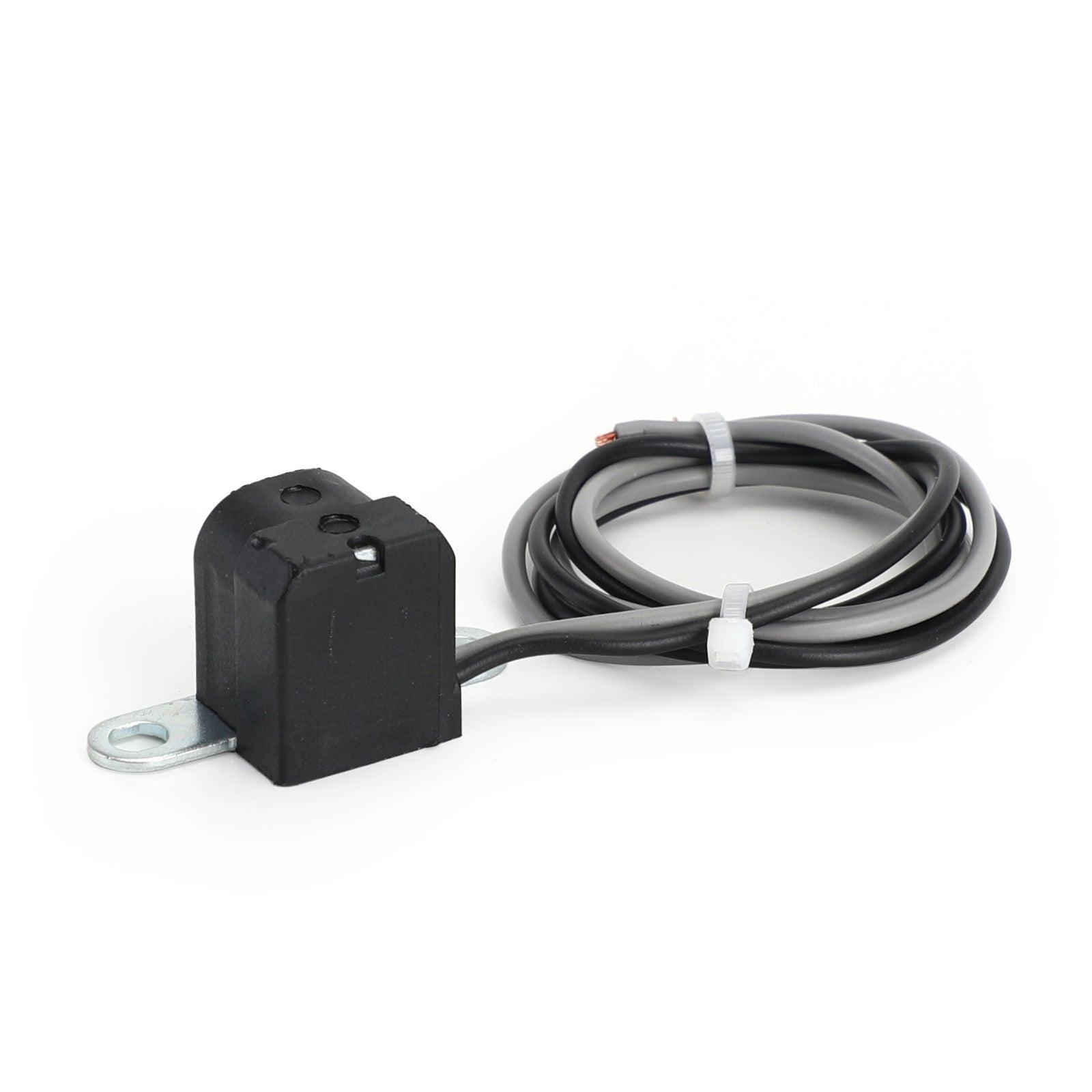

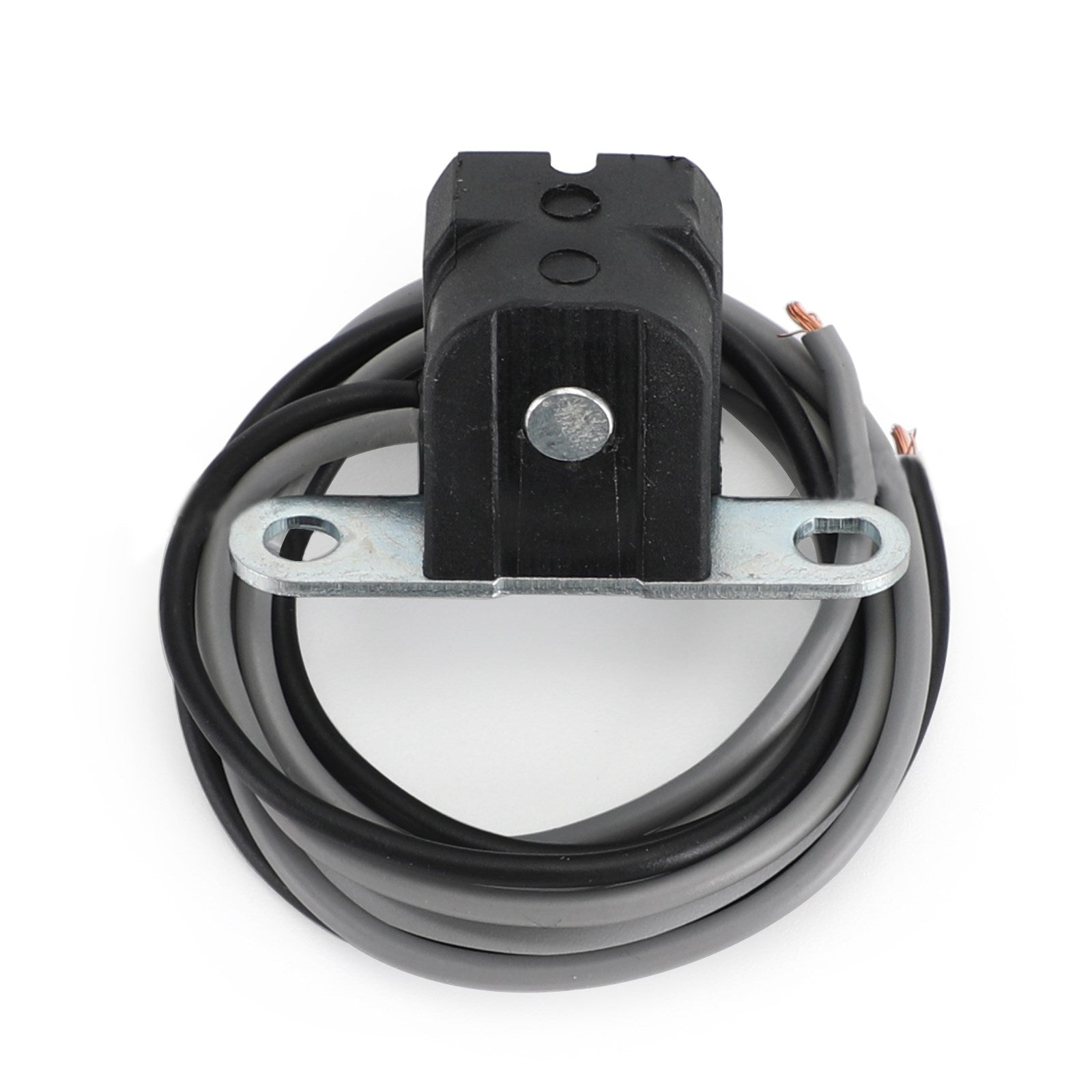

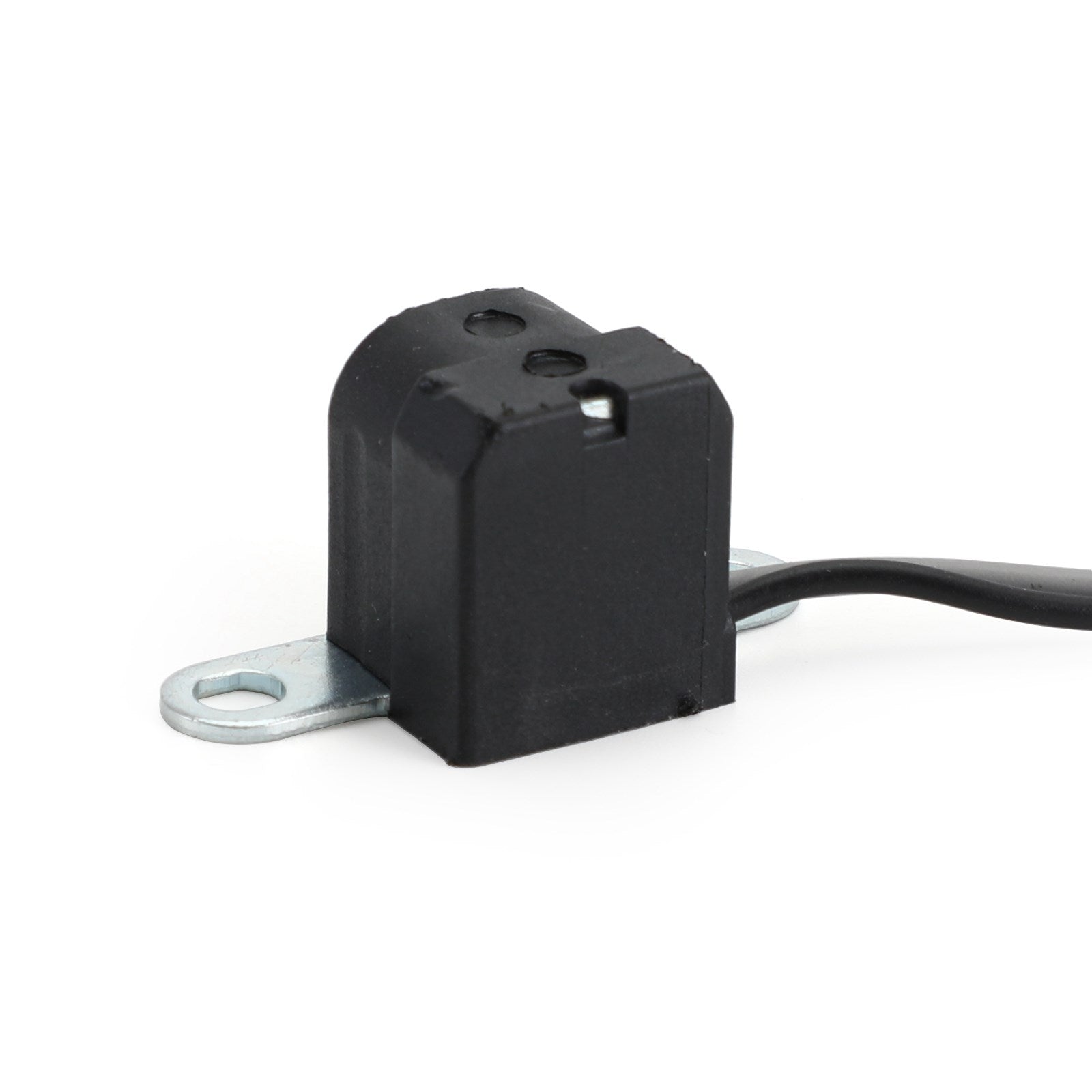

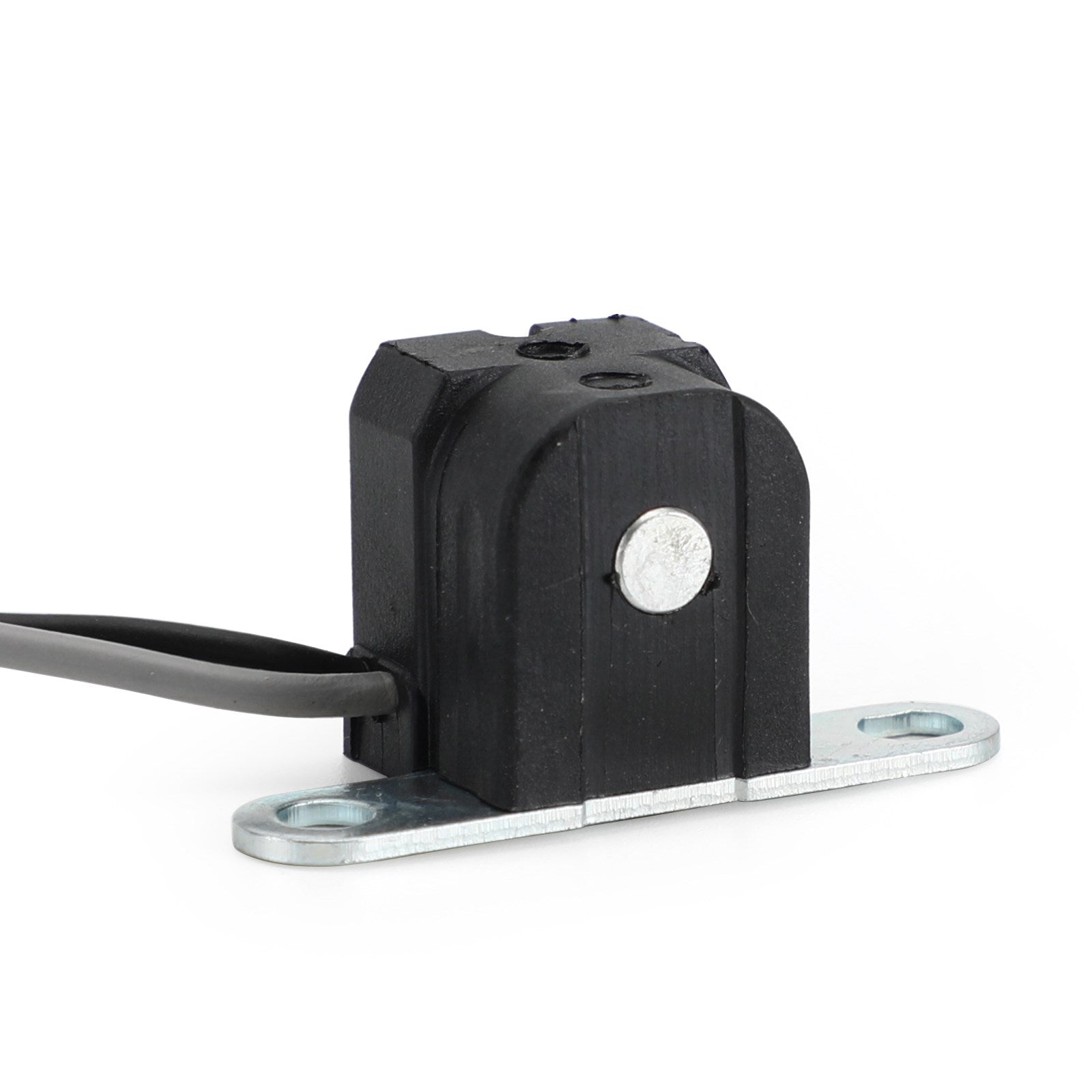

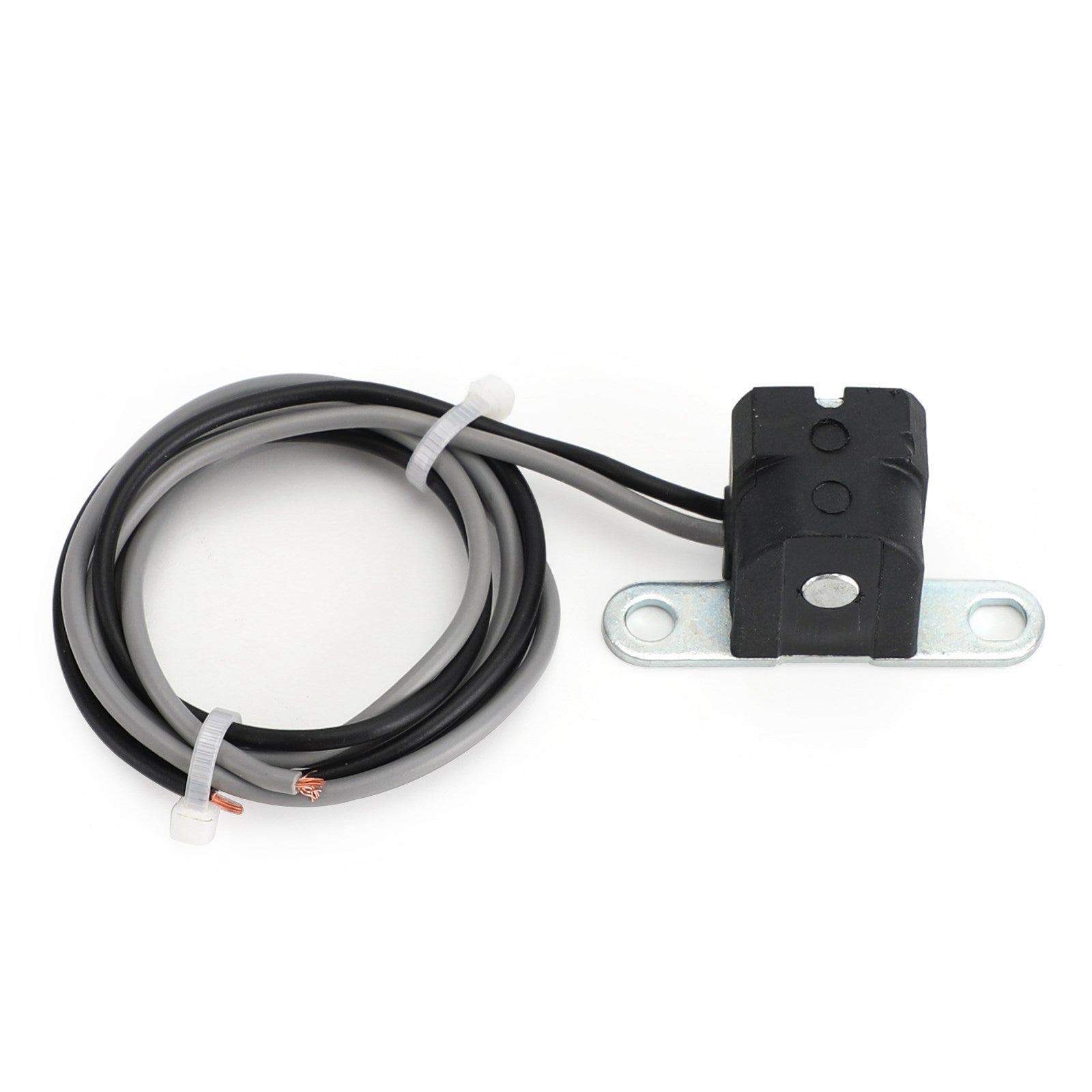

Pick-up Pulsar / Pulse Sensor Fit For Daytona / Street Triple 675 R 2006-2020

Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil

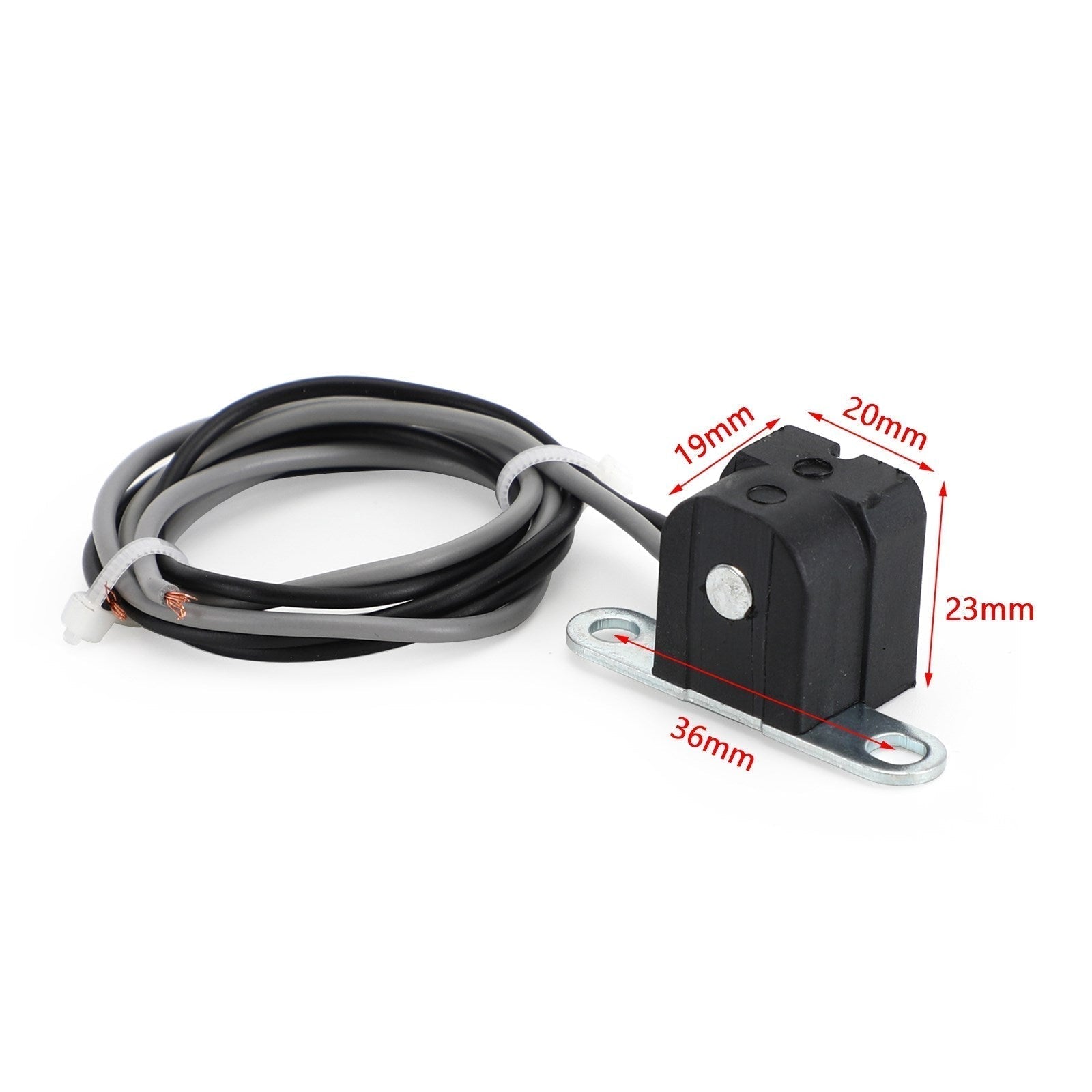

Dimensions:
Height: 19mm
Length: 23mm
Width: 20mm
Bracket center to center: 36mm

Other Specifications:
Number of wires: 2

Fitments:
Fit for Daytona 675 ABS 2013-2014
Fit for Daytona 675R 2011-2012
Fit for Daytona 675 （VIN381274） 2006-2020
Fit for Daytona 675 （VIN381275 to VIN564947）2006-2020
Fit for Daytona 675 SE 2008-2011
Fit for Street Triple 675 （VIN560476）2008-2017
Fit for Street Triple 675R（VIN560476） 2009-2017

Package Included:
1x Pick up pulsar coil

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
