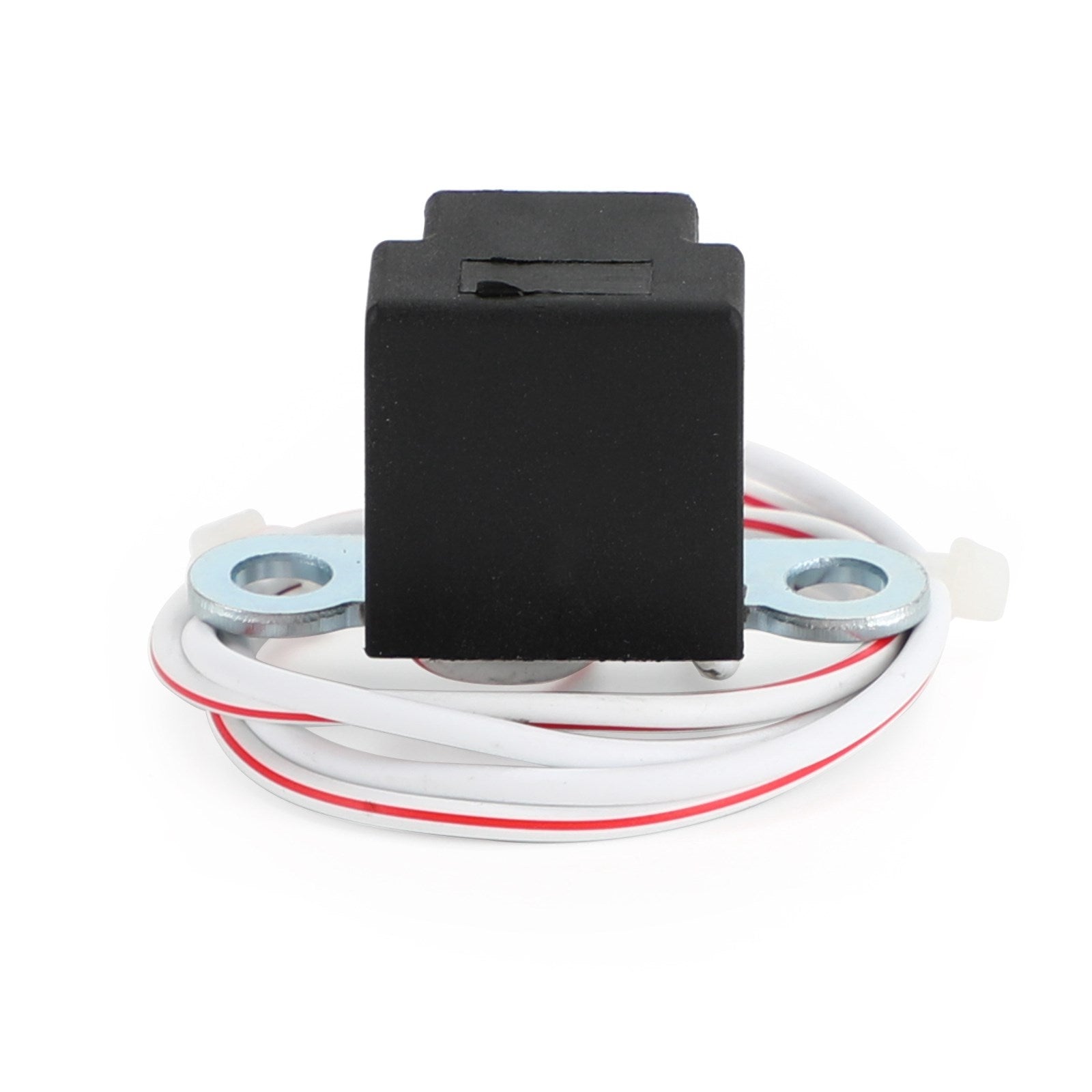

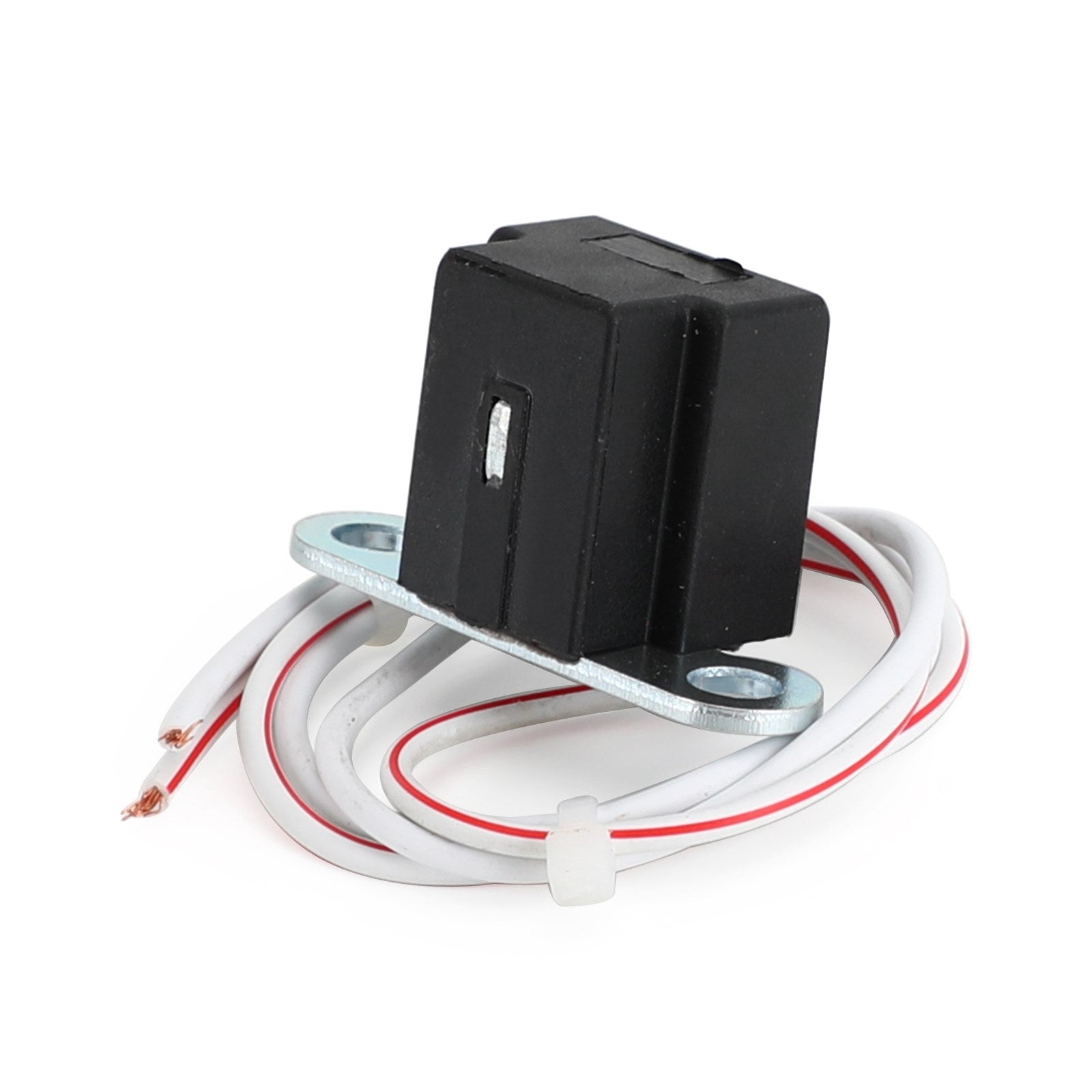

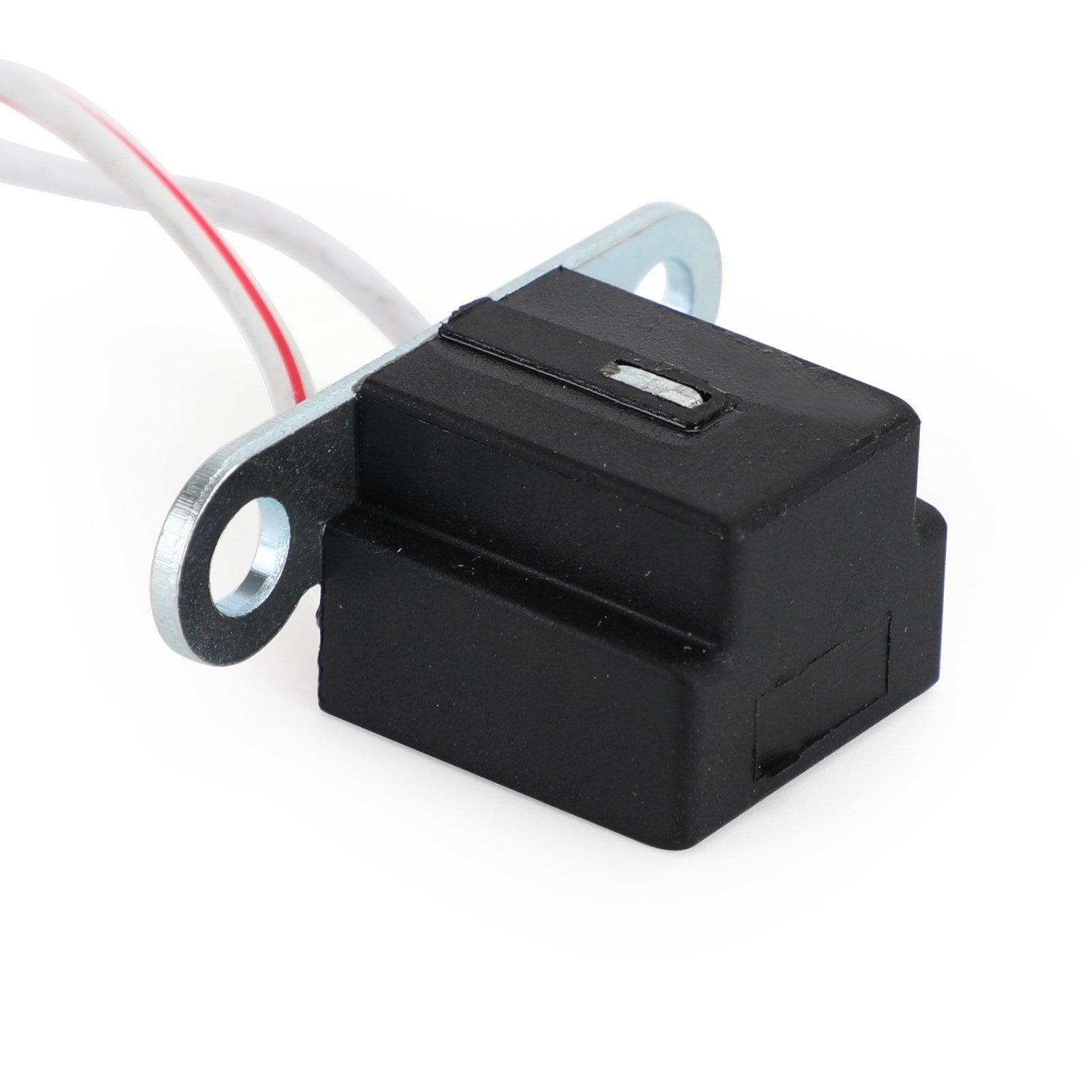

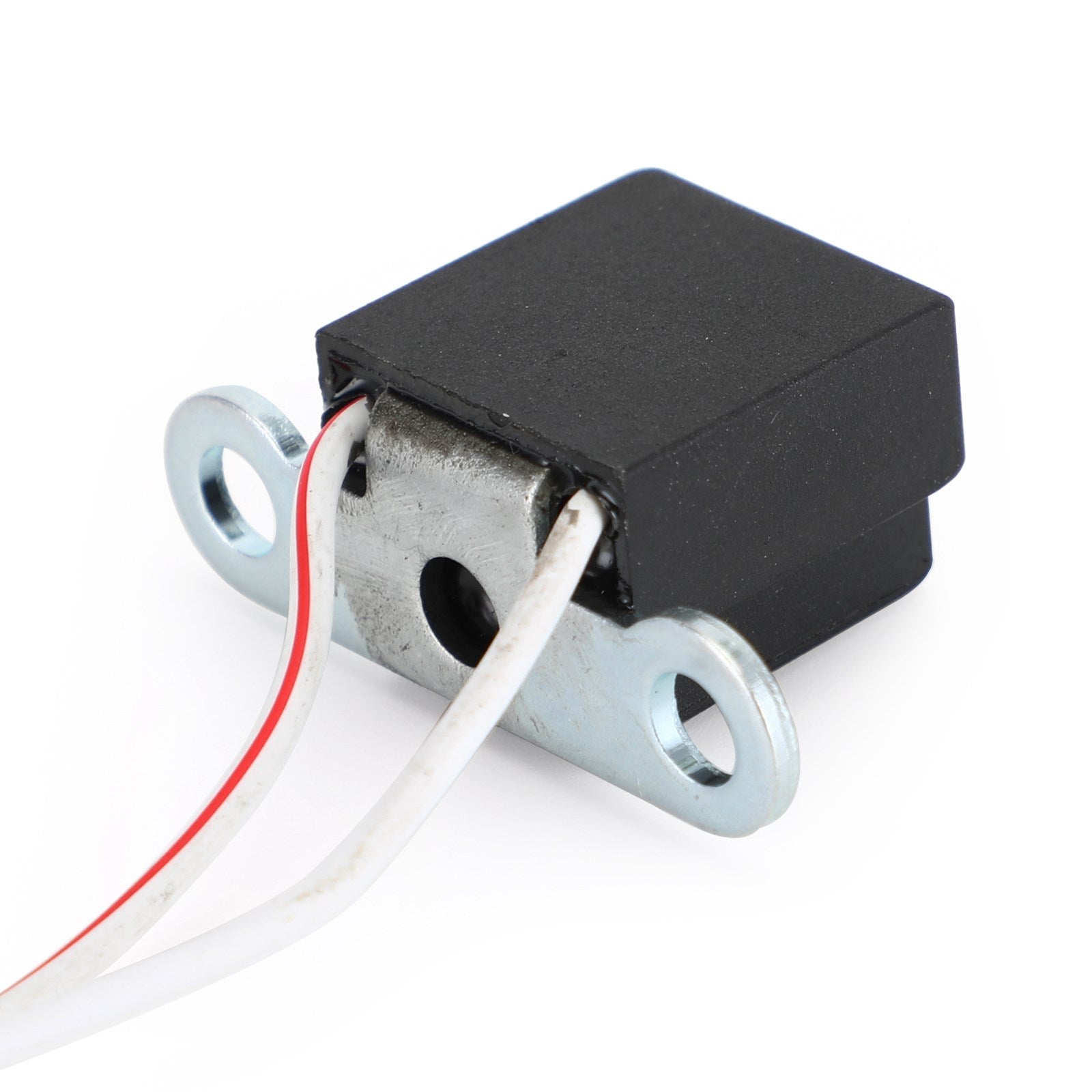

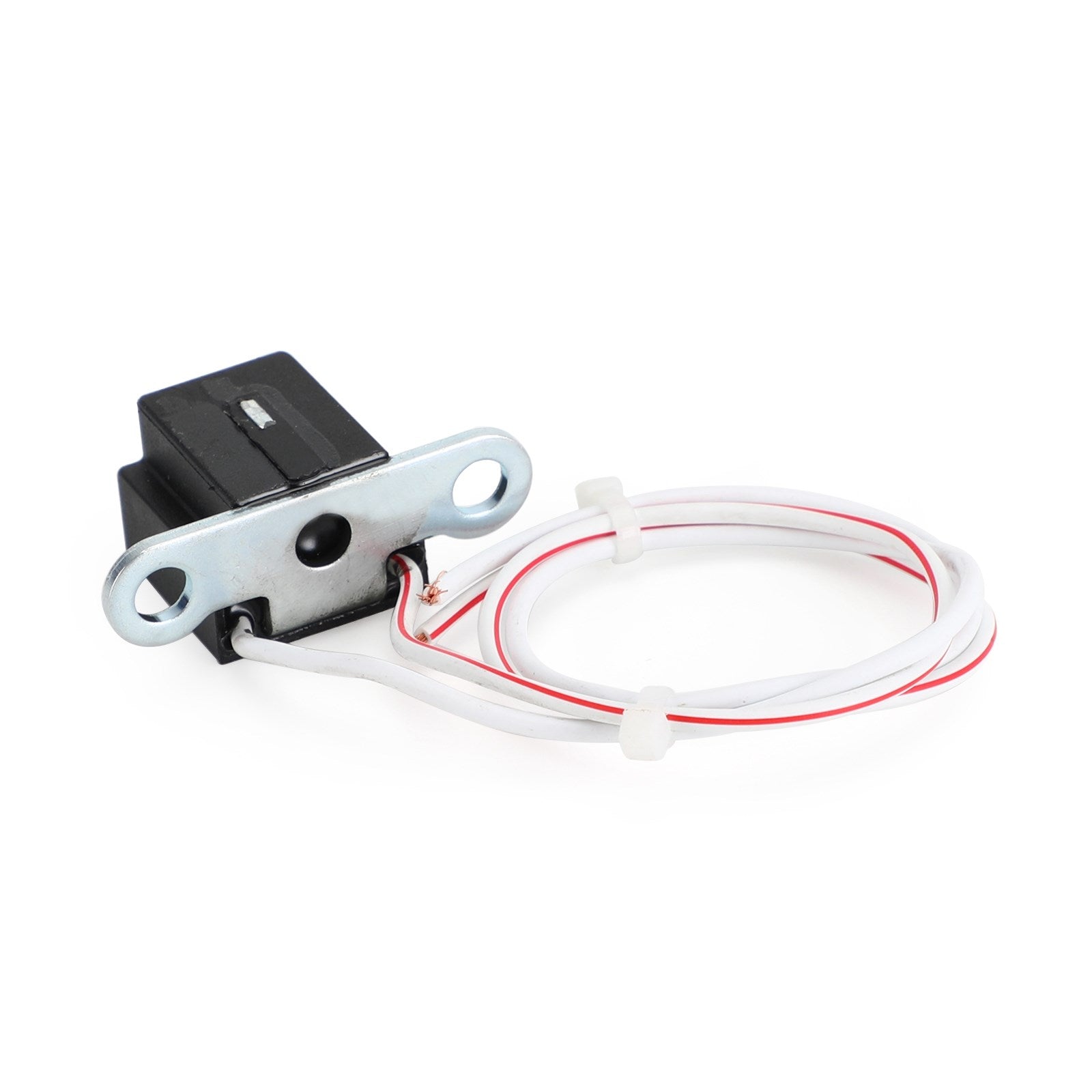

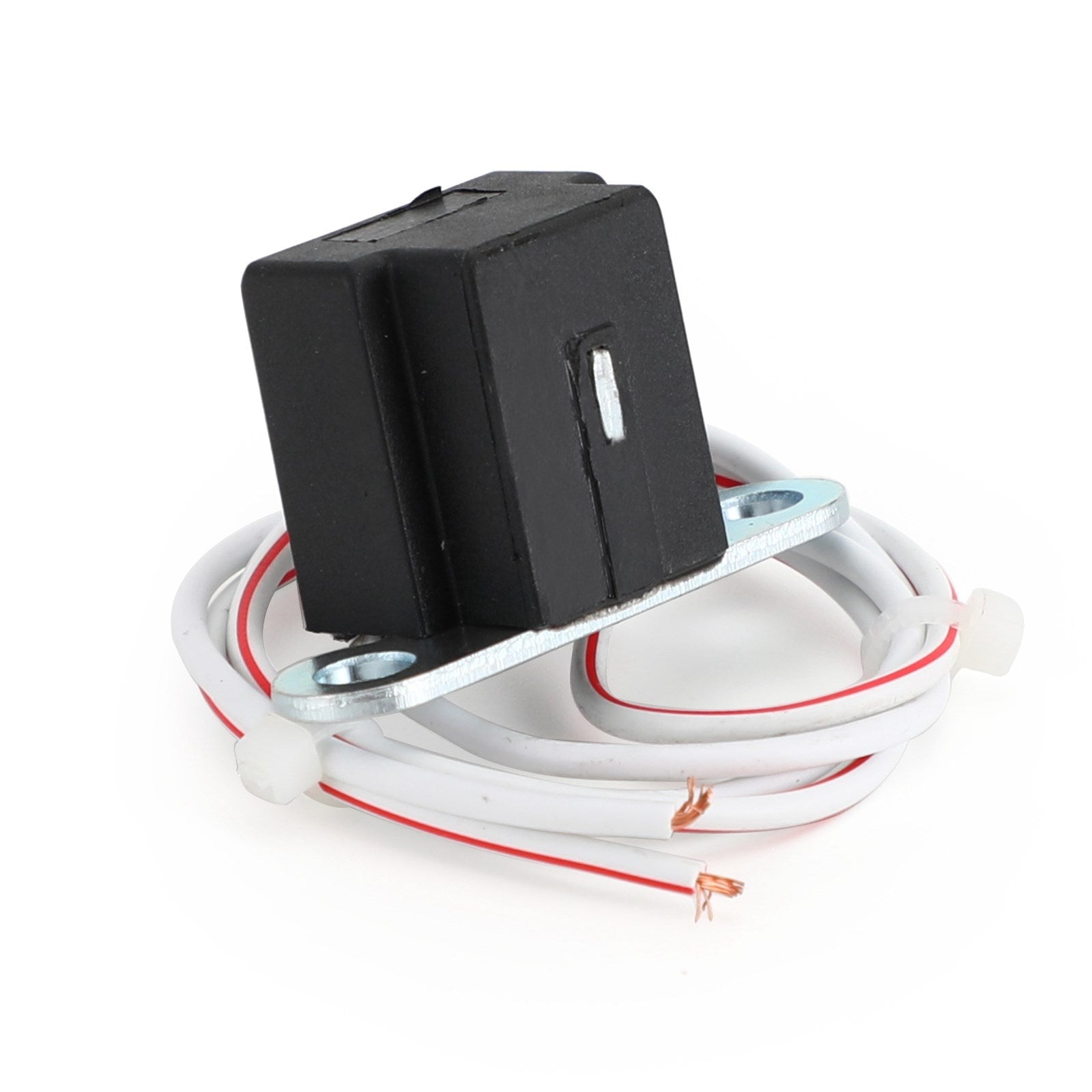

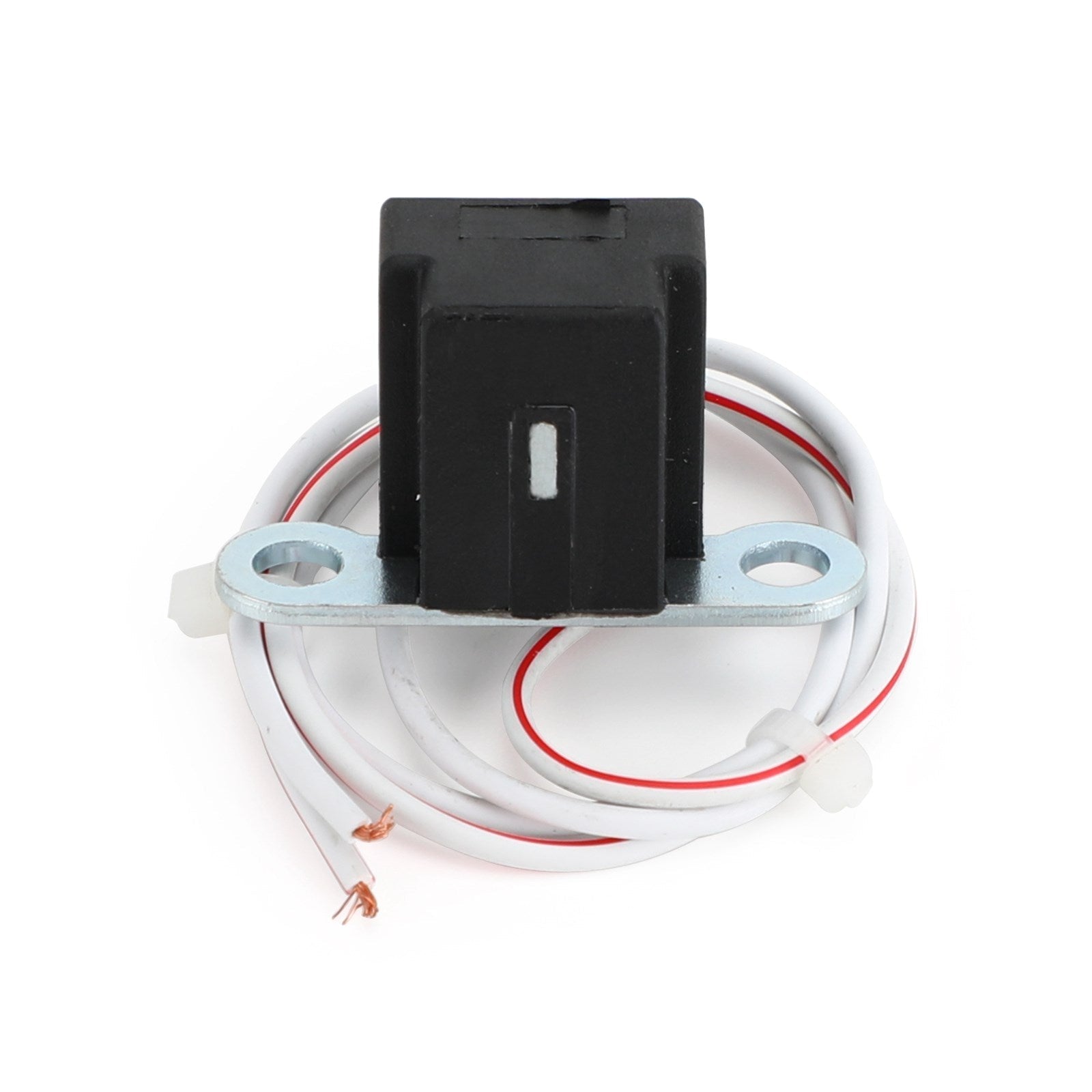

Stator Pick Up Pulsar Coil Fit For Polaris Swedish Magnum Ranger Sportsman Big Boss 400 425 500 UTV PTV 3085360

Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil
Resistor: 120 Ohms

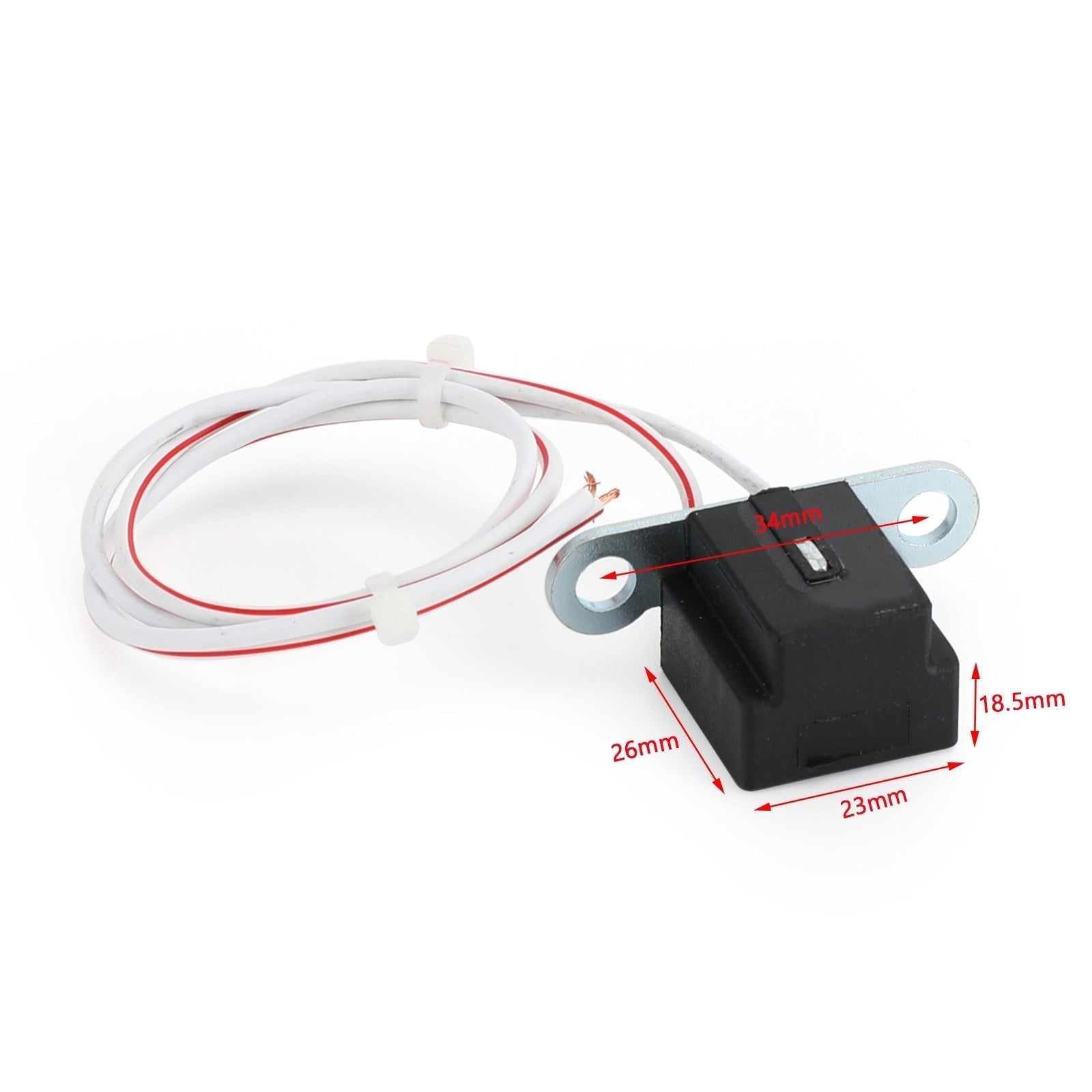

Dimensions:
Height: 18.5mm
Length: 26mm
Width: 23mm
Bracket center to center: 34mm

Other Specifications:
Number of wires: 2

Replacement Part Number:
3085561, 3086821
3085360, 3086984
3087168, 3084974
3086860, 3086238

Fits Models:
Fit for Polaris PTV 4X4
Fit for Polaris PTV 6X6
Fit for Polaris UTV 2X4
Fit for Polaris UTV 4X4
Fit for Polaris UTV 6X6
Fit for Polaris Xplorer 500 1997
Fit for Polaris LUH 6X6 PPS 2002
Fit for Polaris Xplorer 500 1997
Fit for Polaris Worker 335 1995
Fit for Polaris Worker 500 1999/2001
Fit for Polaris ATP 500 4X4 2004
Fit for Polaris ATV PRO 500 4X4 PPS 2002
Fit for Polaris Big Boss 500 6X6 1998-1999
Fit for Polaris Big Boss 500 6X6 INTL 1999-2002
Fit for Polaris Magnum 425 2X4 1996-1998
Fit for Polaris Magnum 425 4X4 1996-1998
Fit for Polaris Magnum 500 1999-2002
Fit for Polaris Magnum 500 2X4 HDS 2002
Fit for Polaris Magnum 500 4X4 HDS 2000-2001/2003
Fit for Polaris Magnum 500 4X4 HDS II 2000
Fit for Polaris Magnum 500 EB 2000
Fit for Polaris Magnum 500 RMK 2002
Fit for Polaris Magnum 500 VL HDS 2002
Fit for Polaris Magnum 6X6 1996-1997
Fit for Polaris Big Boss 500 6X6 Norwegian UTV 1998
Fit for Polaris Norwegian Magnum 4X4 1997-1998
Fit for Polaris Ranger 400 2X4 2002
Fit for Polaris Ranger 400 4X4 2002
Fit for Polaris Ranger 400 6X6 2002
Fit for Polaris Ranger 500 6X6
Fit for Polaris Ranger 500 1999
Fit for Polaris Ranger 500 2X4 2008
Fit for Polaris Ranger 500 2X4 CARB 2009
Fit for Polaris Ranger 500 2X4 CARB ISRAEL 2007-2009
Fit for Polaris Ranger 500 2X4,4X4,6X6 2005
Fit for Polaris Ranger 500 2X4/4X4 2006-2007
Fit for Polaris Scrambler 500 1997-2000
Fit for Polaris Scrambler 500 2X4 2001-2002
Fit for Polaris Scrambler 500 4X4 2001-2003
Fit for Polaris Scrambler 500 4X4 FREEDOM 2002
Fit for Polaris Sportsman 335 1999-2000
Fit for Polaris Sportsman 400 2001-2004
Fit for Polaris Sportsman 500 1996-2004
Fit for Polaris Sportsman 500 6X6 2000-2004
Fit for Polaris Sportsman 500 DUSE 2001
Fit for Polaris Sportsman 500 DUSE HO 2001
Fit for Polaris Sportsman 500 HO 2001/2003
Fit for Polaris Sportsman 500 RSE HO 2001
Fit for Polaris Sportsman 500 RSE 1999-2000
Fit for Polaris Swedish Big Boss 500 6X6 1998
Fit for Polaris Swedish Magnum 425 4X4 1996-1997
Fit for Polaris Swedish Magnum 425 6X6 1996
Fit for Polaris Swedish Magnum 425 4X4 1998
Fit for Polaris Swedish Magnum 425 6X6 1998
Fit for Polaris Swedish Sportsman 500 1996-1998

Package includes:
1x Pick up pulsar coil

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Note:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
