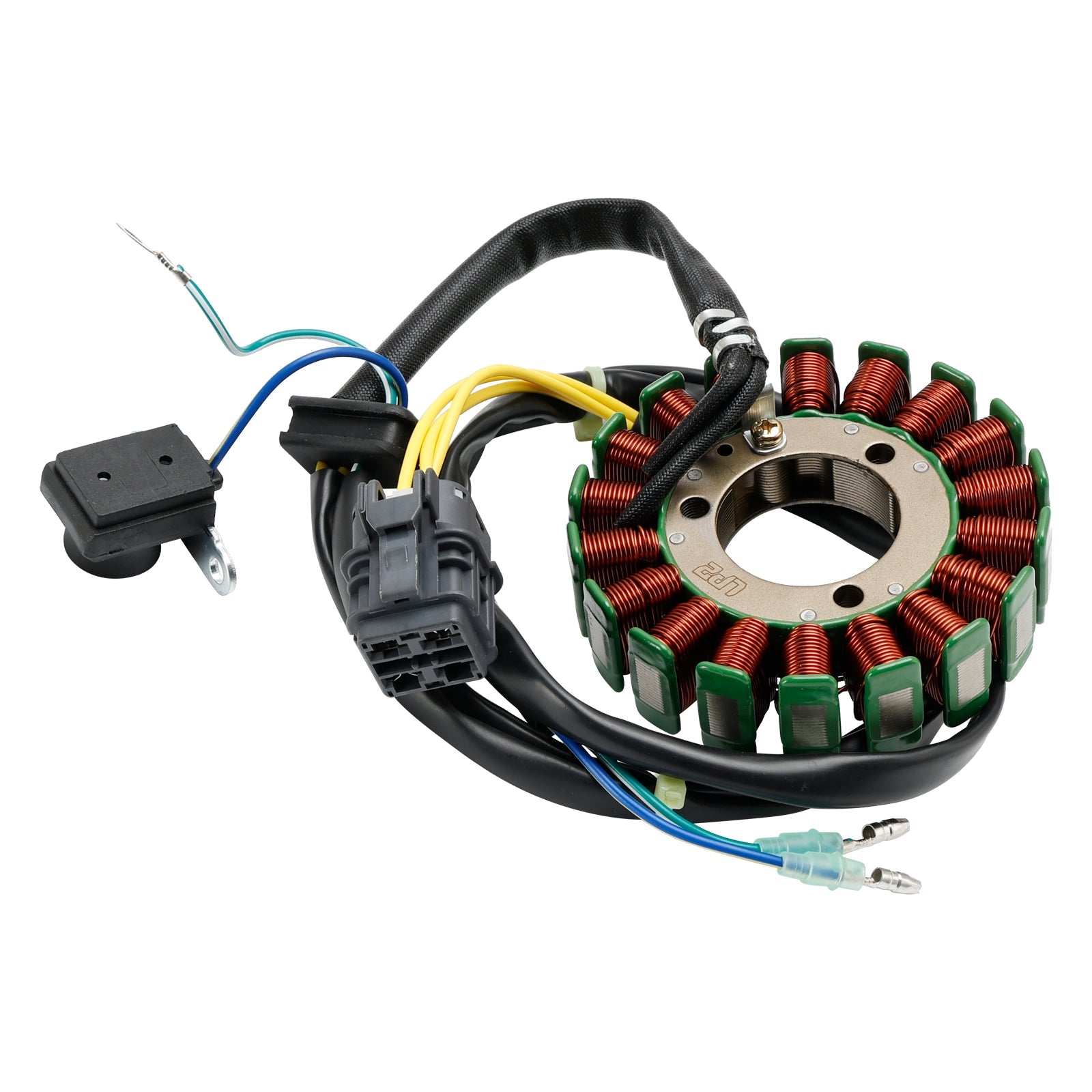

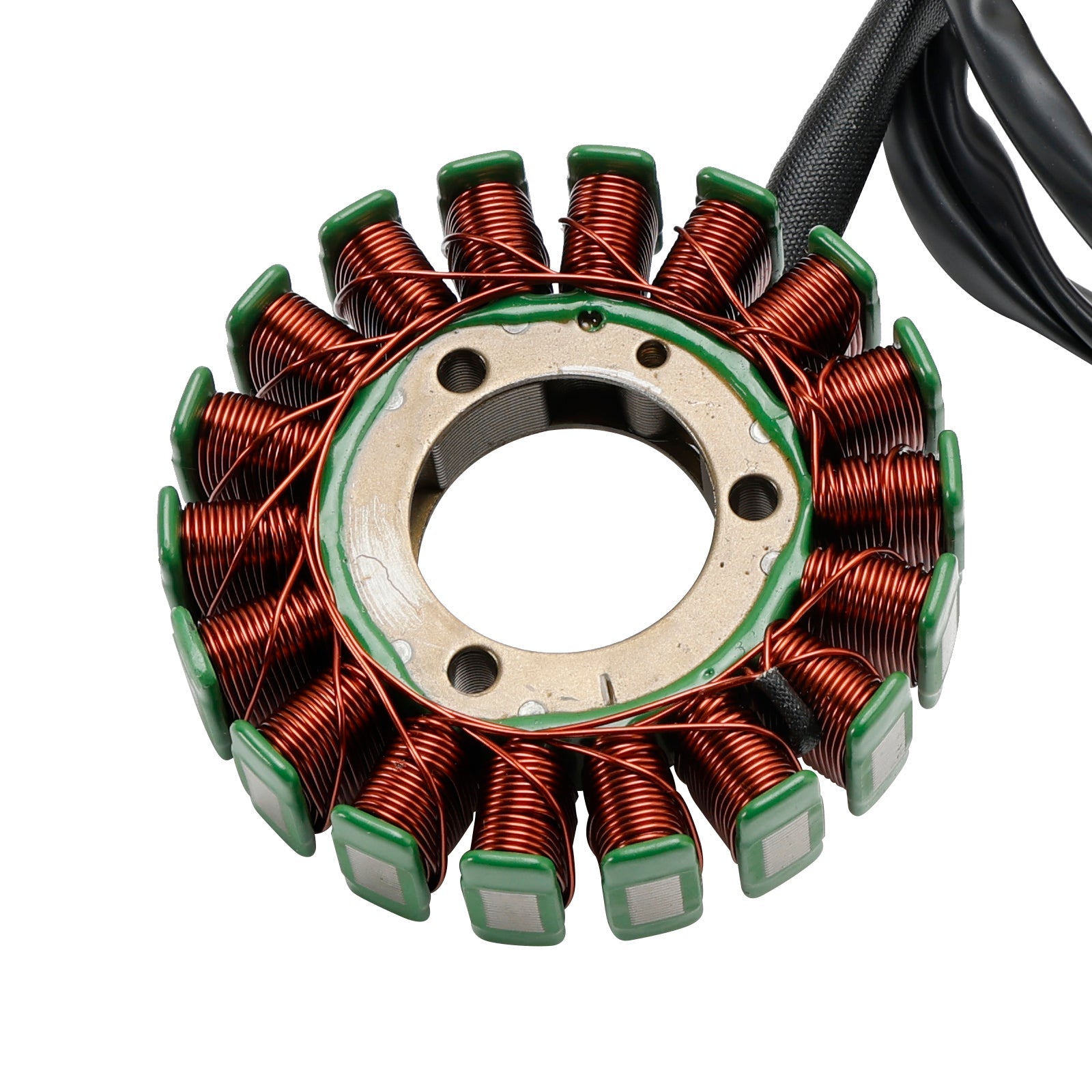

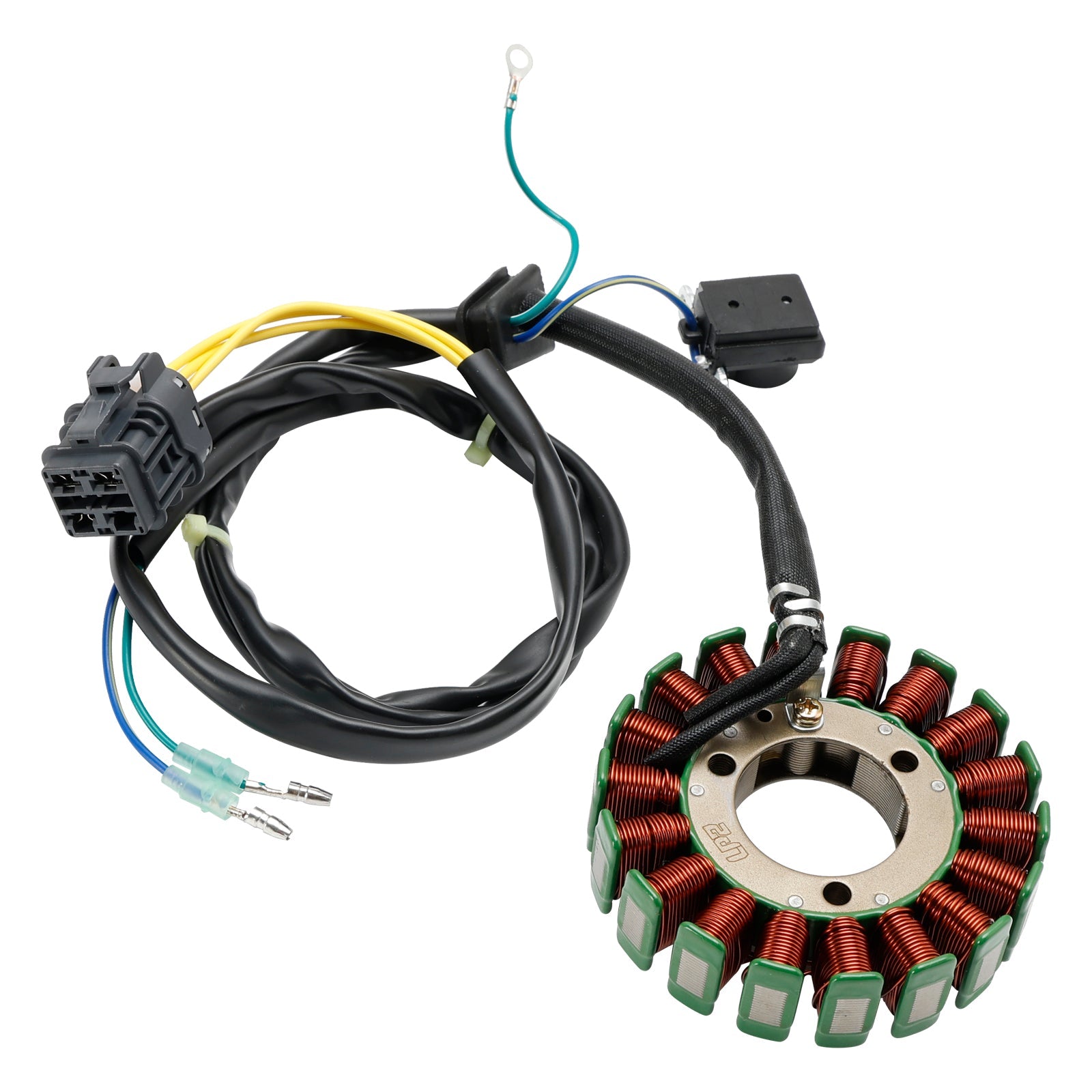

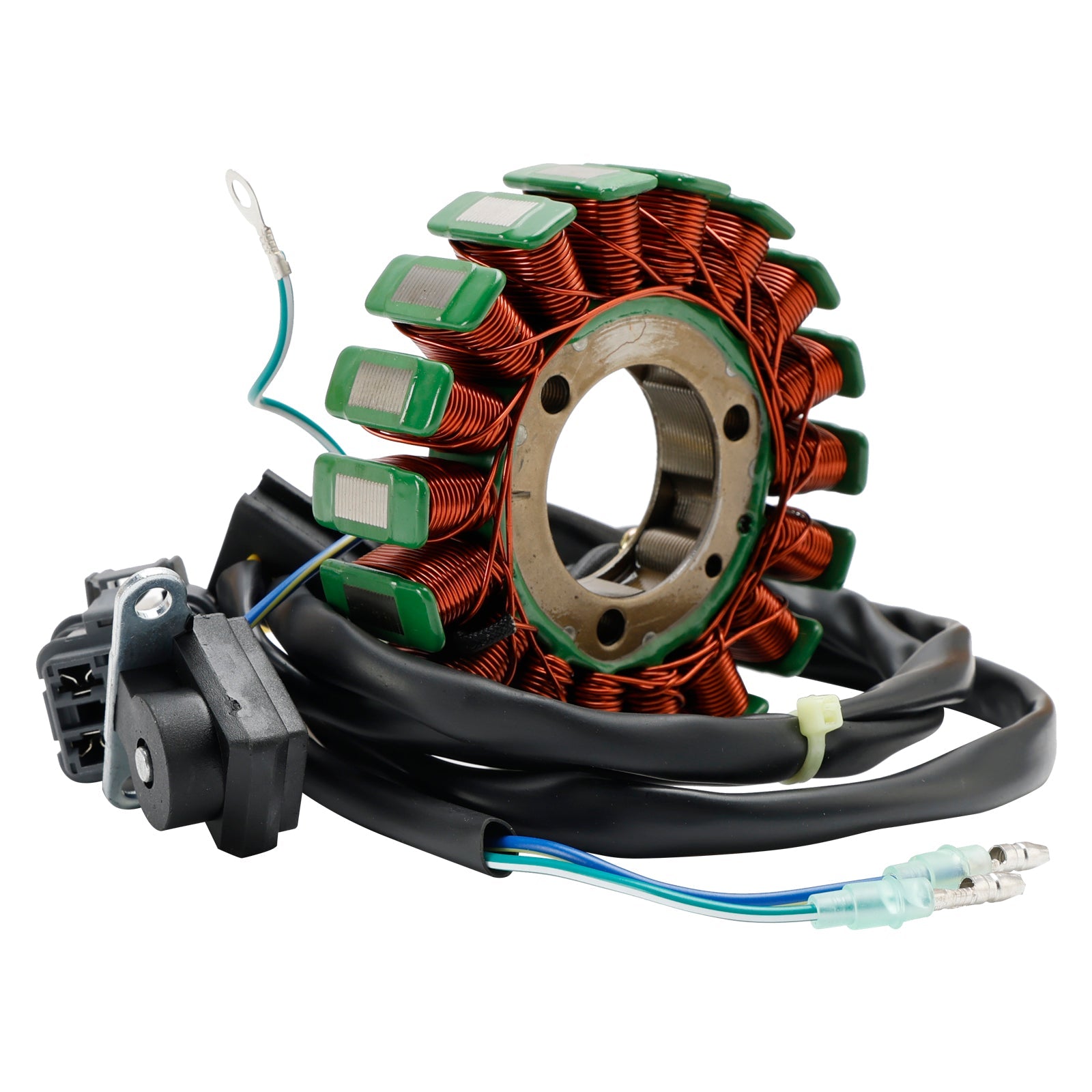

18 Poles Magneto Generator Stator 5-Wire Fit for Triton Outback Baja 250 300 400 (not for EFI)

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

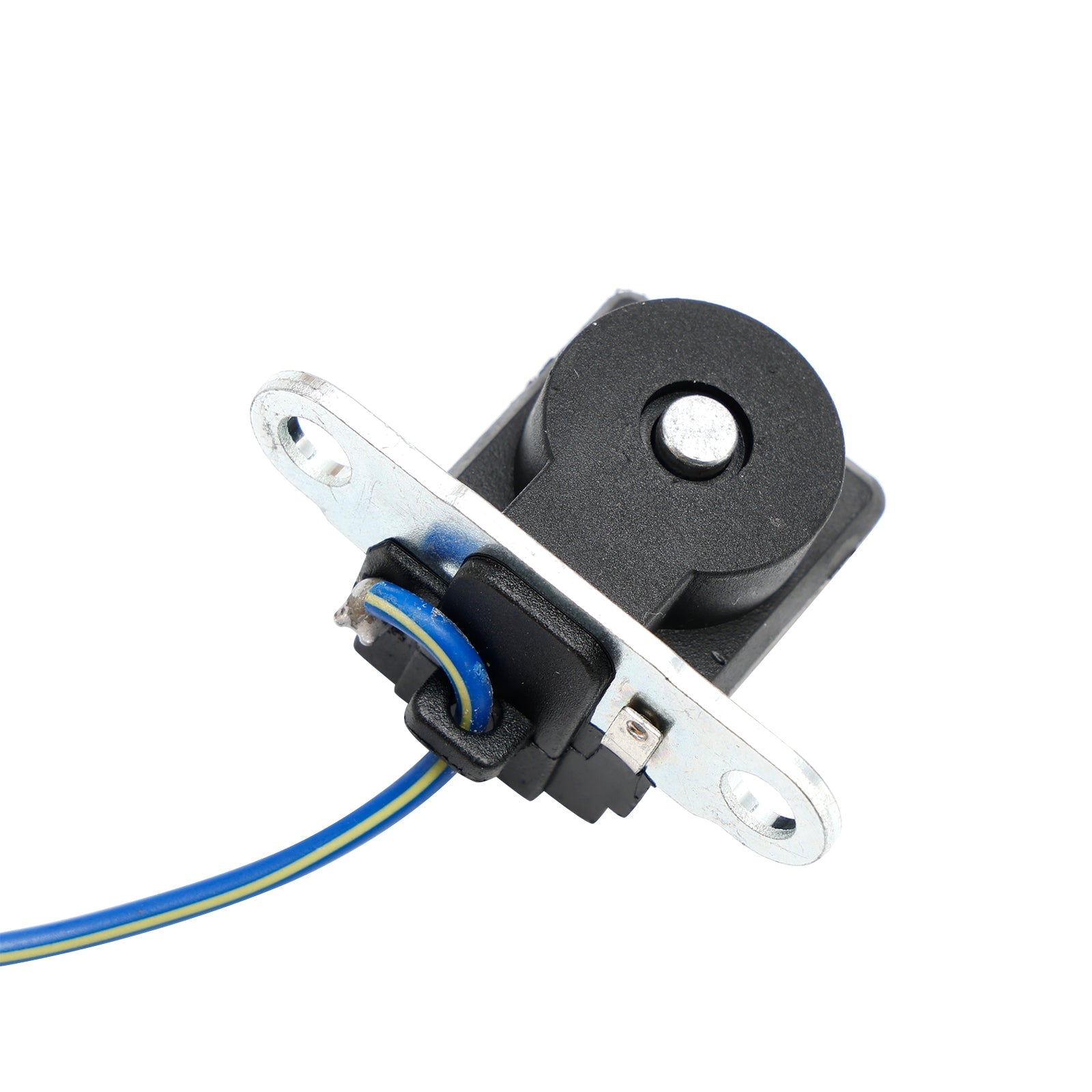

Pick up pulsar coil included.

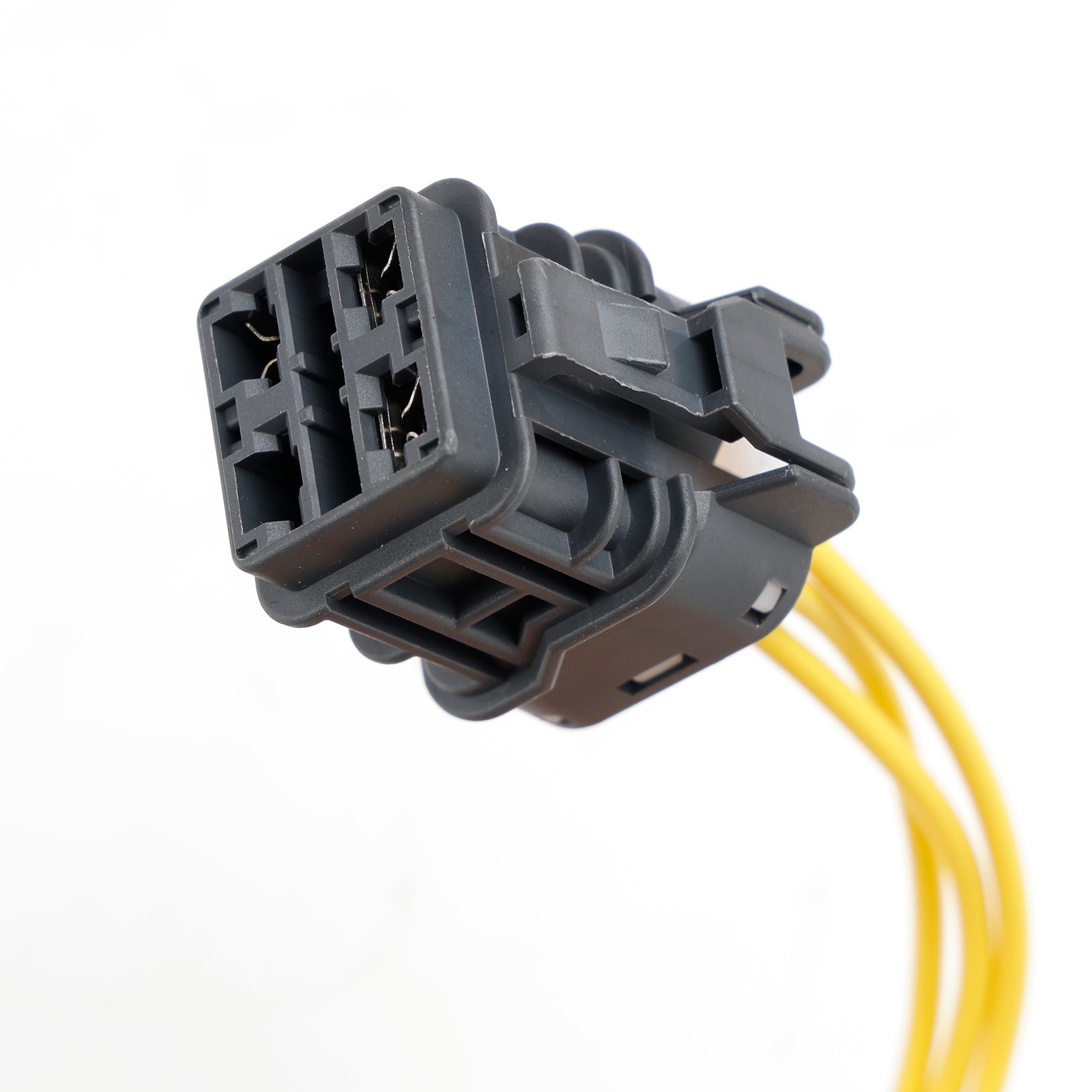

Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 5
Number of plugs: 1(+2)
Number of pins: 2 + 3 (+1)
Number of fixation holes: 3
Number of poles: 18

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
31120-E10-000
31120-E10-101
31120-E10-100
ACC-31120-E10-000
ACC-31120-E10-100

Fits Make/Model/Year:
Fit for GOES ATV Goes 300s
Fit for GOES ATV Goes 400
Fit for Triton ATV Baja 250 2008-2011
Fit for Triton ATV Baja 300 Crosser 2008-2010
Fit for Triton ATV Baja 300 Supermoto 300 2008-2015
Fit for Triton ATV Baja 400 IRS
Fit for Triton ATV Baja 400 Crosser 2008-2010
Fit for Triton ATV Baja 400 Supermoto 2008-2010
Fit for Triton ATV Outback 300 2008-2010
Fit for Triton ATV Outback 400 4x2 2009
Fit for Triton ATV Outback 400 4x4 2010
Fit for Triton ATV Outback 400 4x4 LOF 2011
Fit for Access ATV AMX 3.20
Fit for Access ATV AMS 4.30 SX
Fit for Access ATV AMS 4.30 SM
Fit for Access ATV Xtreme 300
Fit for Access ATV Xtreme 300 Enduro
Fit for Access ATV Xtreme 300 Supermoto
Fit for Access ATV MAX 4 300
Fit for Access ATV Tomahawk 300
Fit for Access ATV Tomahawk 400

Only fits Injection Model,Does NOT fit EFI Models.
Please check and see if your stator pole's number as same as our and your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 18-Pole Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
