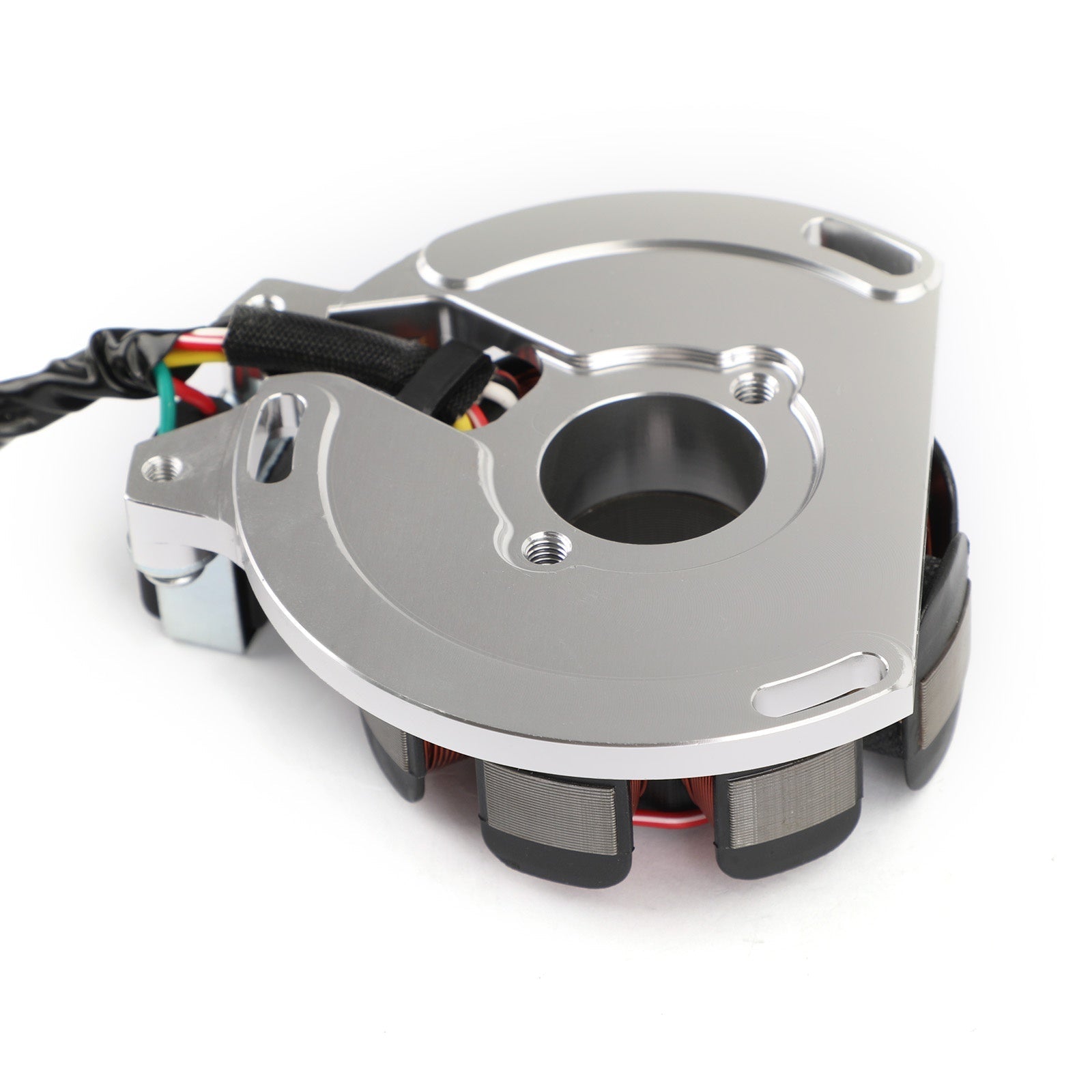

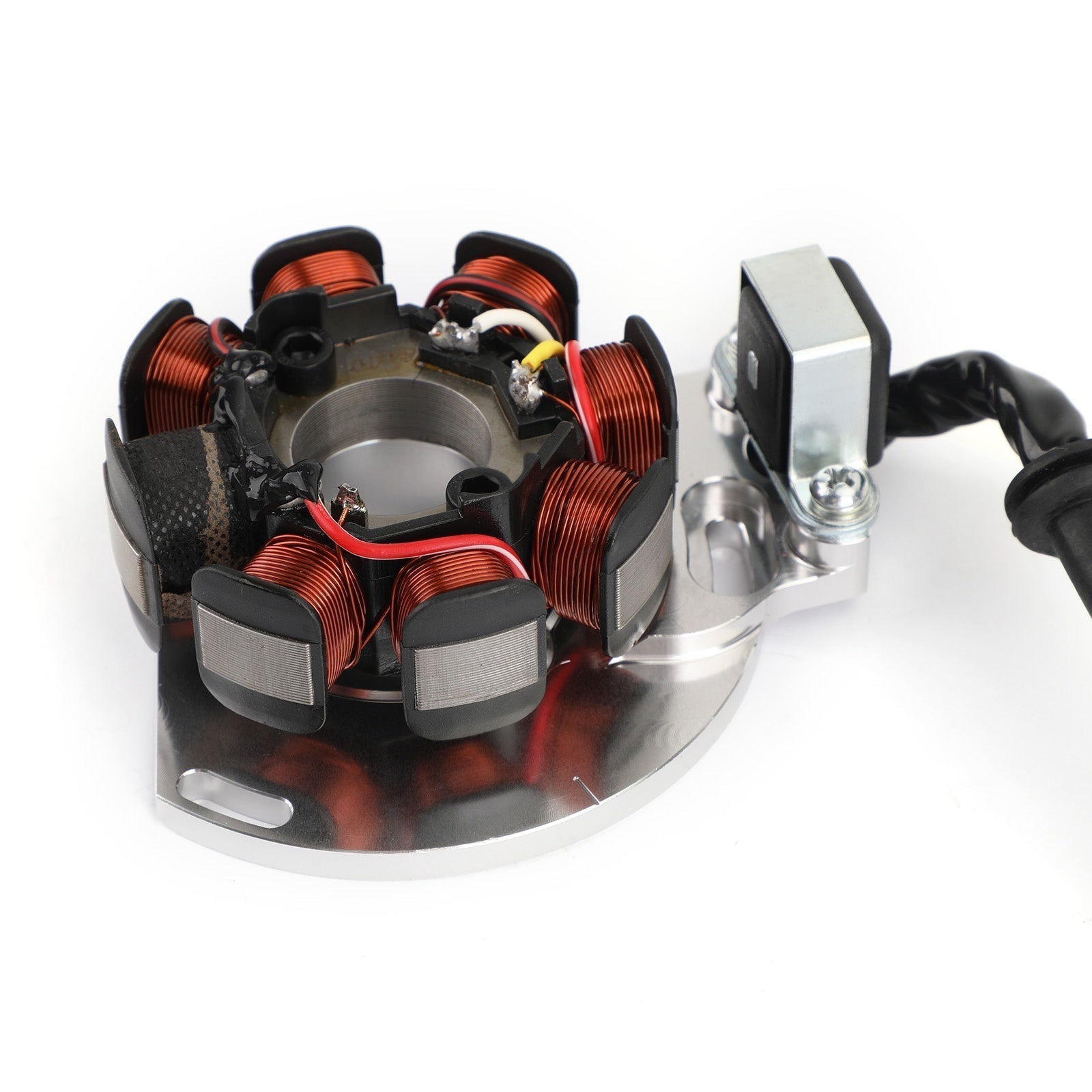

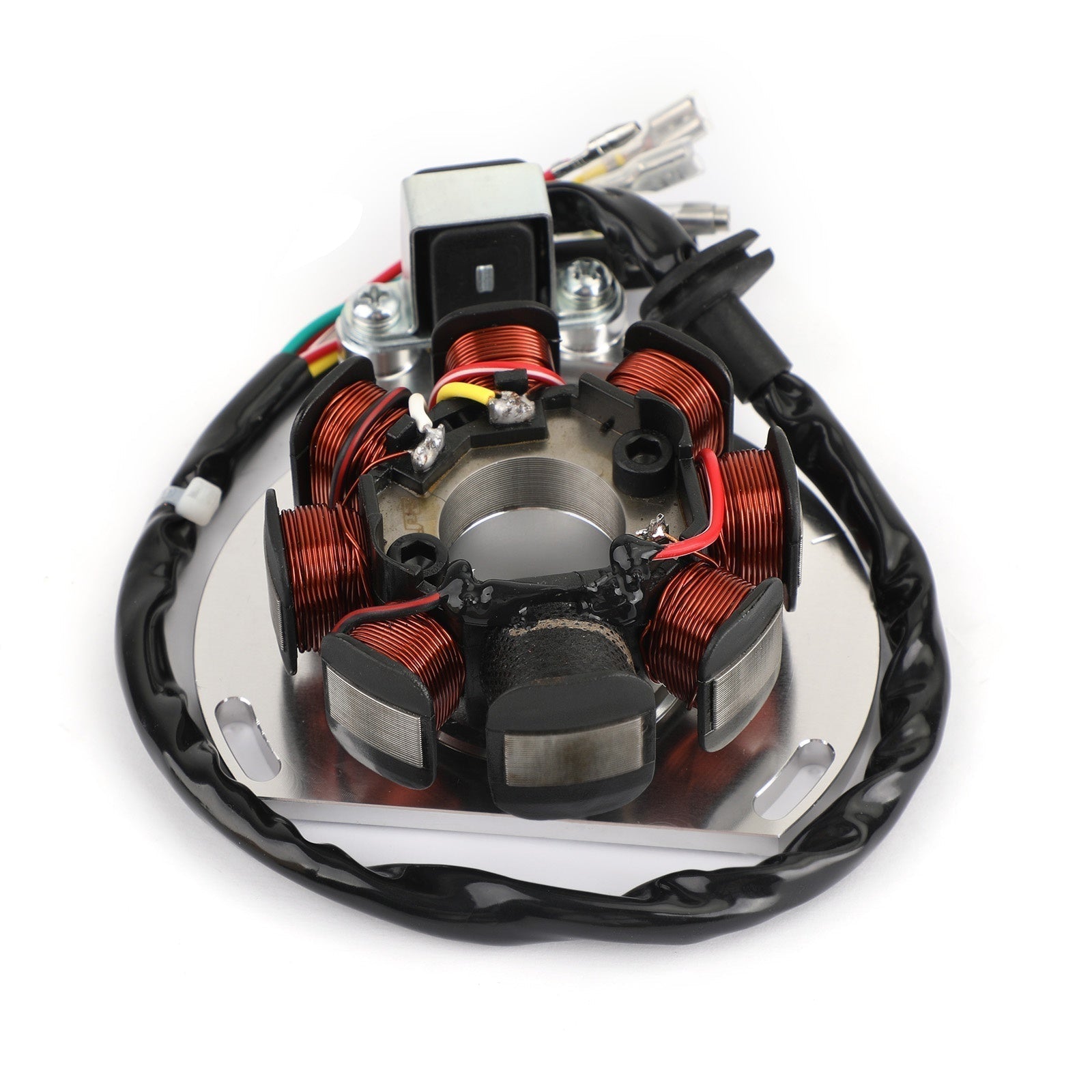

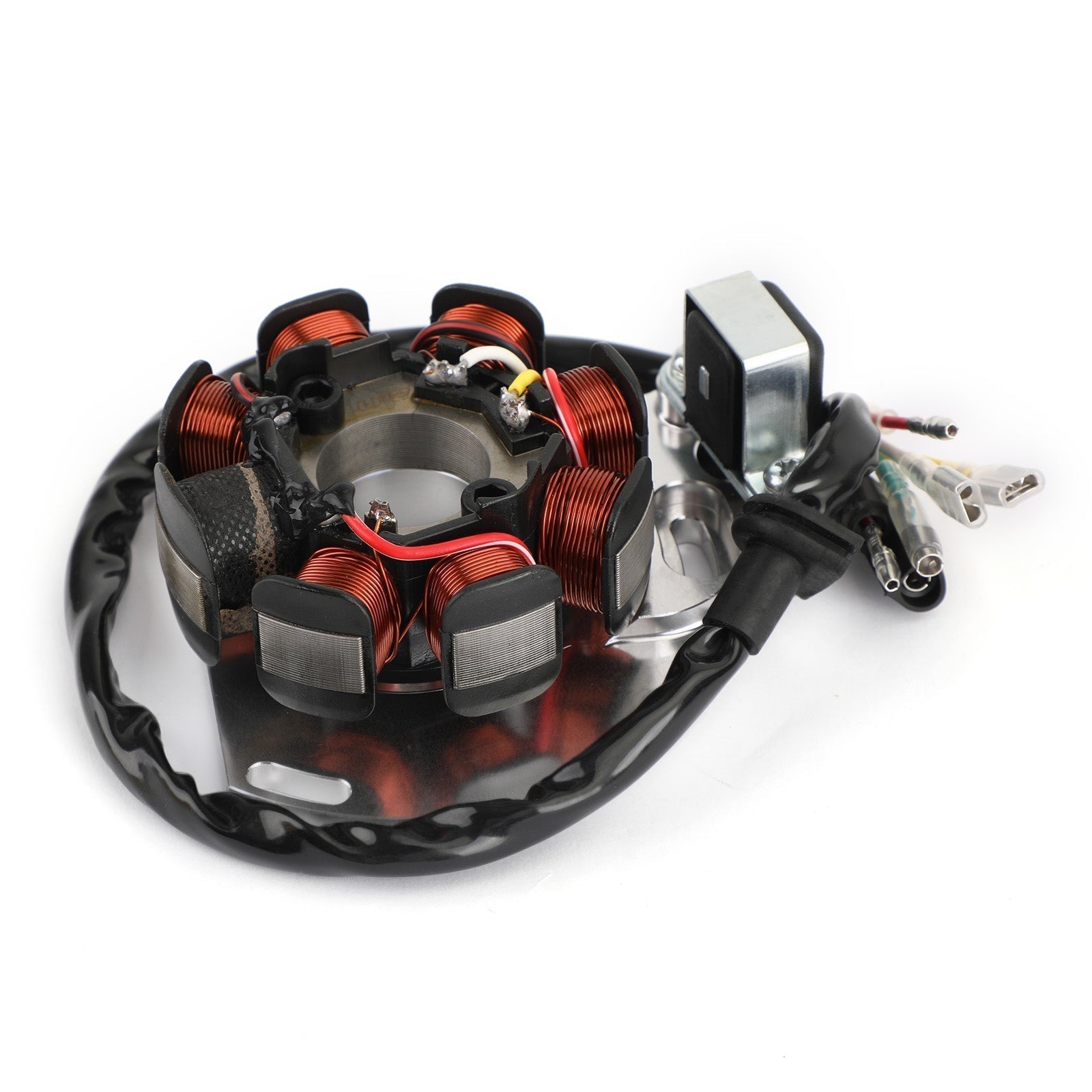

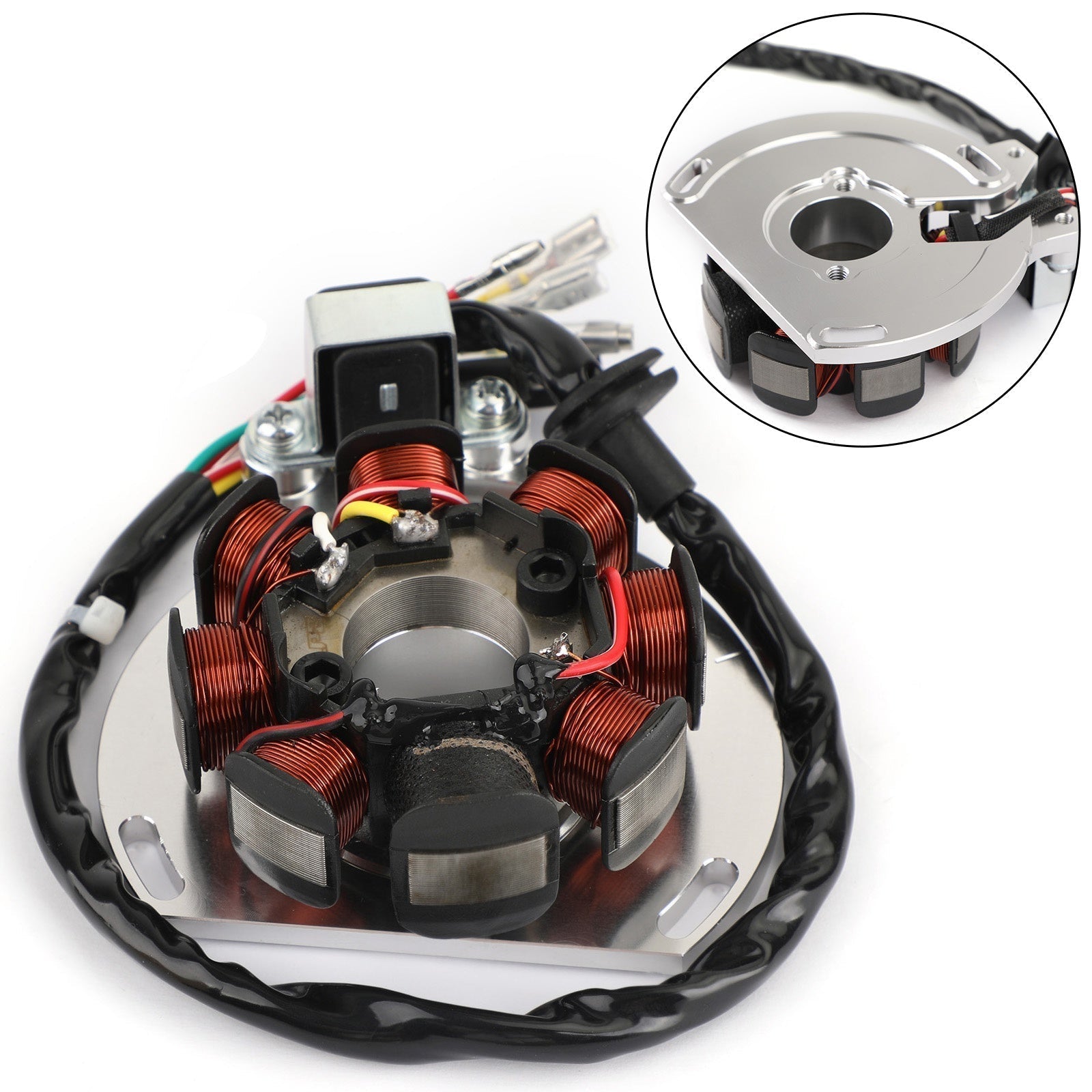

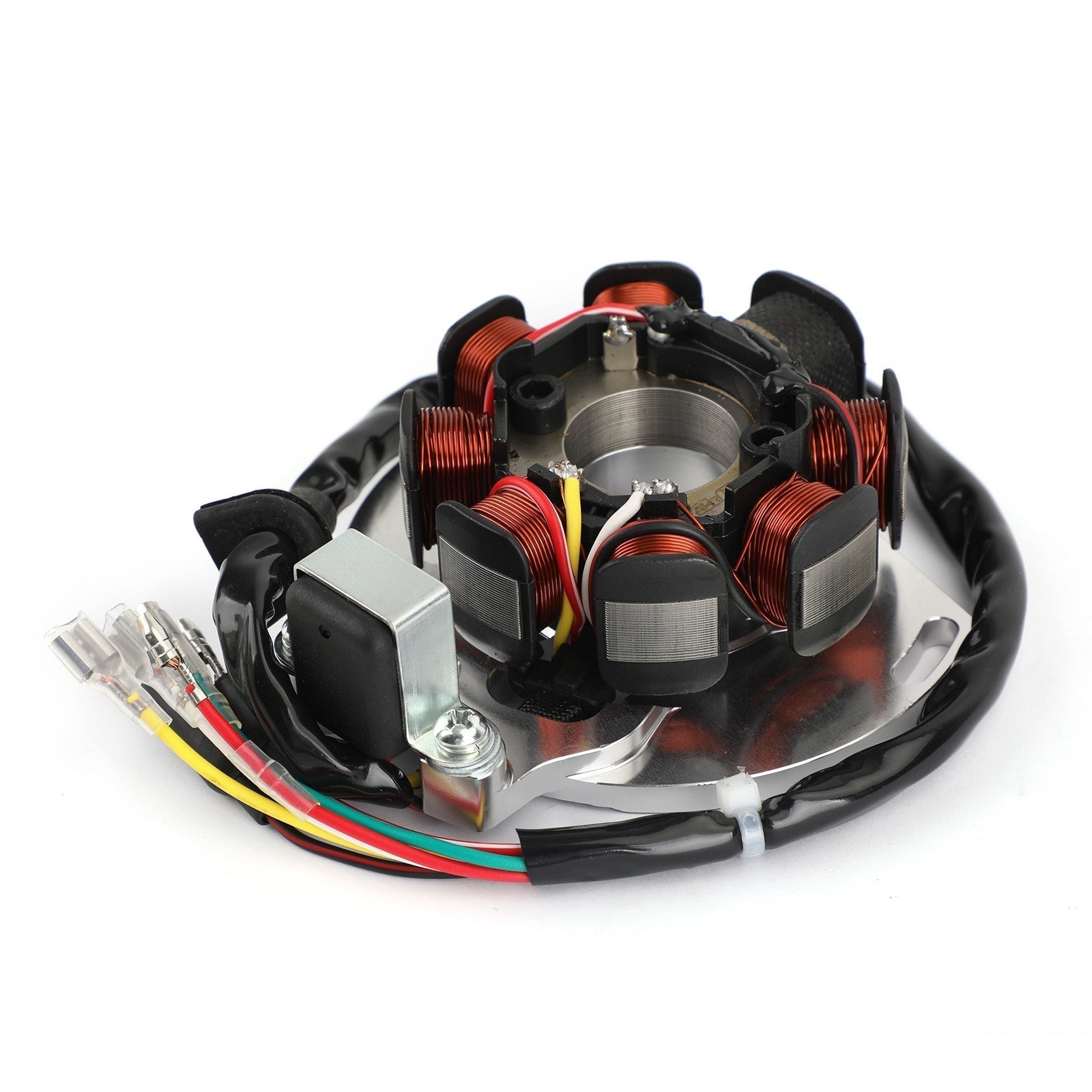

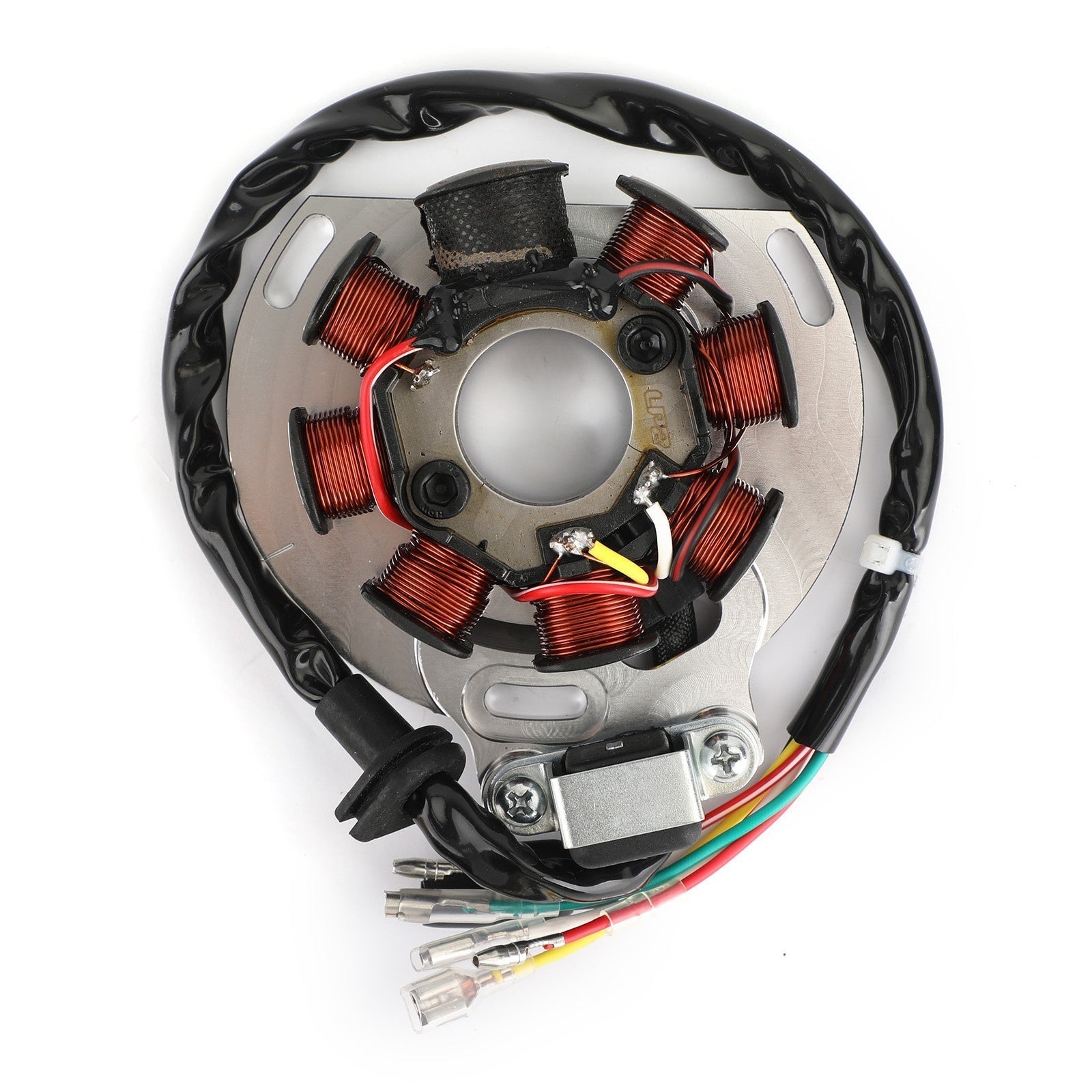

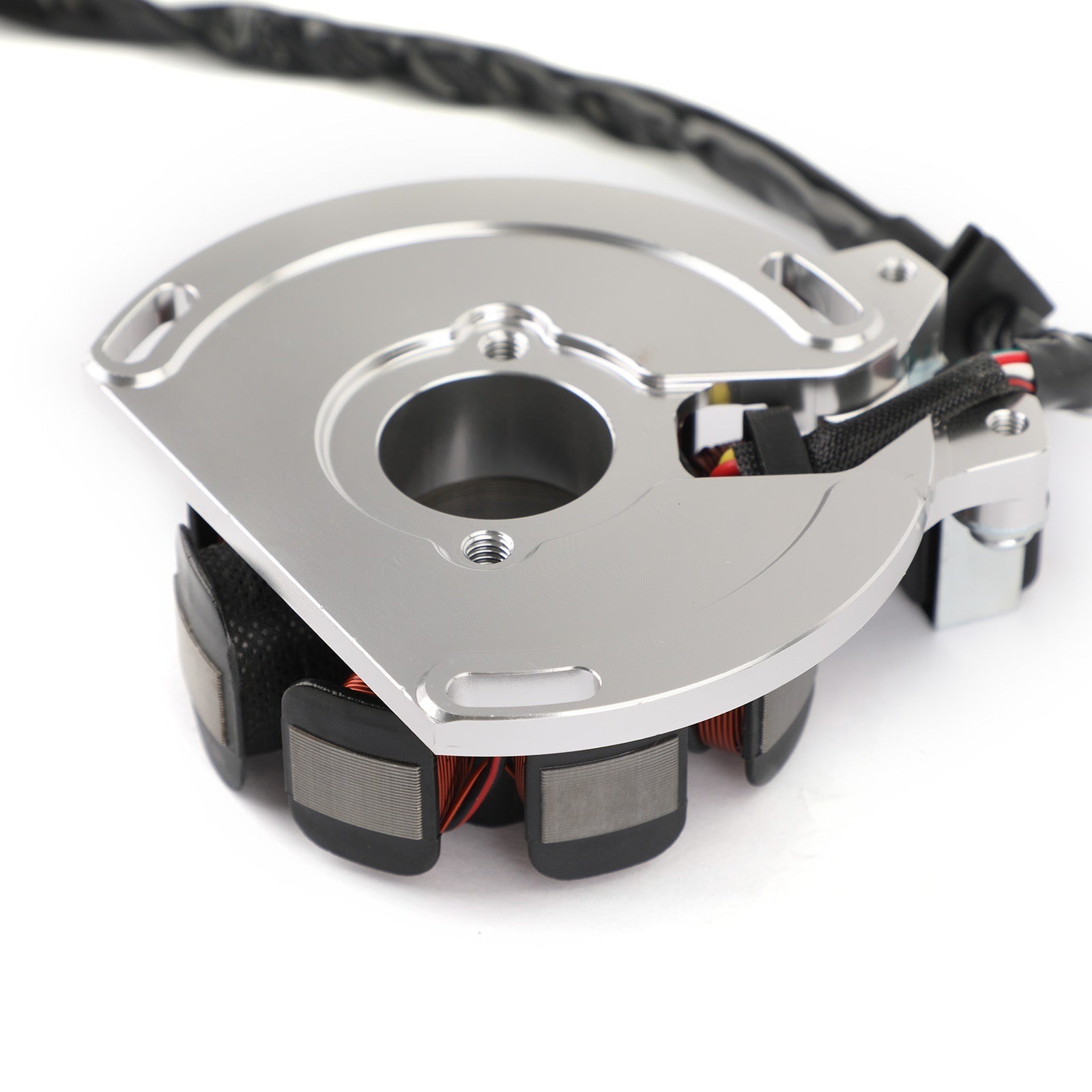

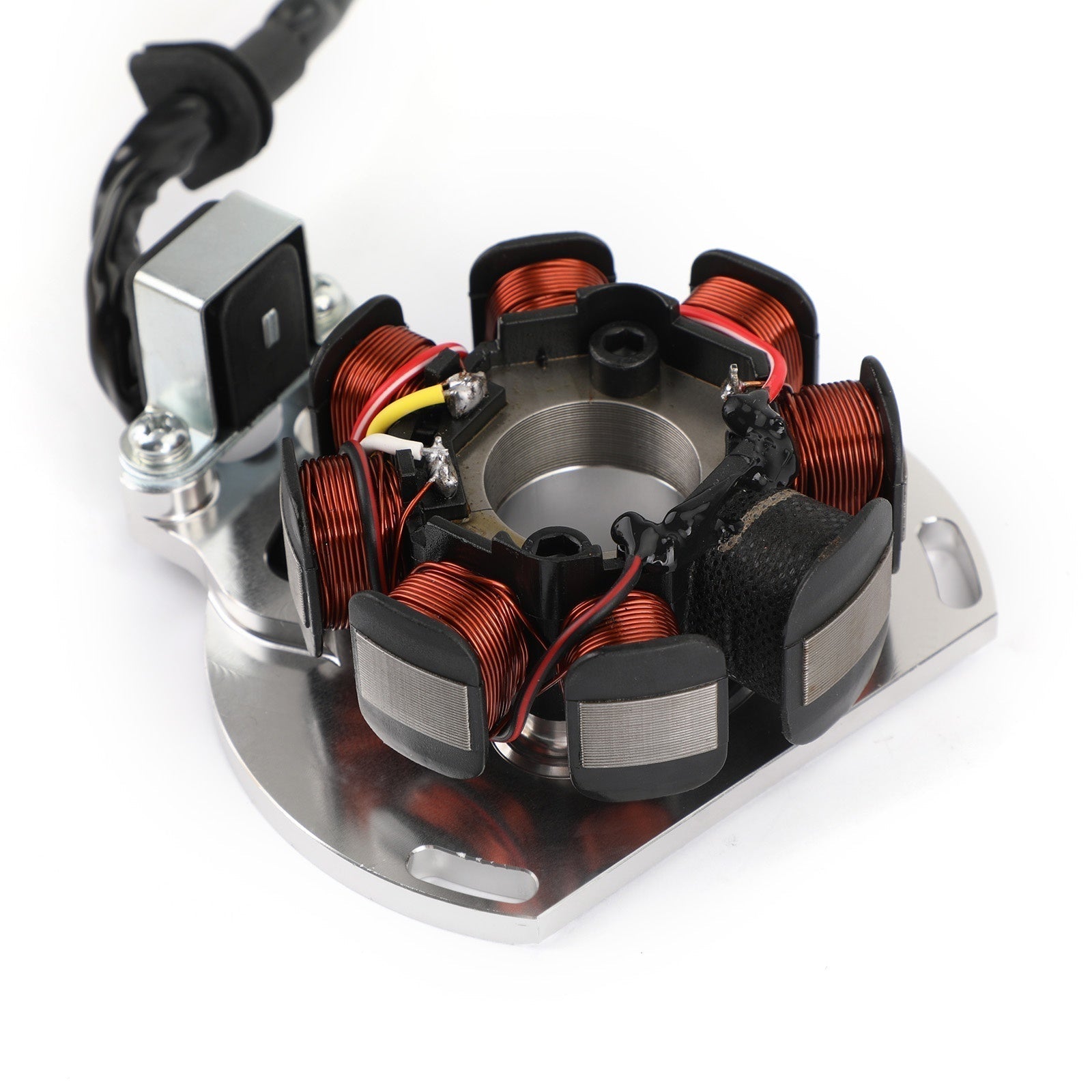

Magneto Generator Engine Stator 2K-3 Fit For 125/200/300/380 SX EXC MXC SXS EGS 1998-2004

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

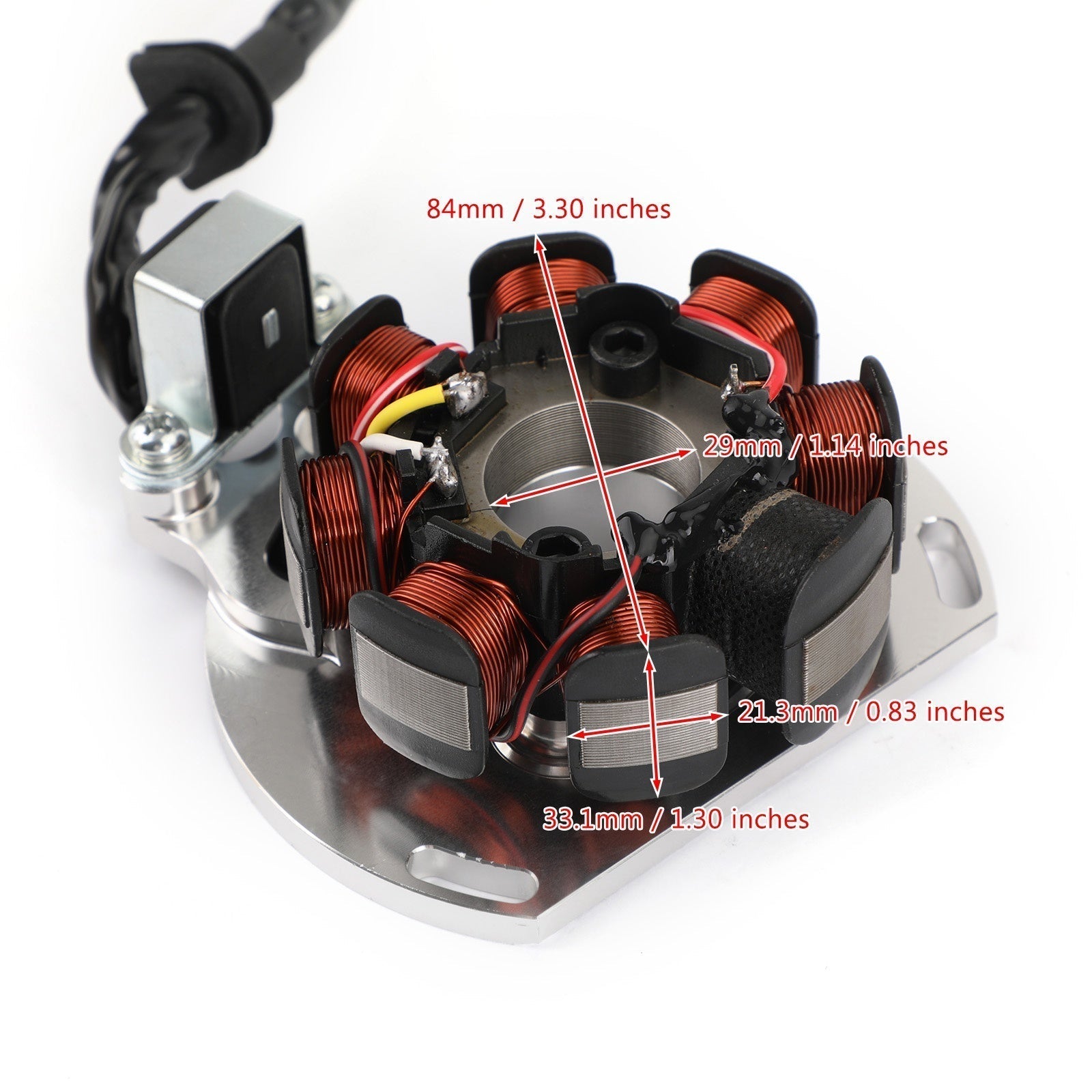

Dimensions :
Interior diameter : 29mm / 1.14 inches
Exterior diameter : 84mm / 3.30 inches
Pole's Thickness : 33.1mm / 1.30 inches
Pole's Width : 21.3mm / 0.83 inches

Other Specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 6
Number of fixation holes: 3
Number of poles: 8

PART NUMBER(S):
50339004200
ME250034005

Fitments:
THESE MODELS USE 3 DIFFERENT TYPE OF STATORS.
2K-1 (IGNITION ONLY), 2K-2 (AC ONLY) & 2K-3 (FULL DC).
THIS ONE IS THE 2K-3 (FULL DC) VERSION.
BEFORE BUYING PLEASE MAKE SURE YOUR BIKE USES THE 2K-3 (FULL DC)VERSION.

Fit for 125/200/300/380 2K-3 Version

Fit for 125 EXC 1998-2004
Fit for 125 EXC SIX DAYS 2001-2004
Fit for 125 EXE 80 2000-2001
Fit for 125 EGS 6KW 1998
Fit for 125 EGS 1999
Fit for 125 EGS 6KM 1999
Fit for 125 SX 1998-2004
Fit for 125 SXS 2000-2004
Fit for 125 SIX DAY LE 1997
Fit for 125 SUPERMOTO 2000
Fit for 125 SUPERMOTO 80 2000-2001
Fit for 125 SUPERMOTO 100 2000
Fit for 200 EXC 1998-2004
Fit for 200 EXC GS 8kw 2000
Fit for 200 EXC GS 2001
Fit for 200 EXC SGP GS 2002
Fit for 200 EXC SGP 2000-2001
Fit for 200 EXC JACKPINER 1997
Fit for 200 Jackpinner Engine 1997
Fit for 200 EXC Engine 2000-2004
Fit for 200 EGS 12LT 8KW 1998-1999
Fit for 200 EGS Singapore Chassis 1999
Fit for 200 EGS 1999
Fit for 200 EGS SGP 1999
Fit for 200 Engine 1998-1999
Fit for 200 MXC 1998-2003
Fit for 200 MXC Engine 2000-2003
Fit for 200 SX 2003-2004
Fit for 250 SX 2001-2002/2004
Fit for 250 SXS 2001/2004
Fit for 250 EXC 2000-2004
Fit for 250 EXC SIX DAYS 2001-2002/2004
Fit for 250 MXC 2000-2001
Fit for 300 MXC 2001
Fit for 300 EXC 2000-2004
Fit for 300 EXC SIX DAYS 2001/2003
Fit for 300 MXC 2000-2004
Fit for 380 XC 2000-2002
Fit for 380 SX 2000-2002
Fit for 380 EXC 2000-2002
Fit for 380 MXC 2000-2001Fit for Gas Gas ME250034005
Fit for Gas Gas SM125 2003-2004
Fit for Gas Gas SM250 2003-2004
Fit for Gas Gas EC125 2003-2004
Fit for Gas Gas EC200 2000-2004
Fit for Gas Gas EC250 2000-2004
Fit for Gas Gas EC300 2000-2004
Fit for Gas Gas Wild HP 300 2003

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors

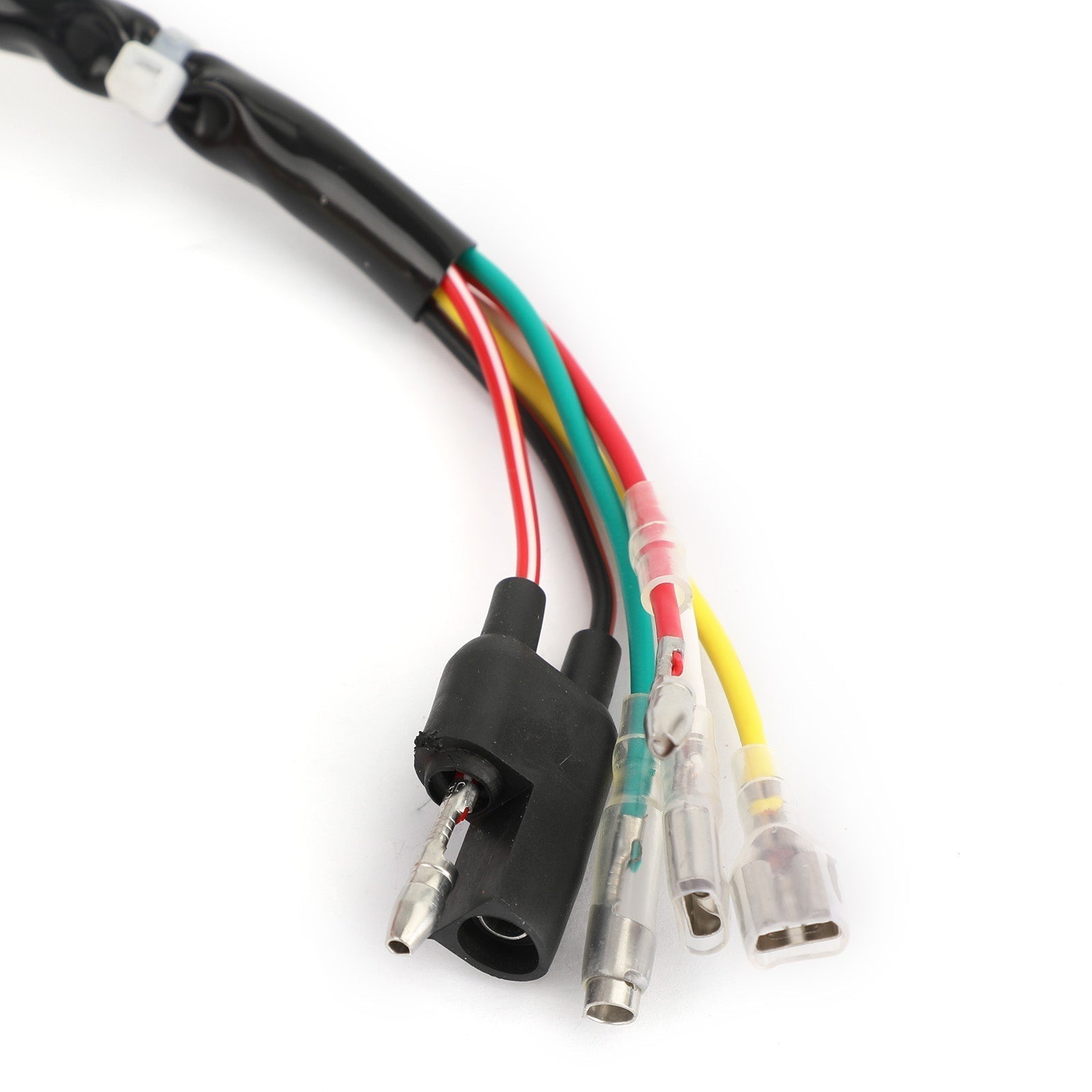

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
