FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

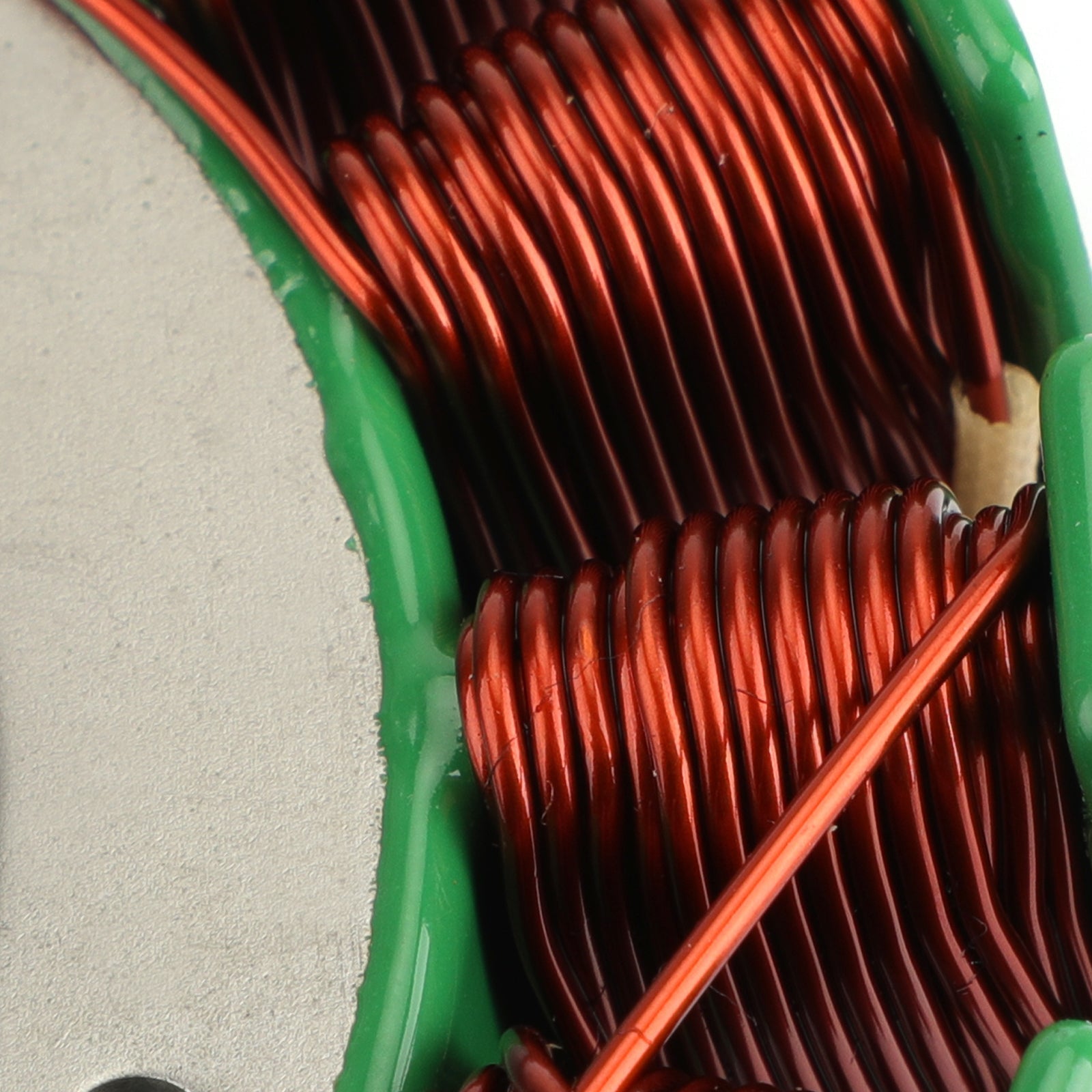

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

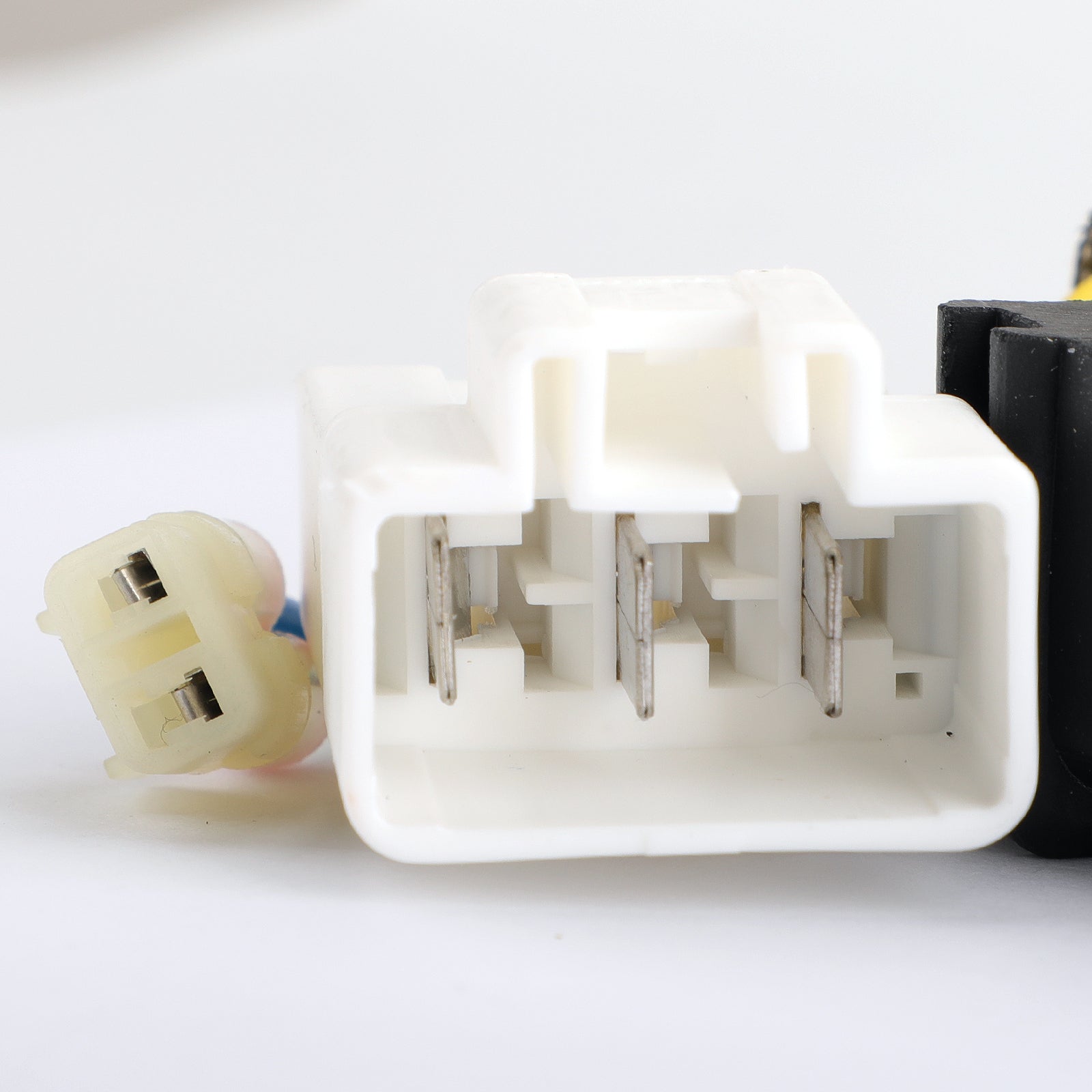

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

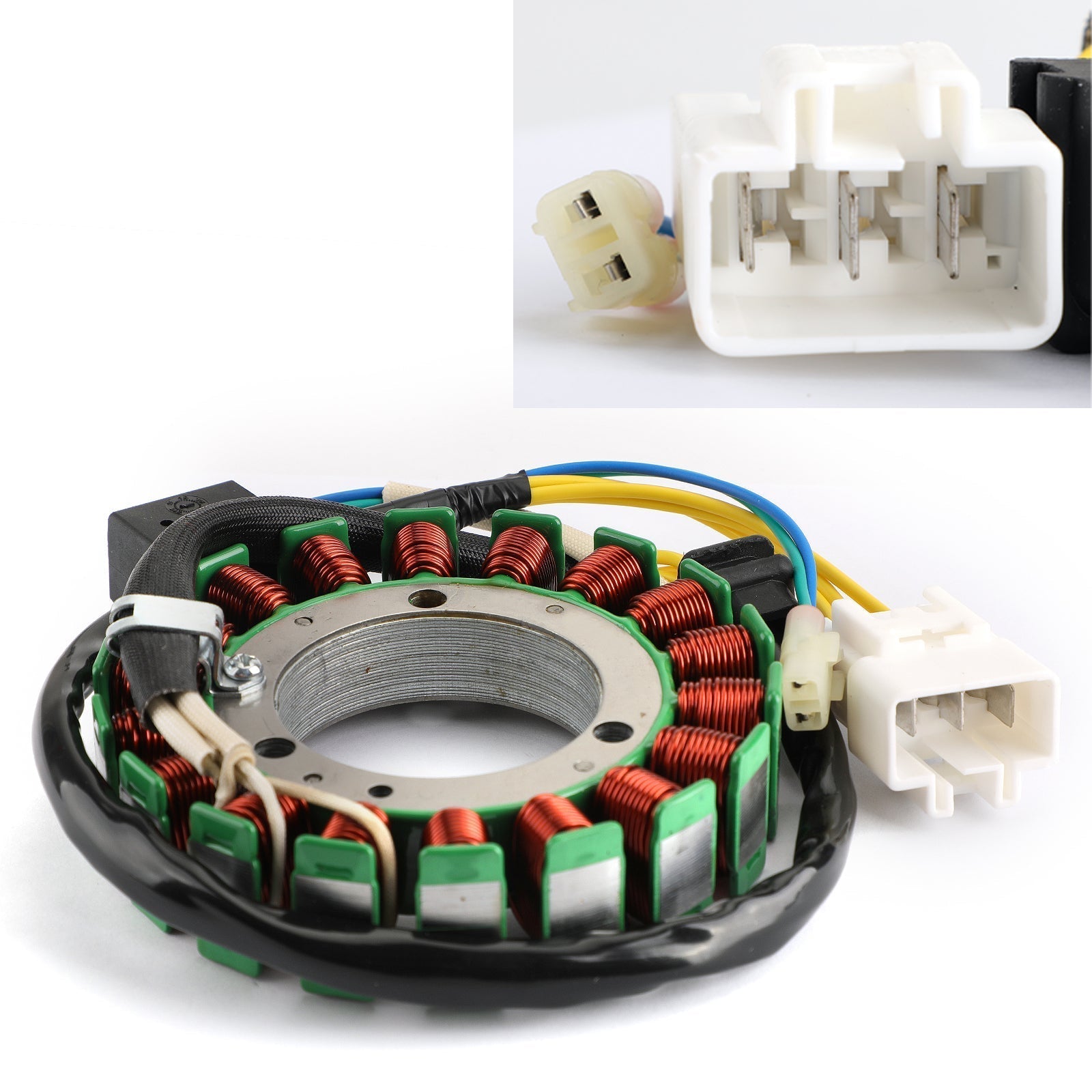

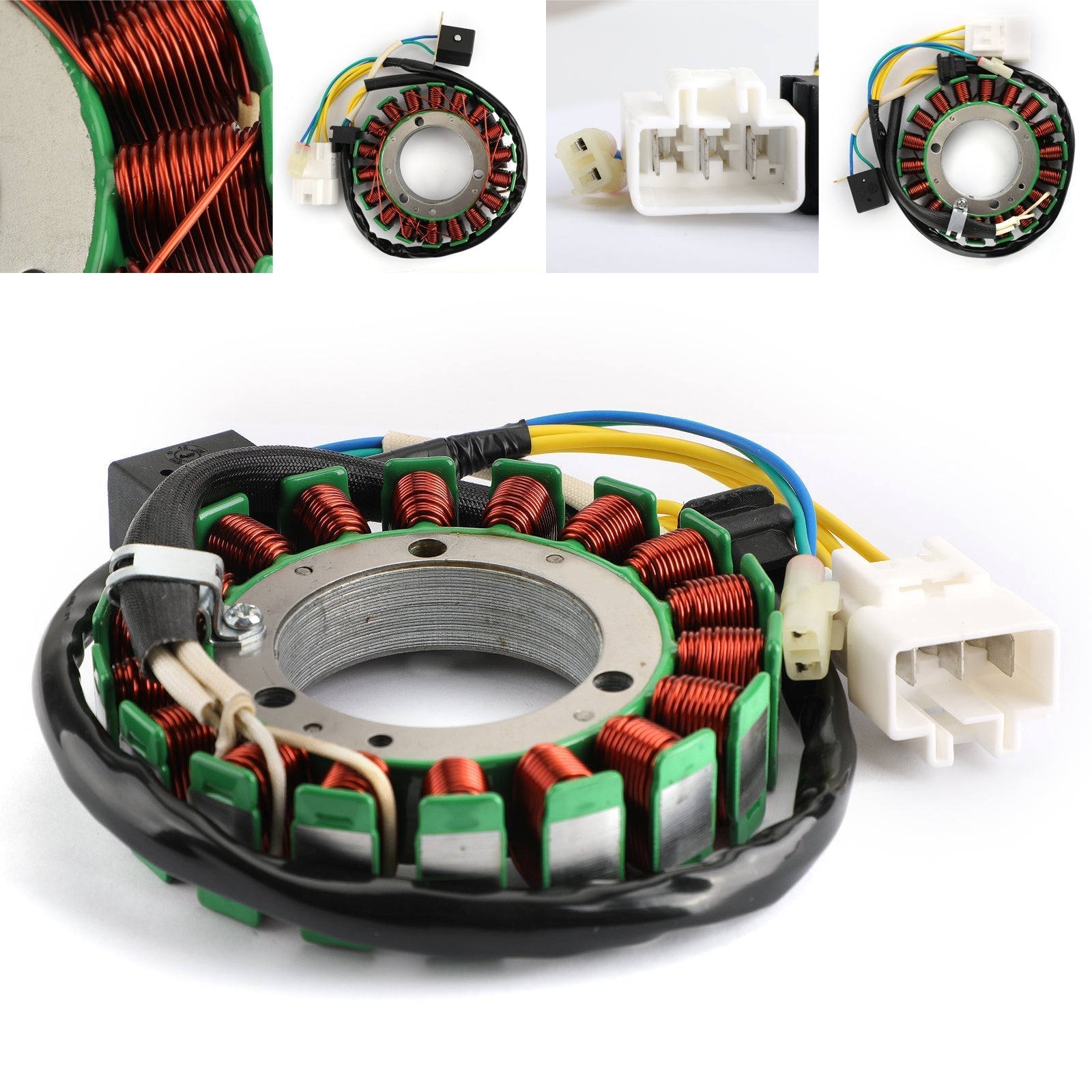

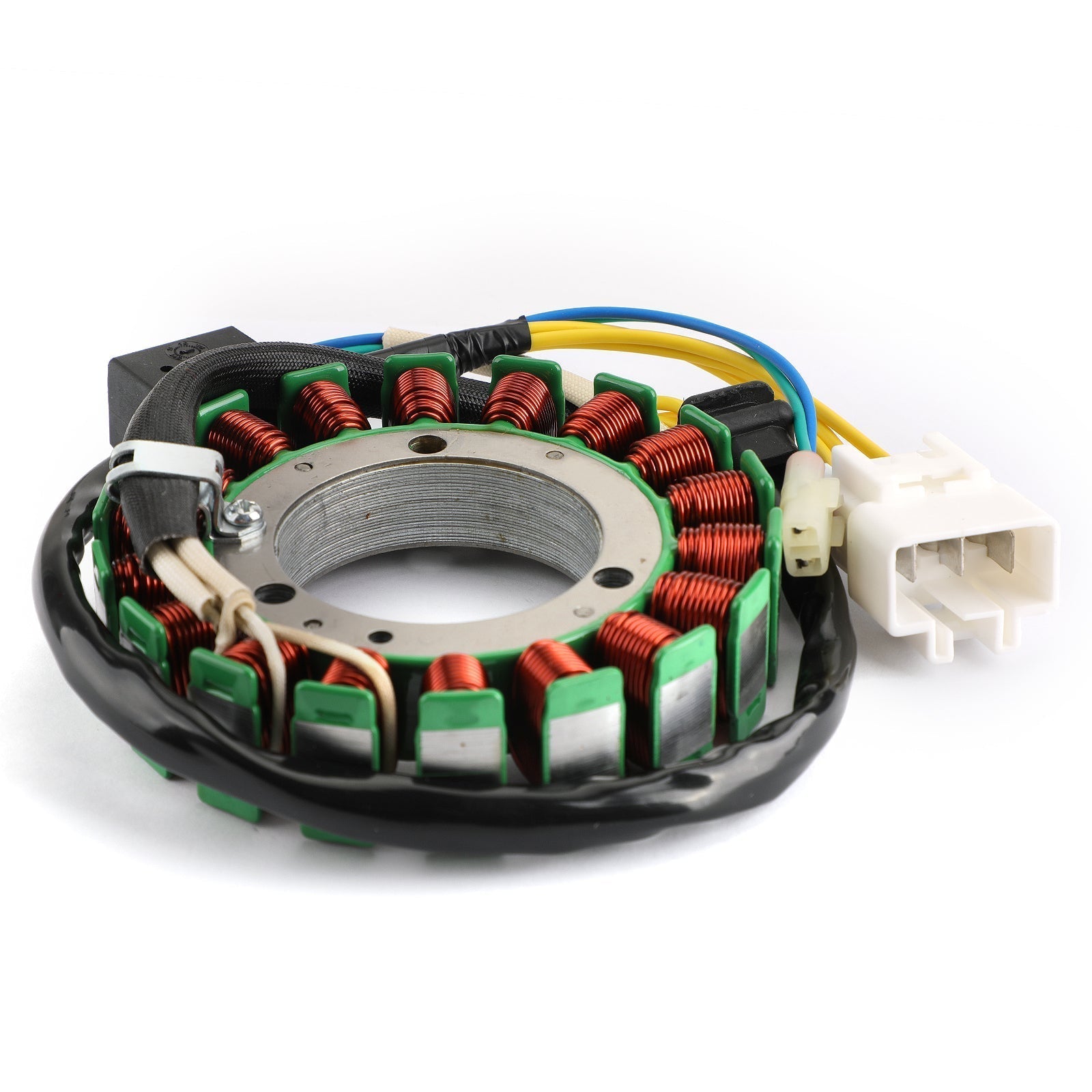

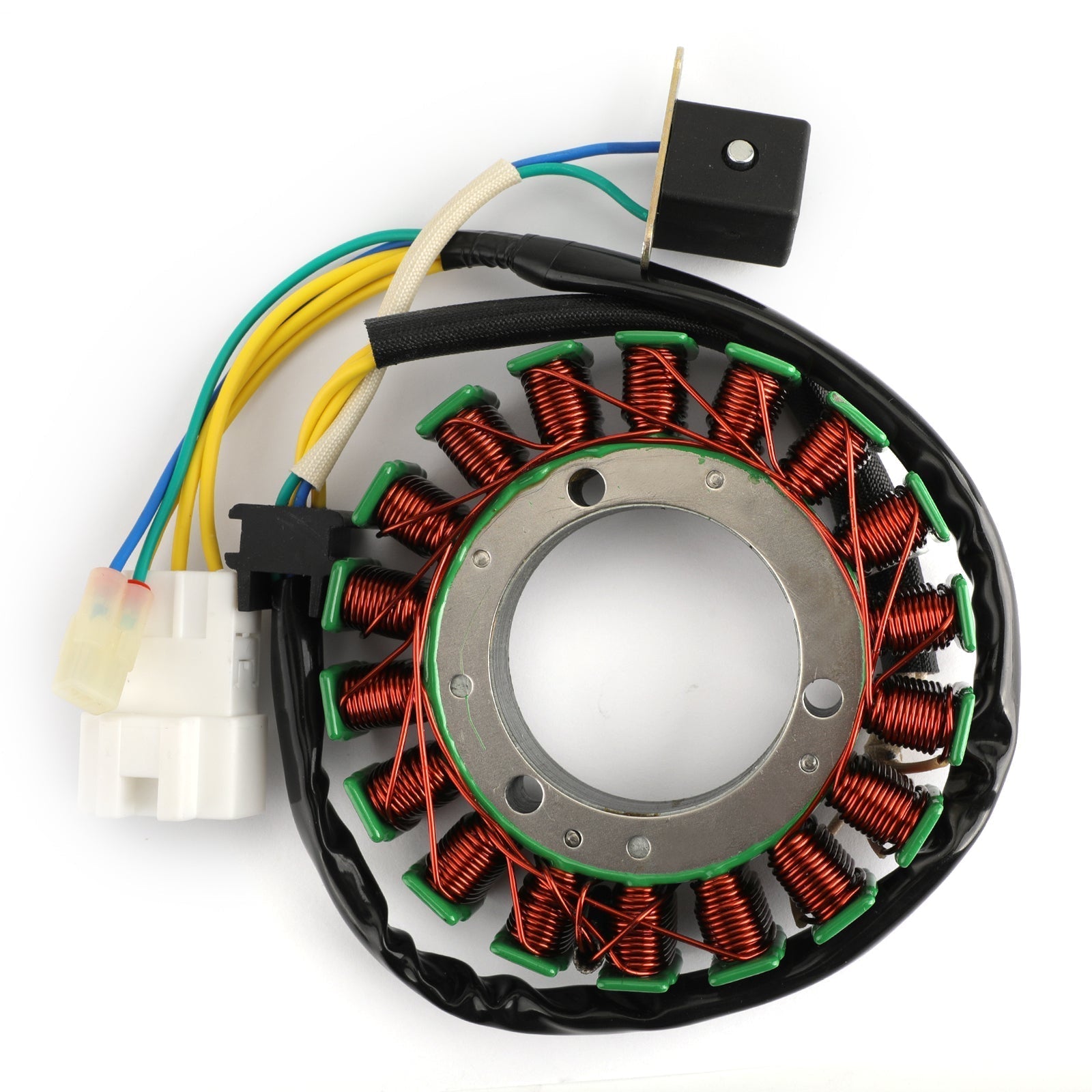

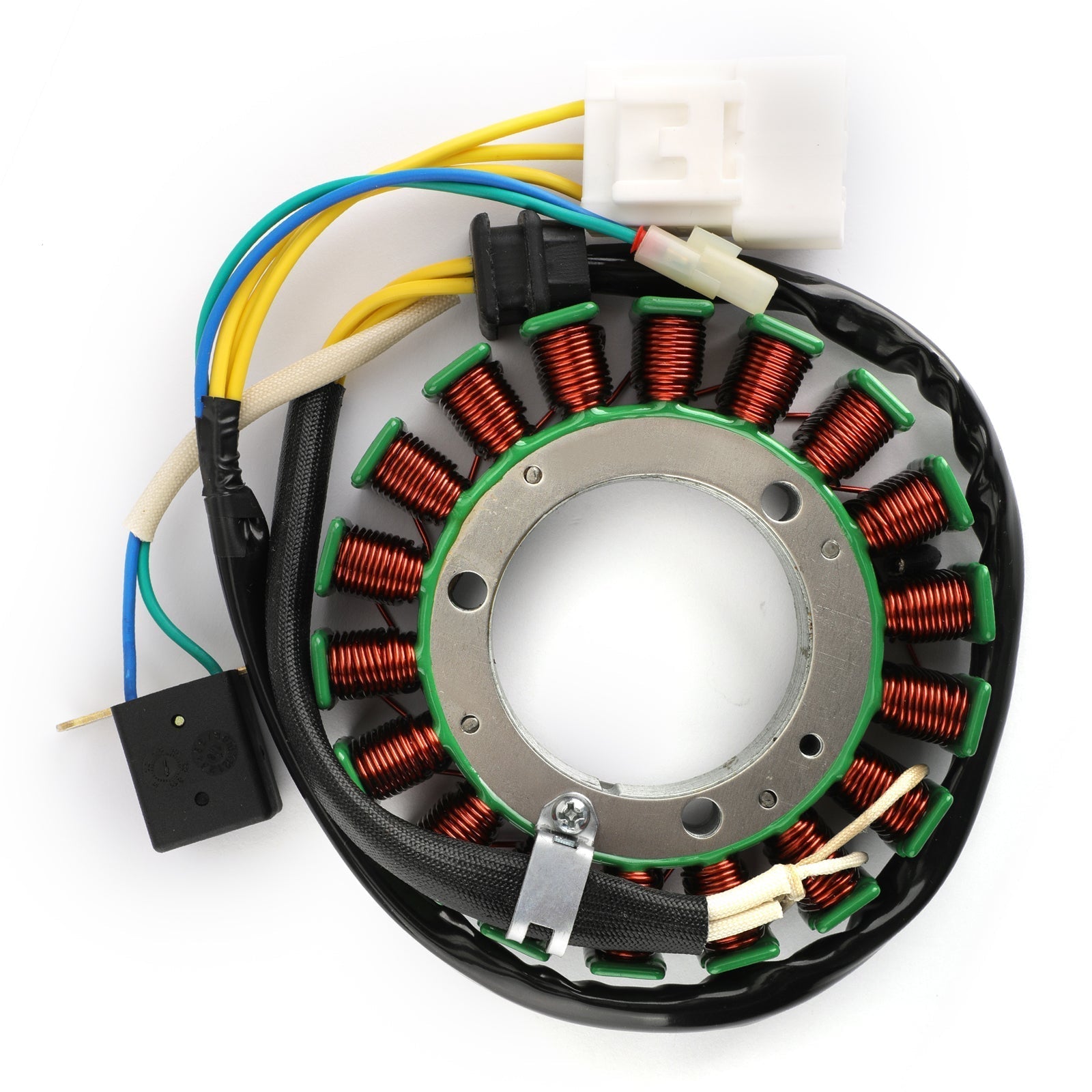

Type: Generator Stator Coil
Replacement Part Number:0180-032000

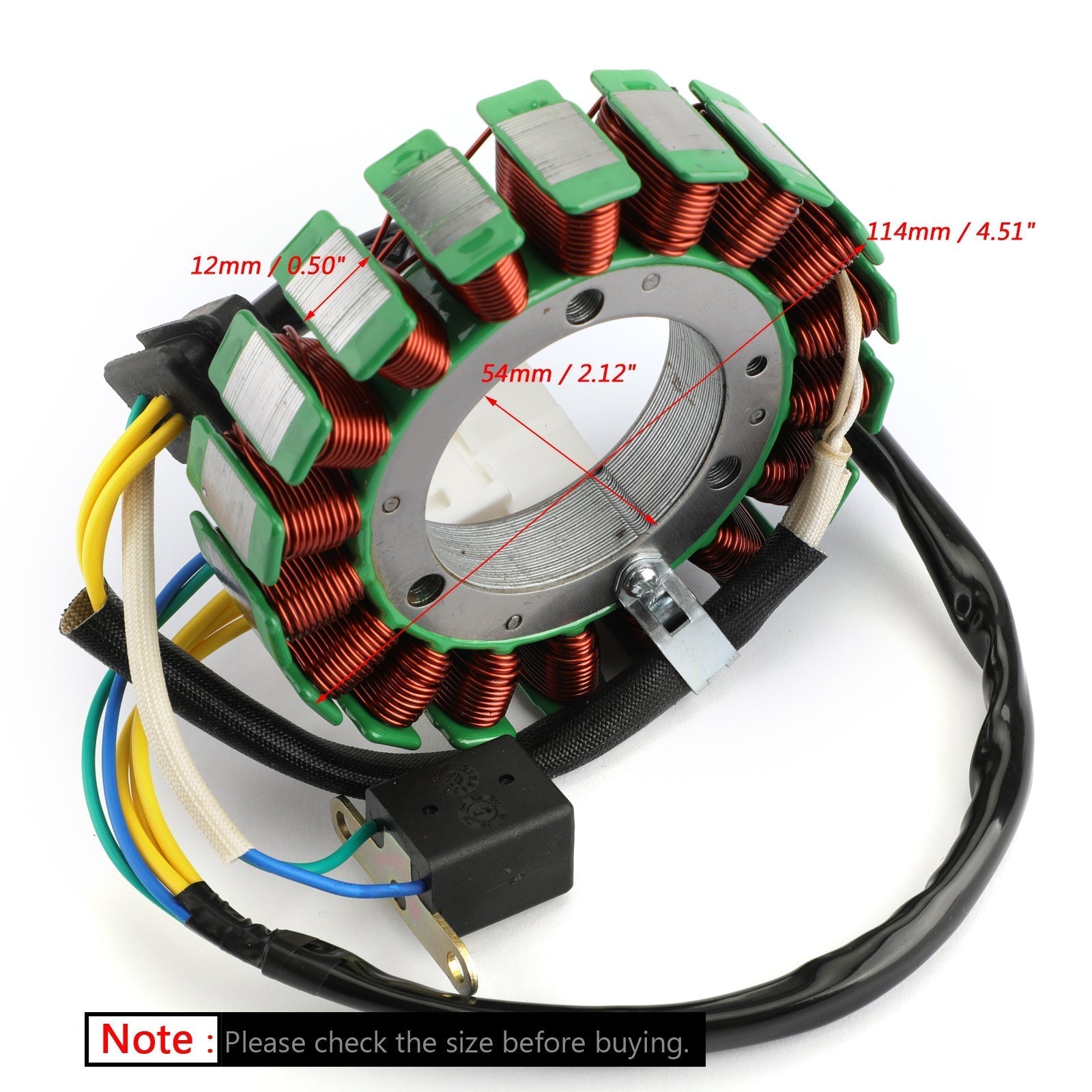

Dimensions :
Interior diameter : 54mm / 2.12"
Exterior diameter : 114mm / 4.51"
Thickness : 12mm / 0.50"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+1)

FITMENT:
For CFMoto CF500 2007-2009/2011-2016
For CFMoto X5 500 2011-2015
For CFMoto UFORCE 500 2014-2015
For CFMoto 196S-B (U6) 2011-2013
For CFMoto 196S-B (X6) 2011-2017
For CFMoto 196S-C 2010-2013
For CFMoto CF188 2010-2019
For CFMoto CF188-A 2010-2015
For CFMoto CF188-B 2010-2013
For CFMoto CF188-C 2011-2015

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.


Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
