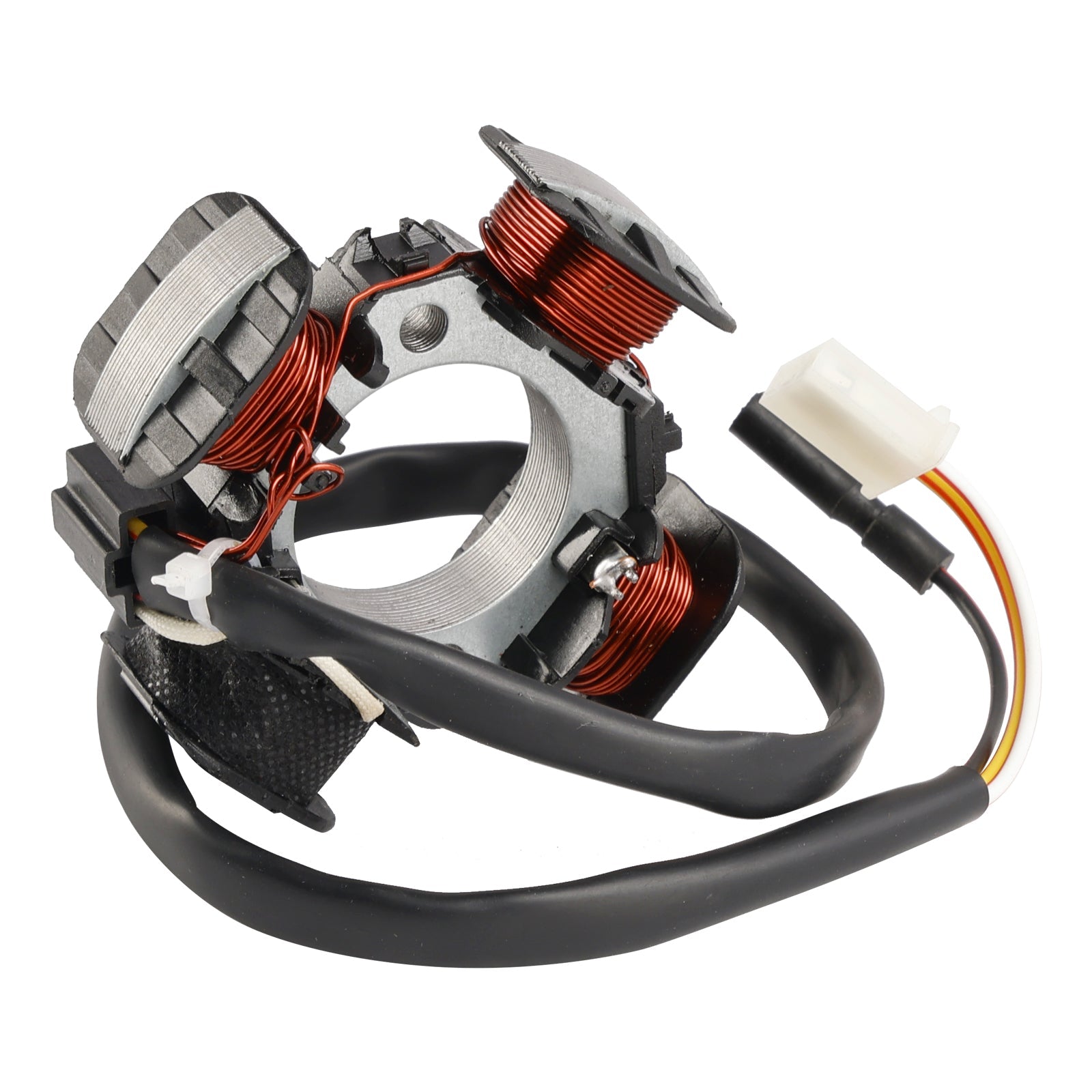

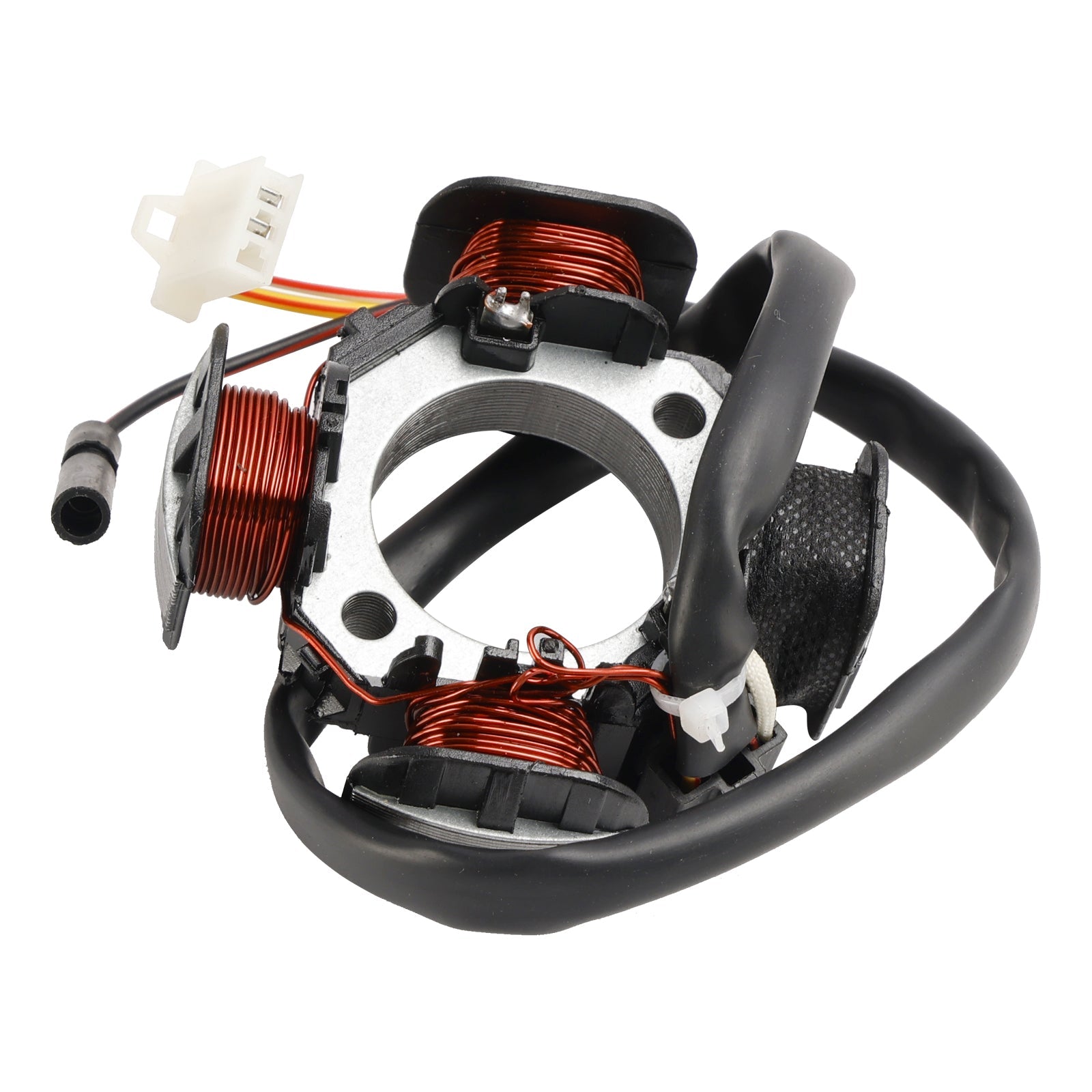

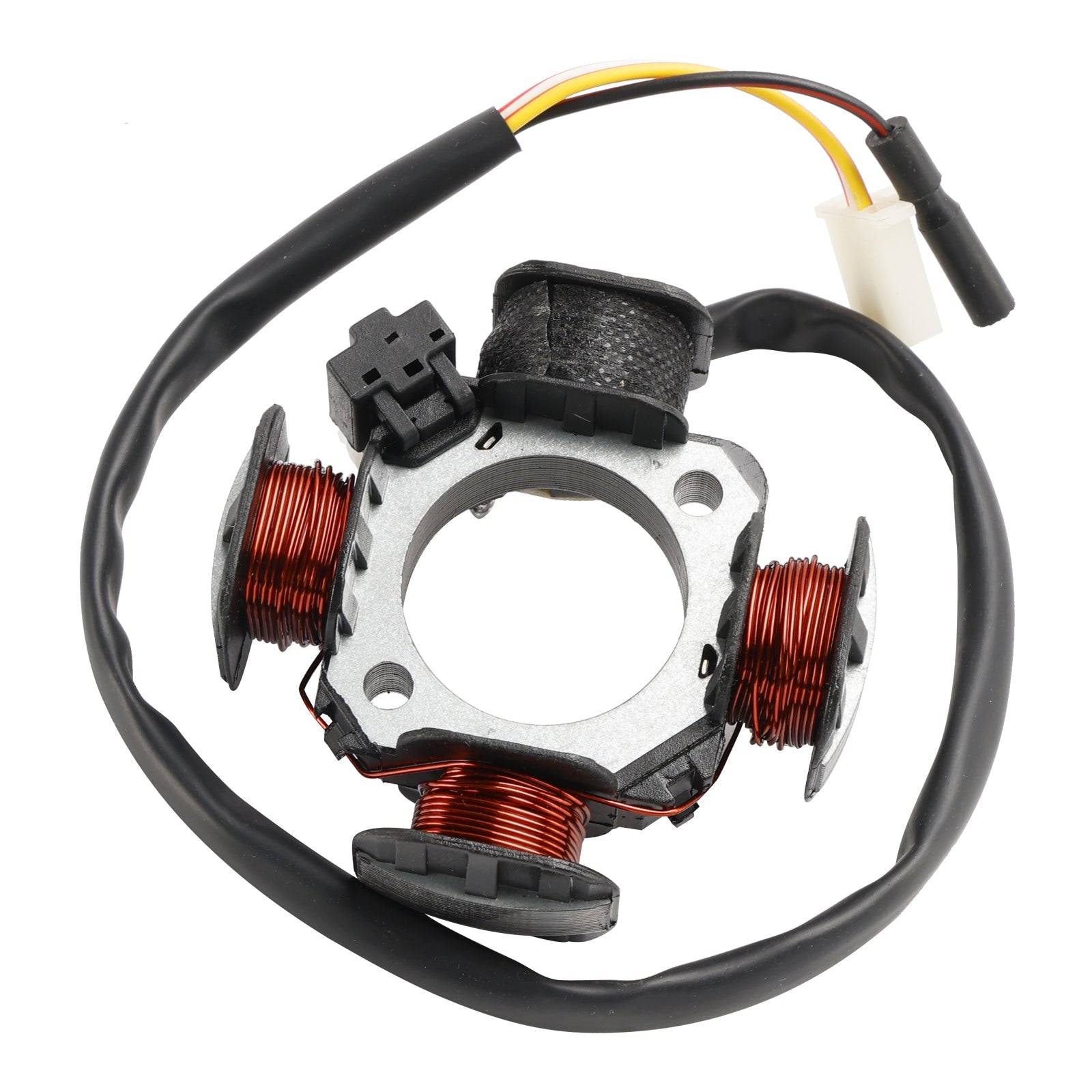

4 Coil 3-Wire Magneto Generator Stator 84mm Fit for TGB Morini 50 AC 2T D1E41QMB

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Connector included.

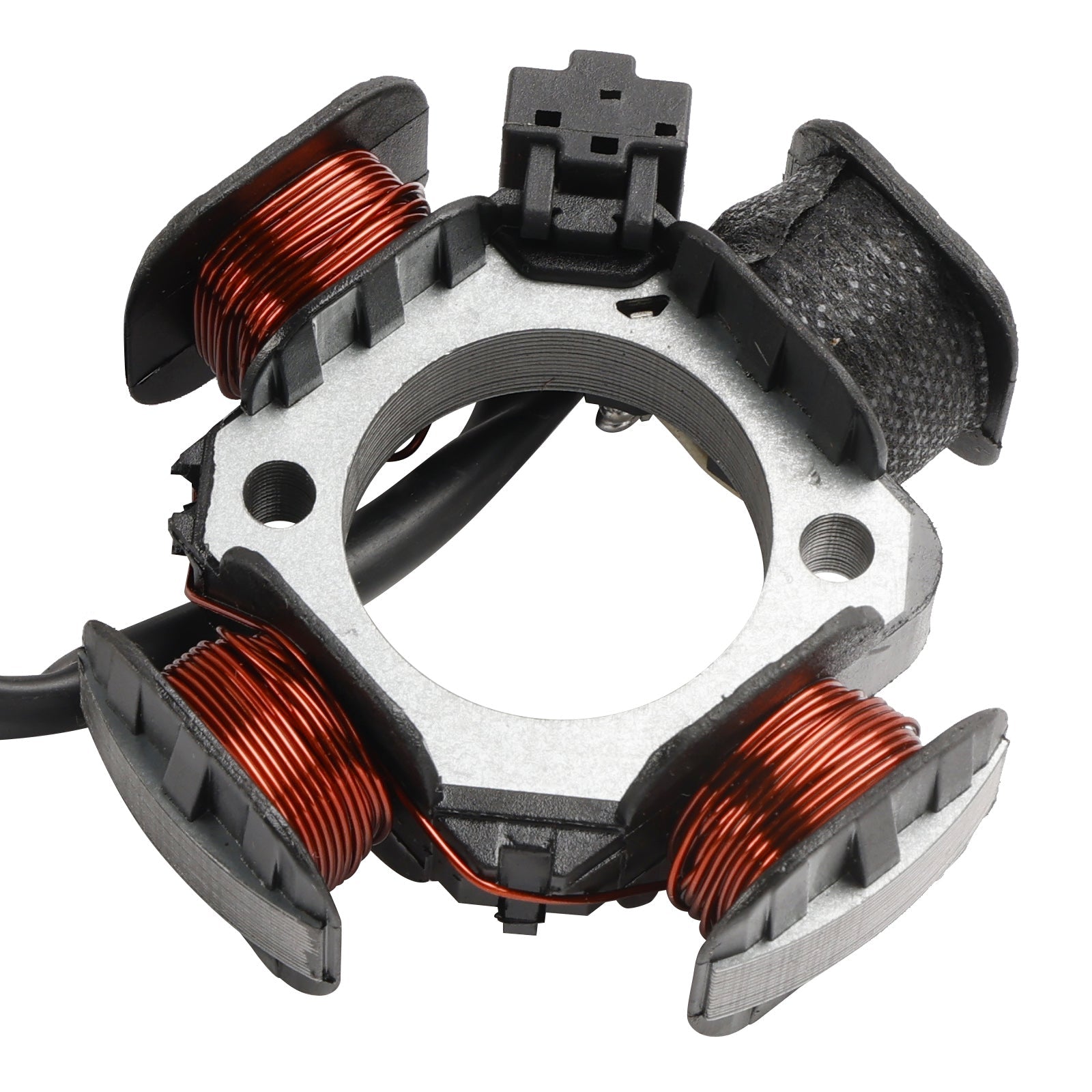

The stator has 4 coils, one of which is insulated.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 3

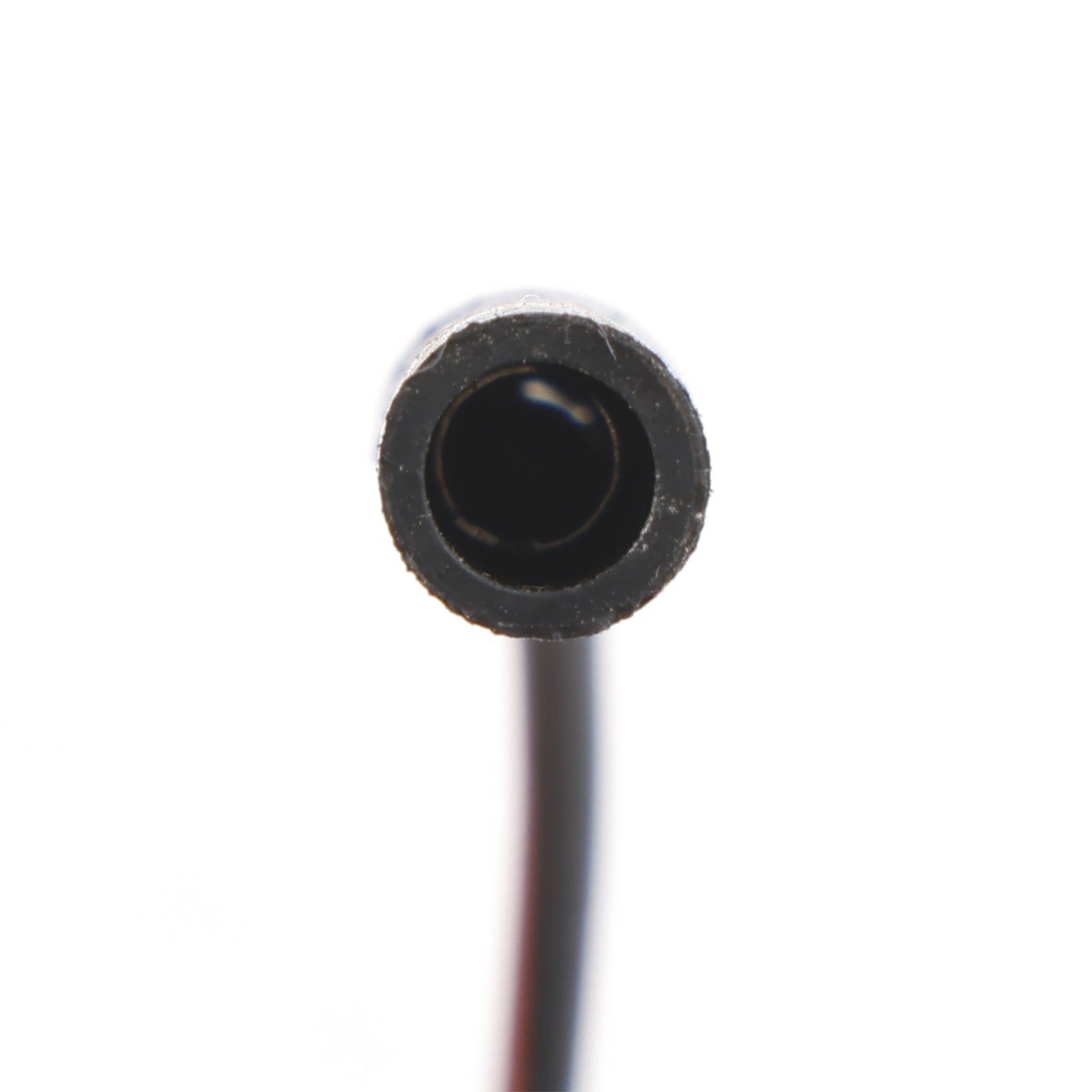

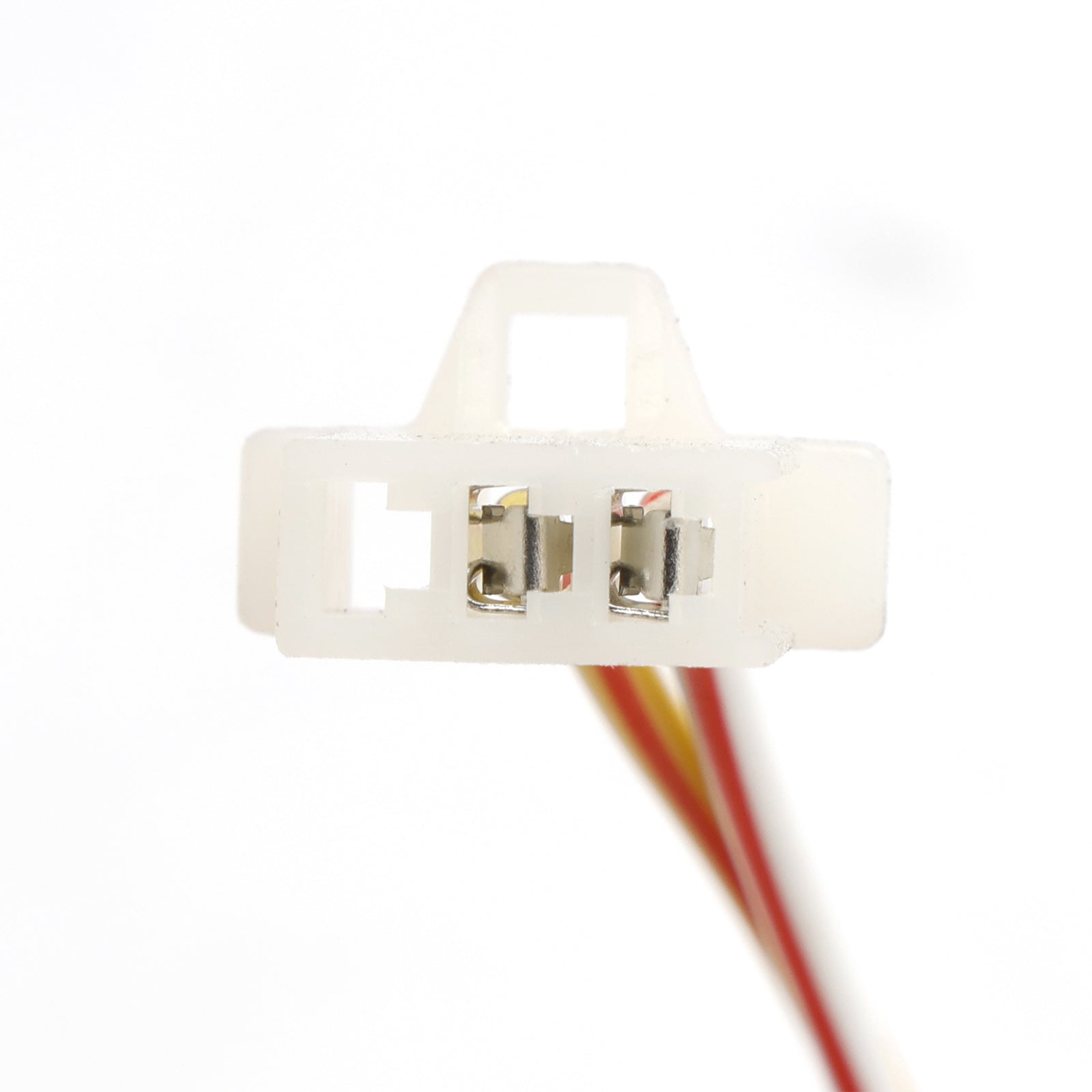

Number of plugs: 1x 2-Pin male plug with 1 trailing wire connector
Number of pins: 2 + 1
Number of fixation holes: 2
Number of poles: 4

Please compare the number of pins and plugs with the old part before purchasing.

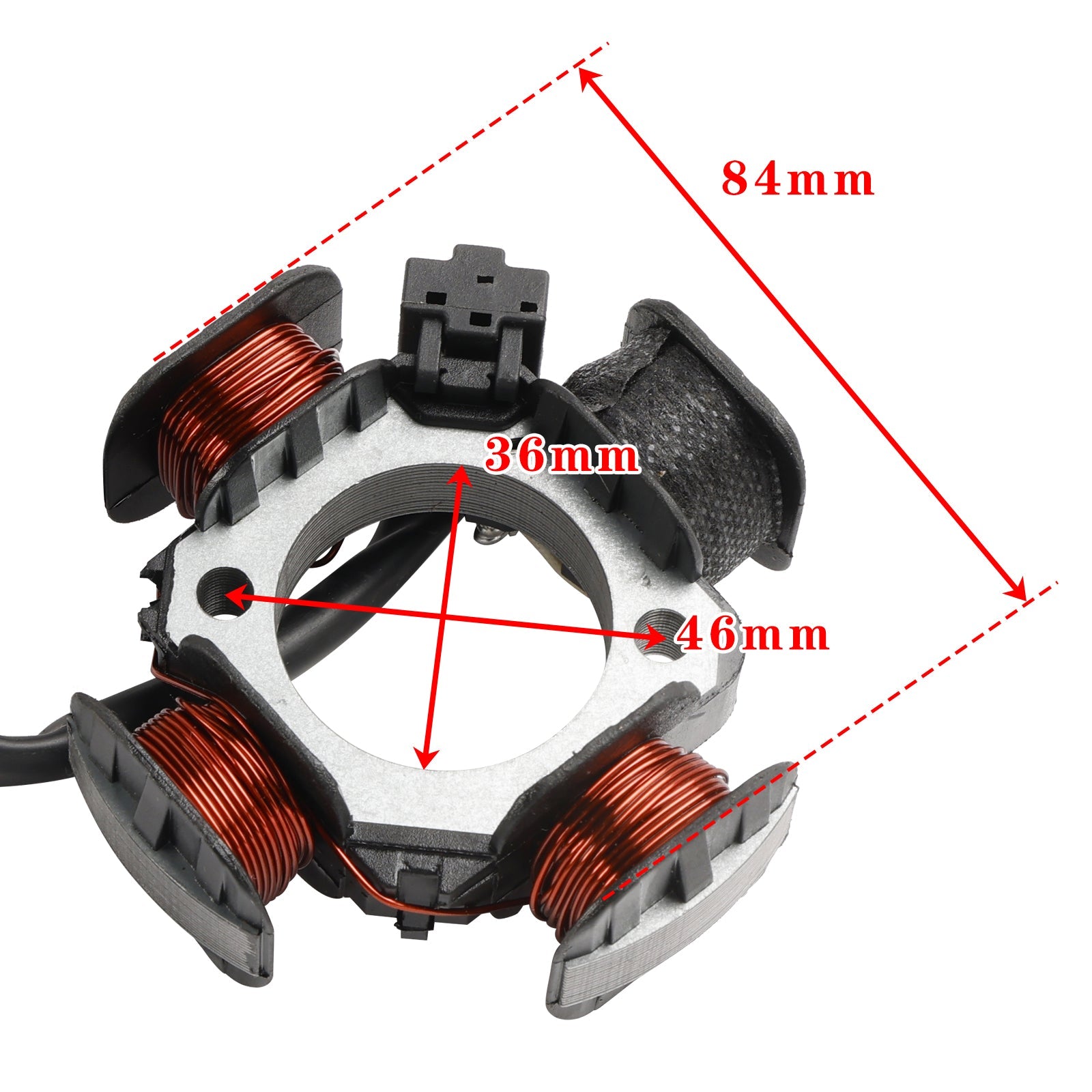

Size:
Diameter of Central Hole (Smallest): 36 mm
Outer Diameter Of Stator Poles (Greatest): 84 mm
Mount hole spacing center to center: 46 mm

Replacement Part Number:
32101-29C01

(Use the part number to verify fitment to your application. )

Fits Model:
Alternator stator for scooter with Morini engine of the newer generation with 84mm ignition plate.
For 50cc 2-stroke newer Morini engine D1E41QMB- 4-coil 84mm Stator With 3 Wires. 2 Pin Plug , 1 Loose Wires, 2 Bolt holes, 46mm bolt hole spacing.
Please note that there are two different versions of alternators. This model has an outer diameter of 84mm and is suitable for newer Morini vehicles. Not for the older version with 79mm diameter.

Fit for Aprilia Habana 50 Custom - 1999-2004
Fit for Aprilia Habana 50 Retro - 1999-2003
Fit for Aprilia Mojito 50 Custom - Morini - 1999-2004
Fit for Aprilia Mojito 50 Retro - Morini - 1999-2003
Fit for Atala/Rizzato AT10 50 Byte - 1997-2001
Fit for Atala/Rizzato AT12 50 Hacker - 1996-1999
Fit for Atala/Rizzato AT12 50 Hacker Racing - 1996-1999
Fit for Benelli 491 50 ST AC - 2003-2006
Fit for Benelli Naked 50 AC - 2003-2006
Fit for Benelli Pepe 50 AC 2T Classic Morini engine - 2012-2014
Fit for Benelli Pepe 50 AC 2T Morini engine - 2012-2015
Fit for Benelli Pepe LX 50 silnik Morini
Fit for Derbi Atlantis 50 AC 2T - 1999
Fit for Derbi Atlantis 50 AC 2T City - 2003-2006
Fit for Derbi Atlantis 50 AC 2T O2 - 2002-2015
Fit for Derbi Atlantis 50 AC 2T Red Bullet - 2001
Fit for Derbi Hunter 50 - 1996-1997
Fit for Derbi Paddock 50 AC
Fit for Derbi Predator 50 AC
Fit for Derbi Vamos 50 - 1993-1998
Fit for Derbi Vamos 50 R - 1994
Fit for Derbi Vamos 50 SE - 1997-1998
Fit for HSC ZZ Sepia 50
Fit for Hyosung SB 50 Cab - 1997
Fit for Italjet Formula 50 AC DD - 1994-2003
Fit for Italjet Formula 50 AC DD Race - 1996
Fit for Italjet Formula 50 AC DD Sport - 1998
Fit for Italjet Velocifero 50 - 1993-2001
Fit for Malaguti CR1 50 Crosser - 1996-2001
Fit for Pegasus Corona 50 Comfort - 2005
Fit for Pegasus Corona 50 Comfort Ed. - 2007
Fit for Pegasus Corona 50 Sport - 2003/2005/2009/2010
Fit for Pegasus Corona 50 Sport Ed. - 2006/2008
Fit for Pegasus Corona 50 Sport Edition - 2006-2010
Fit for Pegasus R 25 X DD - 2007-2010
Fit for Pegasus R 50 X - 2007-2010
Fit for Pegasus R 50 X DD - 2005-2010
Fit for Pegasus Sky 50 - 2004-2009
Fit for Pegasus Sky 50 Express - 2004-2009
Fit for Pegasus Sky 50 High Wh. - 2001/2003/2005/2007-2009
Fit for Pegasus Sky 50 High Wheels - 2000-2003/2006-2009
Fit for Pegasus Sky 50 I - 1999-2008
Fit for Pegasus Sky 50 II - 2007-2009
Fit for Suzuki AH 50 Address - 1992-1995
Fit for Suzuki AJ 50 Sepia - 1990-1997
Fit for Suzuki AP 50 - 1995-1999
Fit for Suzuki AY 50 AC Katana - 1997-2004
Fit for Suzuki AY 50 W LC Katana - 1997-2004
Fit for Suzuki AY 50 WR LC Katana Racing - 1998-2004
Fit for Suzuki UF 50 Estilete - 2000-2001
Fit for Suzuki UX 50 W Zillion - 1999-2000
Fit for TGB 101R 50
Fit for TGB 101S 50 - 1999-2007
Fit for TGB 202 50
Fit for TGB 203 50
Fit for TGB 303R 50 - 1998-2002
Fit for TGB 303RS 50
Fit for TGB 309 RS - 2001-2005
Fit for TGB Akros 50 - 1997-1998
Fit for TGB Akros 50 Tec - 1997-2000
Fit for TGB Bullet 50
Fit for TGB F409 50 - 2001-2007
Fit for TGB Orion 50
Fit for TGB Tryton 50

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 4-Pole 84mm Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
