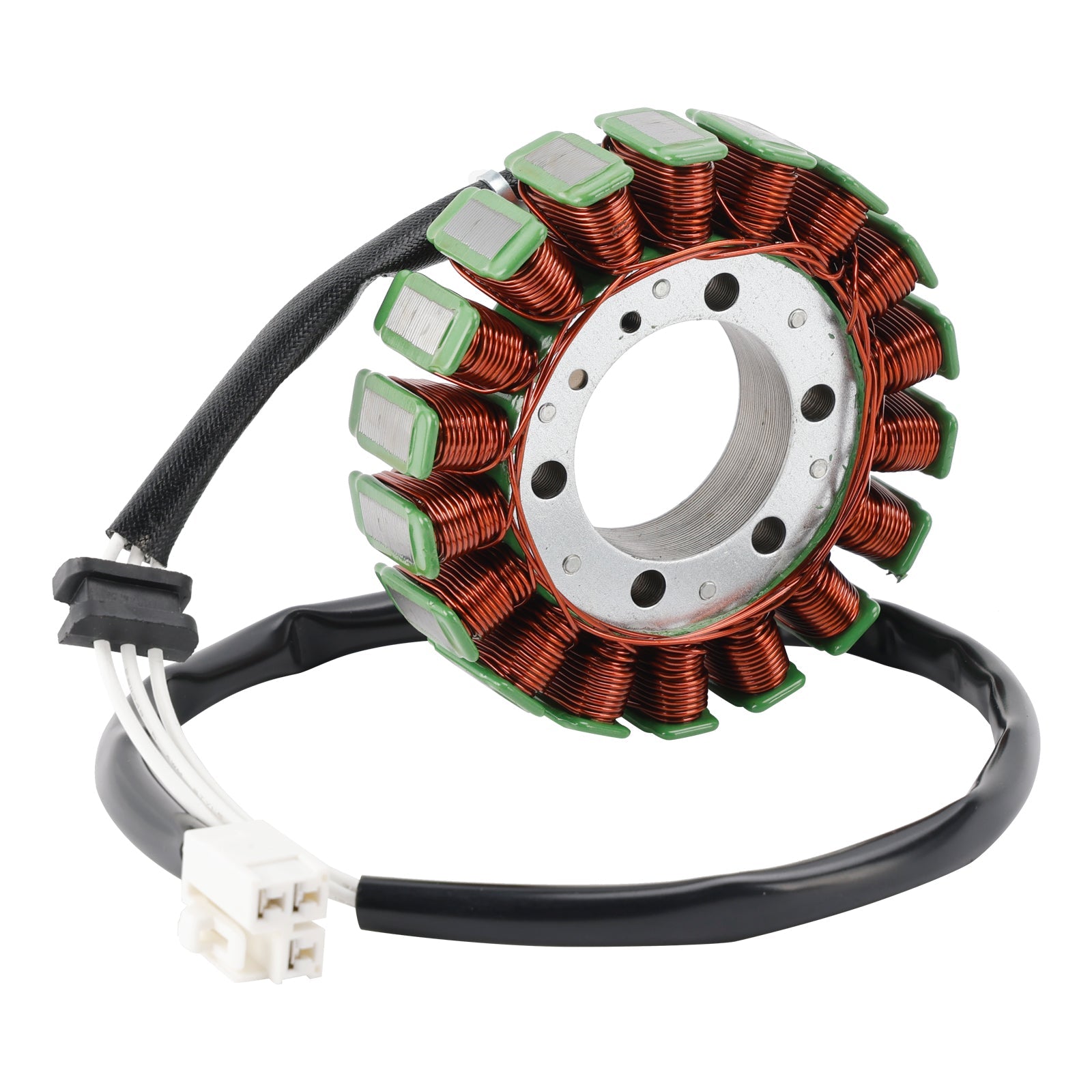

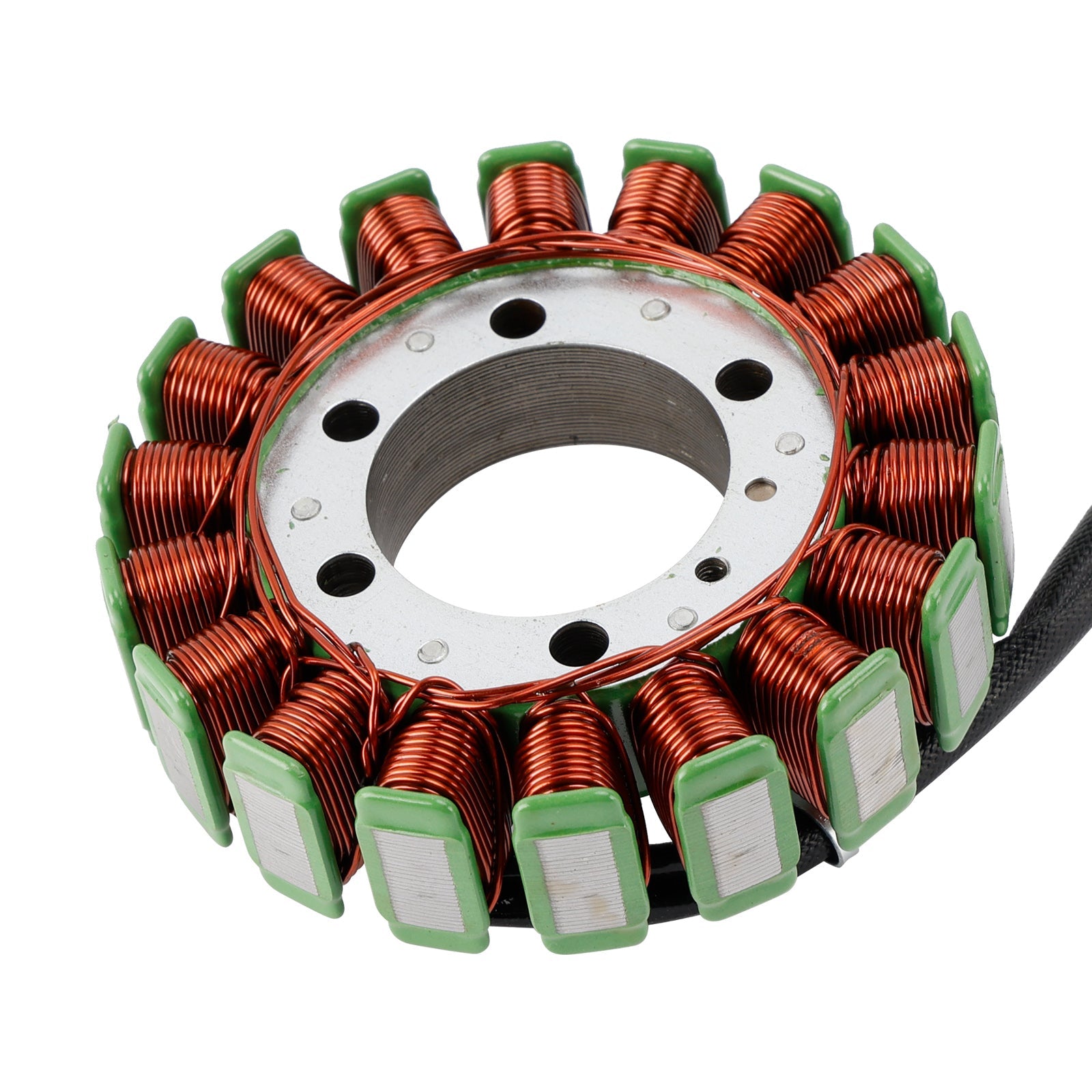

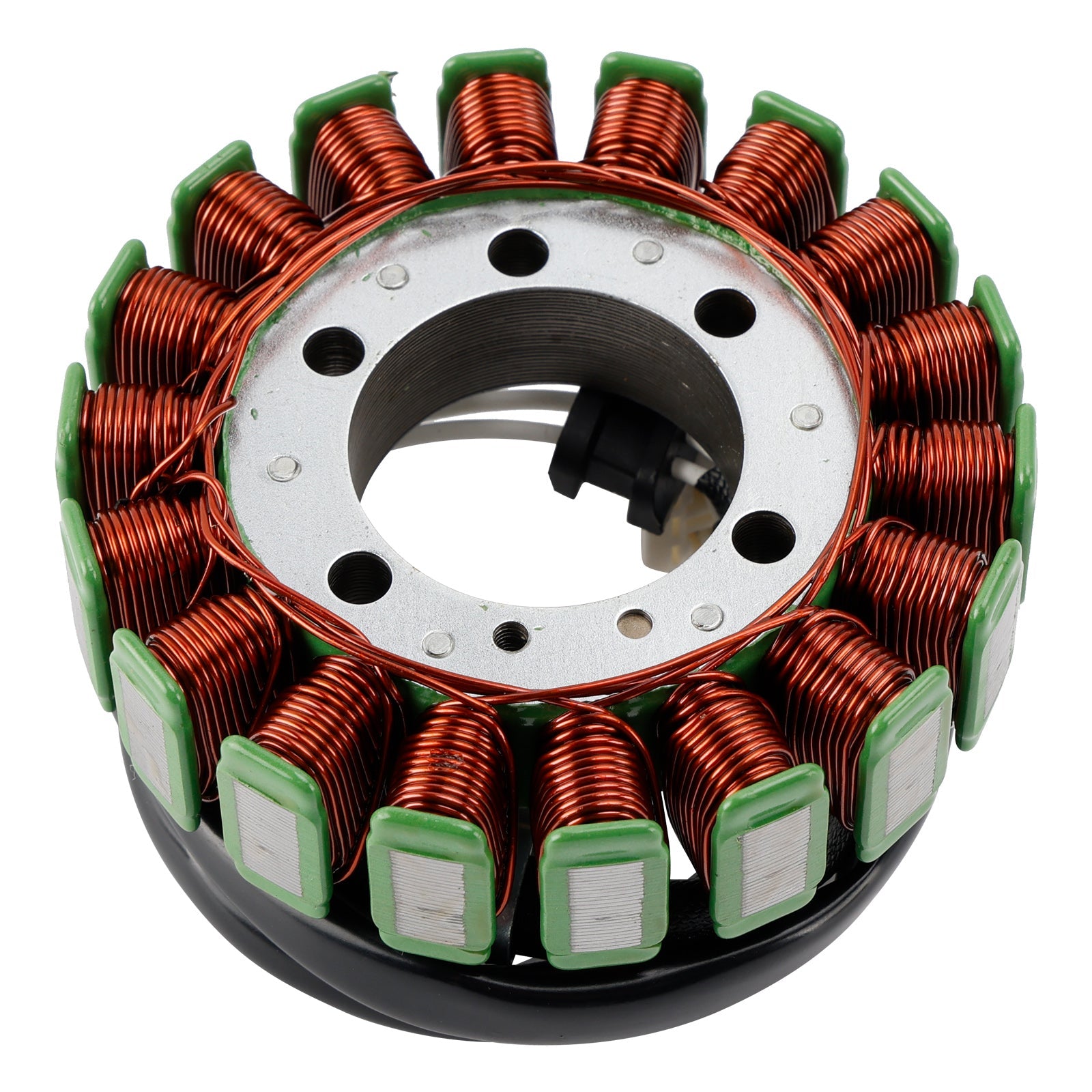

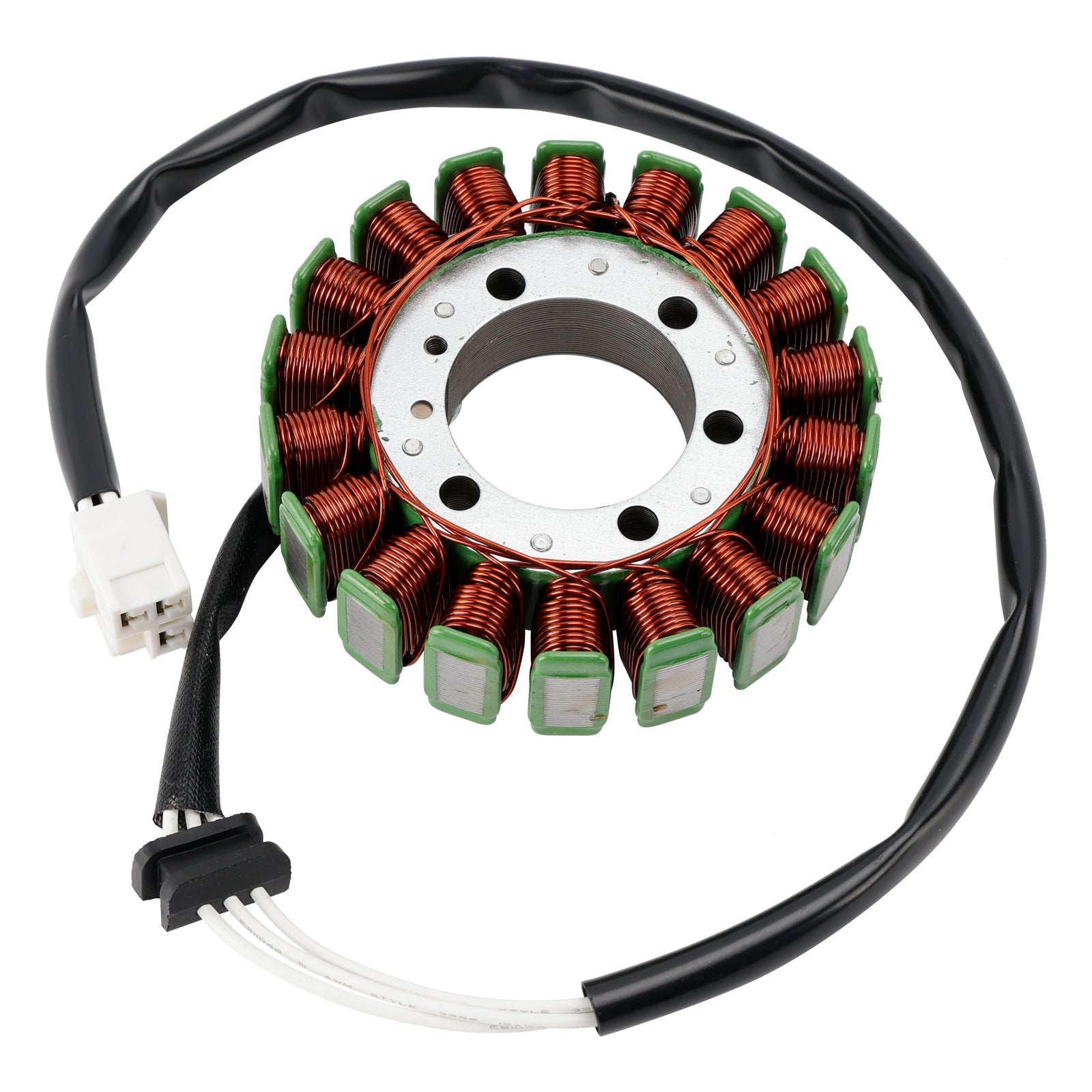

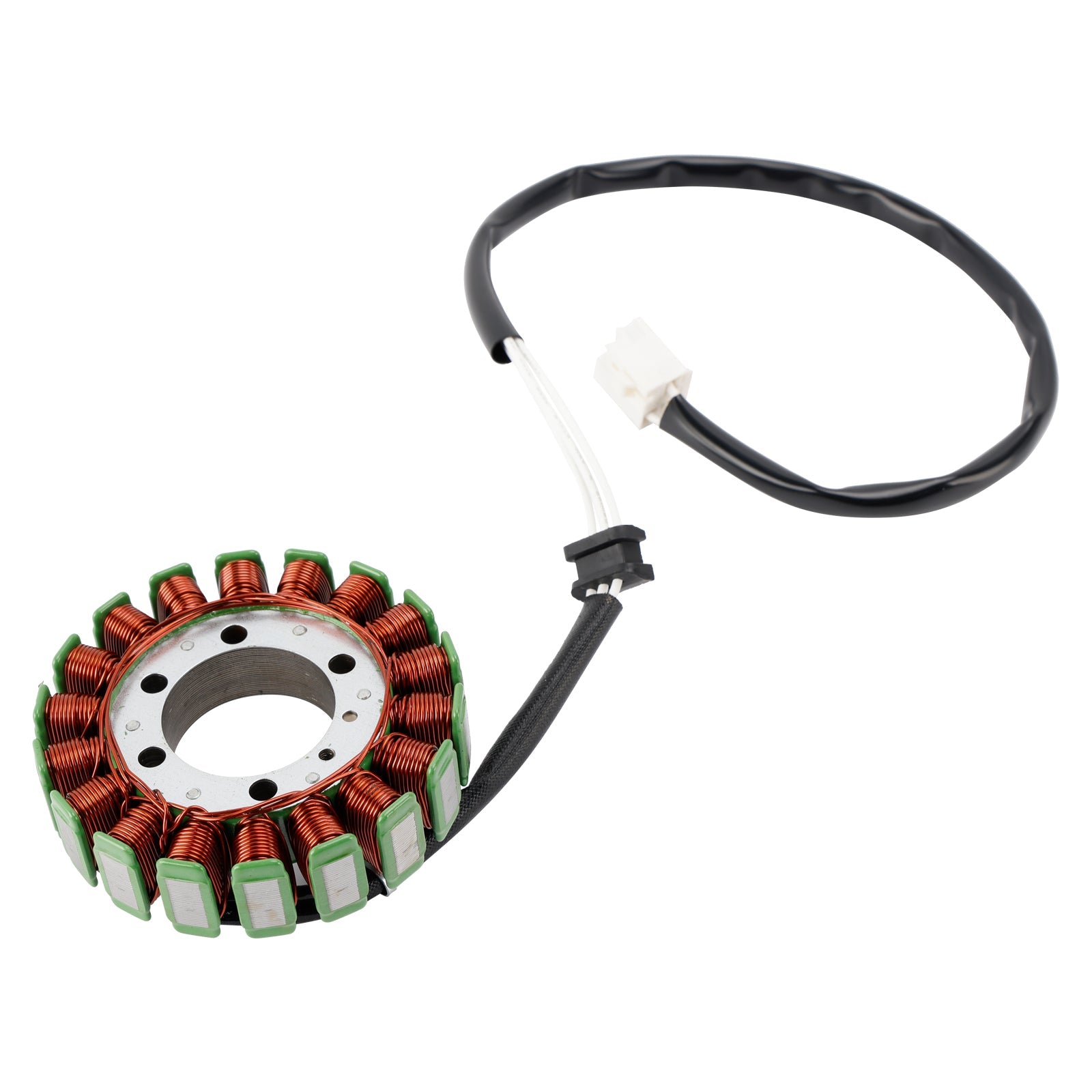

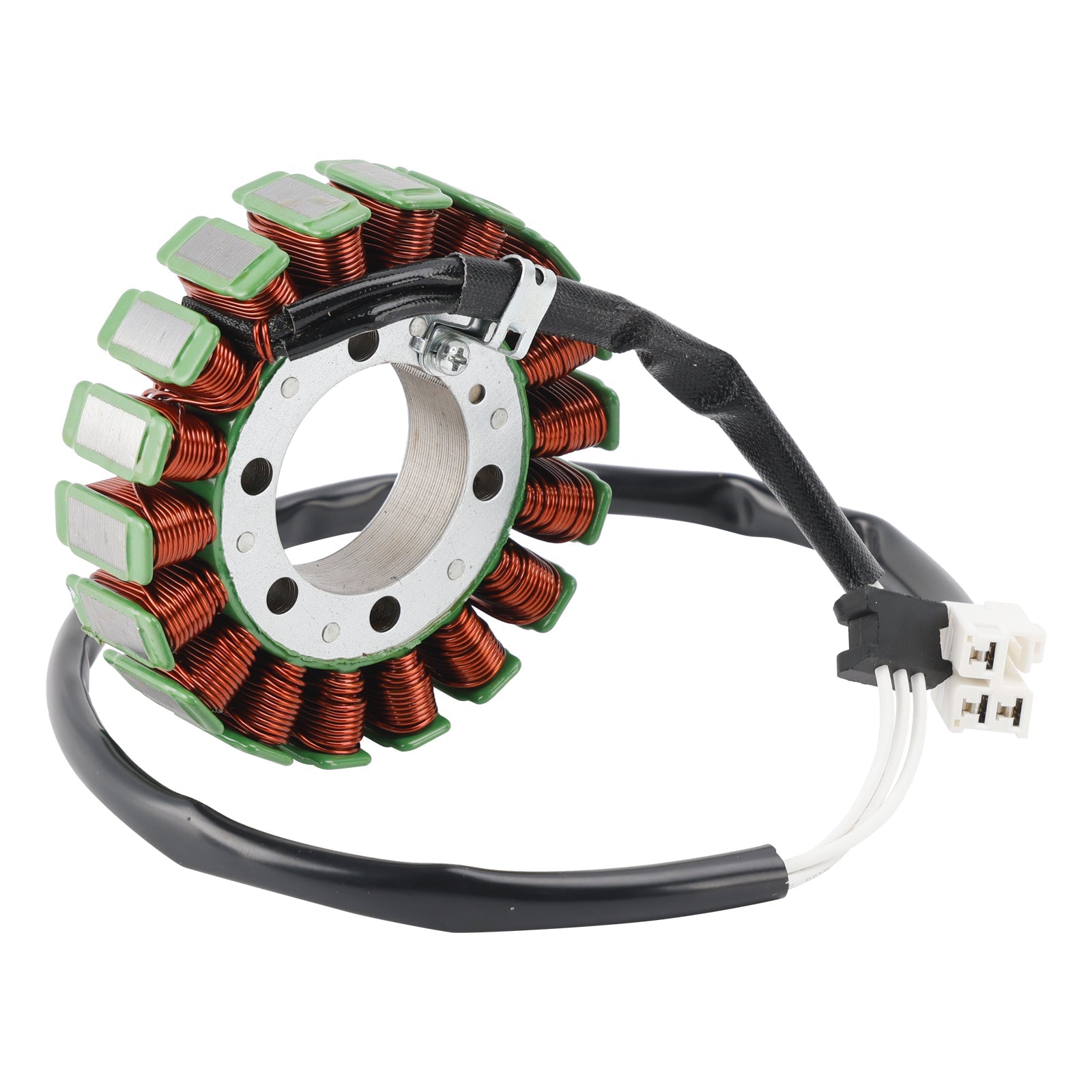

18-Pole Magneto Generator Stator Fit for Kawasaki Ninja 650 / Versys 650 / Z650

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of fixation holes: 5
Number of poles: 18
Inner diameter: 42mm
Outer diameter: 103mm

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
21003-0118
21003-0153
21003-0164
21003-0206

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Kawasaki EX650E ER-6F 2012-2016
Fit for Kawasaki EX650F ER-6F ABS 2012-2016
Fit for Kawasaki ER650E ER-6N 2012-2016
Fit for Kawasaki ER650F ER-6N ABS 2012-2016
Fit for Kawasaki EN650 Vulcan S 2015-2025
Fit for Kawasaki EN650 Vulcan S ABS 2015-2024
Fit for Kawasaki EN650 Vulcan S ABS Cafe 2016-2024
Fit for Kawasaki EN650 Vulcan S ABS SE 2016-2018
Fit for Kawasaki EN650 Vulcan S Cafe 2023-2025
Fit for Kawasaki EX650 Ninja 650 2012-2025
Fit for Kawasaki EX650 Ninja 650 ABS 2013-2024
Fit for Kawasaki EX650 Ninja 650 ABS KRT Edition 2017-2025
Fit for Kawasaki EX650 Ninja 650 KRT Edition 2020-2025
Fit for Kawasaki KLE650 Versys ABS 2015-2022
Fit for Kawasaki KLE650 Versys 650 LT 2024
Fit for Kawasaki KLE650 Versys ABS LT 2015-2023
Fit for Kawasaki ER650 Z650 2017-2025
Fit for Kawasaki ER650 Z650 ABS 2017-2024
Fit for Kawasaki ER650 Z650RS 2022-2025
Fit for Kawasaki ER650 Z650RS ABS 2024

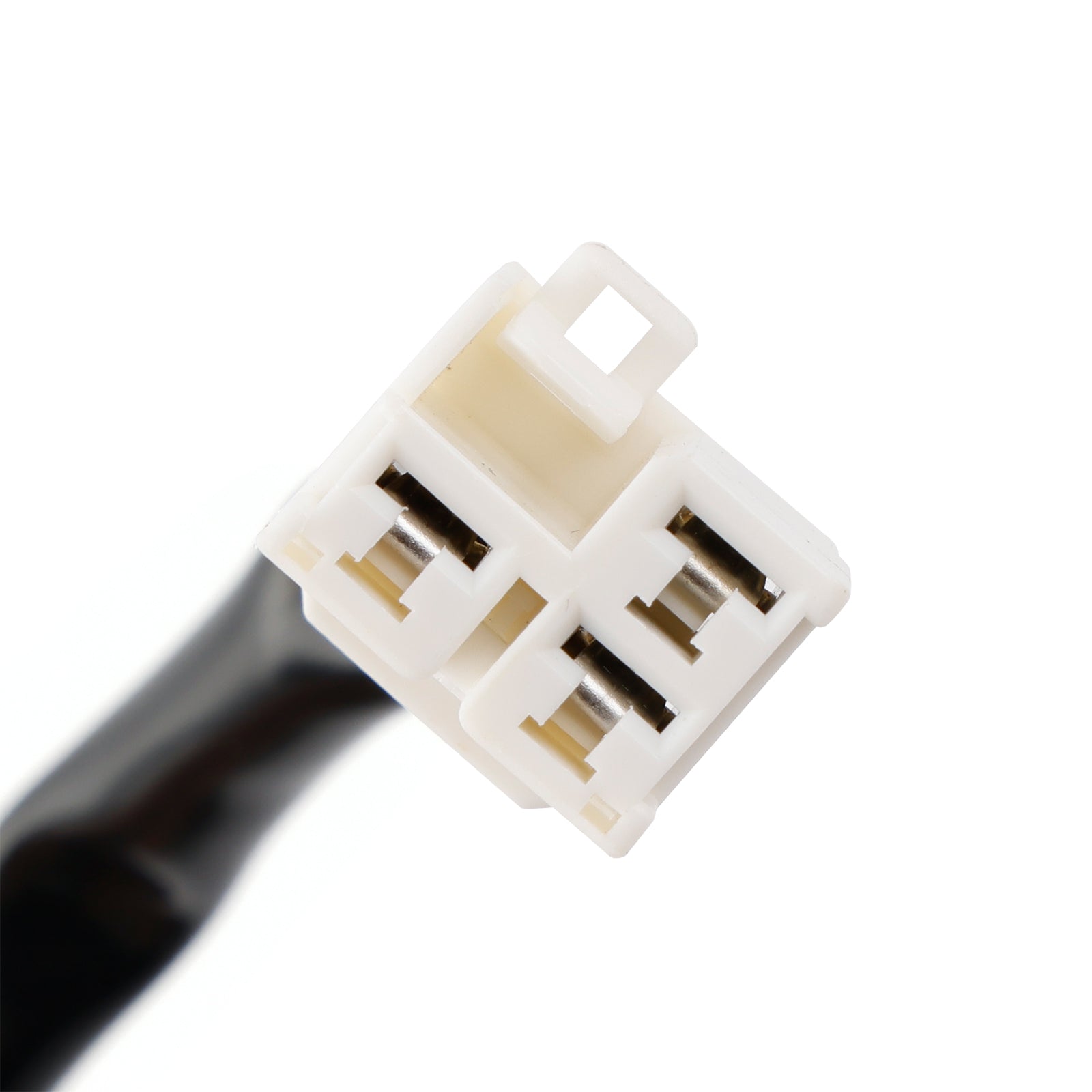

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
