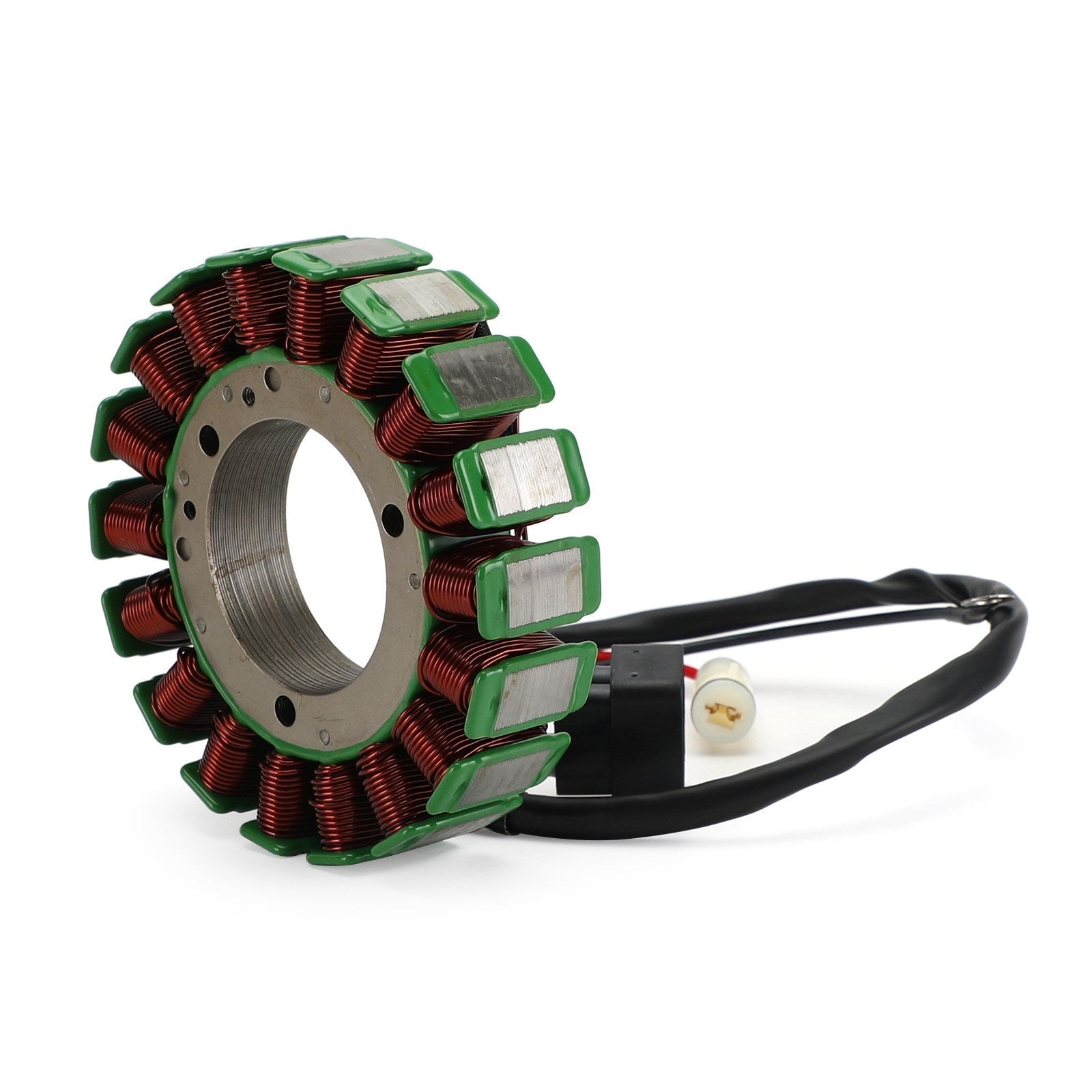

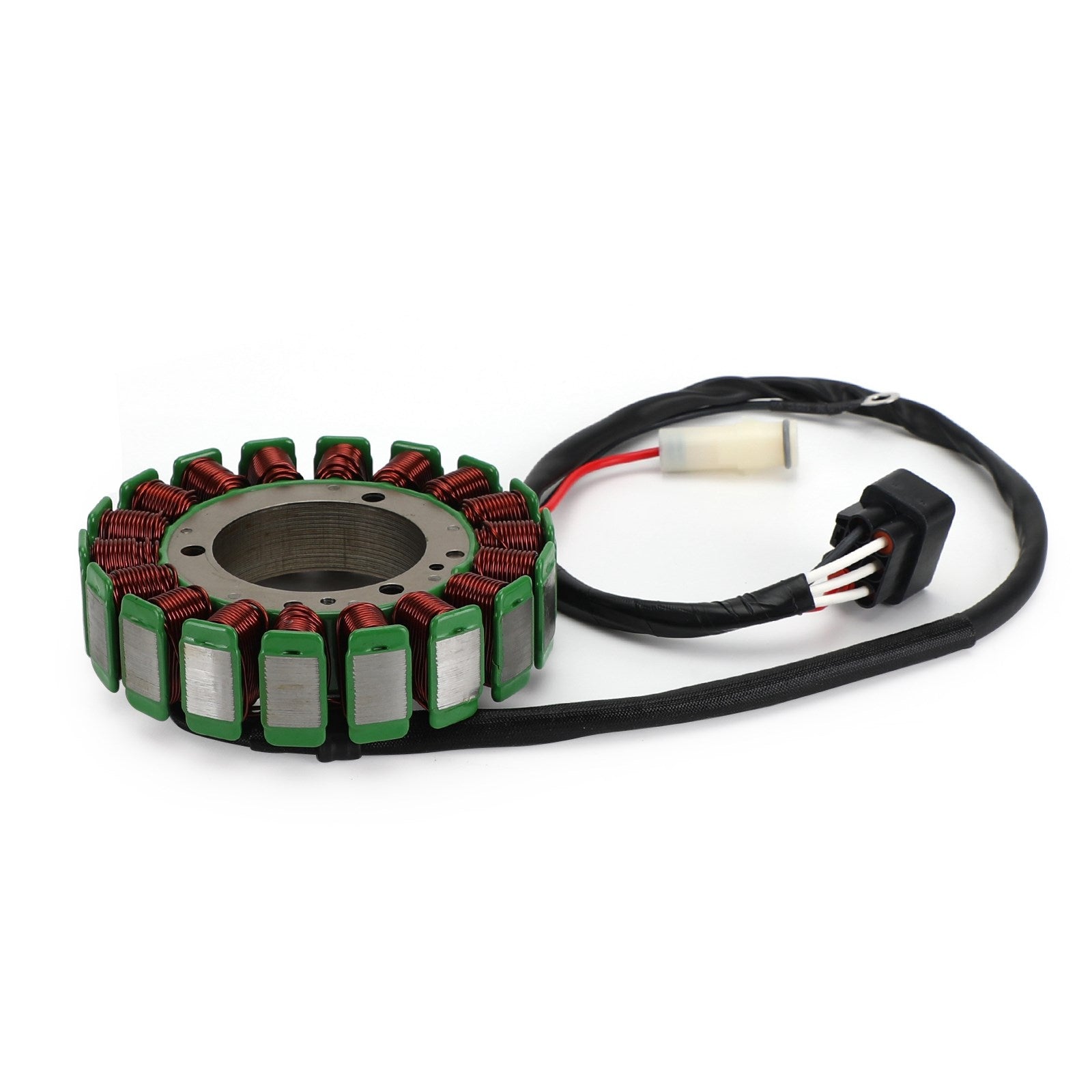

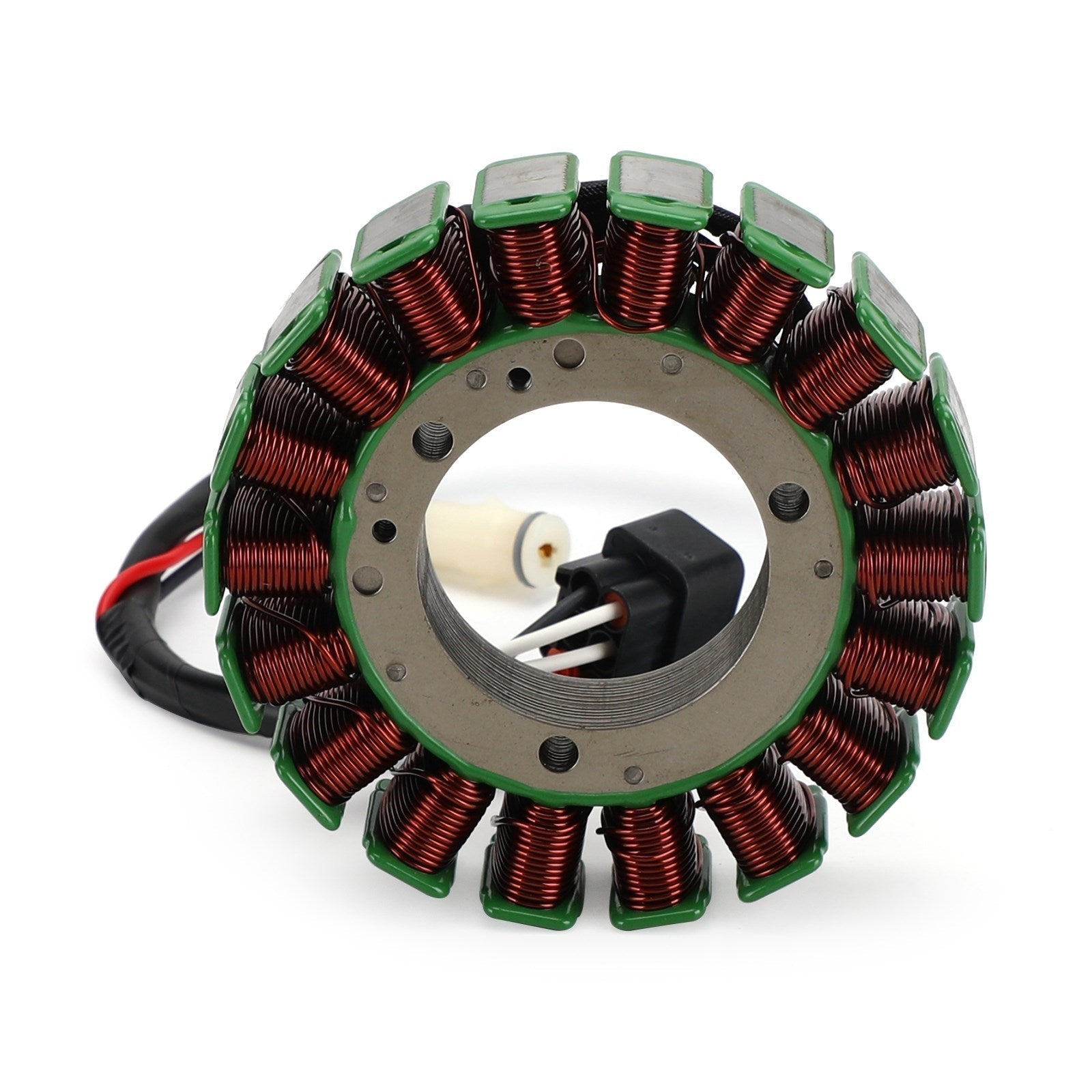

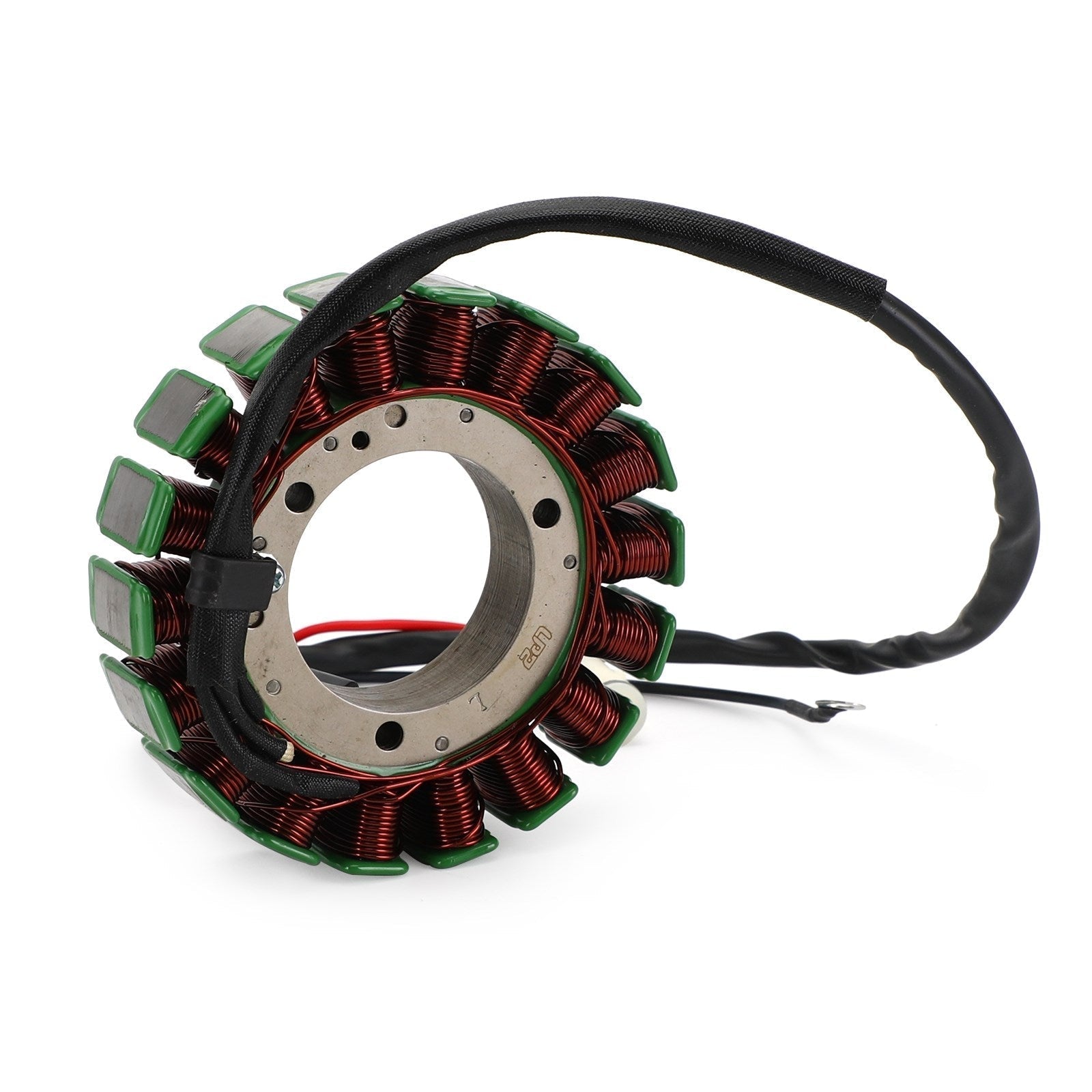

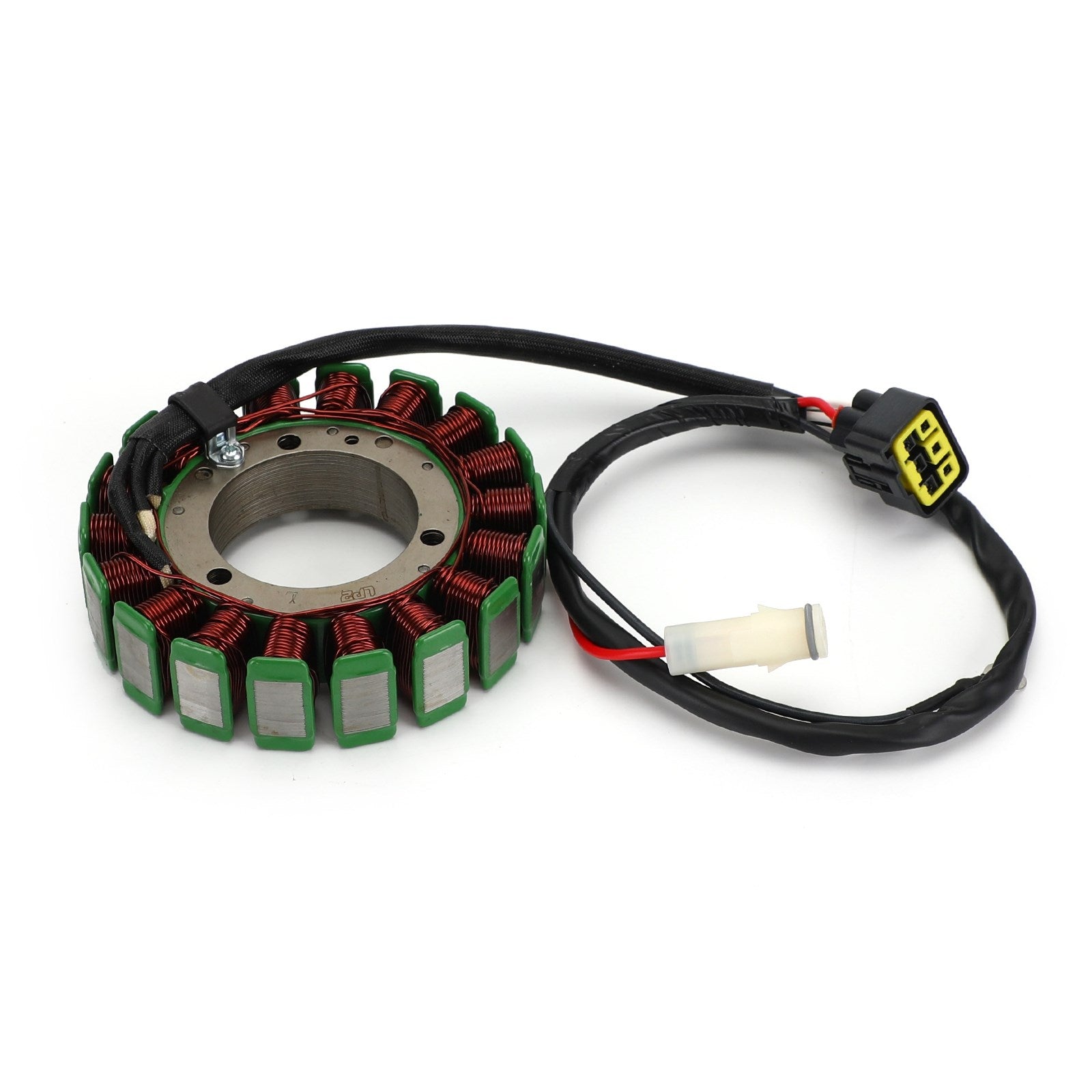

Generator Stator Fit for Yamaha F 75 80 90 100 4-Stroke Outboards Motor 2005-2017 6D8-81410-00

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

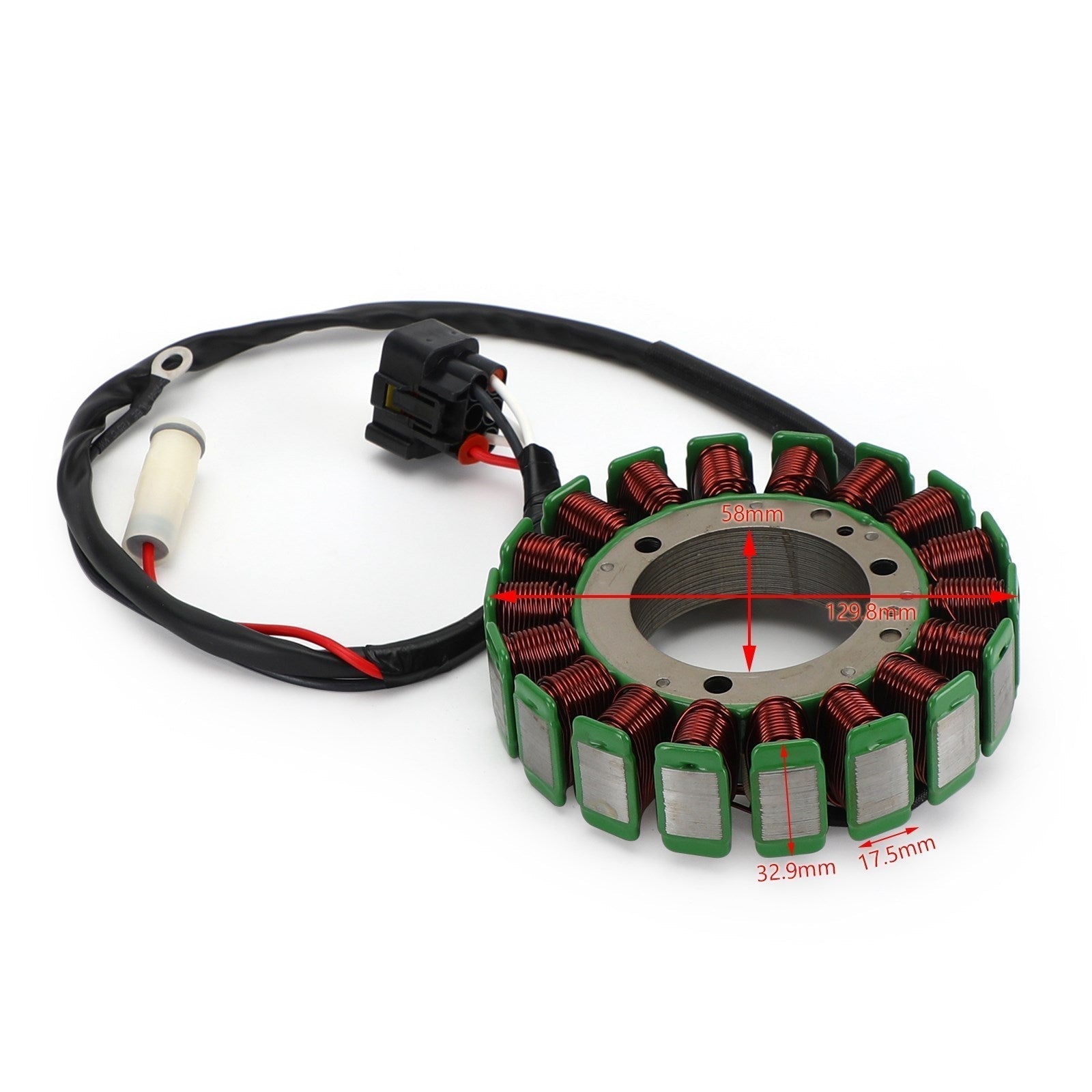

Dimensions :
Interior diameter : 58mm
Exterior diameter : 129.8mm
Pole's Thickness : 32.9mm
Pole's Width : 17.5mm

Other Specifications :
Number of wires: 5
Number of pins: 7
Number of plugs: 1（+3)
Number of fixation holes: 3(+1)
Number of poles: 18

Replacement Part Number:
6D8-81410-00

Fitments:
Fit for Yamaha F75 2005-2017
Fit for Yamaha F80 2005-2017
Fit for Yamaha F90 2005-2017
Fit for Yamaha F100 2005-2017

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
