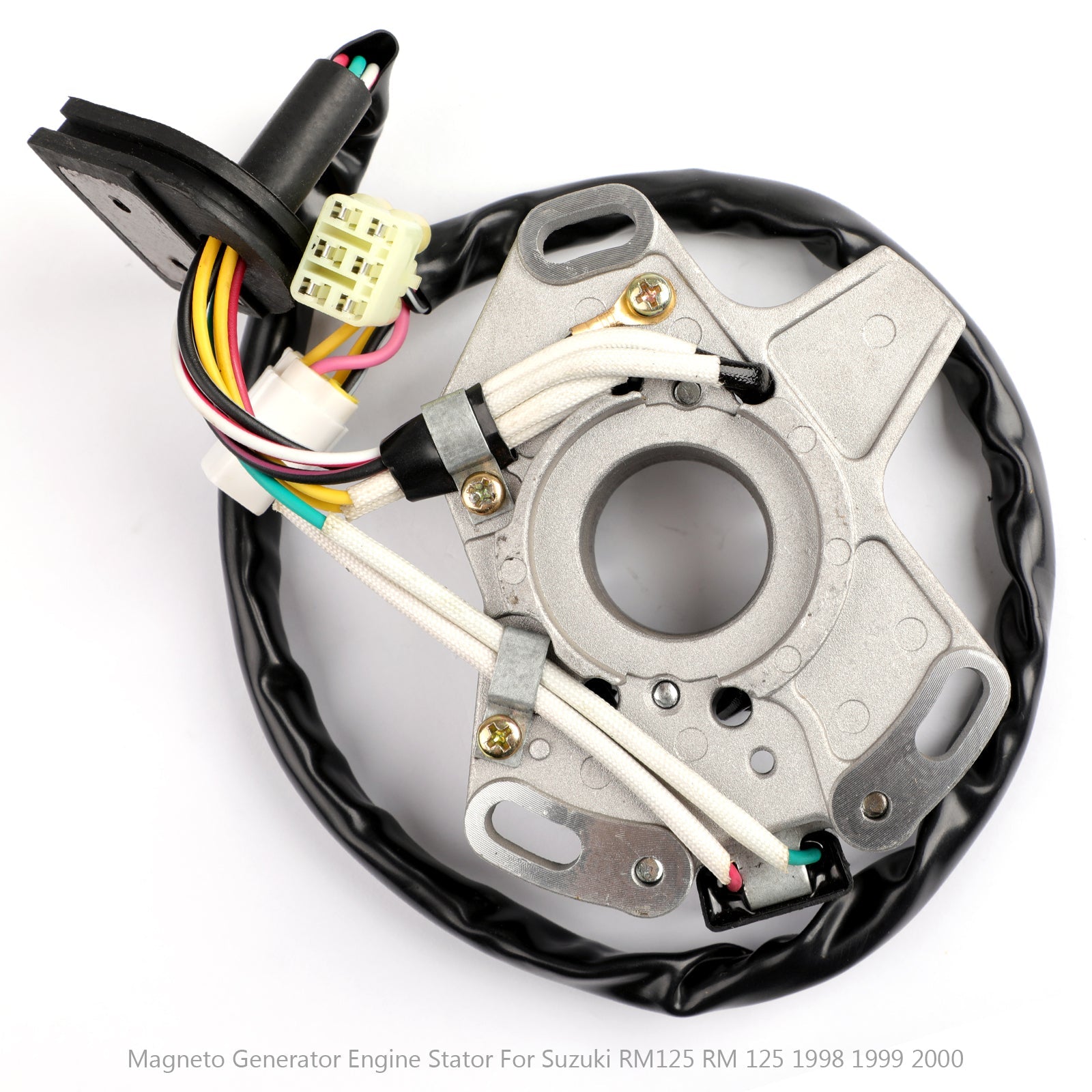

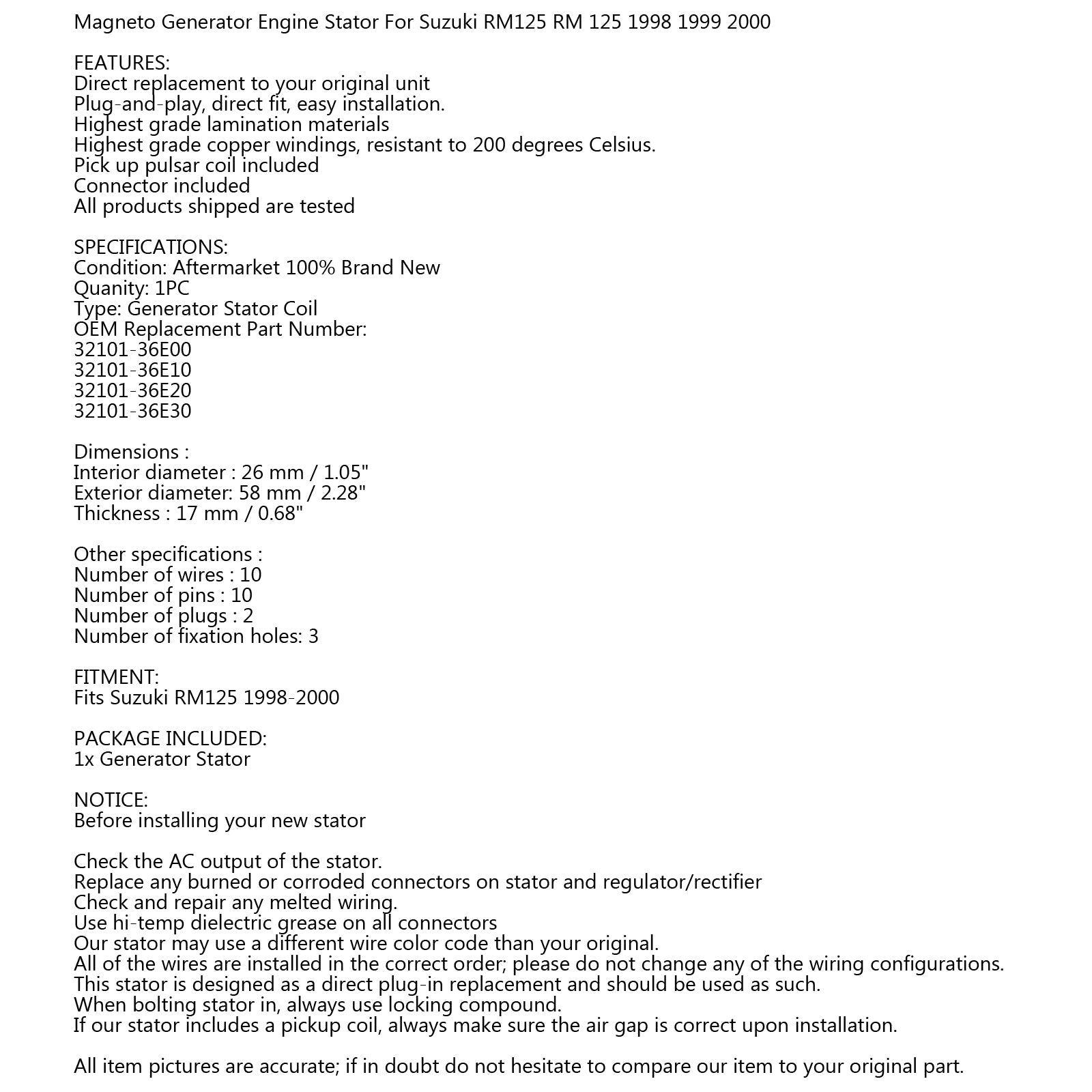

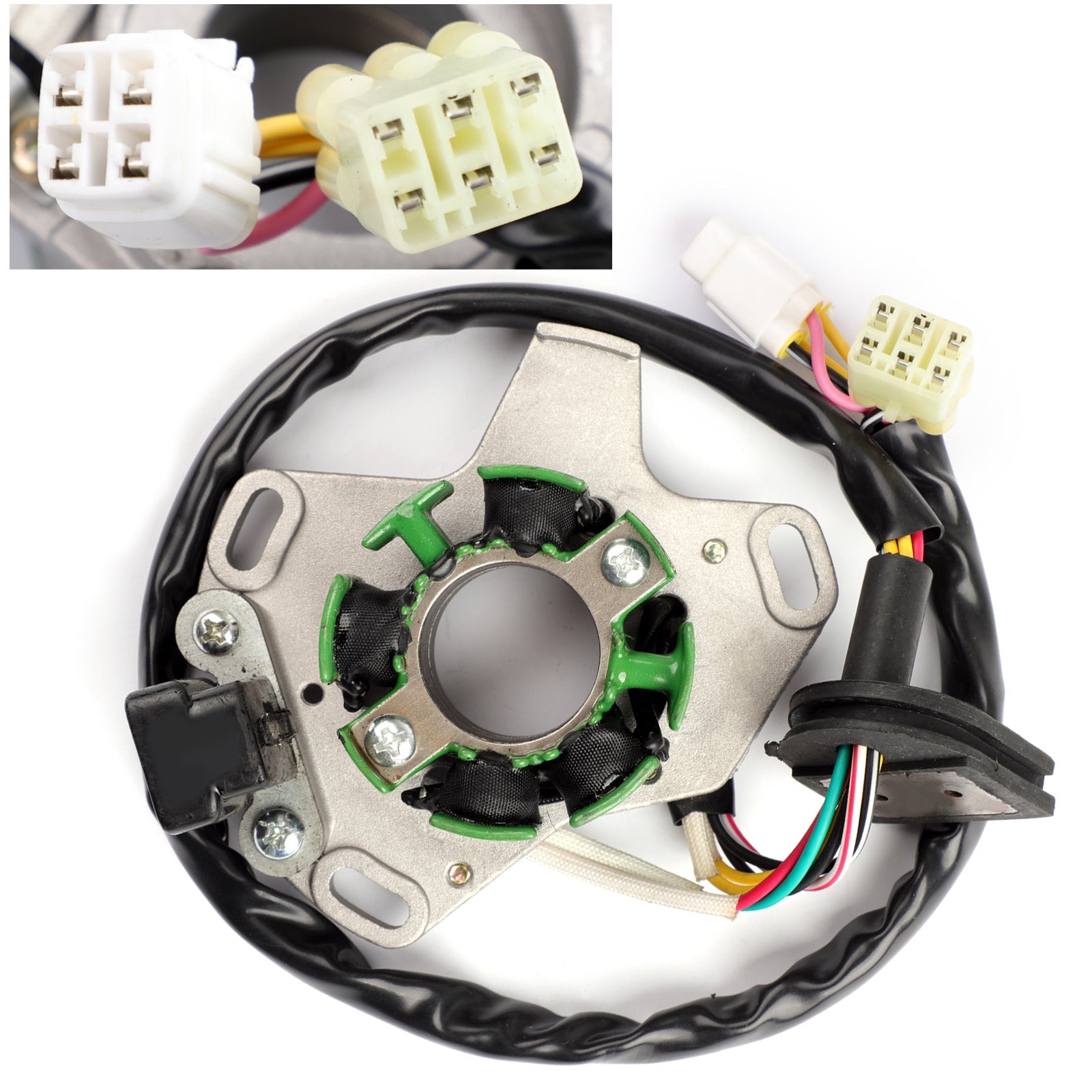

Magneto Generator Engine Stator For Suzuki RM125 RM 125 1998 1999 2000

FEATURES:

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation.

Highest grade lamination materials

Highest grade copper windings, resistant to 200 degrees Celsius.

Pick up pulsar coil included

Connector included

All products shipped are tested

SPECIFICATIONS:

Condition: Aftermarket 100% Brand New

Quanity: 1PC

Type: Generator Stator Coil

OEM Replacement Part Number:

32101-36E00

32101-36E10

32101-36E20

32101-36E30

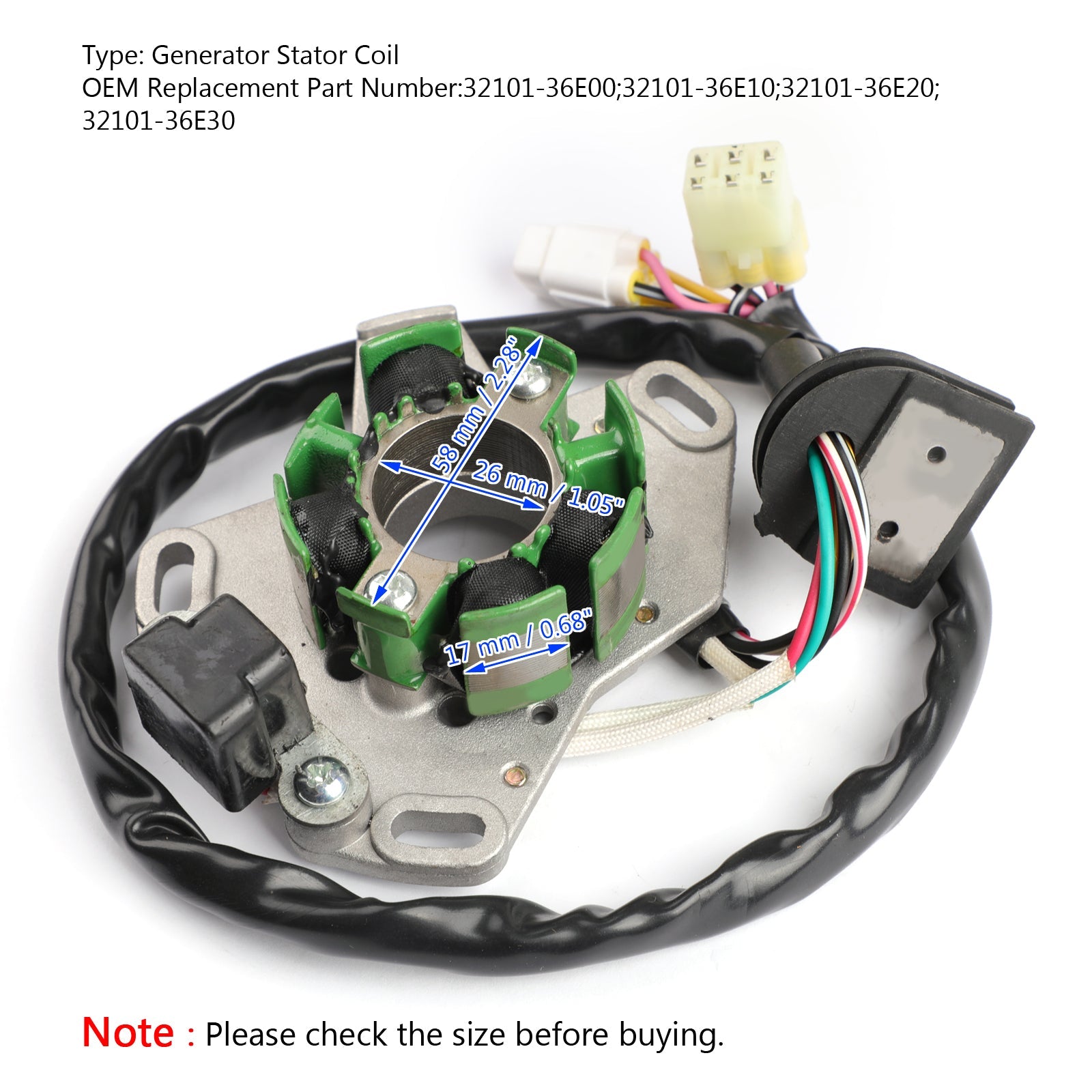

Dimensions :

Interior diameter : 26 mm / 1.05"

Exterior diameter : 58 mm / 2.28"

Thickness : 17 mm / 0.68"

Other specifications :

Number of wires : 10

Number of pins : 10

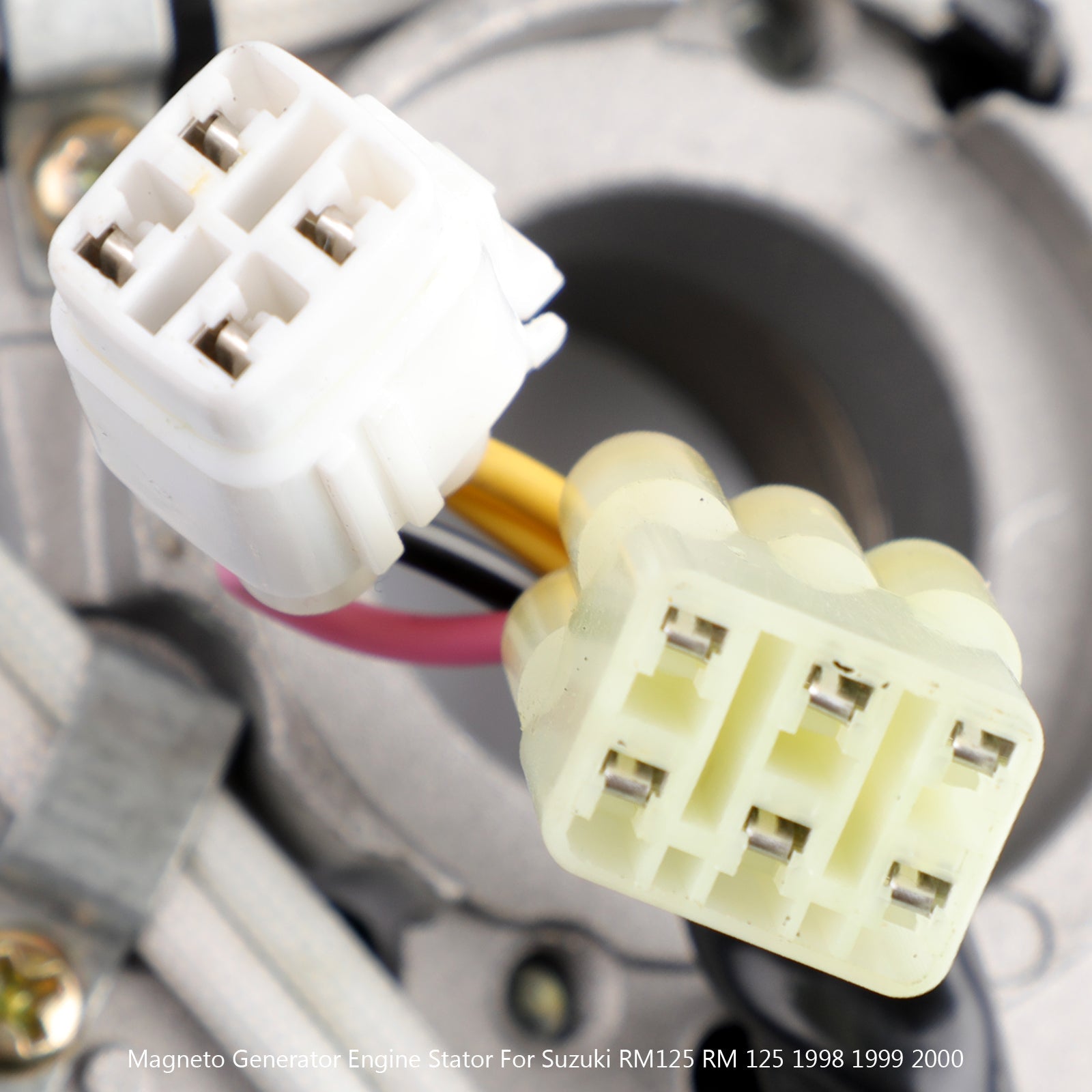

Number of plugs : 2

Number of fixation holes: 3

FITMENT:

Fits Suzuki RM125 1998-2000

PACKAGE INCLUDED:

1x Generator Stator

NOTICE:

Before installing your new stator

Check the AC output of the stator.

Replace any burned or corroded connectors on stator and regulator/rectifier

Check and repair any melted wiring.

Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.

All of the wires are installed in the correct order; please do not change any of the wiring configurations.

This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.

If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
