FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

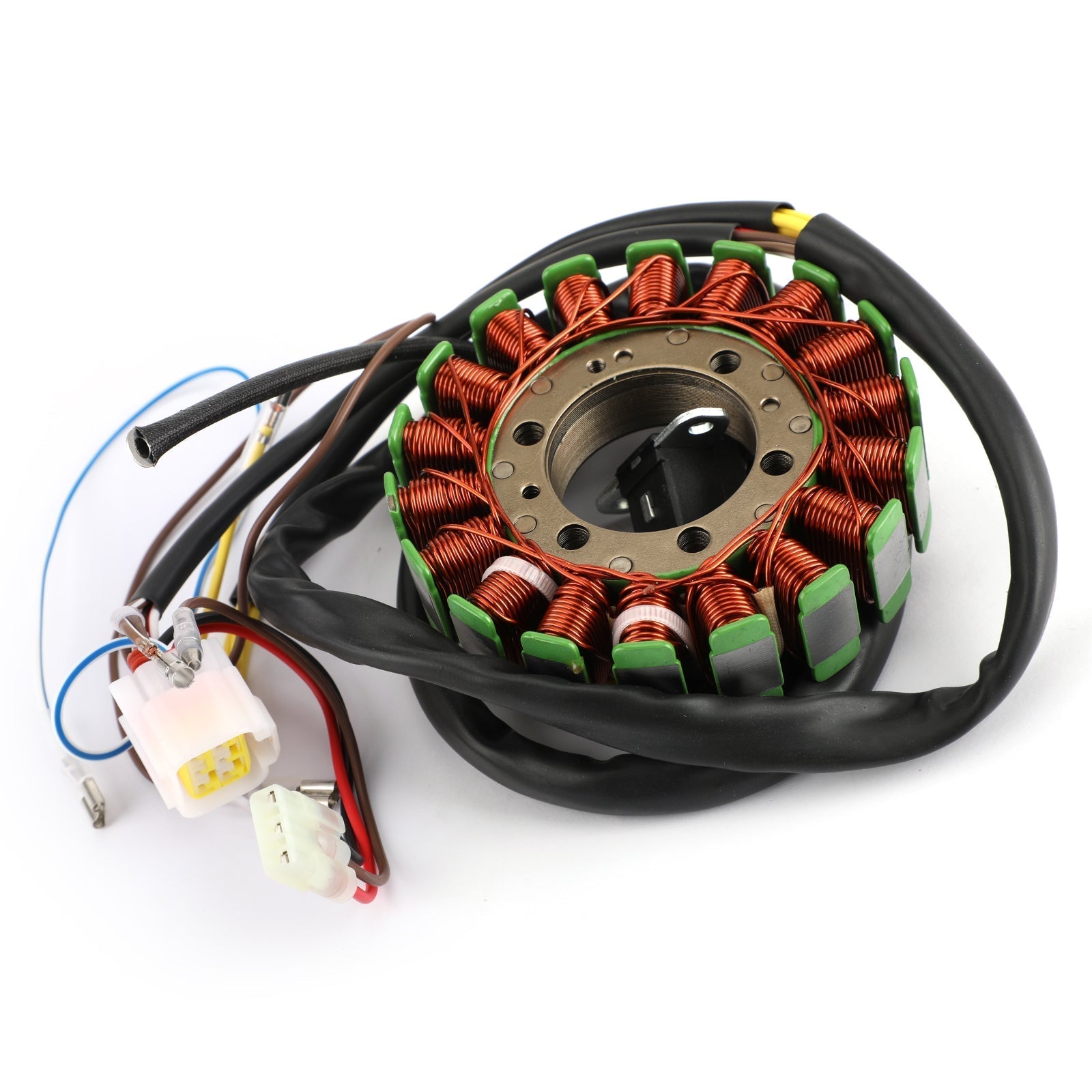

Type: Generator Stator Coil
Replacement Part Number:3089249,3089546,3089965

Dimensions :
Interior diameter : 41mm / 1.63"
Exterior diameter : 107mm / 4.22"
Thickness : 13mm / 0.51"

Other specifications :
Number of wires: 7
Number of pins: 14
Number of plugs: 2(+5)
Number of fixation holes: 5(+2)

FITMENT:
For Polaris Sportsman 400 2004-2005
For Polaris Sportsman 500 HO 2004-2005/2012
For Polaris Scrambler 500 4x4 2004-2012
For Polaris Ranger 400 Carb 2010-2014
For Polaris Sportsman 500 HO Carb 2006/2008-2009
For Polaris Sportsman 500 Touring 2013
For Polaris Hawkeye 400 HO 2012-2014
For Polaris Scrambler 500 2x4 Int'l 2007-2008
For Polaris Scrambler 500 4x4 Int'l 2010-2012
For Polaris ATP 500 2005
For Polaris Sportsman 450 2006-2007
For Polaris Sportsman 500 6x6 2007-2008
For Polaris Sportsman 500 HO Forest 2012-2013
For Polaris Sportsman 500 4x4 2004-2006

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
