Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

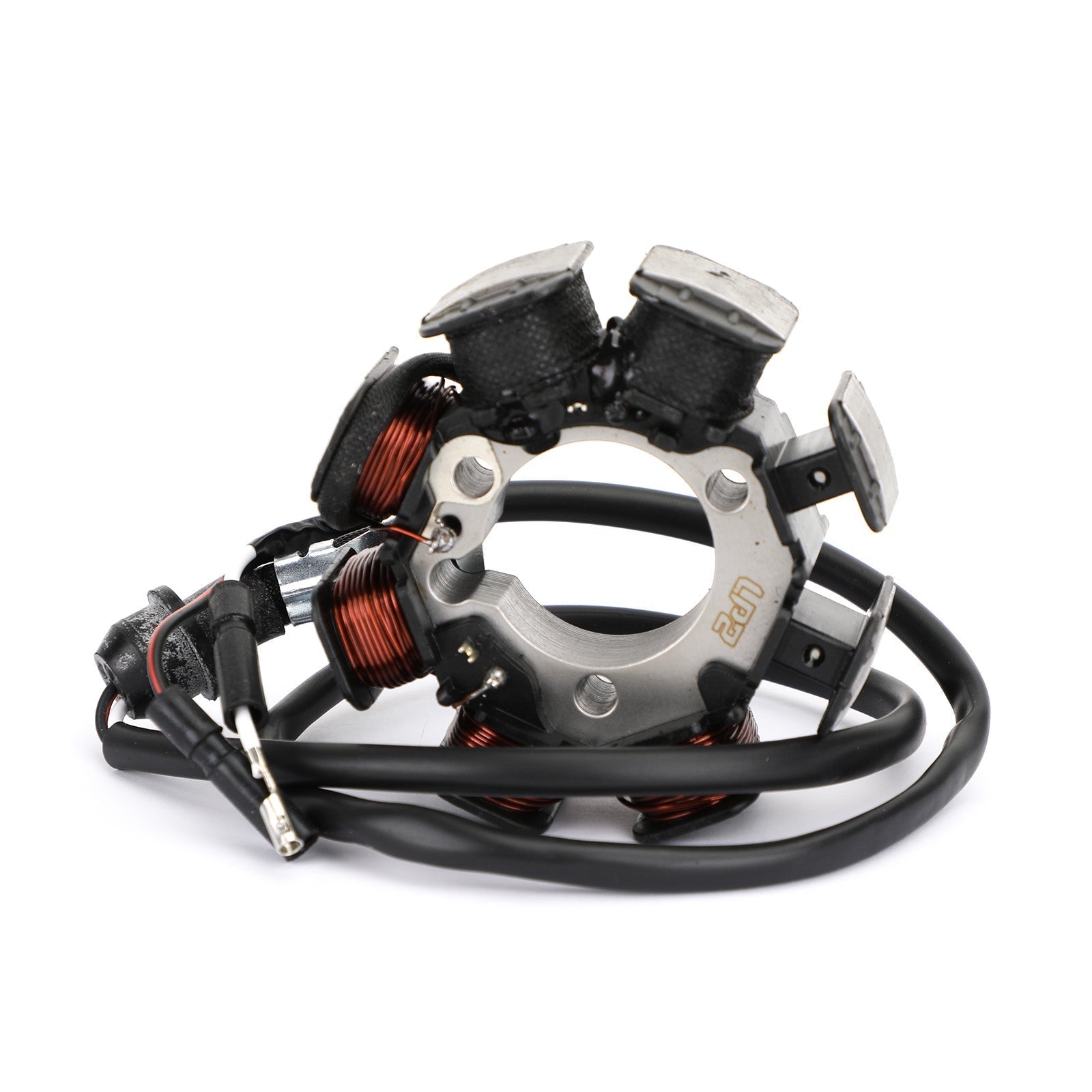

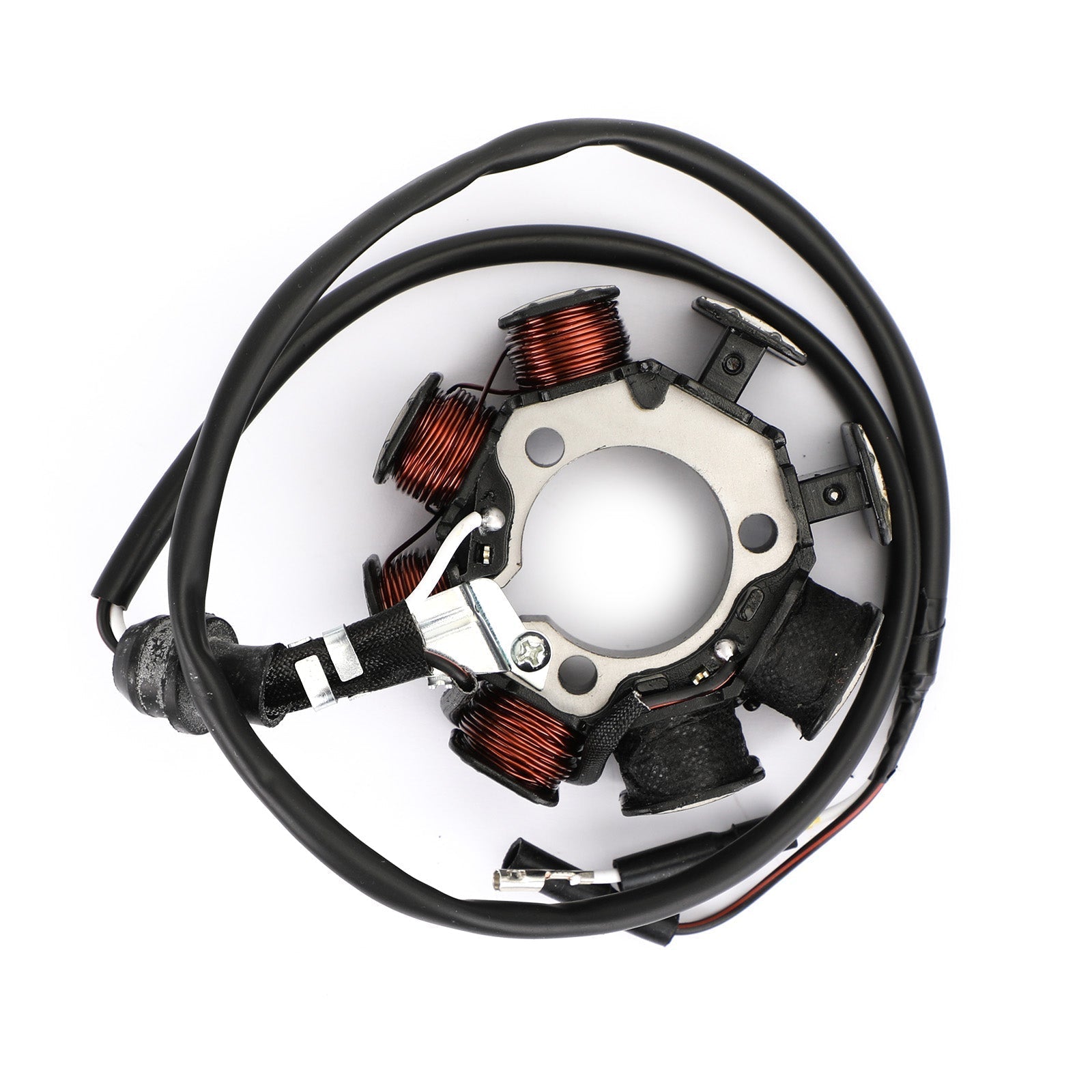

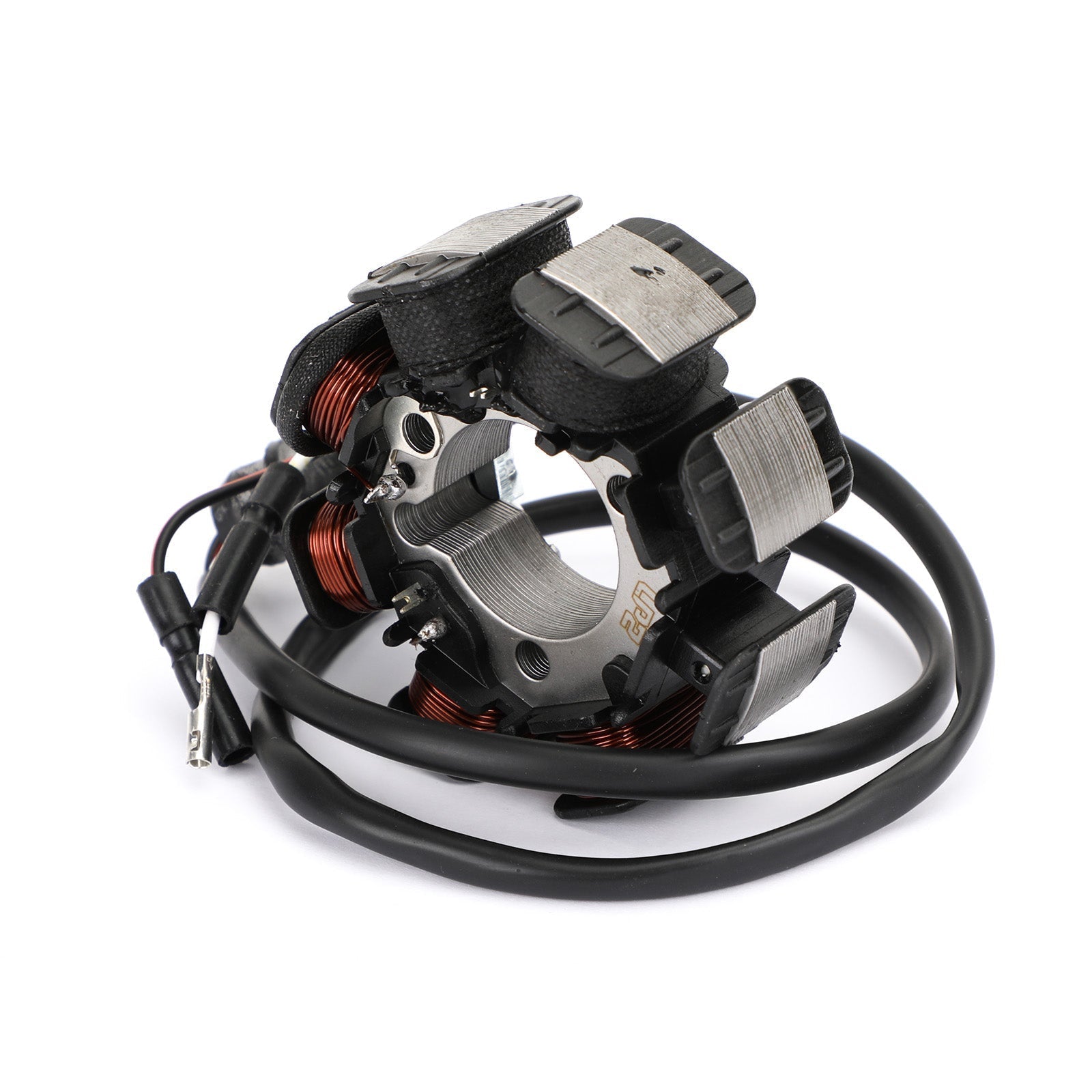

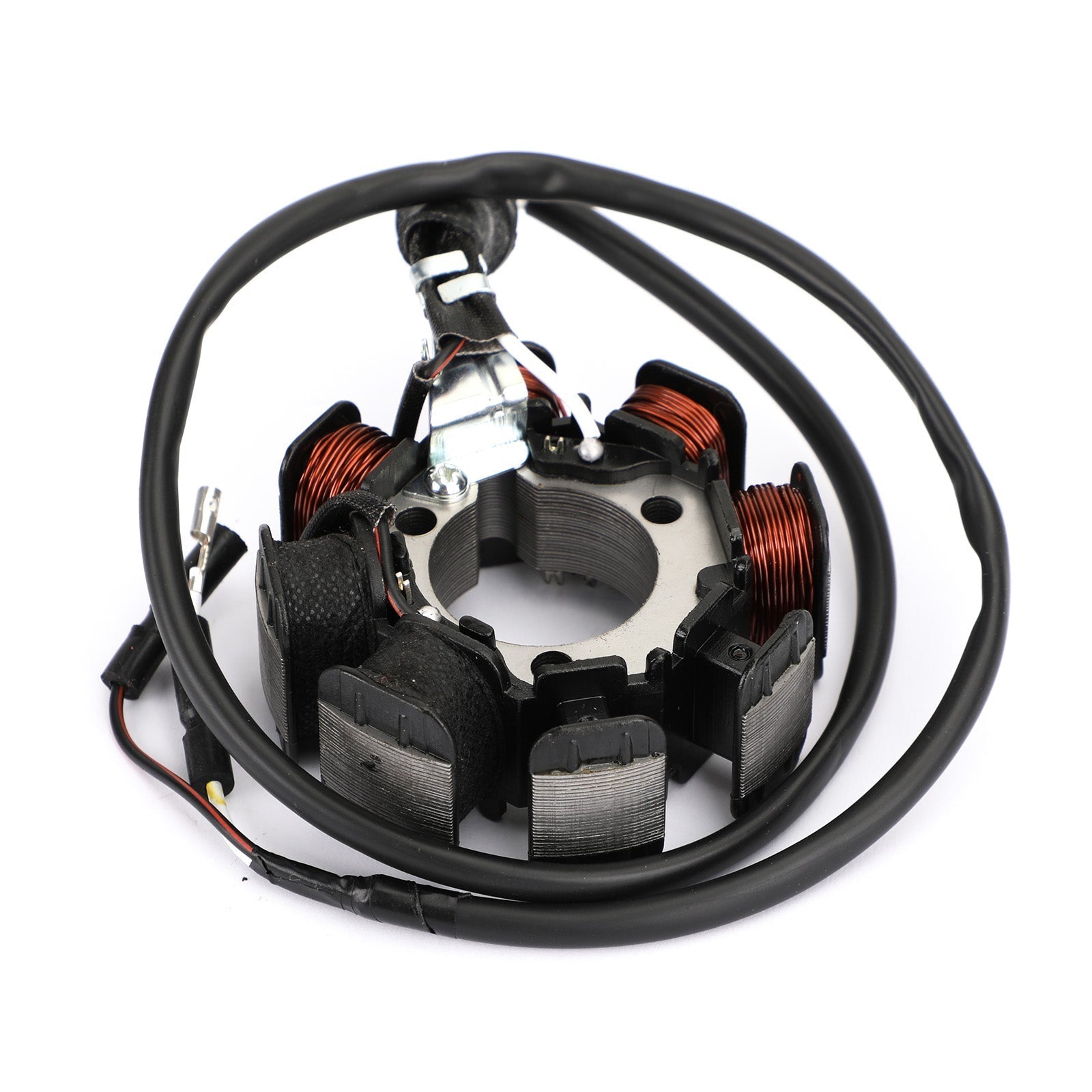

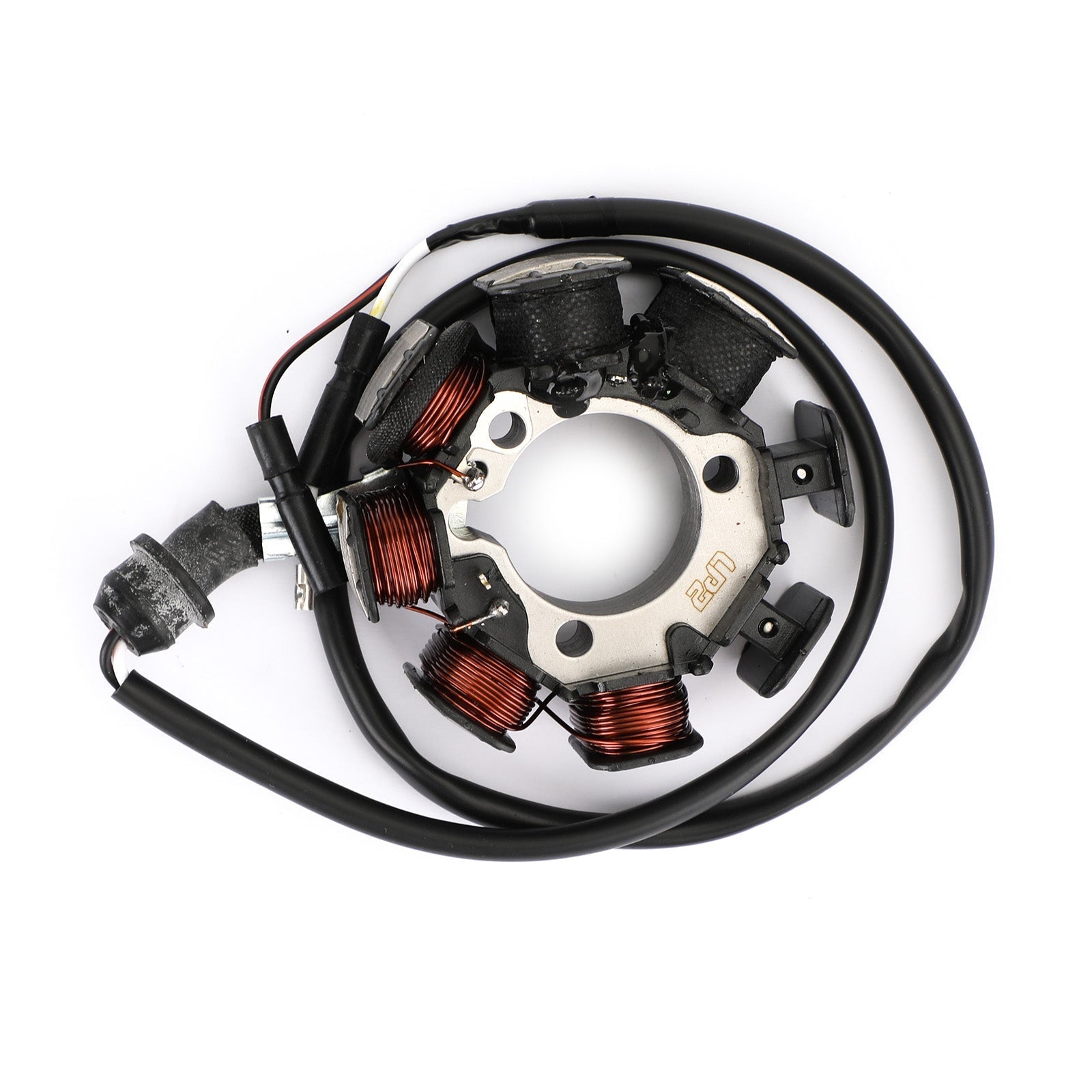

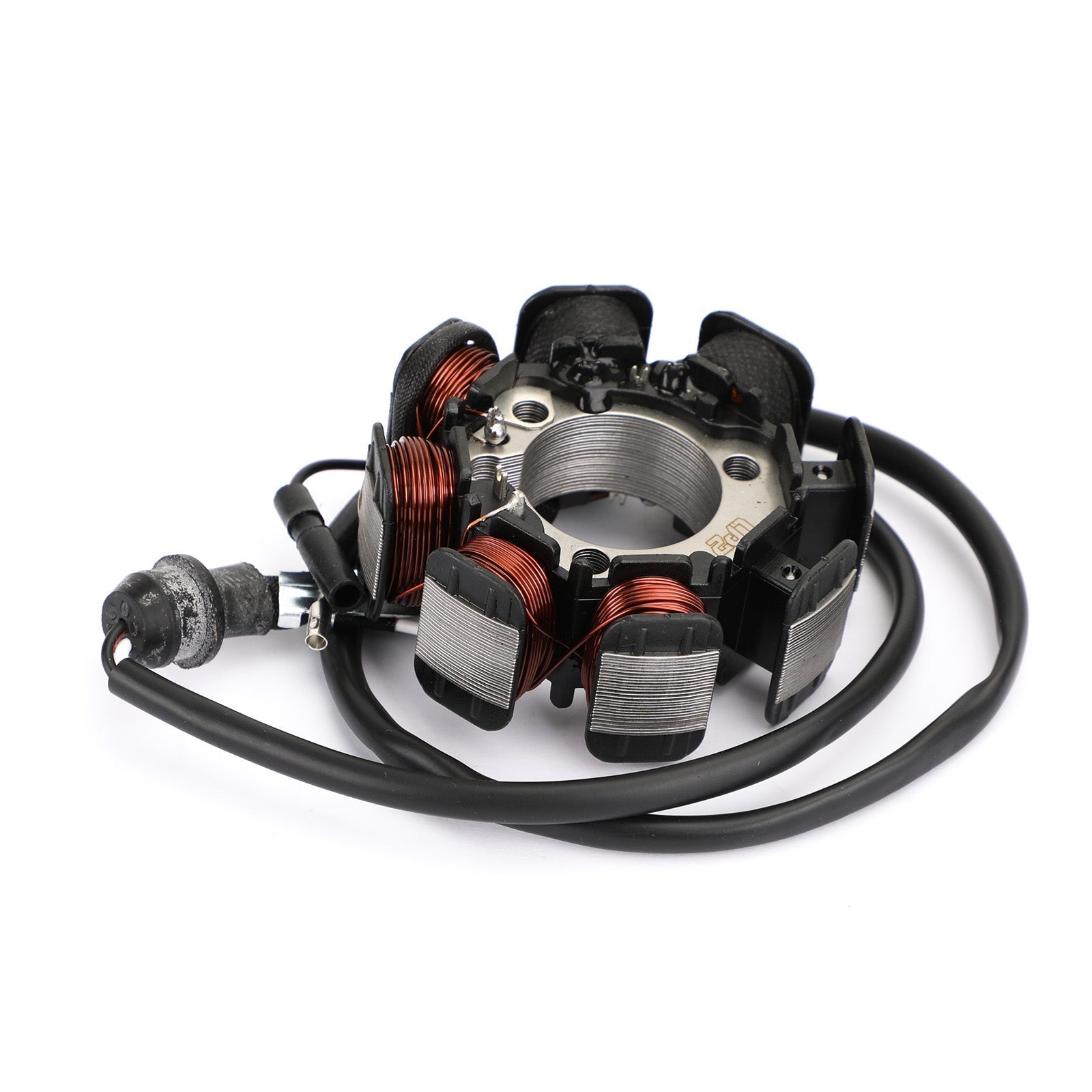

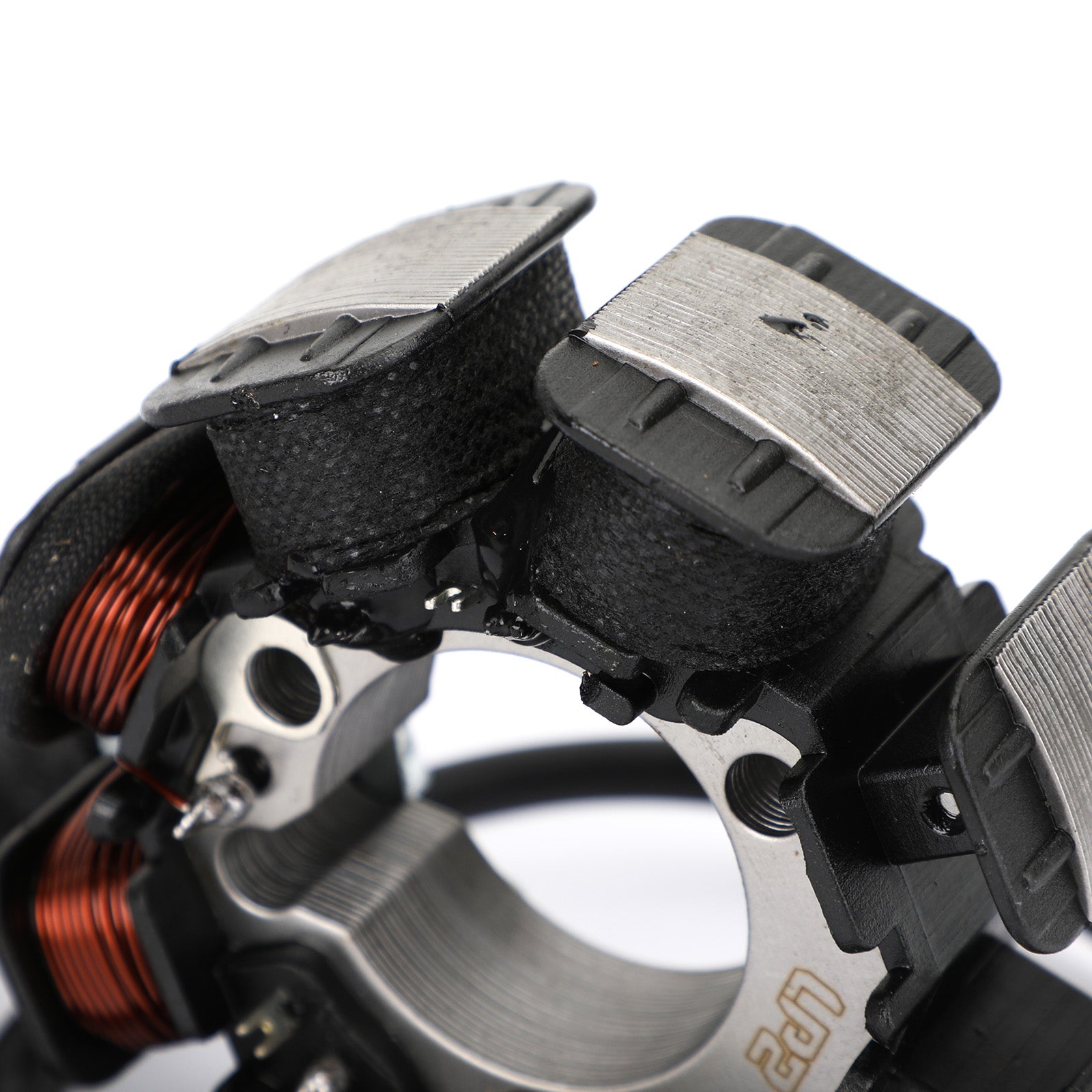

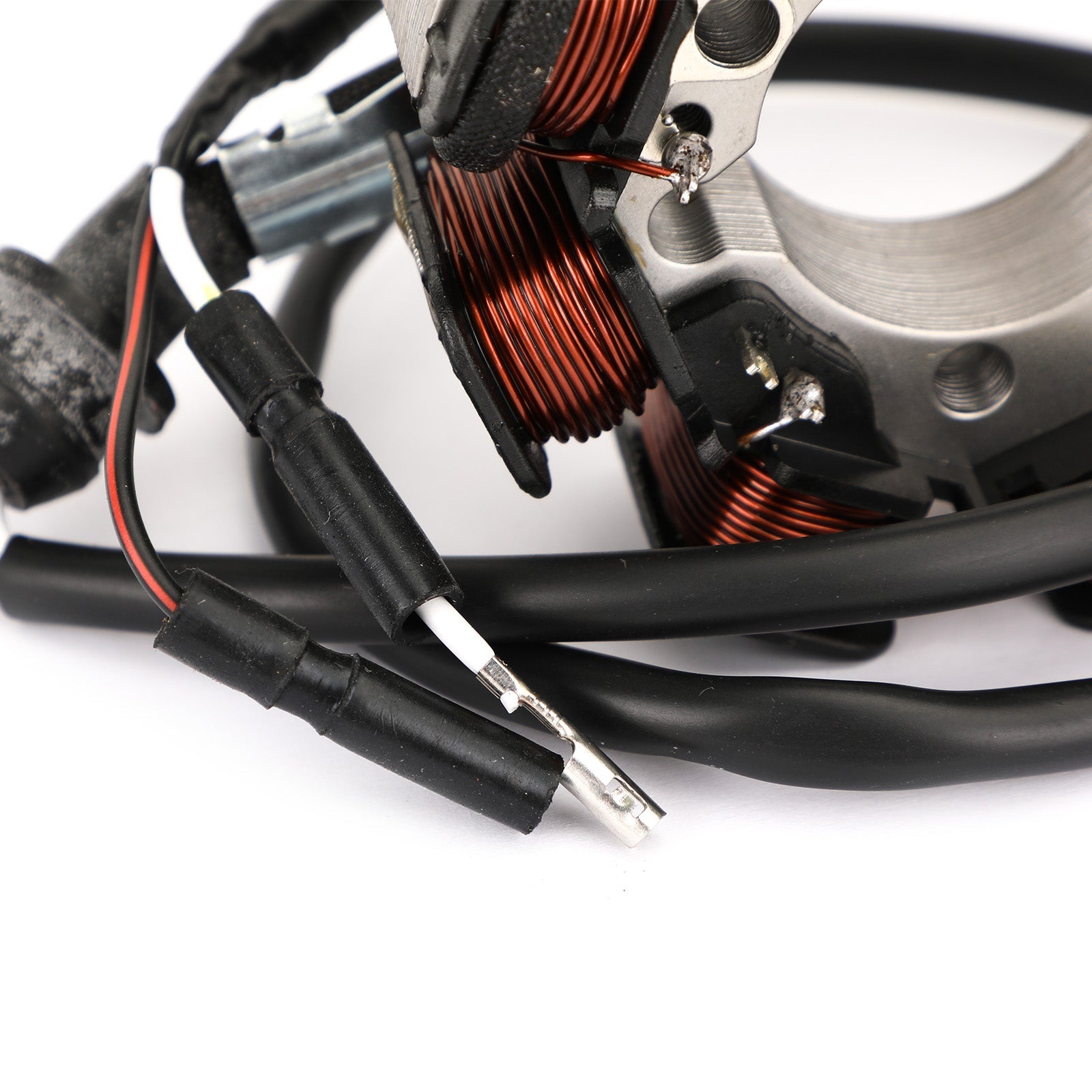

Type: Generator Stator Coil

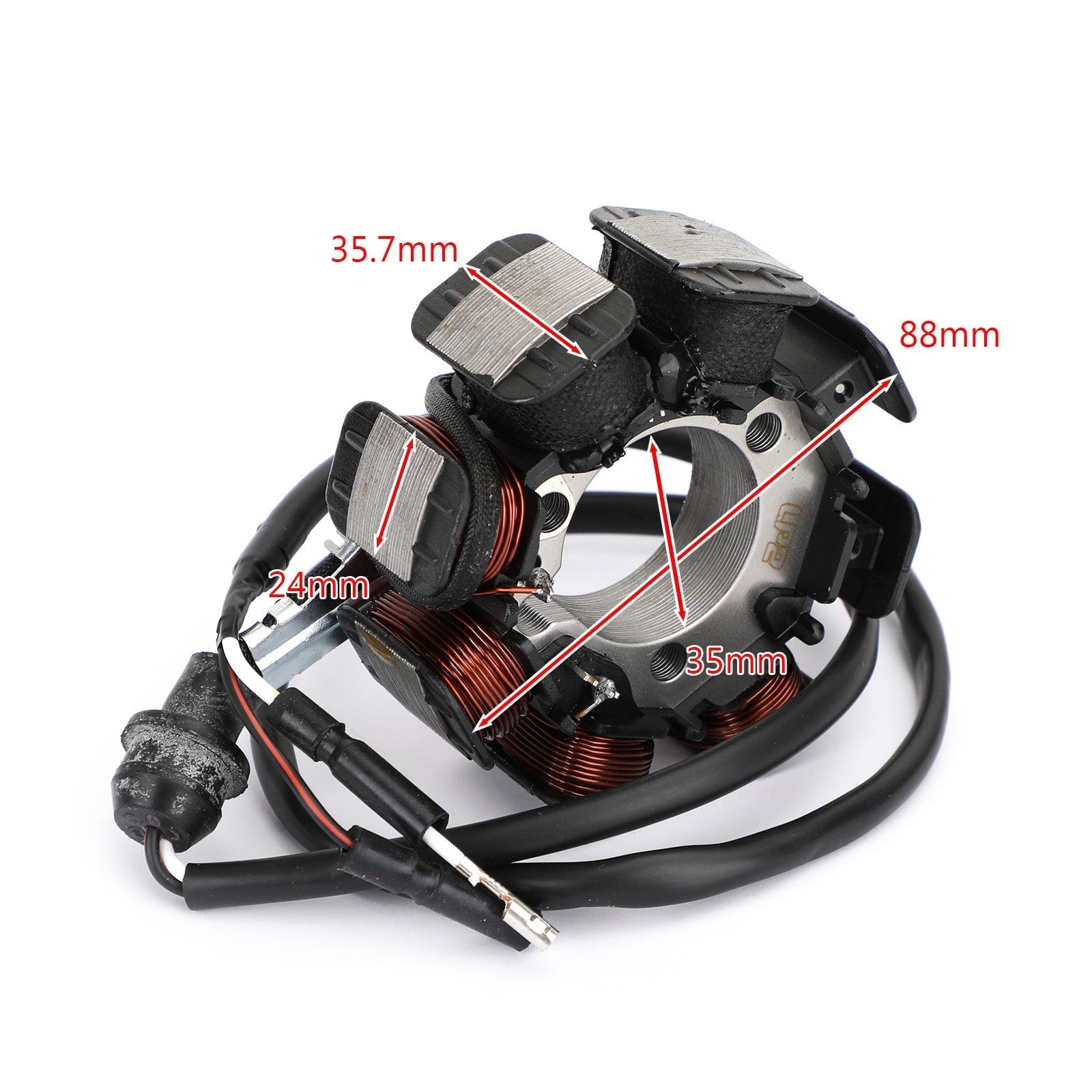

Dimensions :
Interior diameter : 35mm
Exterior diameter : 88mm
Pole's Thickness : 35.7mm
Pole's Width : 24mm

Other Specifications :
Number of wires: 2
Number of pins: 2
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 8

Reference Part Number:
31120-KT0-004

Fitments:
Fit for Honda XR200R XR200R A 1986-1988
Fit for Honda XR200R XR200RG 1986
Fit for Honda XR200R XR200RH 1987
Fit for Honda XR200R XR200RJ 1988
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package includes:
1x Generator Stator Coil

Note:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
