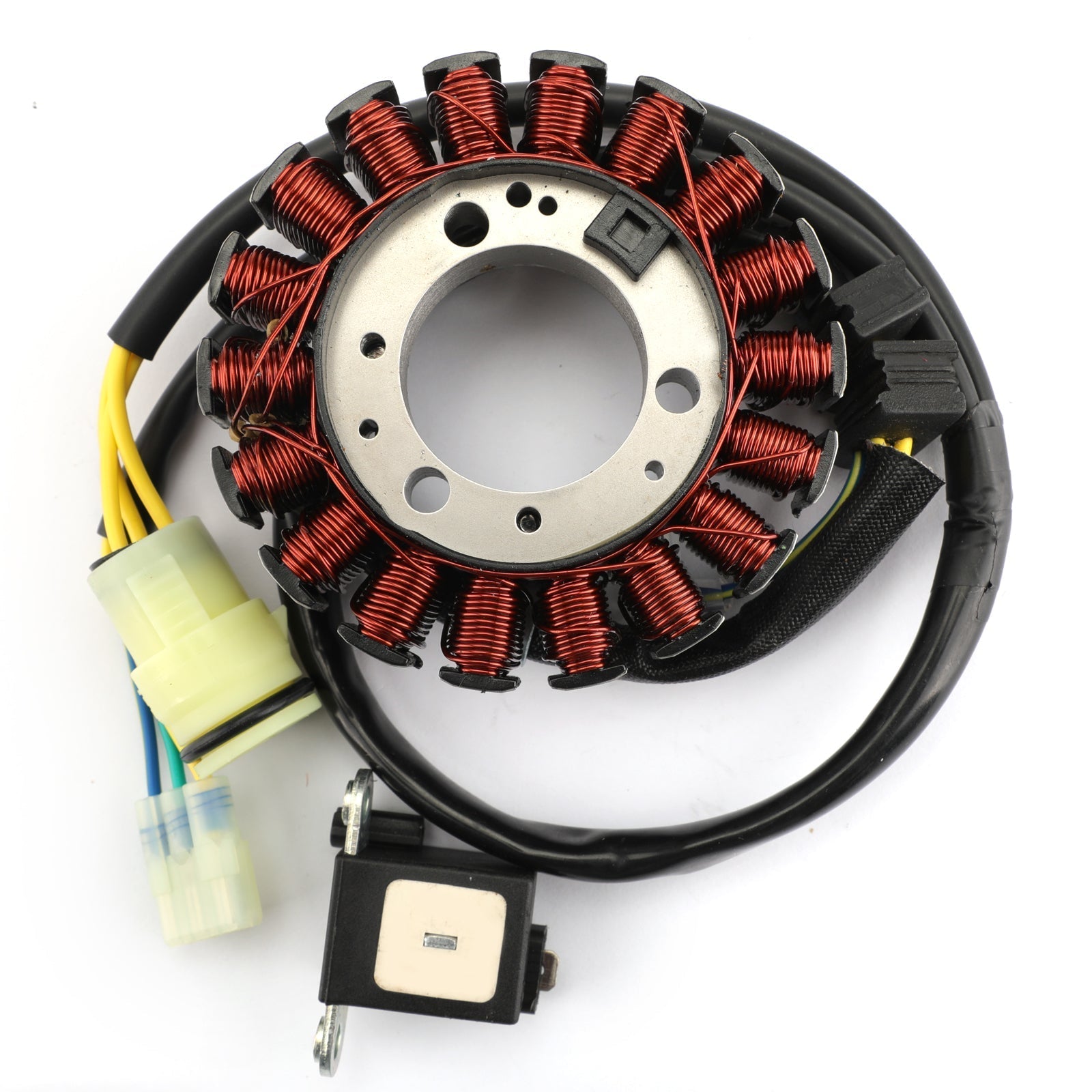

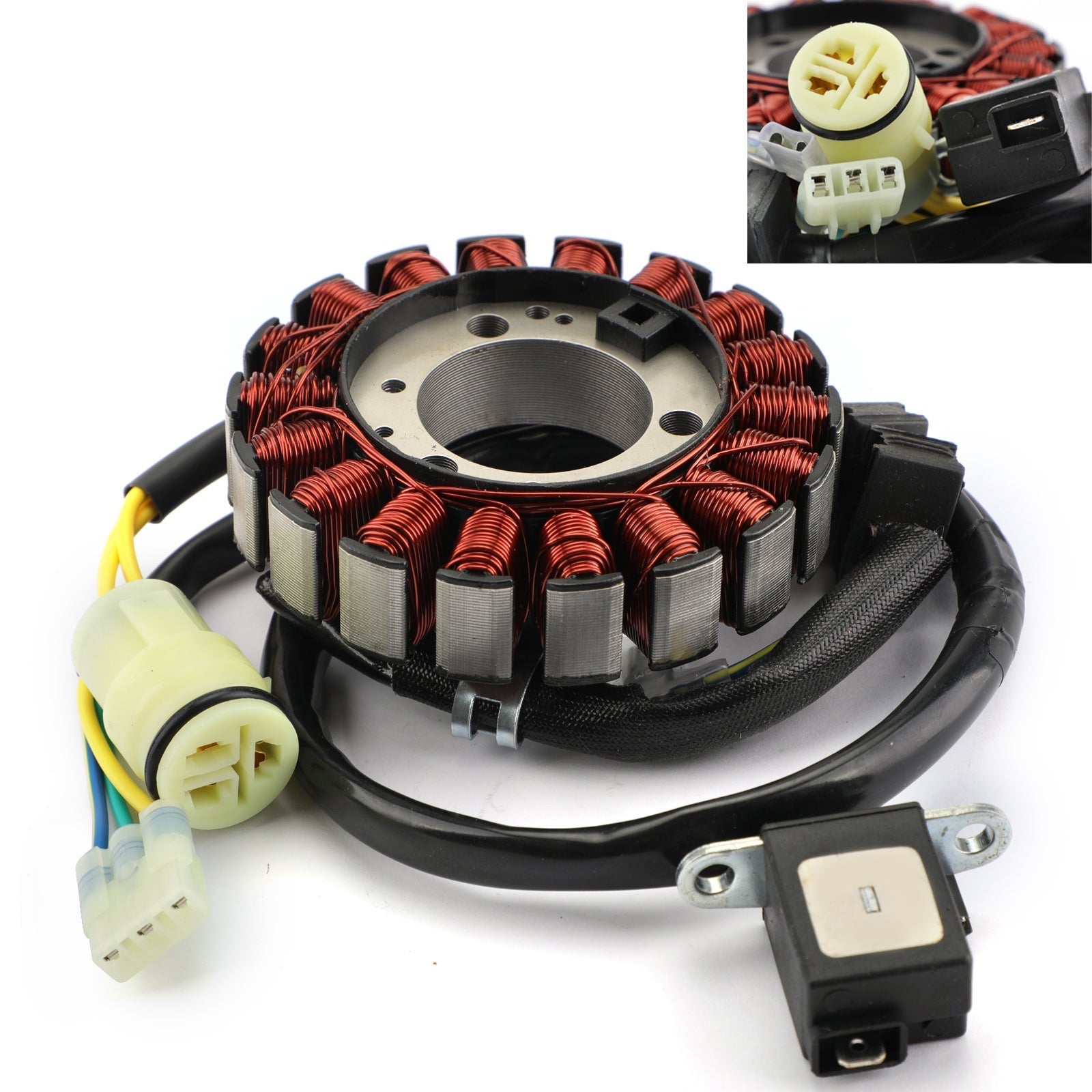

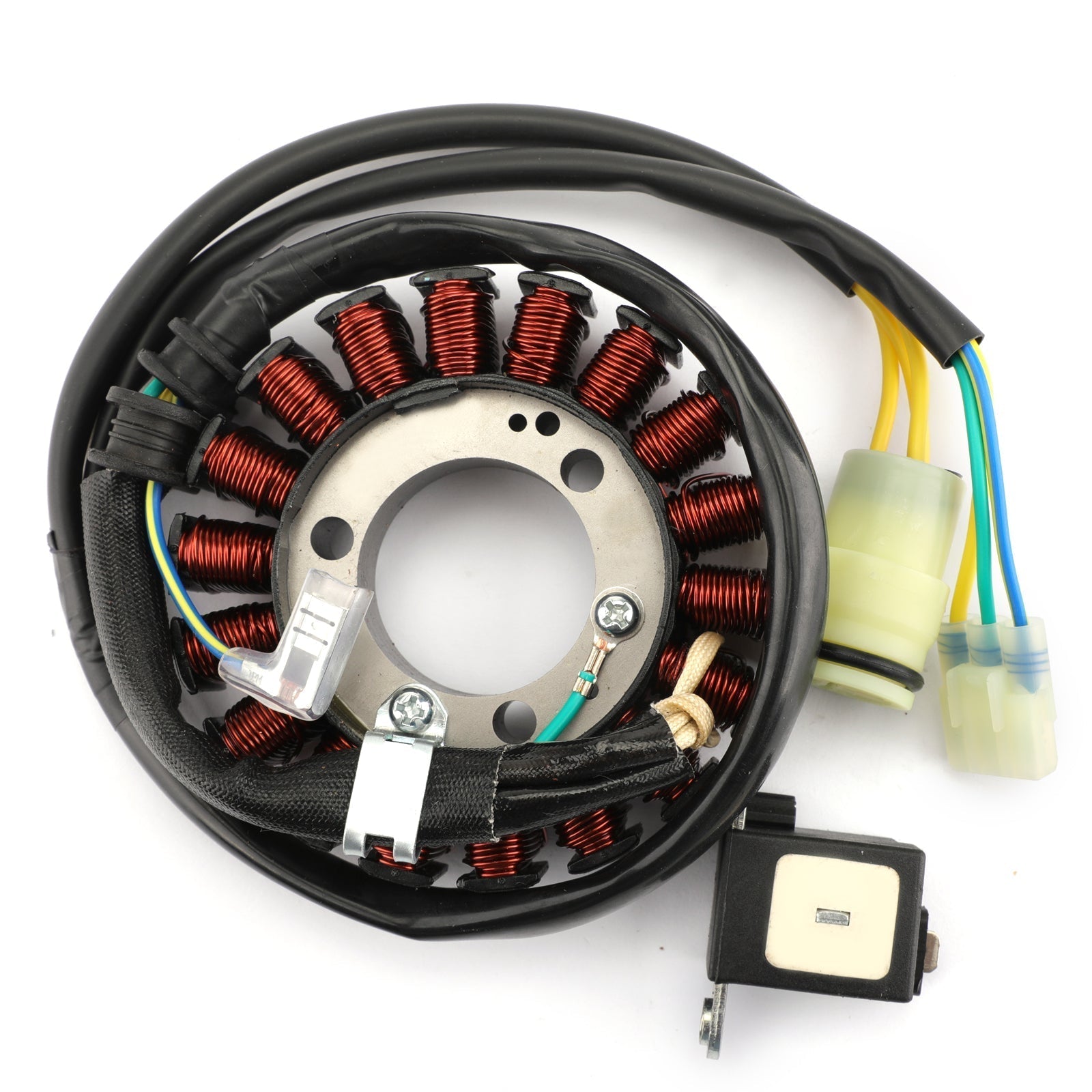

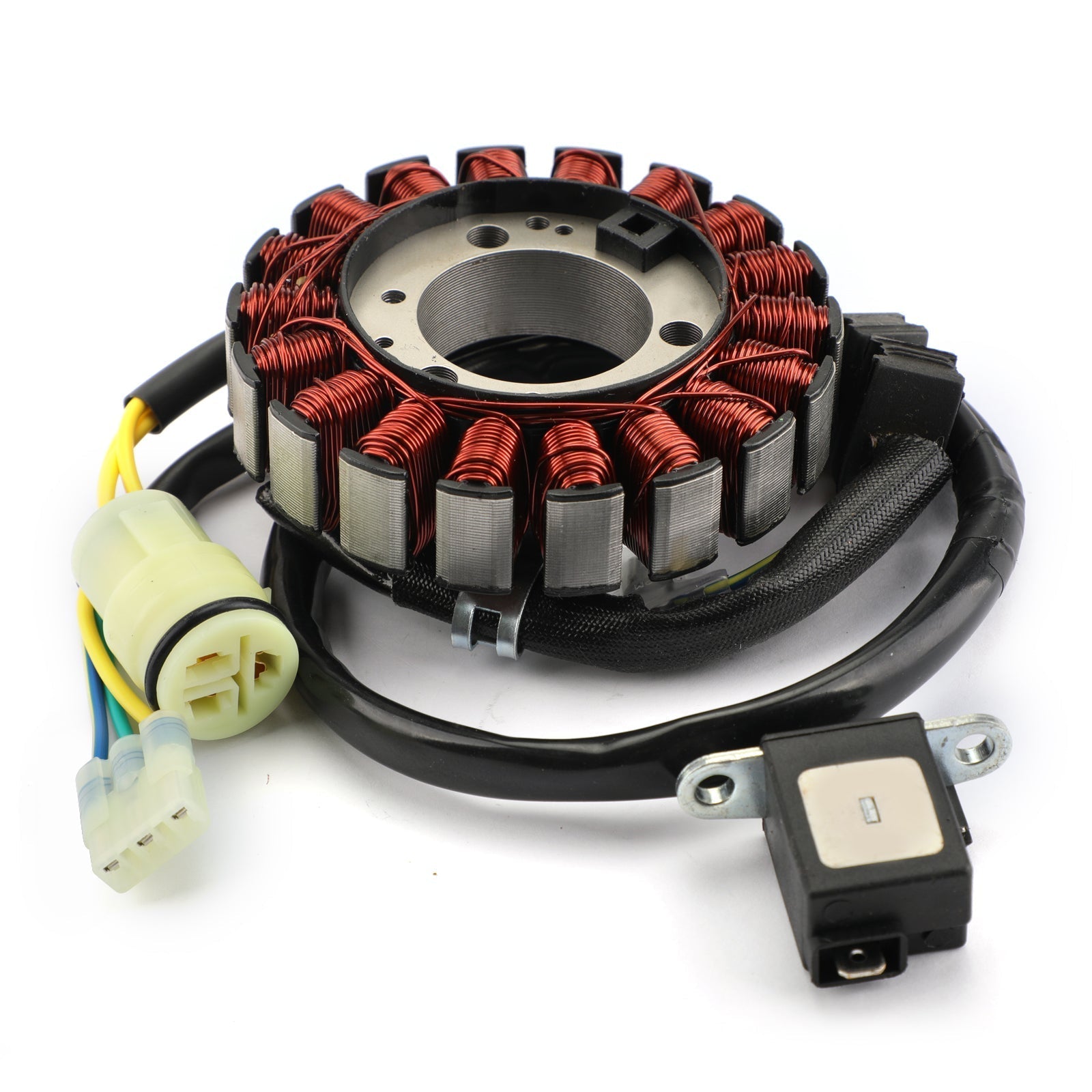

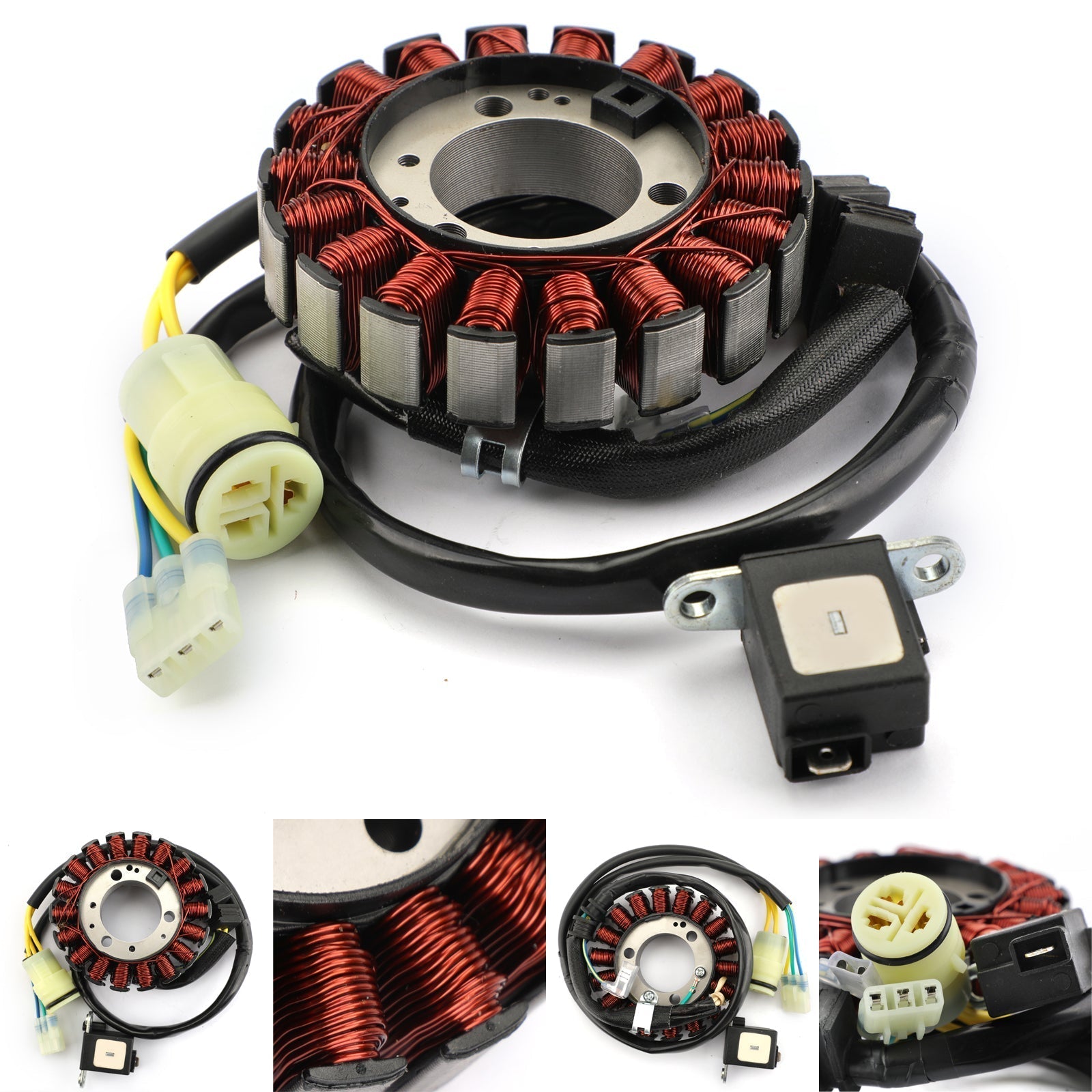

Magneto Generator Stator For Honda 31120-HC4-003 31120-HC4-750 31120-HC4-004 31120-HC4-014

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

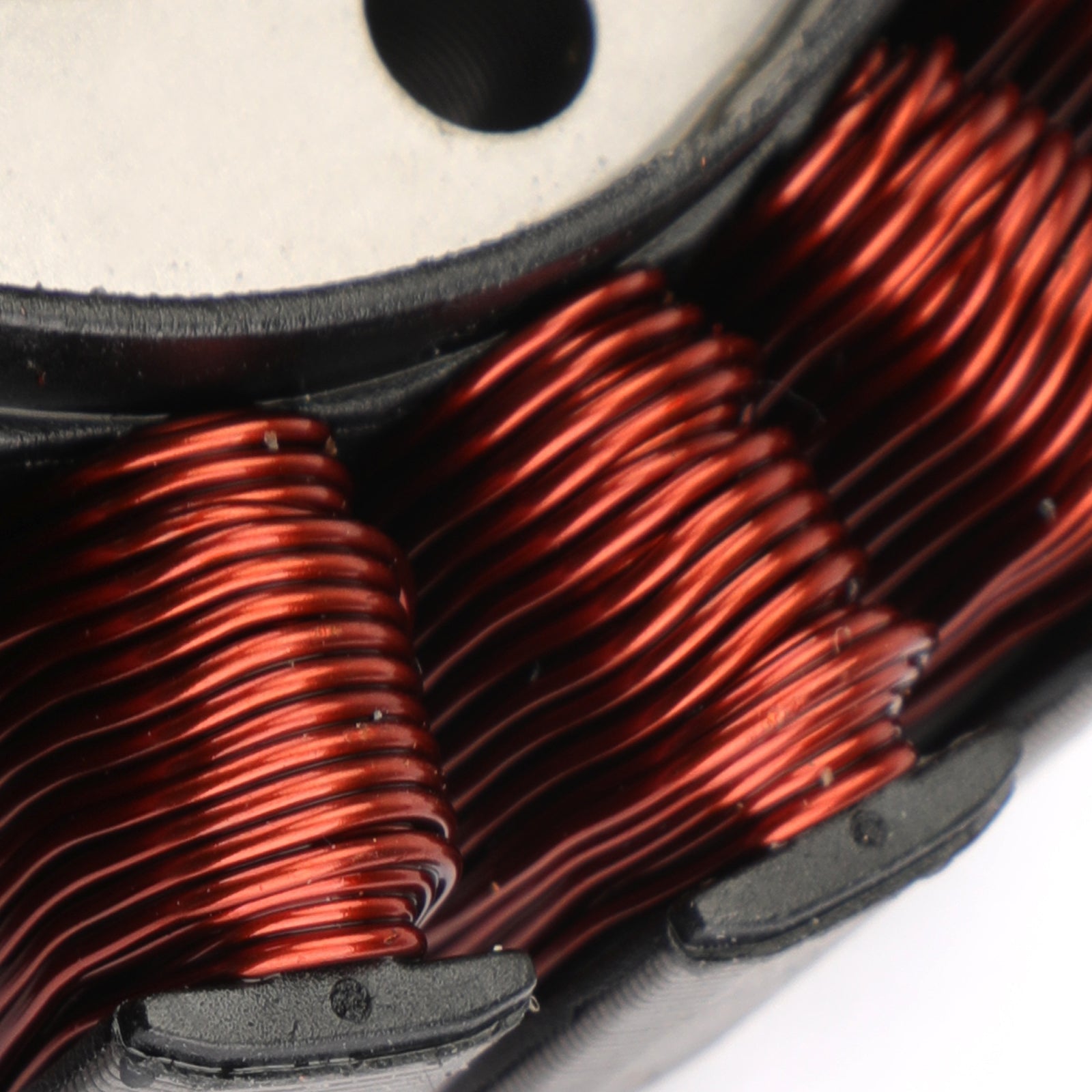

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

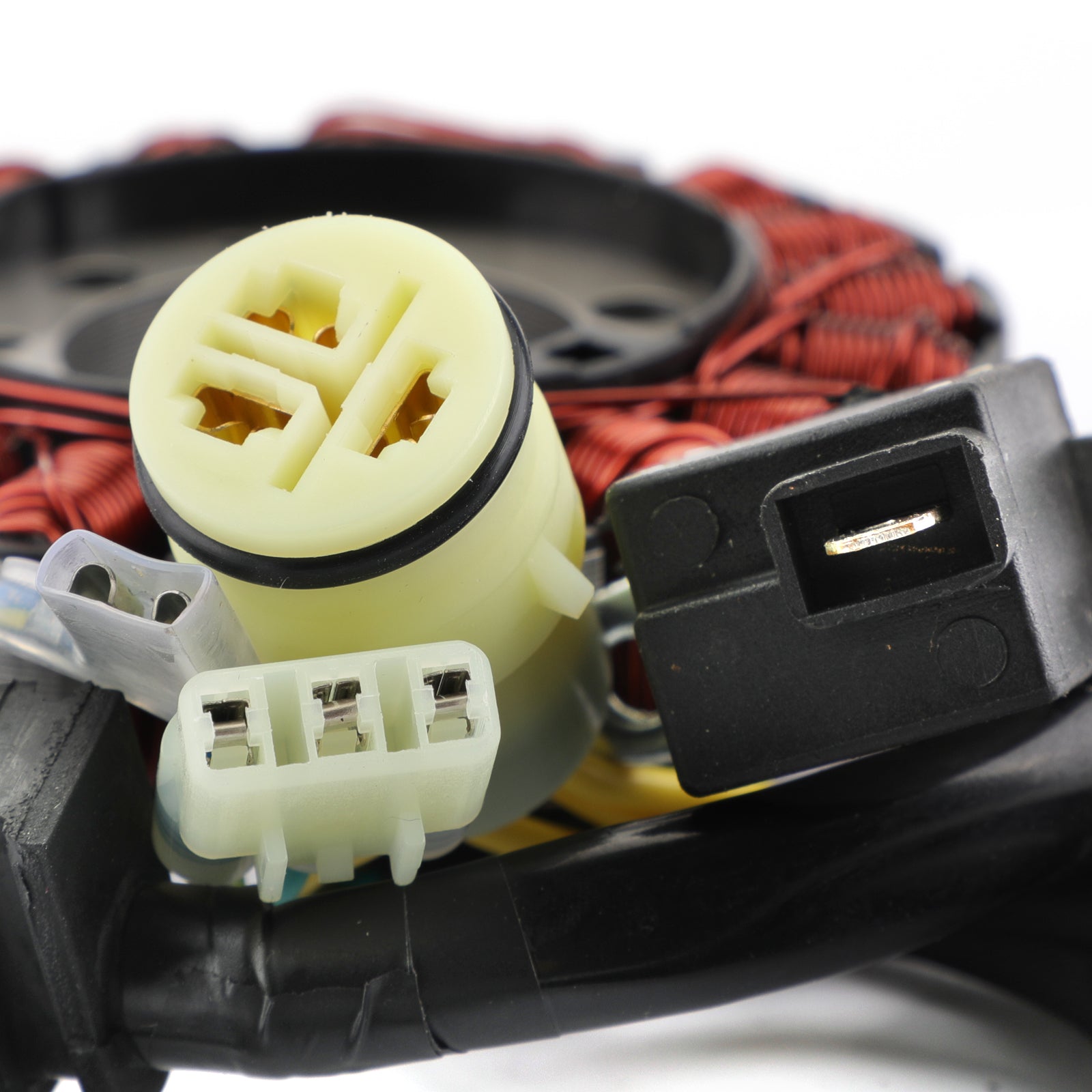

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

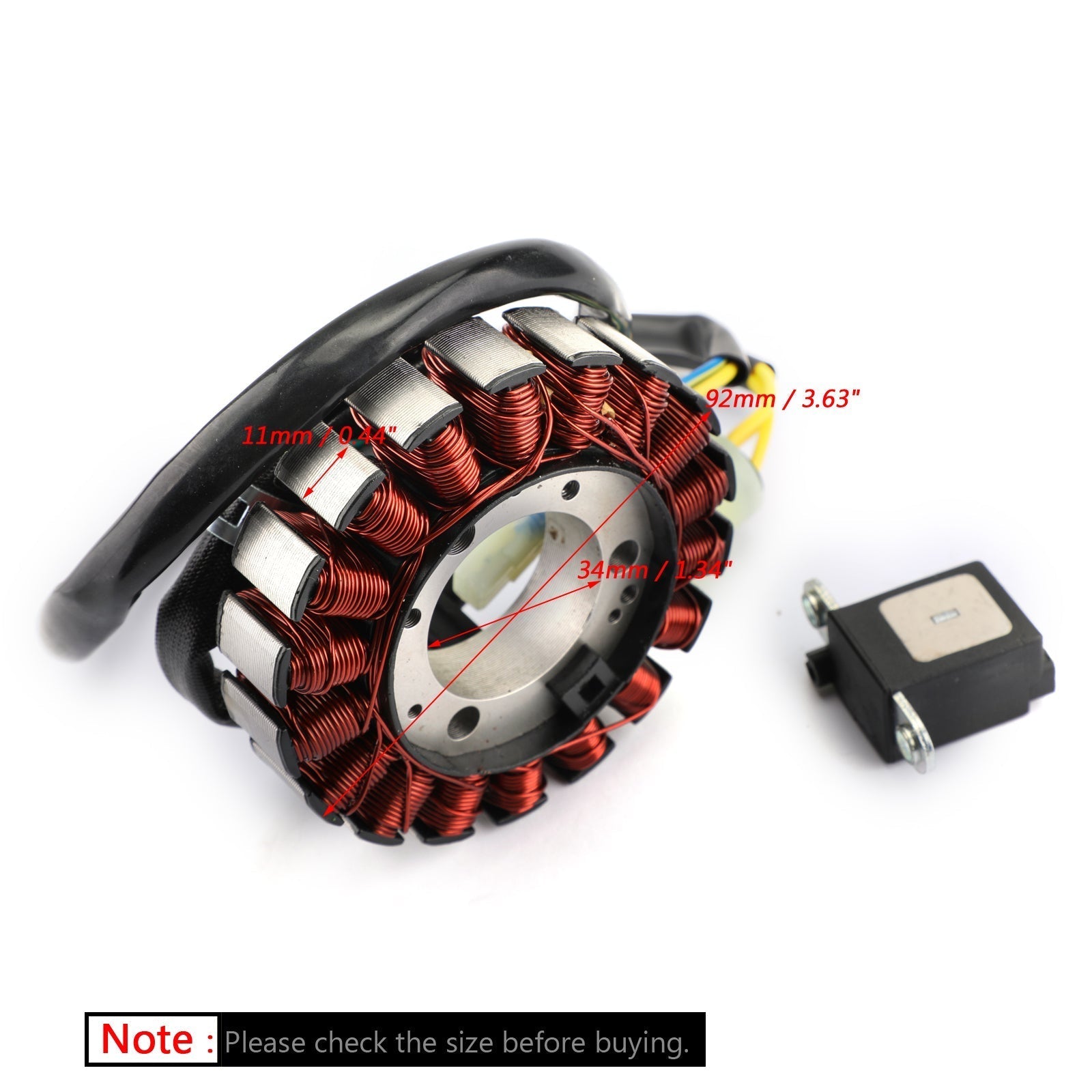

Dimensions :
Interior diameter : 34mm / 1-3/8 in
Exterior diameter : 92mm / 3-5/8 in
Thickness : 11mm / 0.44 in

Other Specifications :
Number of wires: 6
Number of pins: 7
Number of plugs: 3
Number of fixation holes: 3
Number of poles: 18

Replacement Part Number:
31120-HC4-004
31120-HC4-014
31120-HC4-003
31120-HC4-750

Fitments:
Fit for Honda TRX300 Foreman 2x4 4x4 1988-2000
Fit for Honda TRX300 Big Red 300 1988-2000
Fit for Honda TRX300 FourTrax 300 2x4 1988-2000
Fit for Honda TRX300FW FourTrax 300 4x4 1988-2000

This model comes in 12 AND 18 POLE type.
This is REPLACEMENT FOR 18 POLE type.
It will NOT FIT 12 POLES type.

Package Included:
1x 18 Pole Generator Stator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
