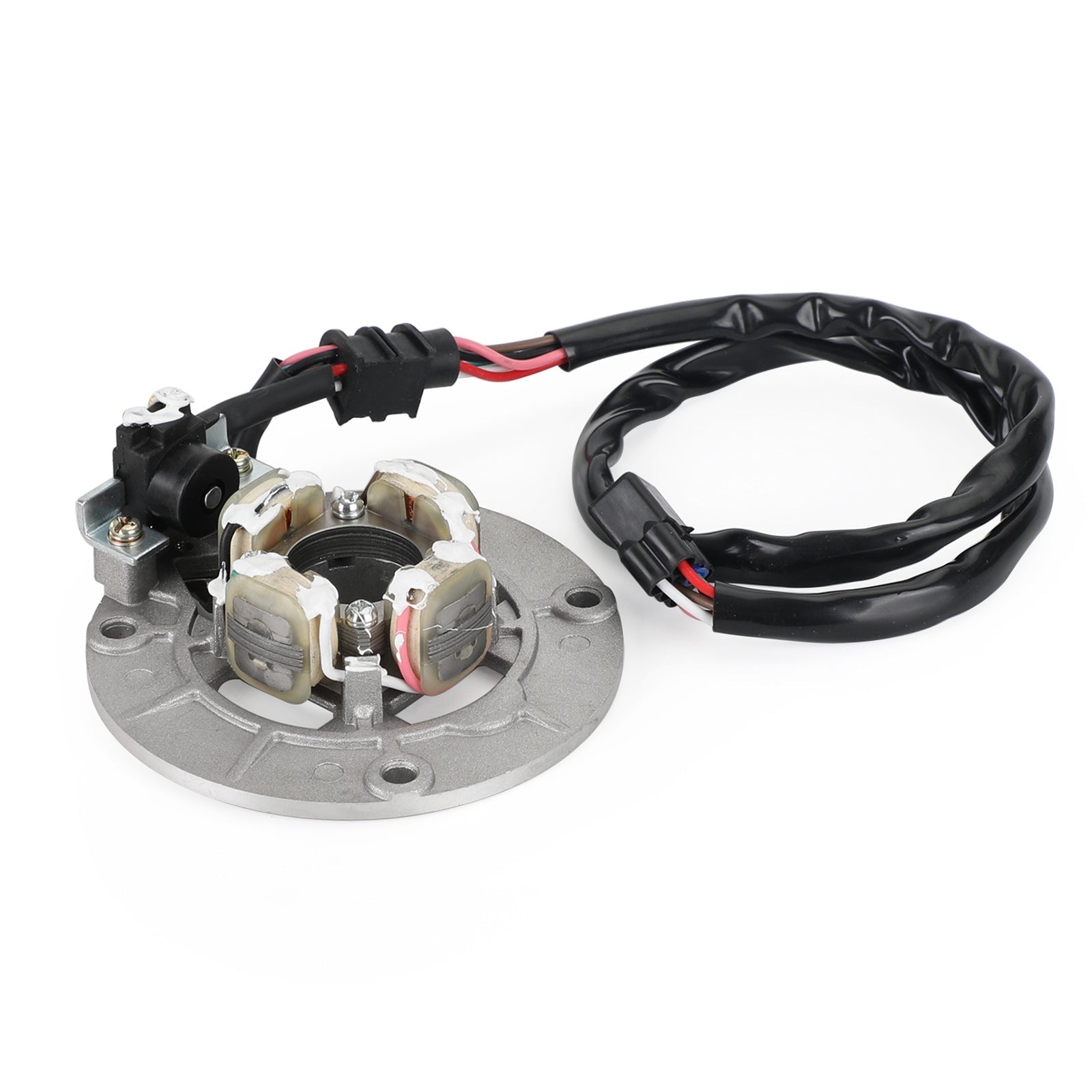

Magneto Generator Stator Fit for Yamaha YZ 250 400 426 450 F 1998-2005

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Replacement Part Number:
5SF-85560-00
5XD-85560-00
5XD-85560-09
5BE-85560-00
5BE-85560-01
5BE-85560-02
5BE-85560-10
5BE-85560-11
5BE-85560-12
5BE-85560-19

Fitments:
Fit for Yamaha YZ250F YZ250FN 2001
Fit for Yamaha YZ250F YZ250FP 2002
Fit for Yamaha YZ250F YZ250FR 2003
Fit for Yamaha YZ250F YZ250FS 2004
Fit for Yamaha YZ250F YZ250FT 2005

Fit for Yamaha YZ400 YZ400FK 1998
Fit for Yamaha YZ400 YZ400FL 1999

Fit for Yamaha YZ426F YZ426FM 2000
Fit for Yamaha YZ426F YZ426FN 2001
Fit for Yamaha YZ426F YZ426FP 2002

Fit for Yamaha YZ450F YZ450FR 2003
Fit for Yamaha YZ450F YZ450FS 2004
Fit for Yamaha YZ450F YZ450FT 2005

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
