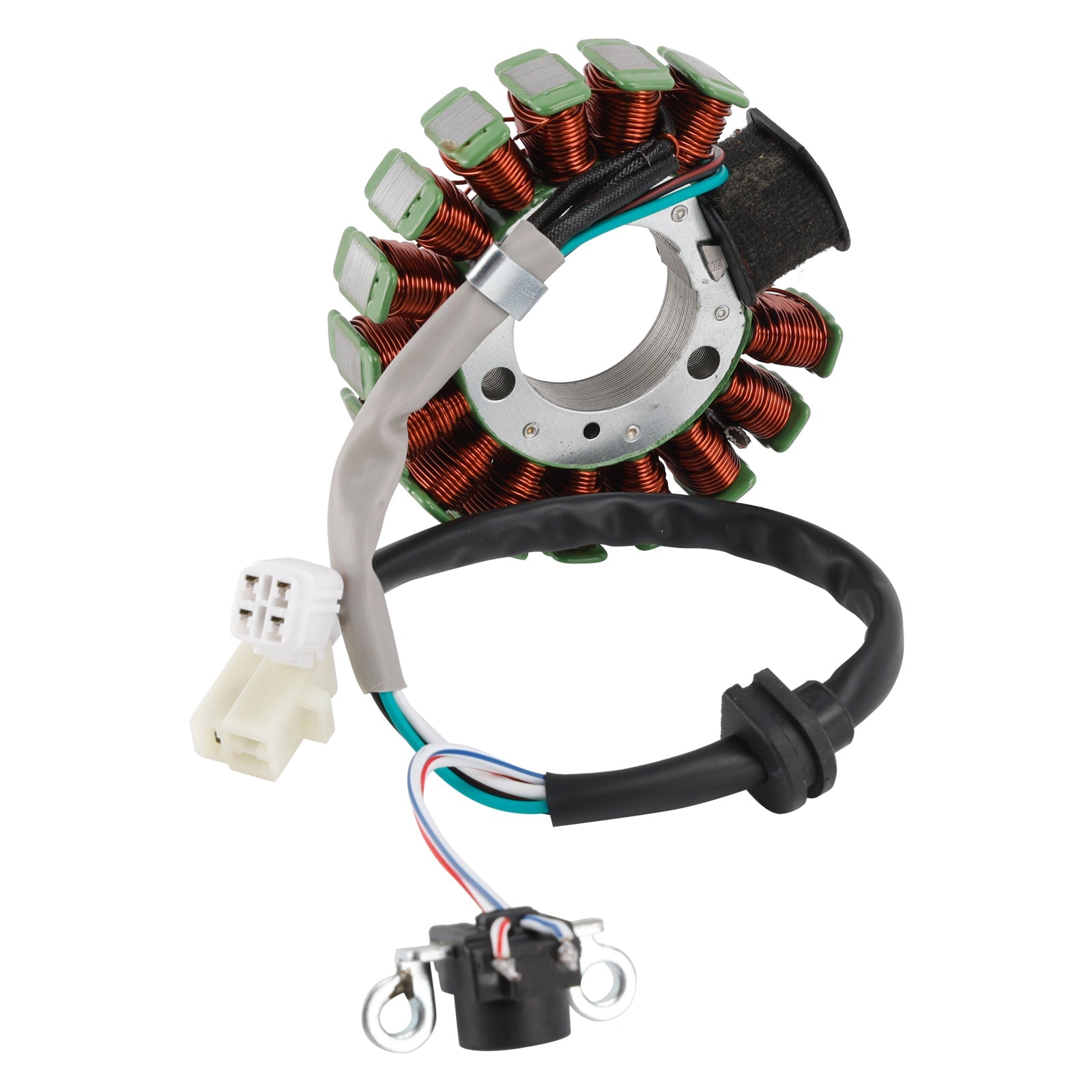

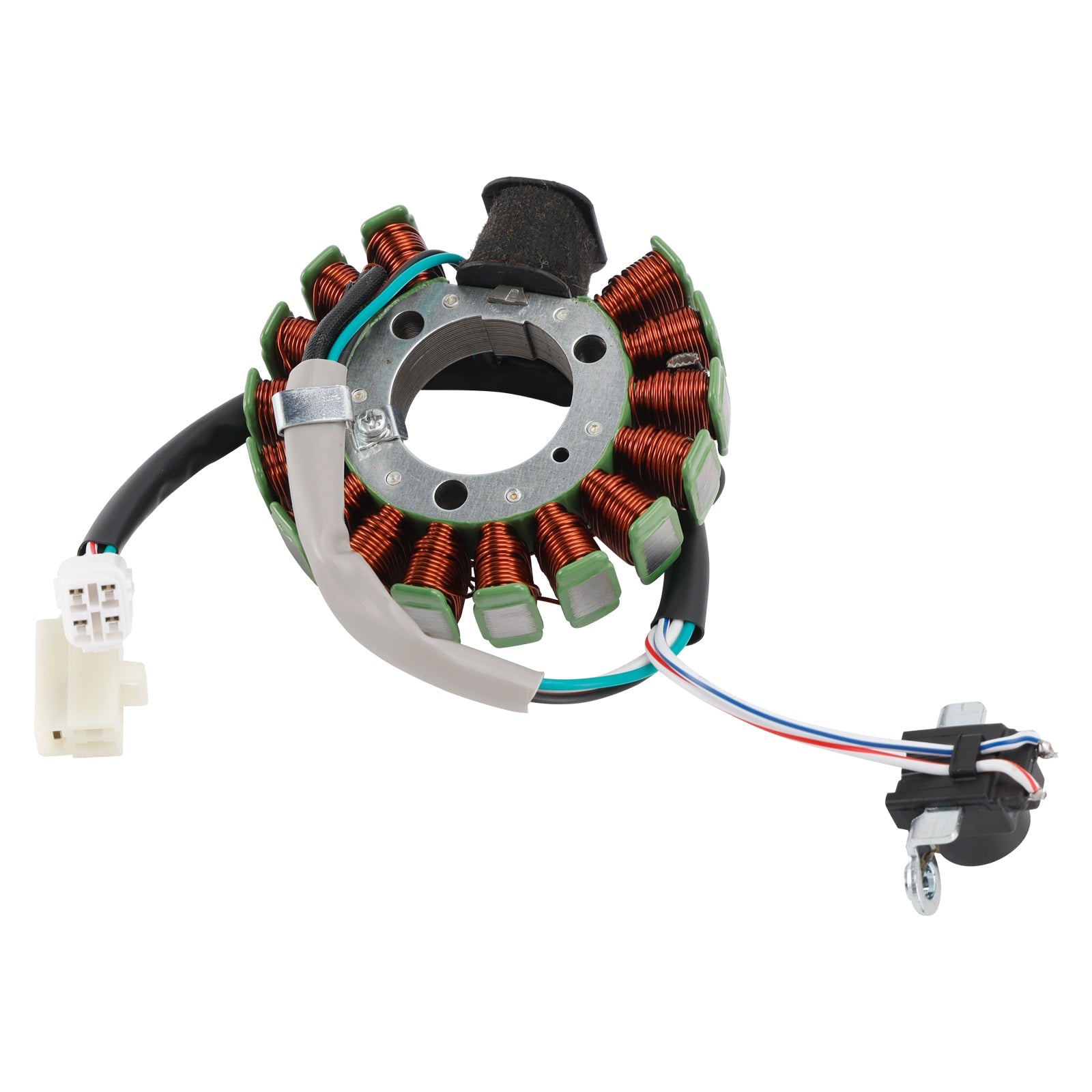

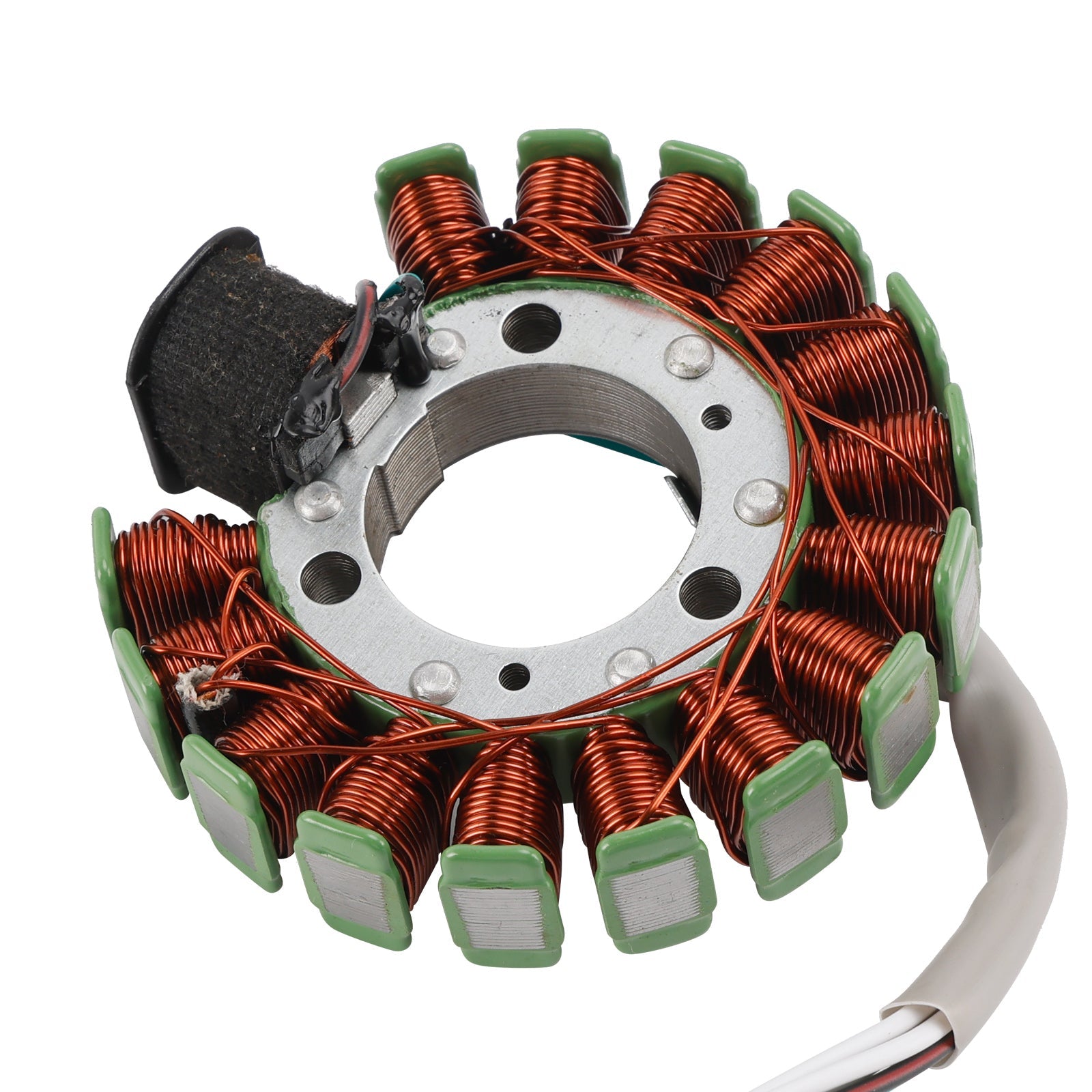

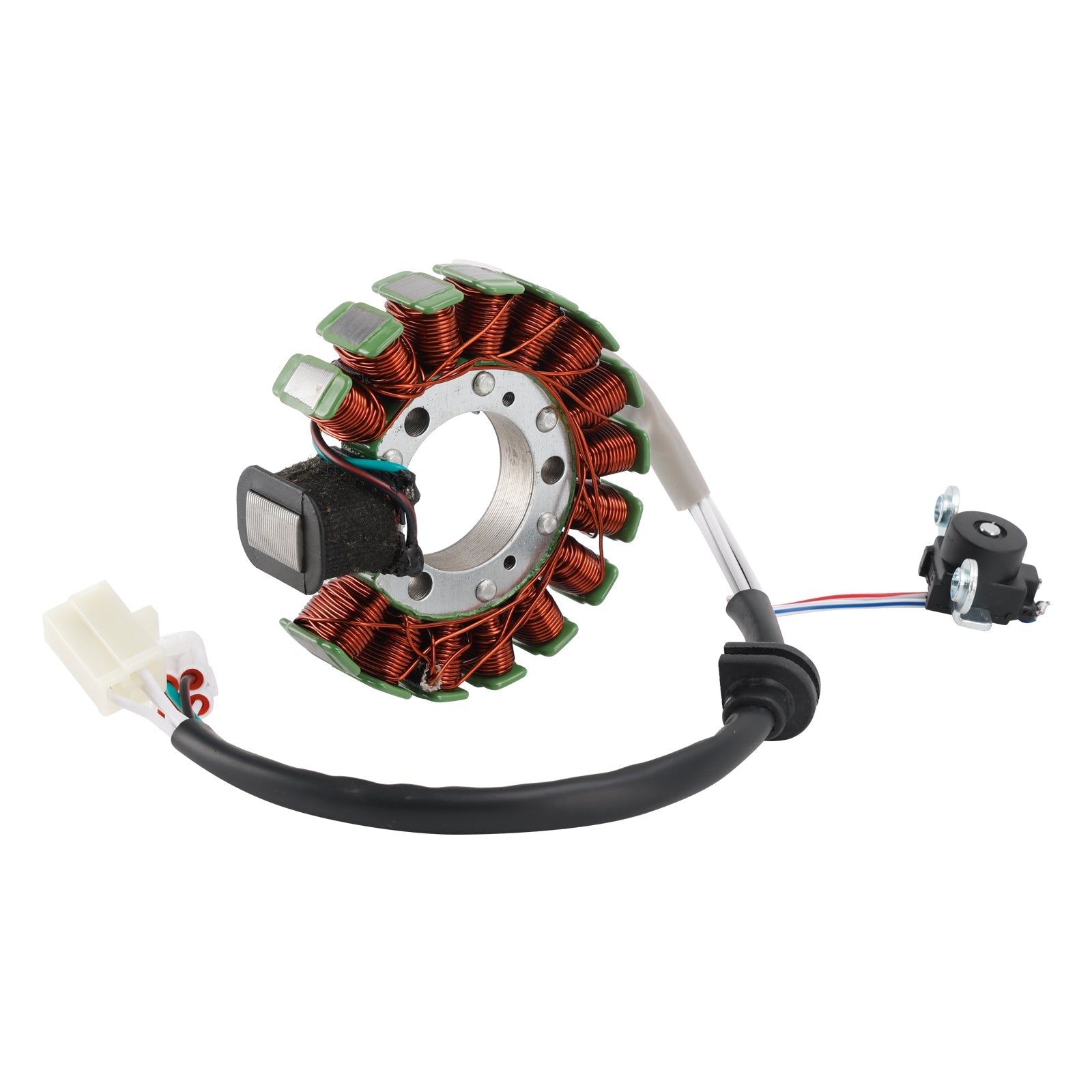

16-Pole Magneto Generator Stator Fit for Yamaha XN 125 YP 125 XQ 150 YP 180 MBK Malaguti Benelli Italjet

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

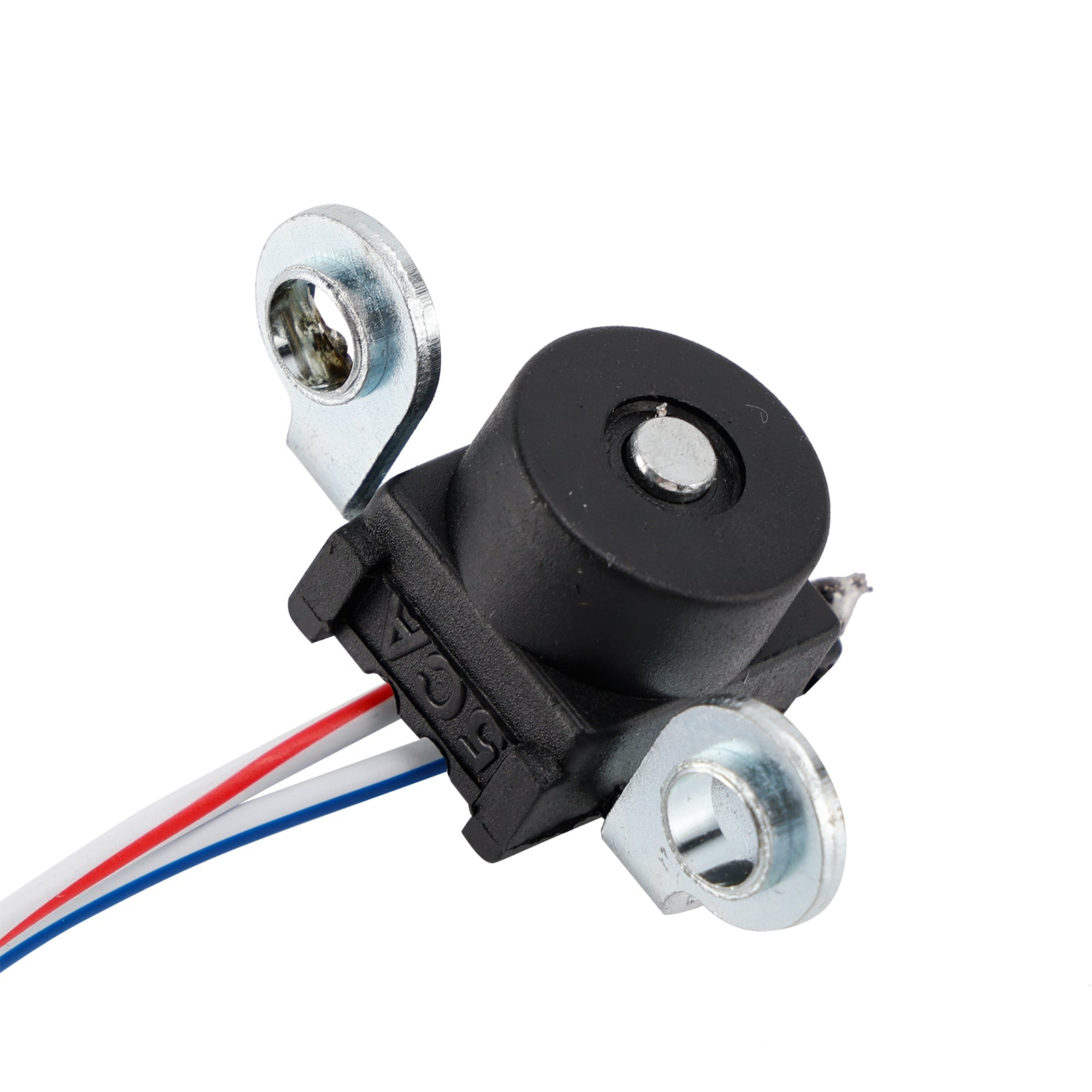

Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 3 + 4
Number of fixation holes: 3
Number of poles: 16

Please compare the number of pins and plugs with the old part before purchasing.

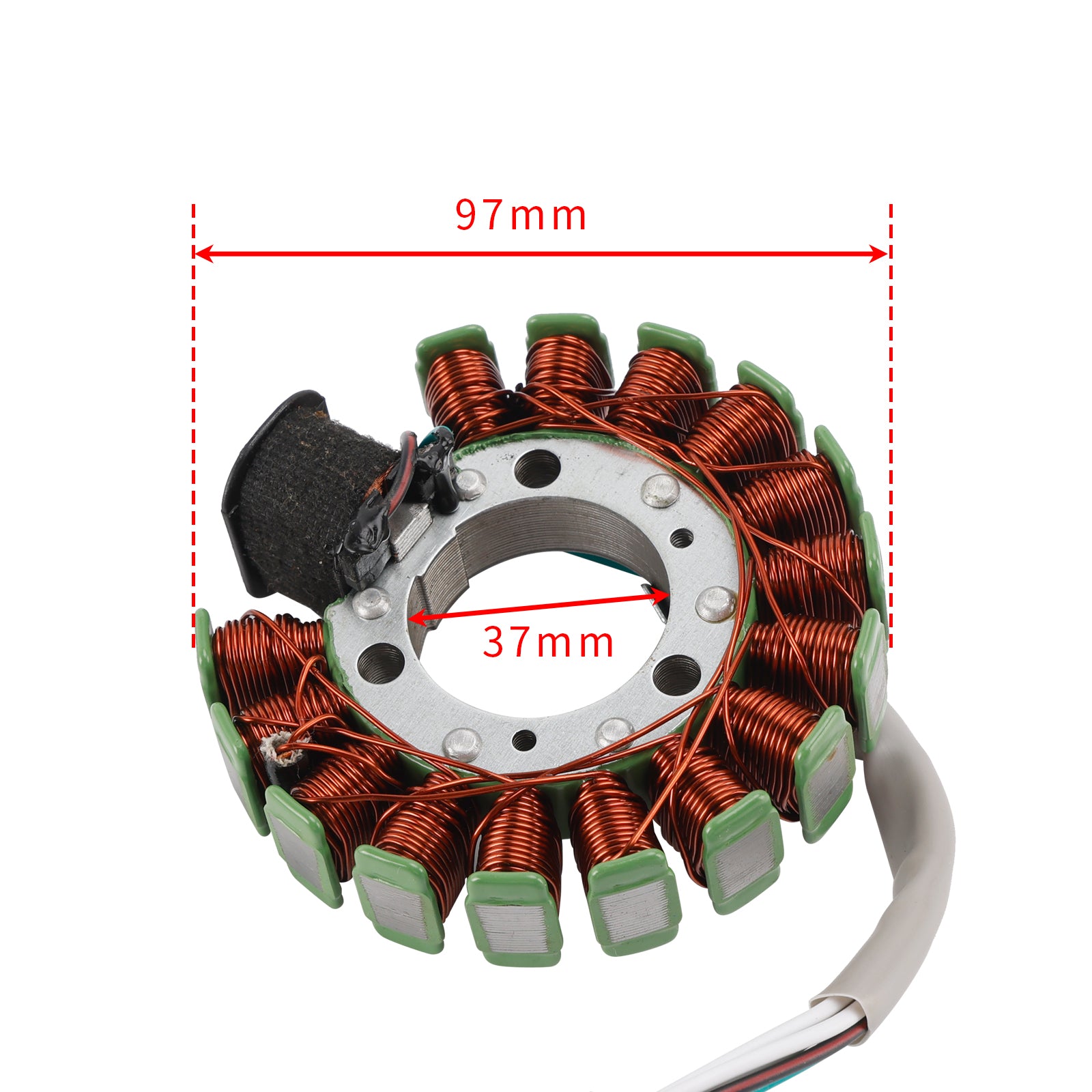

Size:
Interior diameter : 37 mm
Exterior diameter : 97 mm
Cable Length: approx. 550mm

Replacement Part Number:
5DS855100000
5DS-85510-00-00

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Benelli Velvet/Velvet Touring 125 1999-2003
Fit for Benelli Velvet/Velvet Touring 150 1999-2003
Fit for Italjet Jupiter 125 2001-2002
Fit for Italjet Millenium 125 2000-2002
Fit for Italjet Jupiter 150 2001-2002
Fit for Italjet Millenium 150 2000-2002
Fit for Malaguti Madison R 125 1999-2005
Fit for Malaguti Phantom Max 125 2003-2005
Fit for Malaguti Madison T 150 1999-2005
Fit for MBK XN 125 Doodo 2000-2002
Fit for MBK YP 125 Skyliner DD 2001-2003
Fit for MBK YP 125 Skyliner DT 1998-2000
Fit for MBK XQ 125 Thunder 2001-2002
Fit for MBK XN 150 Doodo 2000-2002
Fit for MBK YP 150 Skyliner DD 2001-2003
Fit for MBK YP 150 Skyliner DT 1998-2000
Fit for MBK XQ 150 Thunder 2001-2002
Fit for MBK YP 180 Skyliner DD 2003-2006
Fit for Yamaha XN 125 Teo's 2000-2002
Fit for Yamaha XQ 125 Maxster 2001-2002
Fit for Yamaha YP 125 Majesty DD 2001-2009
Fit for Yamaha YP 125 Majesty DT 1998-2000
Fit for Yamaha XN 150 Teo's 2000-2002
Fit for Yamaha XQ 150 Maxster 2001-2002
Fit for Yamaha YP 150 Majesty DD 2001-2003
Fit for Yamaha YP 150 Majesty DT 1998-2000
Fit for Yamaha YP 180 Majesty DD 2003-2006

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
