Dimensions :
Interior diameter : 28mm
Exterior diameter : 58mm
Pole's Thickness : 27.8mm
Pole's Width : 17.5mm
Interior diameter : 28 mm
Exterior diameter : 57.8 mm
Thickness : 15.5 mm

Other Specifications :
Number of wires: 7
Number of pins: 7
Number of plugs: 2(+1)
Number of fixation holes: 2
Number of poles: 6(+2)

Reference Part Number:
21003-0015
21003-0048
21003-0027
21003-0091
K2100-30027
K2100-30048

Fitments:
For Kawasaki KX250F 4T 2004-2010
For Suzuki RMZ RM-Z 250 K5 K6 2005-2006

Package includes:

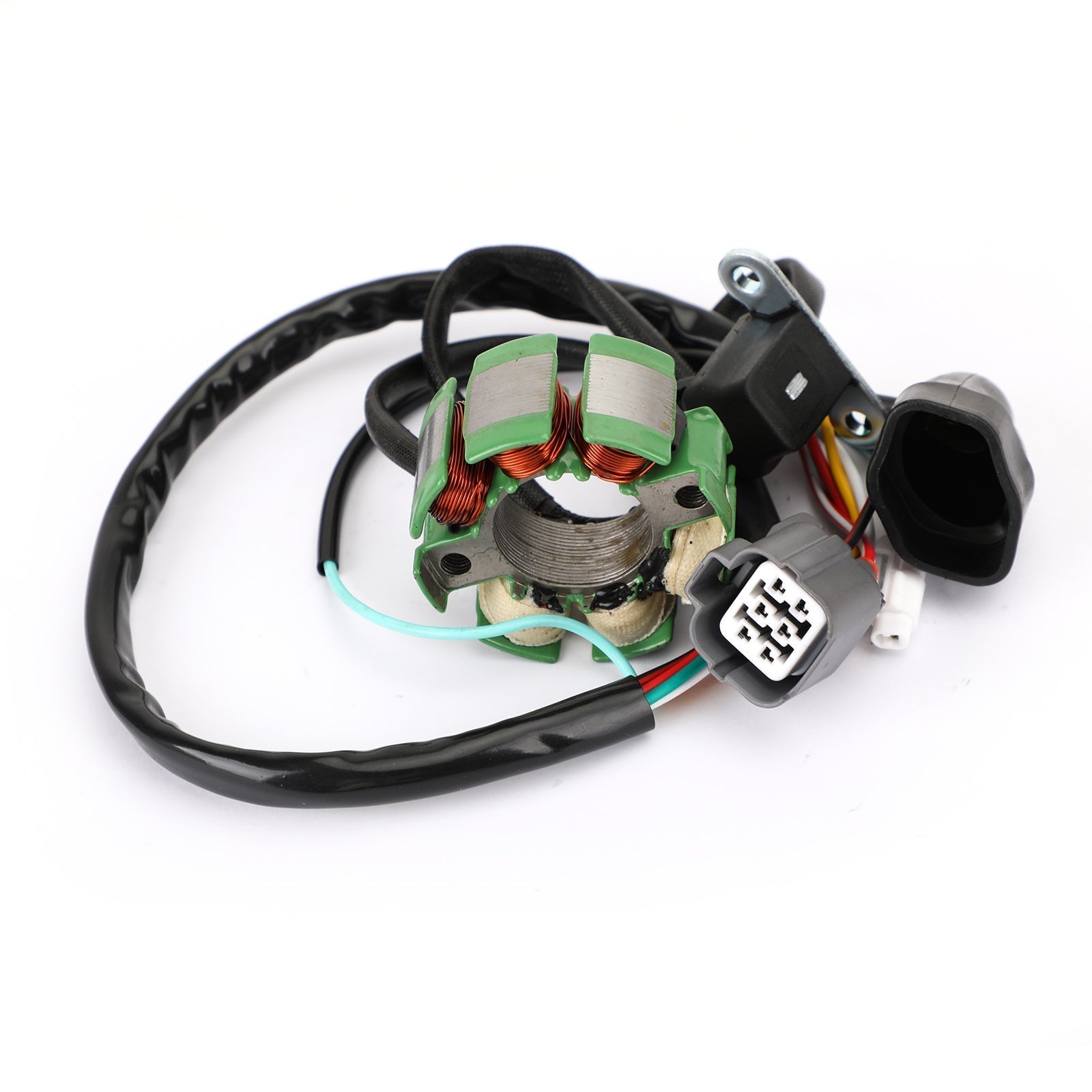

1x Generator Stator Coil

Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
