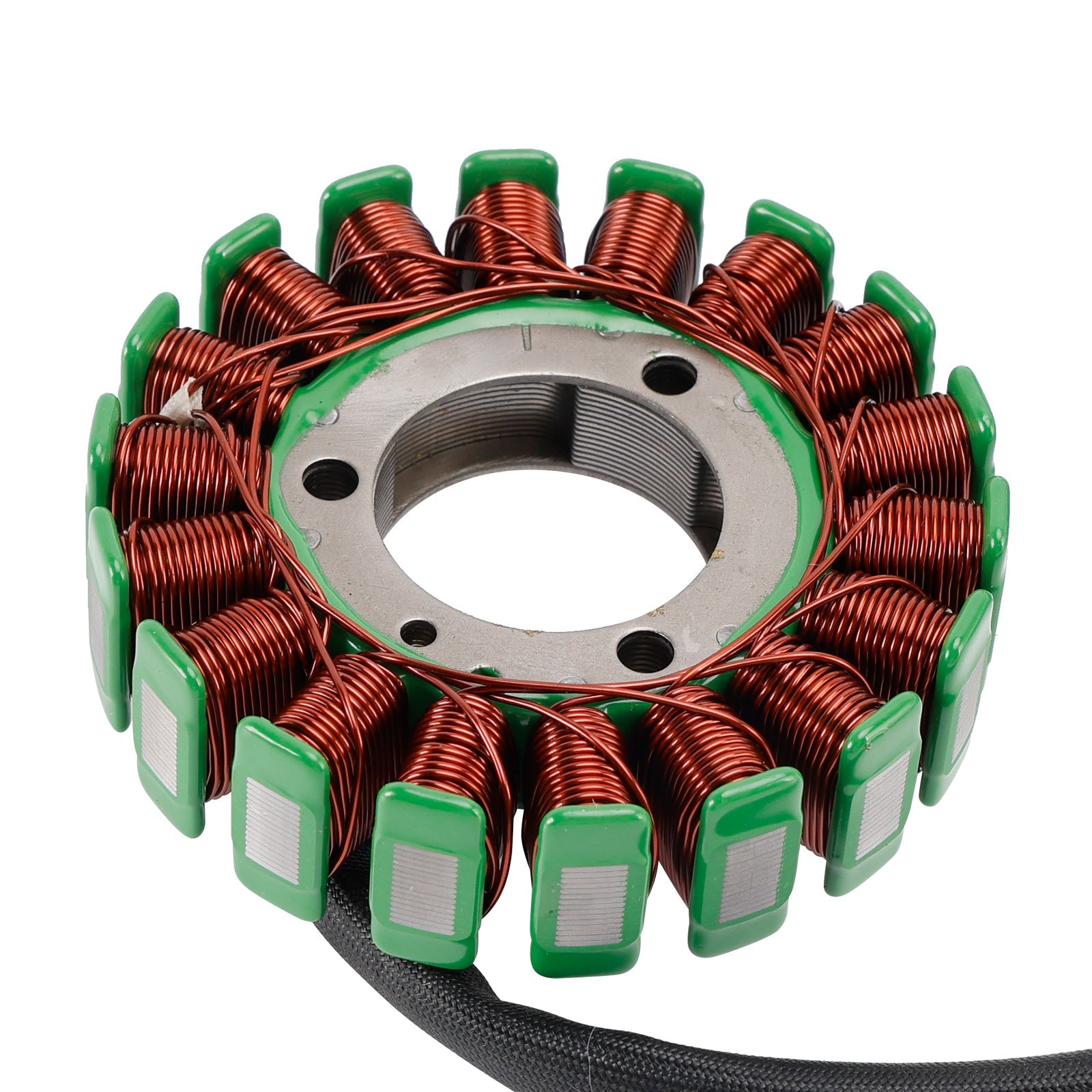

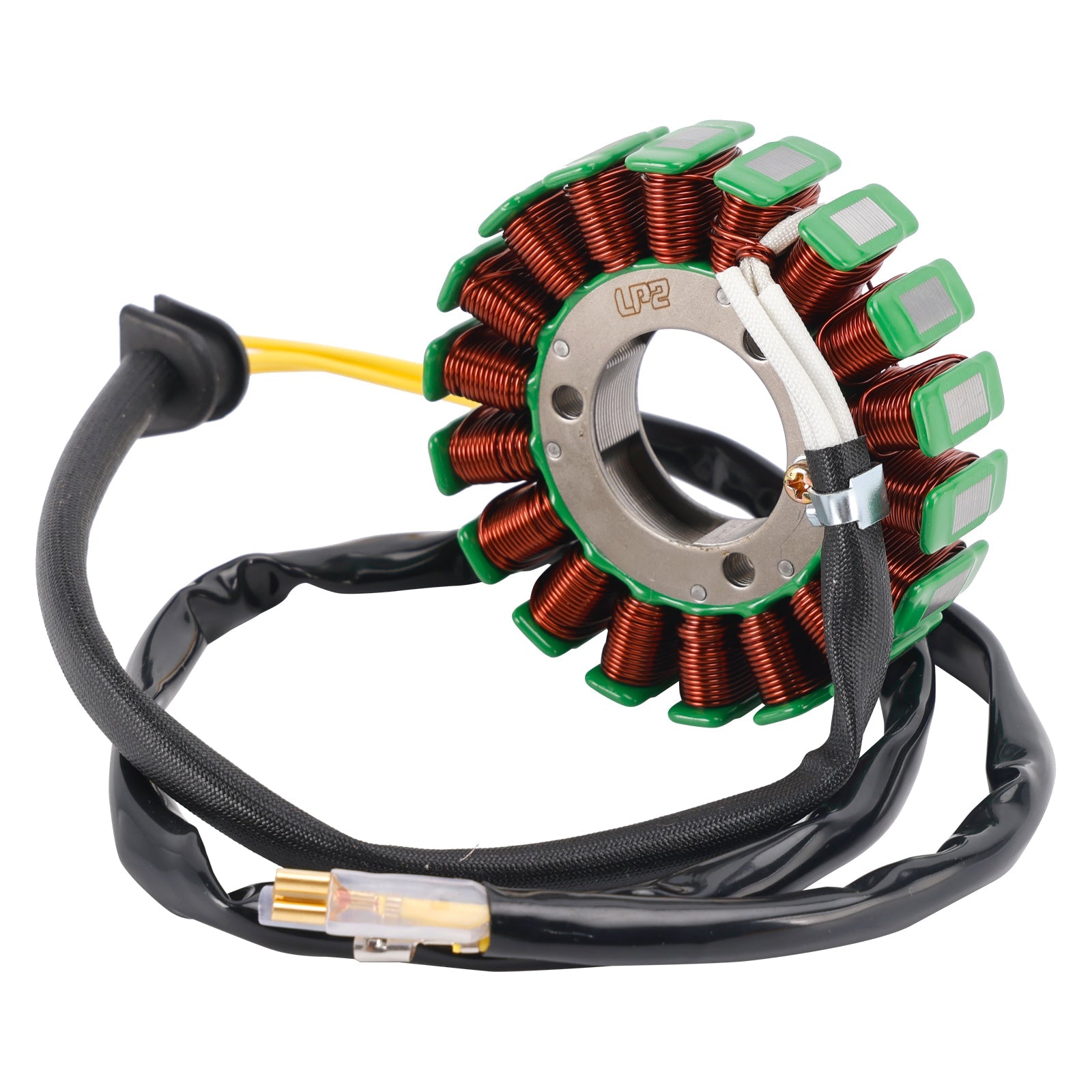

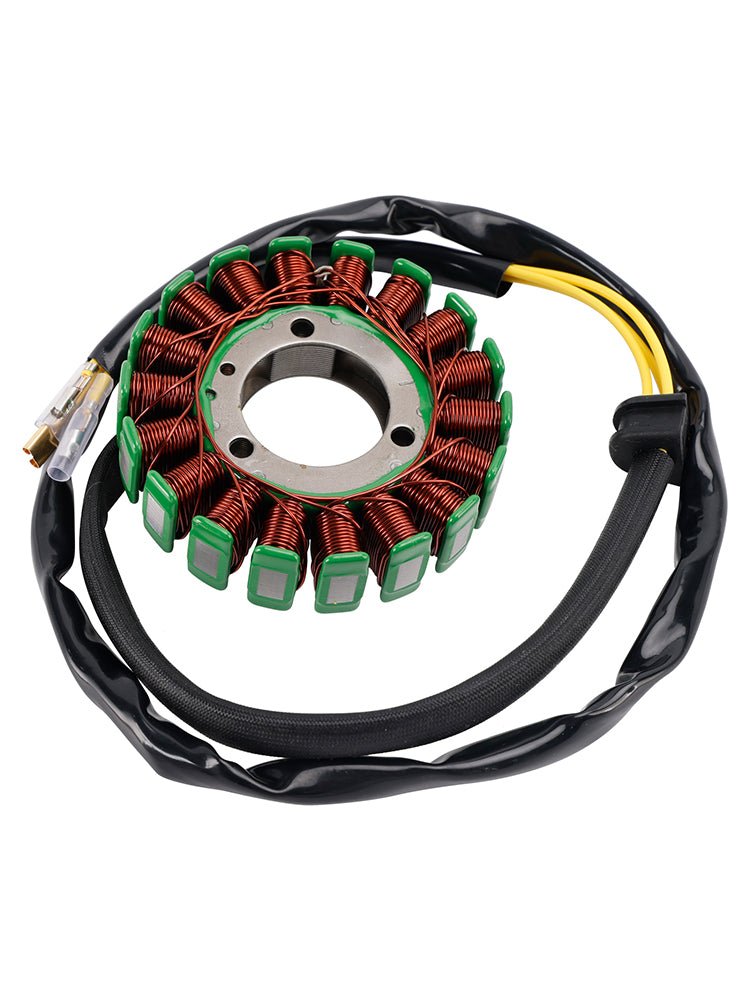

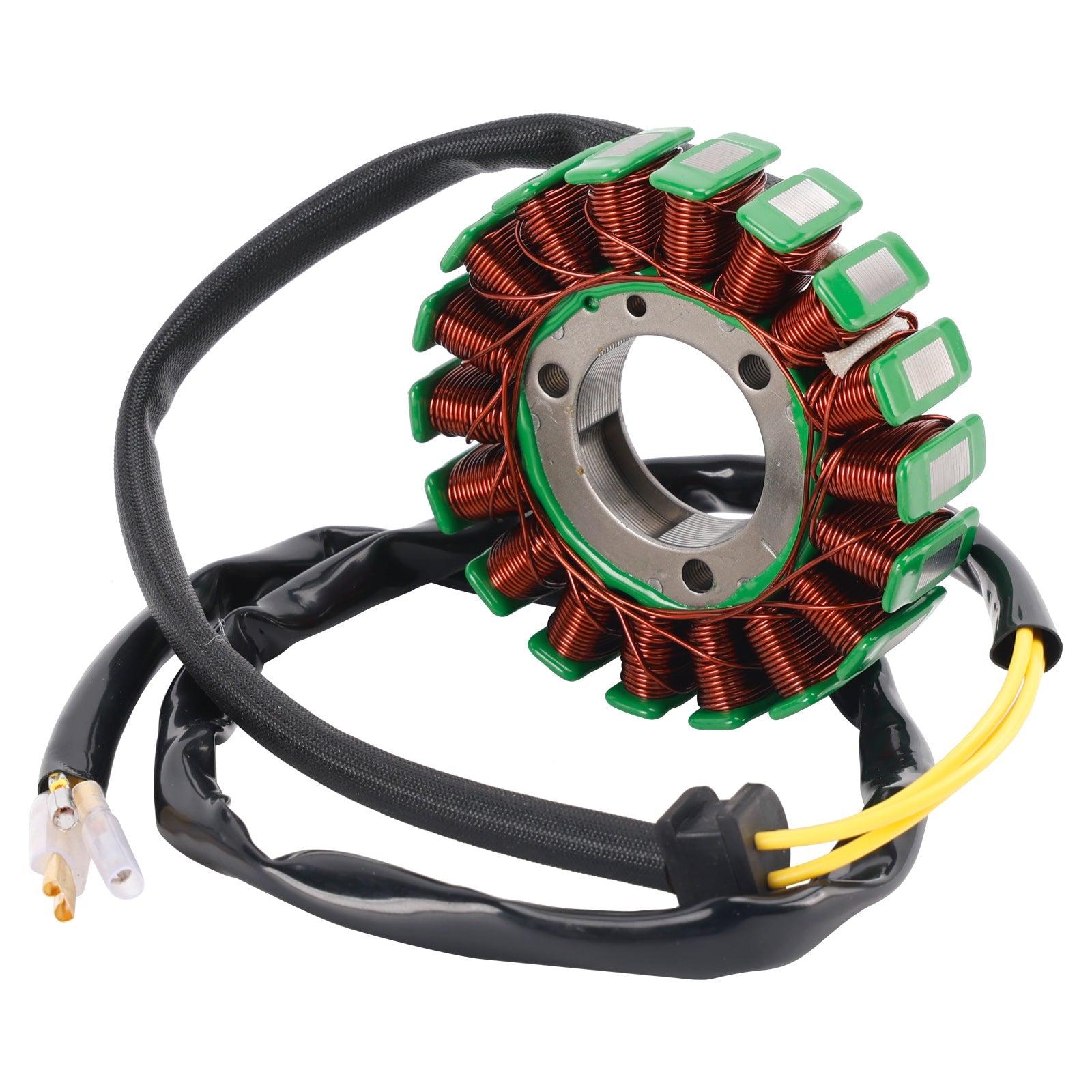

18-Pole Generator Stator Fit for Suzuki GS250 GS425 GS450 GS550

Features:
Direct replacement to your original unit
Highest grade lamination materials.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of fixation holes: 3
Number of poles: 18

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
31401-45020
31401-45030

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Suzuki GS250 GS250TT(T/X) 1996
Fit for Suzuki GS250 GS250TX(T/X) X 1999
Fit for Suzuki GS425 GS425EN(N) N 1992
Fit for Suzuki GS425 GS425N(N) N 1992
Fit for Suzuki GS450 GS450ET(T) 1980
Fit for Suzuki GS450 GS450ET(T) T 1996
Fit for Suzuki GS450 GS450T(T) T 1996
Fit for Suzuki GS450 GS450LT(E2) T 1996
Fit for Suzuki GS450 GS450LX(E2) X 1999
Fit for Suzuki GS450 GS450LZ(E2) Z 1982
Fit for Suzuki GS550 GS550DT(T) 1980
Fit for Suzuki GS550 GS550DT(T) T 1996
Fit for Suzuki GS550 GS550ET(T) T 1996
Fit for Suzuki GS550 GS550T(T) T 1996
Fit for Suzuki GSX400 GSX400 1980 1981 1996

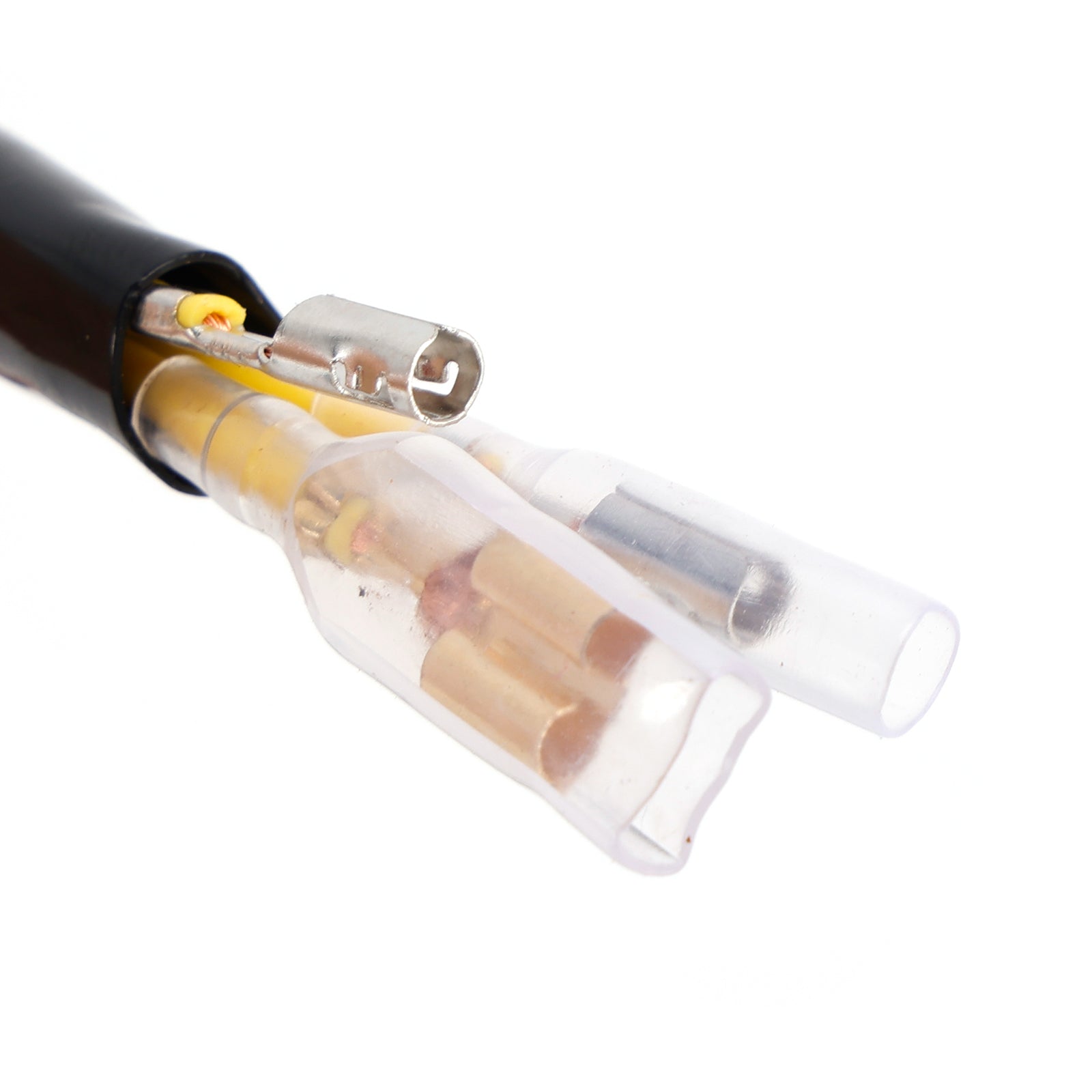

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
