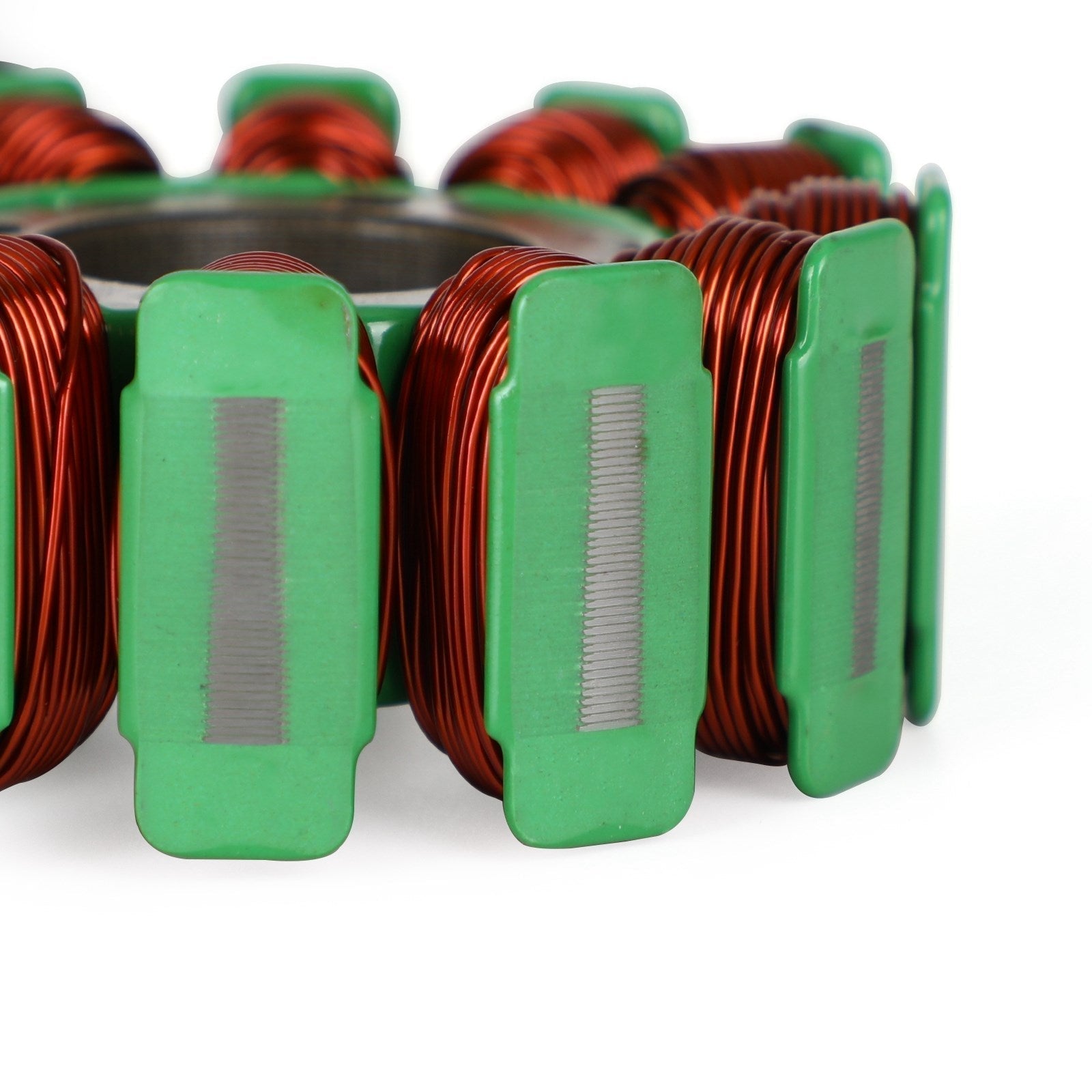

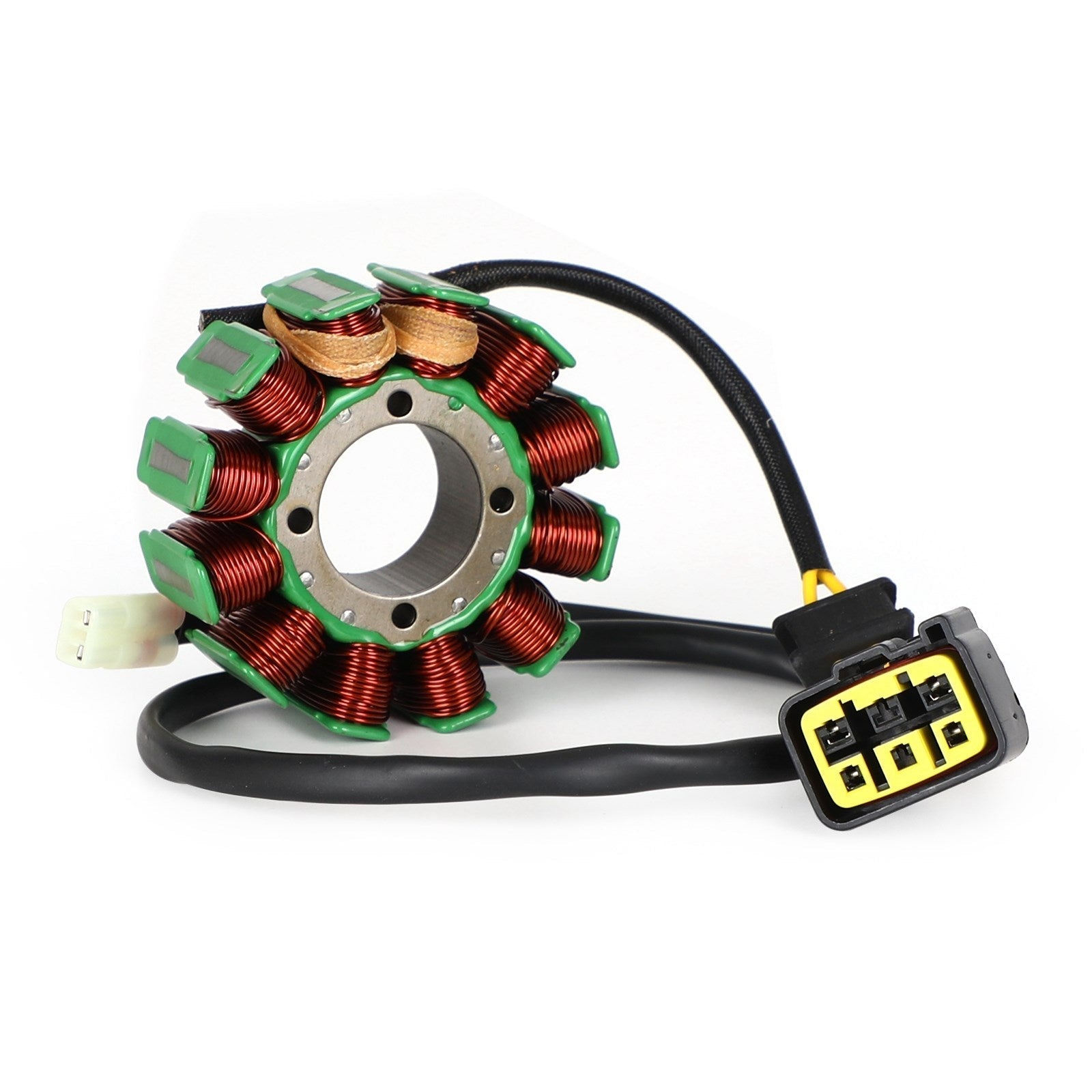

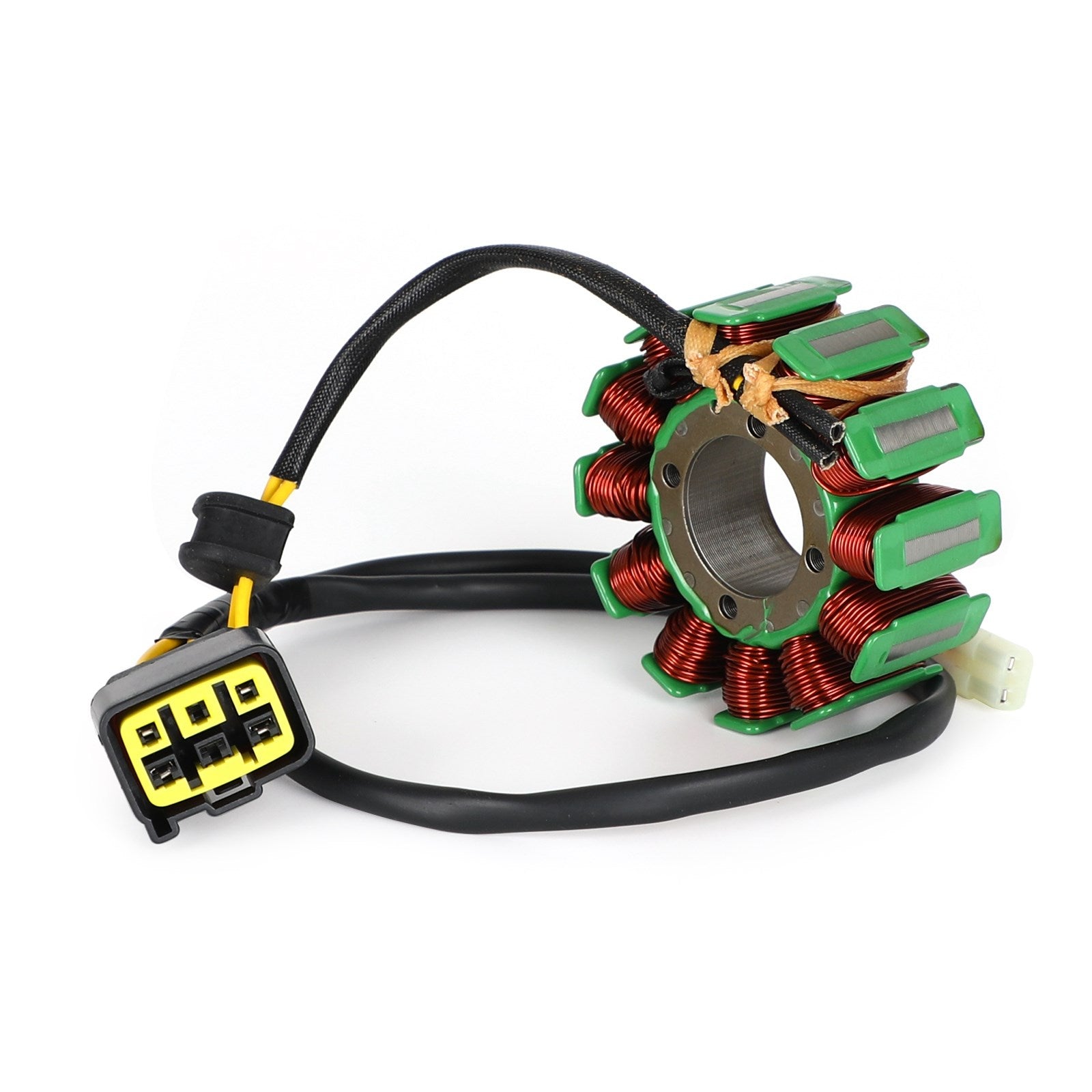

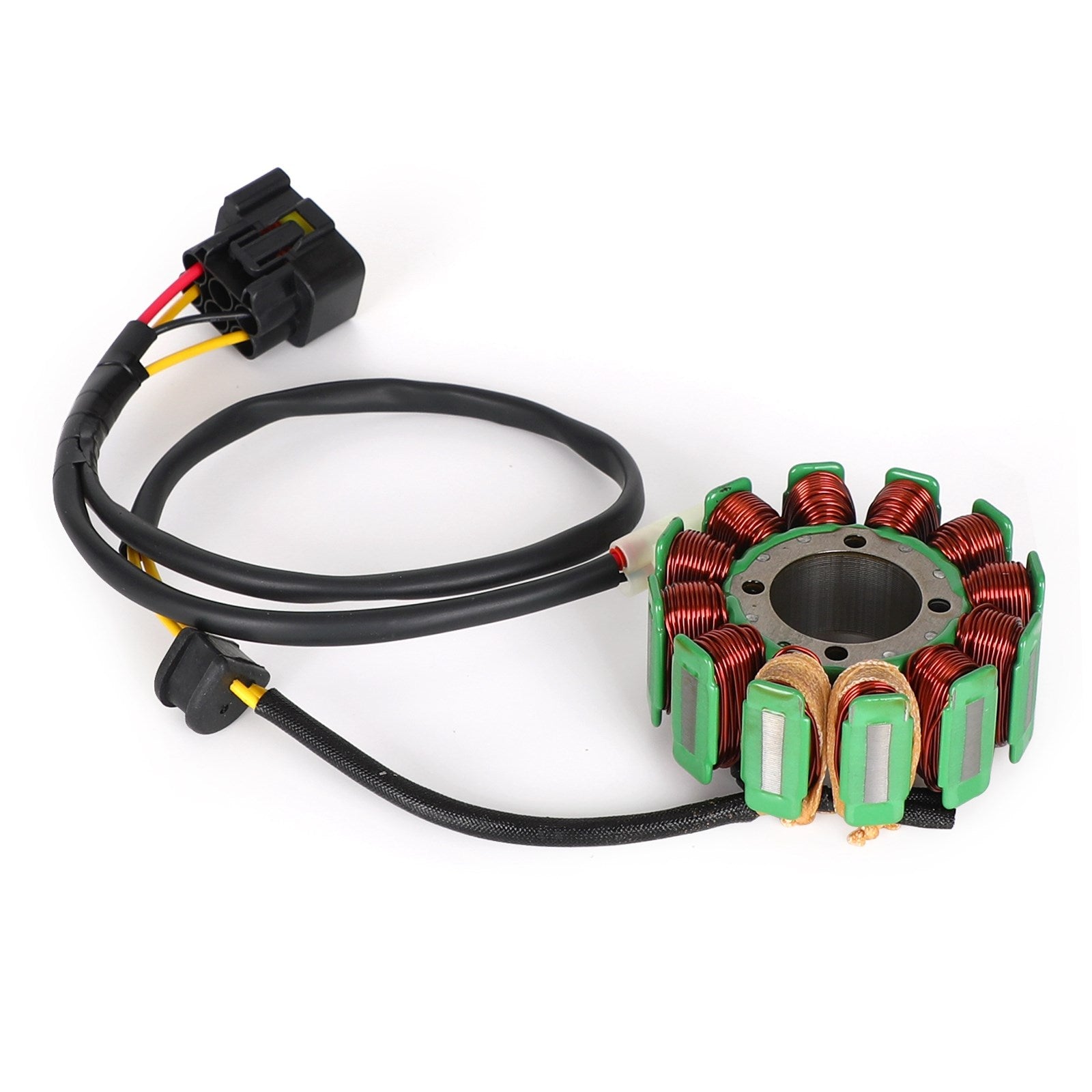

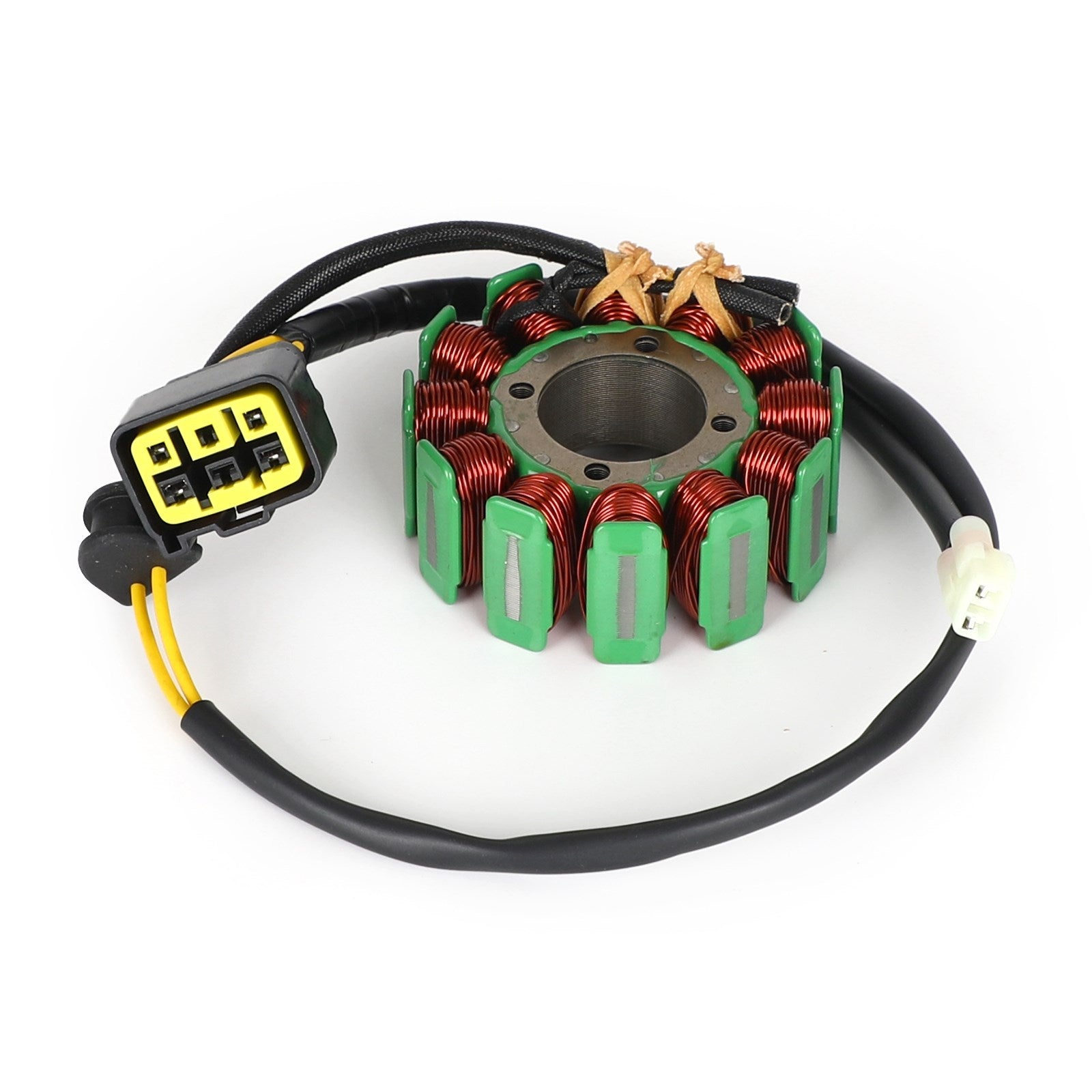

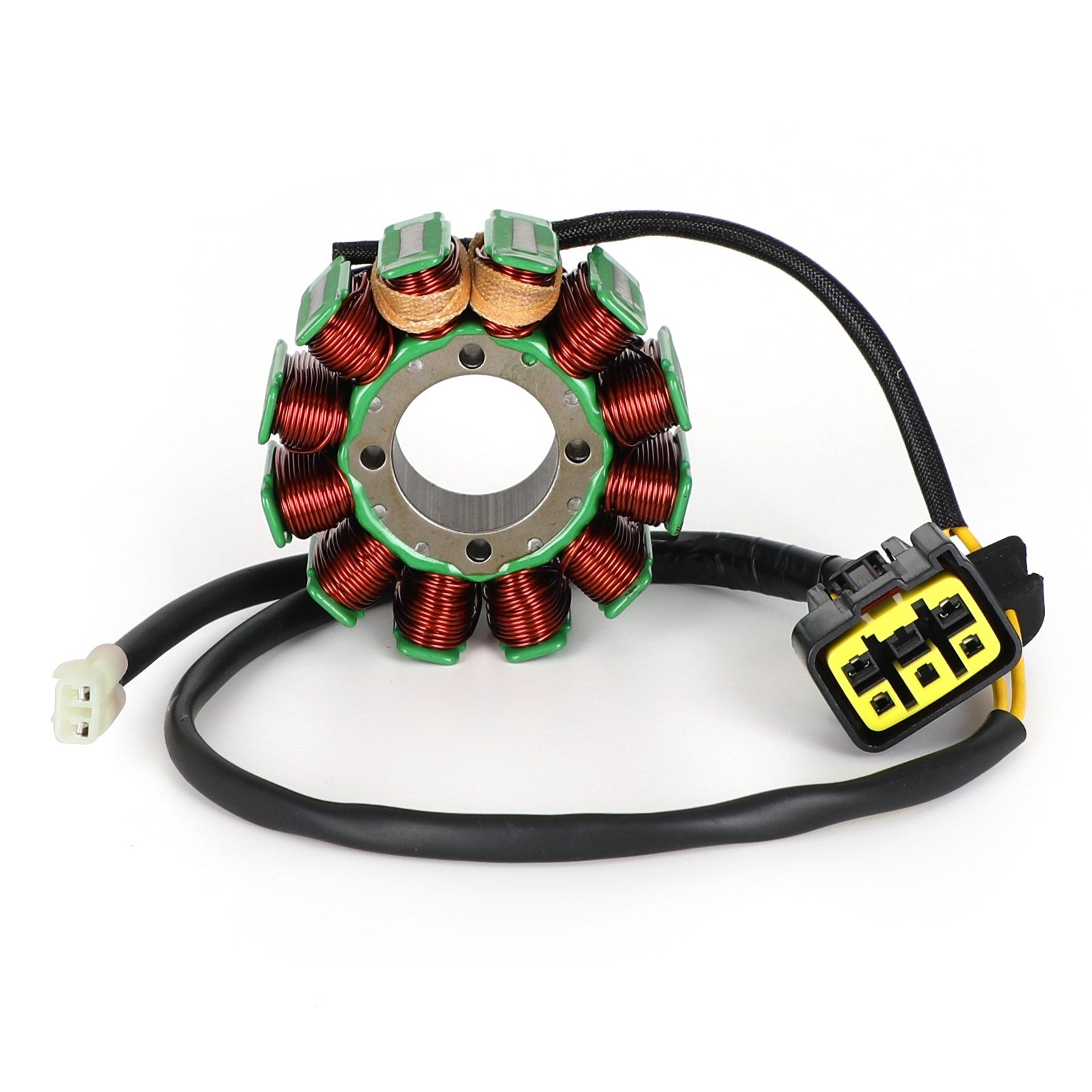

Generator Stator Fit for TM Racing MX EN 250 300 450 530 4T 2010-2020

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

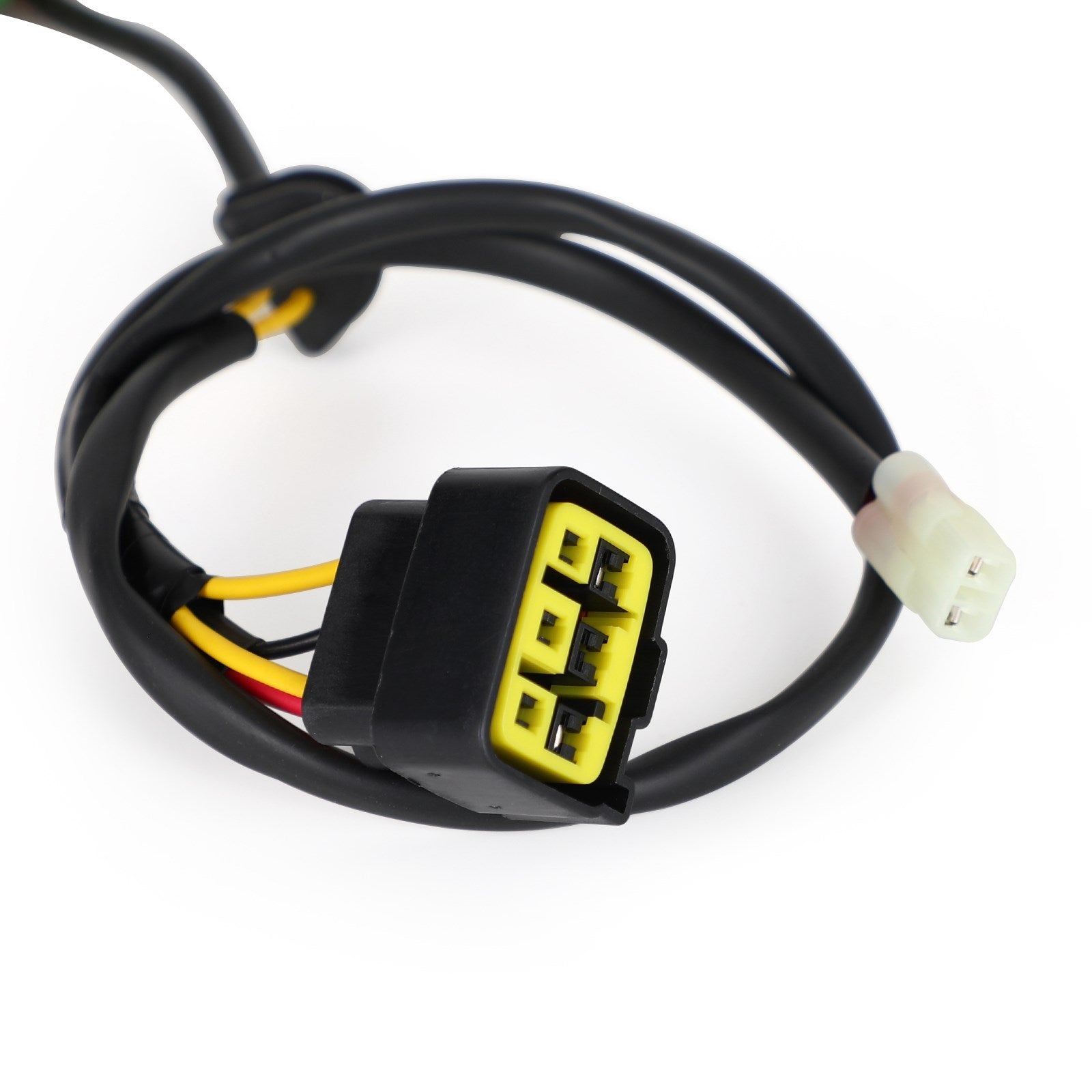

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

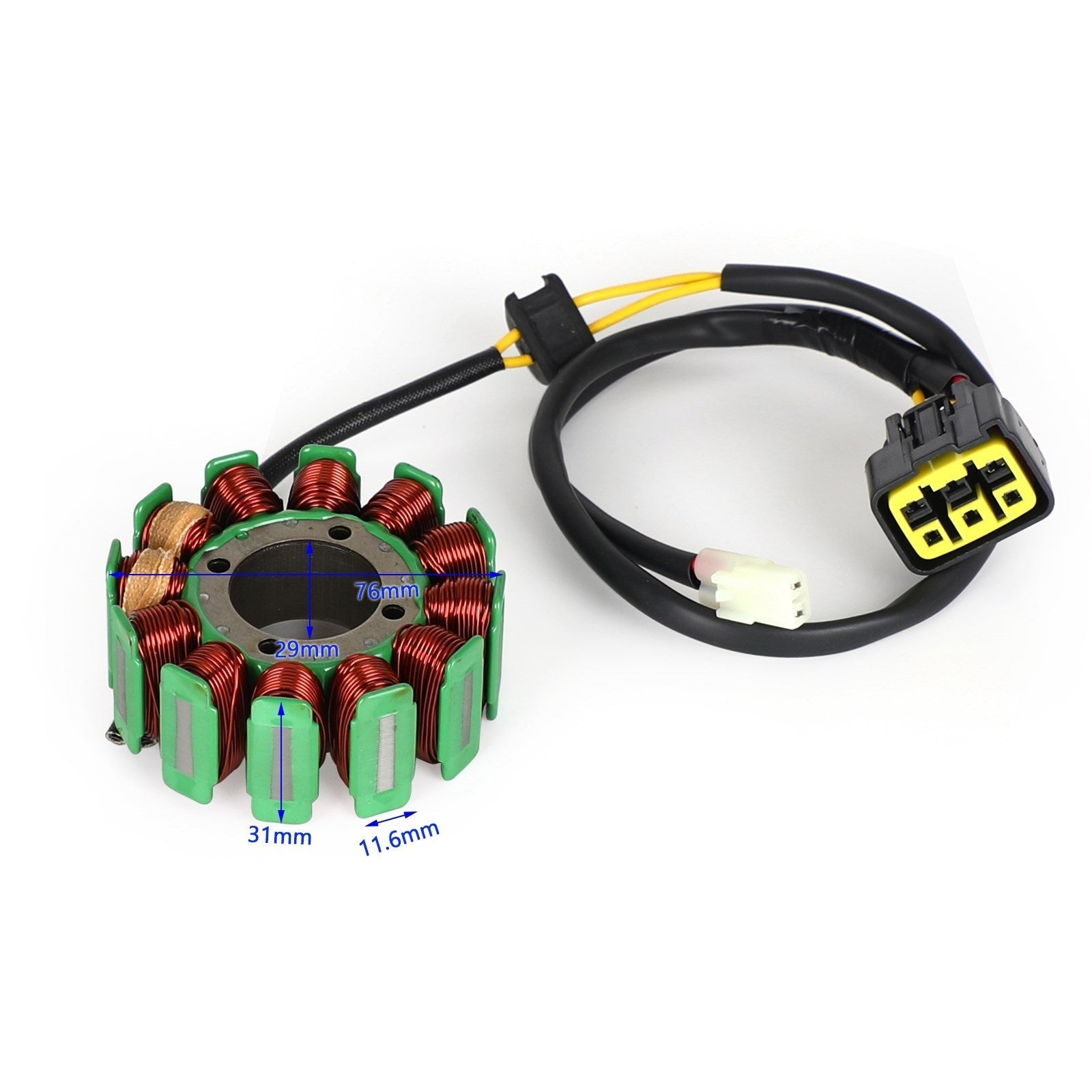

Dimensions :
Interior diameter : 29mm
Exterior diameter : 76mm
Pole's Thickness : 31mm
Pole's Width : 11.6mm

Other Specifications :
Number of wires: 4
Number of pins: 6
Number of plugs: 2
Number of fixation holes: 4
Number of poles: 12

Replacement Part Number:
F15547

Fitments:
Fit for TM Racing KOK YS 9018 C.KOKU/SUM
Fit for TM Racing EN250 4Temps 2010-2018
Fit for TM Racing EN300 4Temps 2017-2019
Fit for TM Racing EN450 4Temps 2013-2019
Fit for TM Racing EN530 4Temps 2015-2019
Fit for TM Racing MX250 4Temps 2010-2020
Fit for TM Racing MX300 4Temps 2017-2020
Fit for TM Racing MX450 4Temps 2013-2019
Fit for TM Racing MX530 4Temps 2015-2019

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
