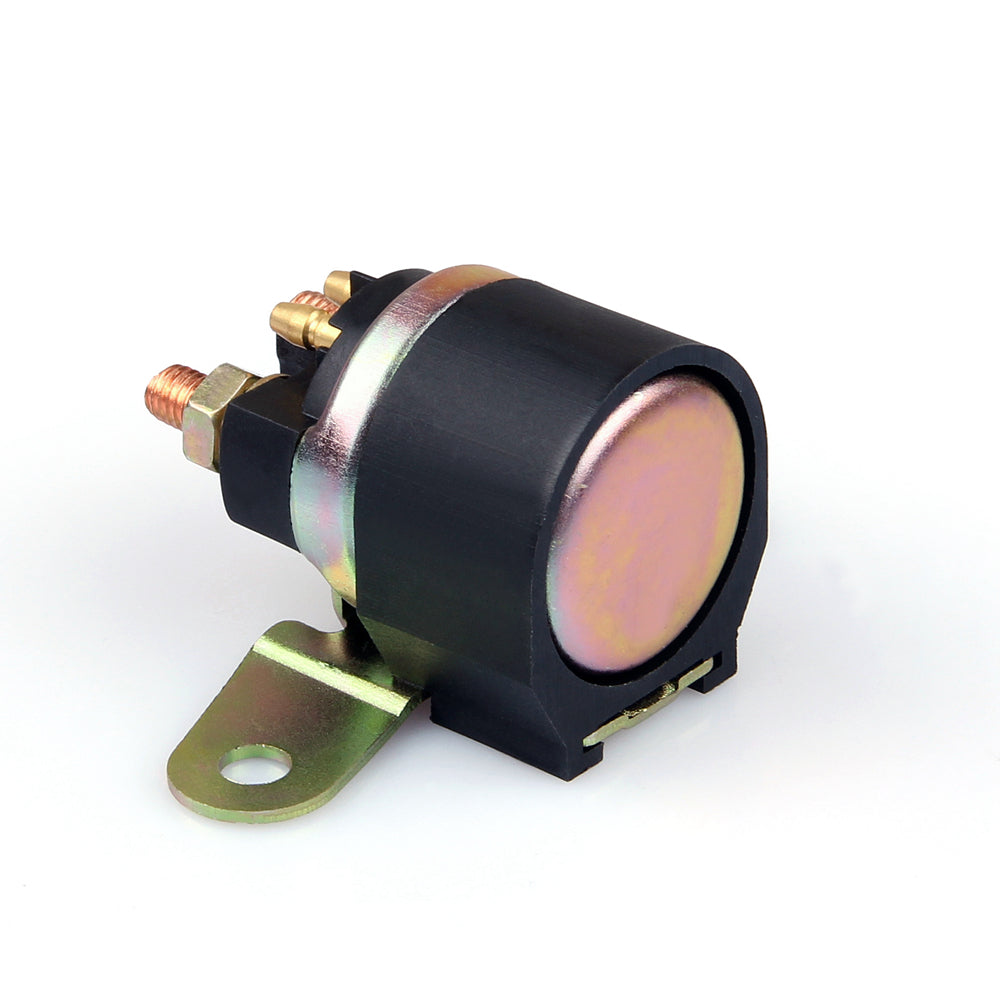

NEW Starter Relay Solenoid 12v For Suzuki LTF250 LT-F250T 1988-2001 LTF160 LT-F160 1991-2001 GSX600 1988-1997

FEATURES:
Aftermarket Starter Relay Solenoid.
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycle.
Rubber shell protection against leakage damage.
Stable characteristics, high reliability.
High class quality and very durable.
Mounting bracket NOT included,Installation Instruction NOT Included.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal
Dimension: approx 34mm(1-3/8")*39mm(1-1/2")*53mm(2-1/8")
Distance between mounting hole: 62.5mm(center to center)
OEM Replacement Part Number: 31800-49100

FITMENT:
Fits Suzuki LTF250 LT-F250T 1988-2001
Fits Suzuki LT230E 1985-1989
Fits Suzuki LTF230 LT-F230 1986-1987
Fits Suzuki LTF 300 LT-F300 1999-2002
Fits Suzuki LT-F4WDX KING QUAD 1991-1998
Fits Suzuki VS1400 1988-2009
Fits Suzuki GS1150 1984-1986
Fits Suzuki LT160 LT160E 1989-1992 /2003/2004
Fits Suzuki LT300E QUADRUNNER 1987-1989
Fits Suzuki GS300 1985
Fits Suzuki GSF400 1991-1993
Fits Suzuki GSX-R750 1100 GSX-R1100 1986-1992
Fits Suzuki LTF160 LT-F160 1991-2001
Fits Suzuki LT-4WD LT4WD QUADRUNNER 1987-1998
Fits Suzuki DR650 1993-1996
Fits Suzuki GSX750 1989-1997
Fits Suzuki GS450 1985-1988
Fits Suzuki GN125 1991-1997
Fits Suzuki GSX600 1988-1997
Fits Suzuki LS650 1986-1988
Fits Suzuki LS650 1995-2009
Fits Suzuki GS500 1989-1996
Fits Suzuki DR250 1990-1995

PACKAGE INCLUDED:
1x Starter Relay Solenoid
Installation Instruction NOT Included

TESTING PROCEDURE:
Make SURE the Motorcycle is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycle, you can test it.
Applying 12 volts to the two wires inside the plastic connector, the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid, it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks, the solenoid, the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank, the solenoid is good.

NOTE:
This is an Aftermarket Replacement Part BUT NOT Genuine.
This may or may not be a direct fit for the Motorcycles listed below!
However, given the cost of an OEM replacement we think it's well worth the time you may spend installing it.
See pictures for additional measurements to ensure this is the right starter relay for you!
