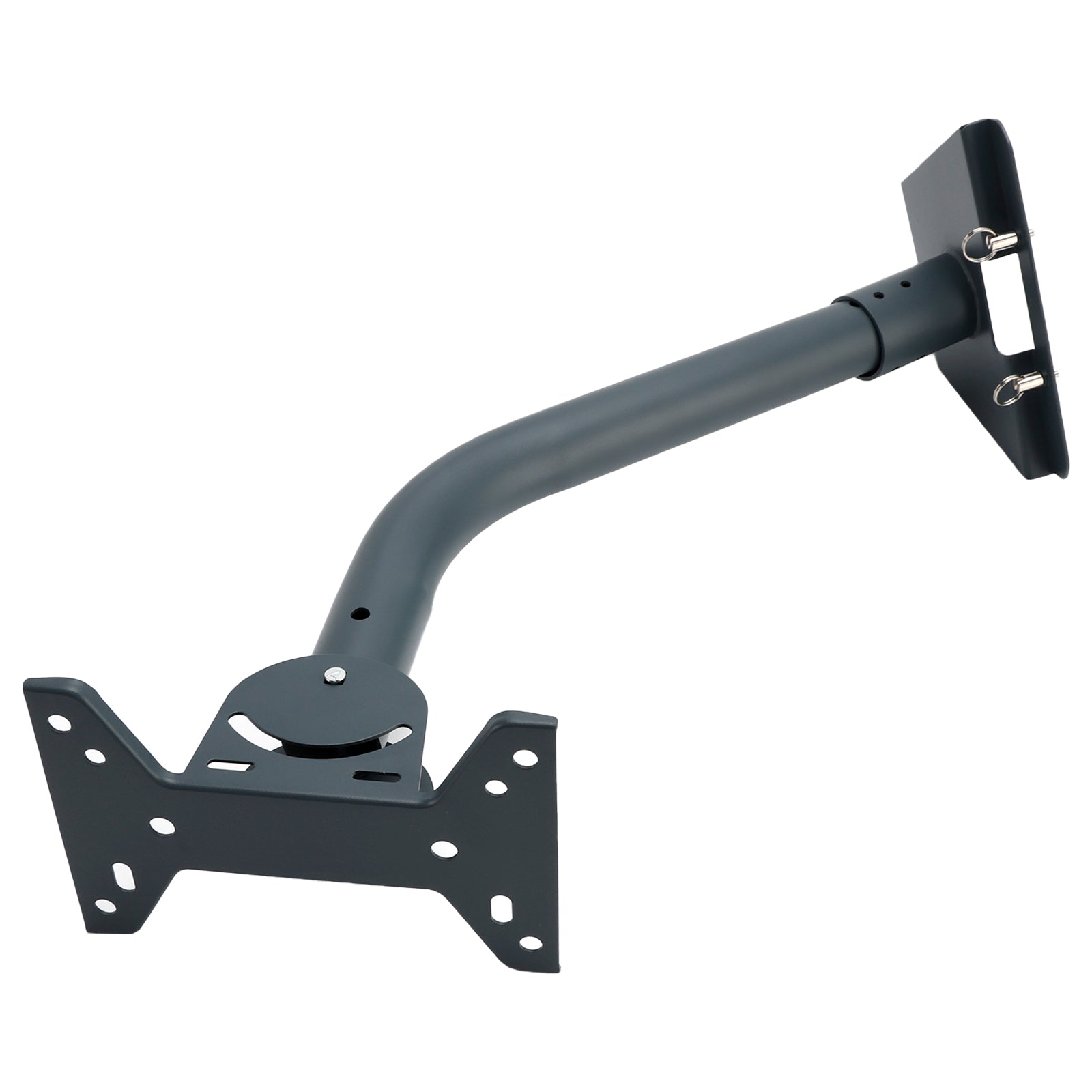

Starlink Gen 3 Mount 360° Adjustable Starlink Mounting Kit Compatible with V3 Starlink Standard For Roof Exterior Wall Install

Features:

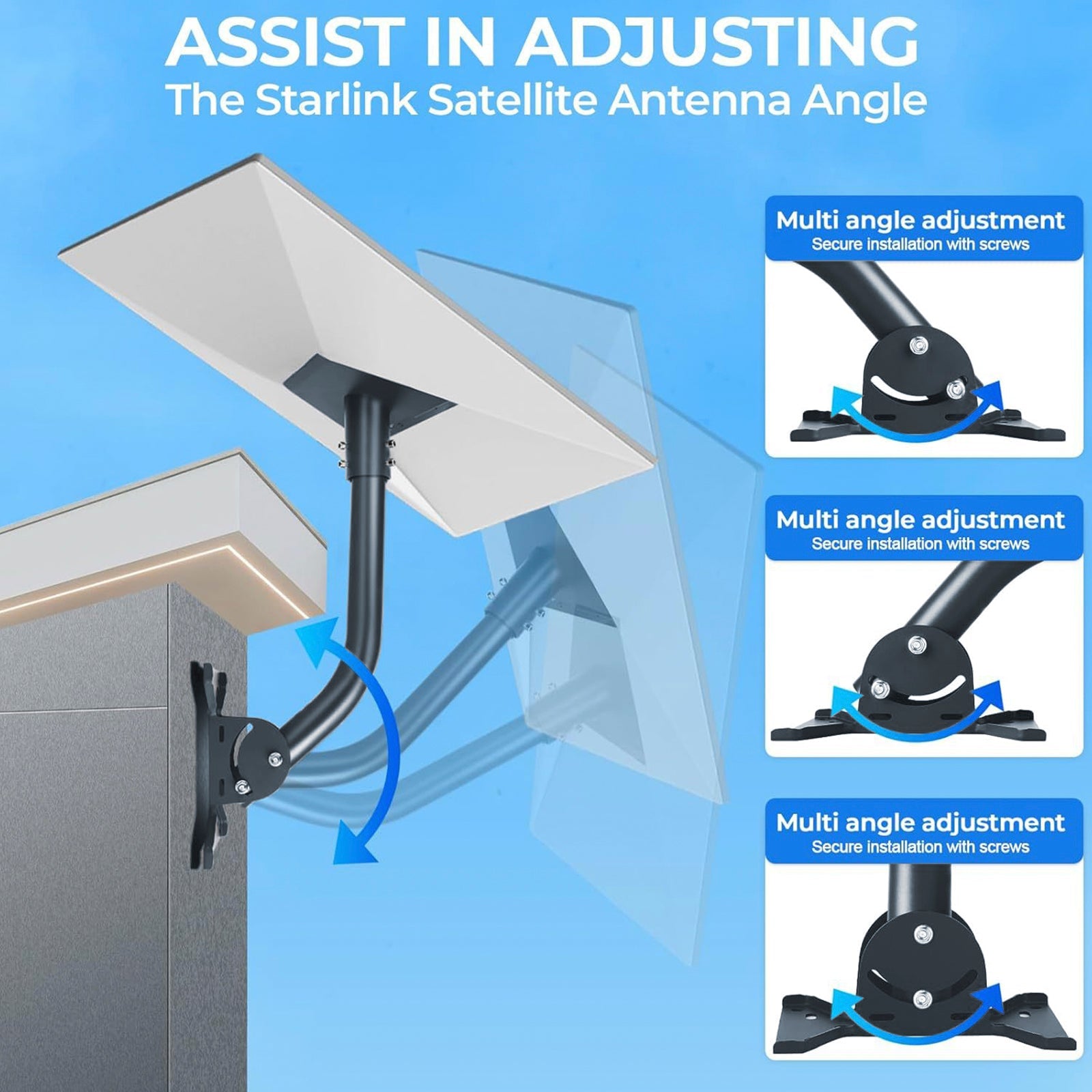

1.The angle of the device that receivesthe signal can be adjusted accordingto your needs.

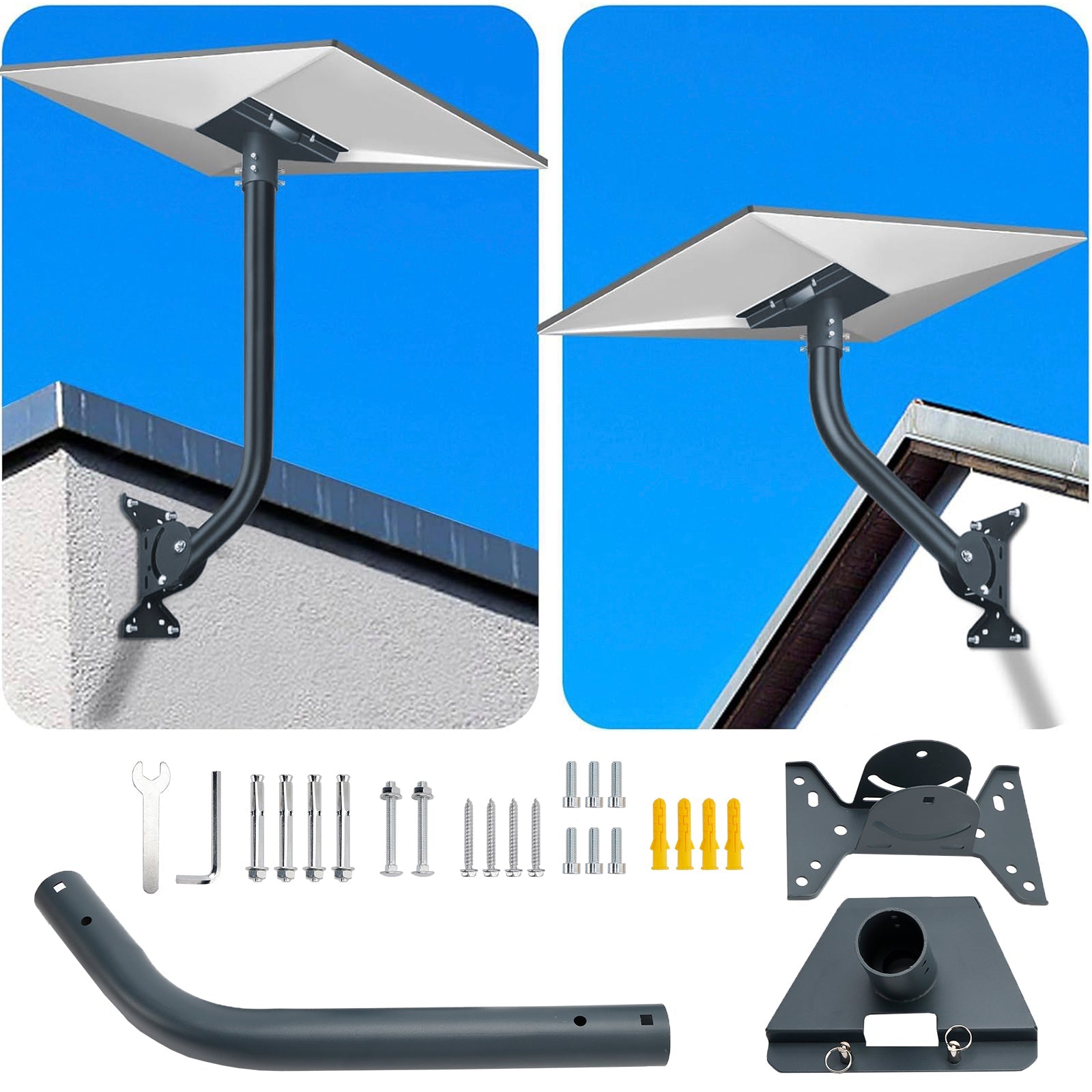

2.Third-generation rod mounting adapter is suitable for walls and Roof.

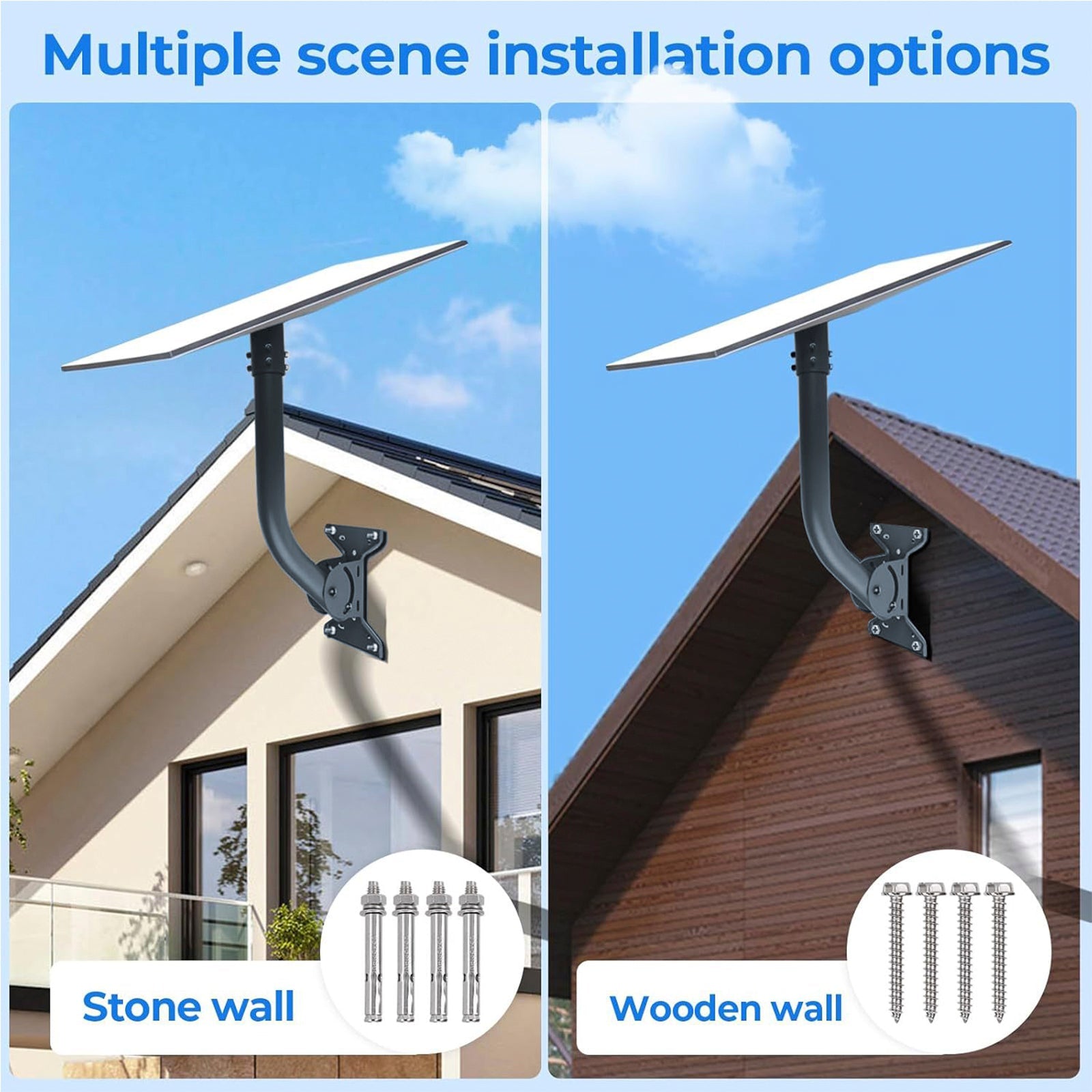

Multi-Scenario Installation Method, such as Stone Wall and Wooden Wall
3.Adjustable Star Alliance Gen 3 bracket
4.Solid slot for long-termuse without sliding

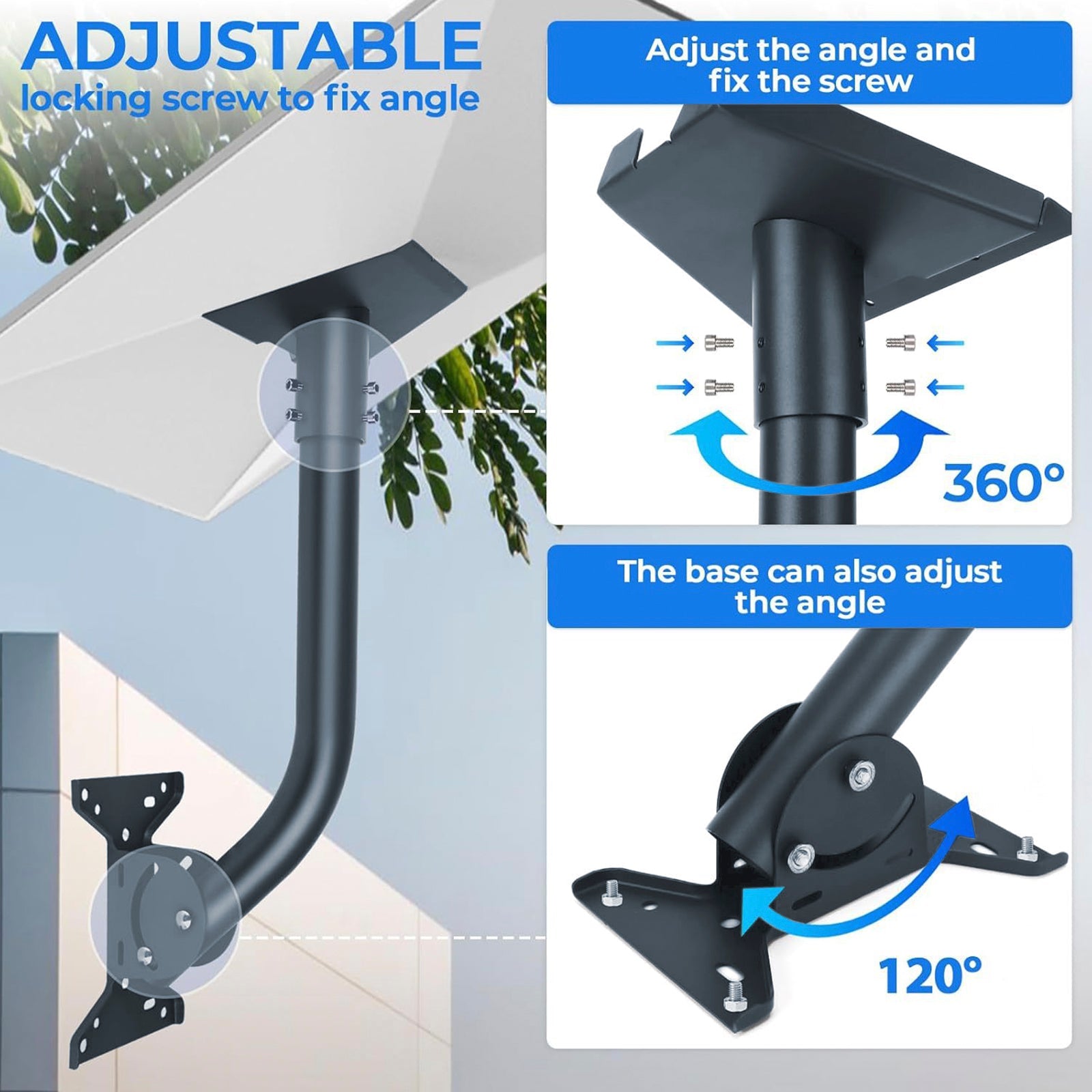

5.Freely adjustable mounting angle
6.Thick base design makes themounting kit more sturdy
7.Sturdy and Durable, The Starlink bracket gen 3 adopts thickened metal material to ensure stability and strong bearing capacity.

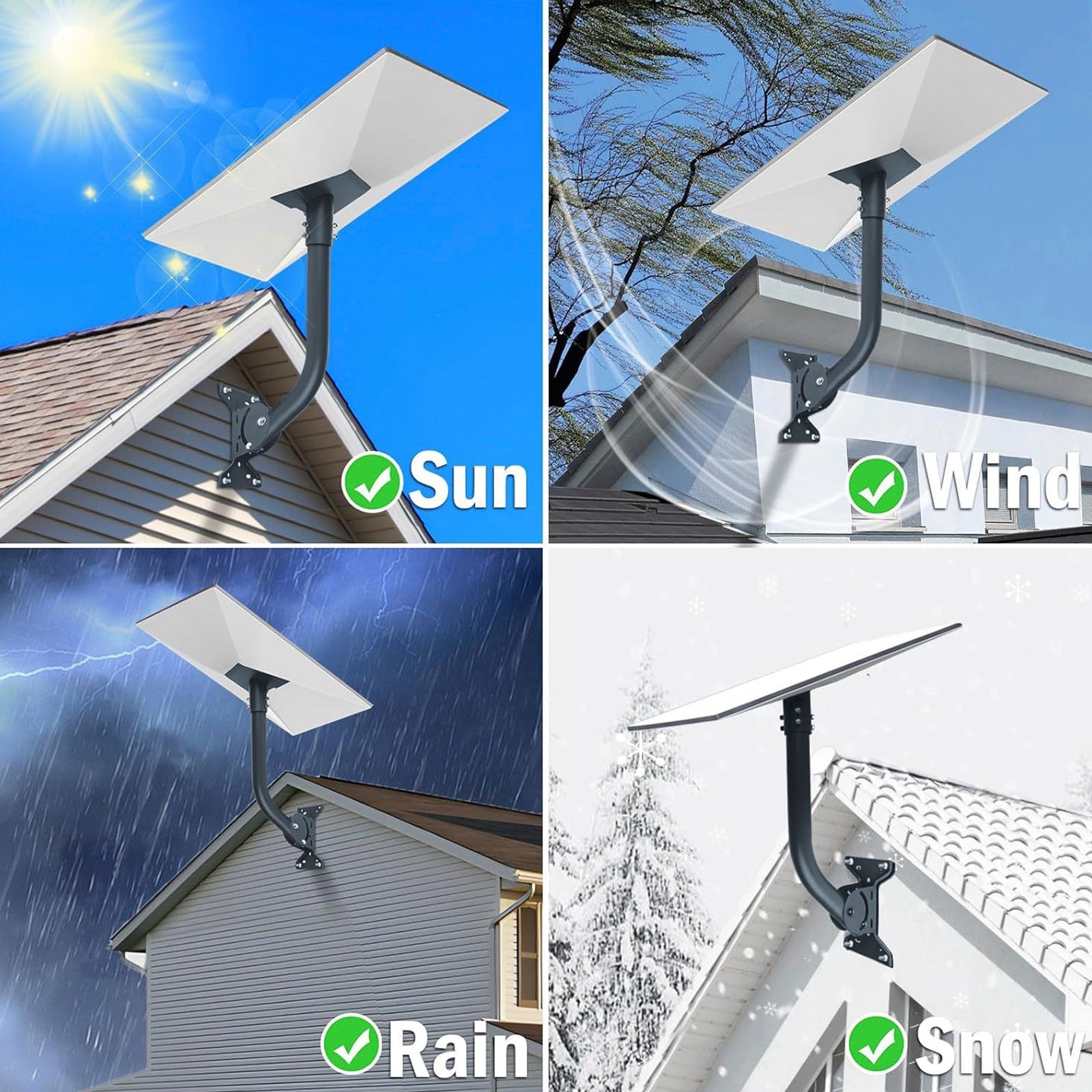

8.Bad weather resistance: Our Starlink gen 3 wall mount provides stability and robust load capacity even in adverse weather conditions and ensures stable installation. Increased safety with a robust design for durability.
9.Easy to install: simply install with the included hardware, insert the bracket into the antenna slot and tighten the mounting screws, then connect a rod to the pipe adapter and lock, whether it is a wall or a roof, it can be installed quickly and firmly.

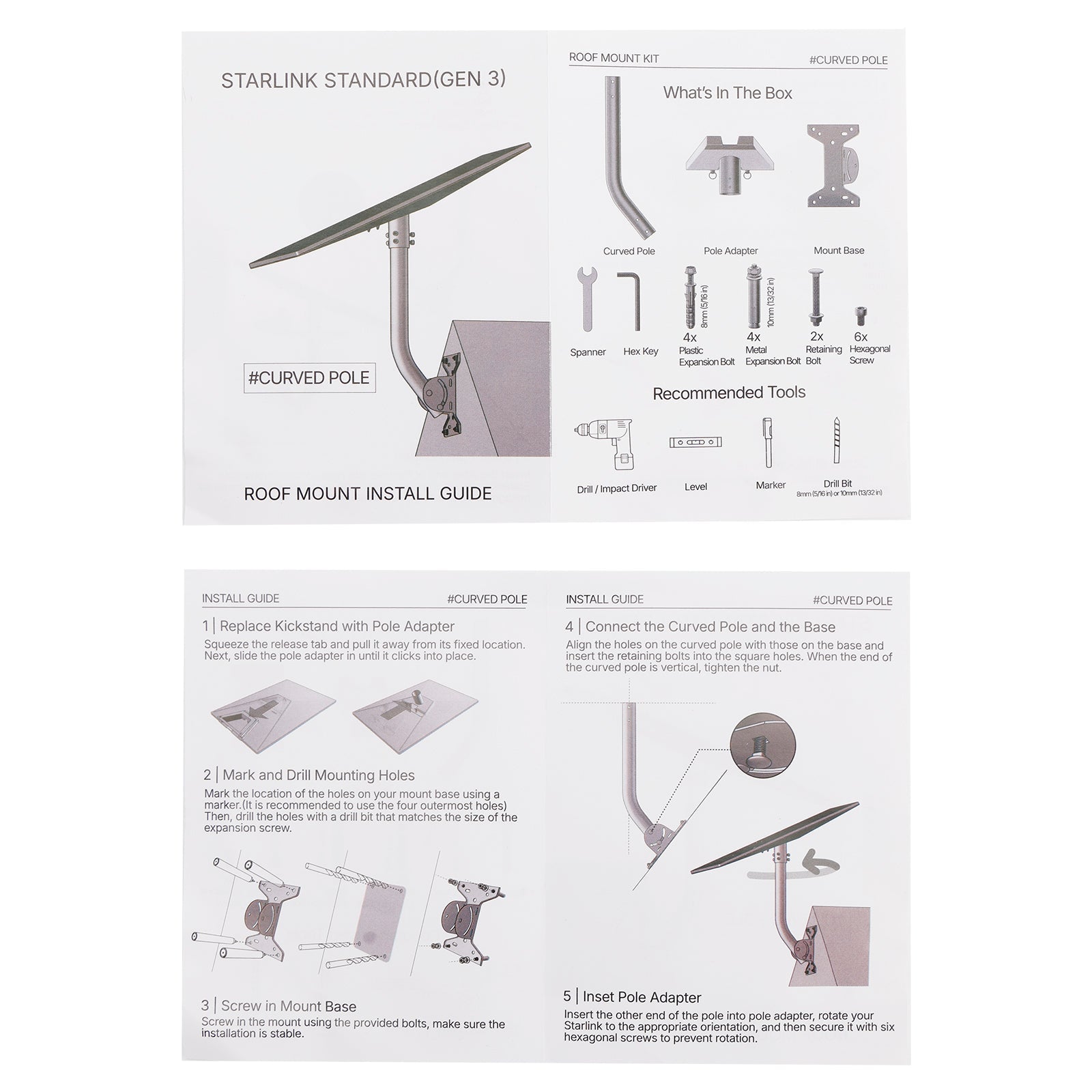

Installation Instructions:
1. Replace Kickstand with Pole Adapter
Squeeze the release tab and pull it away from its fixed location.Next, slide the pole adapter in until it clicks into place.
2. Mark and Drill Mounting Holes
Mark the location of the holes on your mount base using amarker.(lt is recommended to use the four outermost holes)Then, drill the holes with a drill bit that matches the size of theexpansion screw.
3. Screw in Mount Base
Screw in the mount using the provided bolts, make sure the installation is stable.

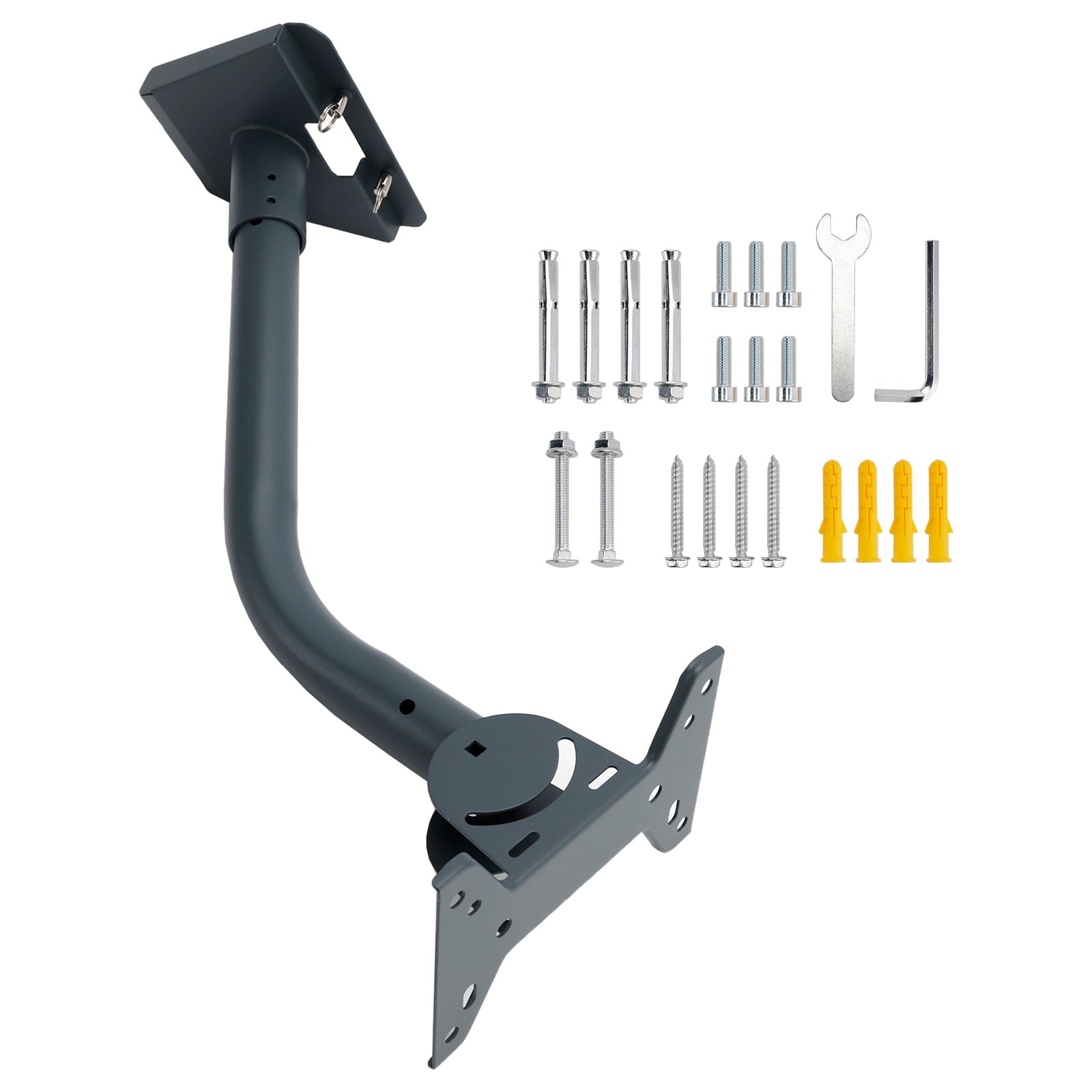

4. Connect the Curved Pole and the Base
Align the holes on the curved pole with those on the base and insert the retaining bolts into the square holes. When the end ofthe curved pole is vertical, tighten the nut.
5. Inset Pole Adapter
Insert the other end of the pole into pole adapter, rotate your Starlink to the appropriate orientation, and then secure it with sixhexagonal screws to prevent rotation.

Specifications:
Types: Curved Pole Bracket
Colors: Gray
Compatible Models: GenV3 V4
Material: Iron + Stainless Steel
Scope of application: Signal transmitter bracket

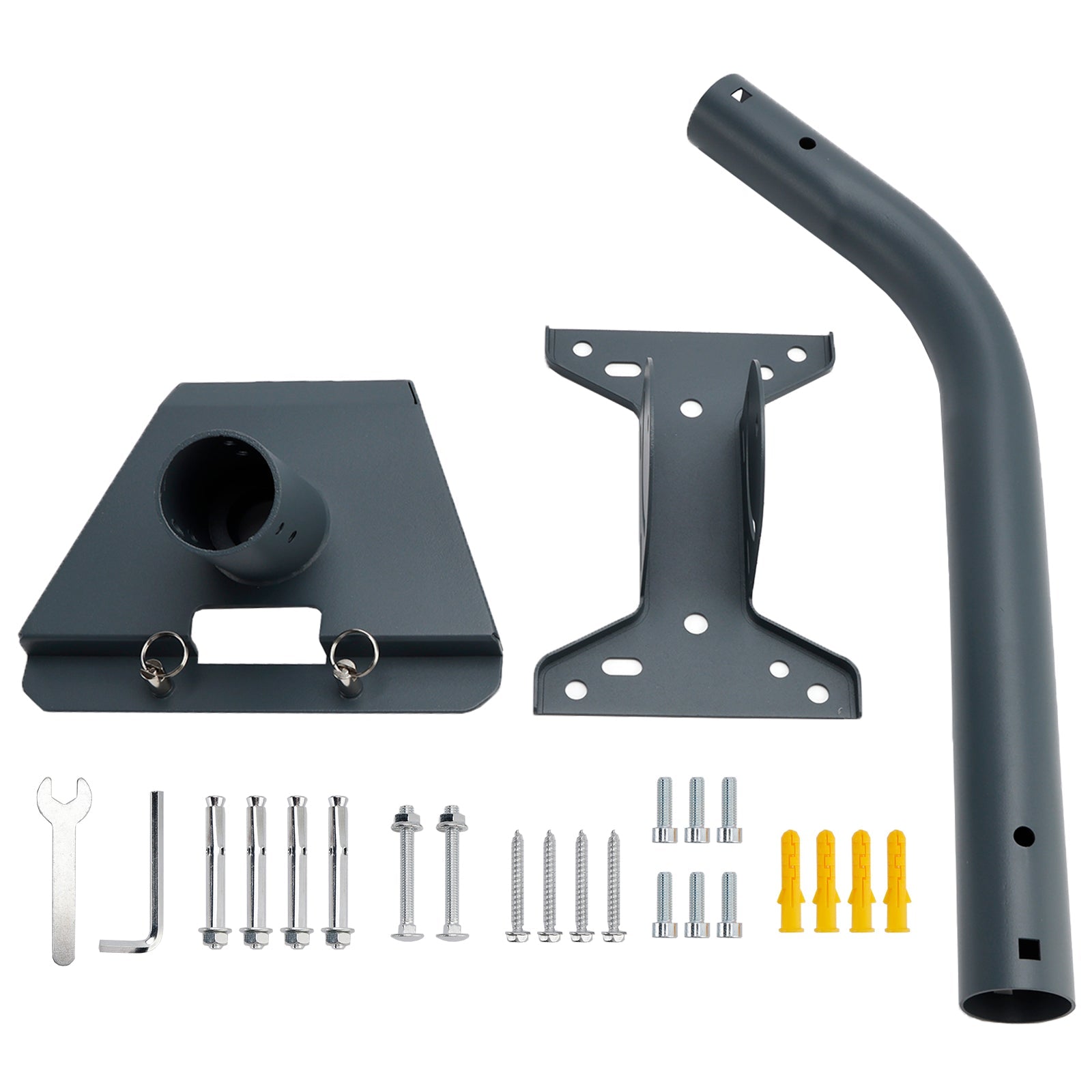

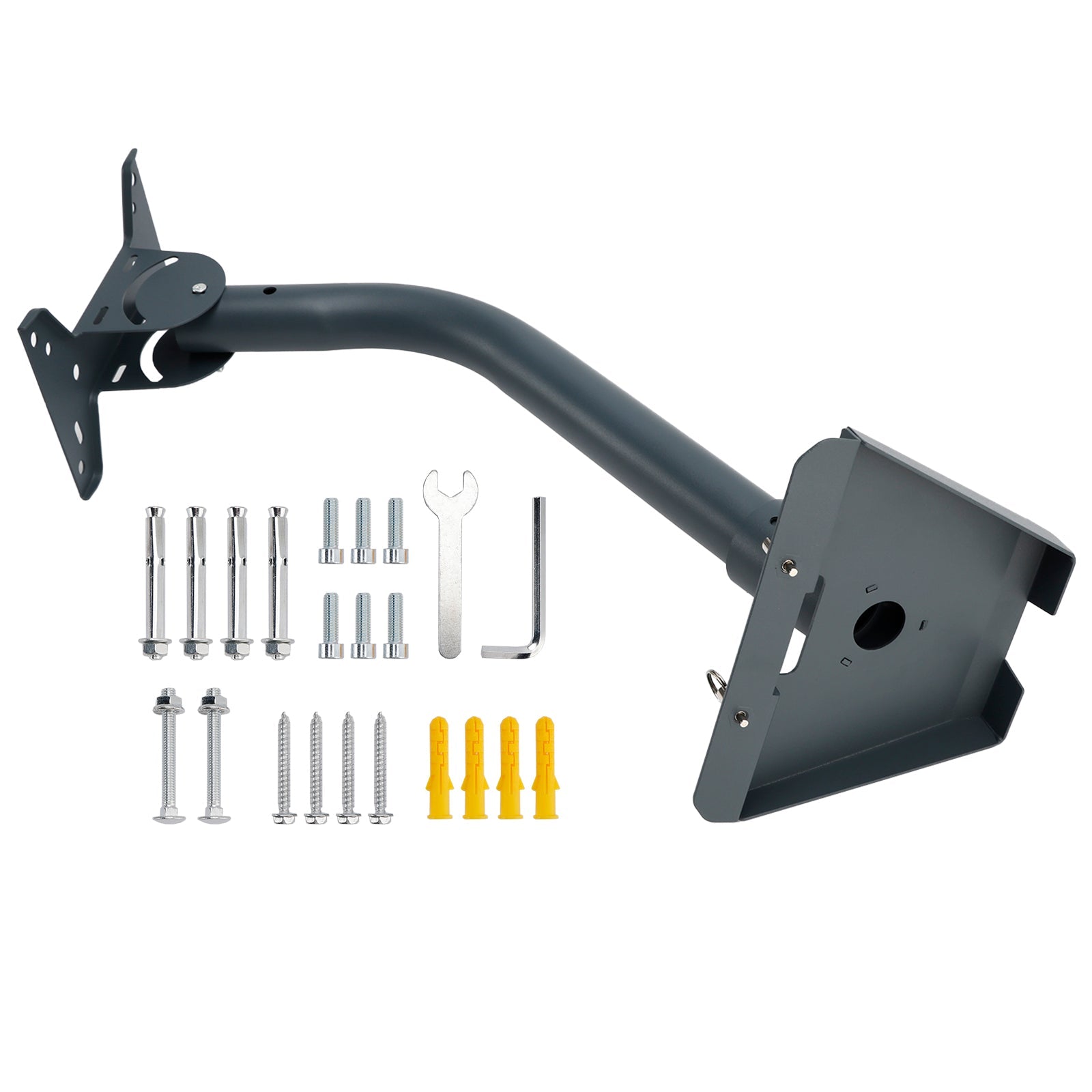

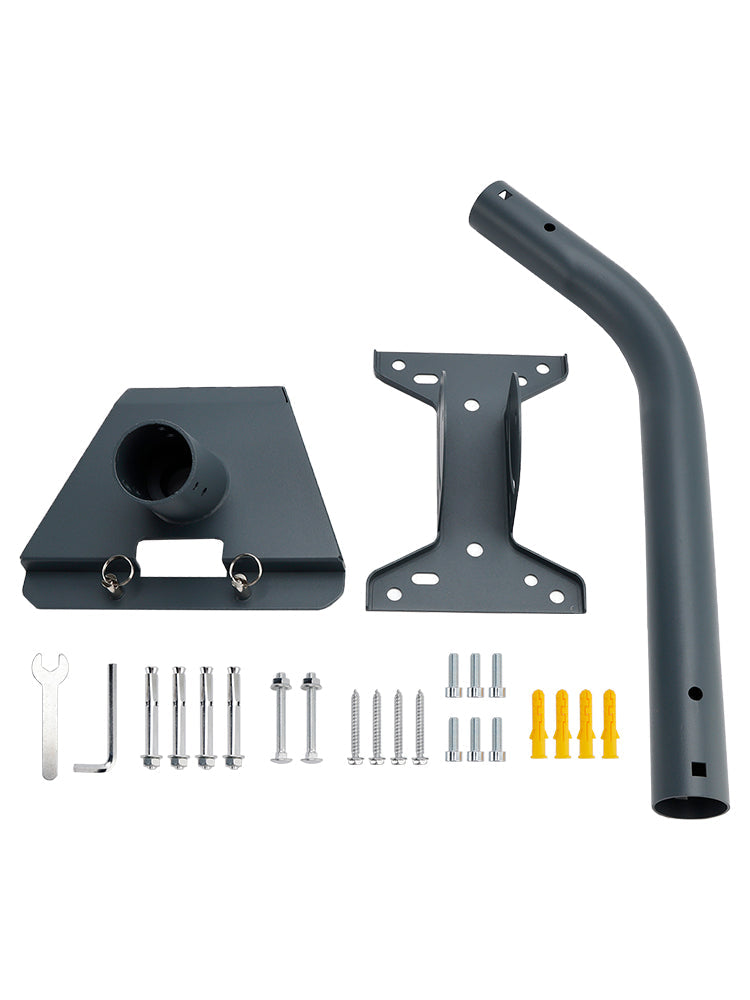

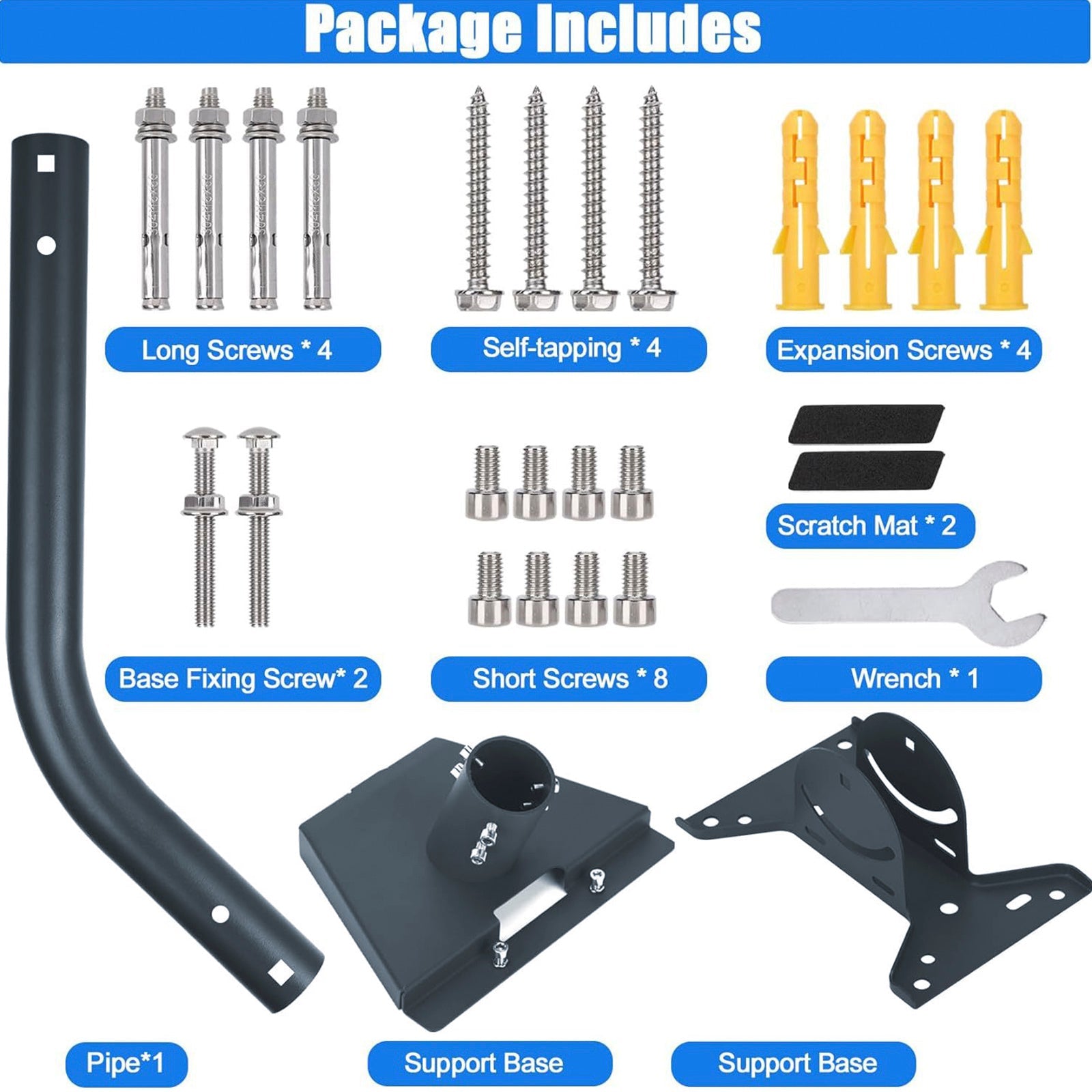

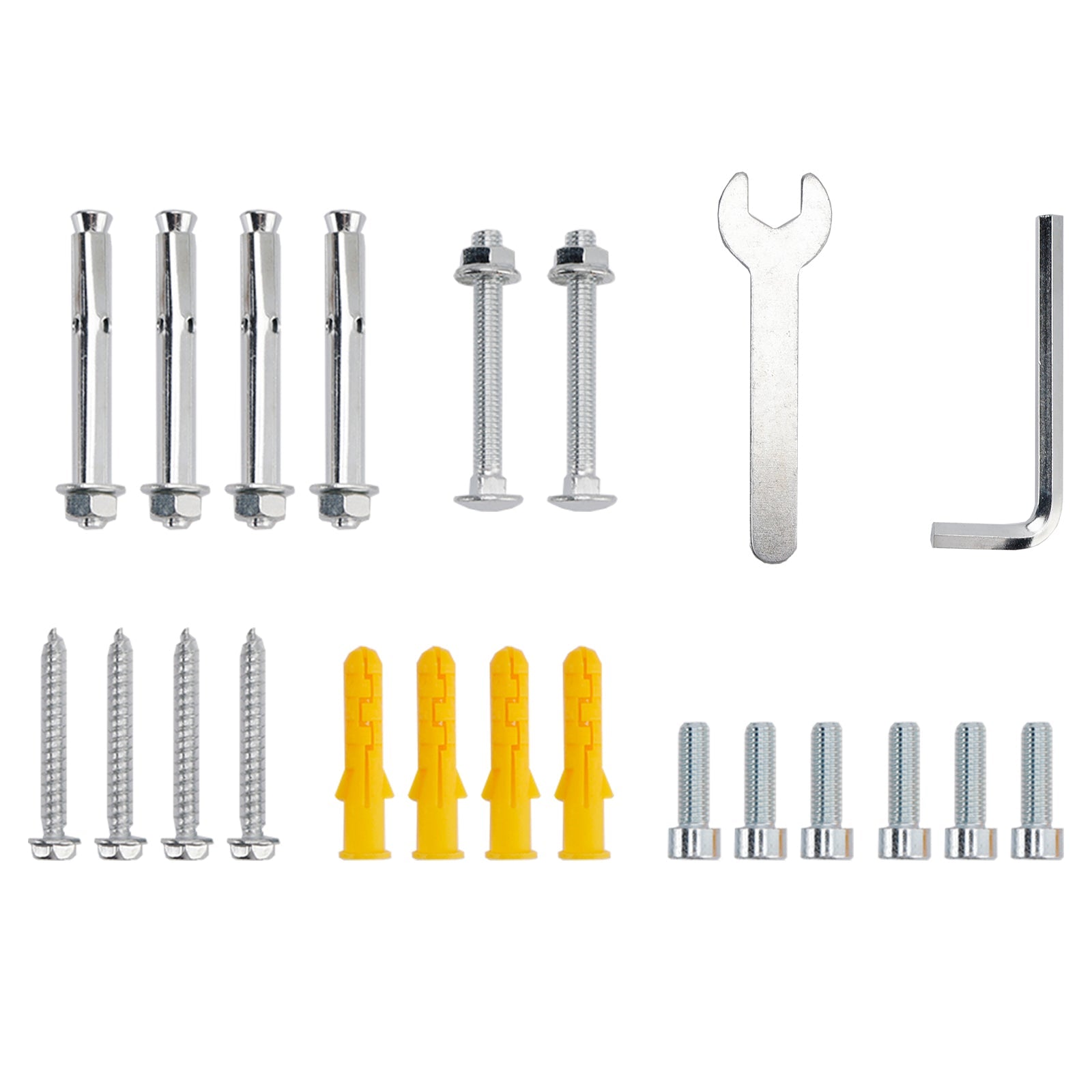

Package Included:

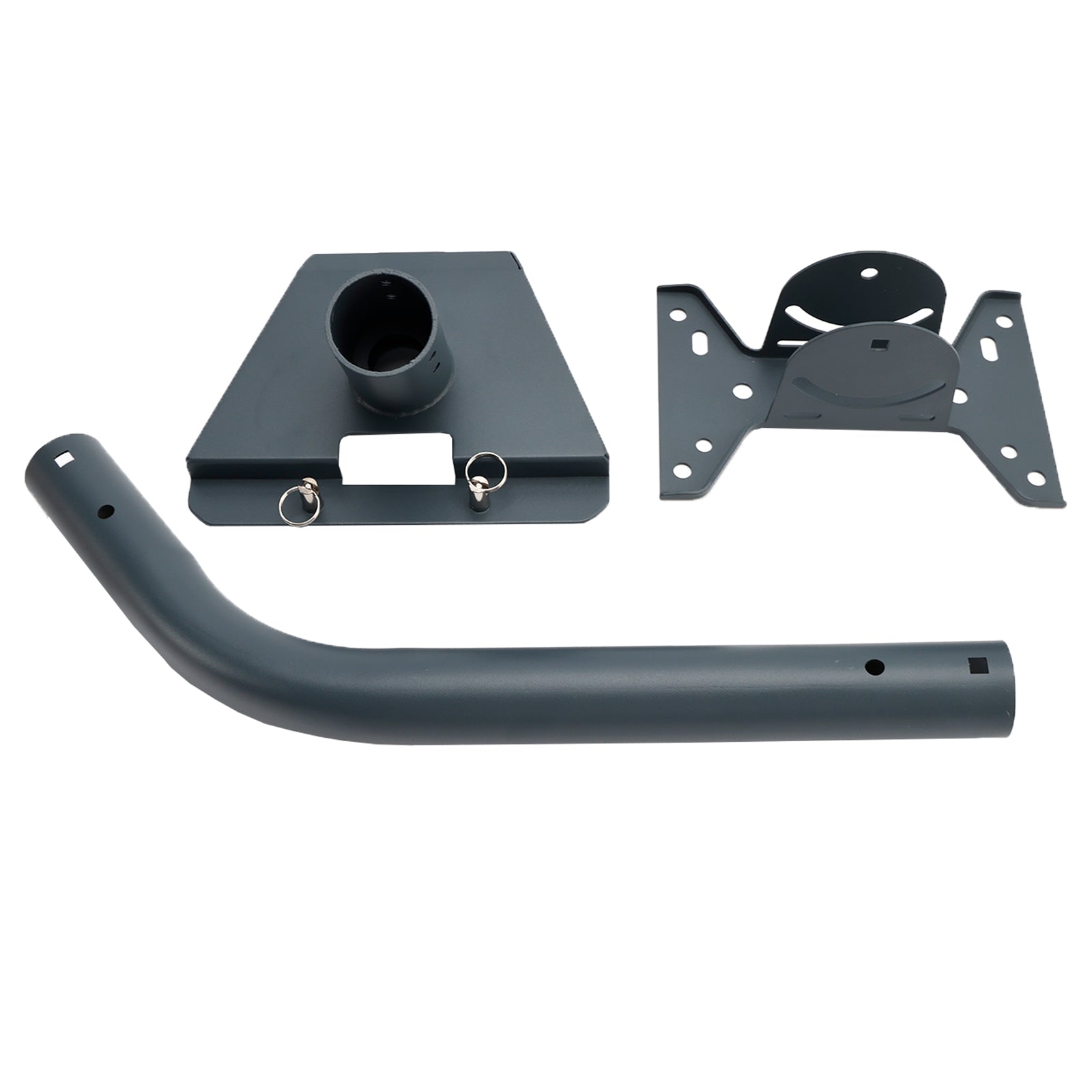

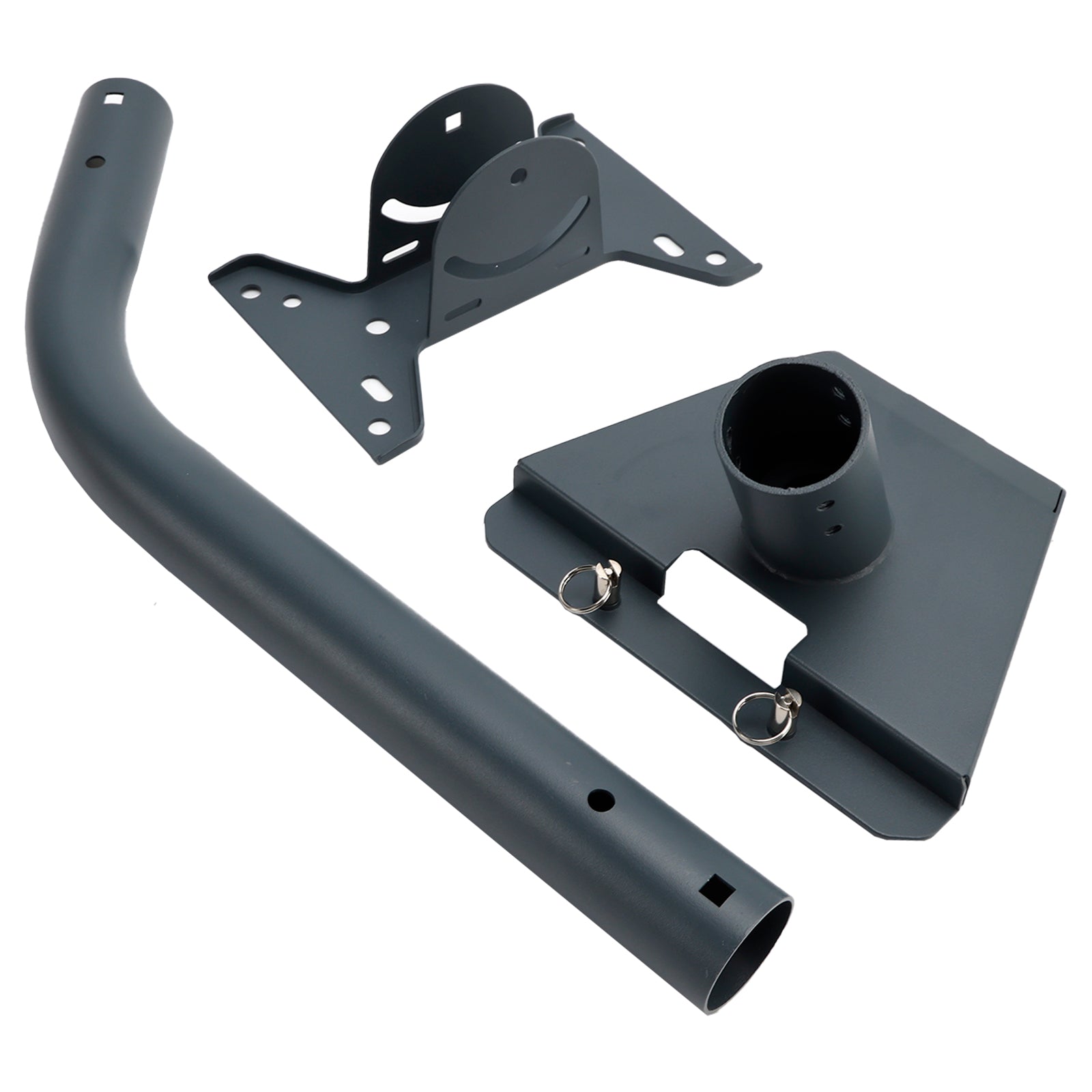

1 x Curved Pole
1 x Pole Adapter
1 x Mount Base
1 x Spanner
1 x Hex Key
4 x Plastic Expansion Bolt
4 x Metal Expansion Bolt
2 x Retaining Bolt
6 x Hexagonal Screw

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
