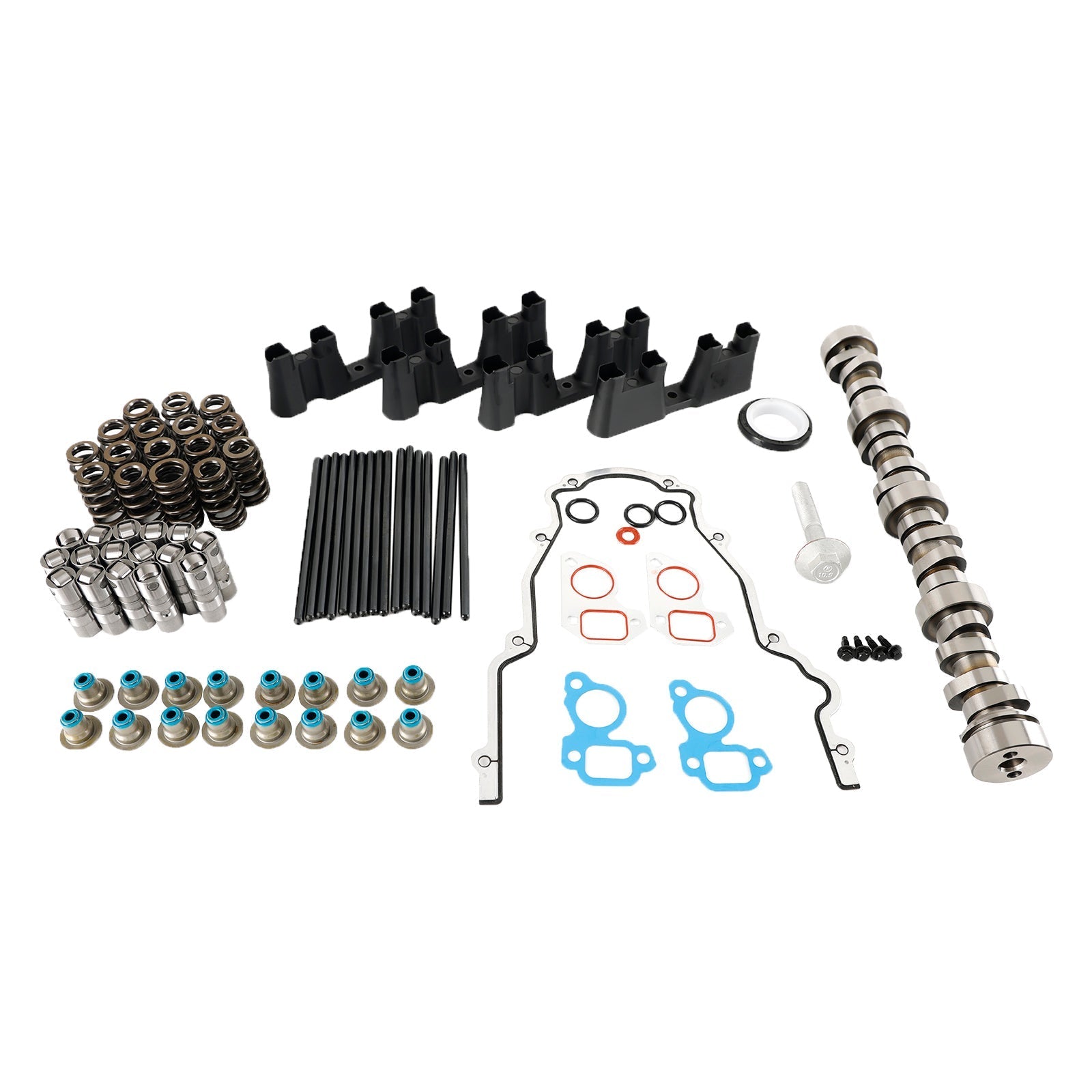

Sloppy Mechanics Stage 2 Camshaft Kit SS2 LS1 4.8 5.3 5.7 6.0 6.2 LS Cam LQ4 LM7
Sloppy Mechanics Stage 2 Camshaft Kit SS2 LS1 4.8 5.3 5.7 6.0 6.2 LS Cam LQ4 LM7
Regular price
$284.88
Sale price
$284.88
Regular price
Couldn't load pickup availability
Specifications
Specifications
Features:
[Wide Application] -- Compatible With GM Chevy 1997-2007 LS L92 L99 5.3L 5.7L 6.0L 6.2L V8 LSX Sloppy Stage 2, And ,5/8" Hole On Vertical Stop Compatible With LS Sloppy Stage 2 4.8 5.3 6.0 6.2,585" Lift 286掳Duration.
[Intake & Exhaust] - Valve Lift: .585"/ .585" (1.7 Rockers); Advertised Duration: 283掳/ 286掳 (@ .050": 228掳/230掳).
[Specifications] - RPM Range: 2200 To 5400; Lobe Separation: 112掳; Intake Center-Line: 108掳; Cam Gear Attachment: 3-Bolt.
[Not Require Tuning] - The Hydraulic Roller Sloppy Stage 2 Camshaft is More Than Oem Standard, Directly Replace The Old One.
[Not Suitable For AFM] - Please Check And Ensure The Fitment Before Order.
Specifications:

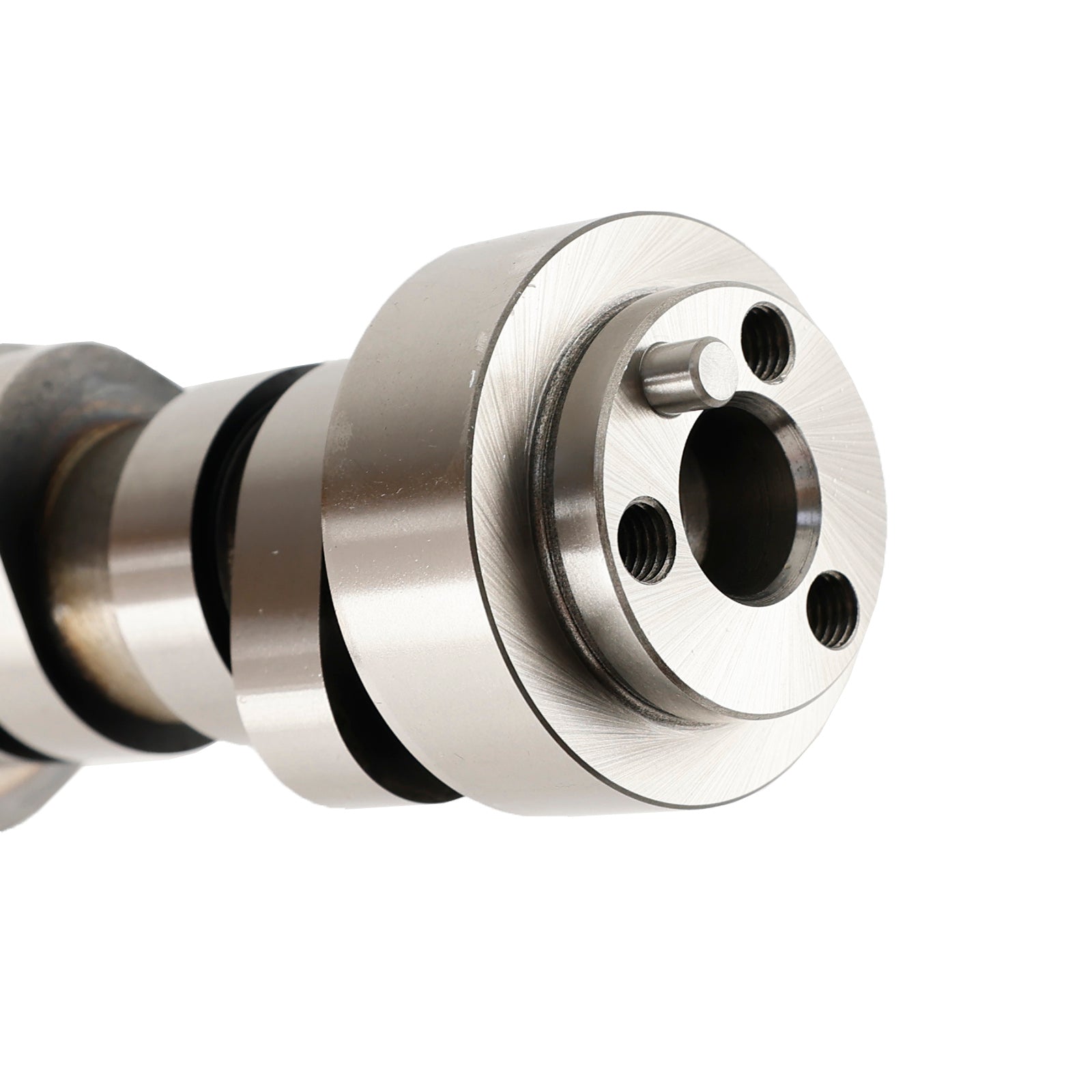

E-1840-P Engine Camshaft For GM Chevy
Engine Type: LS-Series
Camshaft Type: Hydraulic Roller
Intake Duration: @ .050": 228掳
Exhaust Duration: @ .050": 230掳
Intake Valve Lift: .585"
Exhaust Valve Lift: .585"
Lobe Separation: 112掳
Intake Centerline: 108掳
Advertised Intake Duration: 283掳
Advertised Exhaust Duration: 286掳
16Pcs PAC-1218 Drop-In Valve Springs
Outside Diameter Of Outer Spring (IN): 1.290 IN.
Coil Bind Height (IN): 1.140 IN.
Damper Spring Included: No
Install Load: 130LBS
Install Height: 1.800"
Open Height: 1.175"
Open Load: 318 LBS
Spring Rate (LBS/IN): 313 Lbs./In.
Inside Diameter Of Outer Spring (IN): 0.885 In.

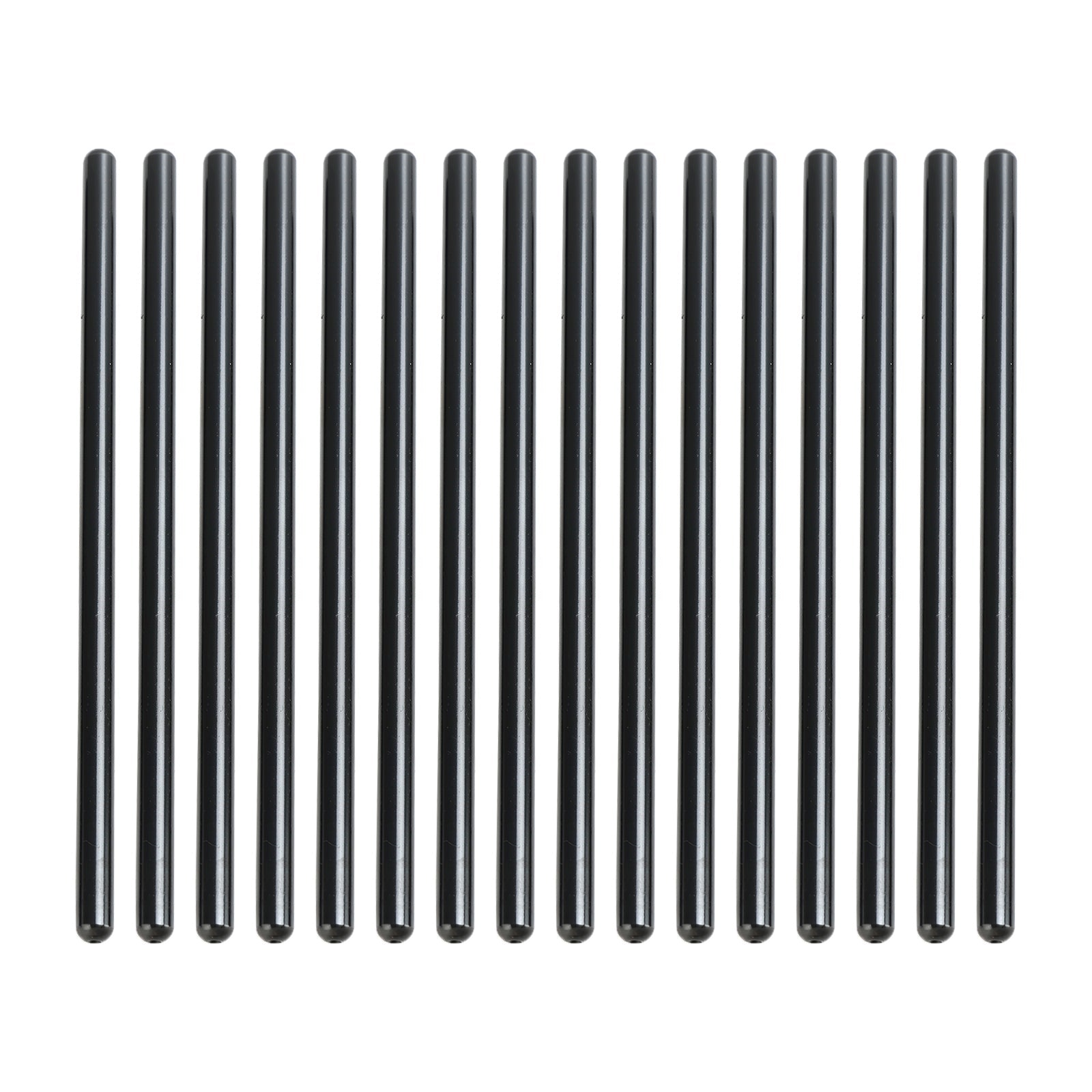

Pushrods
7.400" Chromoly One Piece Pushrods, 5/16" Diameter, And .080" WAL
TCS45993 Chevy LS Timing Cover Gaskets
Chevy LS Engine Timing Cover Gaskets
Unsurpassed Quality You Can Trust

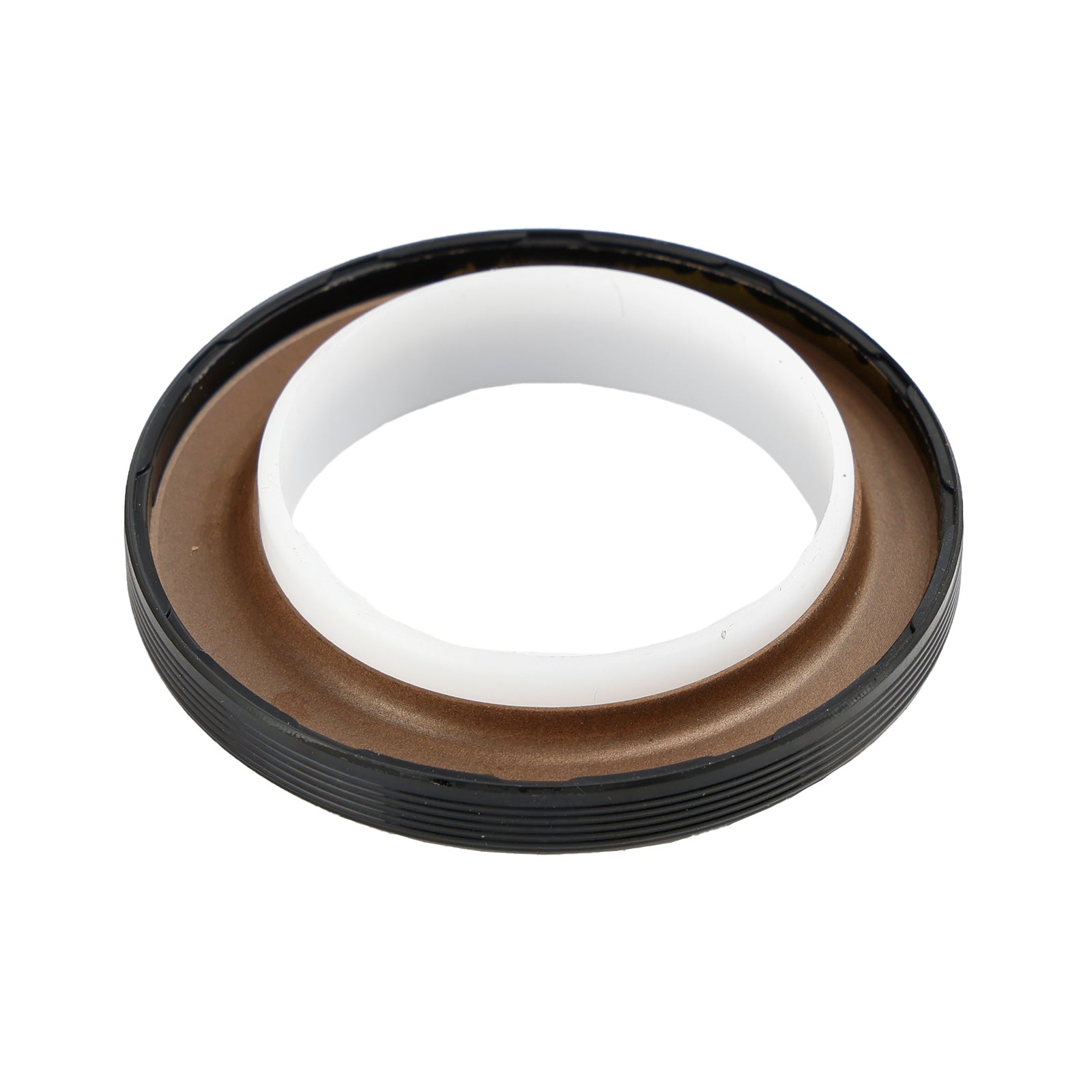

Includes Gaskets And Seals For Timing Chain And Water Pump Replacement Job
Chevrolet Performance Parts 12557840 Harmonic Balancer Bolt
High Quality Steel Construction
Hex Head Style
16Mm X 2.0 Thread Size
4.055" Underhead Length
16Pcs 12482063 Viton Valve Seals
Valve Type:Intake And Exhaust
Engines:LS1 LS2 LS4 LS6 LQ4 LQ9 LM7 L59 LR4 LM4 L33 L76
Fitment Type:Direct Replacement

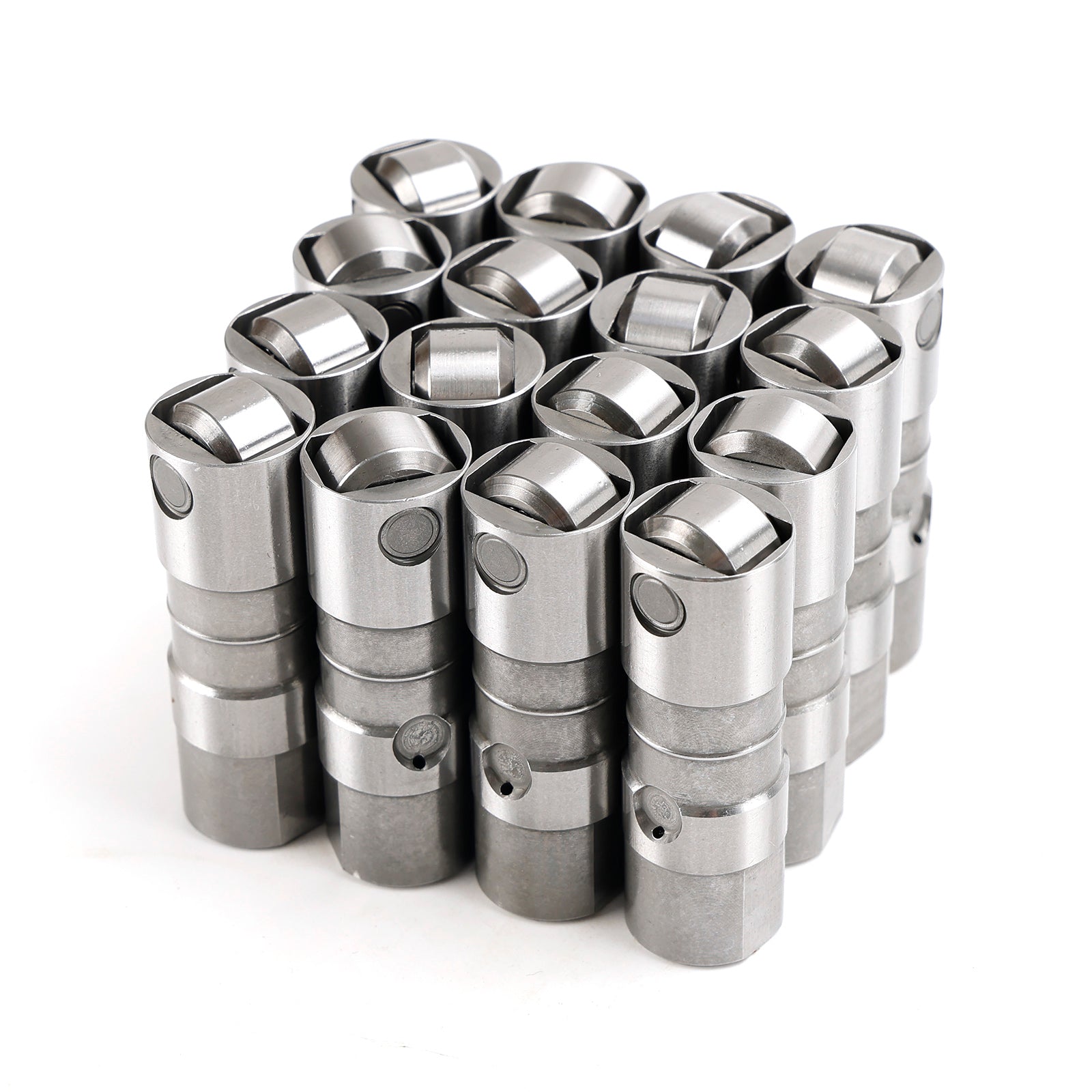

Lifters Specs:
Manufacturer Part Number: 12499225
Oem Part Number: 12551163 12596365
Fits: 1997-2016 Chevy 5.3 5.7 6.0 LS1 LS2 LS3 LS7 LS6 LQ4 LQ9 LY5 LY6 LM7
For : Non- AFM Engines

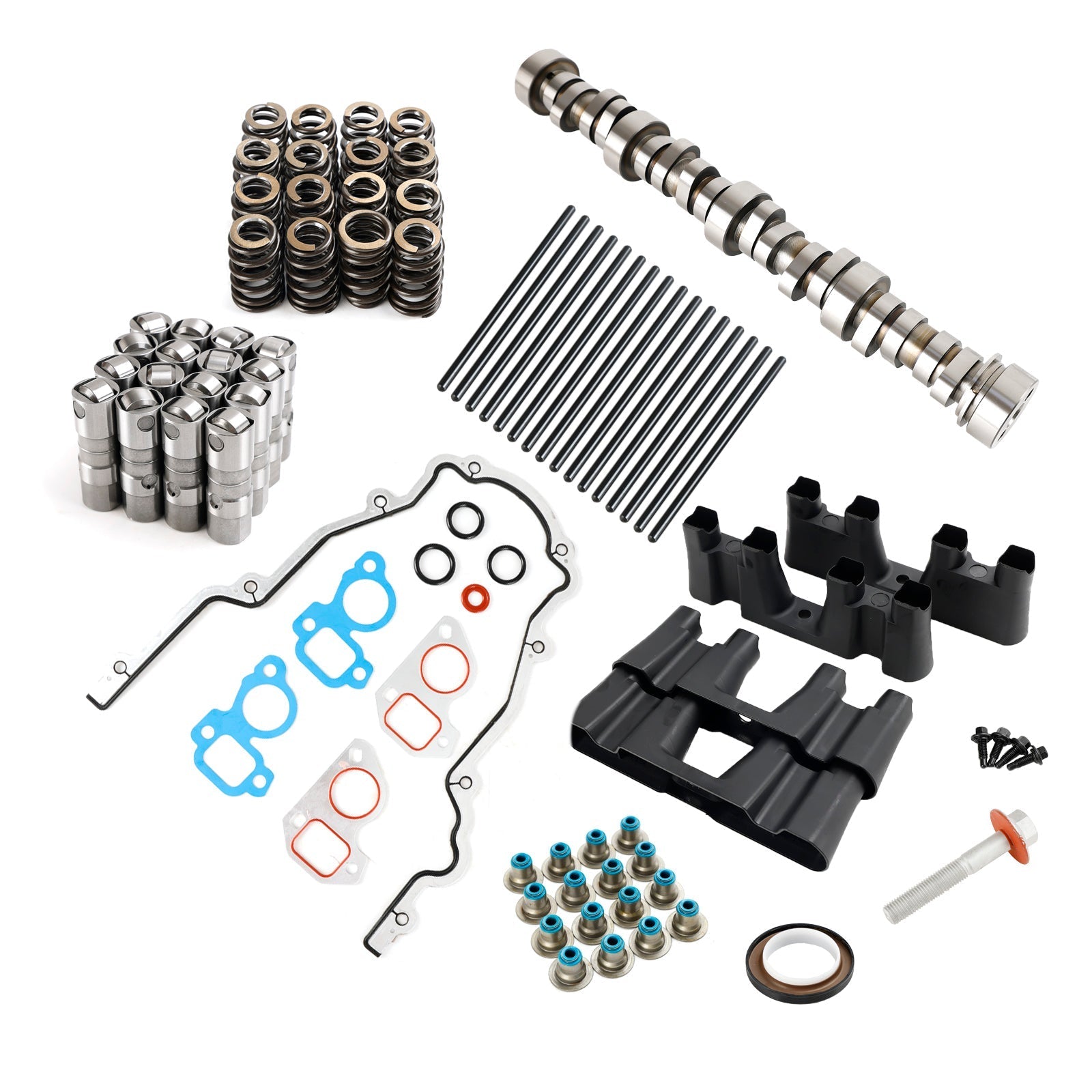

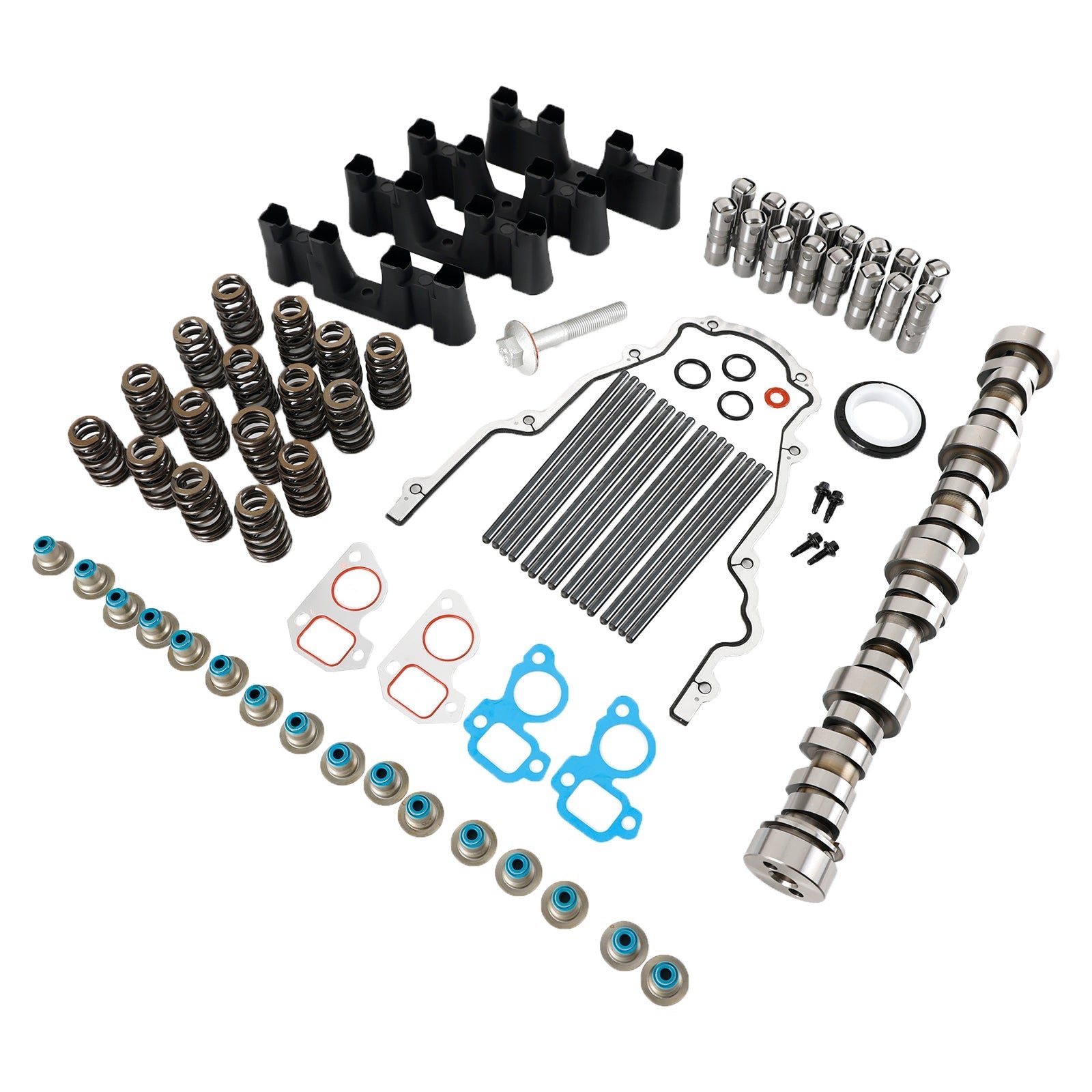

Package Include:
1 X E1840P Camshaft
16 X Matching Springs Set
1 Set Of Gaskets
1 X Bolt
16 X Pushrods
16 X LS7 Lifters
[Wide Application] -- Compatible With GM Chevy 1997-2007 LS L92 L99 5.3L 5.7L 6.0L 6.2L V8 LSX Sloppy Stage 2, And ,5/8" Hole On Vertical Stop Compatible With LS Sloppy Stage 2 4.8 5.3 6.0 6.2,585" Lift 286掳Duration.
[Intake & Exhaust] - Valve Lift: .585"/ .585" (1.7 Rockers); Advertised Duration: 283掳/ 286掳 (@ .050": 228掳/230掳).
[Specifications] - RPM Range: 2200 To 5400; Lobe Separation: 112掳; Intake Center-Line: 108掳; Cam Gear Attachment: 3-Bolt.
[Not Require Tuning] - The Hydraulic Roller Sloppy Stage 2 Camshaft is More Than Oem Standard, Directly Replace The Old One.
[Not Suitable For AFM] - Please Check And Ensure The Fitment Before Order.
Specifications:

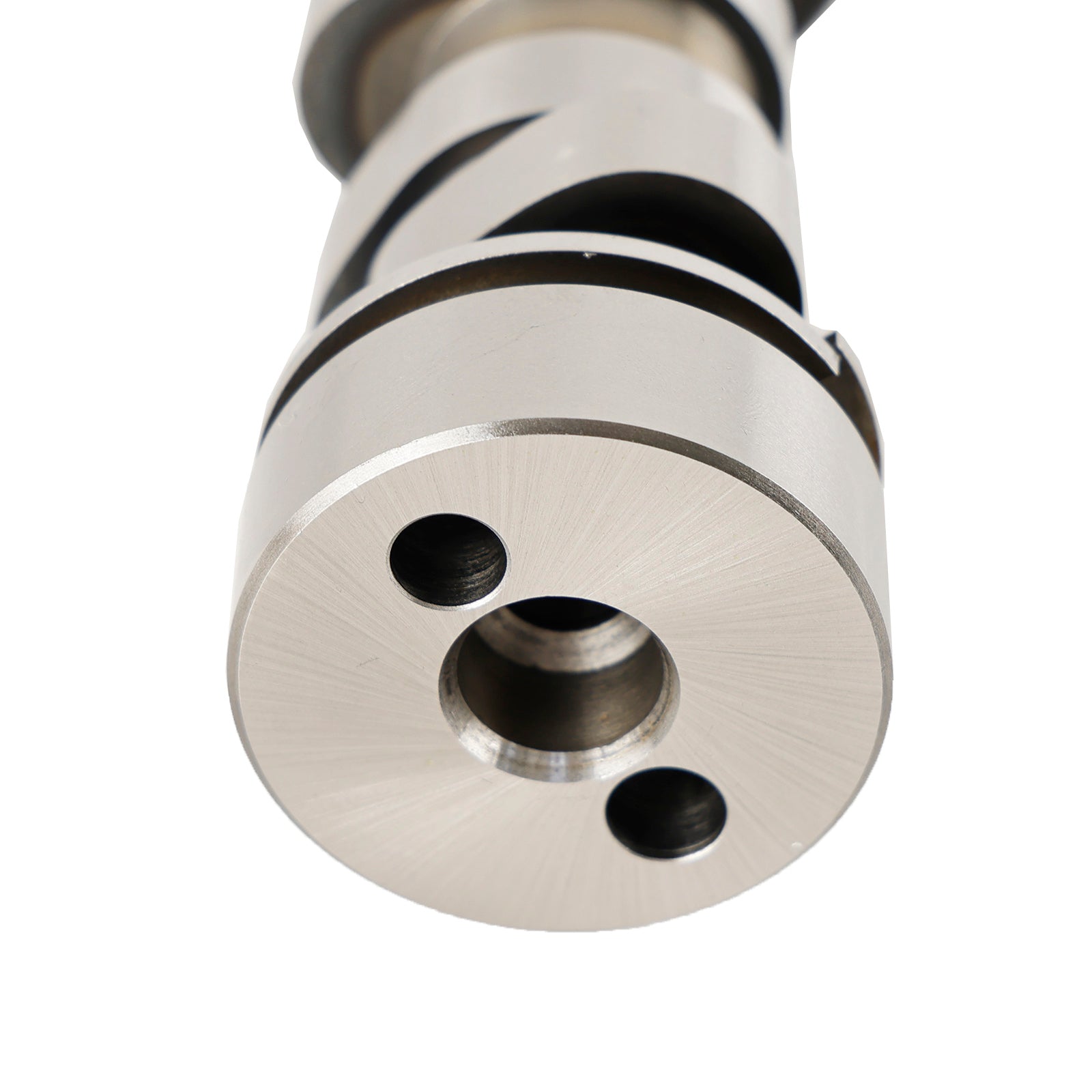

E-1840-P Engine Camshaft For GM Chevy
Engine Type: LS-Series
Camshaft Type: Hydraulic Roller
Intake Duration: @ .050": 228掳
Exhaust Duration: @ .050": 230掳
Intake Valve Lift: .585"
Exhaust Valve Lift: .585"
Lobe Separation: 112掳
Intake Centerline: 108掳
Advertised Intake Duration: 283掳
Advertised Exhaust Duration: 286掳

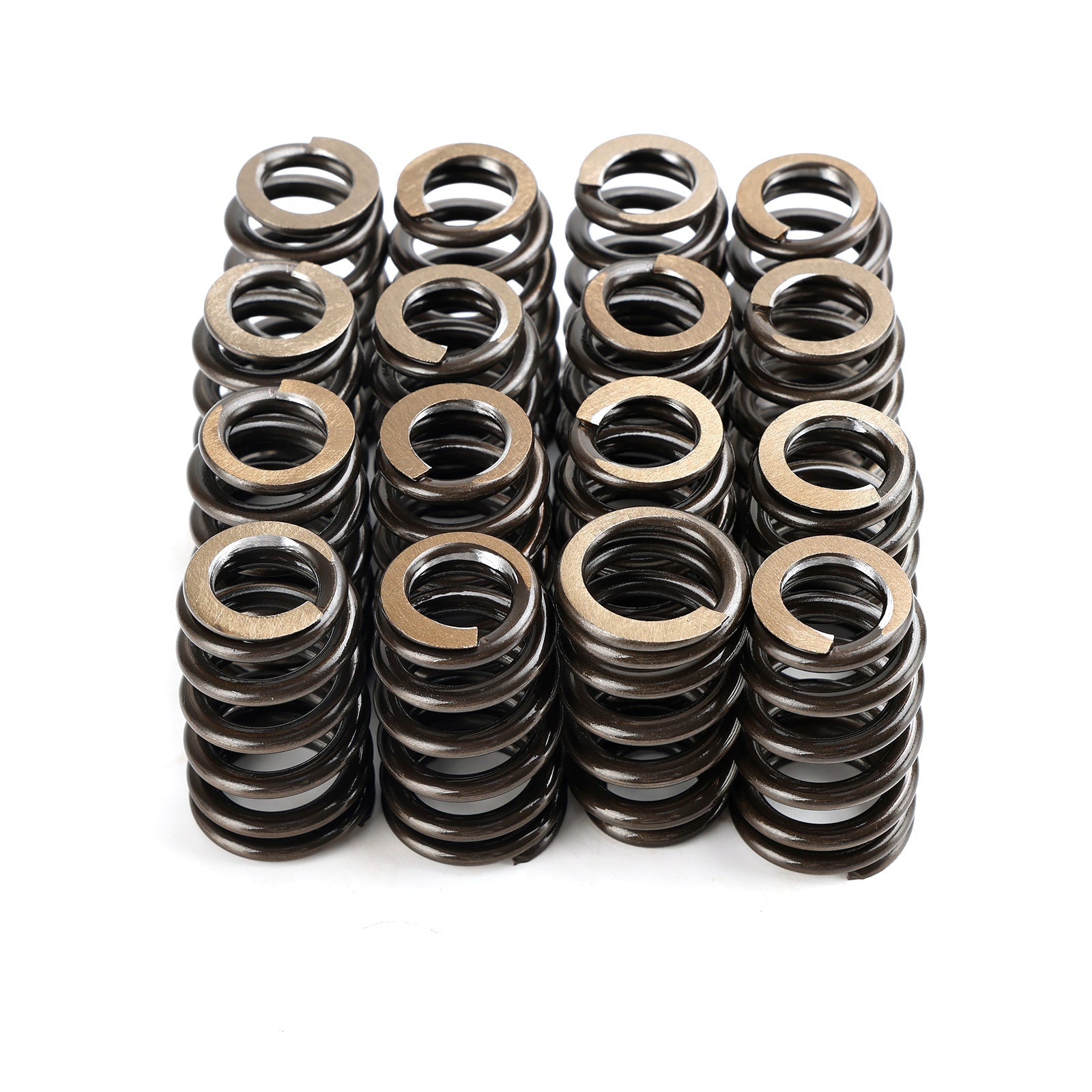

16Pcs PAC-1218 Drop-In Valve Springs
Outside Diameter Of Outer Spring (IN): 1.290 IN.
Coil Bind Height (IN): 1.140 IN.
Damper Spring Included: No
Install Load: 130LBS
Install Height: 1.800"
Open Height: 1.175"
Open Load: 318 LBS
Spring Rate (LBS/IN): 313 Lbs./In.
Inside Diameter Of Outer Spring (IN): 0.885 In.
Pushrods
7.400" Chromoly One Piece Pushrods, 5/16" Diameter, And .080" WAL

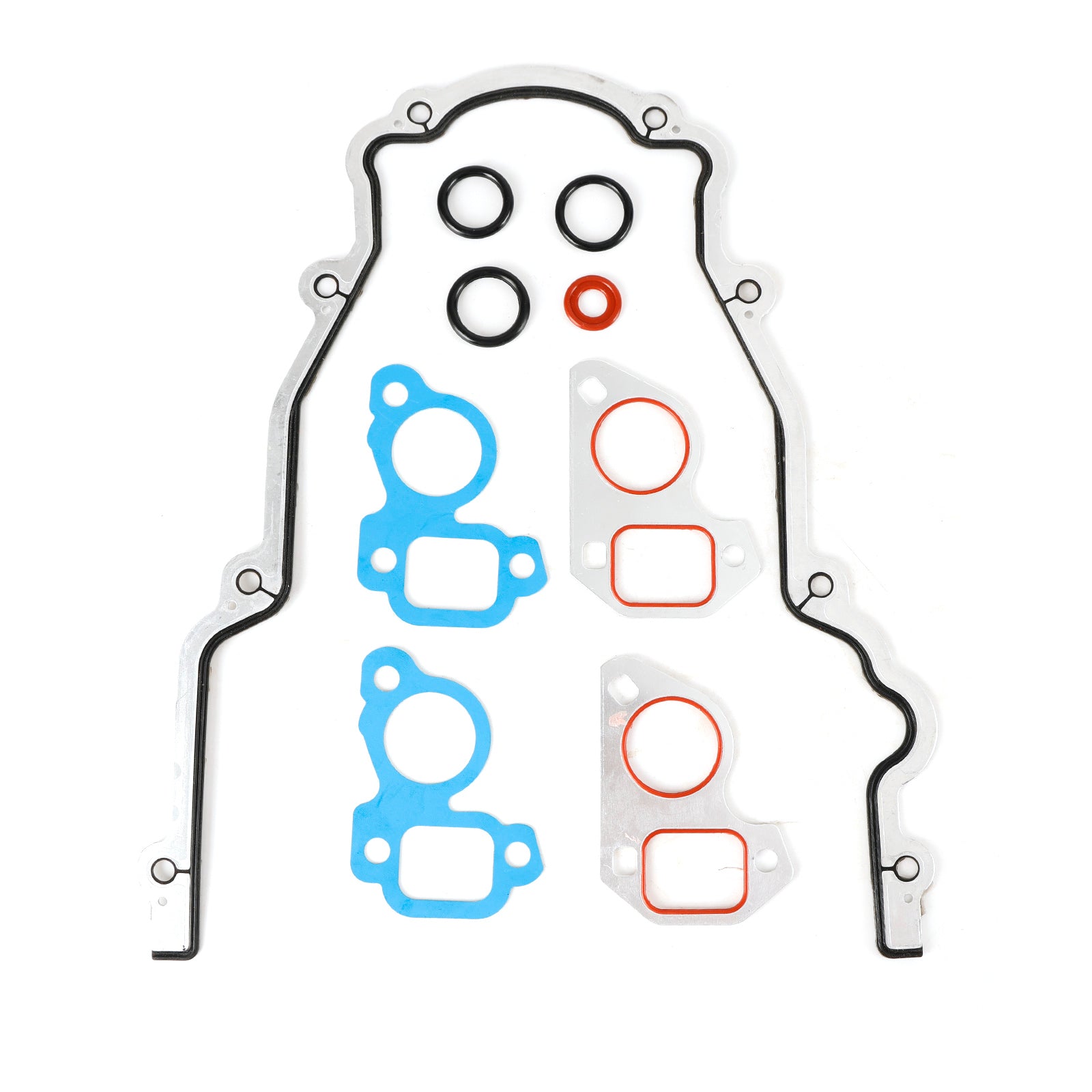

TCS45993 Chevy LS Timing Cover Gaskets
Chevy LS Engine Timing Cover Gaskets
Unsurpassed Quality You Can Trust
Includes Gaskets And Seals For Timing Chain And Water Pump Replacement Job

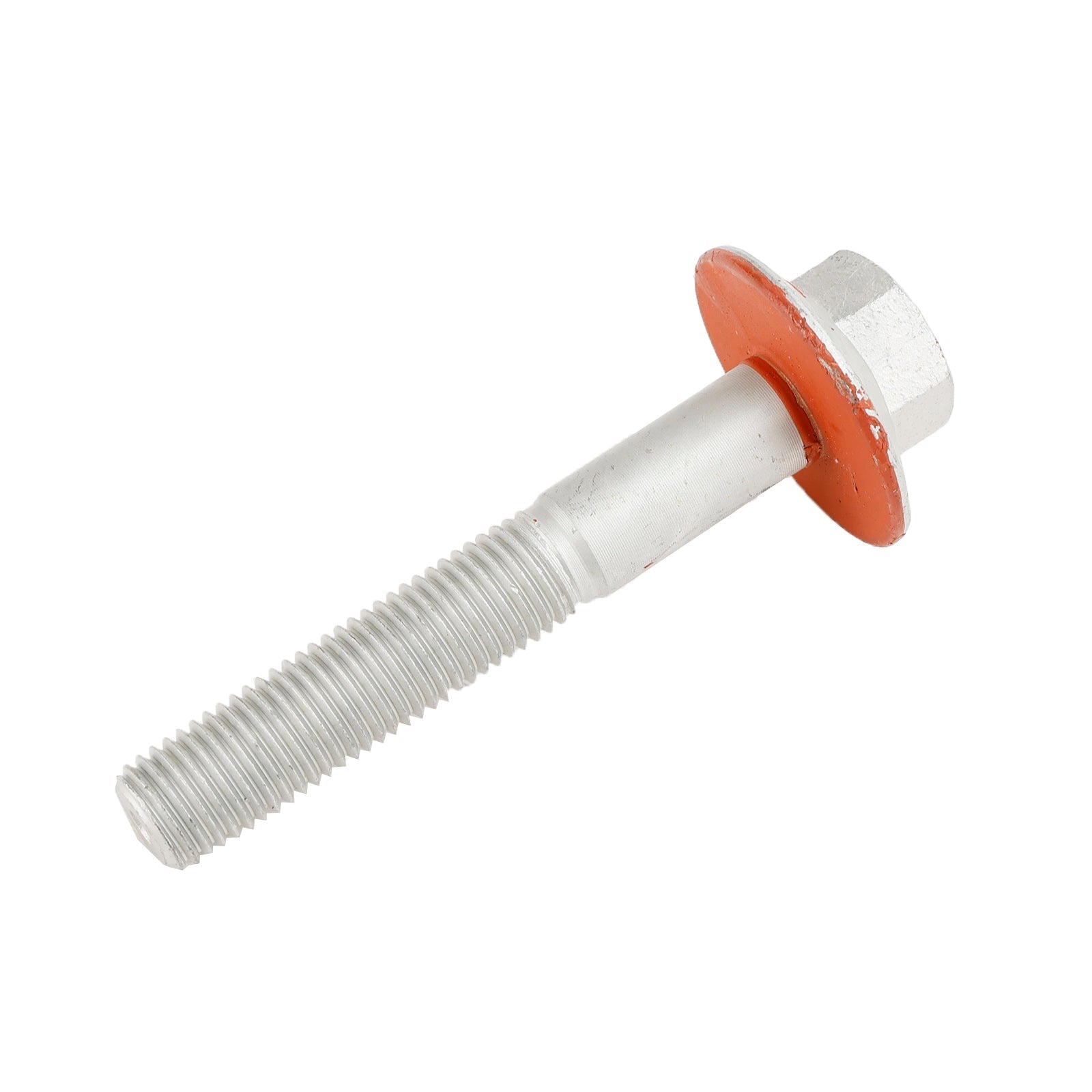

Chevrolet Performance Parts 12557840 Harmonic Balancer Bolt
High Quality Steel Construction
Hex Head Style
16Mm X 2.0 Thread Size
4.055" Underhead Length

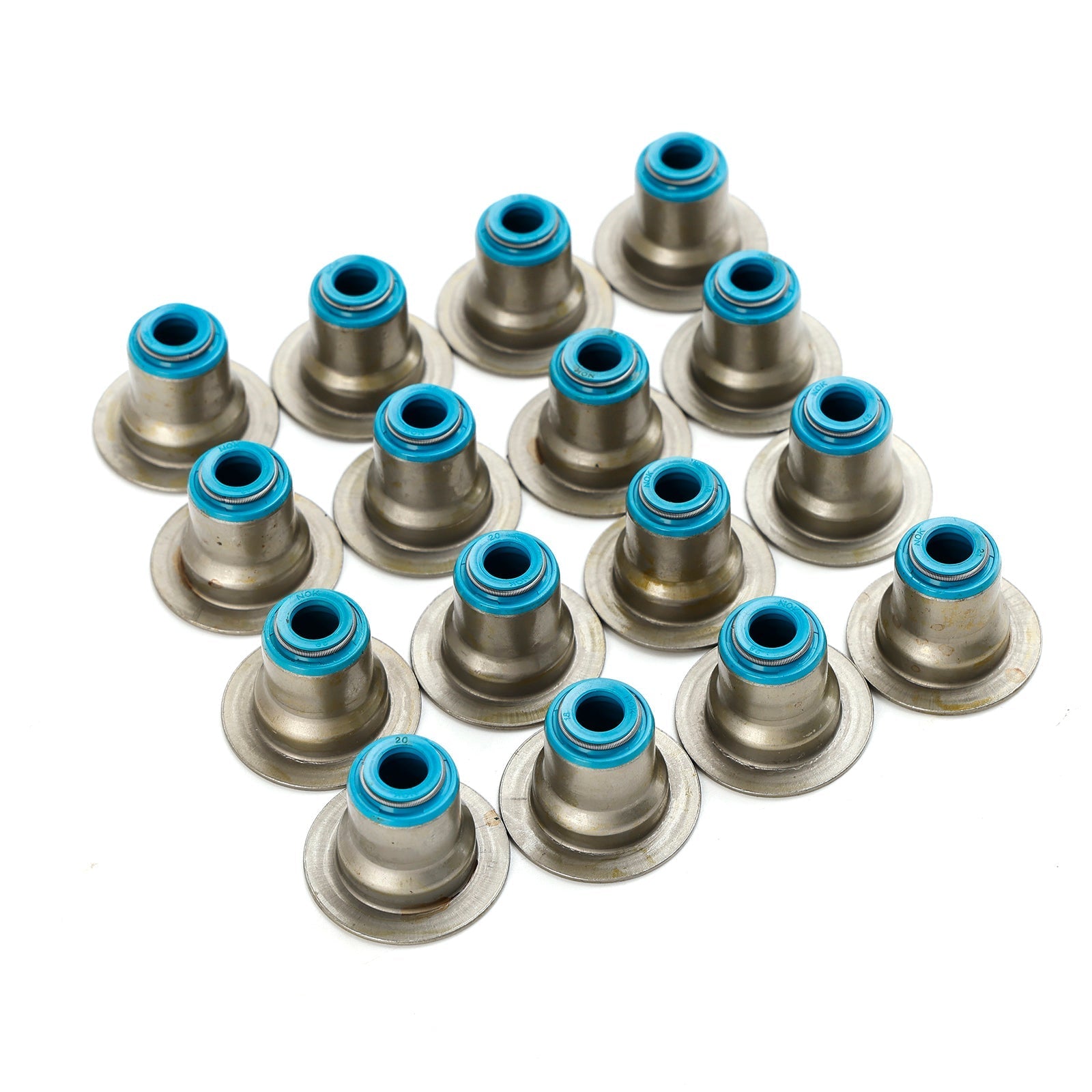

16Pcs 12482063 Viton Valve Seals
Valve Type:Intake And Exhaust
Engines:LS1 LS2 LS4 LS6 LQ4 LQ9 LM7 L59 LR4 LM4 L33 L76
Fitment Type:Direct Replacement
Lifters Specs:
Manufacturer Part Number: 12499225
Oem Part Number: 12551163 12596365
Fits: 1997-2016 Chevy 5.3 5.7 6.0 LS1 LS2 LS3 LS7 LS6 LQ4 LQ9 LY5 LY6 LM7
For : Non- AFM Engines

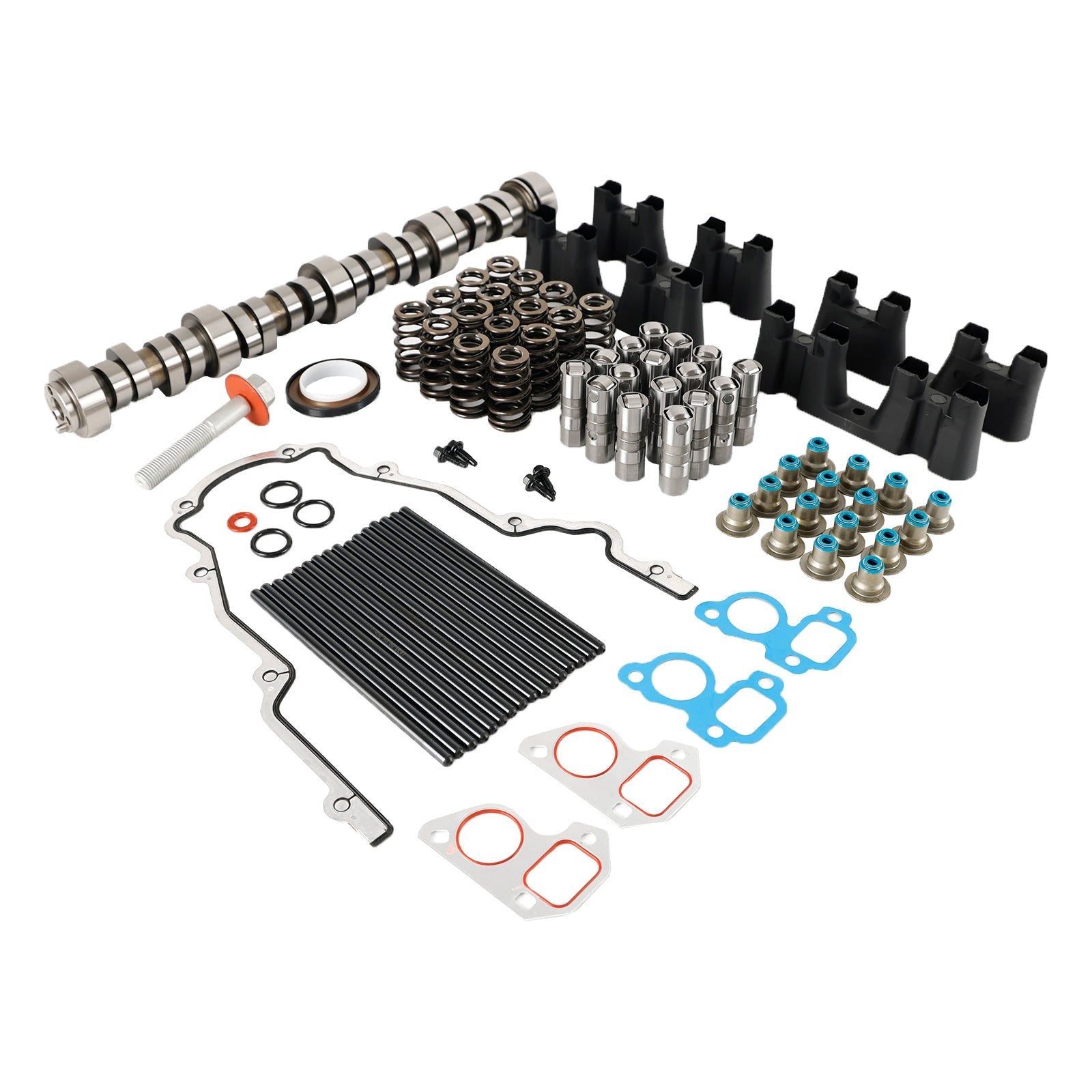

Package Include:
