57mm Cylinder Piston Gasket Top End Rebuild Kit 150cc For Yamaha YBR 125 2005-2016,XT-R XT-X XTZ 125

Features:
Cylinder kit Sport 150cc 5VL00.
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

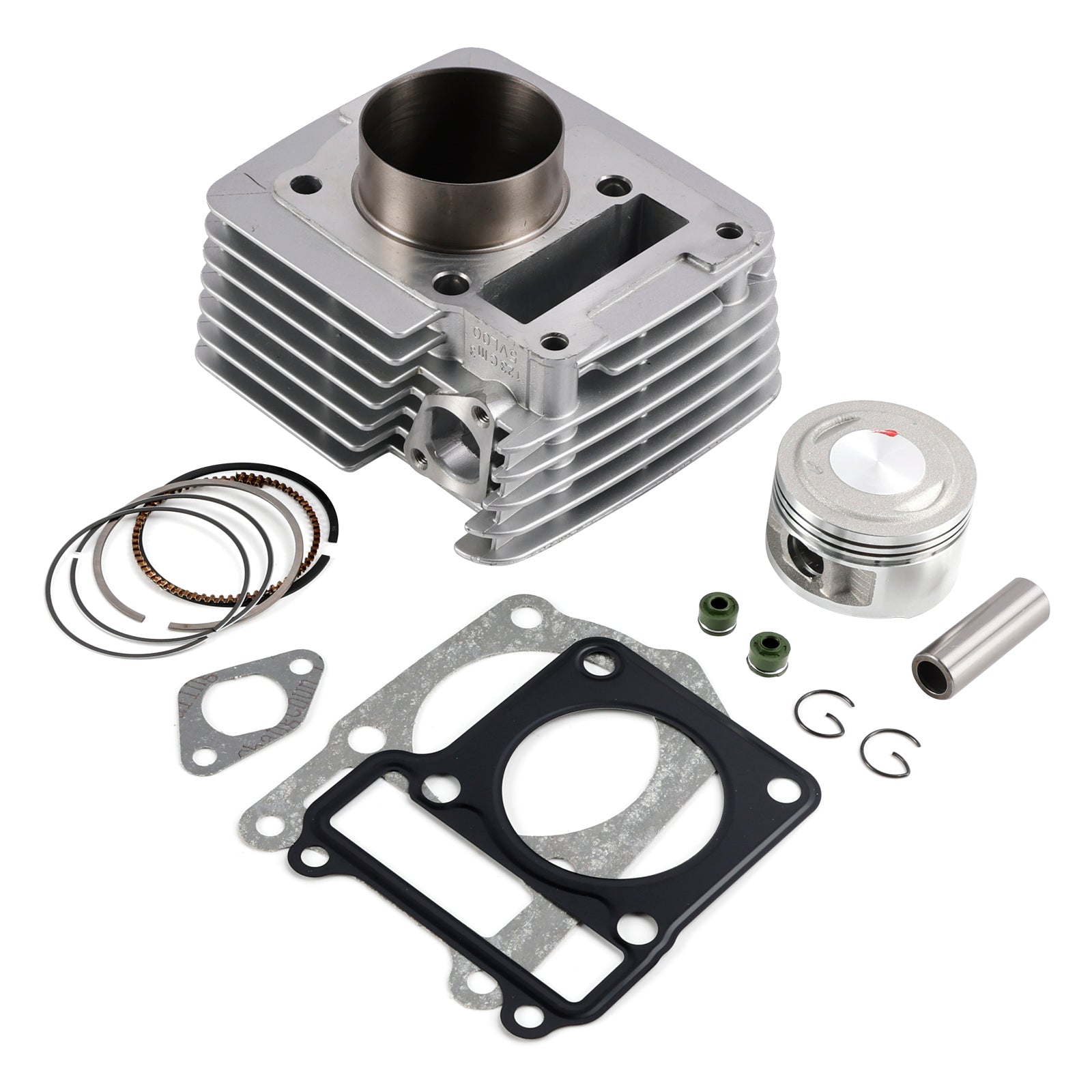

Kit includes cylinder, forged piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

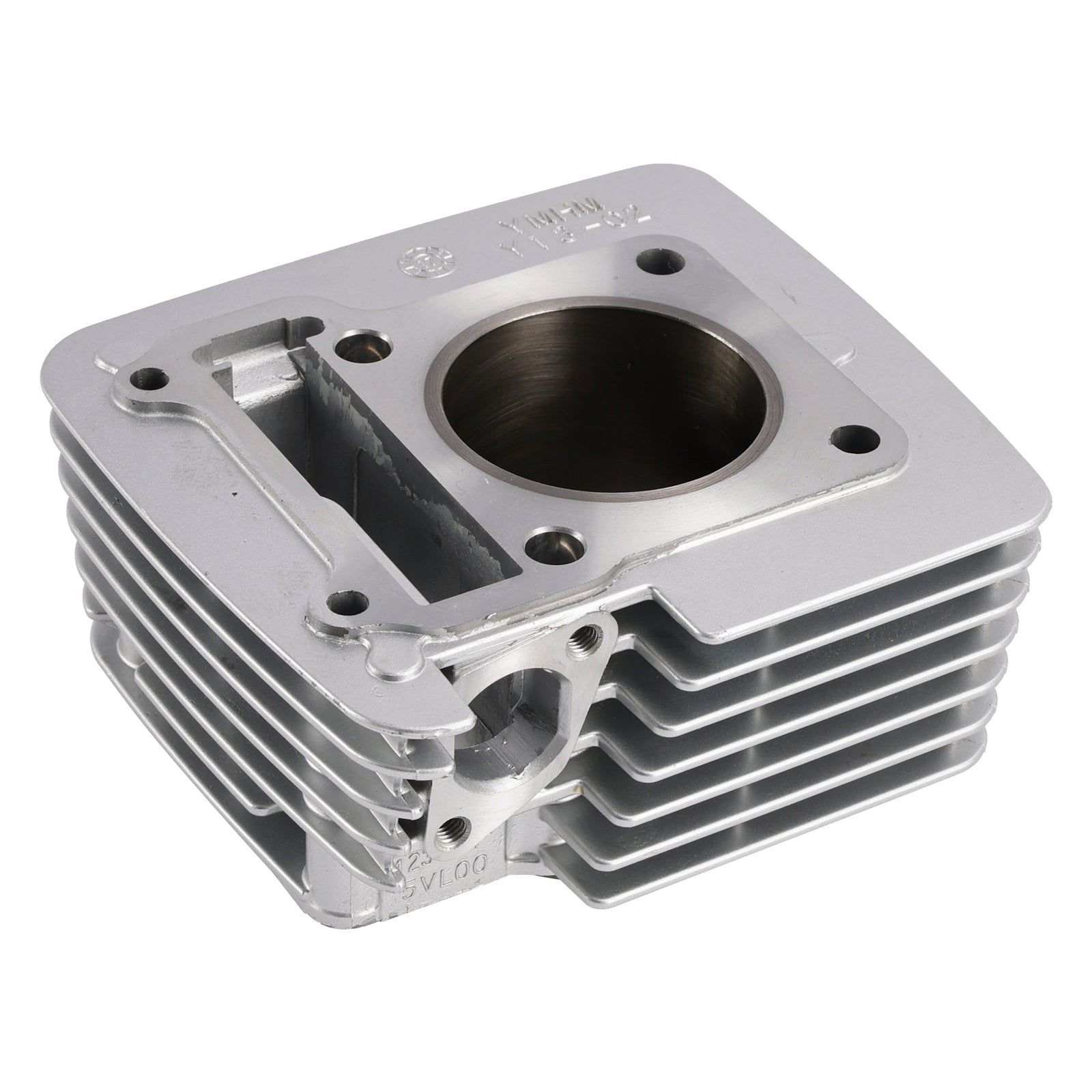

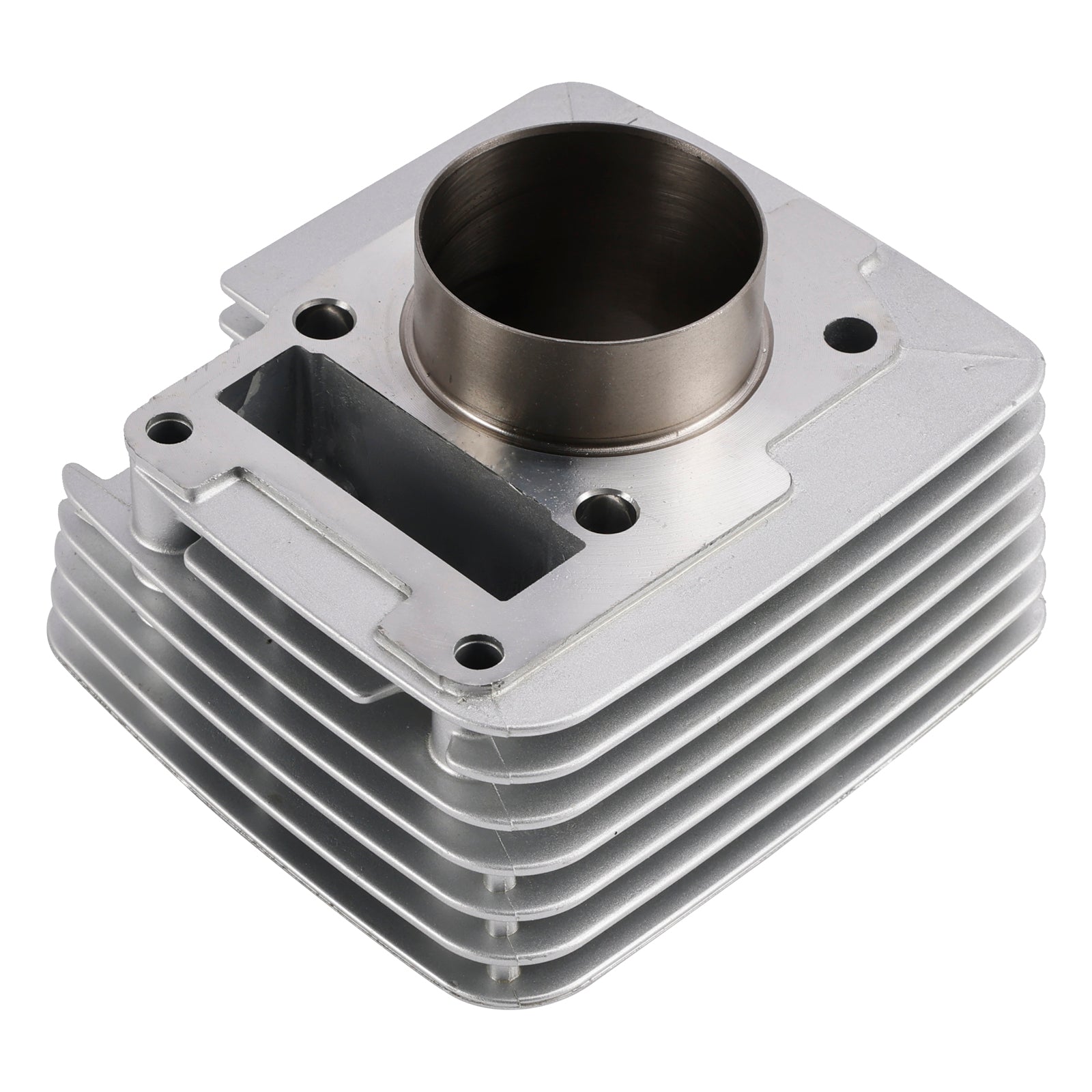

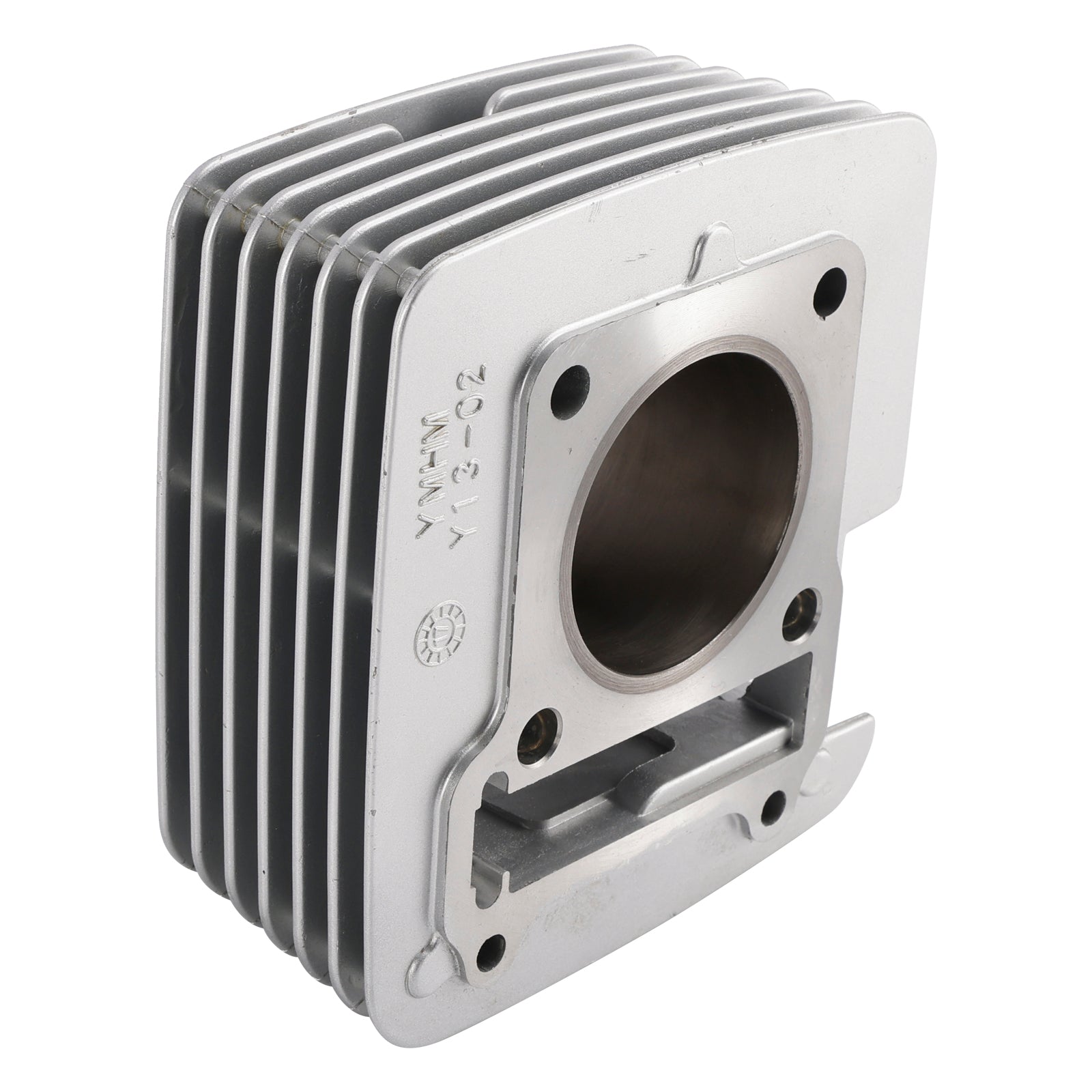

The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).

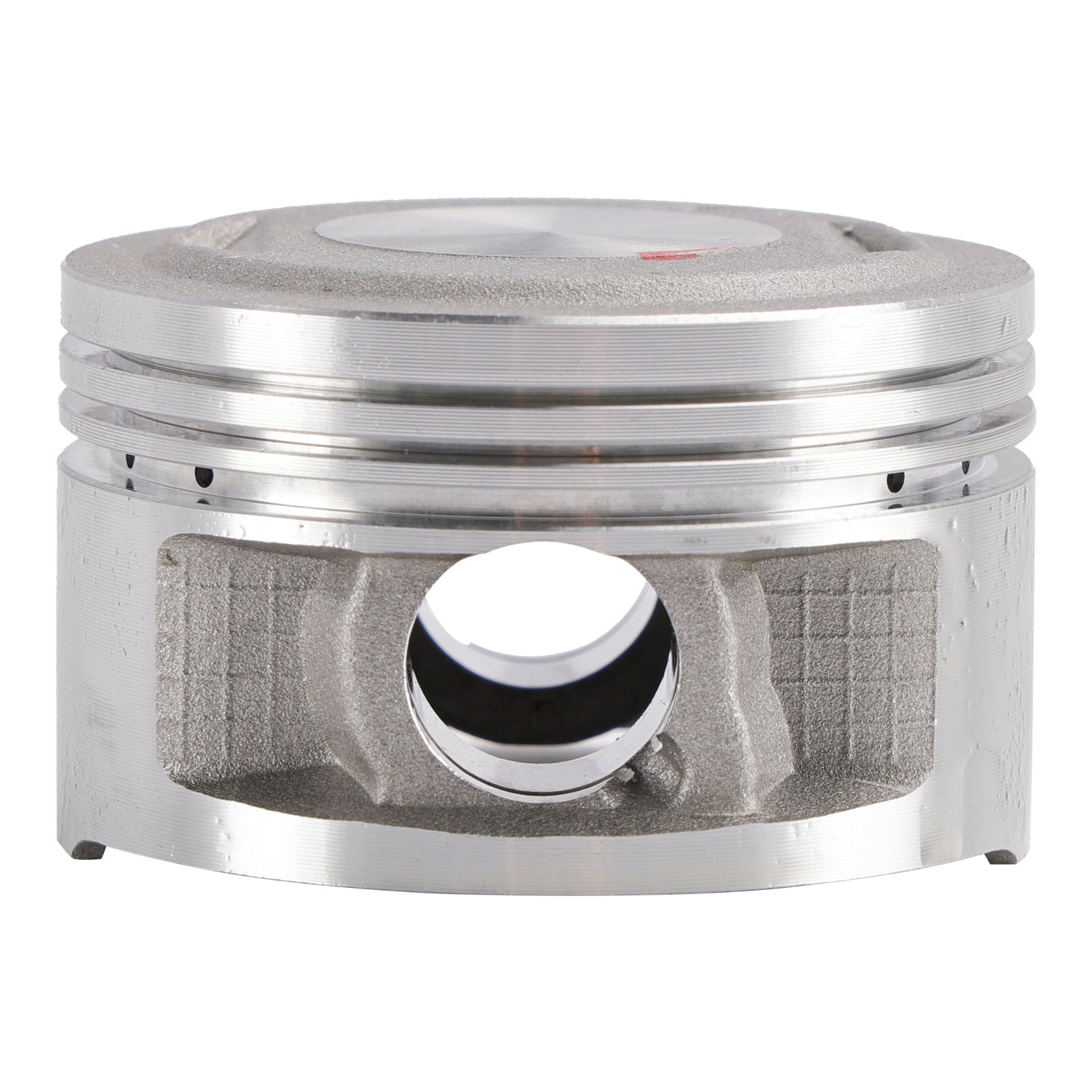

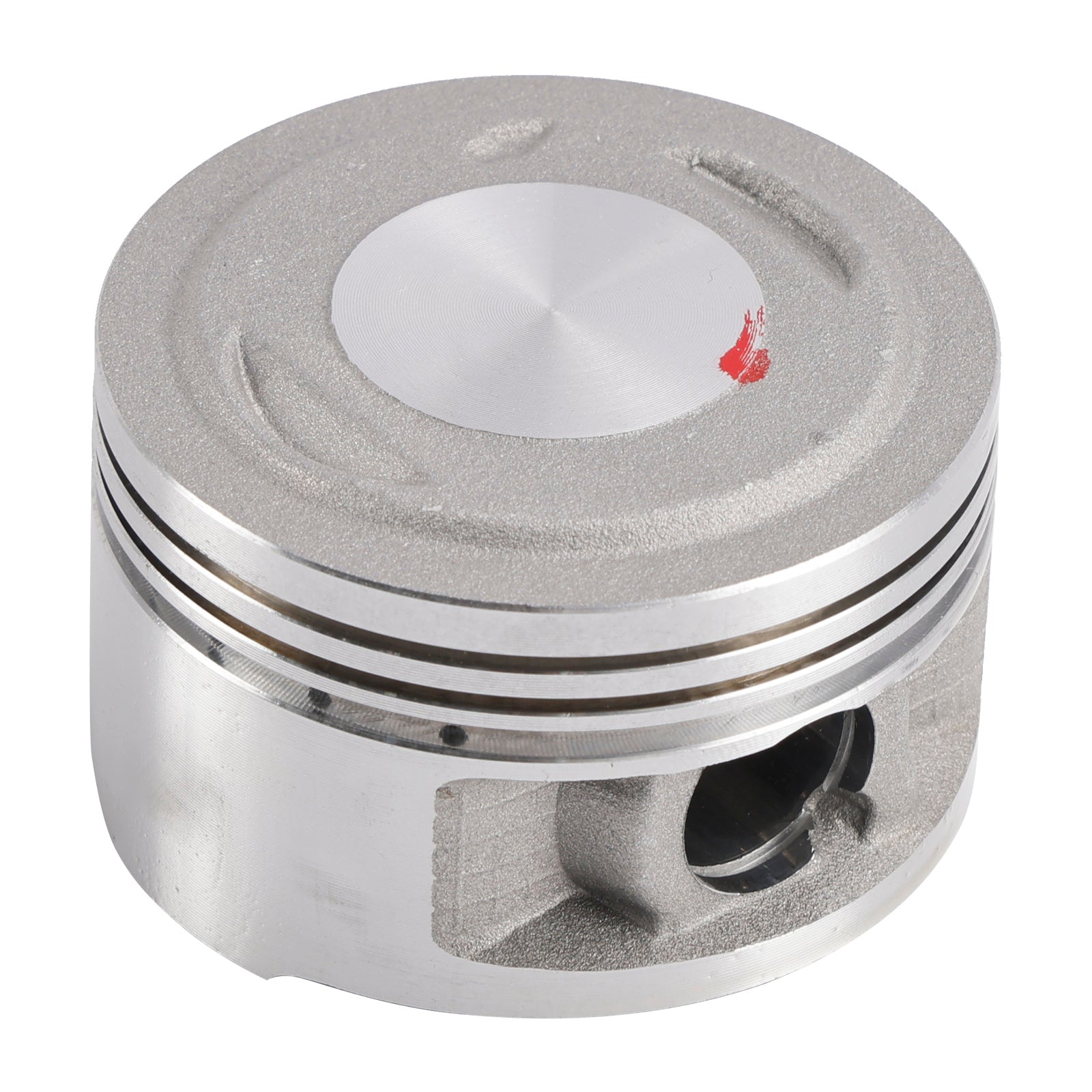

Piston is anodized for superior heat resistance and longer lifespan.

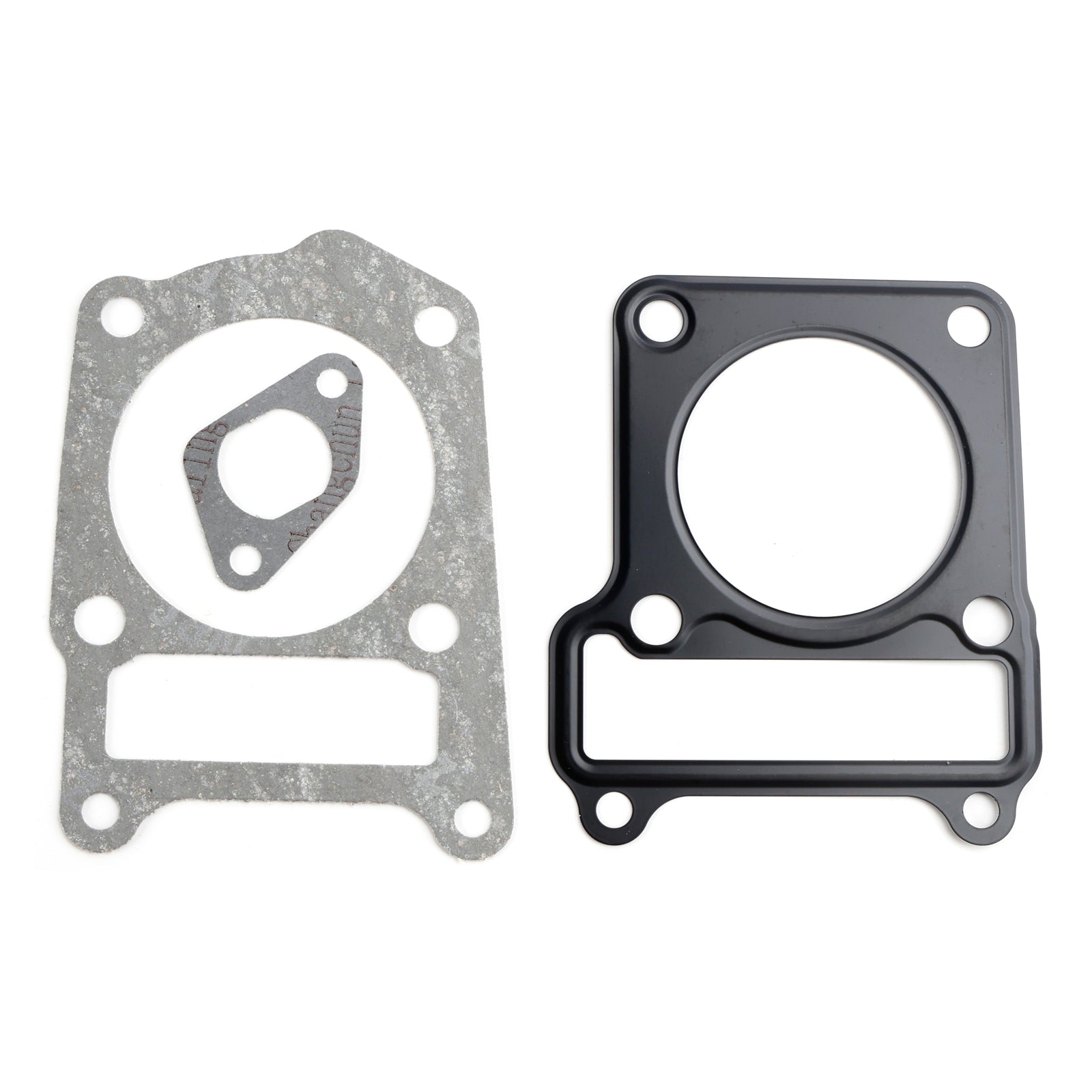

The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for big bore size - 57 mm x 59 mm stroke, 15mm steel piston pin.
The compression is designed for use with the original cylinder head.
When installing, the carburettor must be re-tuned or better replaced with a larger sports carburettor.
Engine 150cc block with 123CC markings.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 150cc
Engine: 4-Stroke
Cooling: Air-cooled
Bore Type: Big Bore
Bore diameter: 57mm
Stroke: 59mm
Pin diameter: 15mm
Pin Overall Length: 44mm

Replacement Part Number:
Cylinder: 5VL-E1310-00
Cylinder Base Gasket: 5VL-E1351-10
Cylinder Head Gasket: 5VL-E1181-00
Pin, Piston: 5VL-E1181-00
Circlips, piston (2): 93450-16068
Valve Stem Seals (2): 5VL-E2119-00
Chain Tensioner Gasket: 5VL-E2213-10

Fits Make/Model/Year:
Fit for Yamaha YFM 125 Raptor 125 2011-2013
Fit for Yamaha TT-R 125 4T AC 2000-2004
Fit for Yamaha TT-R 125 E 4T AC 2003-2009
Fit for Yamaha TT-R 125 L 4T AC 2000-2008
Fit for Yamaha TT-R 125 LE 4T AC 2003-2023
Fit for Yamaha SR 125 4T AC 1987-2002
Fit for Yamaha XT-R 125 XT125R 4T AC 2005-2012
Fit for Yamaha XT-X 125 XT125X 4T AC 2005-2012
Fit for Yamaha XTZ 125 4T AC 2003-2014
Fit for Yamaha YBR 125 4T AC 2004-2016
Fit for Yamaha YBR 125 Custom 4T AC 2008-2016
Fit for Beta RR 125 Enduro 4T AC 2006-2017
Fit for Beta RR 125 Motord 4T AC 2007-2015
Fit for Derbi Senda 125 4T AC 2008-2016
Fit for Derbi Senda Baja R Enduro 125 4T AC 2004-2016
Fit for Derbi Senda Baja SM Supermoto 125 4T AC 2004-2016
Fit for Gas Gas Randonne 125 AC 4T
Fit for Motorhispania MH7 125 4T AC
Fit for Motorhispania MH7 Naked 125 4T AC
Fit for Rieju MRT Freejump 125 Cross AC 4T
Fit for Rieju MRT Racing 125 AC 4T
Fit for Rieju MRX 125 (MR4T) AC
Fit for Rieju RS2 125 4T AC 2005-2010
Fit for Rieju Tango 125 4T AC 2006-2018

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

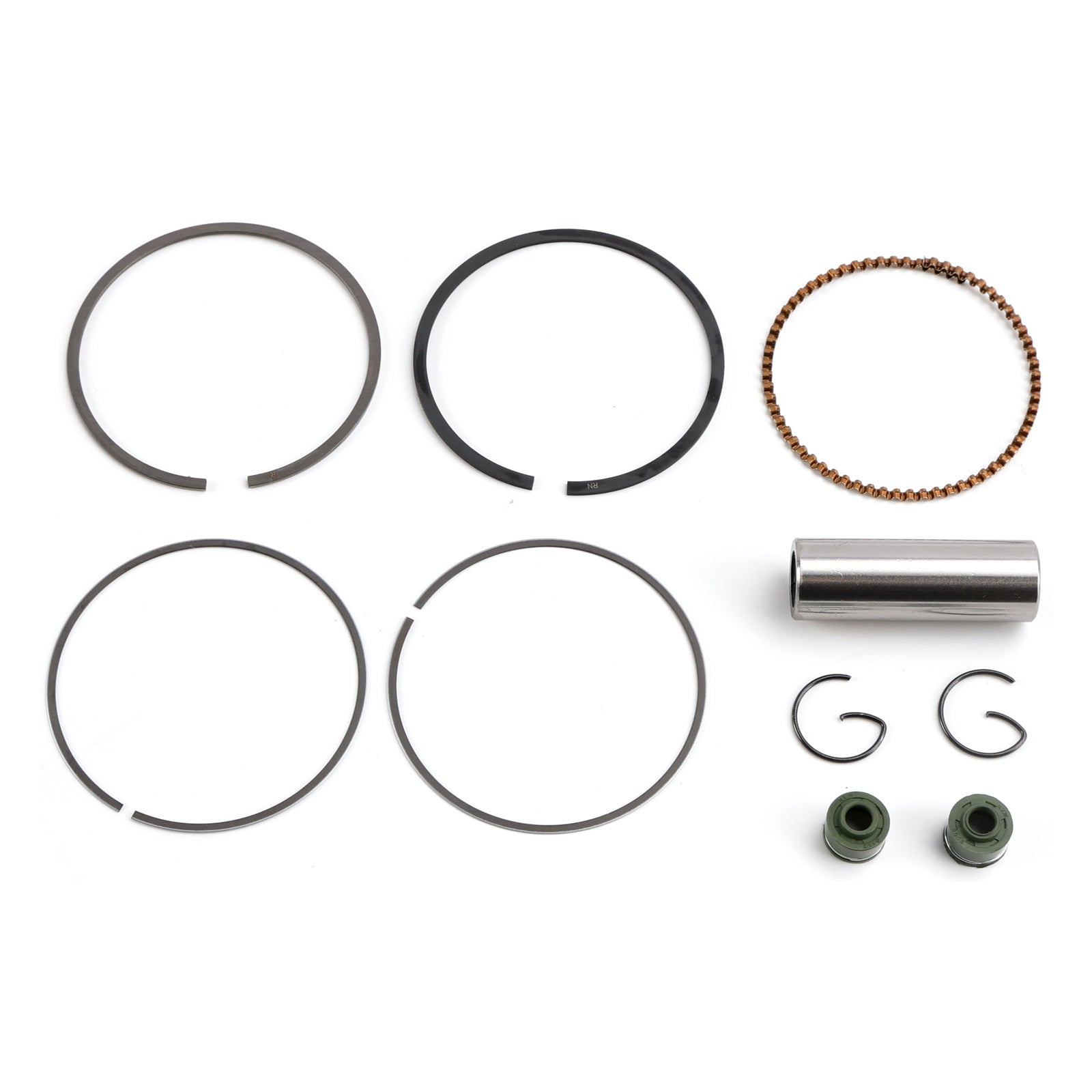

Package Includes:
1x 57mm Cylinder
1x Piston
1x Piston Ring Set
1x 15mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
2x Valve Stem Seals

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
