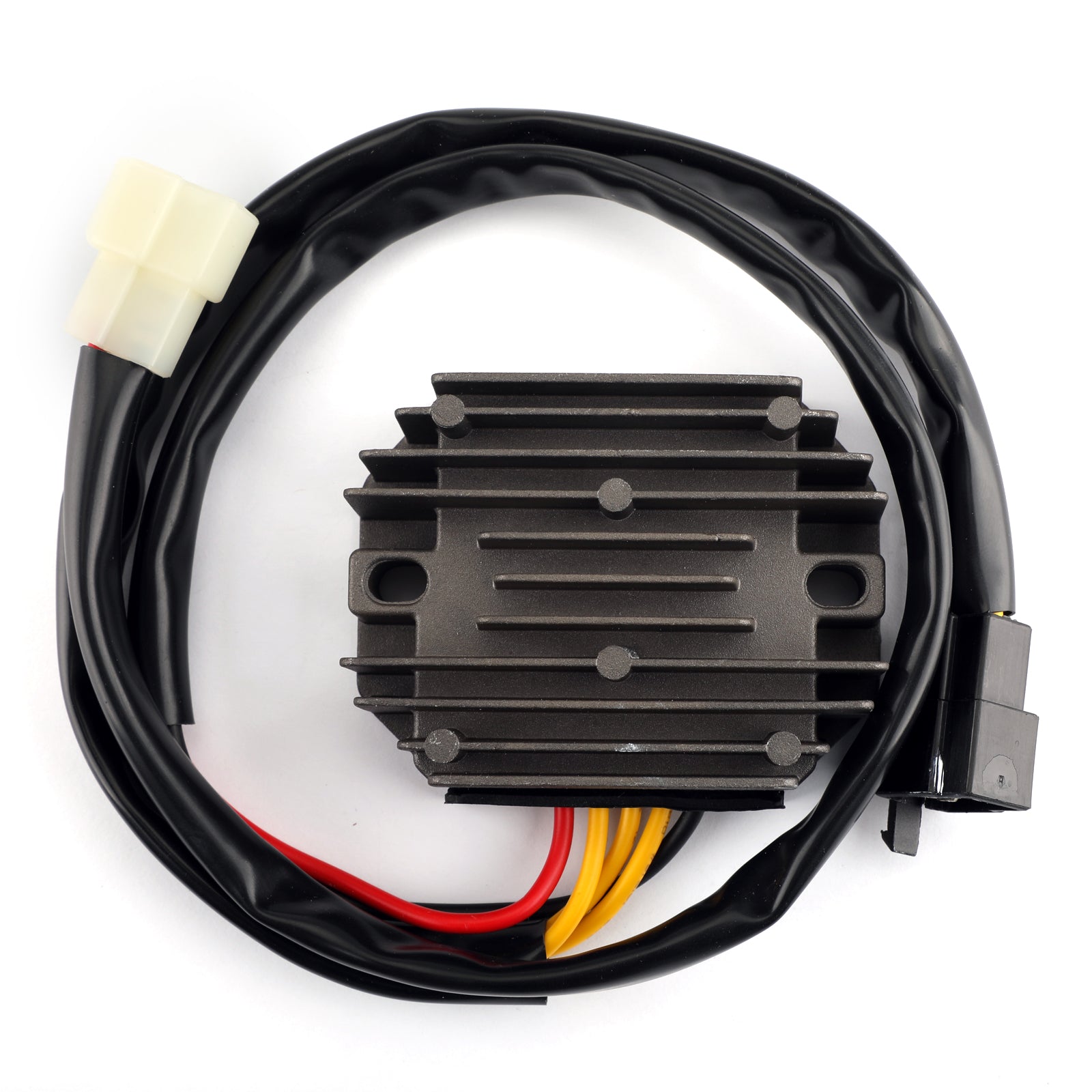

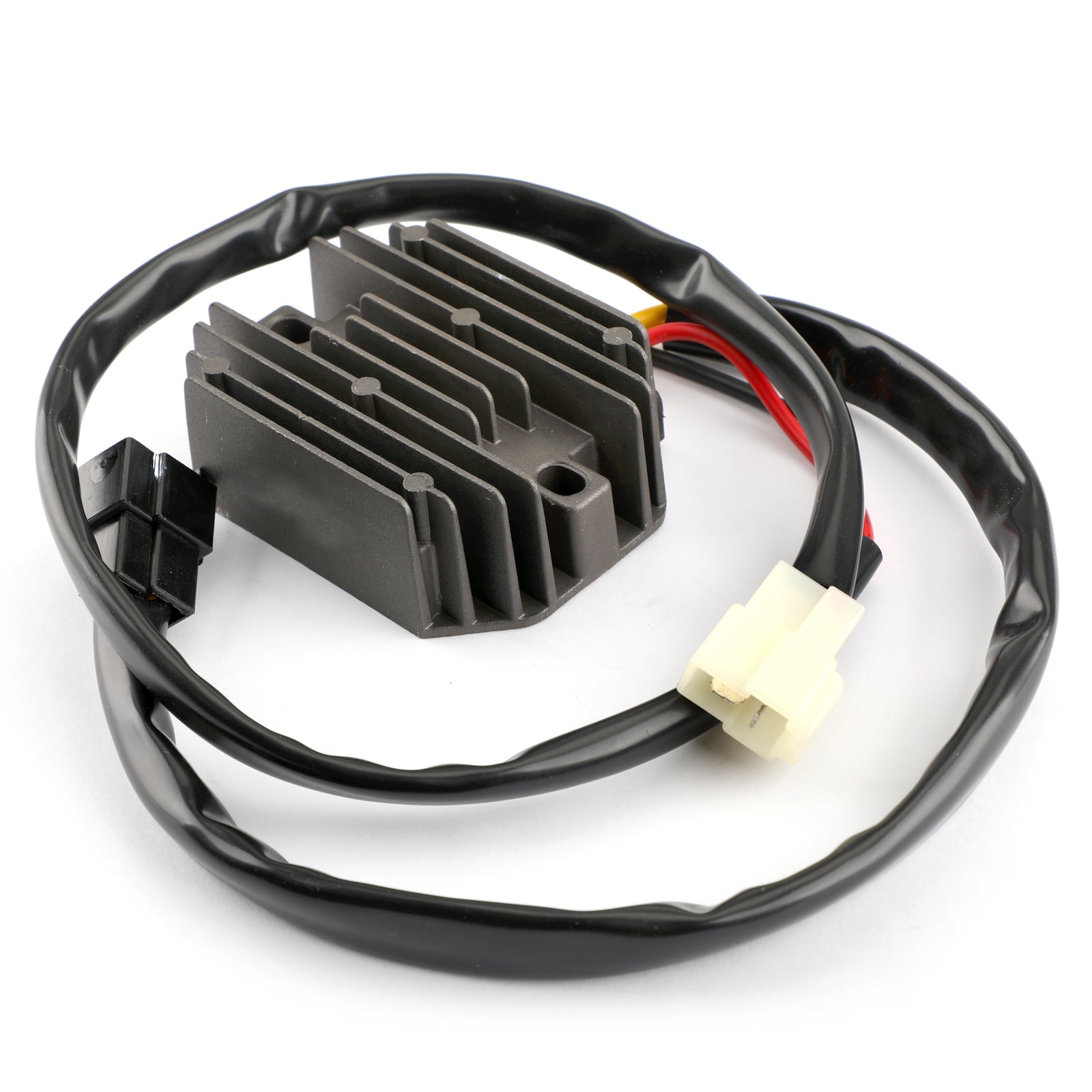

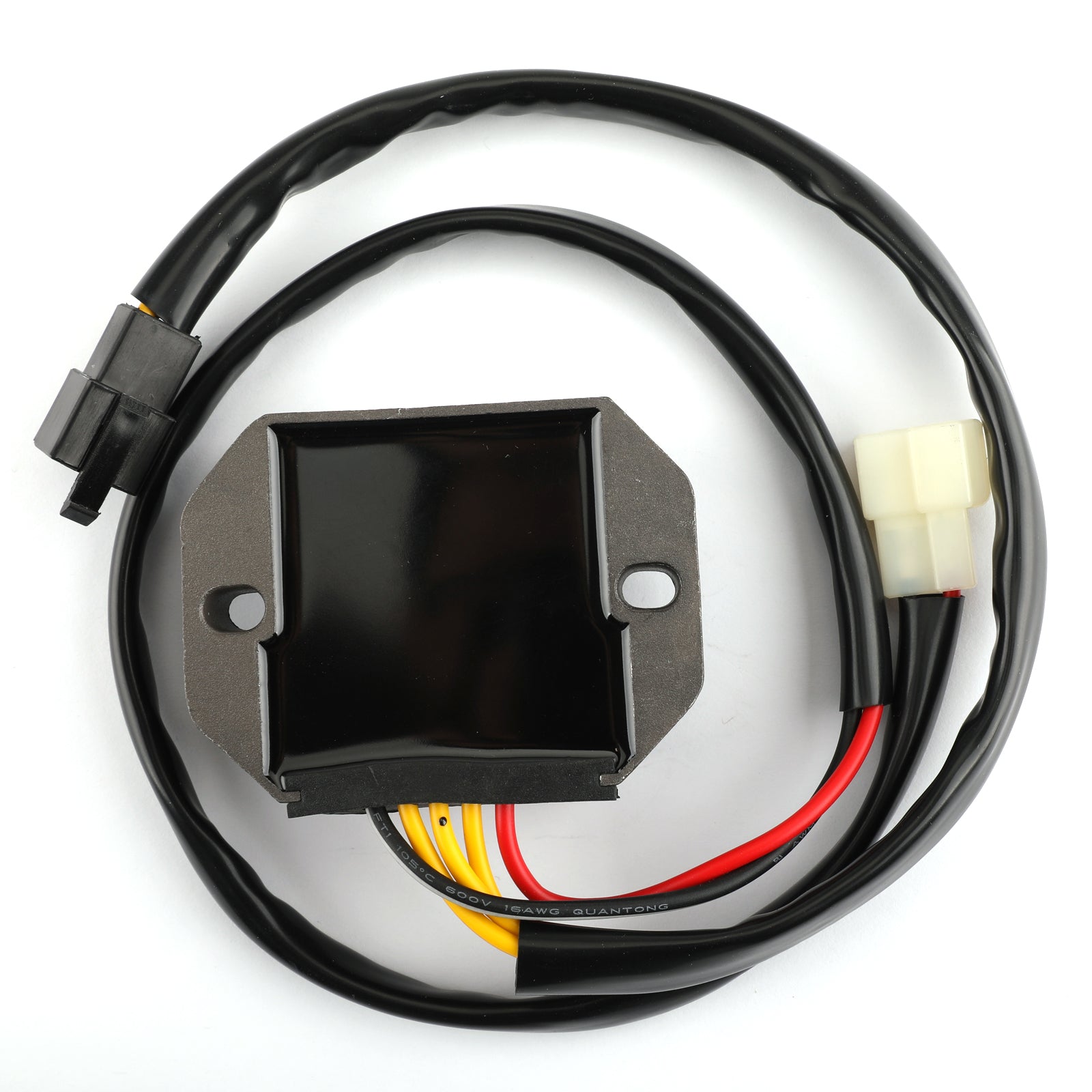

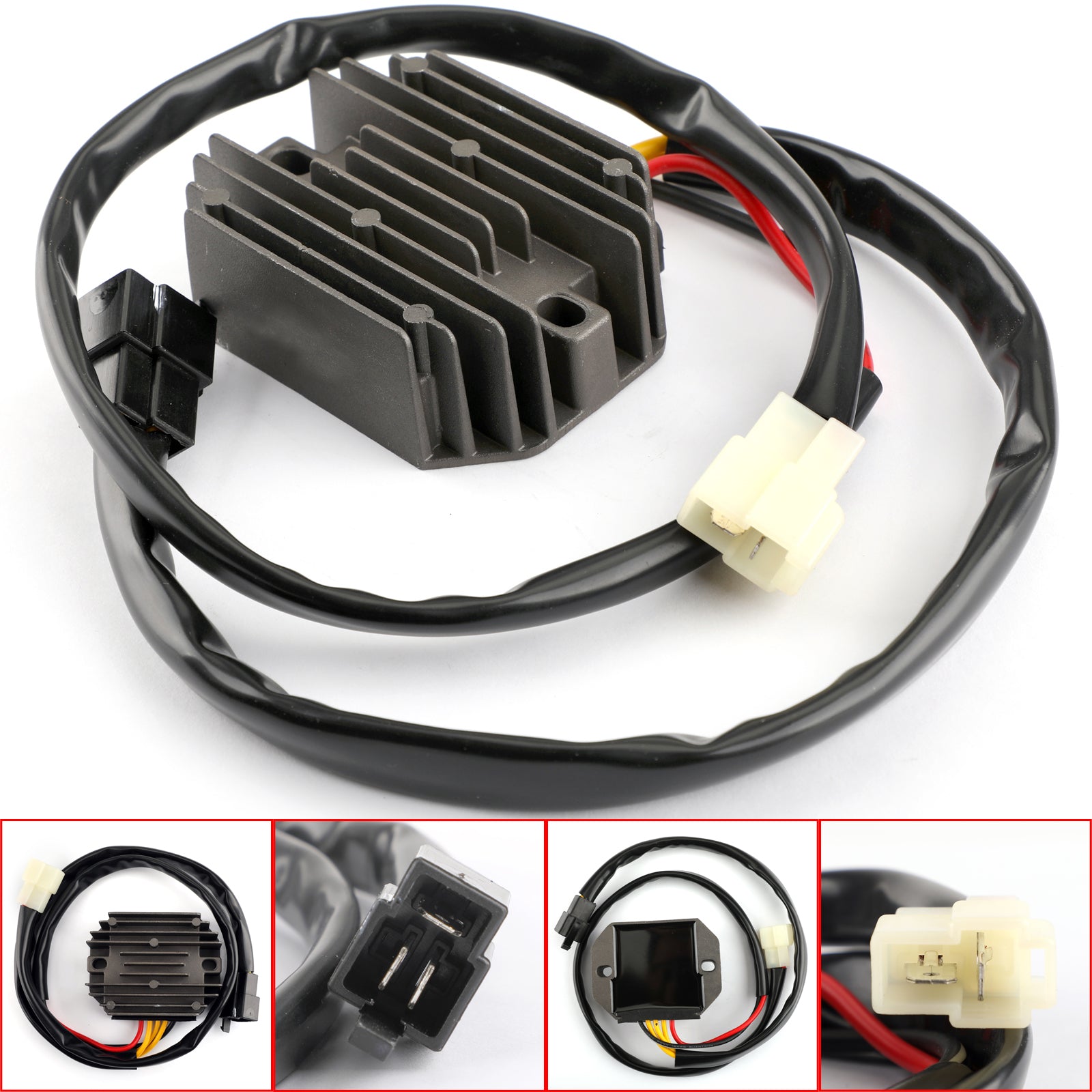

Voltage Regulator Rectifier Fit For Suzuki RG125 DF125 DR125 TS200 DF200 DR200 1991-2013

Features:
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required.
Higher grade of electric components.
Improved heat sink and charging capabilities.
The quality exceeds or meet the OEM equipment.
All products shipped are tested.

Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator Rectifier

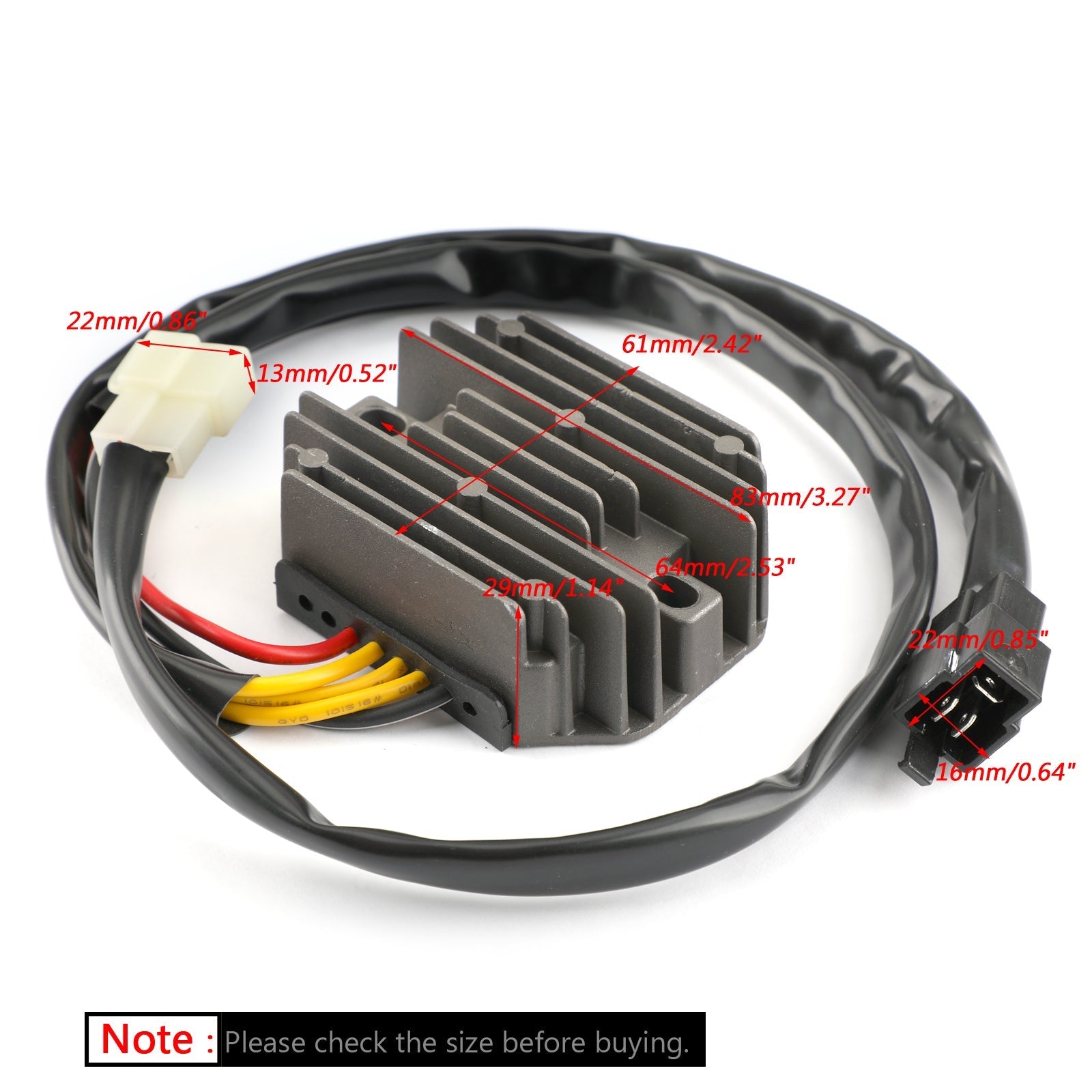

Dimensions :
Width : 61 mm / 2.42 inches
Length : 83 mm / 3.27 inches
Height: 29 mm / 1.14 inches
Fixation holes center to center : 64 mm / 2.53 inches

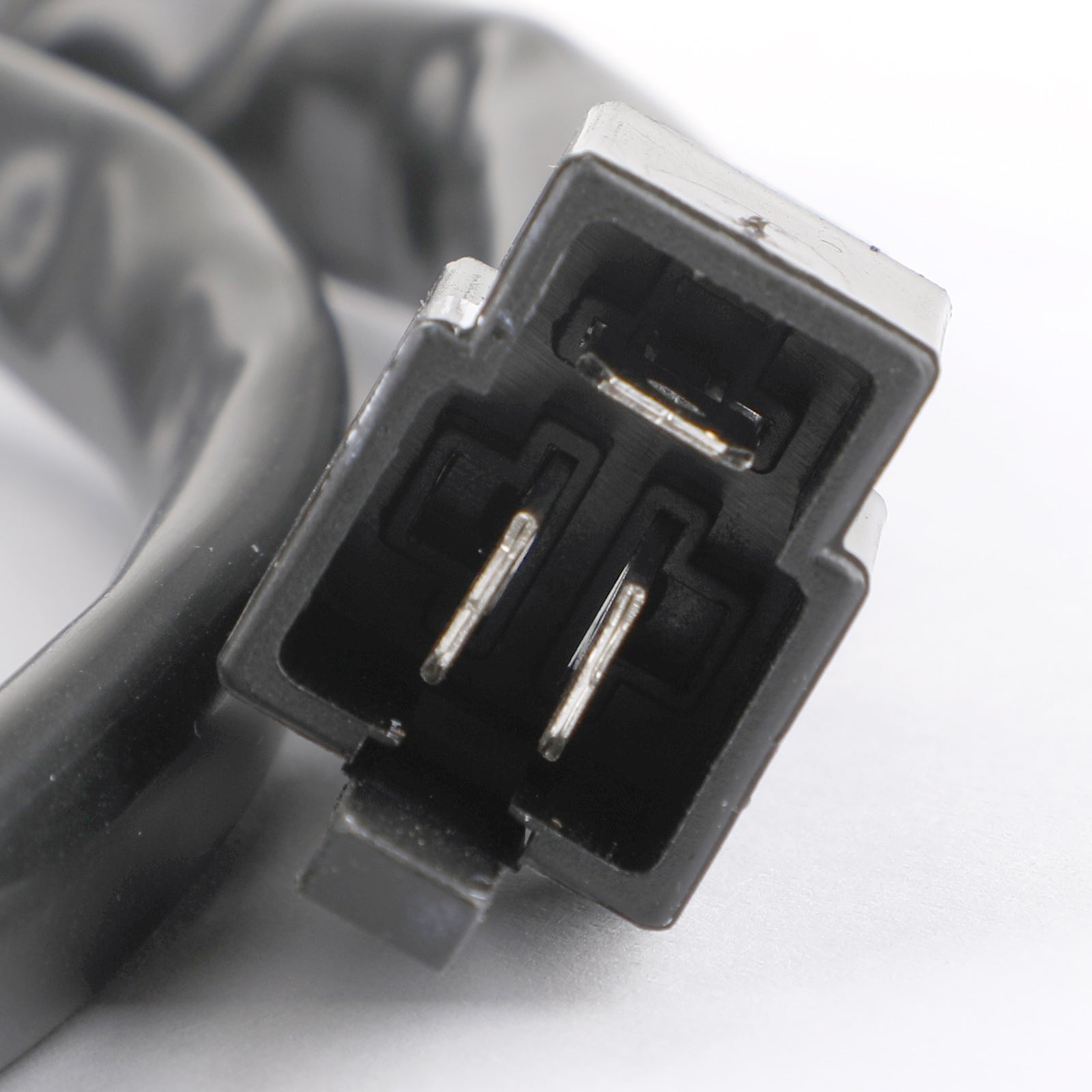

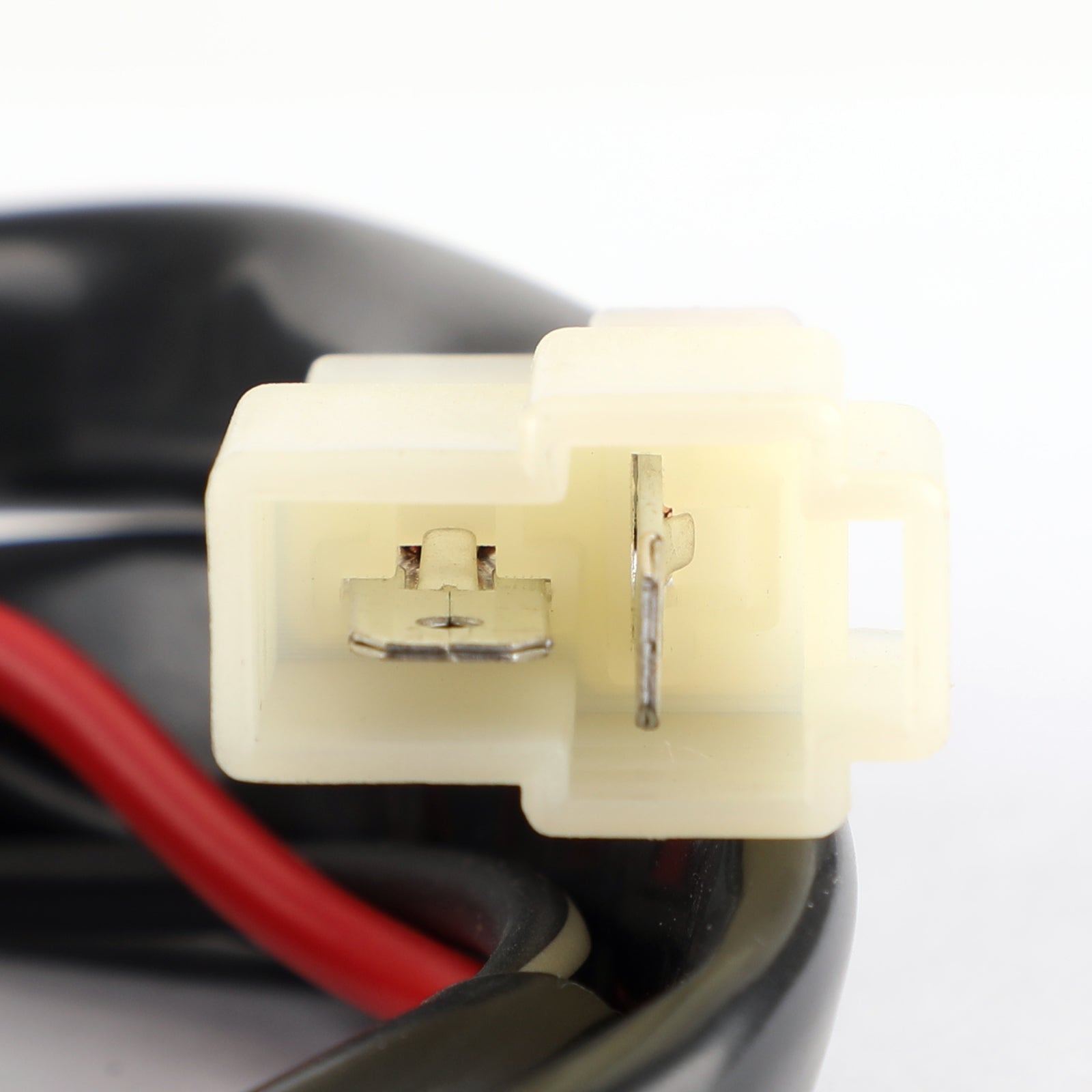

Number of plug interface pins: 5
Number of Plug: 2
Number of Wires: 5

Plug's Length(Long Wires One): 22 mm / 0.86 inches
Plug's Width(Long Wires One): 13 mm / 0.52 inches

Plug's Length(Short Wires One): 22 mm / 0.85 inches
Plug's Width(Short Wires One): 16 mm / 0.64 inches

Replaces Part Number:
32800-08D10

Fitment:
Fit for Suzuki TS200 1991-1993
Fit for Suzuki DF125 1999-2000
Fit for Suzuki DF200 1996-1999
Fit for Suzuki DR125 DR125SE 1994-2002
Fit for Suzuki DR200 DR200SE 1996-2013
Fit for Suzuki RG125 RG125F 1992-1994

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x Voltage Regulator Rectifier

Note:
Before installing your new voltage regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
