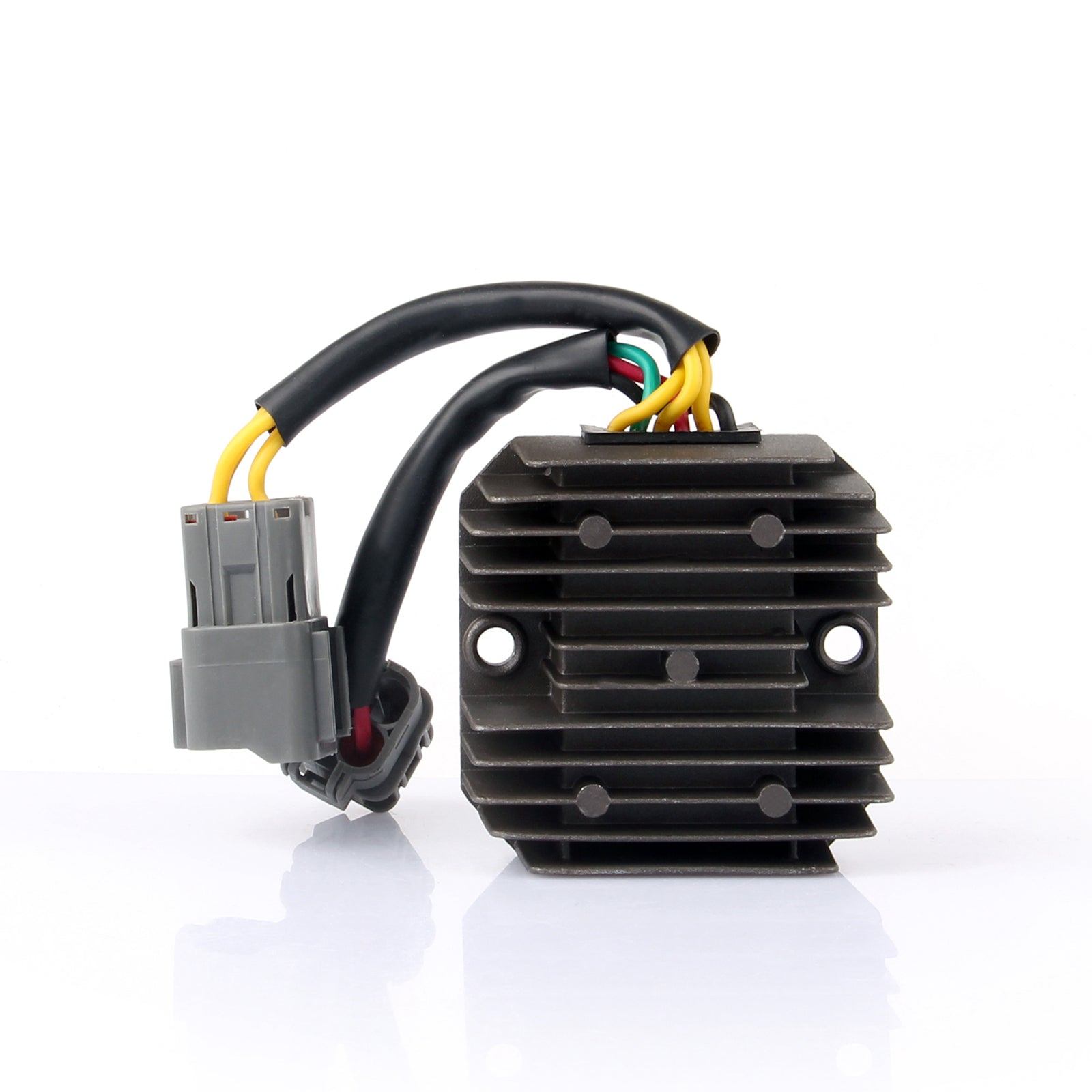

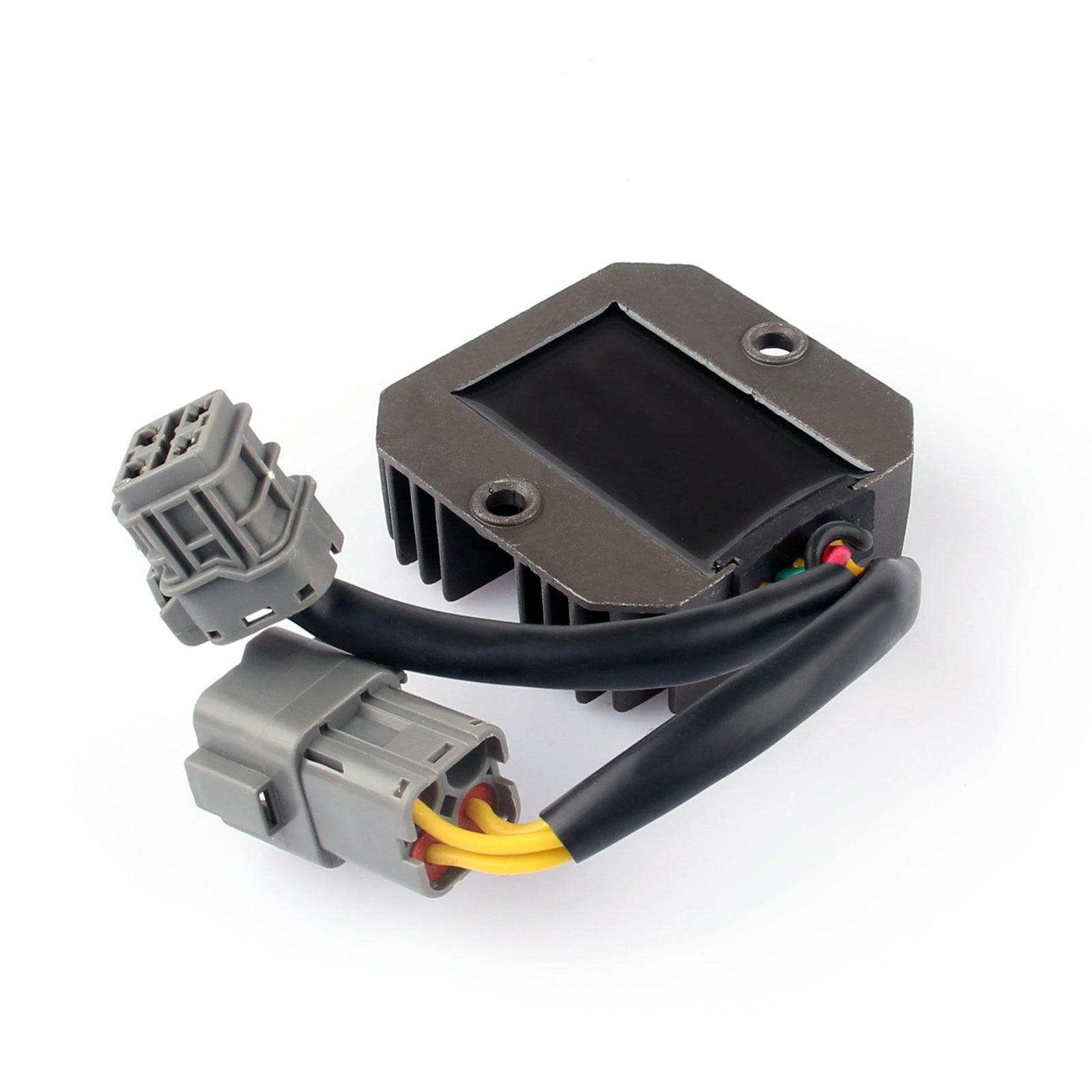

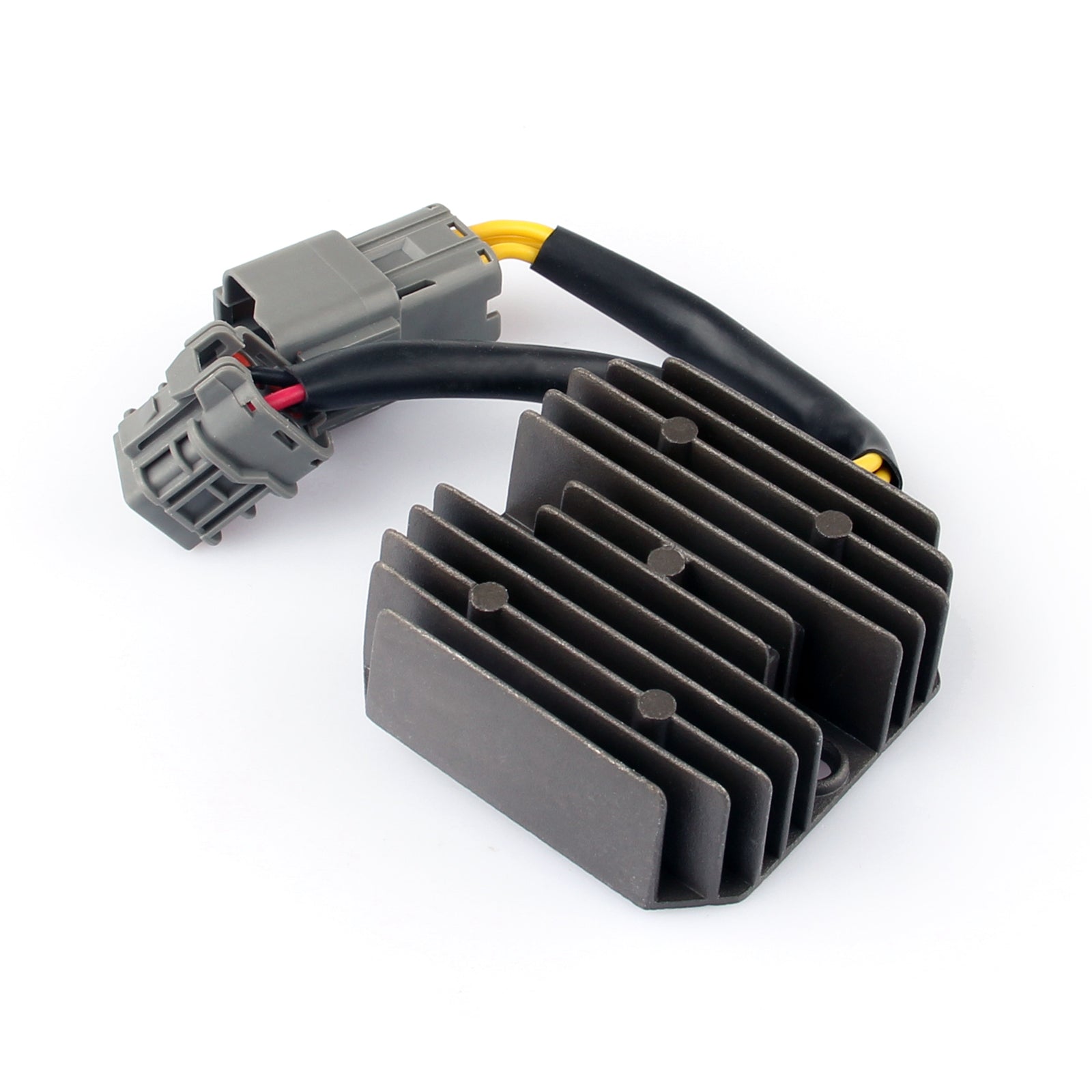

Voltage Regulator Rectifier Fit for Kymco Maxxer KXR MXU Mongoose 50 150 250 300

Features:
OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
All products shipped are tested.
Instruction is NOT included.

Attention:
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator / Rectifier

Other specifications :
Number of wires: 6

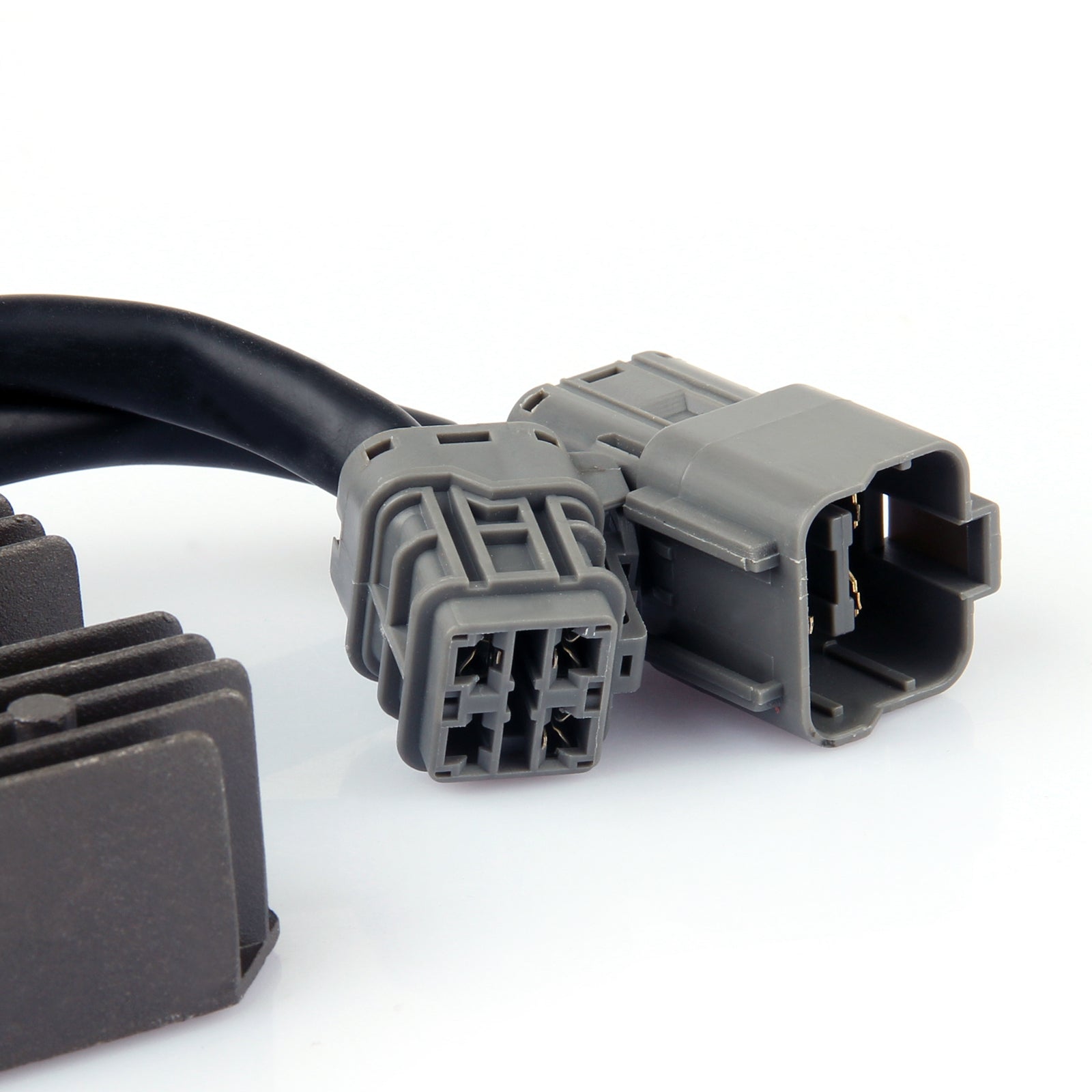

Number of plugs: 2
Number of pins: 3 + 3

Terminal ID:
Yellow - Power Coil
Yellow - Power Coil
Yellow - Power Coil
Black - Ignition Switch
Red - Battery (+)
Green - GND

Replacement Part Number:
31600-LBA7-900
S31600-RCA-000
S31600RCA000

Fits Models:
It should be fits Kymco ATVs: MXU 150, 250, 270, and 300 - All years all versions. (please check the details before you purchase)
It should be fits Kymco ATVs: Mongoose 250, 270, and 300 - All years all versions. (please check the details before you purchase)

Fit for Kymco KXR 250 2006-2015
Fit for Kymco Maxxer 250 2010-2016
Fit for Kymco Maxxer 300 T3B 2020-2021
Fit for Kymco Maxxer 300 2006-2016
Fit for Kymco Maxxer 300 SE Euro 2
Fit for Kymco Maxxer 300 US Euro 2
Fit for Kymco MXU 150 X
Fit for Kymco MXU 150
Fit for Kymco MXU 250 2004-2005/2007-2016
Fit for Kymco MXU 300 US Green Line
Fit for Kymco MXU 300 US
Fit for Kymco MXU 300R T3B 2018-2021
Fit for Kymco MXU 300R T3B
Fit for Kymco MXU 50
Fit for Kymco Mongoose 250 2003-2008
Fit for Kymco Mongoose 300 2005-2009
Fit for Kymco Mongoose 300 2010-2011

Fit for Can-Am Bombardier DS 250 2006-2017

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x Voltage Regulator Rectifier

Note:
Before installing your new regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.

How to distinguish CDI box with AC fired or CDI box with DC fired?
If headlights turn on without the engine running(with just the key on), it is a DC system. In the AC system, turning headlights on require the engine to be running. Another indication is, if the engine will only runs with a battery it is DC. If it will runs without a battery, it is a AC system.

What does the voltage regulator do?
This regulator has the task of converting the alternating voltage (AC) generated by the alternator into the direct voltage (DC) 12V used in the vehicle electrical system and keeping the voltage within a certain range.
The voltage regulator is also responsible for ensuring that the battery is charged and that the light bulbs do not burn out.

How do I know if the charge regulator can be defective?
- Incandescent lamps burn out all the time.
- Headlights get brighter and darker.
- The battery is constantly empty.
