Raspberry Pi Compute Module 5 Expansion Board CM5 Computing Module Core Board Base Plate Type A Adapter Module

Features:

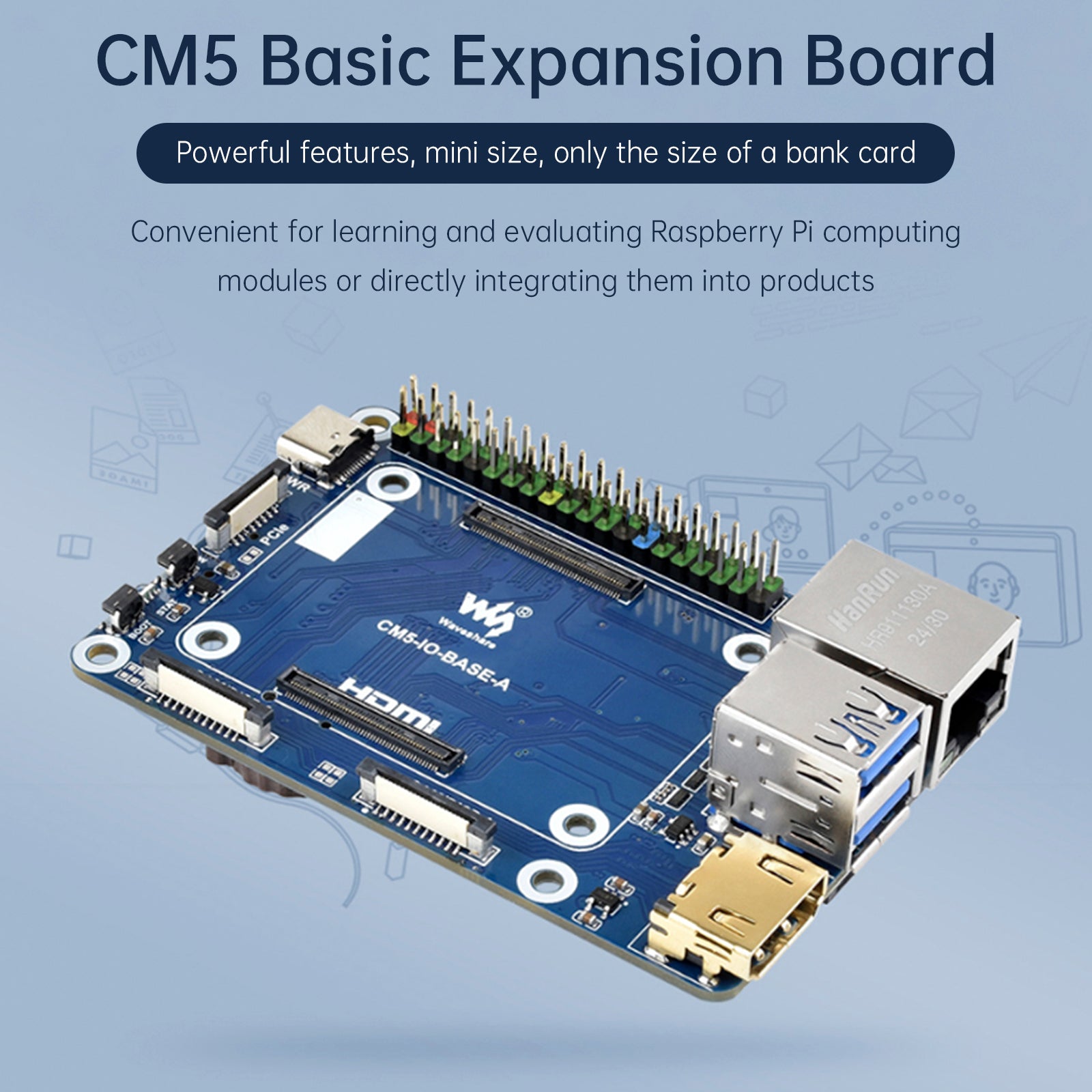

CM5 basic expansion board, powerful functions, mini size, only the size of a bank card, convenient for learning and evaluating Raspberry Pi computing modules or directly integrating into products

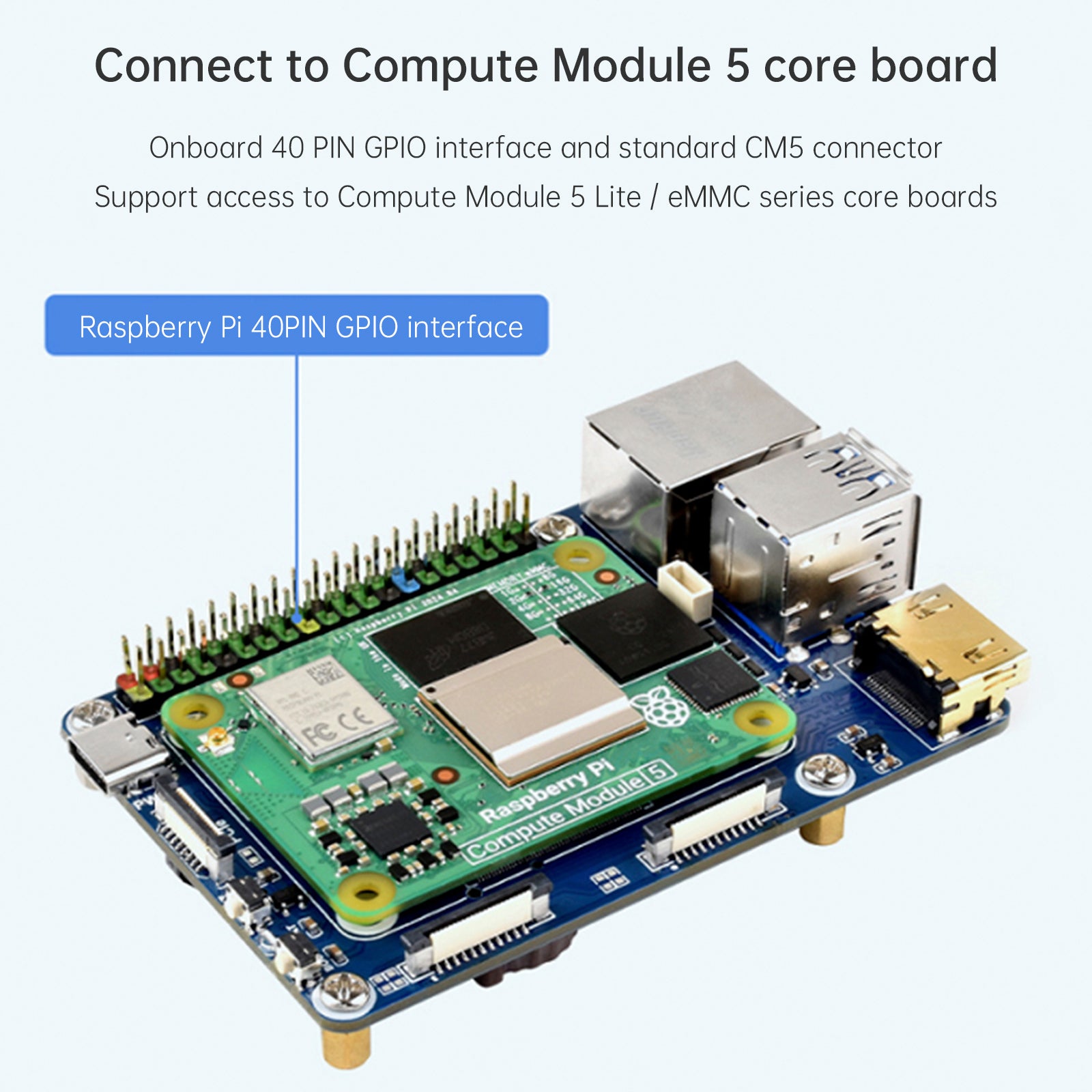

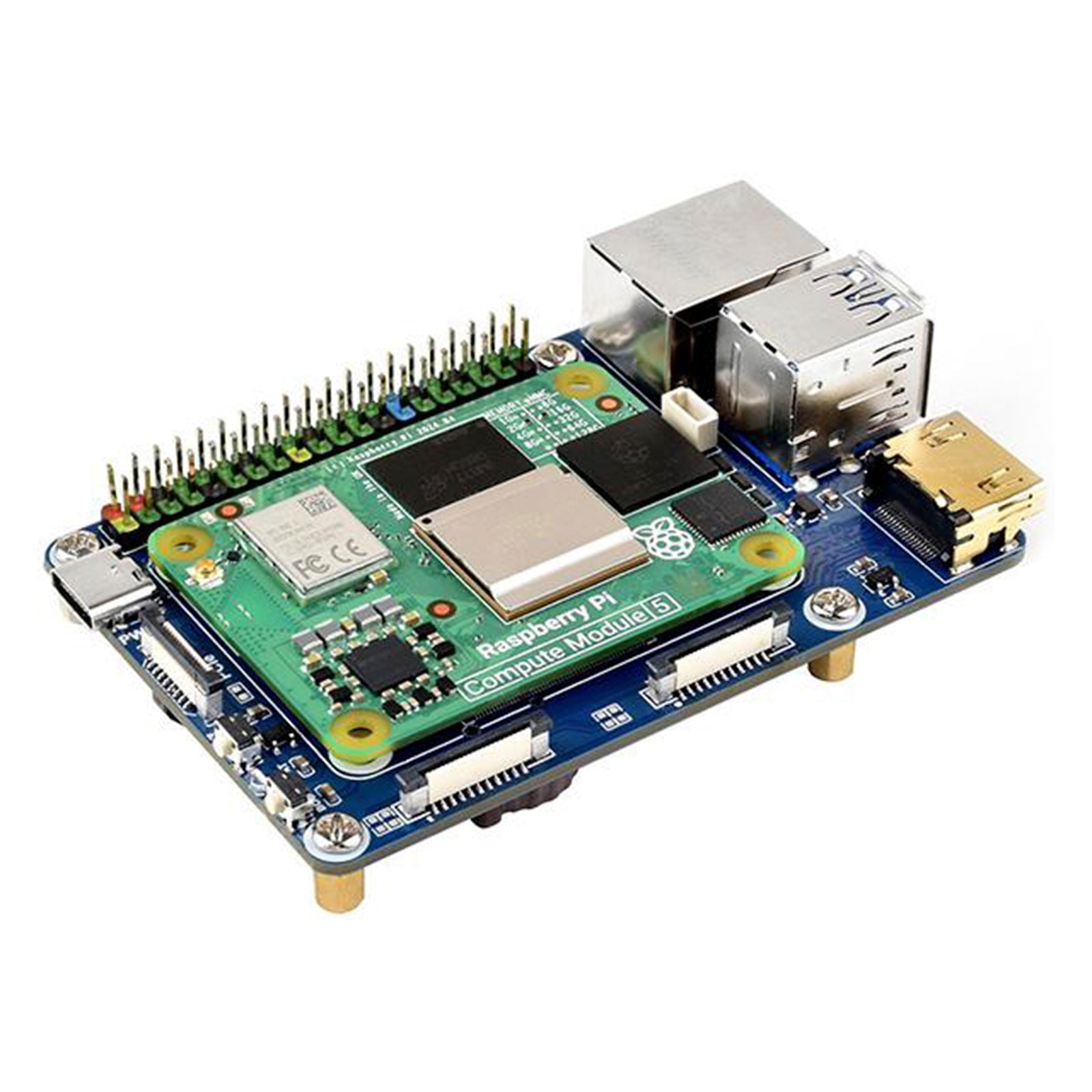

Connect to Compute Module 5 core board, onboard 40PIN GPIO interface and standard CM5 connector, support access to Compute Module 5 Lite / eMMC series core board

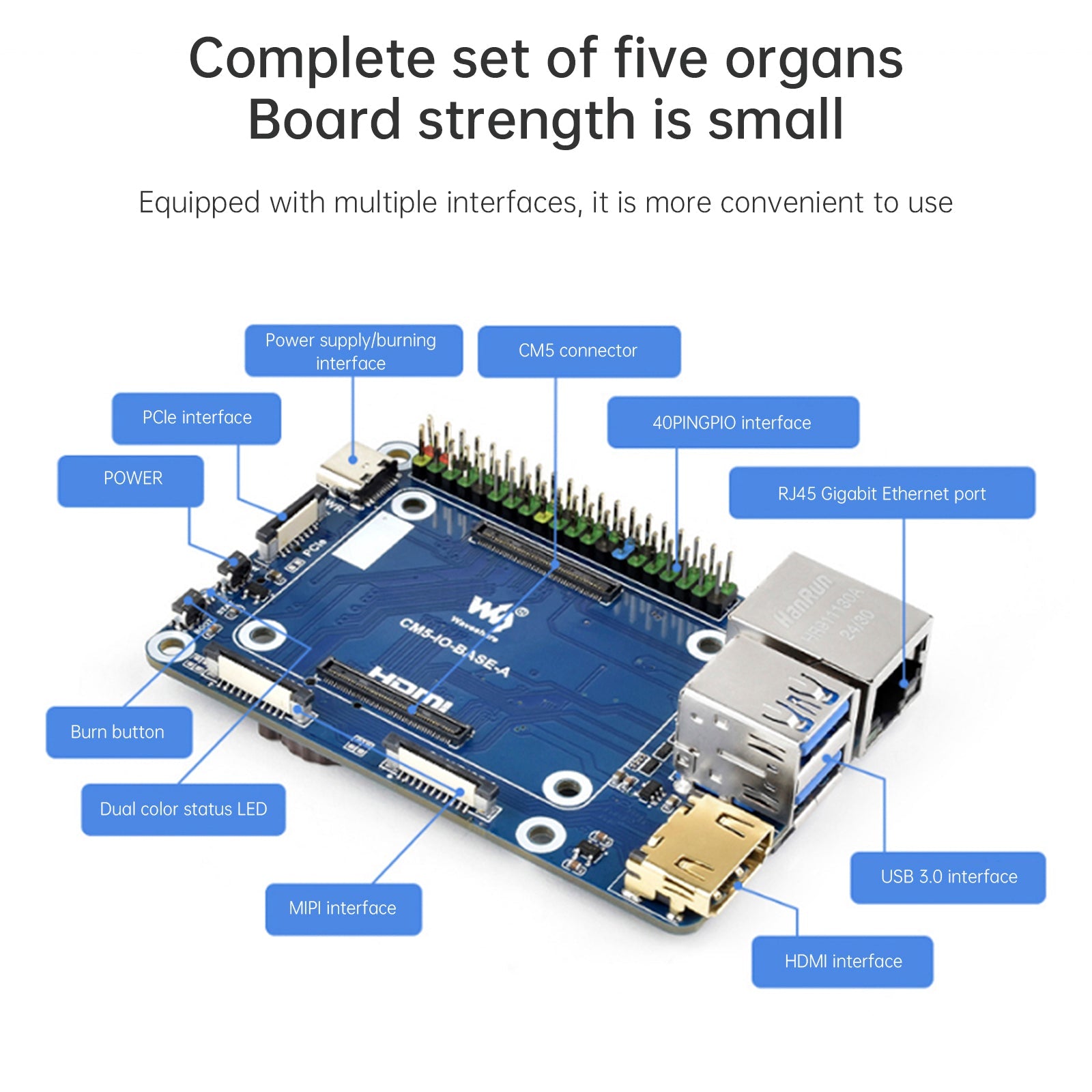

Although the board is small, it has all the necessary functions. Equipped with multiple interfaces, it is more convenient to use. Power supply/burning interface, CM5 connector, PCle interface, 40PIN GPIO interface, power button, RJ45 Gigabit Ethernet port, burning button, two-color status LED, USB 3.0 interface, MIPI interface, HDMI interface

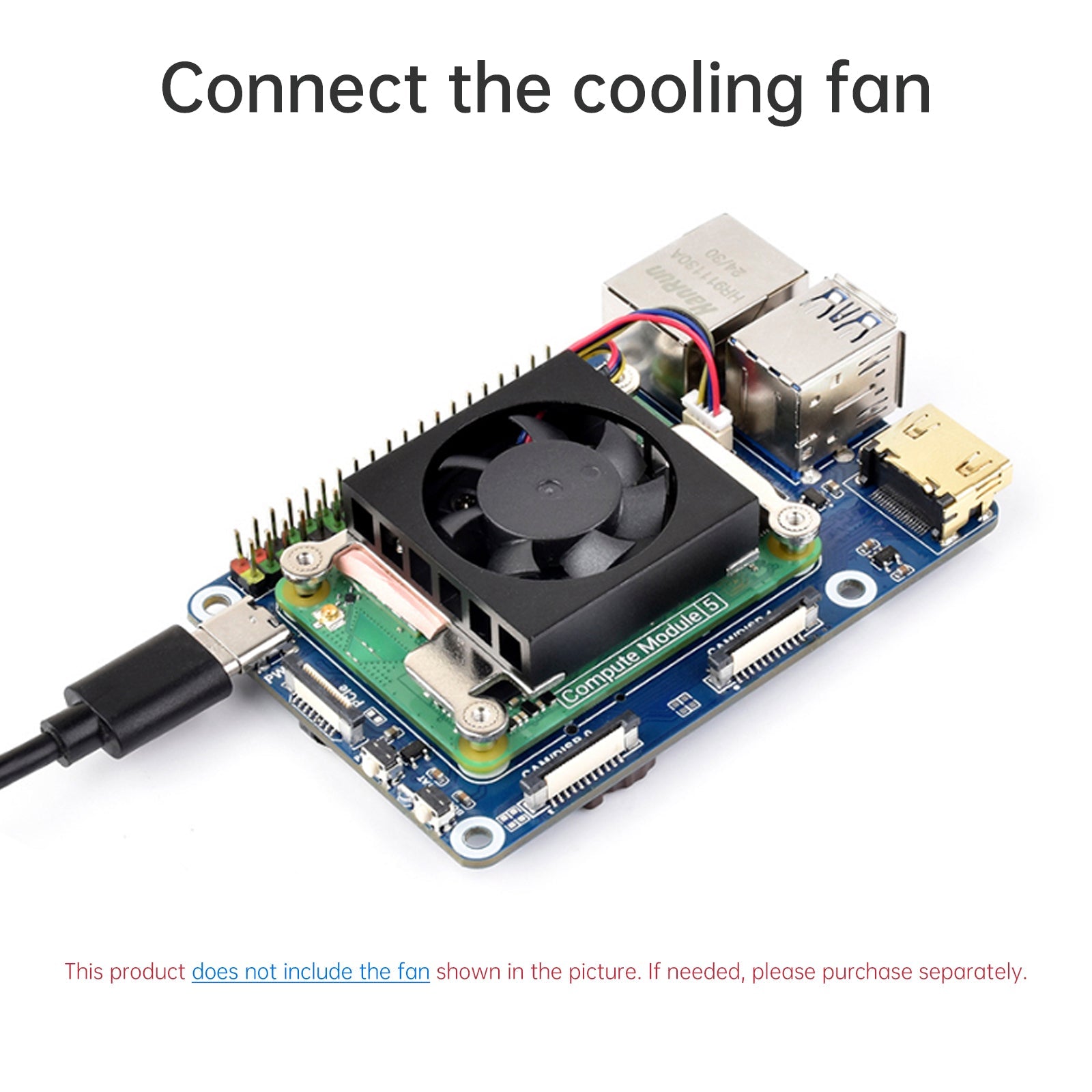

Can be connected to cooling fan

Specifications:
CM5 card holder: Applicable to all versions of Compute Module5
Networking: Gigabit Ethernet RJ45 interface
Connector:
16PIN PCle (PCle Gen2/3 x1)
Raspberry Pi 40PIN GPIO interface
USB: USB 3.2 Gen1 (Type-A) x2; USB2.0 x2 (6PIN 1mm FFC connector)
MIPI: 4-lane MIPI interface * 2 (22PIN 0.5mm FFC connector)
Video: HDMI interface * 2 (including FFC lead interface * 1), support dual 4K output

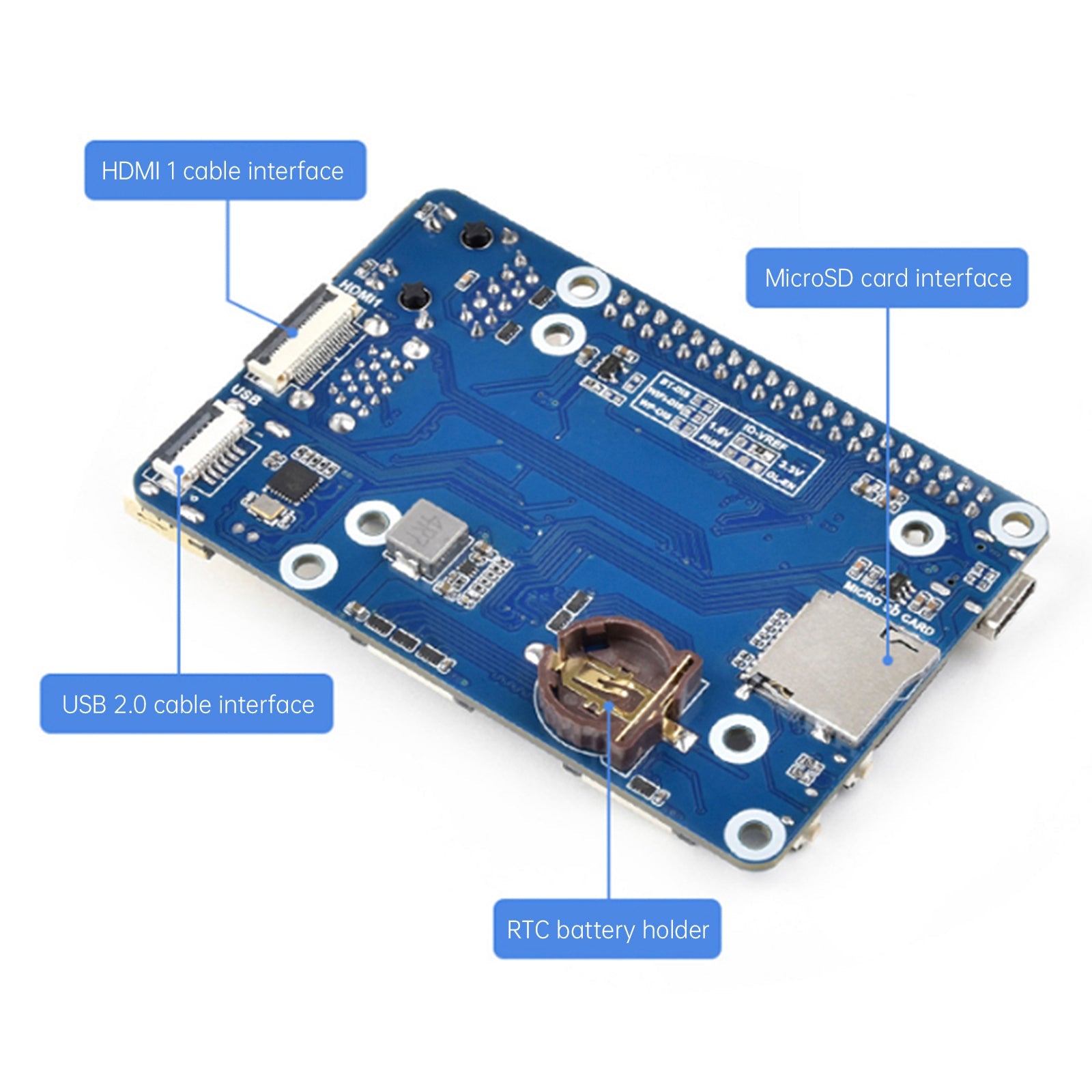

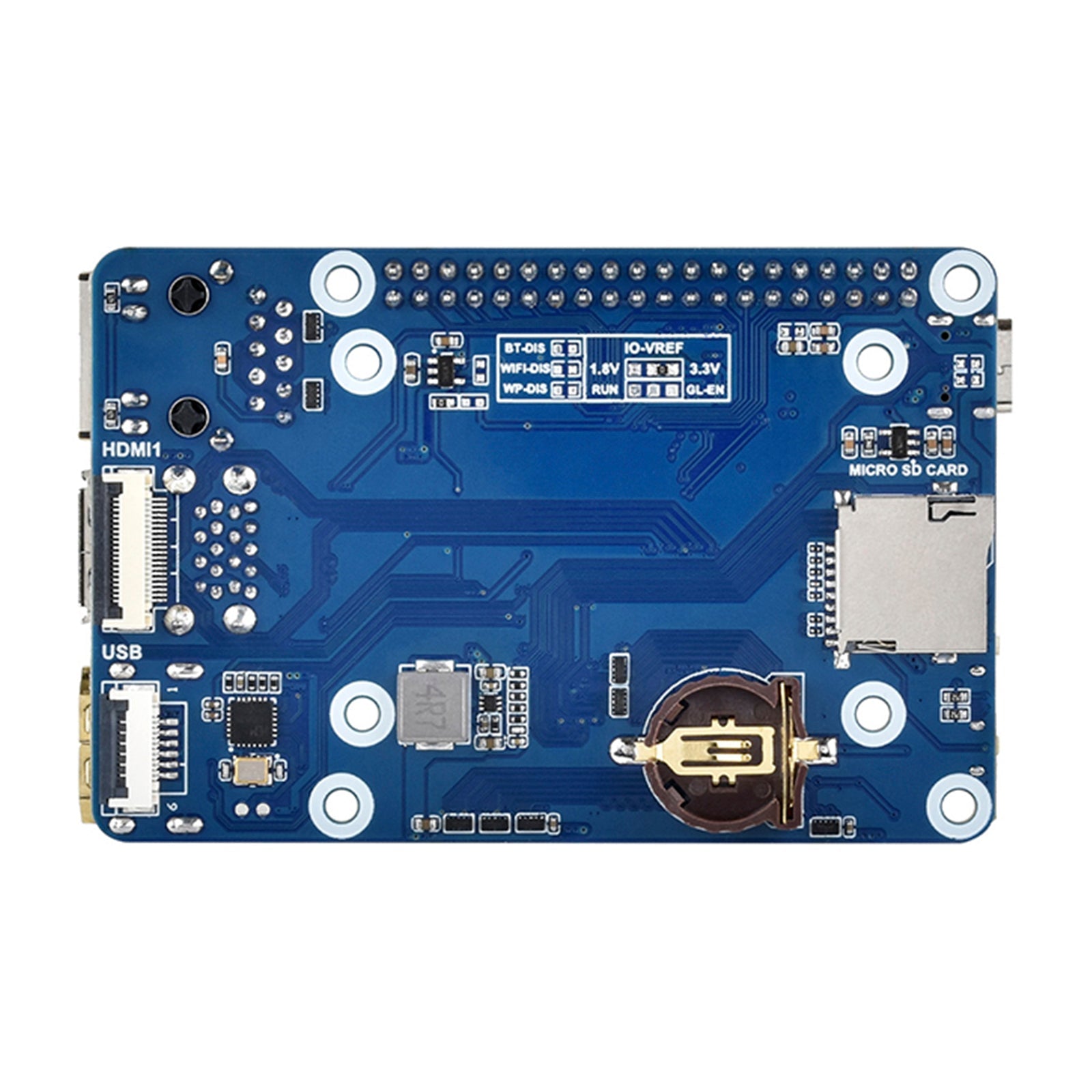

Storage: Onboard Micro SD card slot (for versions without eMMC)
Fan interface: 5V, four-pin JST-SH PWM fan connector
Power input: DC 5V 5A

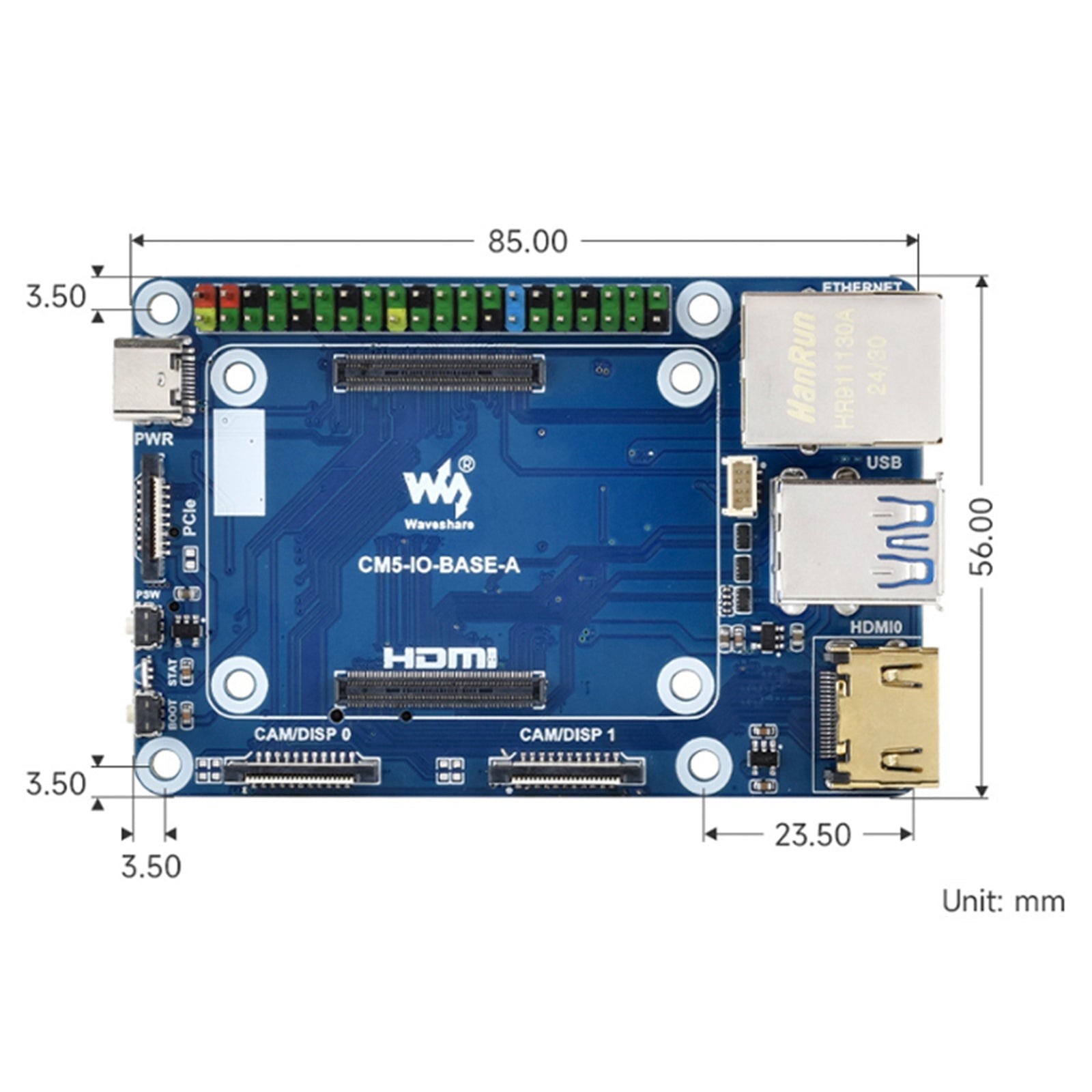

Size: 85x56 (mm)

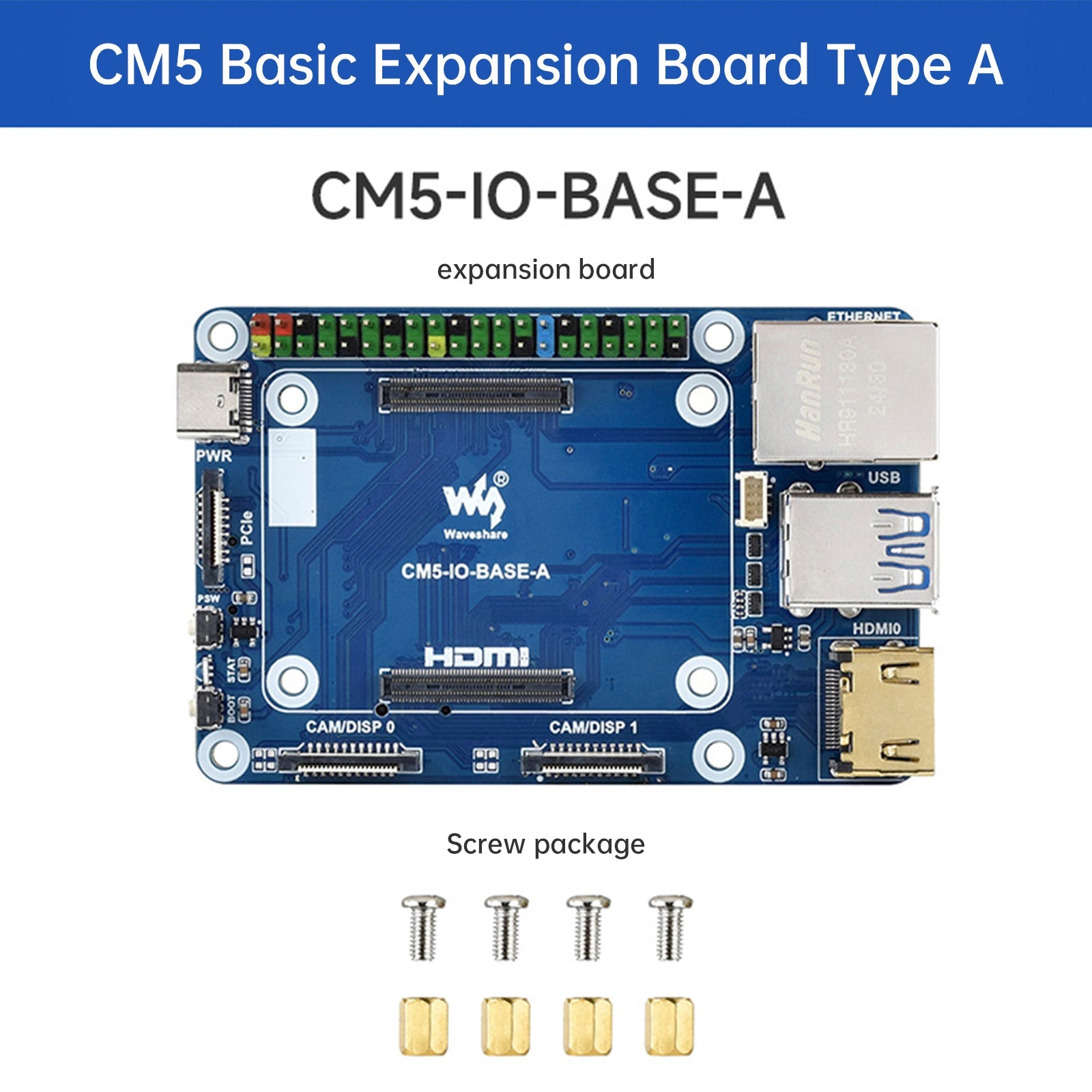

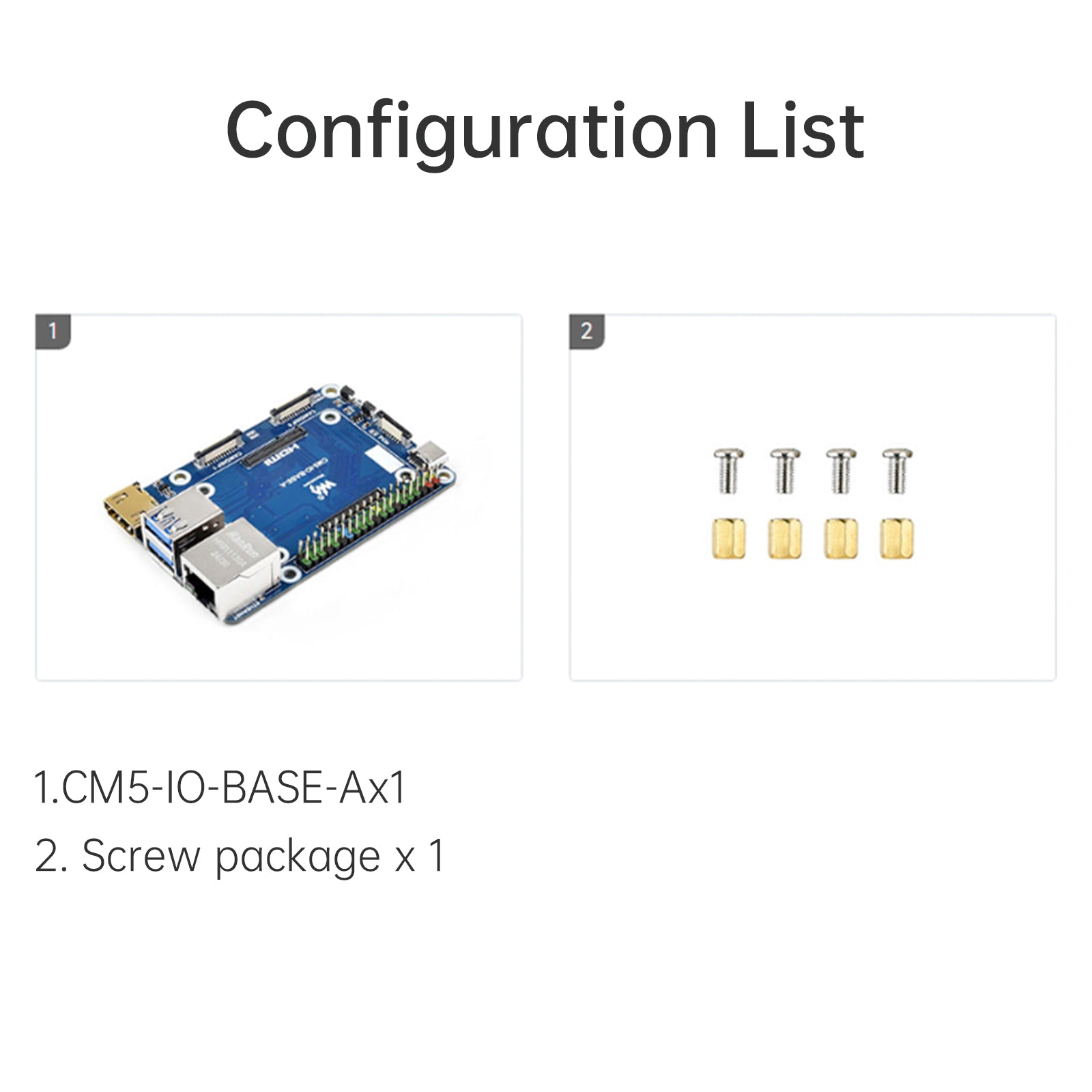

Package Included:
1x CM5-IO-BASE-A
1x Screw package
