Raspberry Pi 5 PCIe to M.2 E Key with PoE Ethernet Power Supply Adapter Board Supports Usb Bluetooth Connection

Features:

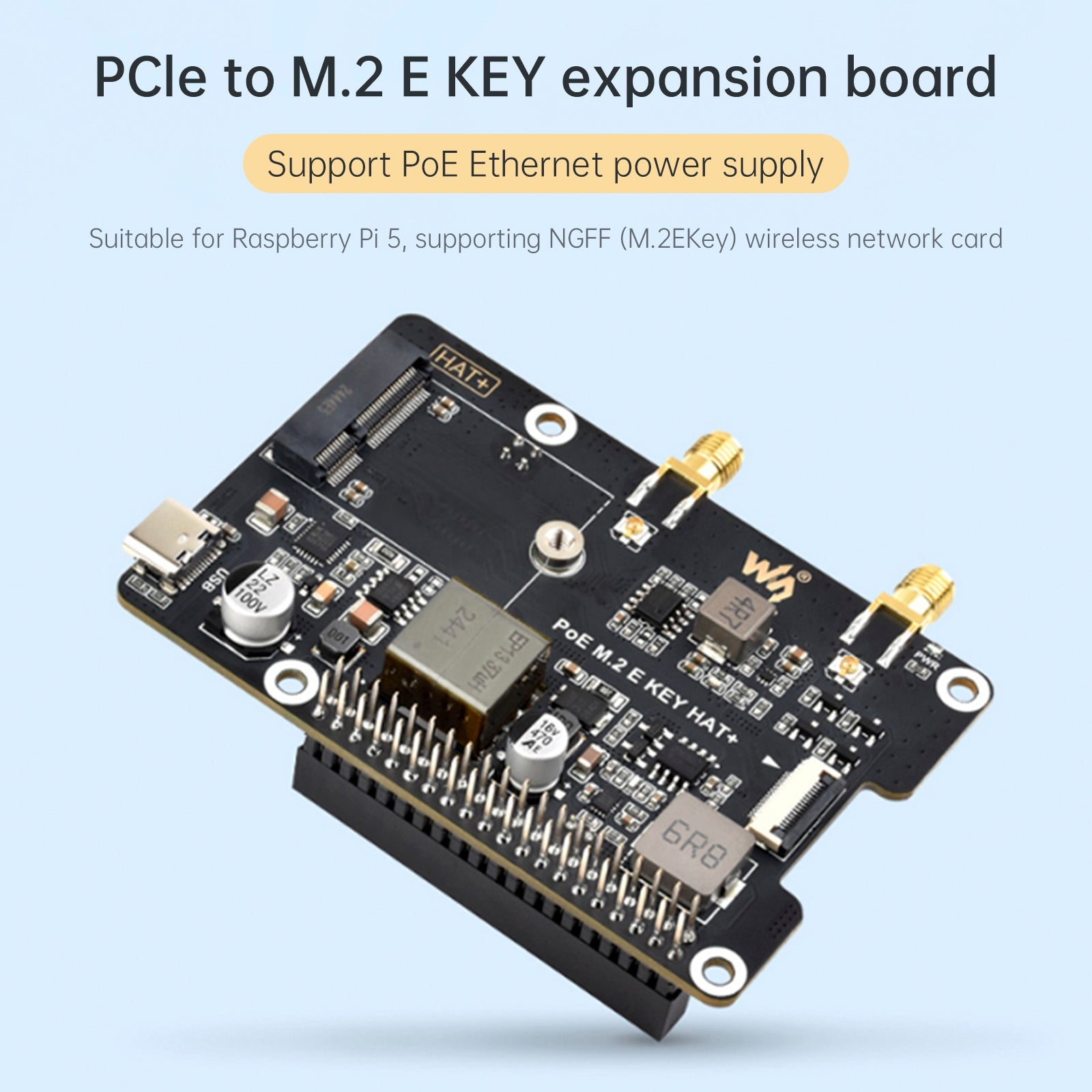

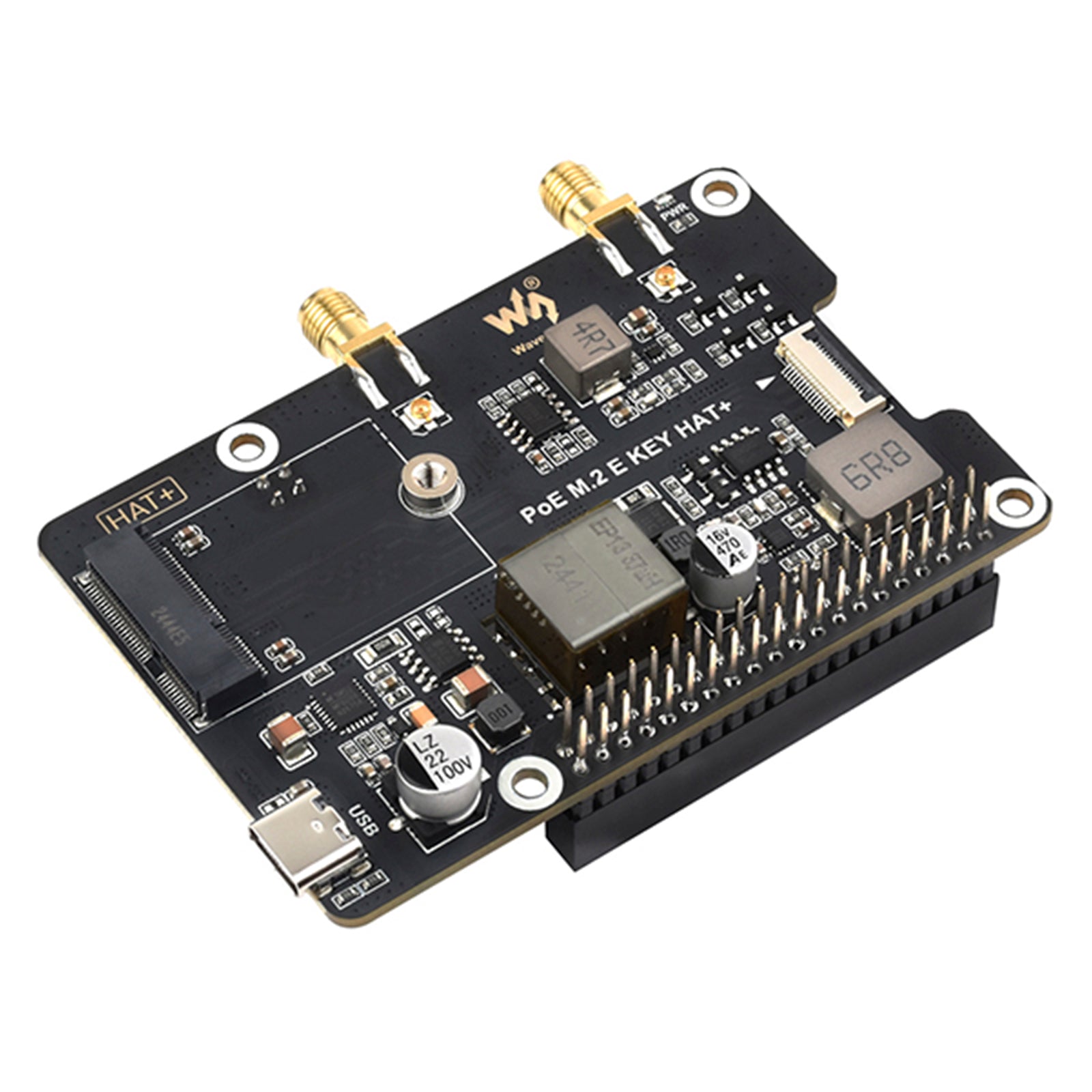

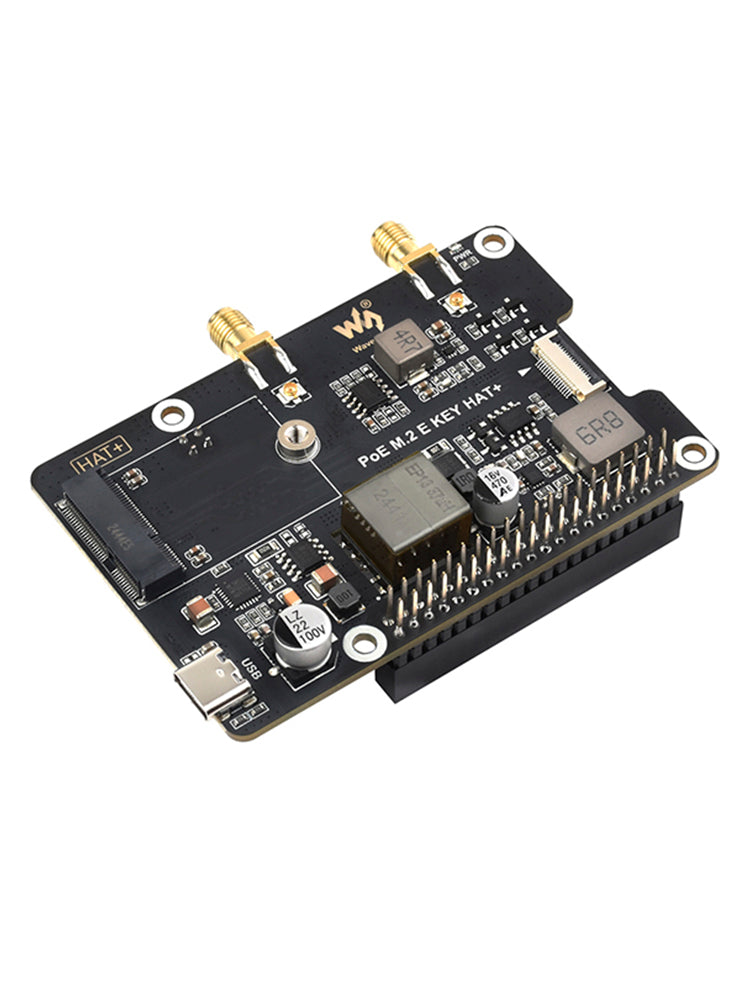

PCle to M.2 E KEY expansion board, supports PoE Ethernet power supply. Suitable for Raspberry Pi 5, supports NGFF (M.2 E Key) wireless network card
Supports various wireless network cards, supports the following modules, more adapter modules are expected. Product model: RTL8822CE, AX200, AX210, BE200

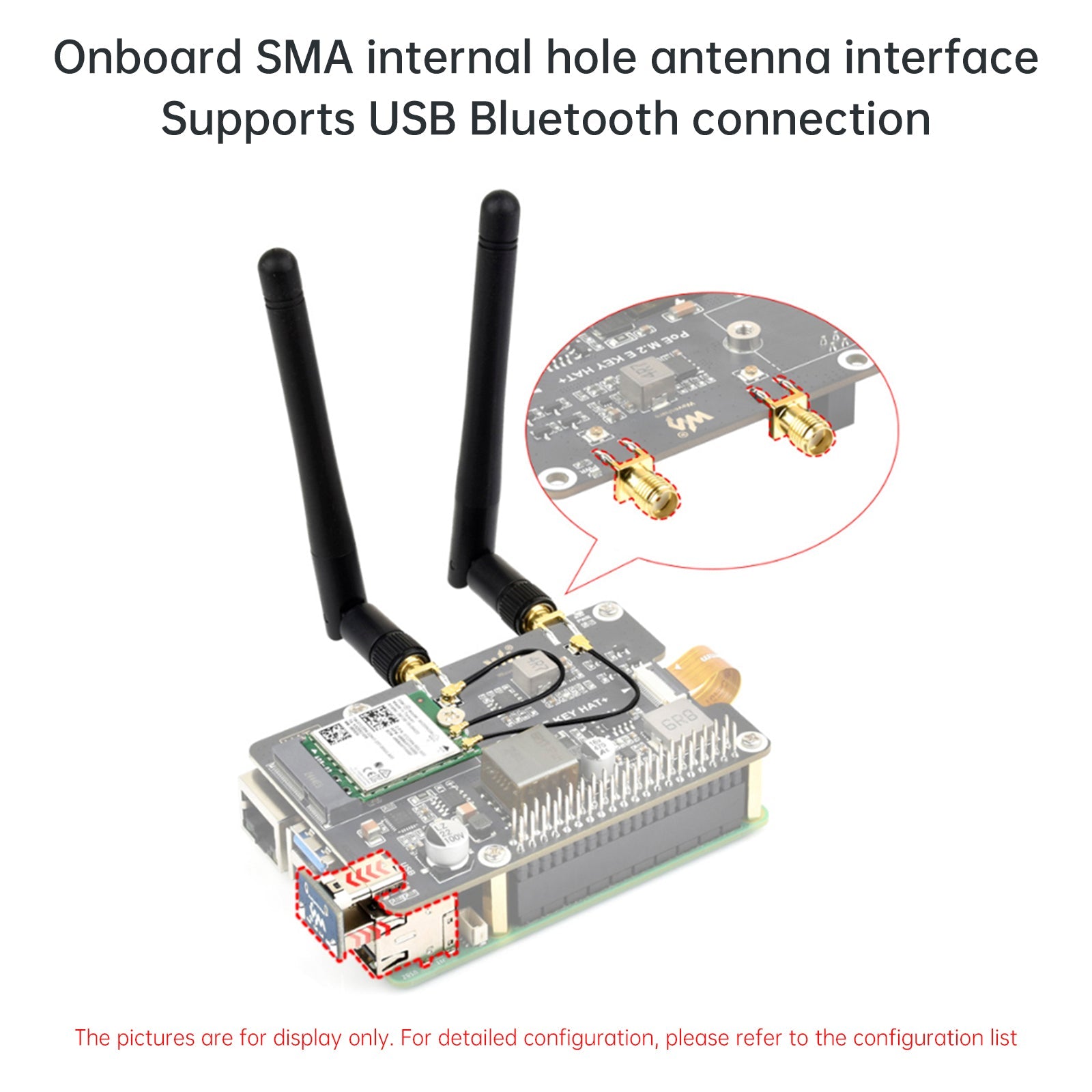

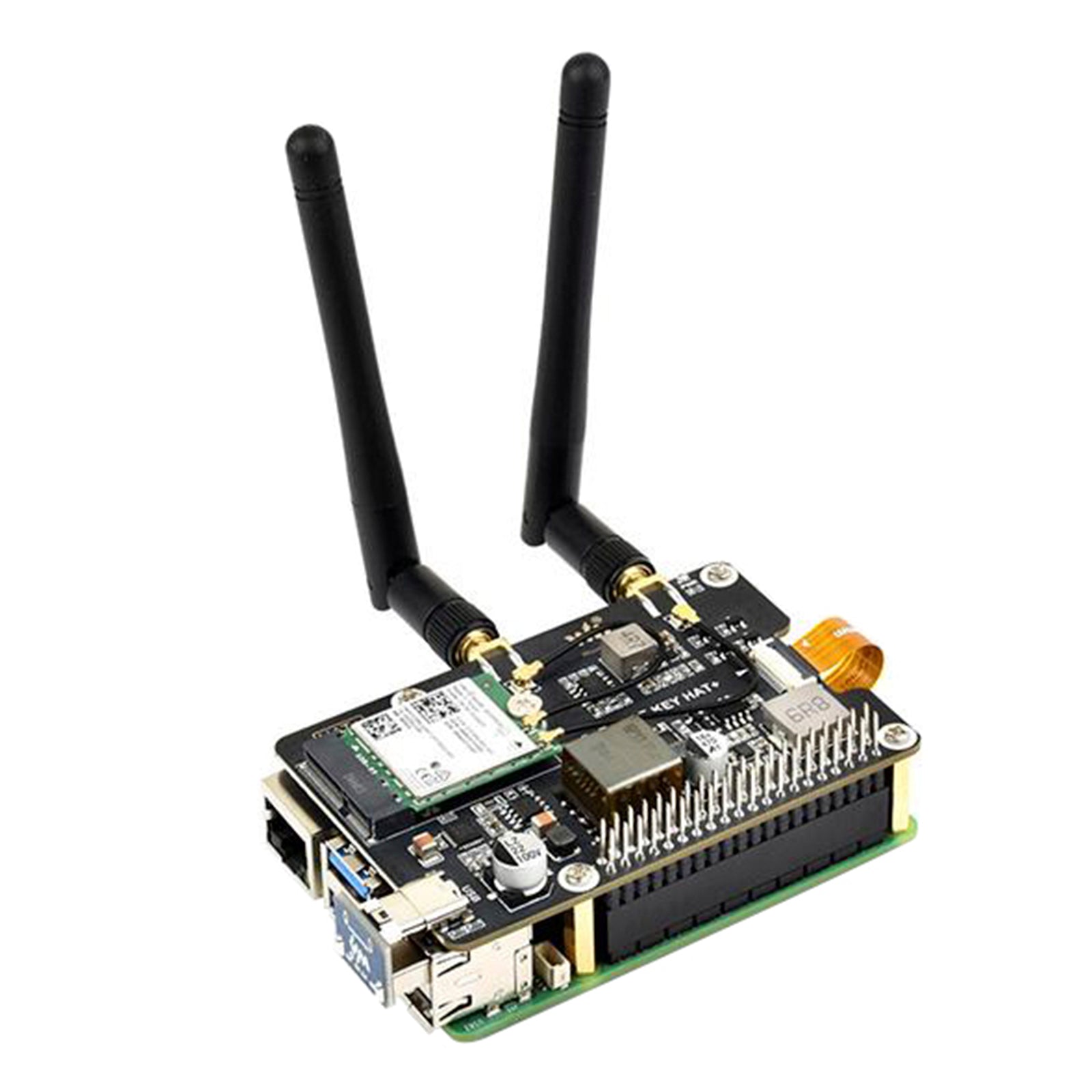

Onboard SMA internal antenna interface, supports USB Bluetooth connection, through the USB adapter board, you can input Bluetooth signals to the Raspberry Pi (USB Bluetooth connection function is limited to use after connecting to the wireless network card module)

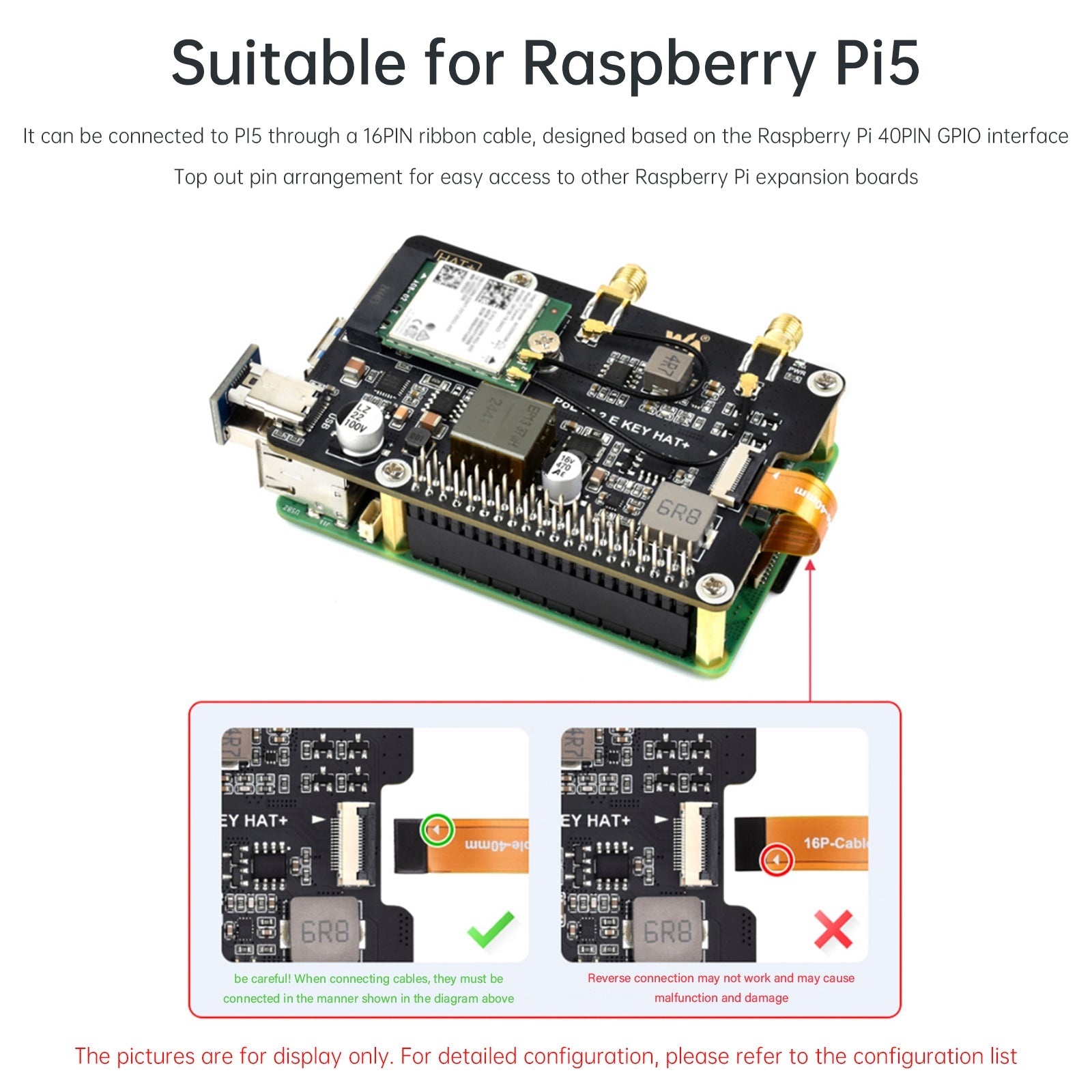

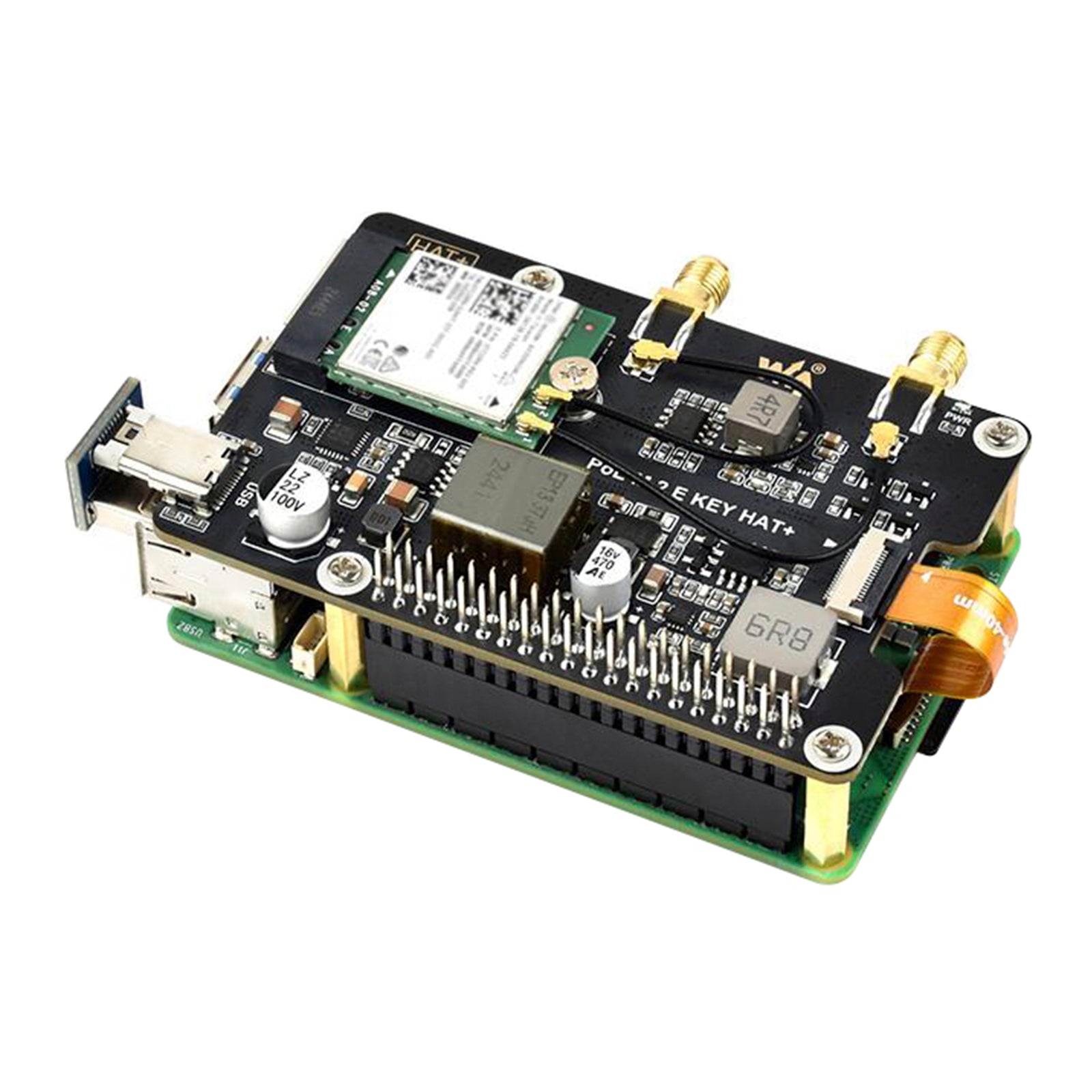

Suitable for Raspberry Pi 5, can be connected to PI5 through 16PIN cable, based on Raspberry Pi40PIN GPIO interface design, top lead pin, convenient to connect to other Raspberry Pi expansion boards

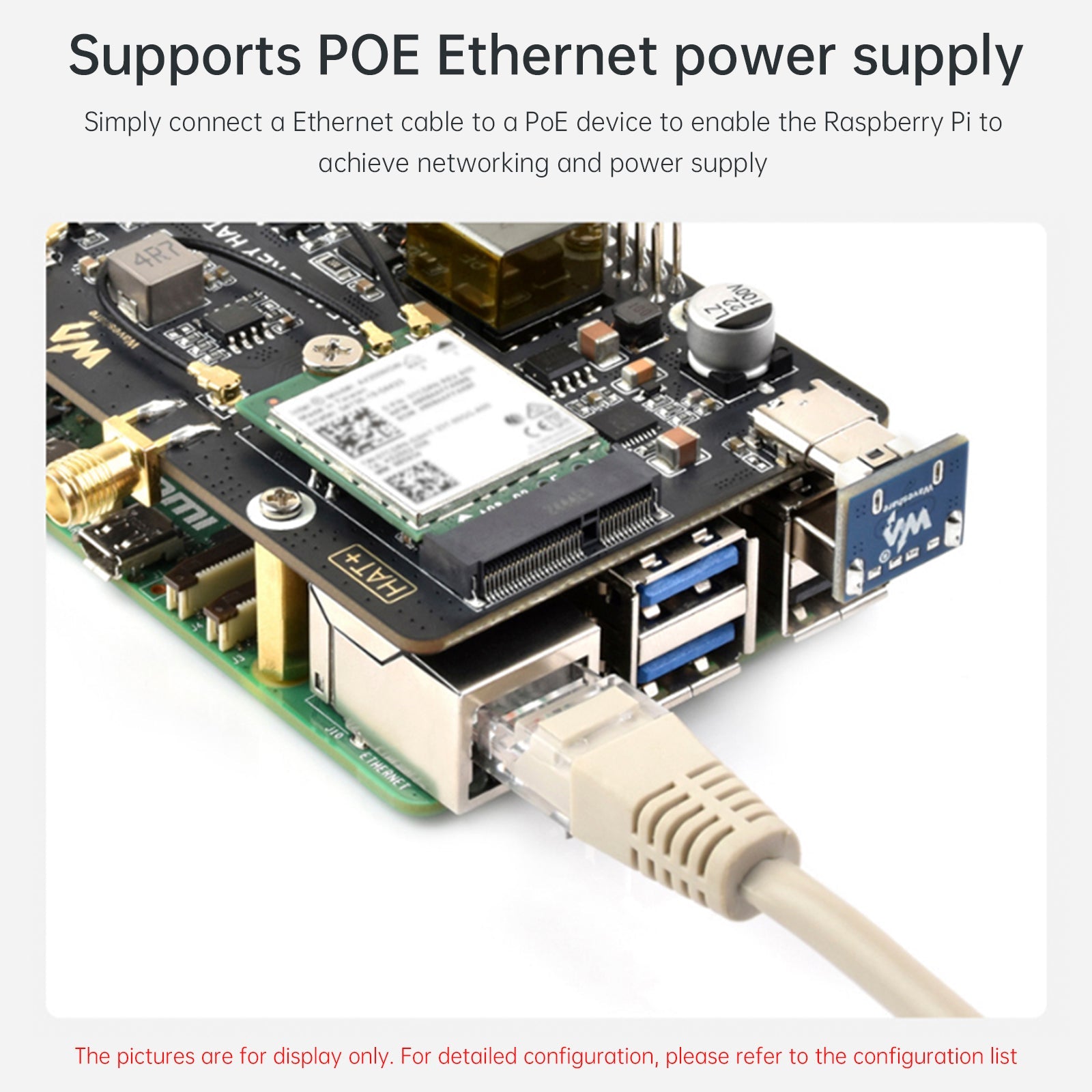

Support PoE Ethernet power supply, only need one network cable to connect to the PoE device to make the Raspberry Pi realize networking and power supply

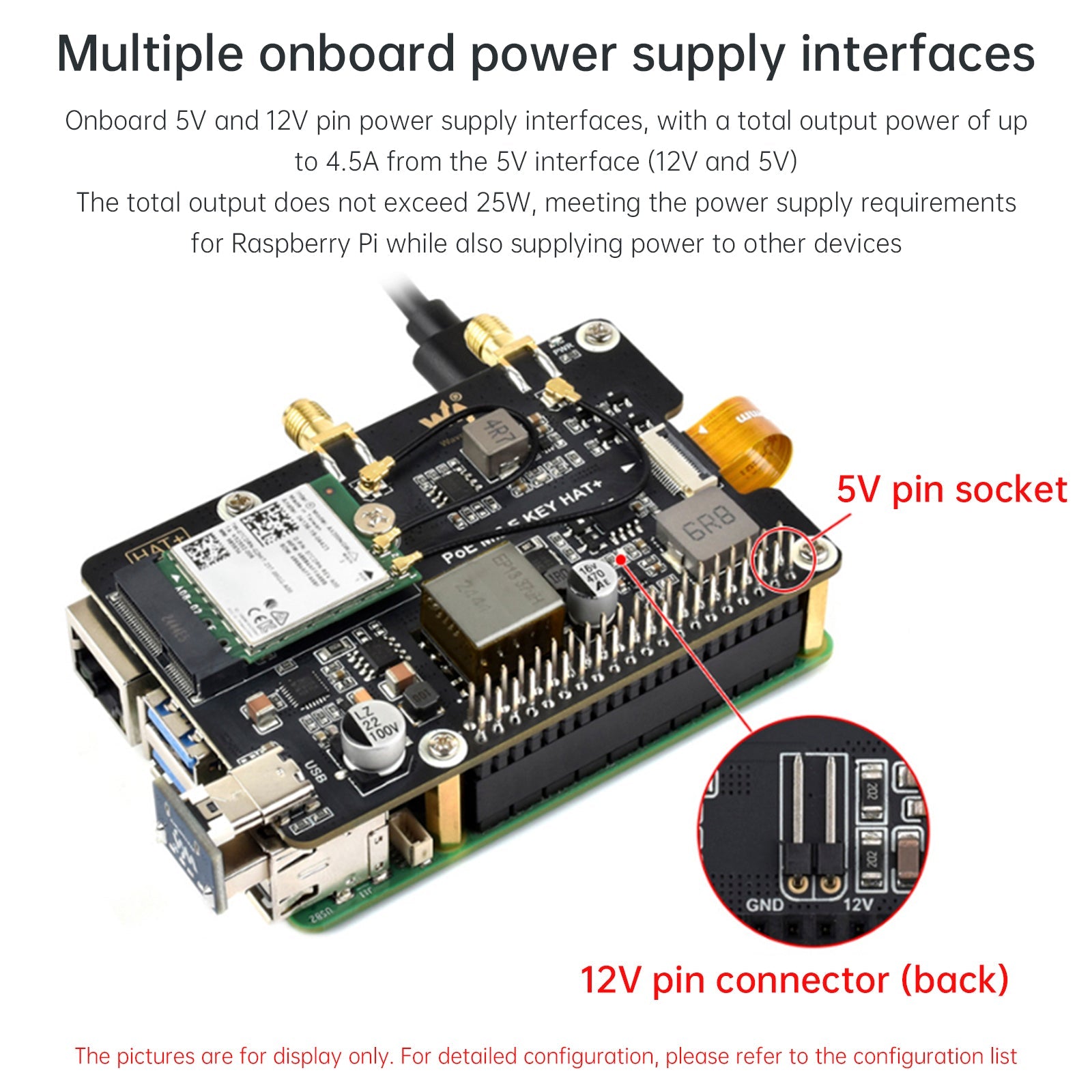

Onboard multiple power supply interfaces, onboard 5V and 12V Pin header power supply interface, 5V interface output total power up to 4.5A (12V and 5V output total not exceeding 25W), which can power the Raspberry Pi and other devices at the same time

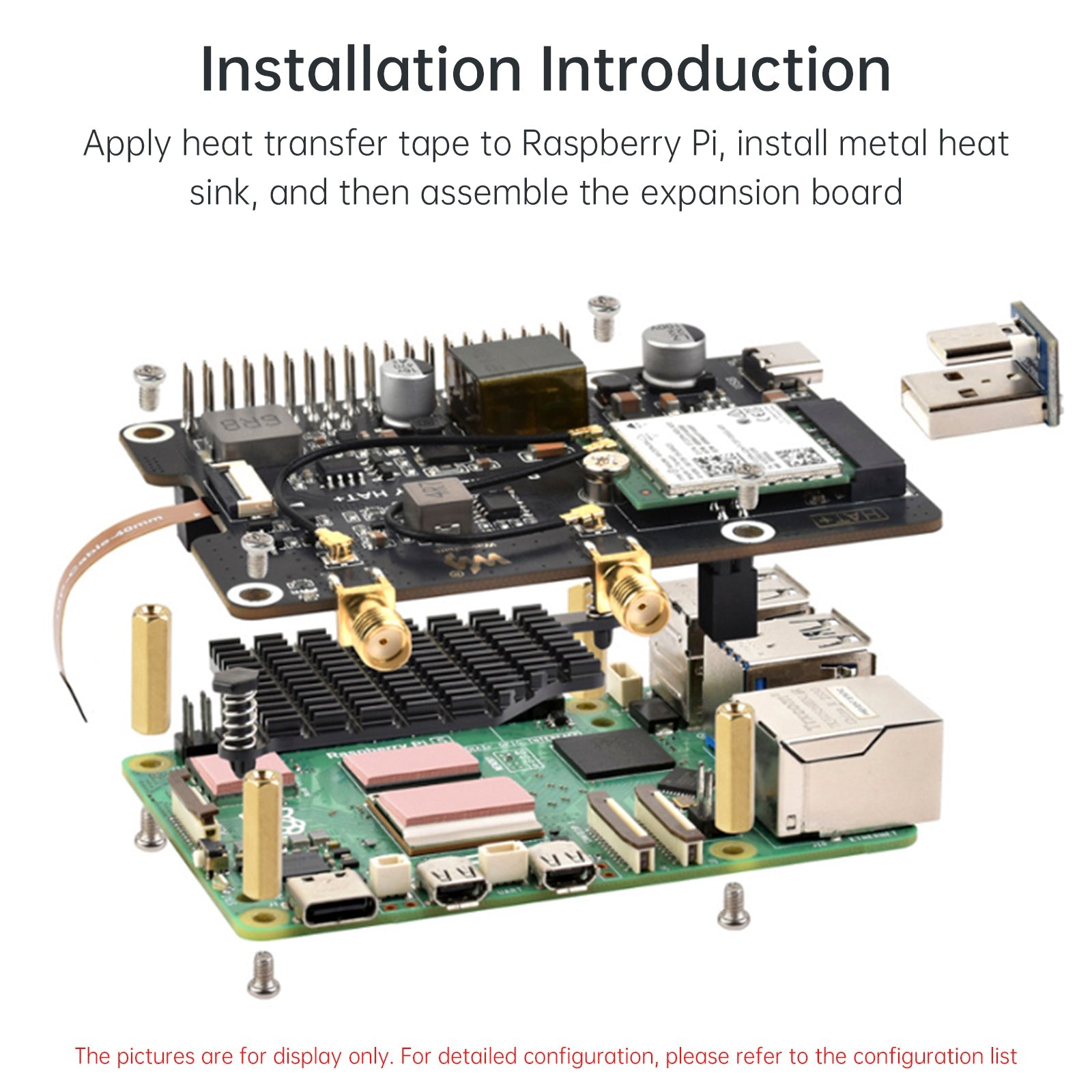

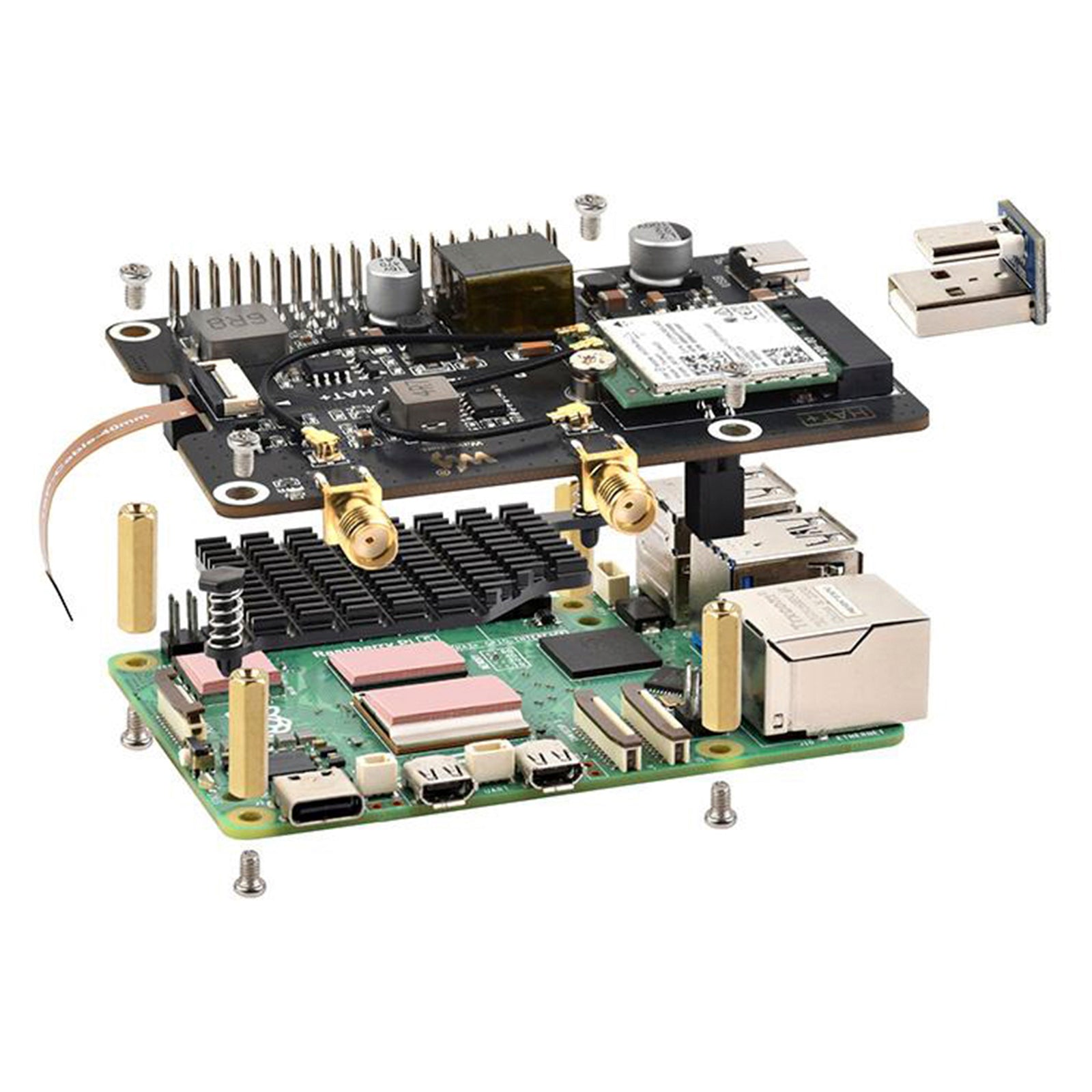

Installation introduction: Attach thermal paste to the Raspberry Pi and then install the metal heat sink, and then assemble the expansion board

New upgraded HAT+ standard:
The product follows the HAT+ standard and supports Raspberry Pi software/firmware automatic detection
What is HAT+?
Raspberry Pi is based on the original HAT Standard, a new standard launched
Compatible with Raspberry Pi 40PIN GPIO interface, plug and play
Integrated EEPROM storage chip, automatically load board configuration, simplify development process
Standardized size, making it highly compatible with Raspberry Pi size
Support Raspberry Pi 40PIN GPIO interface power supply

Specifications:
PoE power input: 37V~57V DC input
Power output:
GPIO pin header: 5V4.5A (MAX)
2P pin header: 12V2A (MAX)

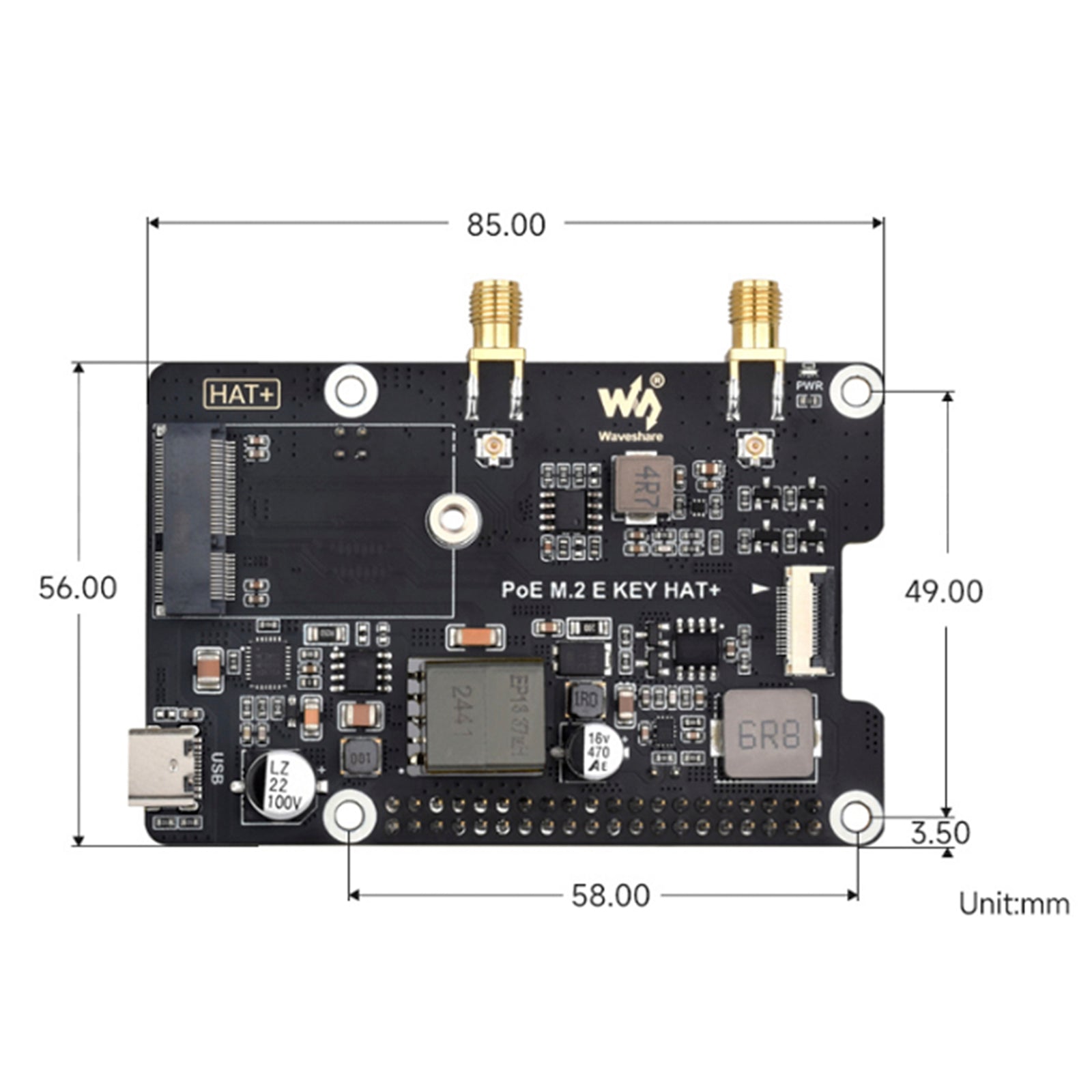

Product size: 56.0x850 (mm)
Network standard: Support IEEE 802.3af/atPoE
PCle interface type: M.2 E Key

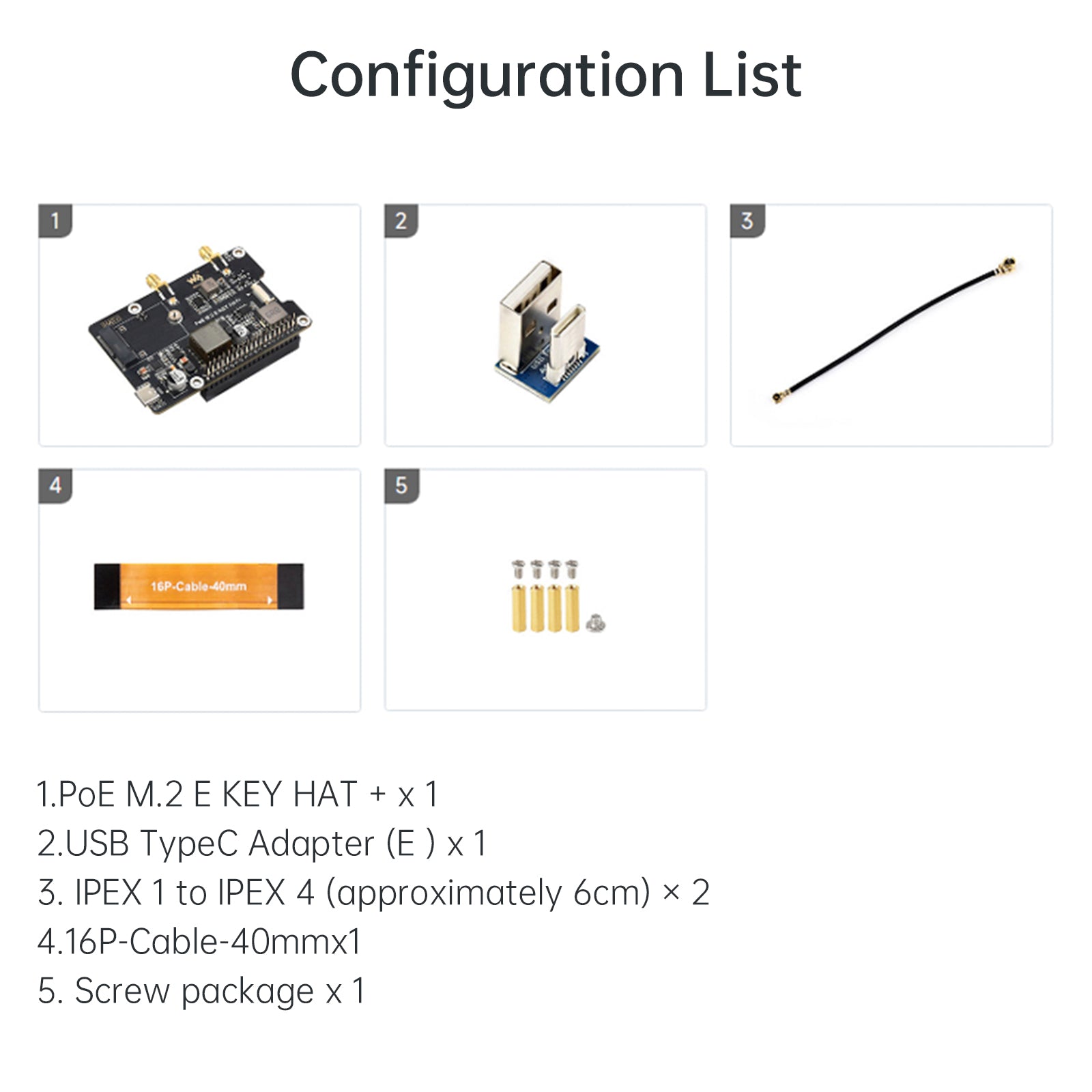

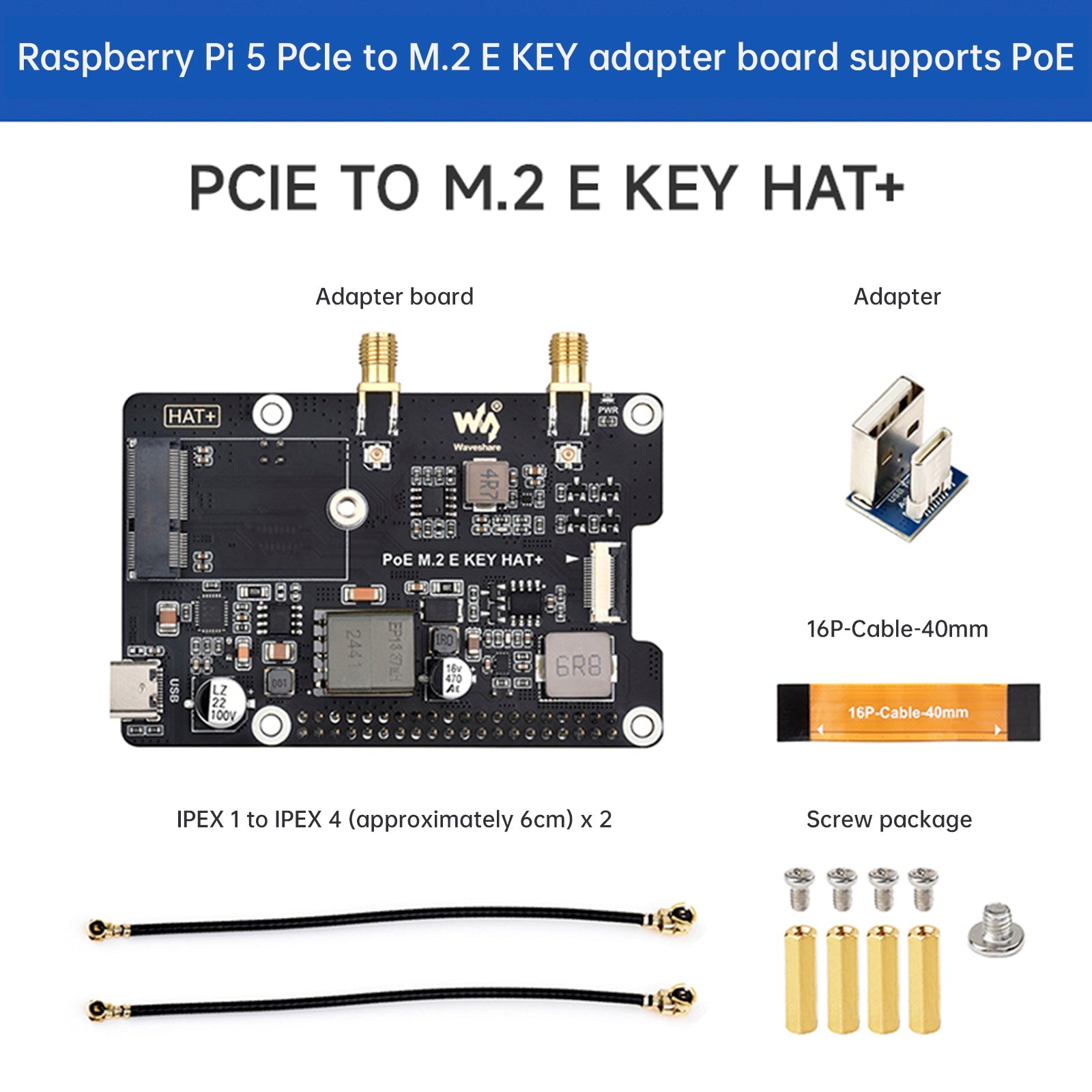

Package Included:
1x PoE M.2 E KEY HAT+
1x USB TypeC Adapter (E)
2x IPEX1 to IPEX4 (about 6cm)
1x 16P-Cable-40mm
1x screw package
