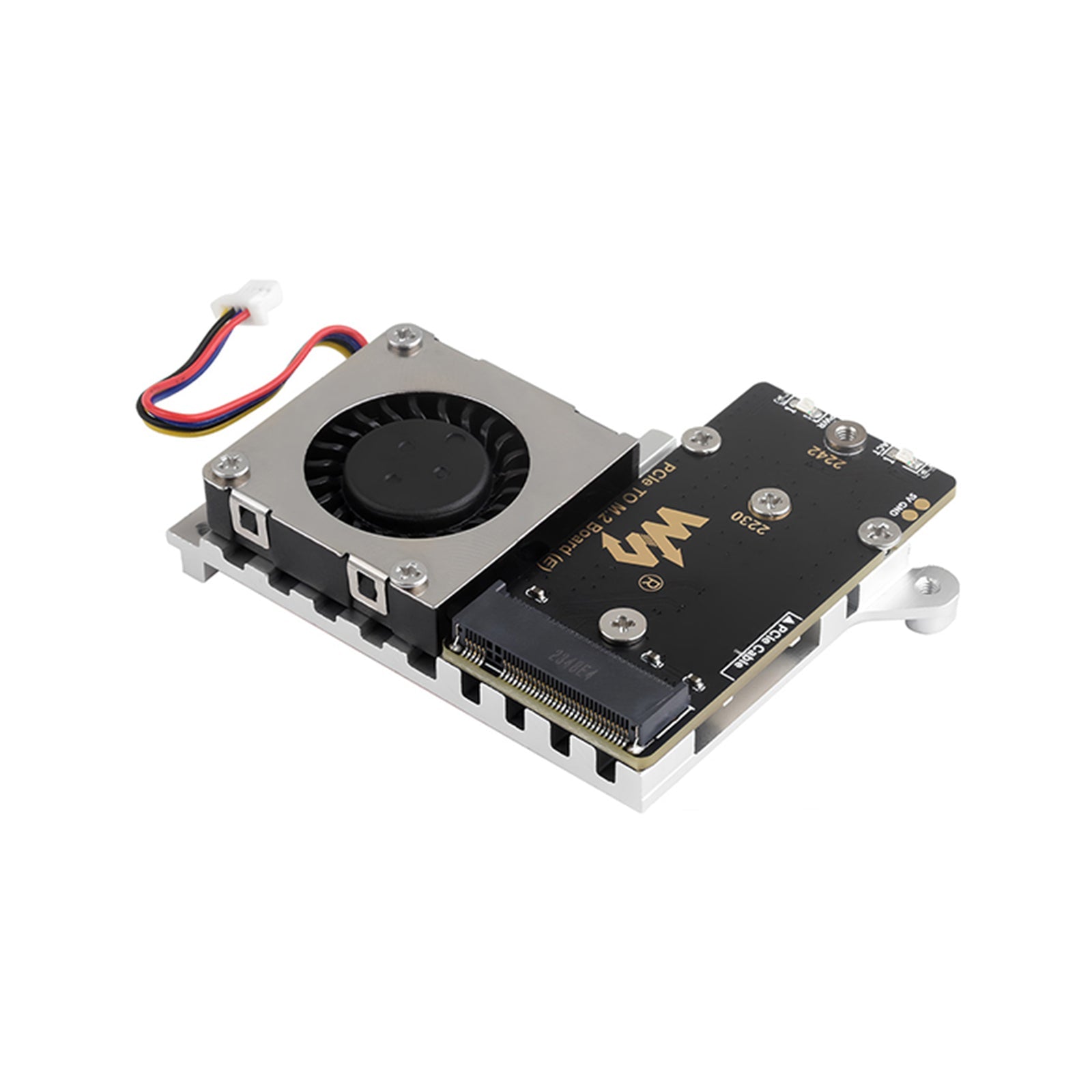

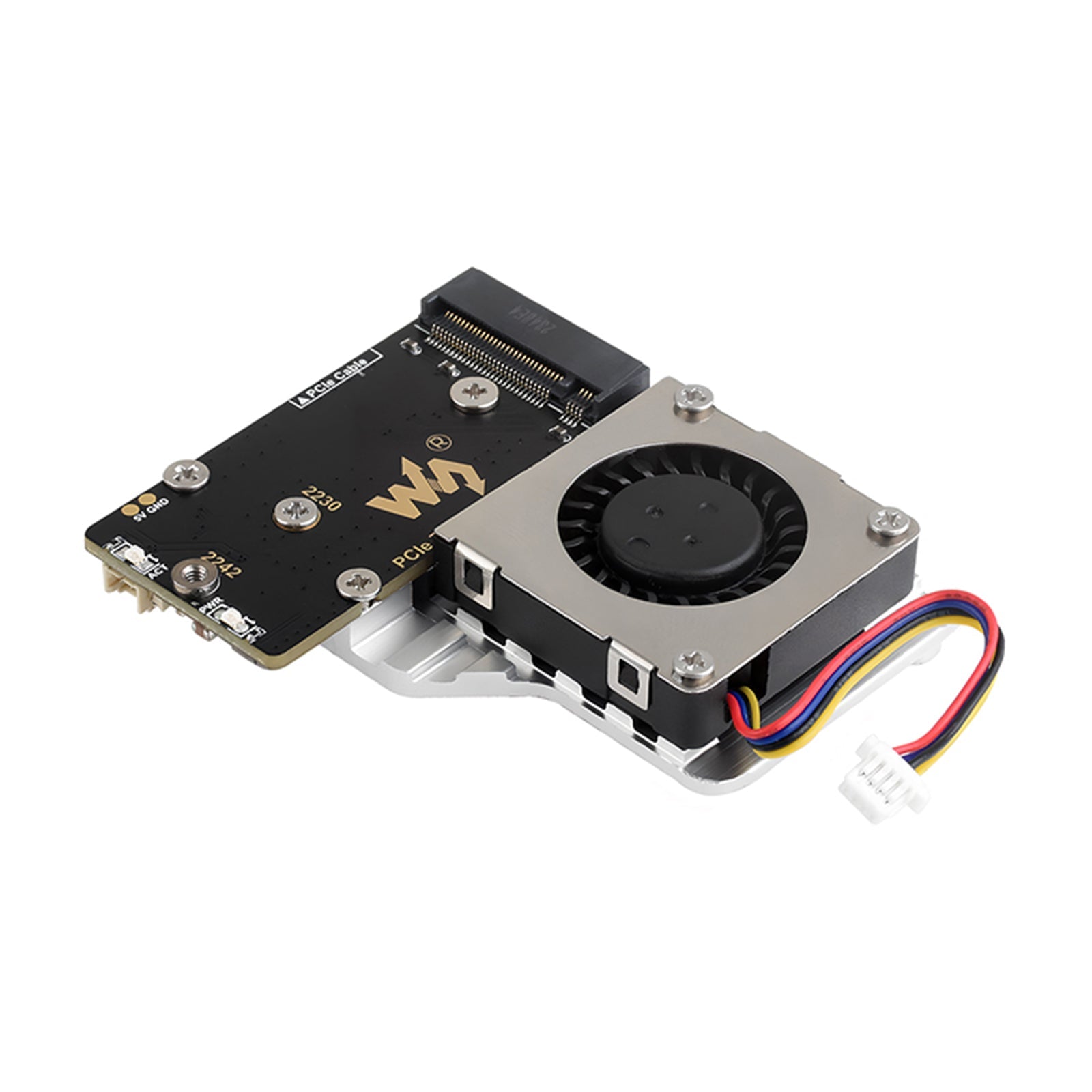

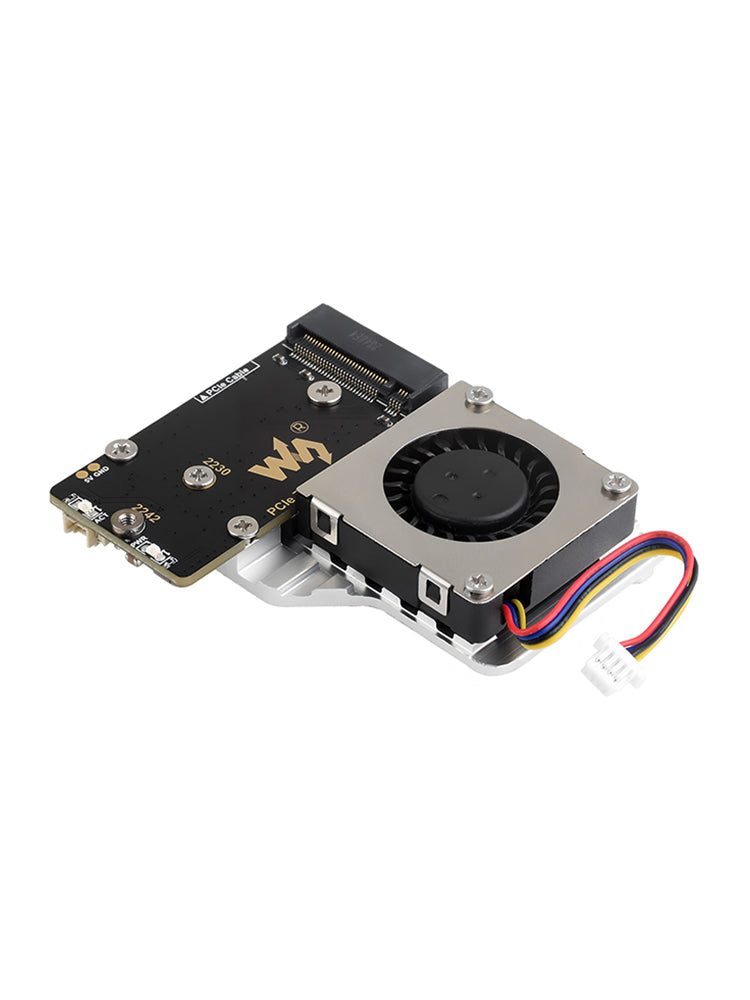

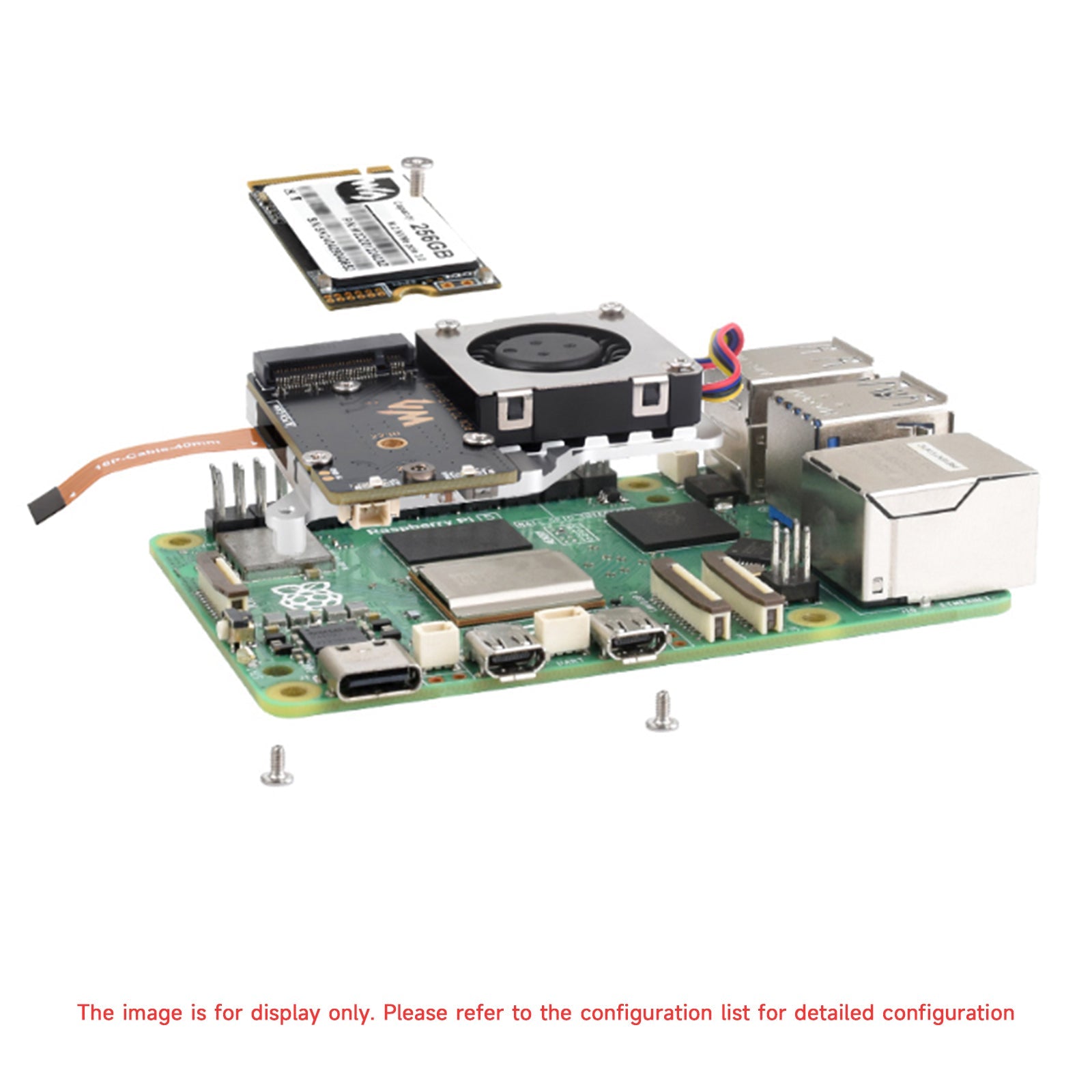

Raspberry Pi 5th Generation PCIe to M.2 Adapter Board with Radiator Fan Nvme Hard Disk Protocol Pi5/5B Expansion Board

Features:

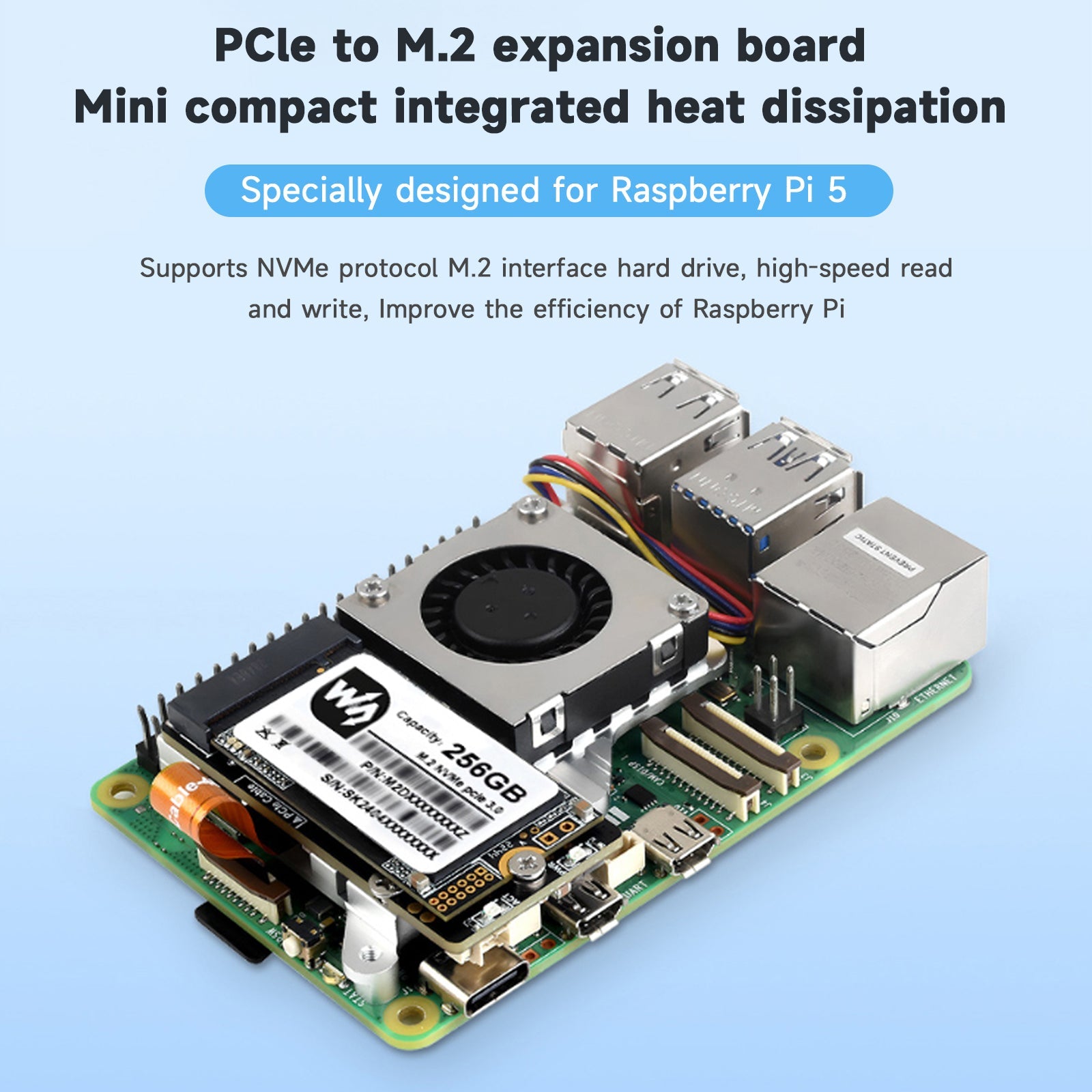

PCle to M.2 expansion board Mini compact integrated heat dissipation, designed for Raspberry Pi5, supports NVMe protocol M.2 interface hard disk, high-speed reading and writing, improves Raspberry Pi efficiency

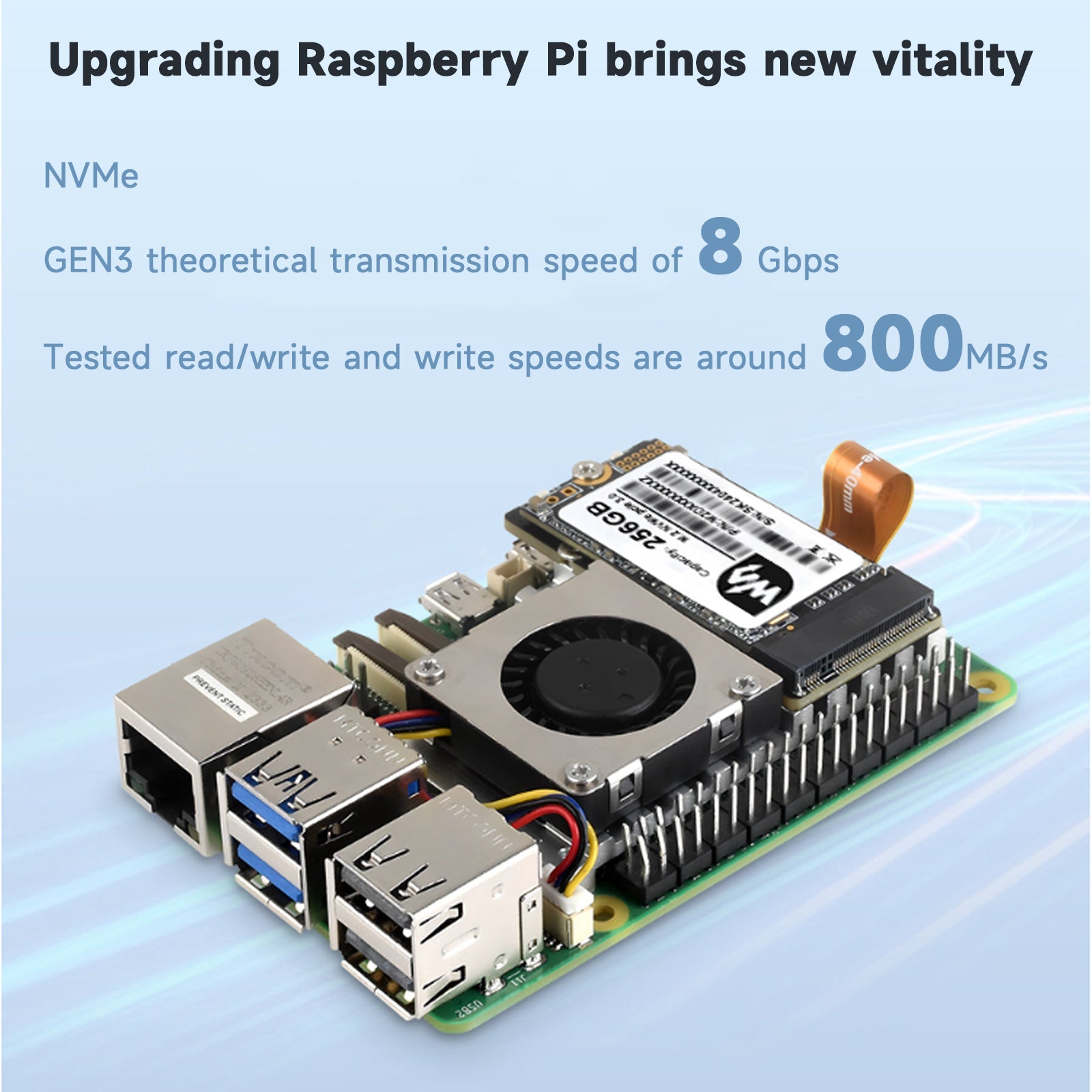

Upgrade Raspberry Pi to rejuvenate, NVMe GEN3 theoretical transmission speed 8Gbps, measured reading and writing speed is about 800 MB/s

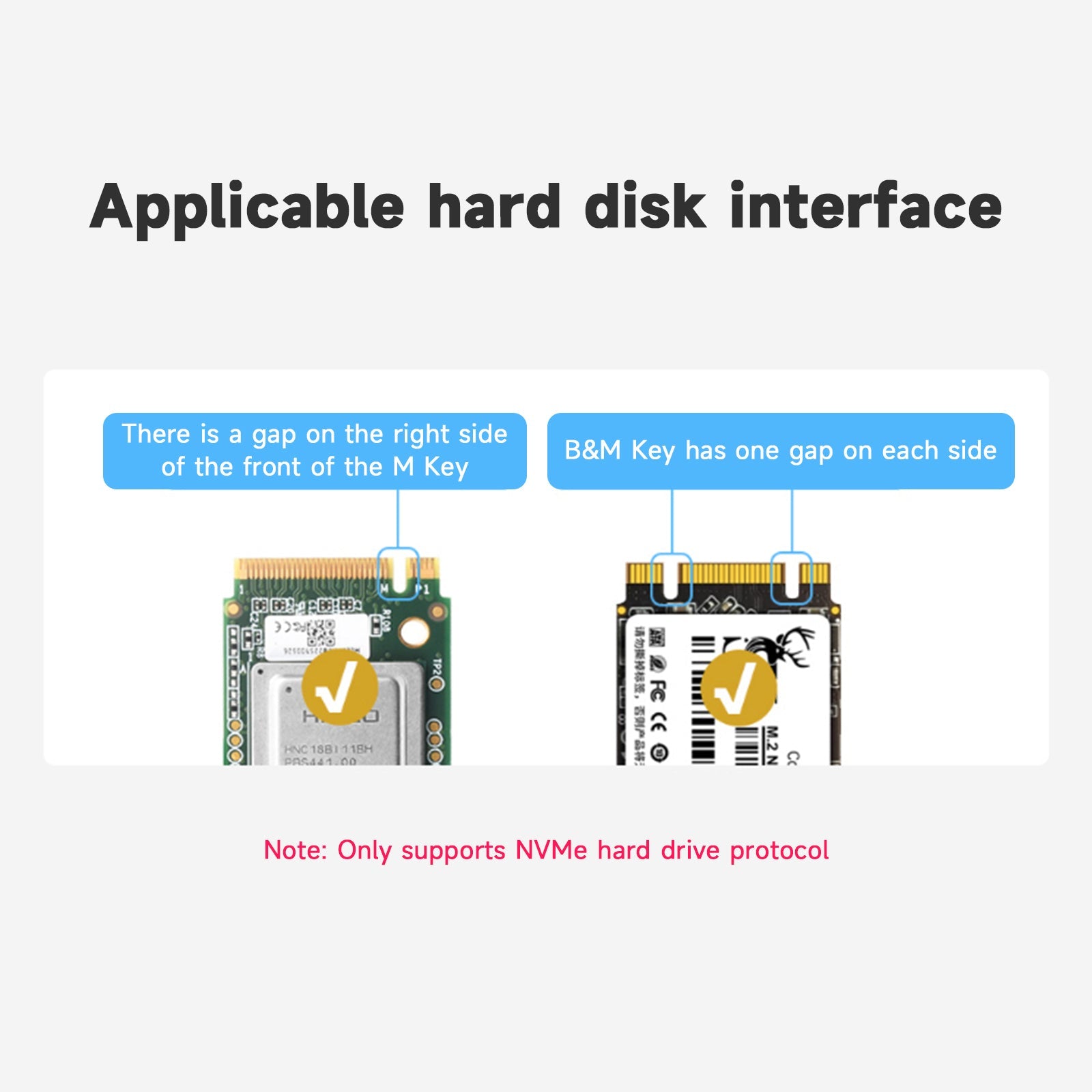

Applicable hard disk interface, M Key has a notch on the right side of the front, B&M Key has a notch on both sides

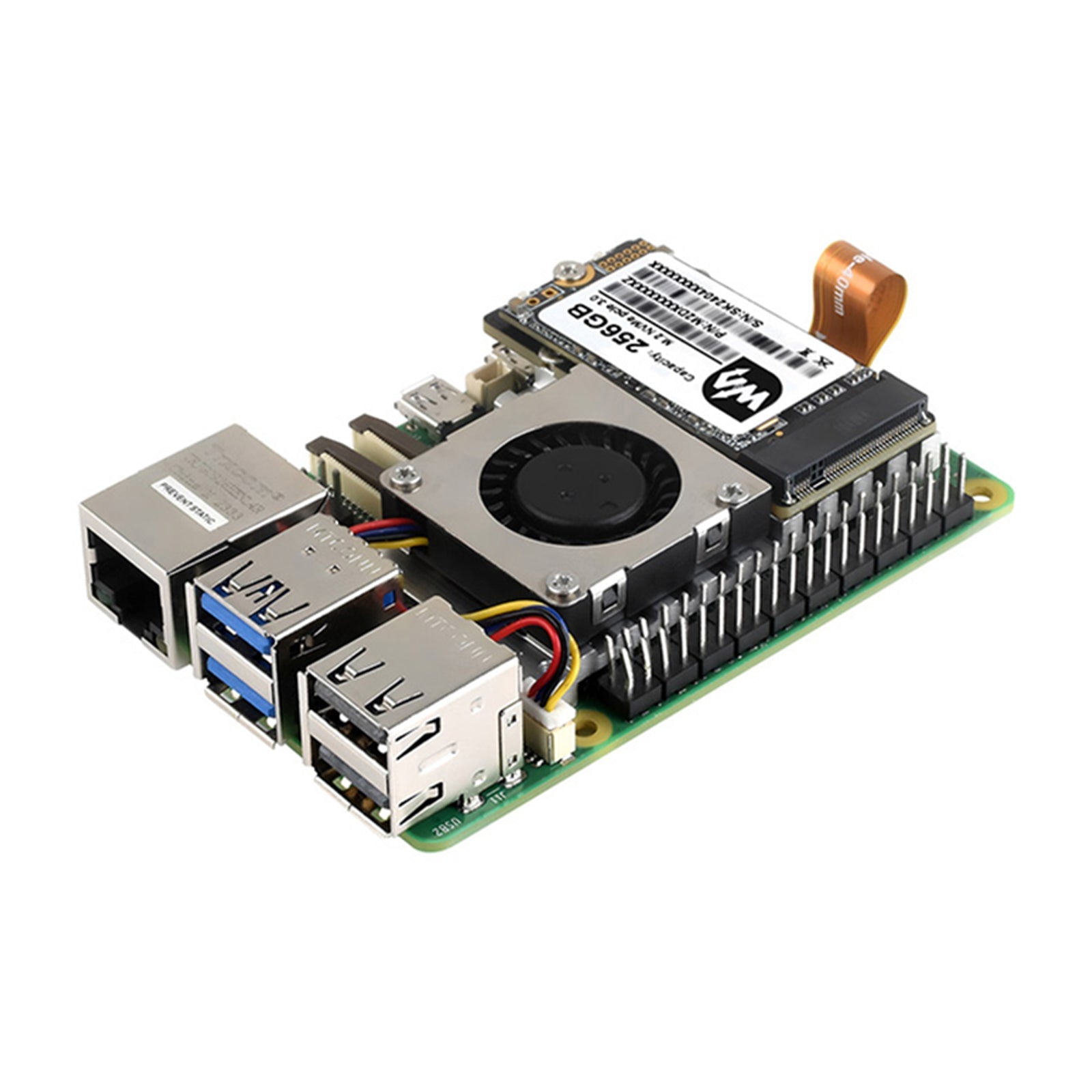

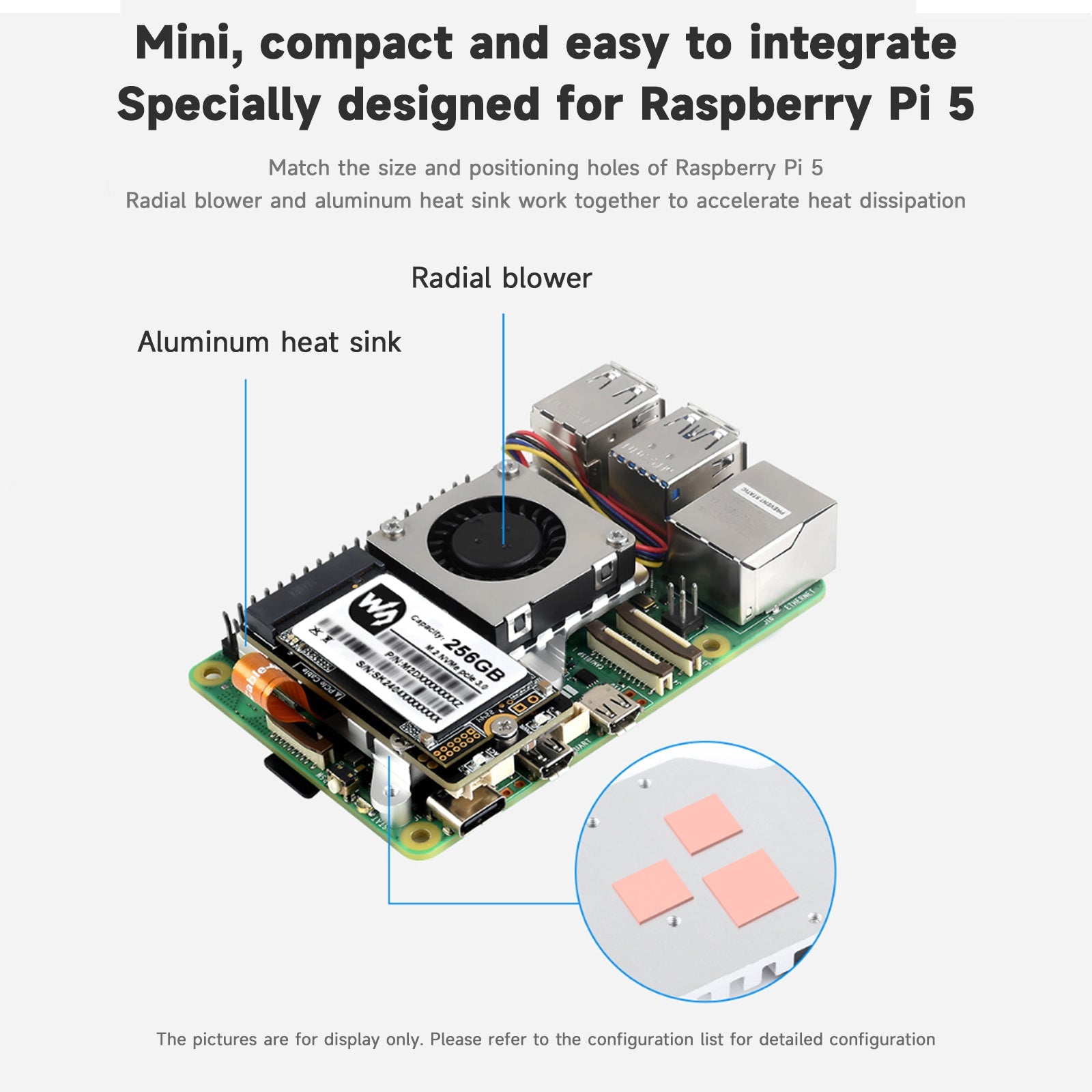

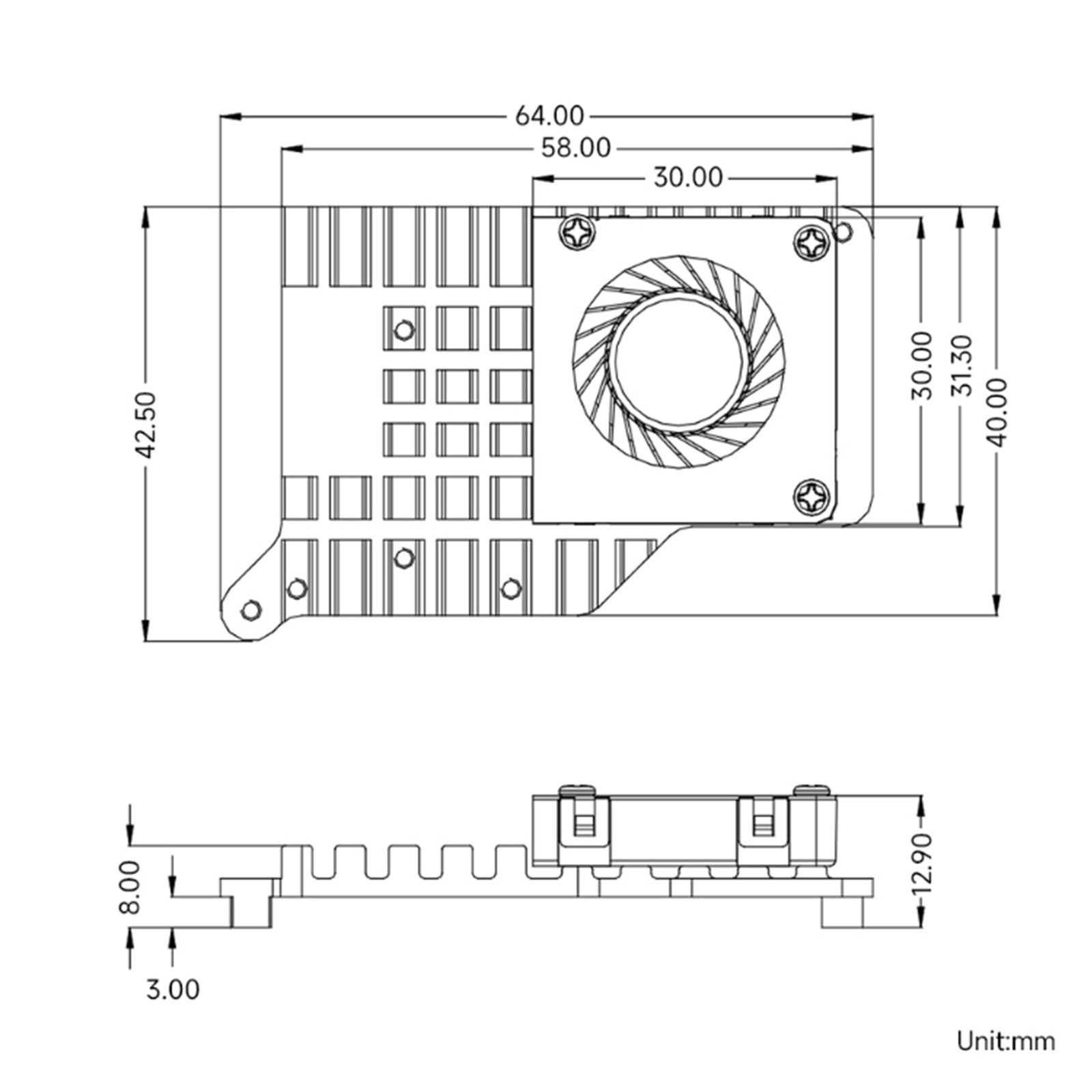

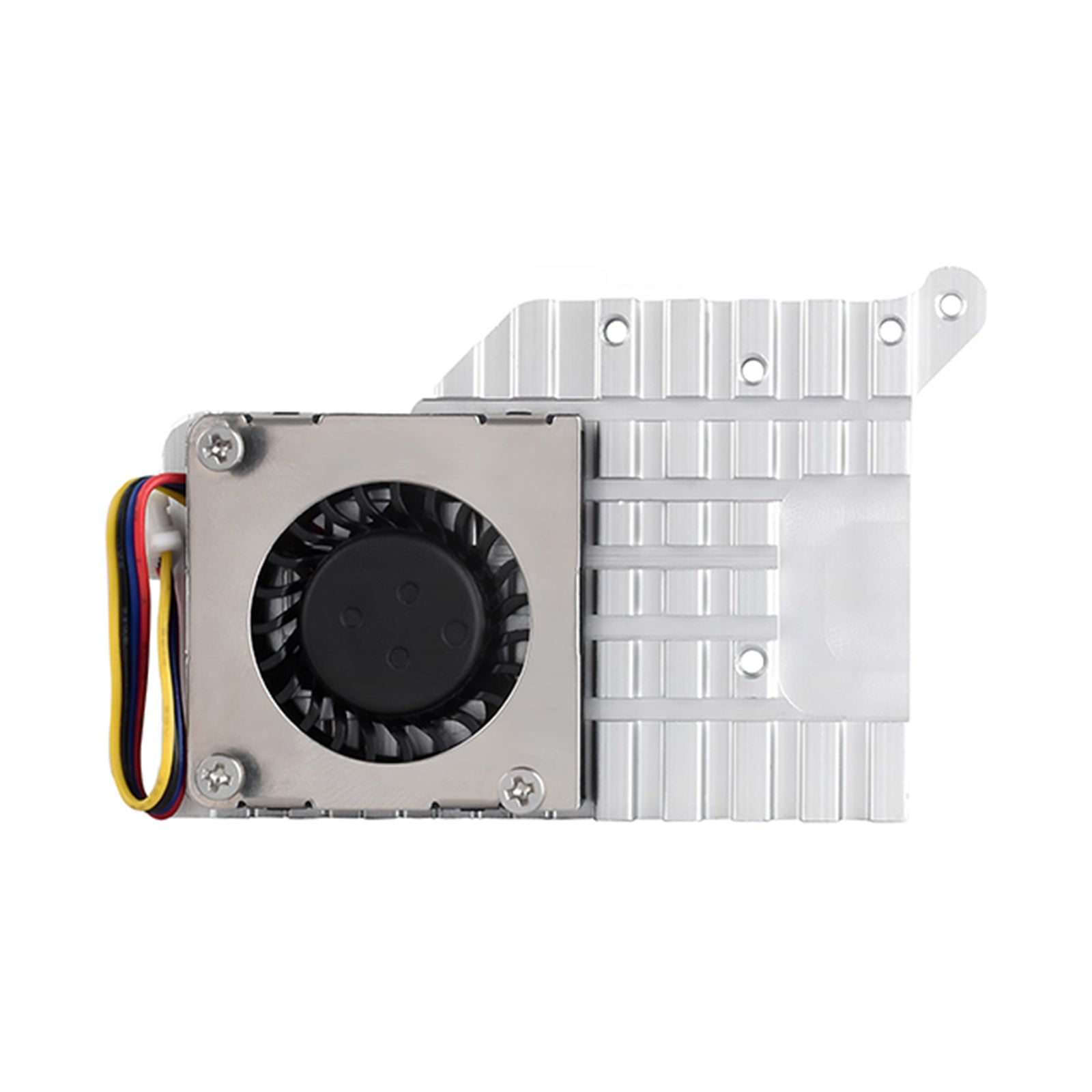

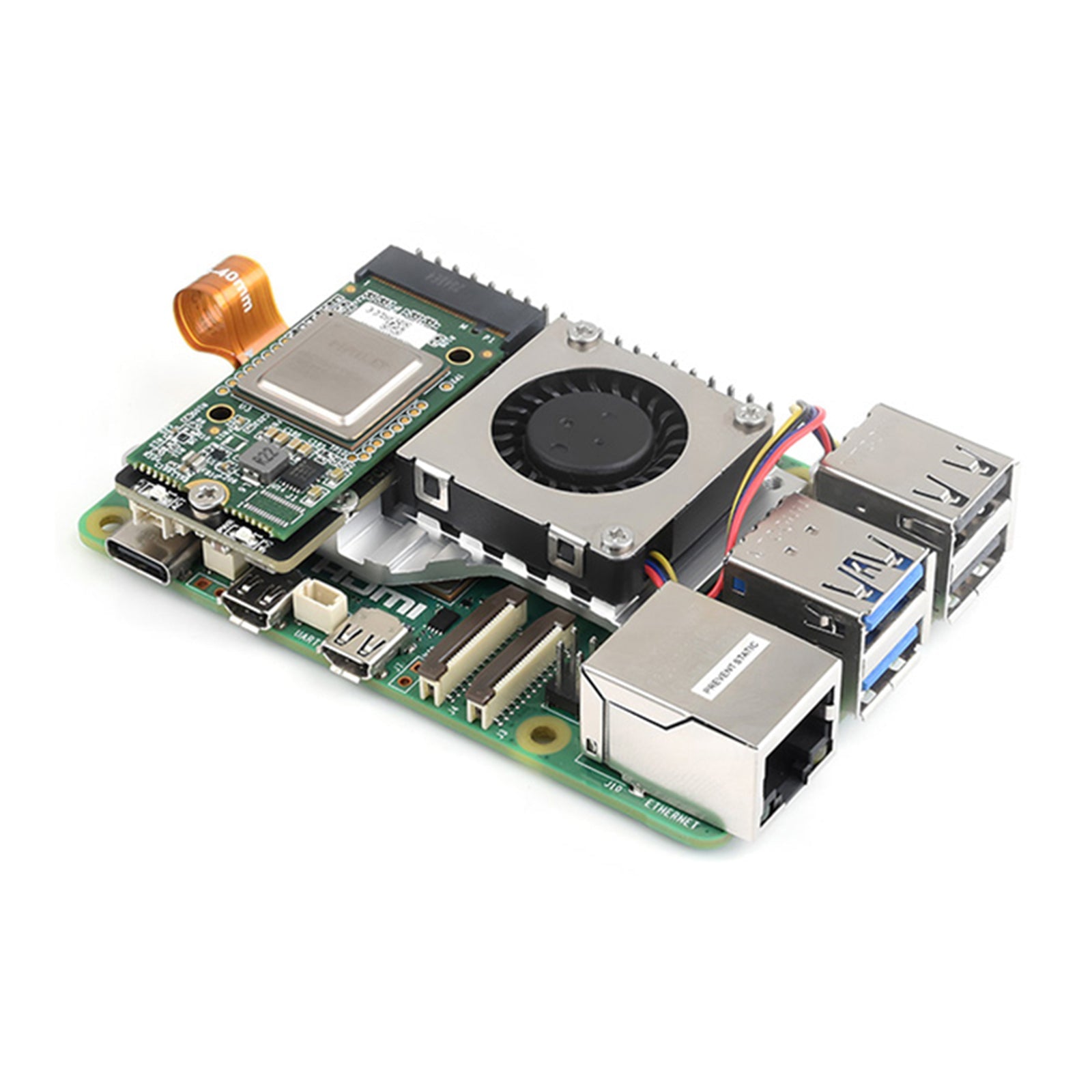

Mini and easy to integrate, designed for Raspberry Pi 5, matching the size and positioning of Raspberry Pi 5, radial blower and aluminum heat sink to accelerate heat dissipation

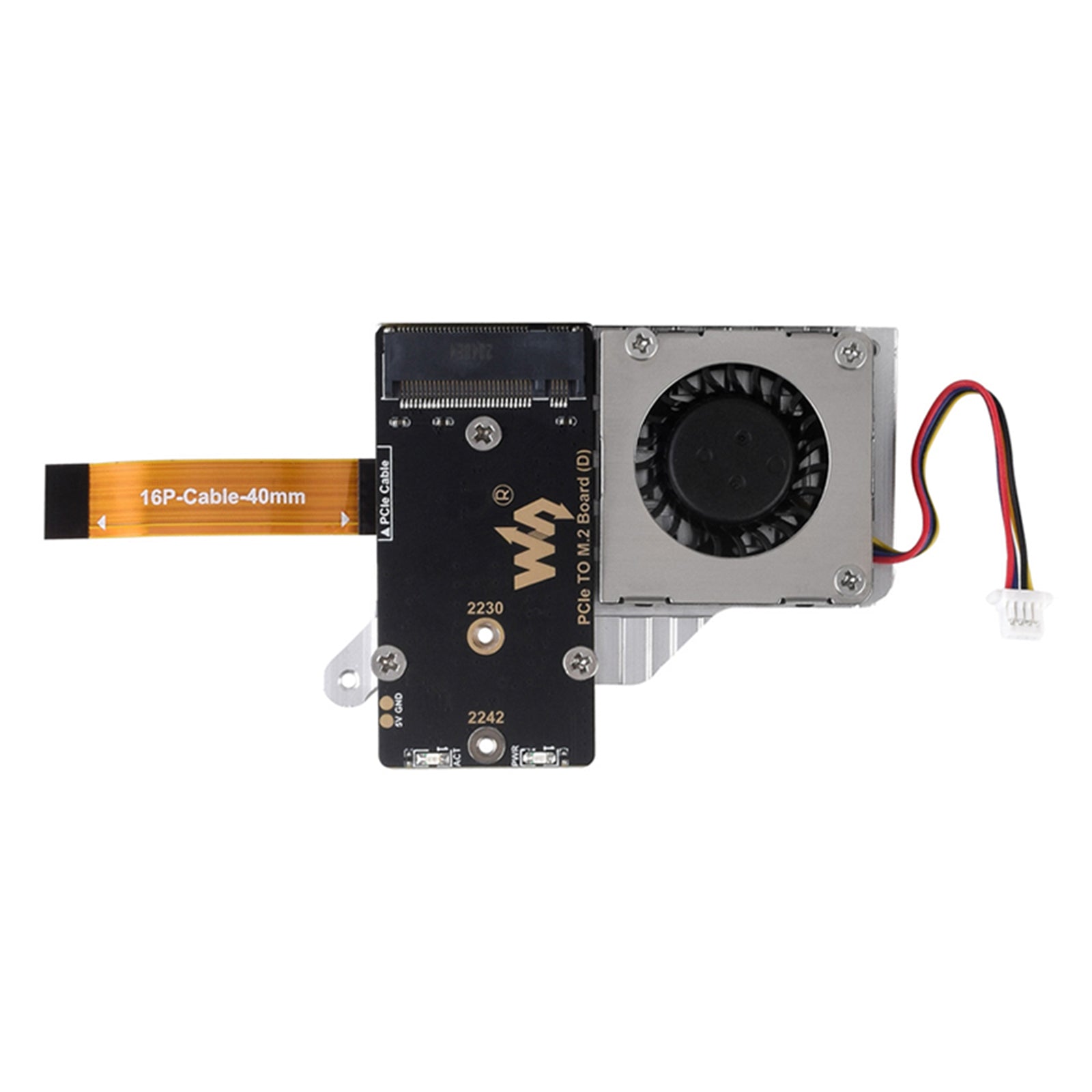

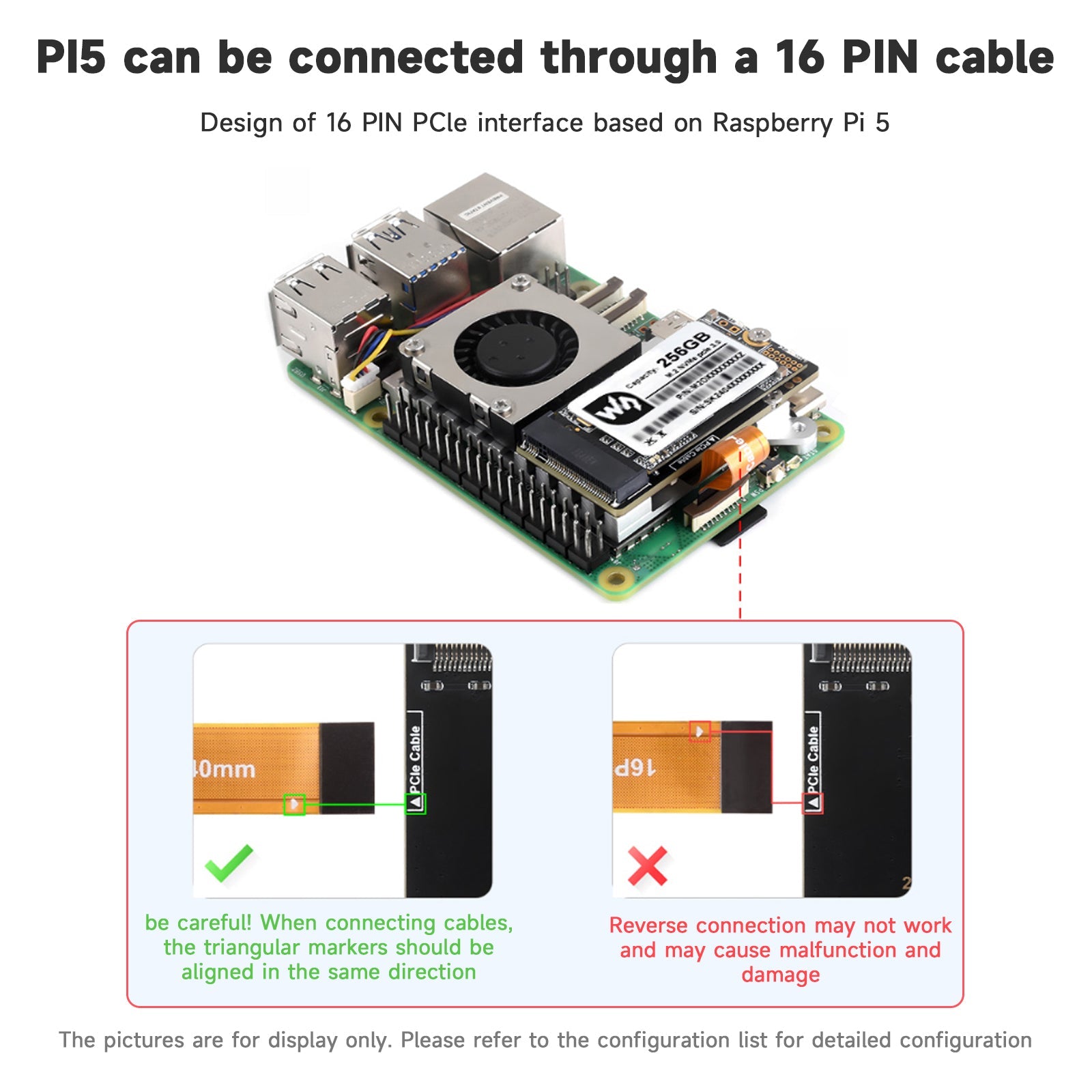

Connect to PI5 through 16PIN cable, based on the 16PIN PCle interface design of Raspberry Pi 5

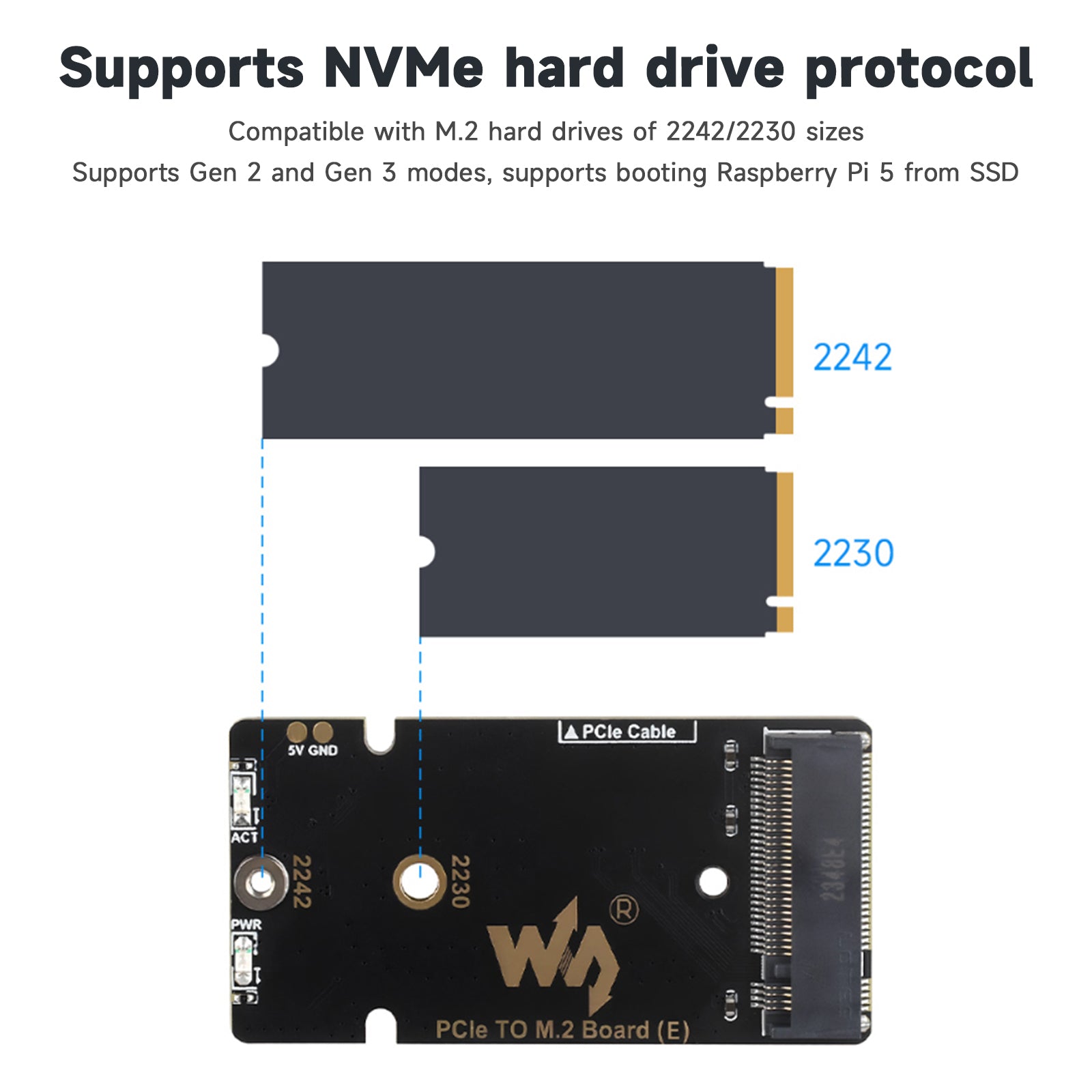

Support NVMe hard disk protocol, compatible with 2242/2230 size M.2 hard disk, support Gen2 and Gen3 modes, support booting Raspberry Pi 5 from SSD

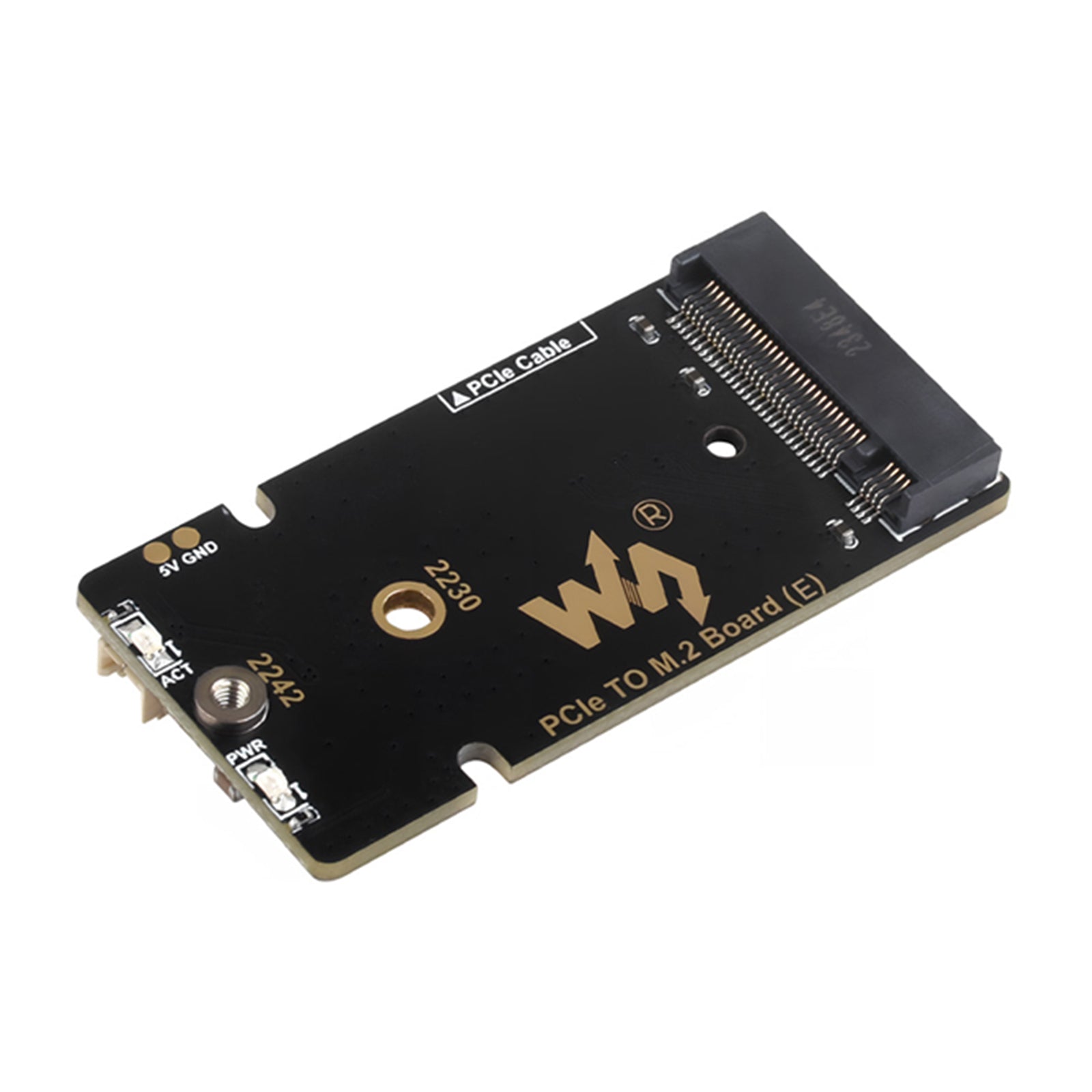

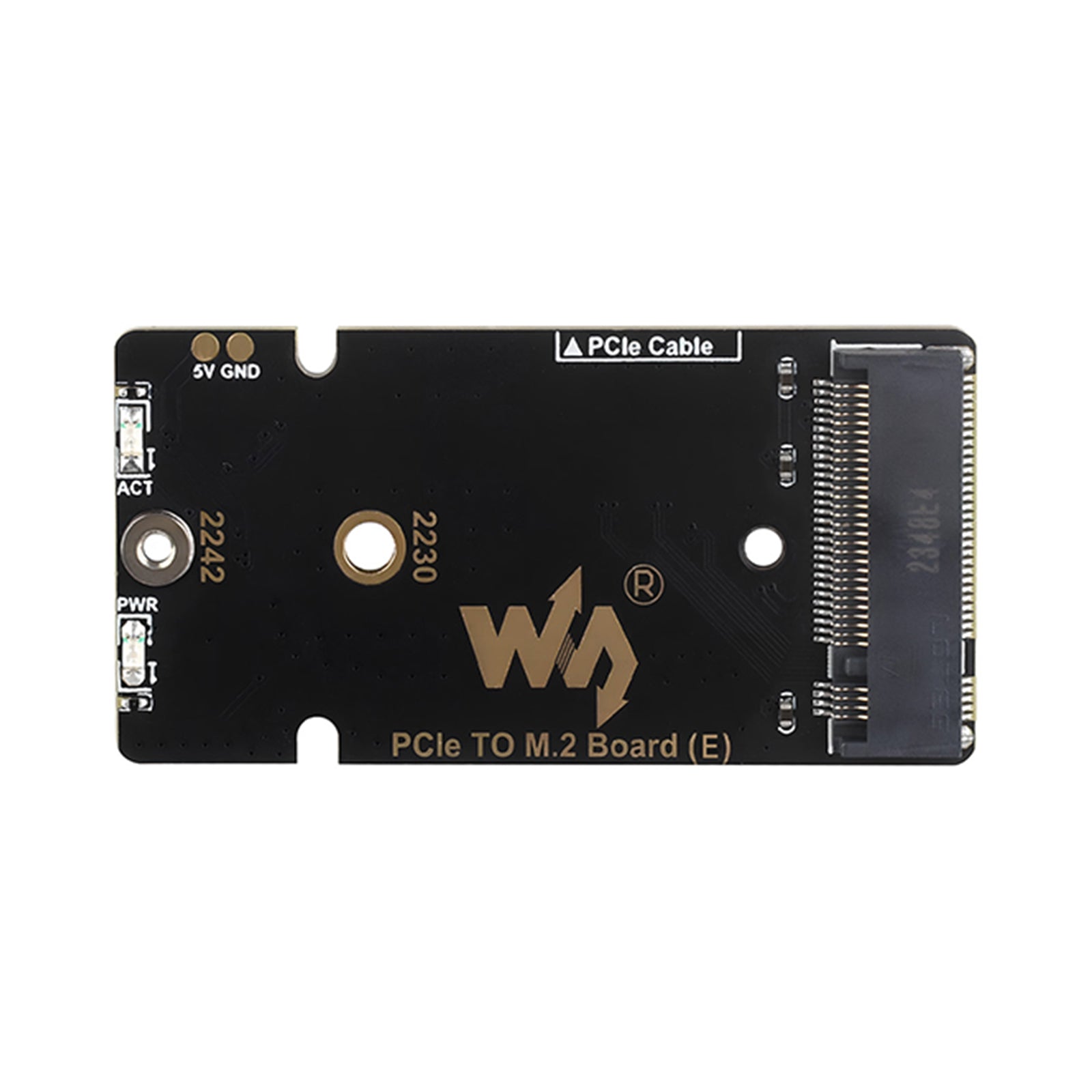

Onboard dual LED indicator device status is clear at a glance. ACT status indicator, Flashes when the hard disk is reading or writing data. PWR is always on when the power is on.

Specifications:
Input voltage: 5V DC (powered by Raspberry Pi 5 fan interface)
M.2 interface: supports NVMe hard disk protocol (PCle Gen2/3)
Hard disk compatibility: 2242, 2230
Fan speed control: pulse width modulation control with tachometer
Air volume: 1.39 CFM (Max)
Fan speed: 8000±10%RPM
Heat dissipation material: anodized aluminum

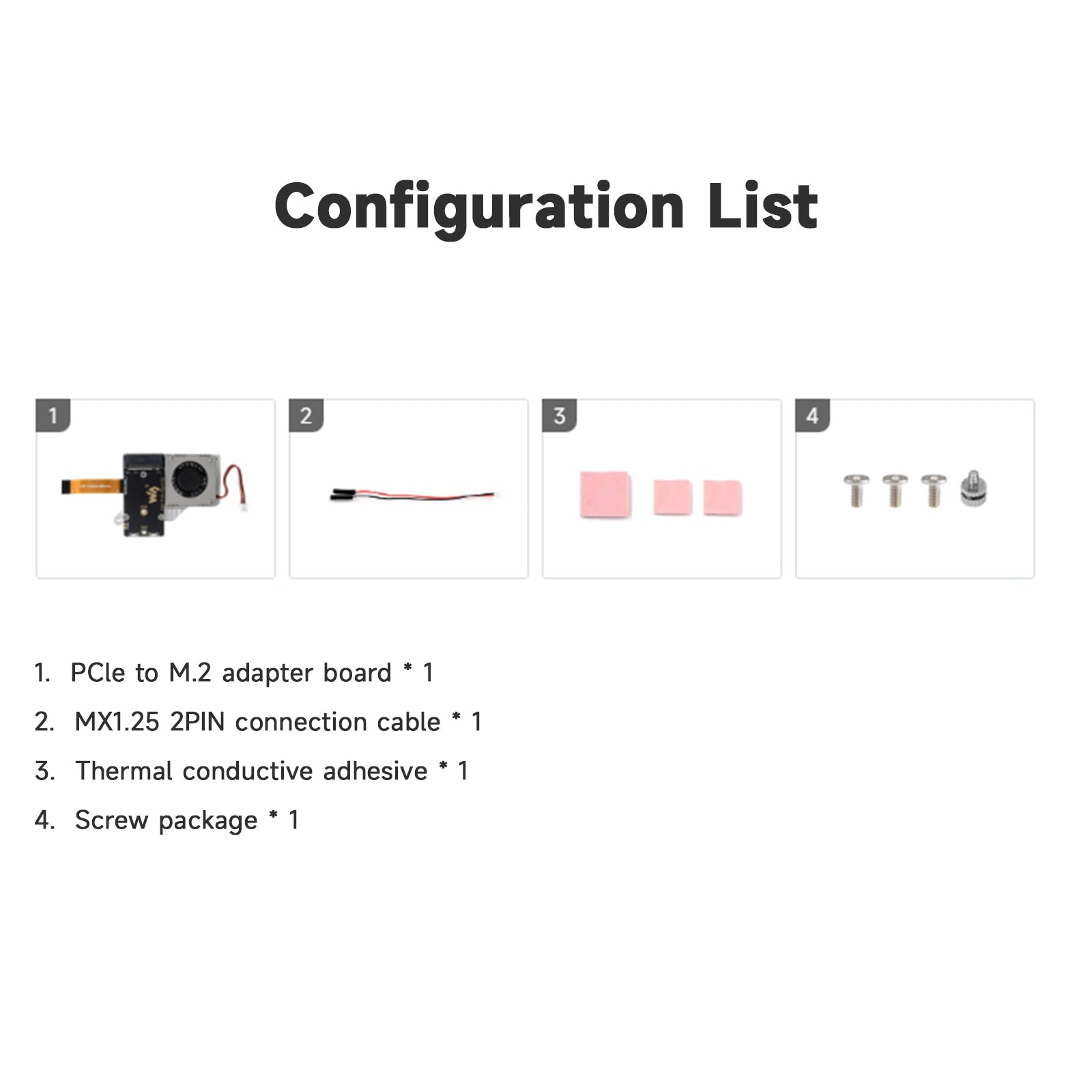

Package Include:
1x PCle to M.2 expansion board
1x MX1.25 2PIN cable
1x Thermal paste
1x Screw package
