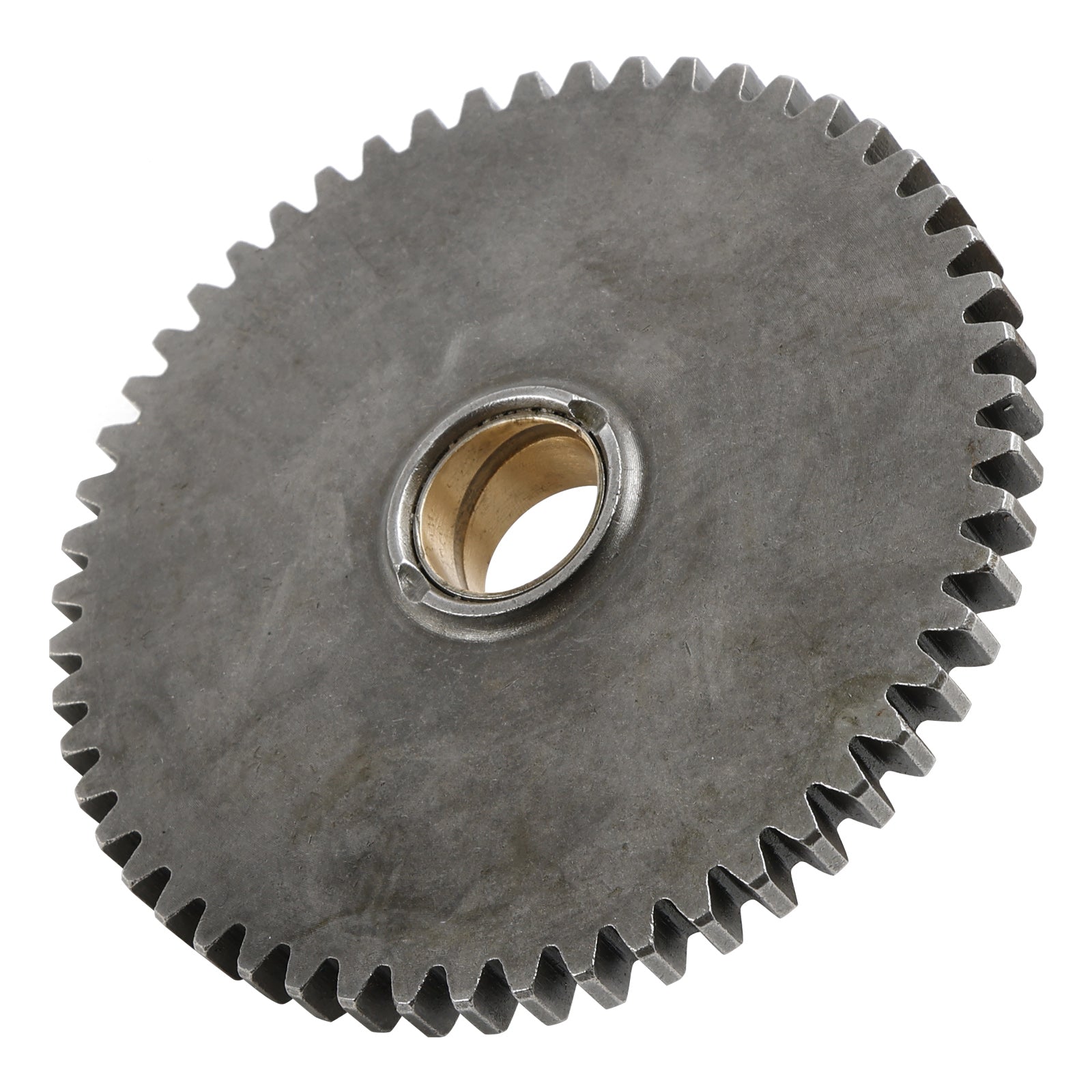

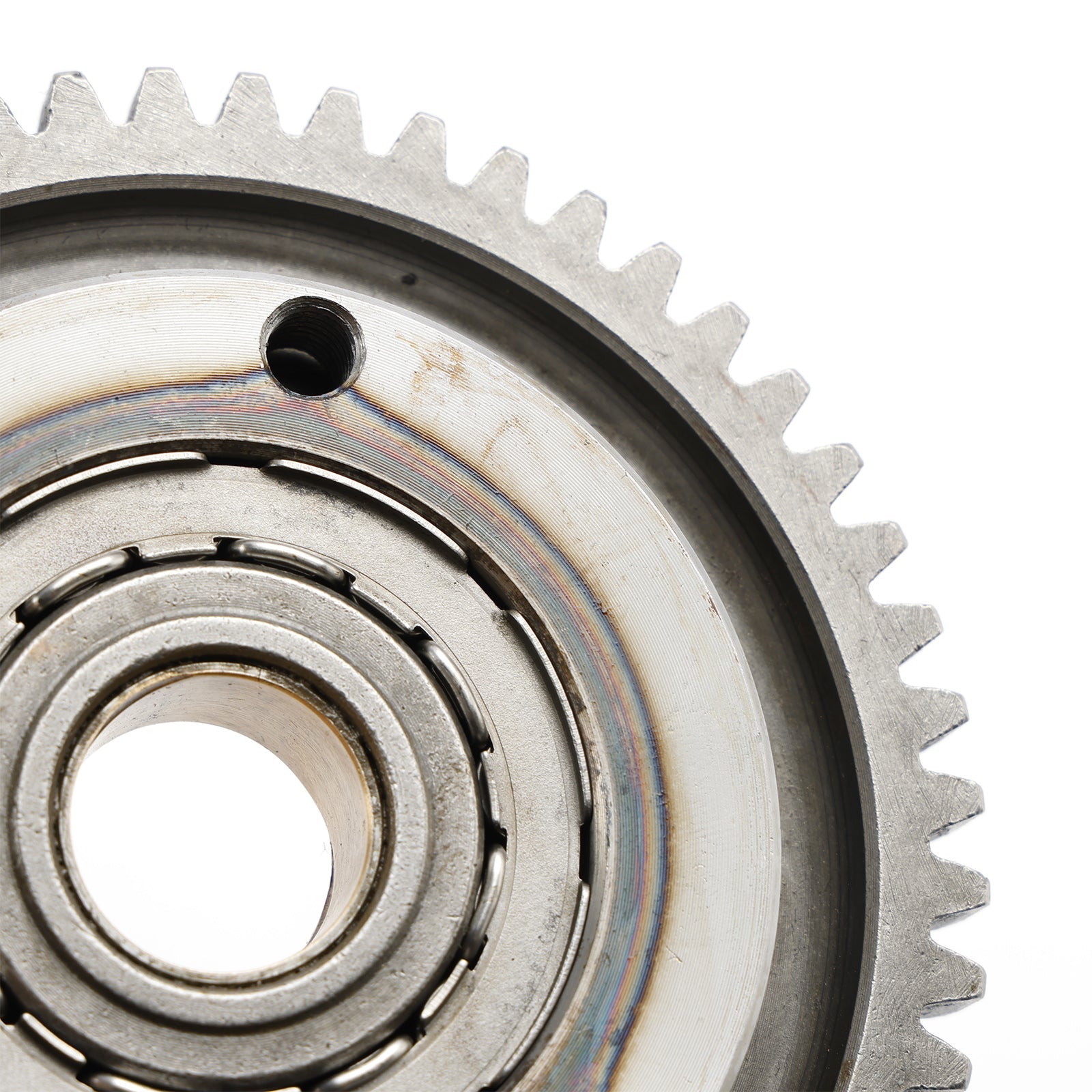

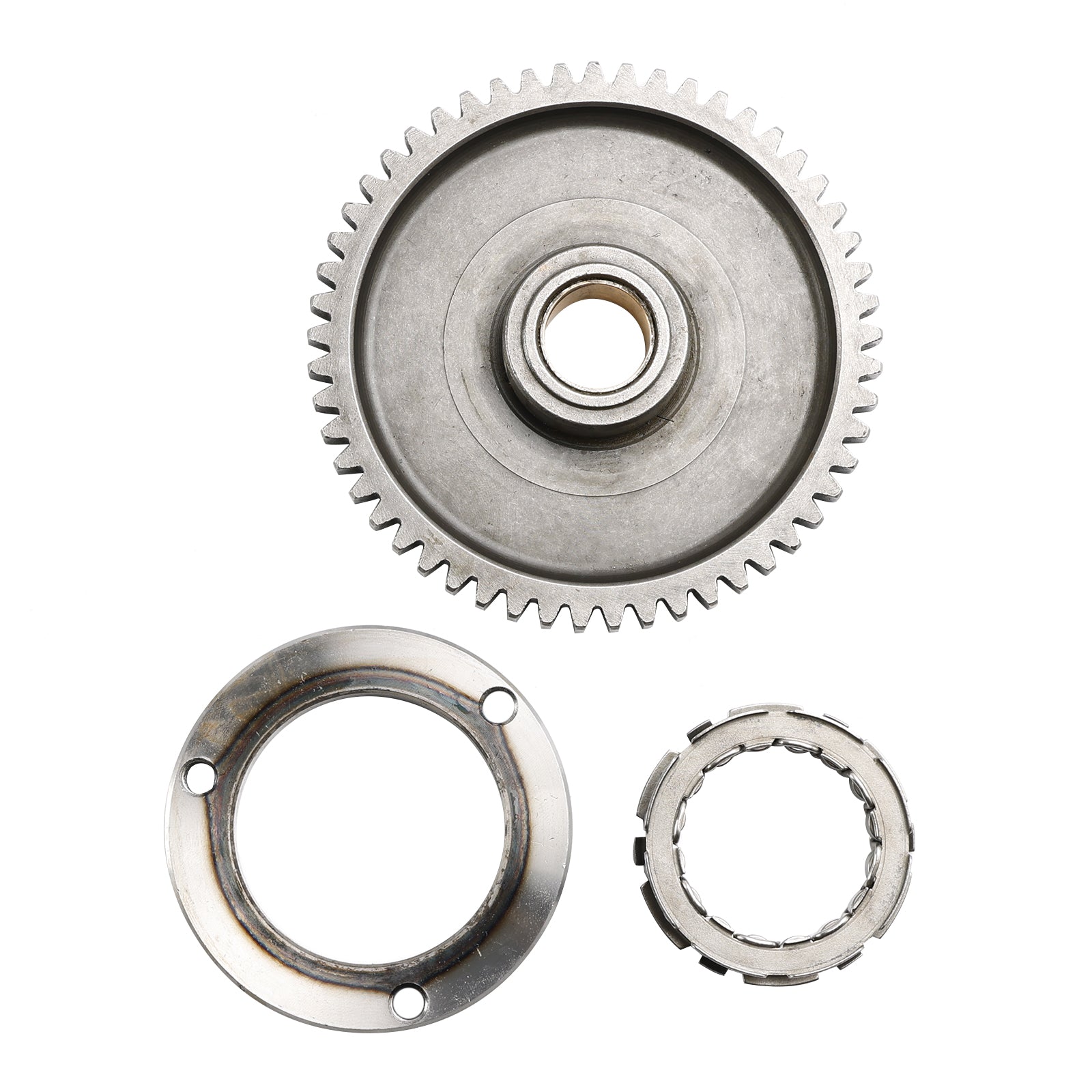

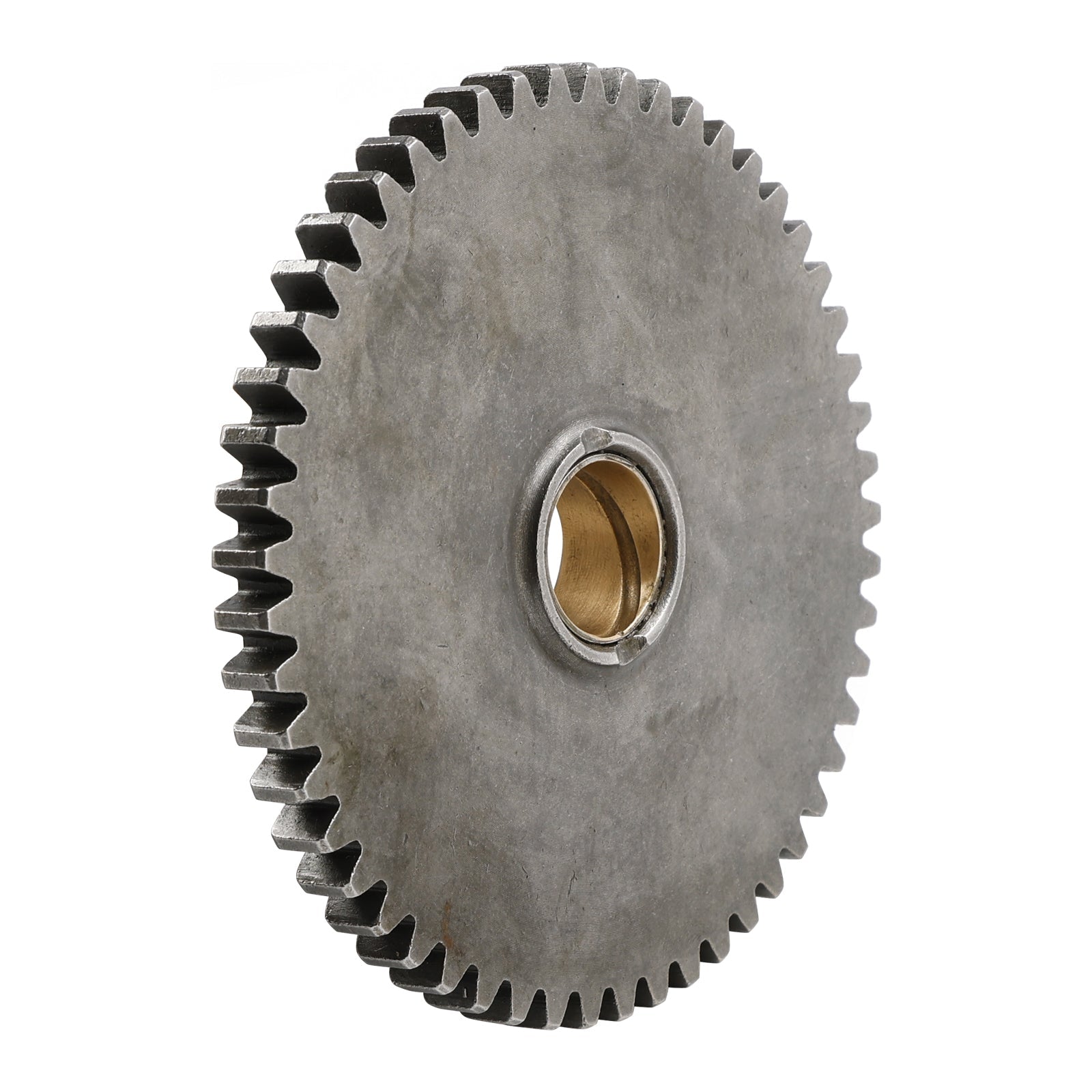

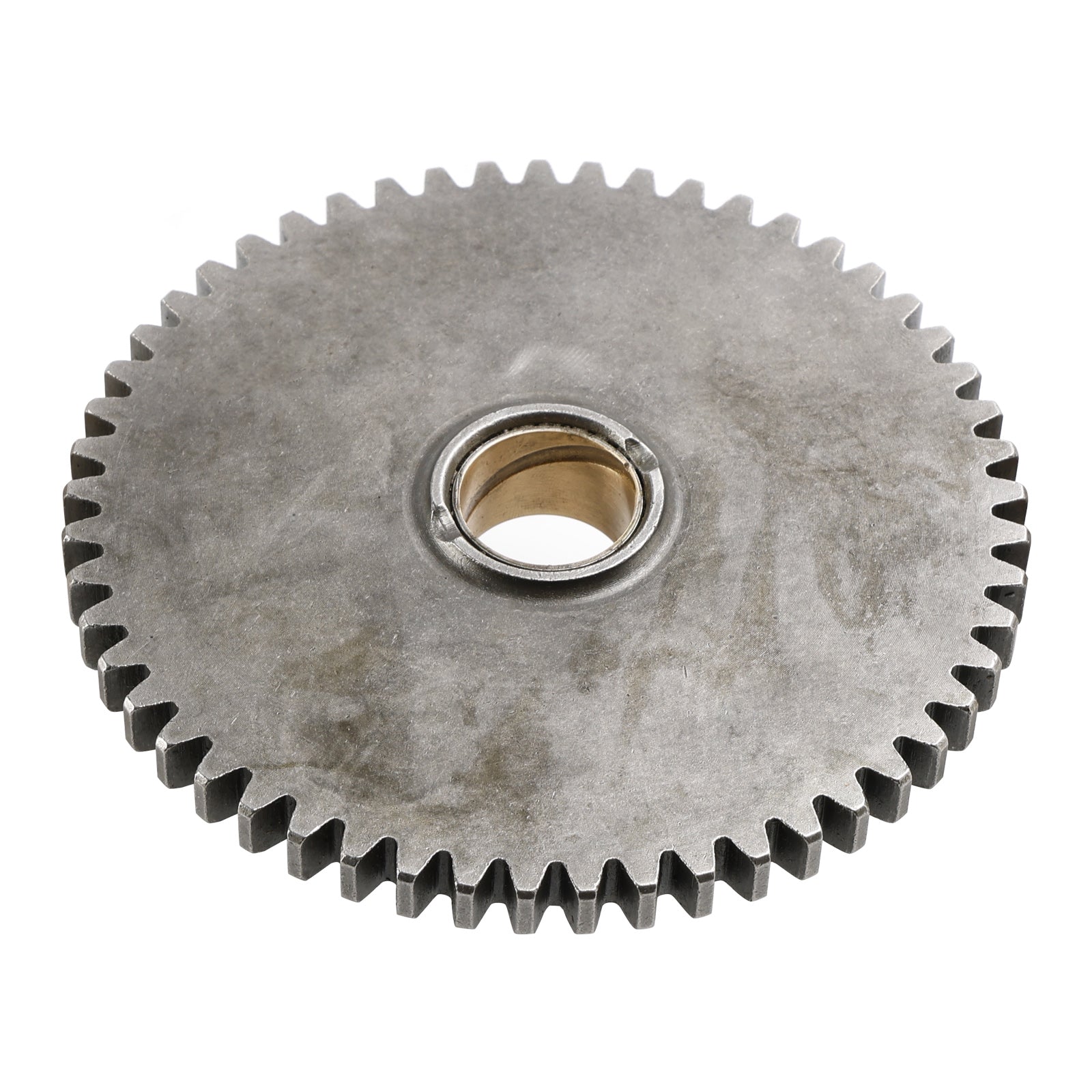

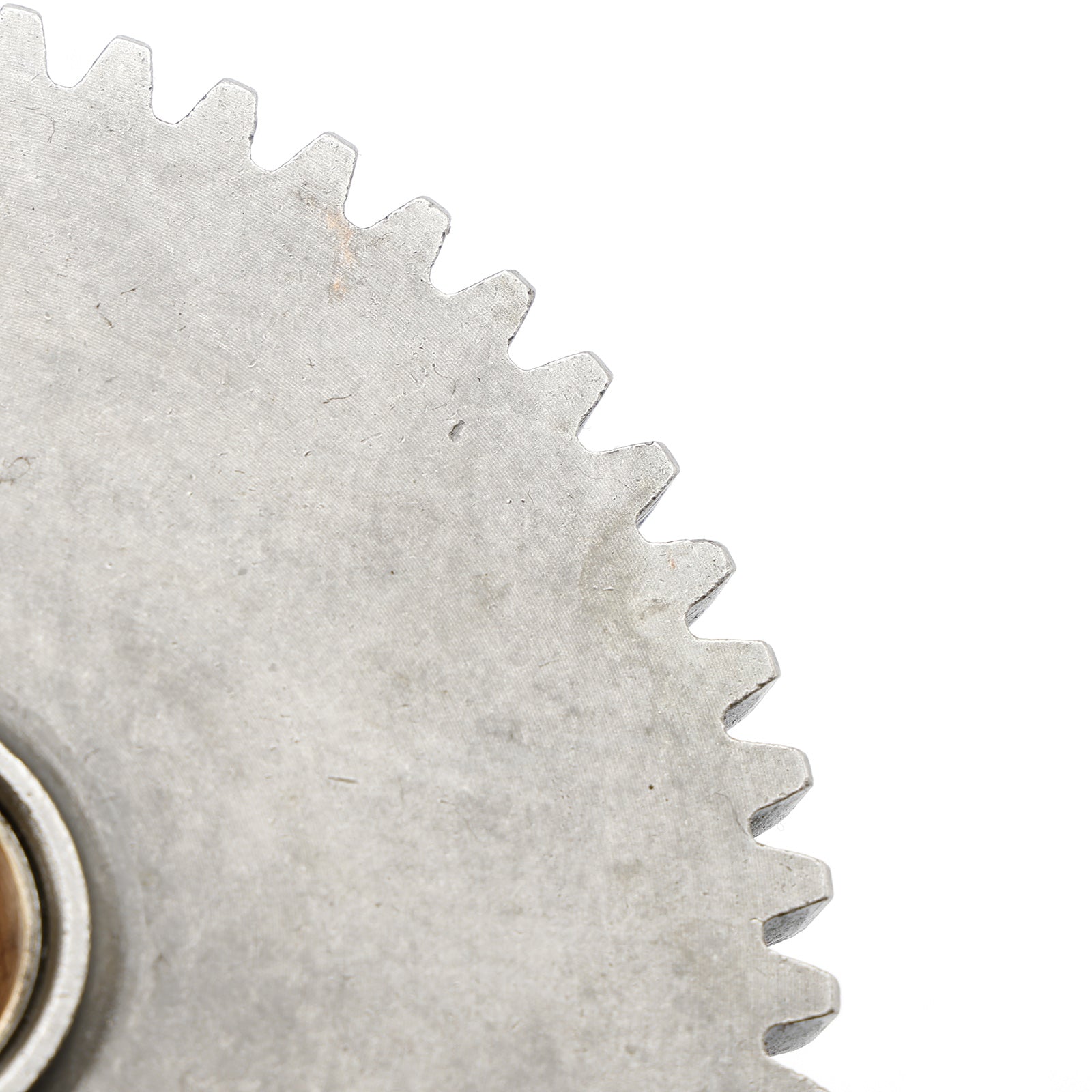

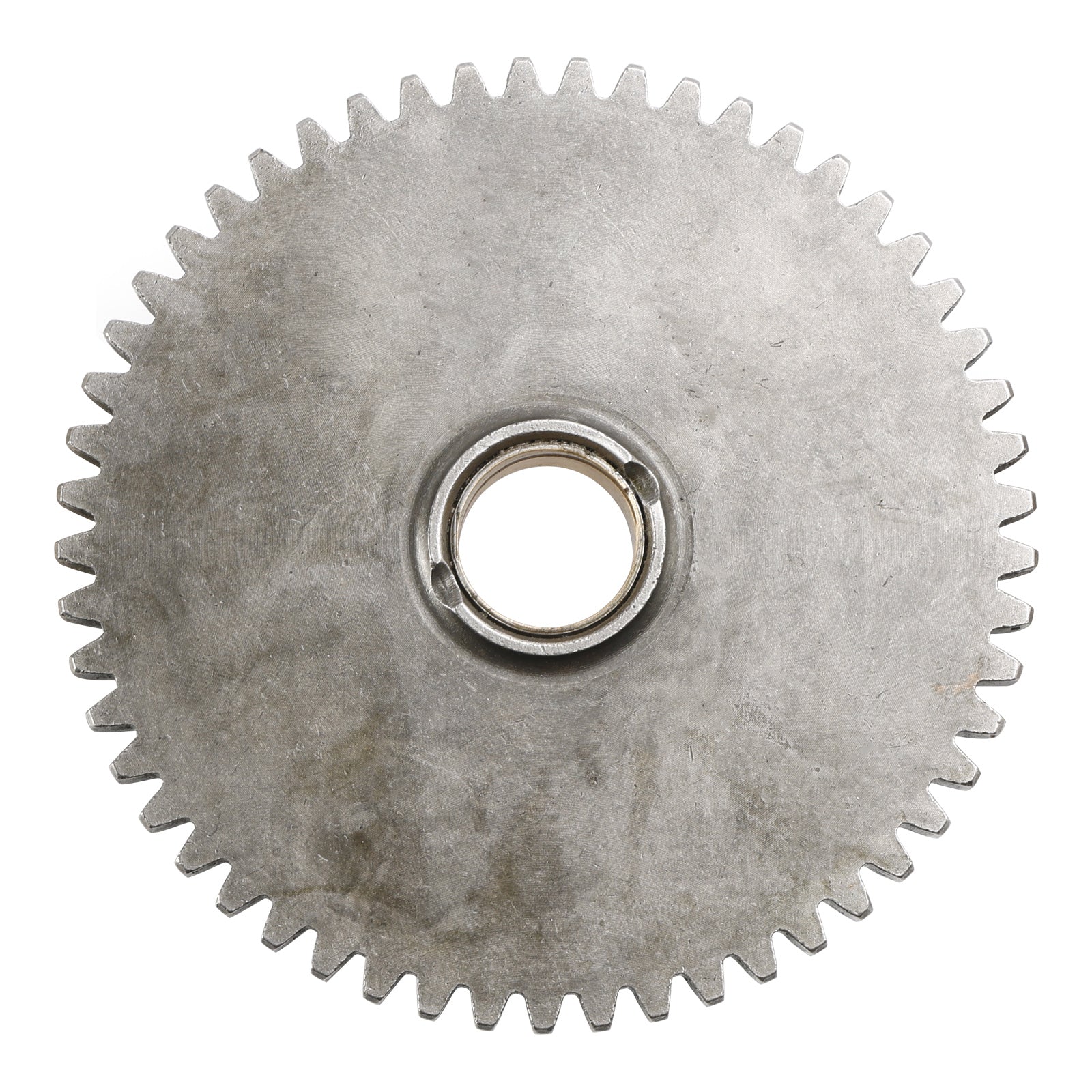

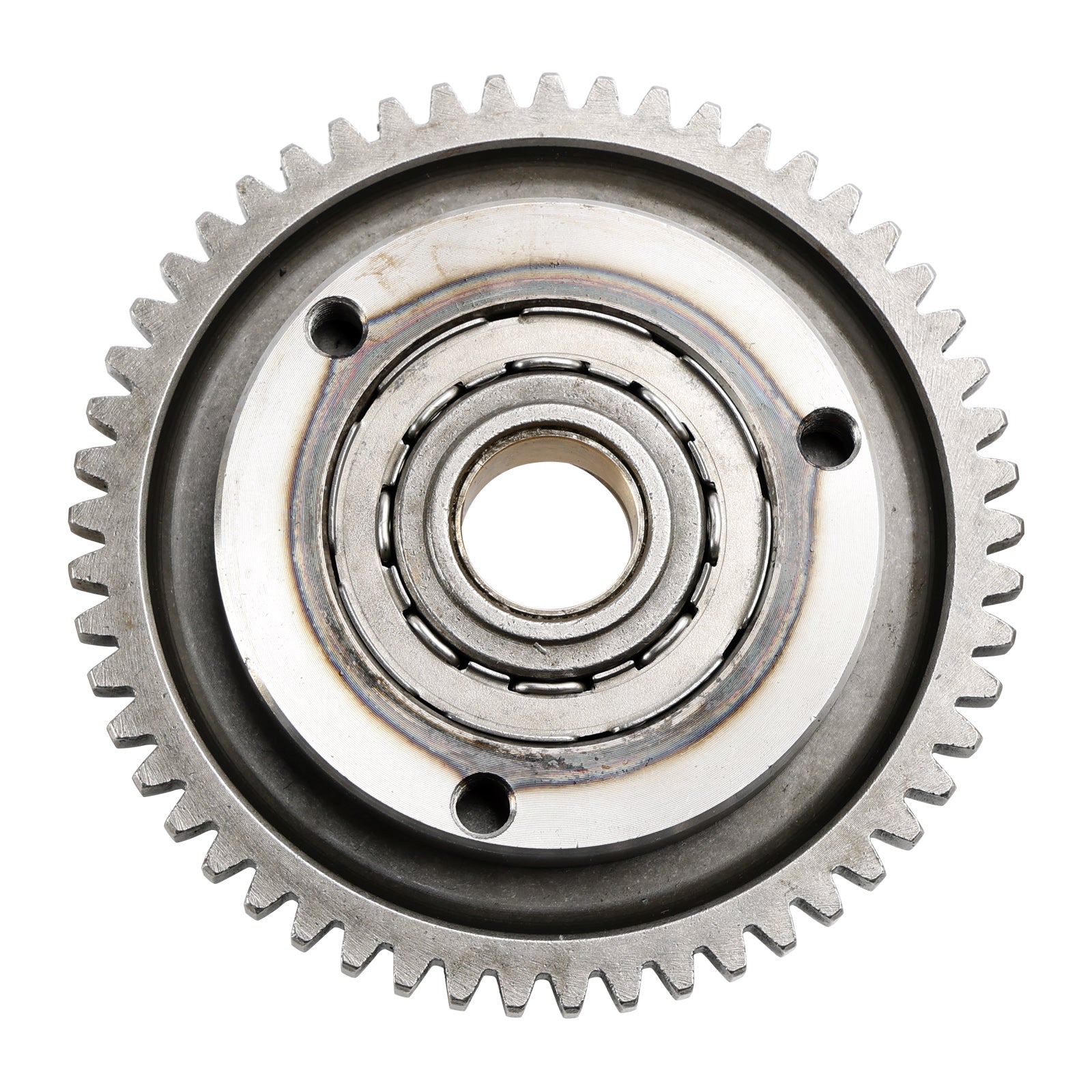

One Way Starter Clutch Gear Hub Bearing Assy Fit for Aeon Cobra Crossland 350 400

Features:
Ideal to refurbish the boot of your ATV.
Good quality, it will continue to use electric starter.
Element often sought and which wears rapidly.
Essential part for the operation of your starter.

Specifications:
Condition: Aftermarket 100% Brand New
Material: Steel
Type: Starter Clutch Assembly
Material: High Quality Steel
Number of Gear Teeth: 53T

Dimensions(Approx):
Gear outer diameter: 122mm (4.80 in)
Gear hub inner diameter: 22mm (0.86 in)
Gear hub outer diameter: 39mm (1.49 in)
Gear height: 9mm (0.35 in)
Bearing inner diameter: 39mm (1.49 in)
Bearing outer diameter: 54mm (2.12 in)
Stater clutch inner diameter: 54mm (2.12 in)
Stater clutch outer diameter: 85mm (3.34 in)

Replacement Part Number:
2812150B-000
2822062N-000
AEO-2812150B-000
AEO-2822062N-000

Fits Models:
Fit for Aeon Urban 350i
Fit for Aeon Elite 350i
Fit for Aeon Bistrada 3.5
Fit for Aeon Cube 300
Fit for Aeon Cube 350 4WD
Fit for Aeon Cobra 300S
Fit for Aeon Cobra 320
Fit for Aeon Cobra 350
Fit for Aeon Cobra 400 EFI SX u. SM
Fit for Aeon Cobra 400 Basic/ LUX/ LE, Supermoto Basic/ LE
Fit for Aeon Cobra 400 EFI SX u. SM
Fit for Aeon Crossland 300
Fit for Aeon Crossland 350
Fit for Aeon Crossland 350RX (2010->)
Fit for Aeon Crossland 350X4 (Allrad)
Fit for Aeon Crossland 400 4x4 (2012->
Fit for Aeon Crossland 400 RX (2012->)
Fit for CYR CYR 351
Fit for CYR CYR 451
Fit for GOES 300s
Fit for GOES 350s
Fit for GOES 400
Fit for GOES 360 Max 4x2 (Aeon)
Fit for GOES 360 Max 4x4 (Aeon)

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x One Way Starter Clutch Gear Assy

(Comes exactly as pictured.)

Note:
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
