38mm Cylinder Piston Gasket Top End Rebuild Kit 50cc For MBK Booster Nitro Ovetto Yamaha Aerox Giggle 4T LC

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

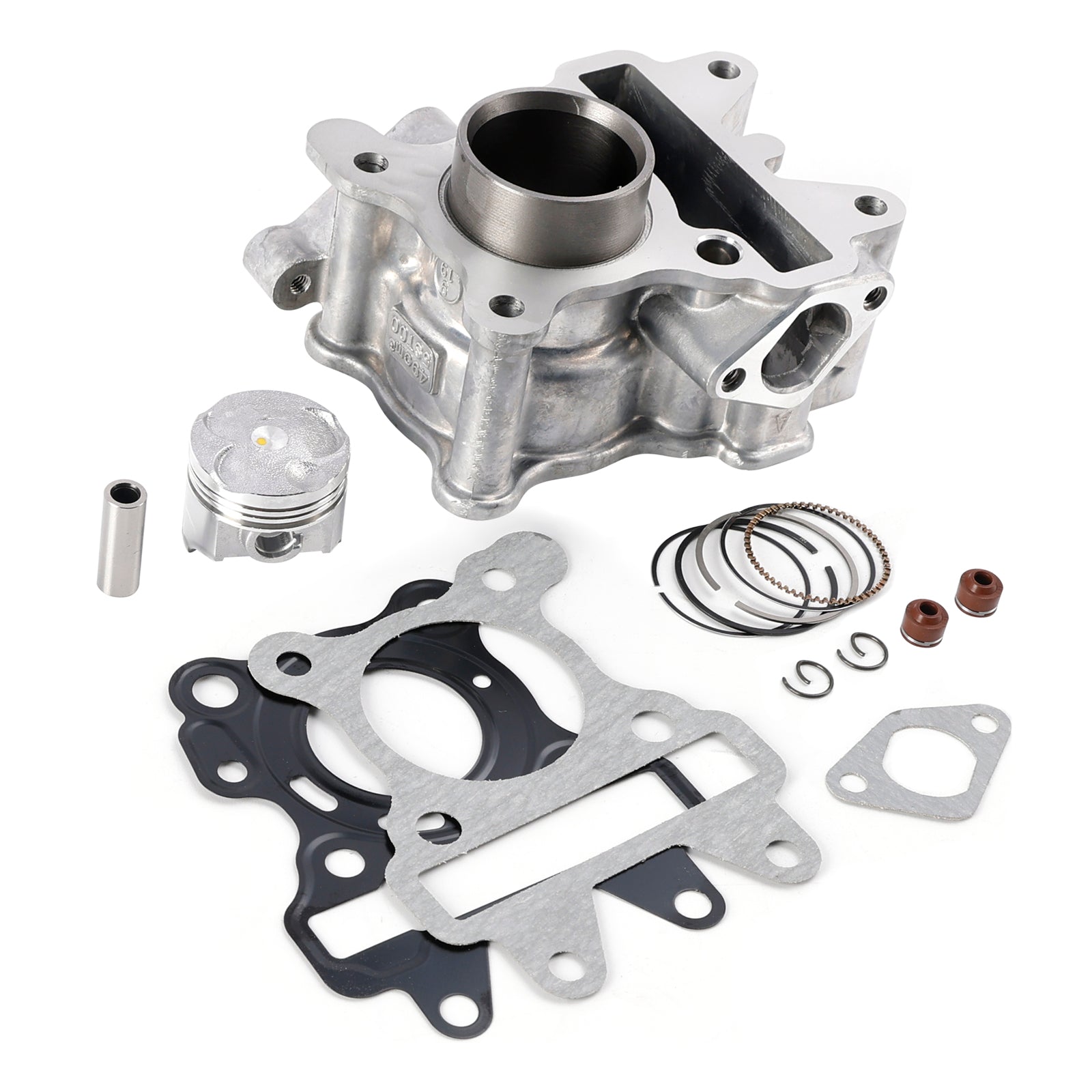

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

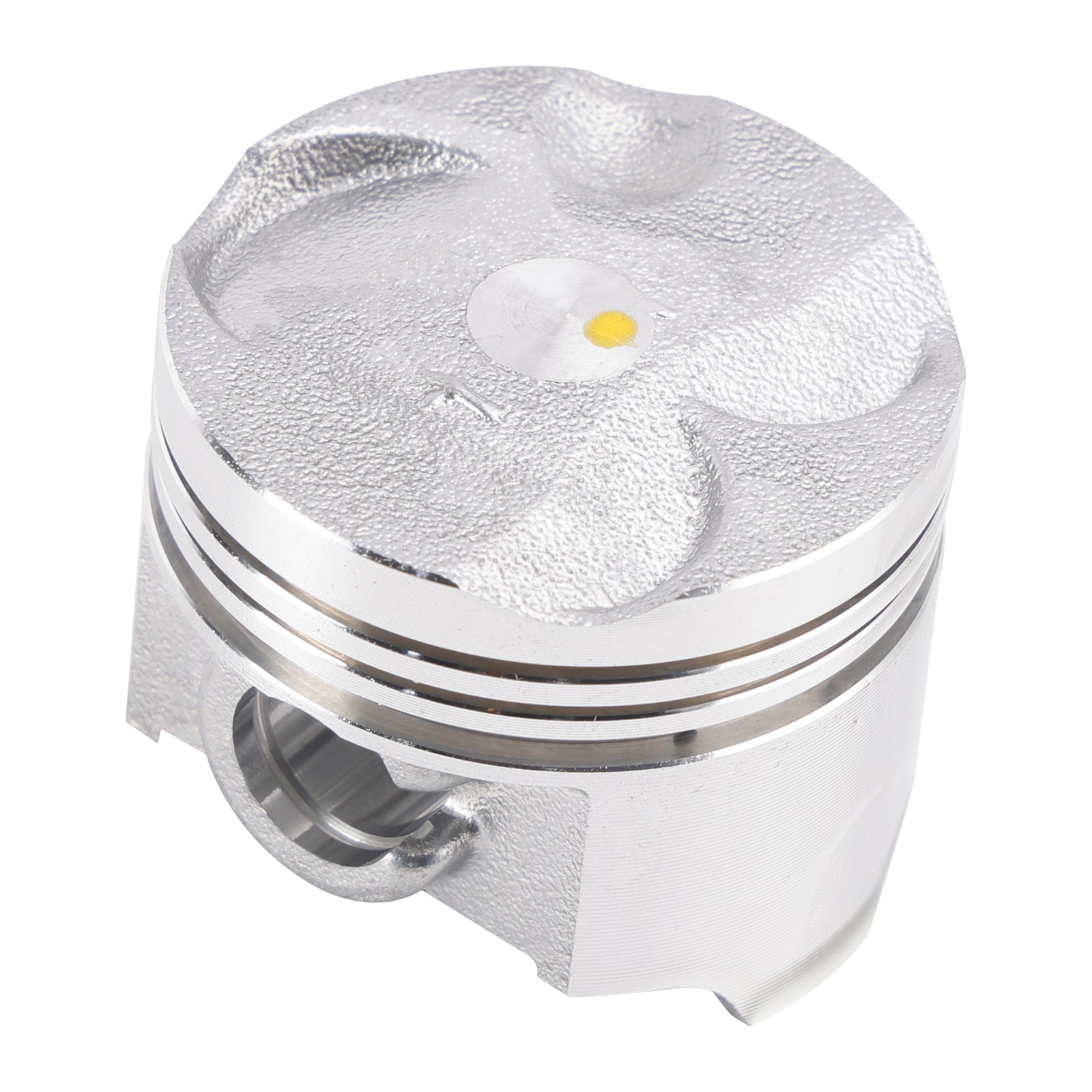

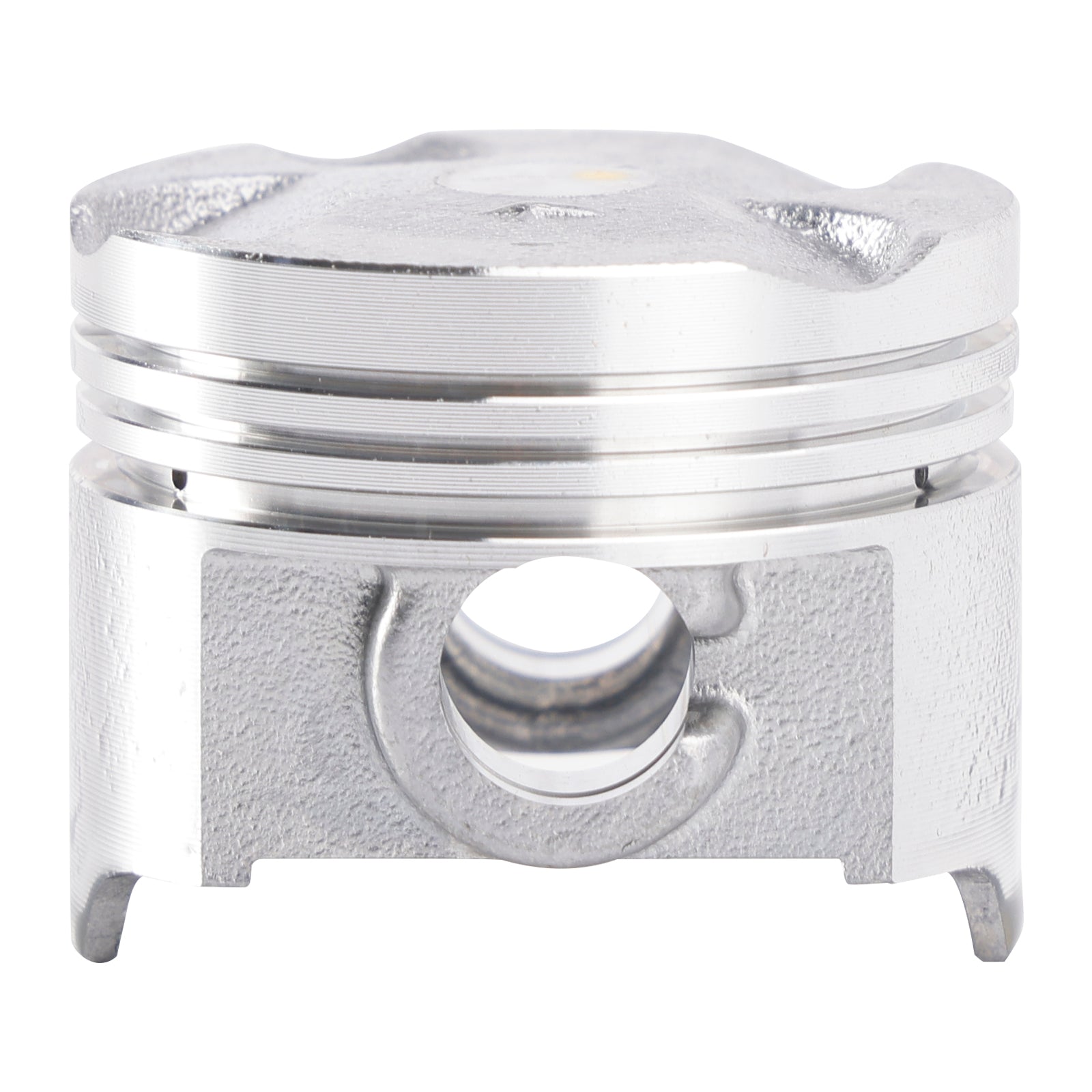

Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 38.0 mm x 43.6 mm stroke, 10mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 50cc 4 stroke
Bore Type: Standard Bore
Piston Type: 3 Valves
Bore diameter: STD 38mm
Stroke: 43.6mm
Pin diameter: 10mm
Pin Overall Length: 29mm

Replacement Part Number:

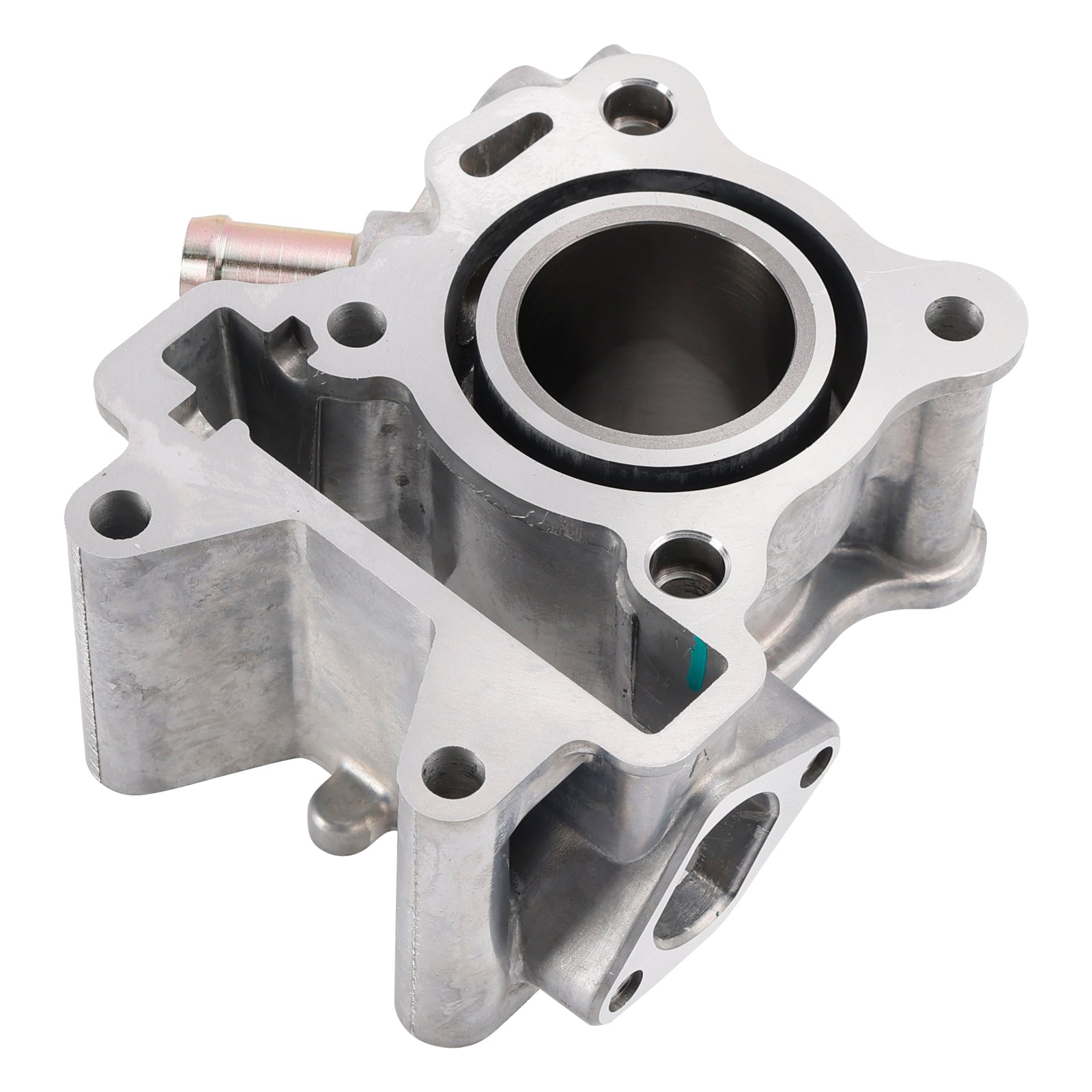

Cylinder: 3B3-E1311-00
Cylinder Base Gasket: 5ST-E1351-10
Cylinder Head Gasket: 10B-E1181-10
Piston (Std): 3B3-E1631-00, 5ST-E1631-00
Pin, Piston: 5ST-E1633-00
Piston Ring Set (Std): 10B-E1603-00
Circlips, piston (2): 93450-10823
Valve Stem Seal (2): 5ST-E2119-00
Tensioner Case Gasket: 4DH-E2213-01

Fits Make/Model/Year:
Only for scooters which use the Minarelli 4-stroke 50cc engine.
Fit for MBK Booster X 50 4T
Fit for MBK Nitro 4 50 4T (1GB) 2014-
Fit for MBK Ovetto 50 4T (SA40) 2009-2012
Fit for MBK Ovetto 50 4T (2AC/SA46) 2013-
Fit for Yamaha YJ 50 Vino 4T E2 2002-2005
Fit for Yamaha XC 50 Vino Classic 4T 2013-2018
Fit for Yamaha XF 50 ie Giggle (C3) 4T E2 (15P/SA351) 2007-2011
Fit for Yamaha YW 50 F Zuma 50 4T 2012-2013
Fit for Yamaha YW 50 F Zuma 50F 4T 2014-2019
Fit for Yamaha YW 50 FX Zuma 50FX 4T 2014-2019
Fit for Yamaha YN 50 F Neos 4T E2 (5C3/SA40) 2009-2012
Fit for Yamaha YN 50 F Neos 4T E2 (2AC/SA46) 2013-2017
Fit for Yamaha YN 50 F Neos 4T E4 (2AC/SA611) 2018-2021
Fit for Yamaha NS 50 F Aerox 4T E2 (1GB/SA426) 2014-2017
Fit for Yamaha NS 50 F Aerox 4T E4 (SA601) 2018-2020

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

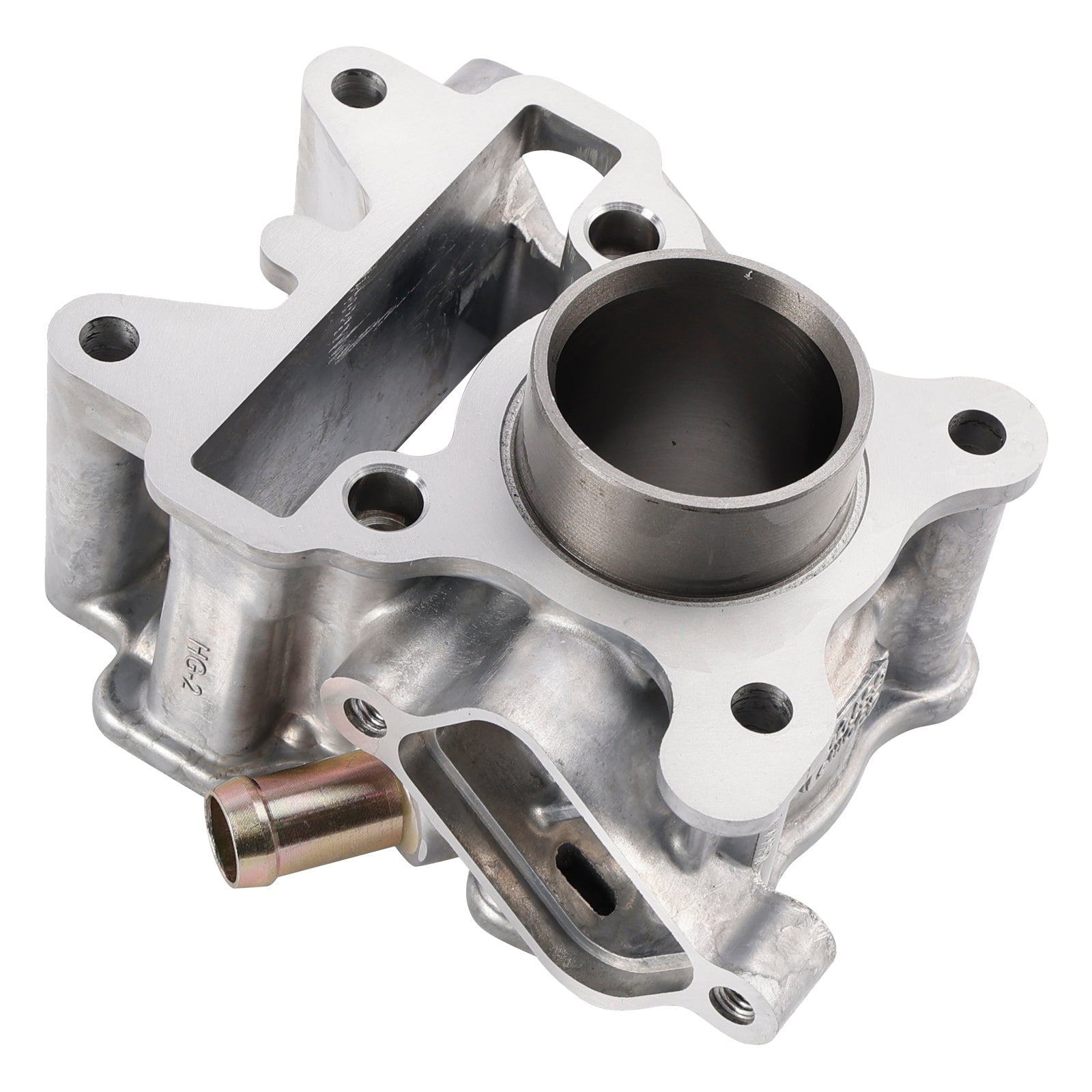

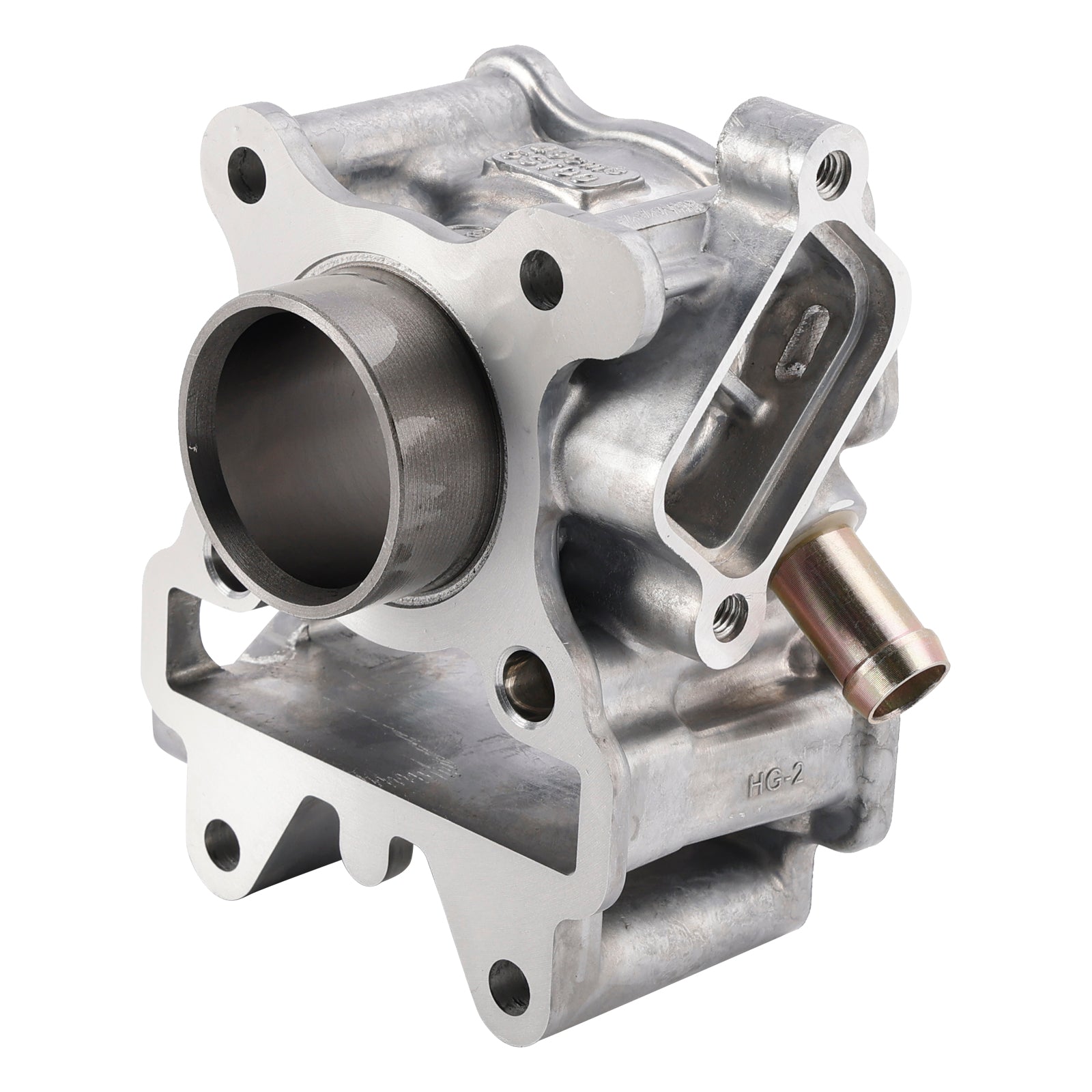

1x Cylinder
1x Piston

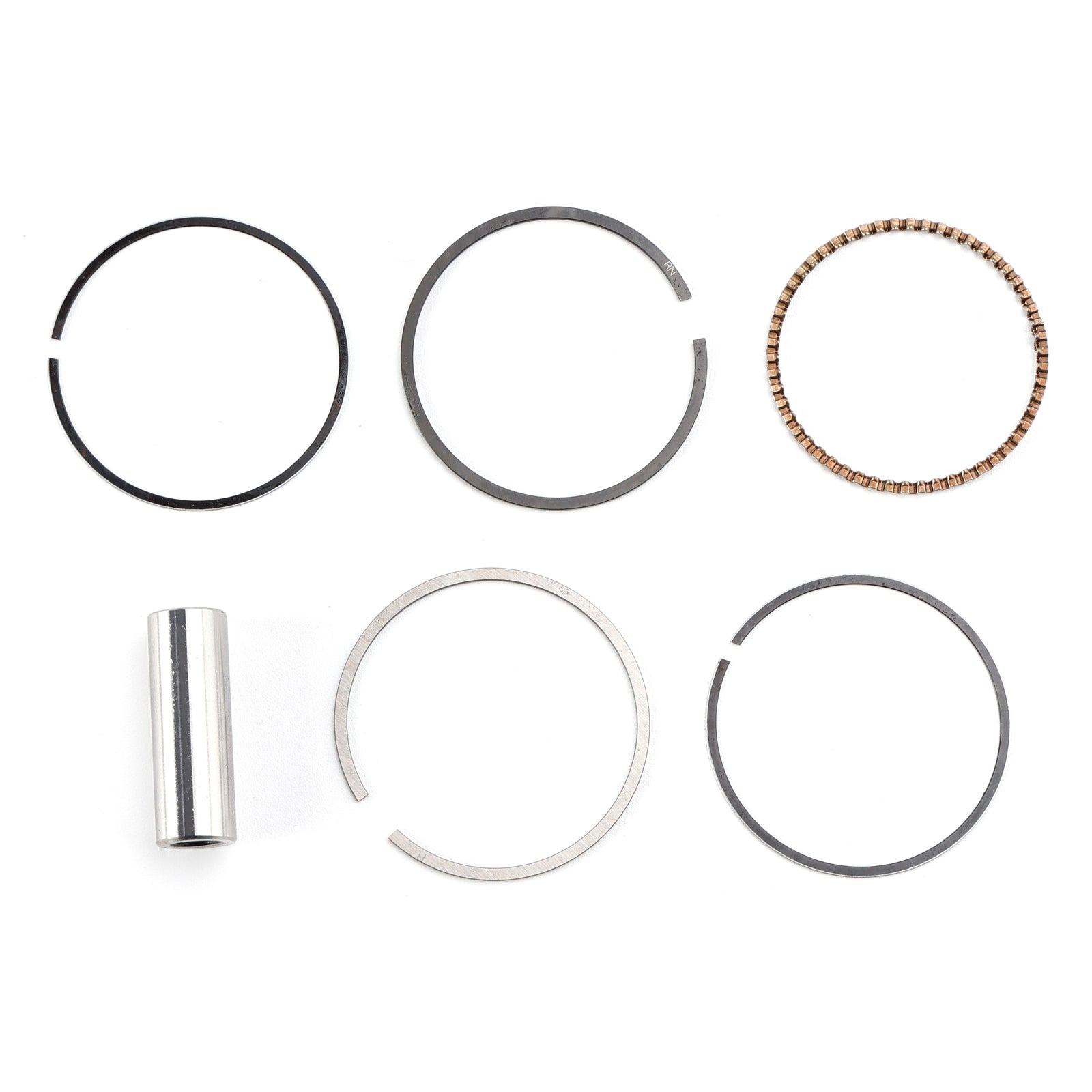

1x Piston Ring Set
1x 10mm Wristpin
1x Circlip(2)

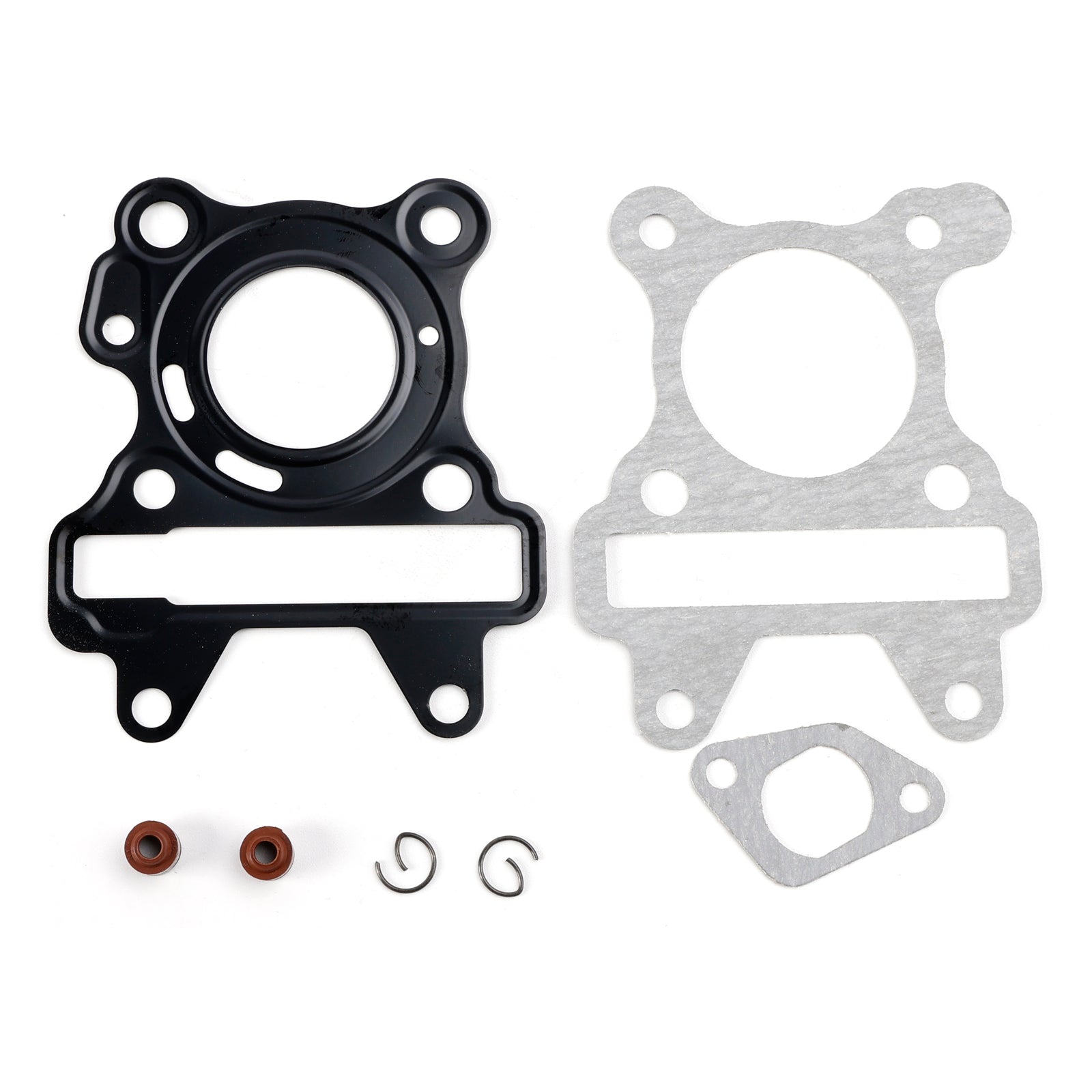

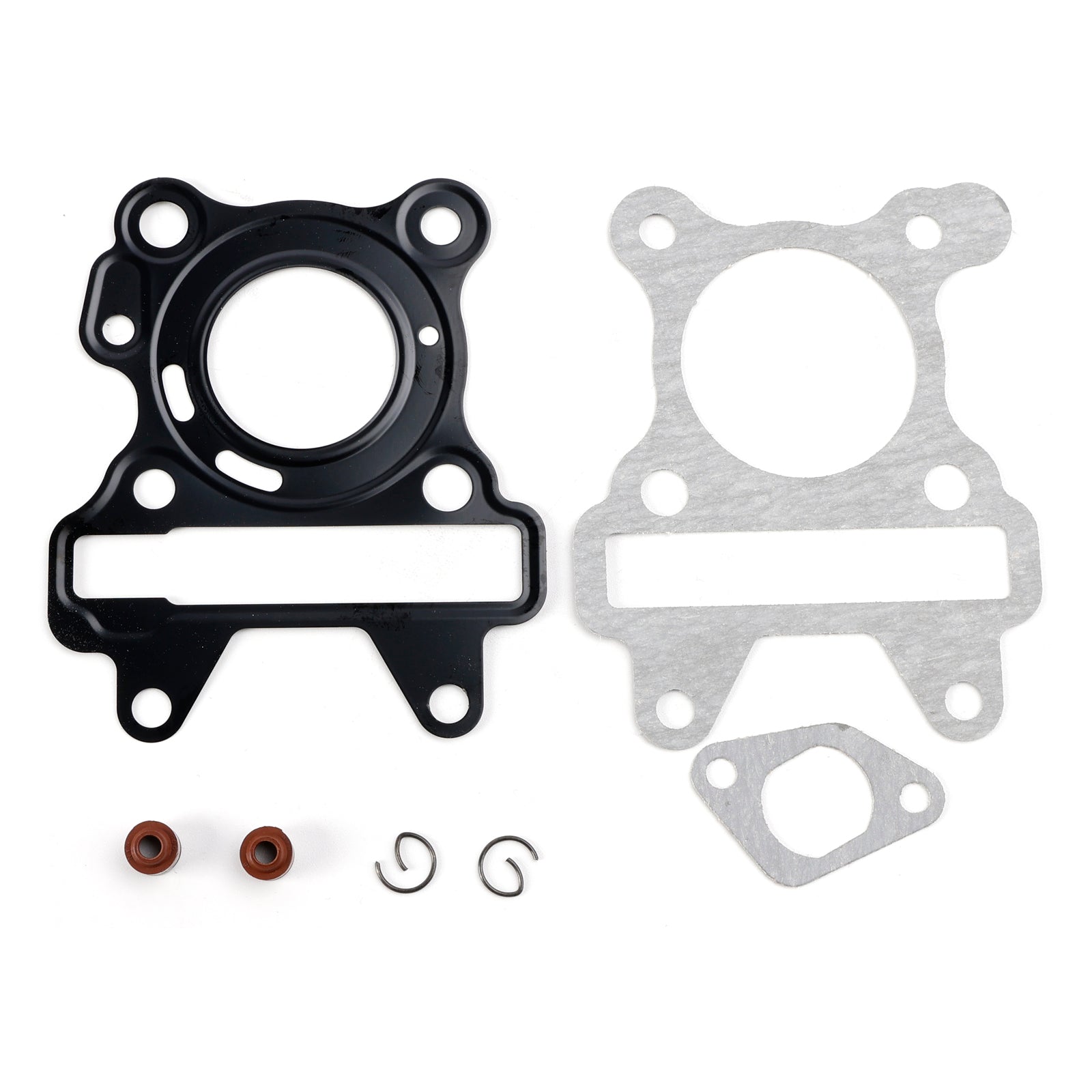

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Case Gasket
2x Valve Stem Seals

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
