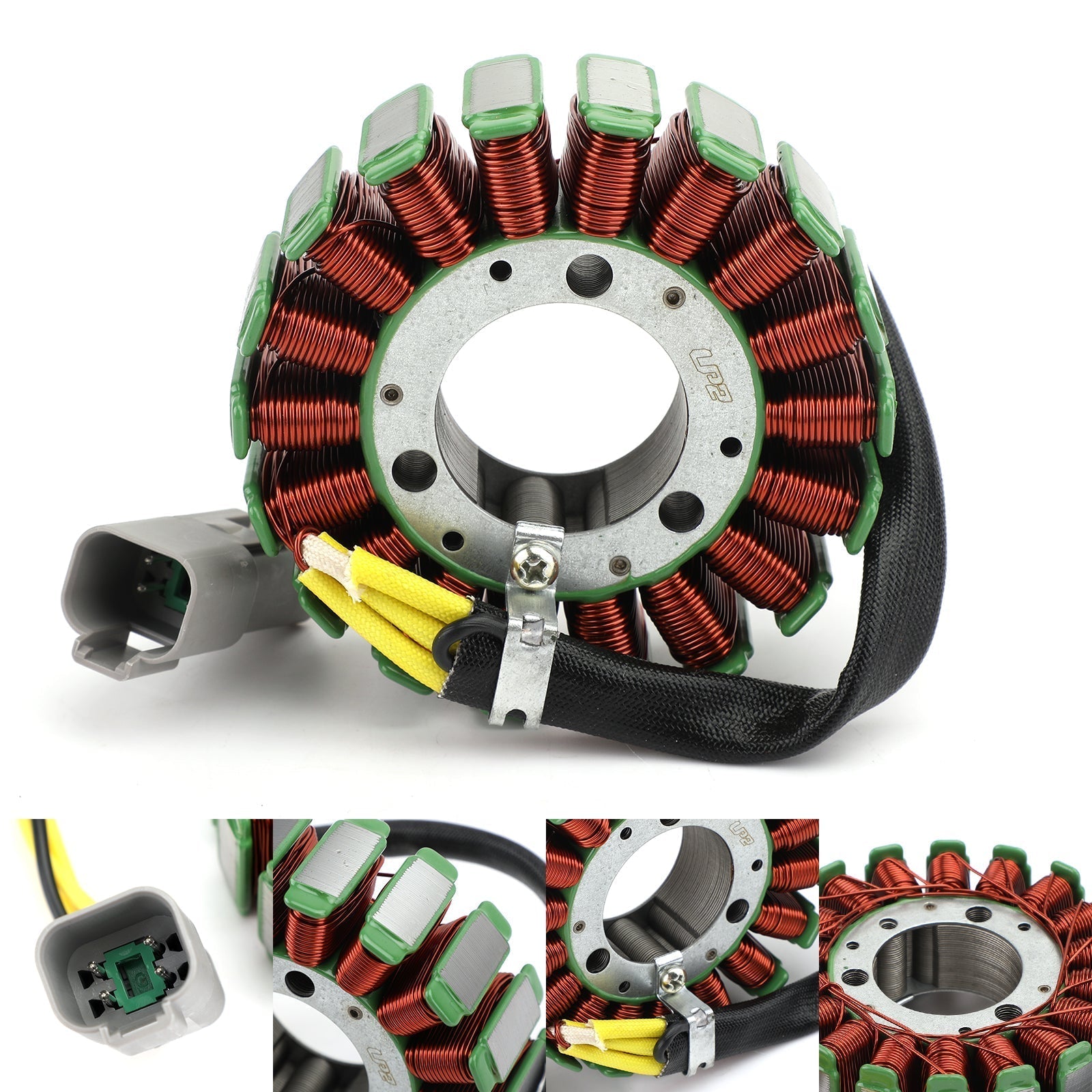

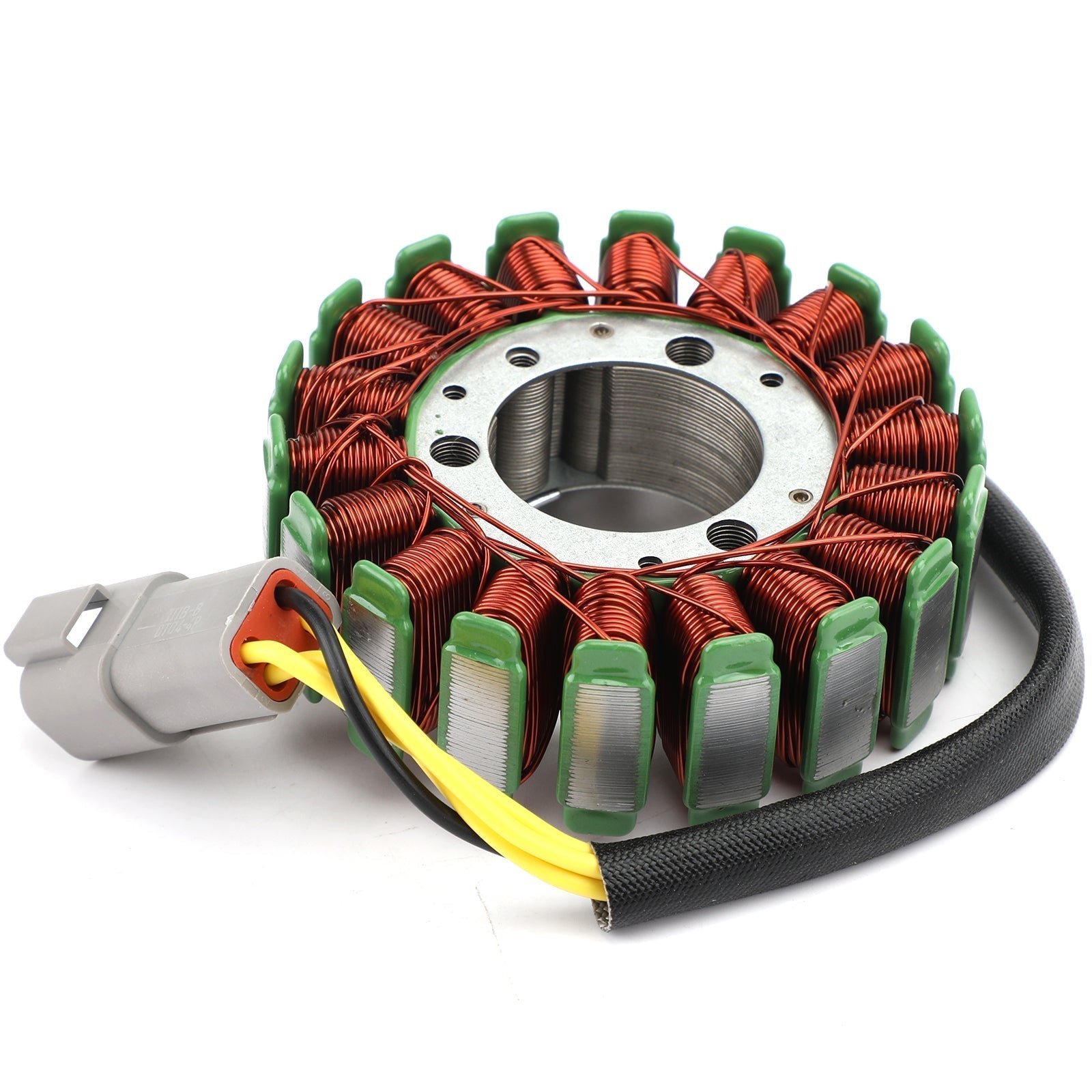

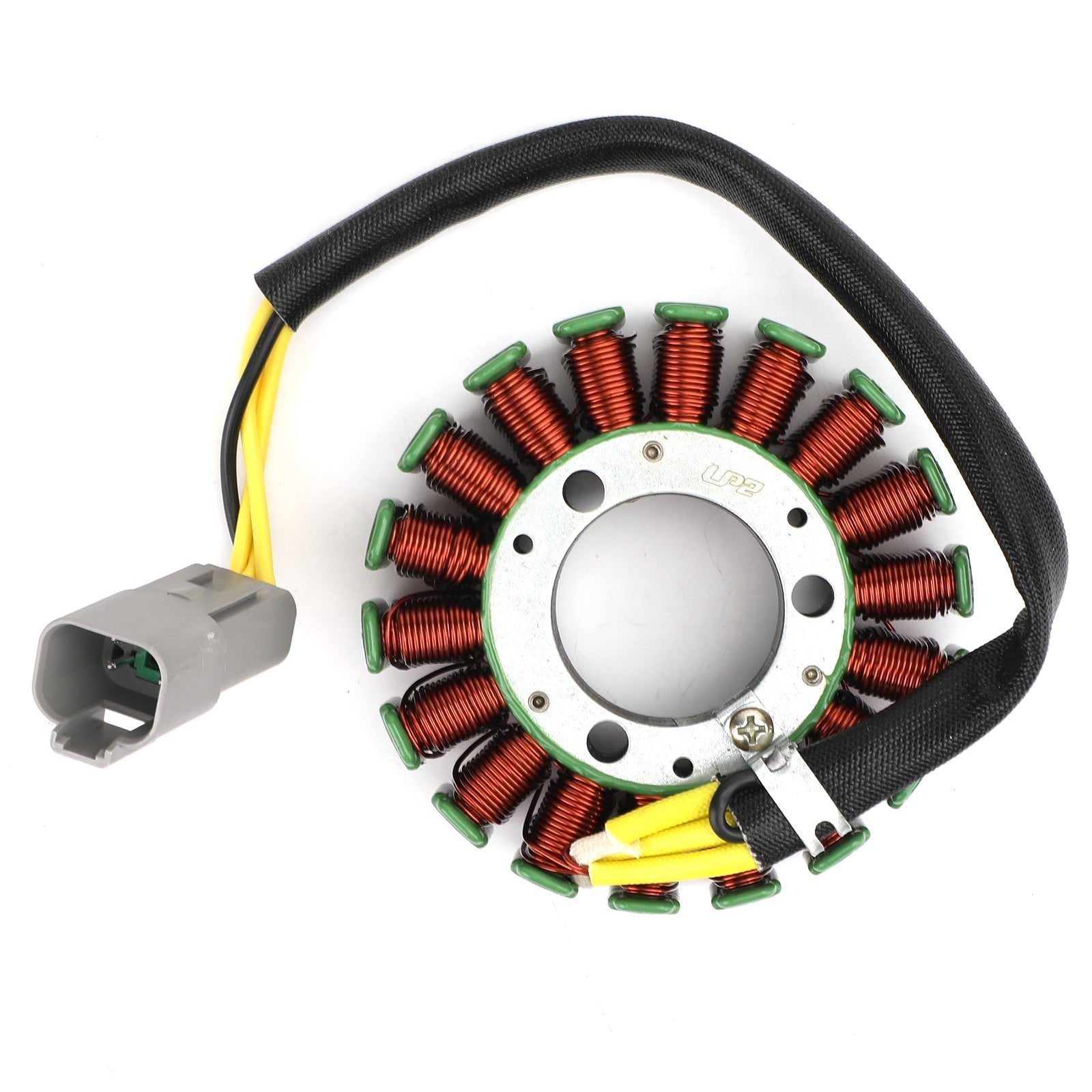

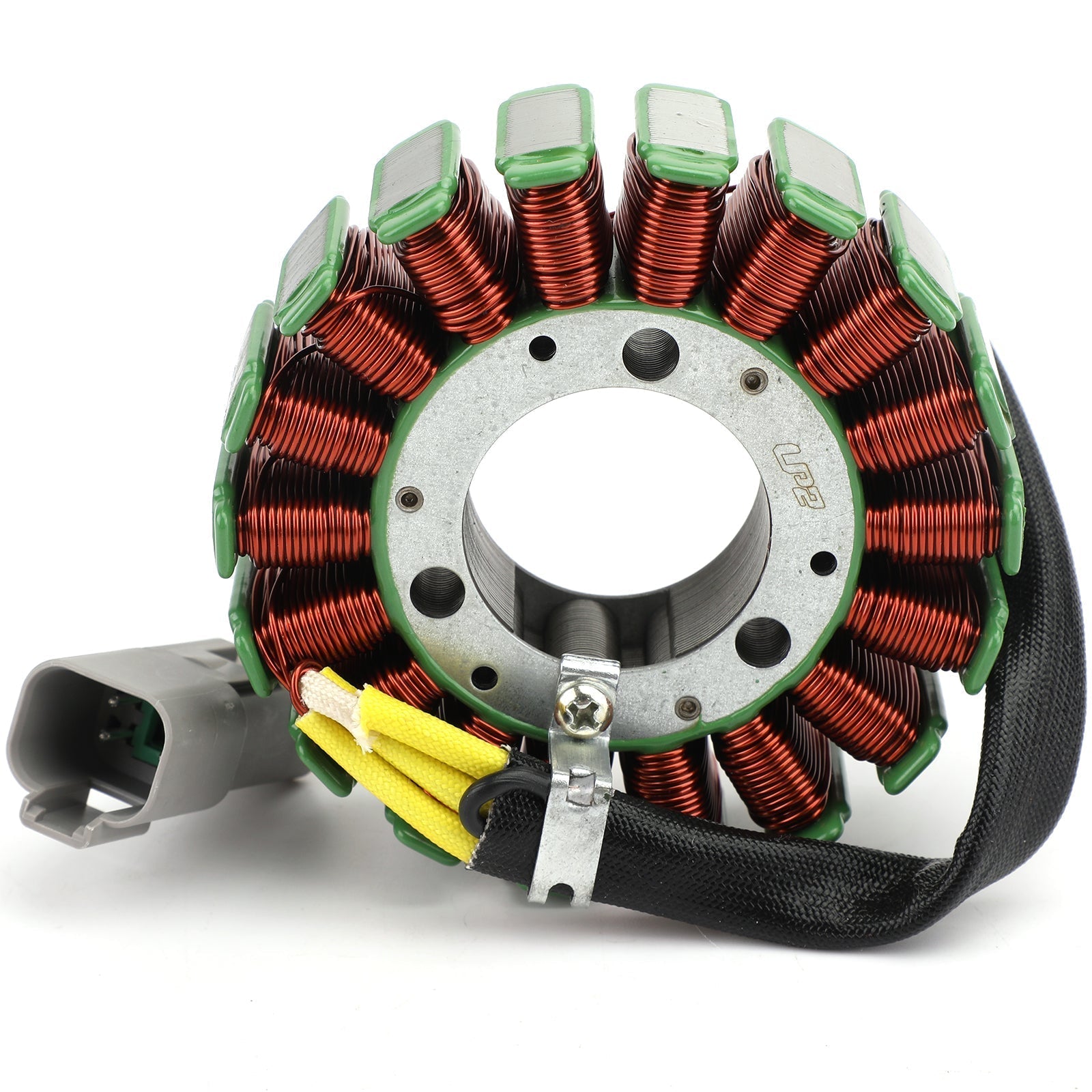

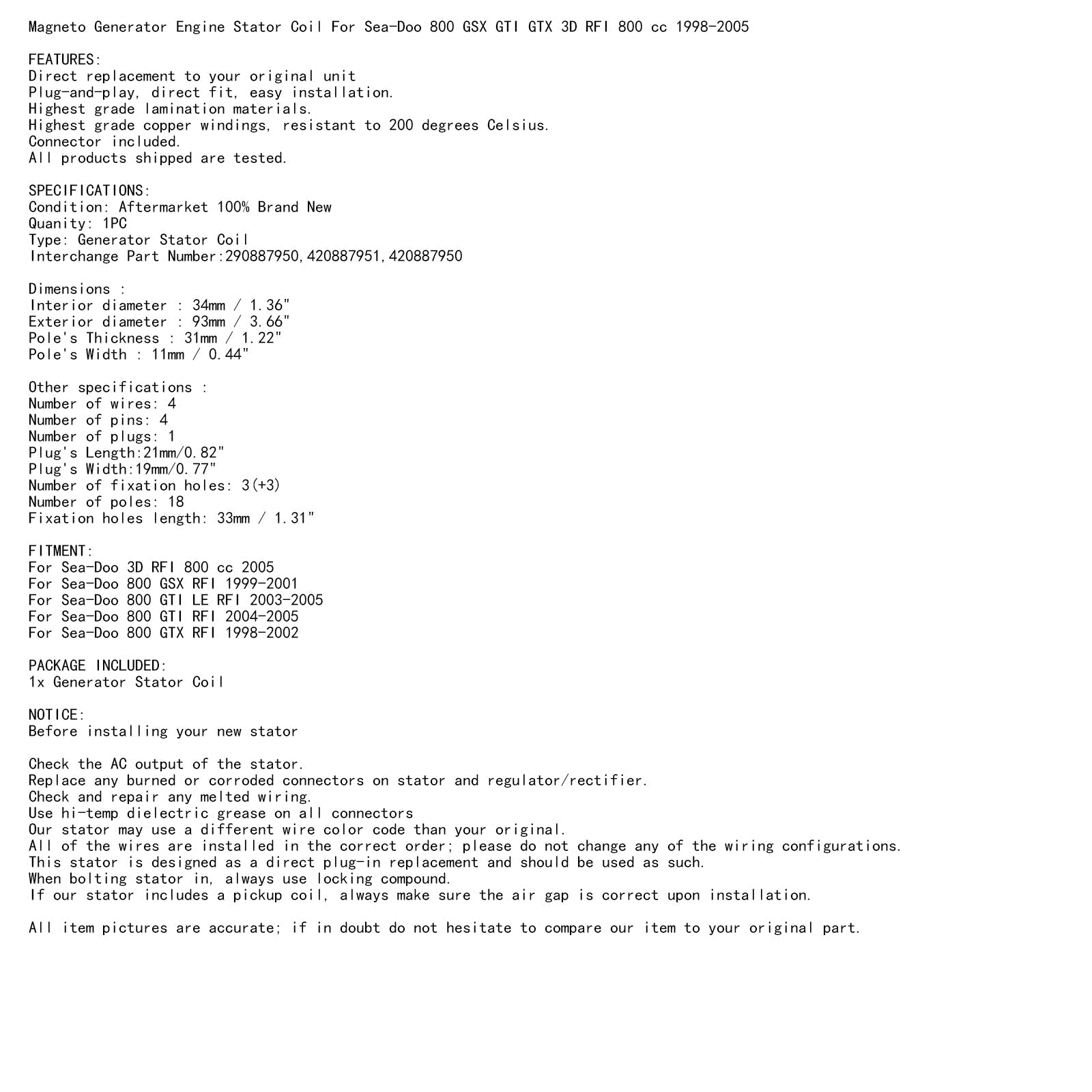

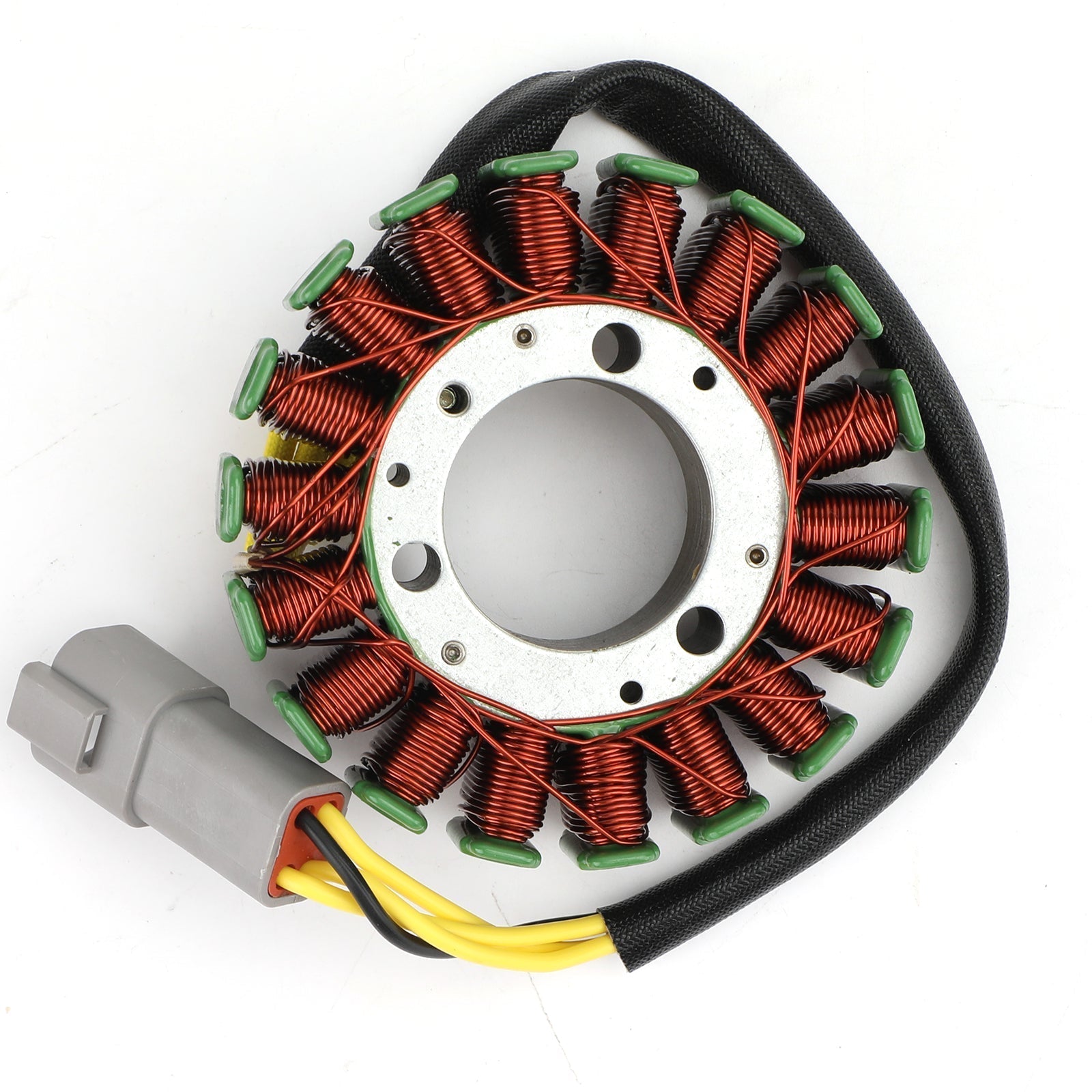

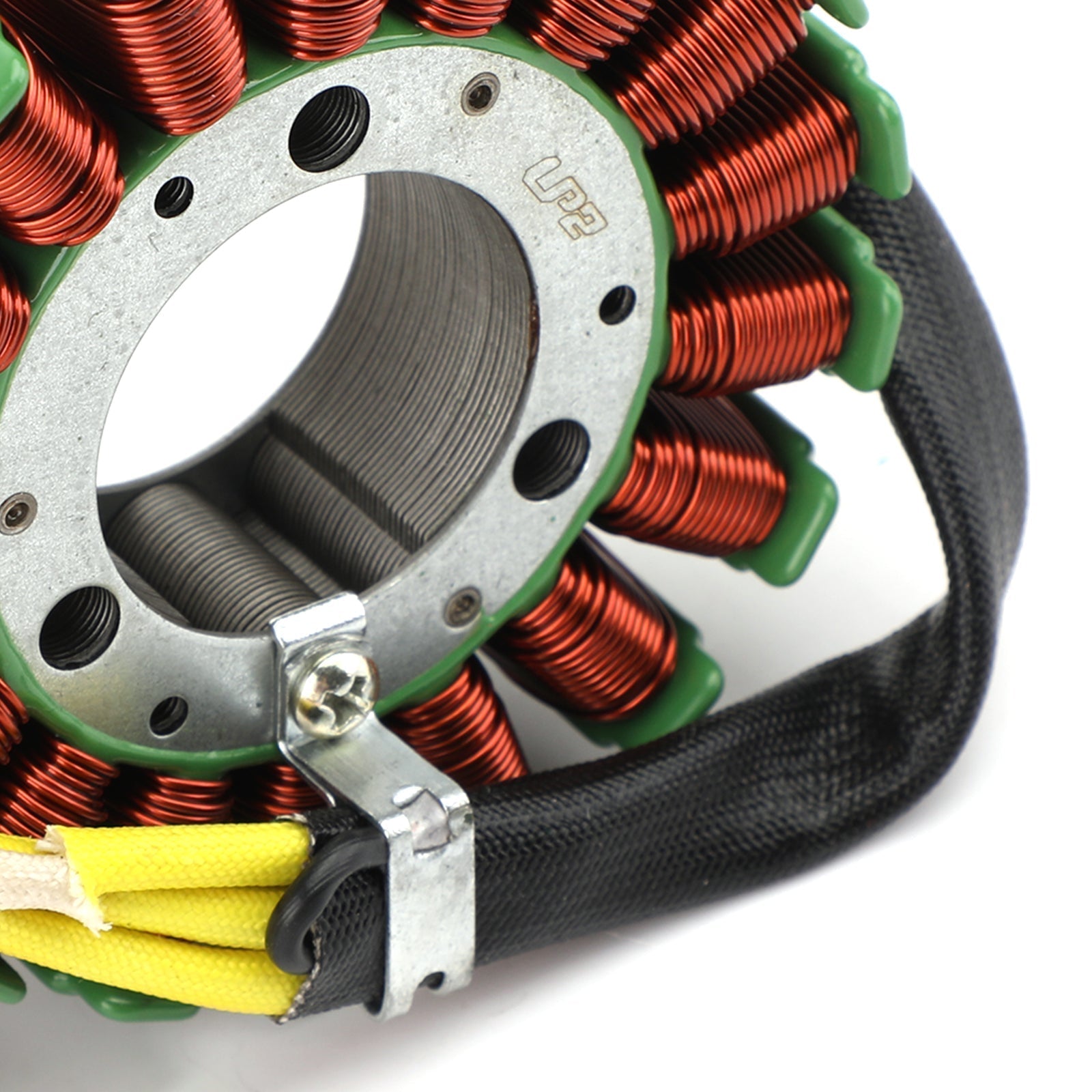

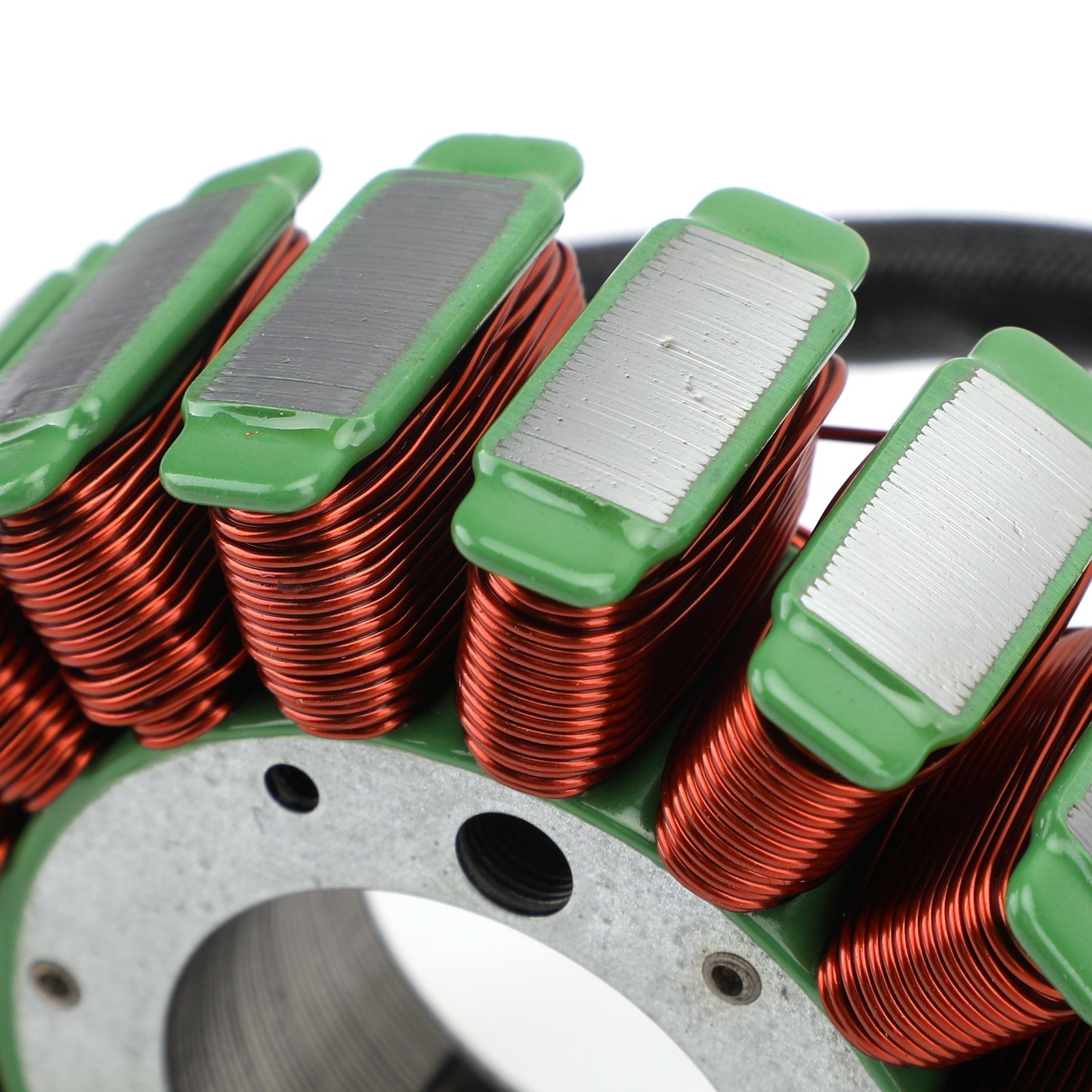

Magneto Generator Engine Stator Coil For Sea-Doo 800 GSX GTI GTX 3D RFI 800 cc 1998-2005

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Interchange Part Number:290887950,420887951,420887950

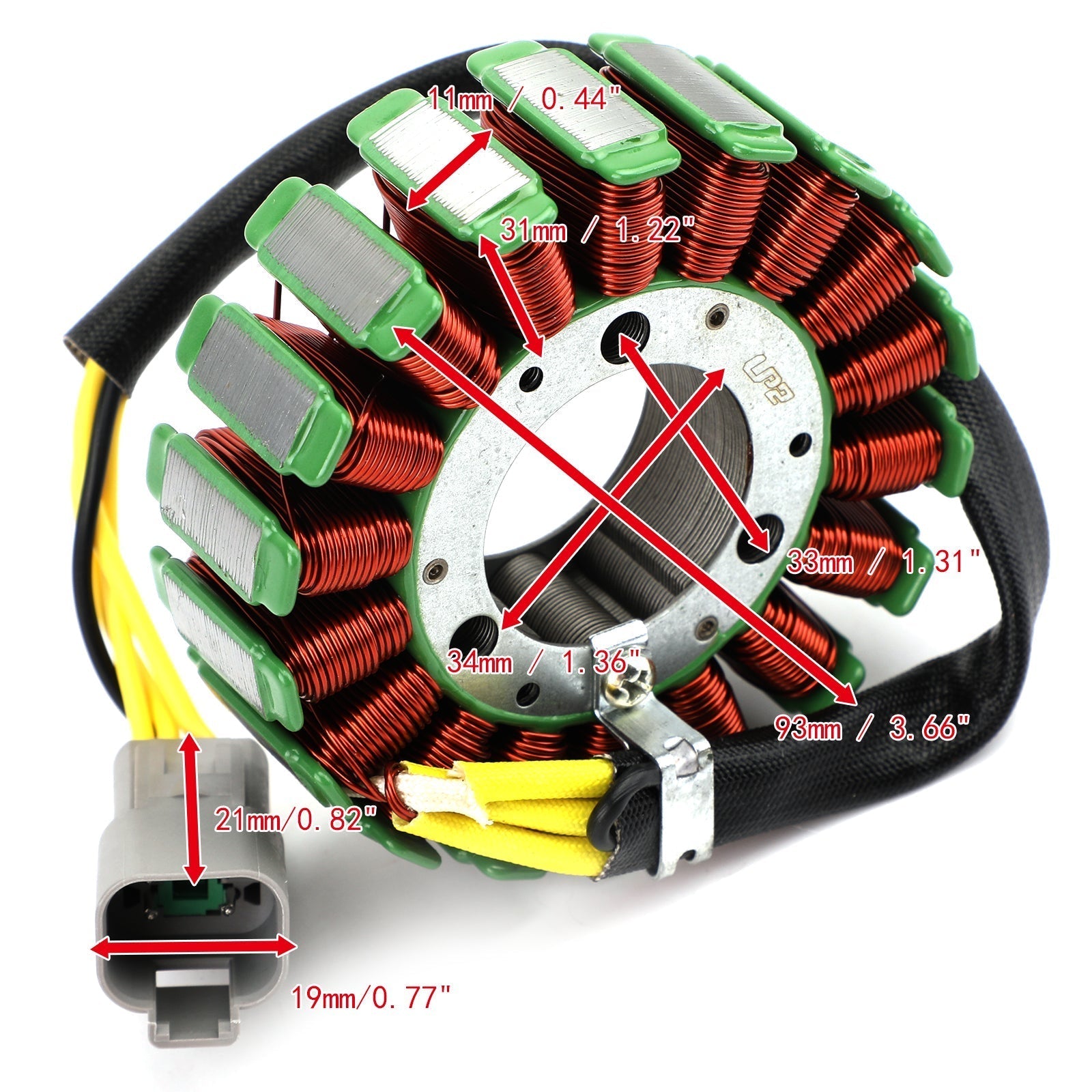

Dimensions :
Interior diameter : 34mm / 1.36"
Exterior diameter : 93mm / 3.66"
Pole's Thickness : 31mm / 1.22"
Pole's Width : 11mm / 0.44"

Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 1
Plug's Length:21mm/0.82"
Plug's Width:19mm/0.77"
Number of fixation holes: 3(+3)
Number of poles: 18
Fixation holes length: 33mm / 1.31"

FITMENT:
For Sea-Doo 3D RFI 800 cc 2005
For Sea-Doo 800 GSX RFI 1999-2001
For Sea-Doo 800 GTI LE RFI 2003-2005
For Sea-Doo 800 GTI RFI 2004-2005
For Sea-Doo 800 GTX RFI 1998-2002

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
