FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

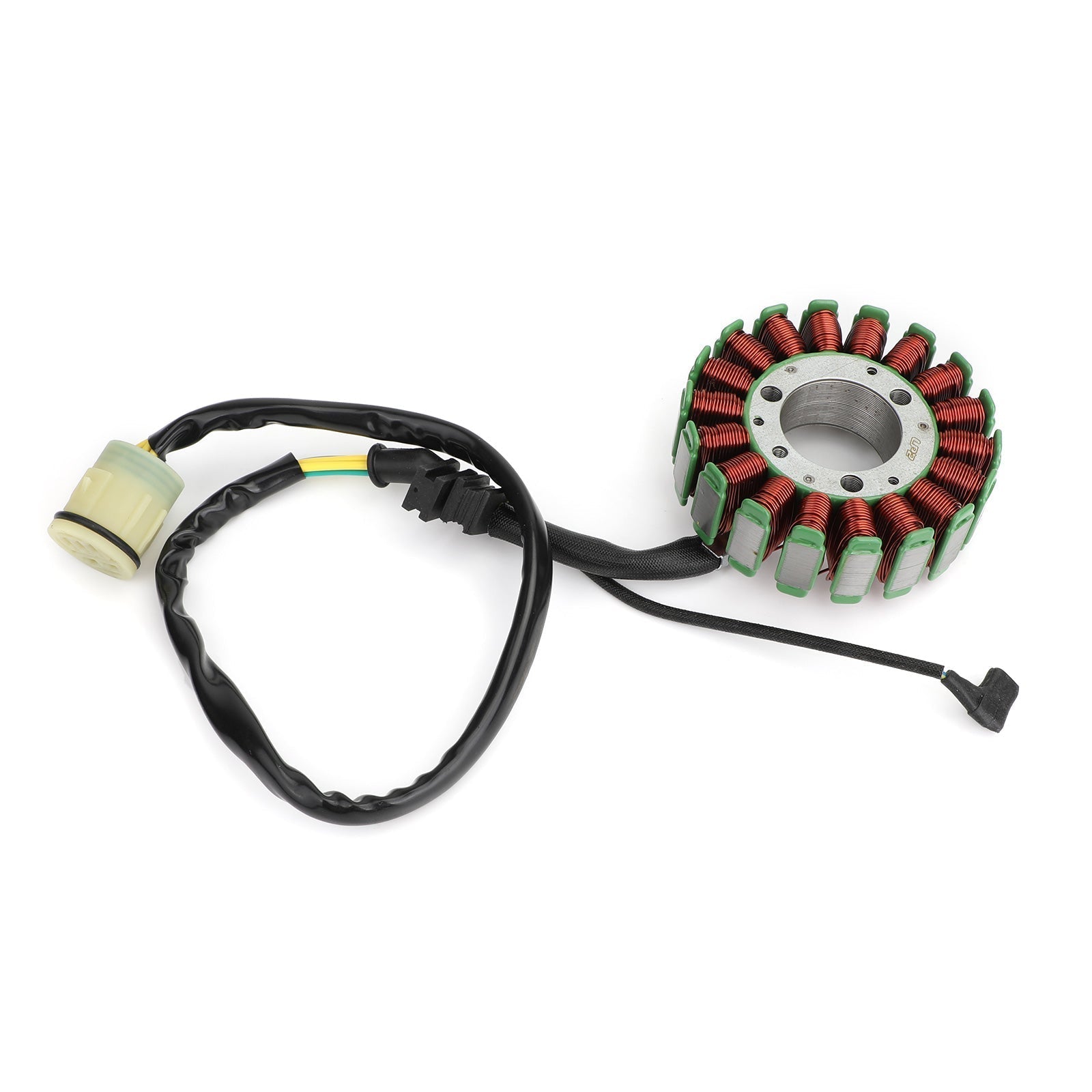

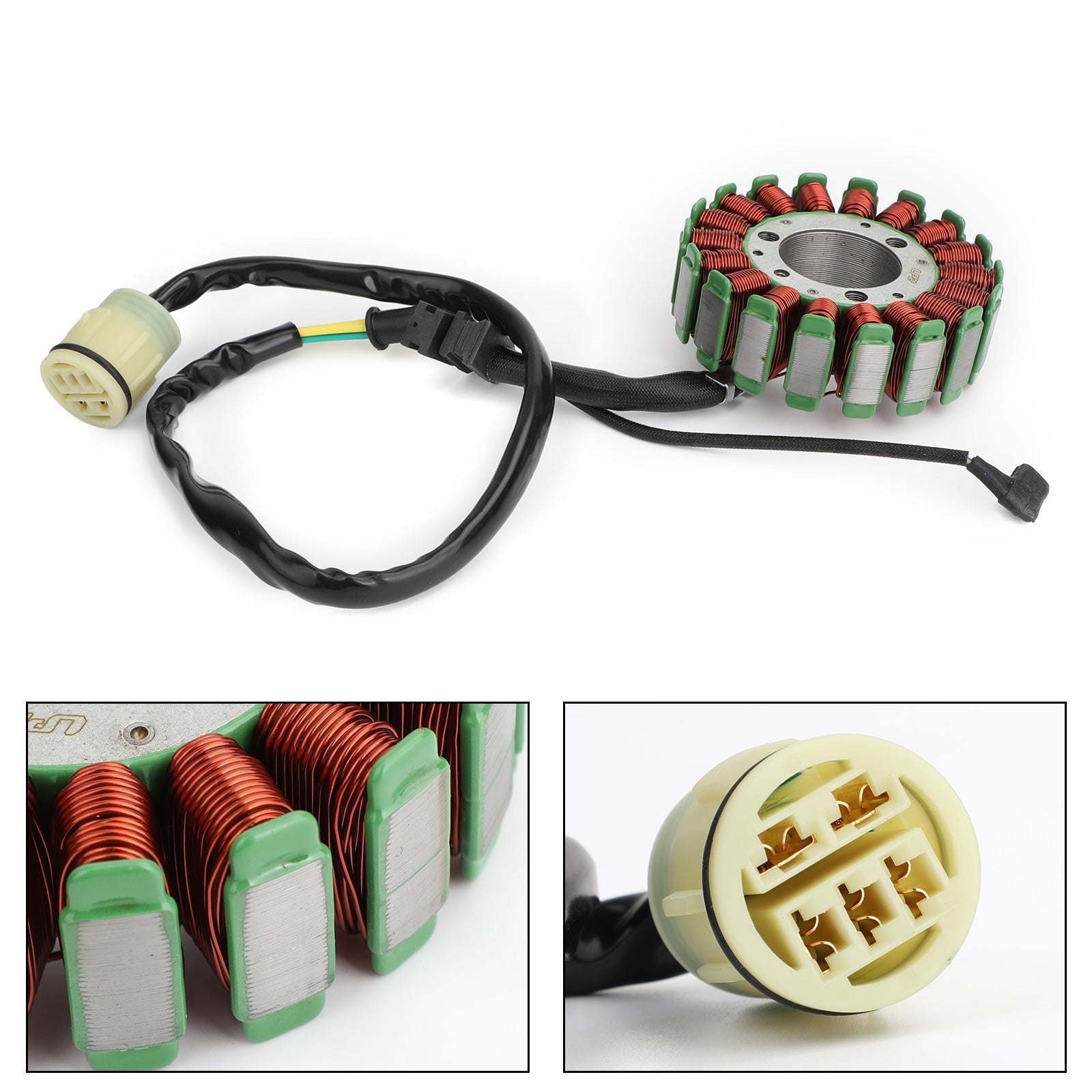

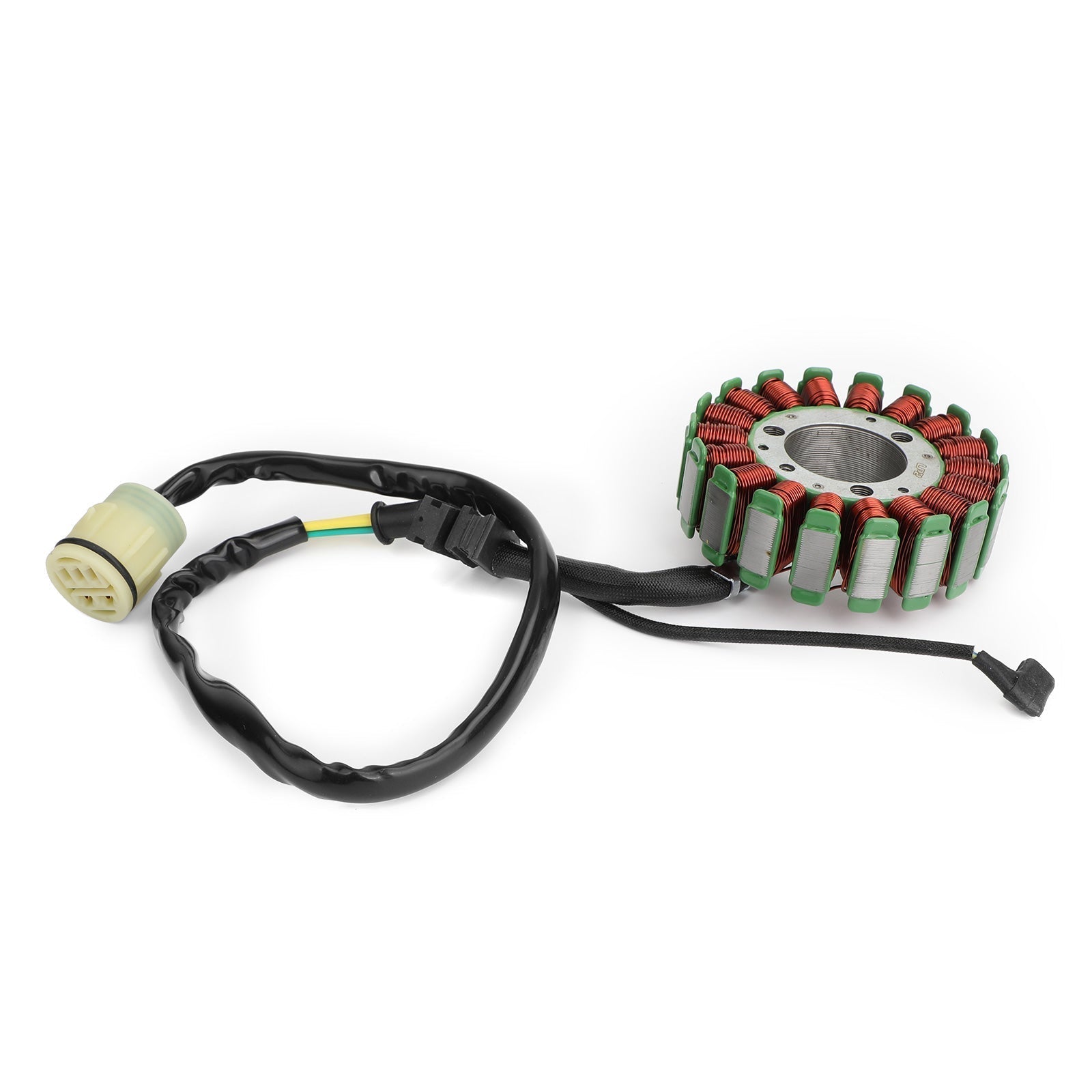

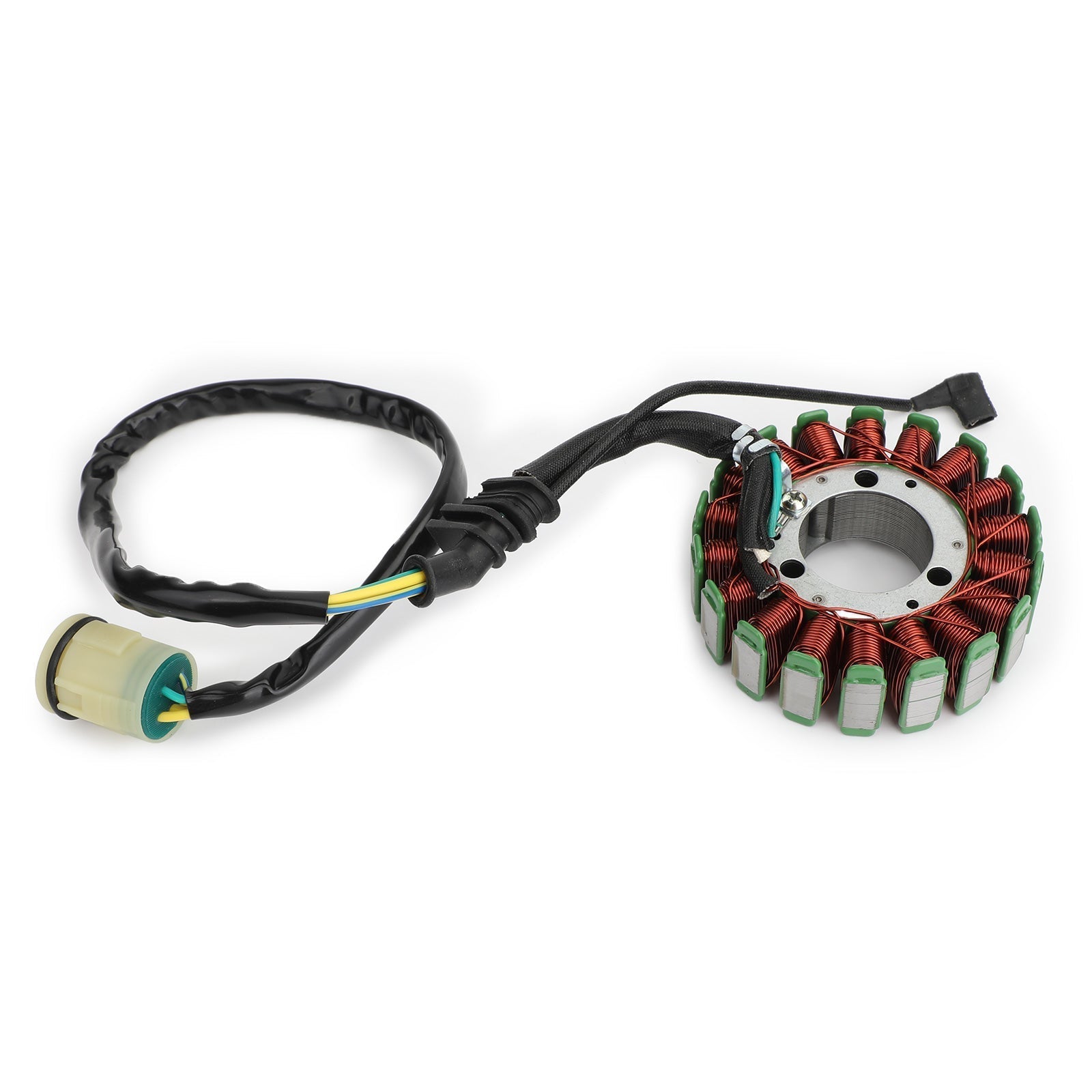

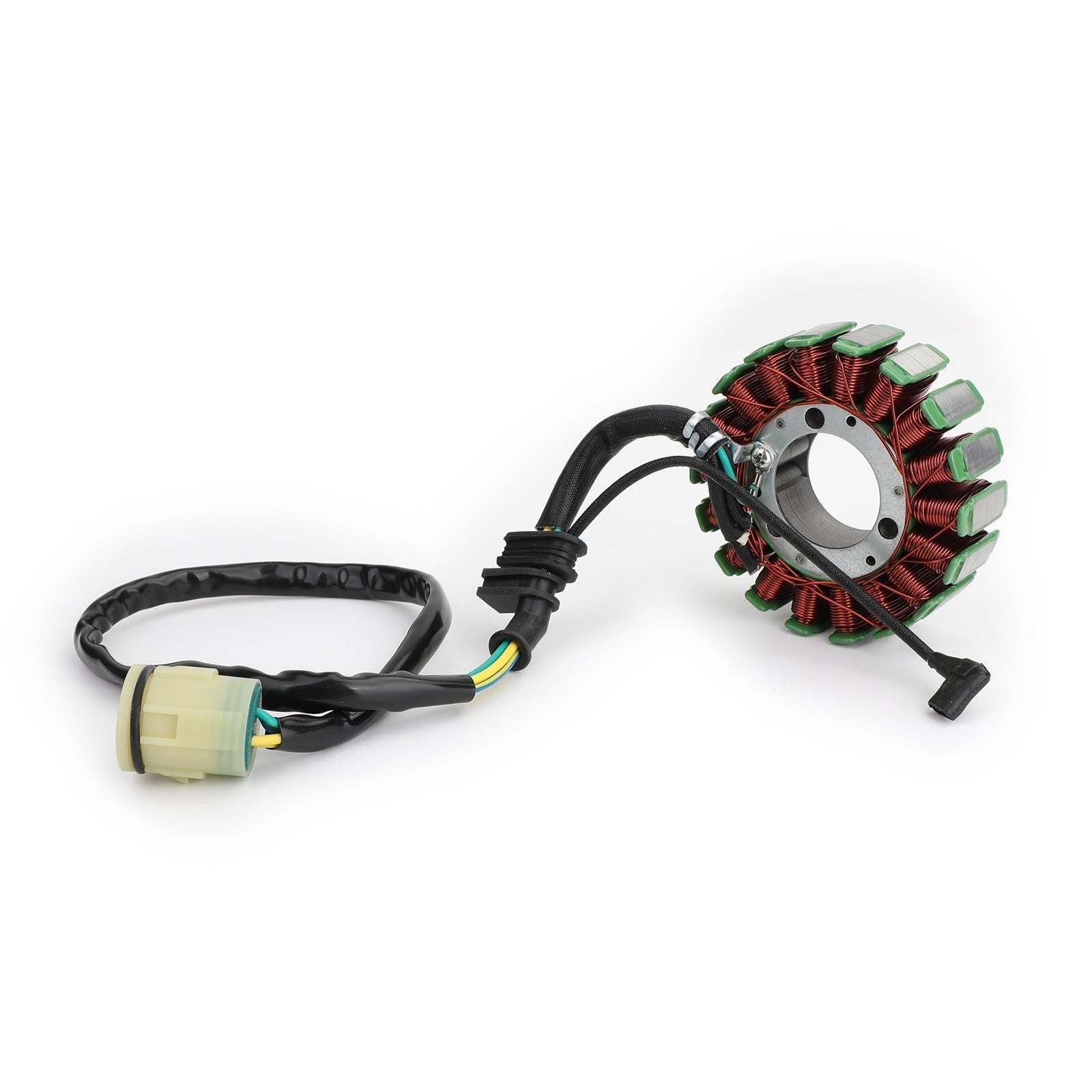

Magneto Stator Coil For Honda TRX 400 FA/FAG Rancher TRX400FA FourTrax 2004-2007

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 31120-HN7-000, 31120-HN7-003

Dimensions :
Interior diameter : 35.3mm/1.39"
Exterior diameter : 93mm/3.66"
Pole's Thickness : 31.5mm/1.24"
Pole's Width : 11.2mm/0.44"

Other specifications :
Number of wires: 5

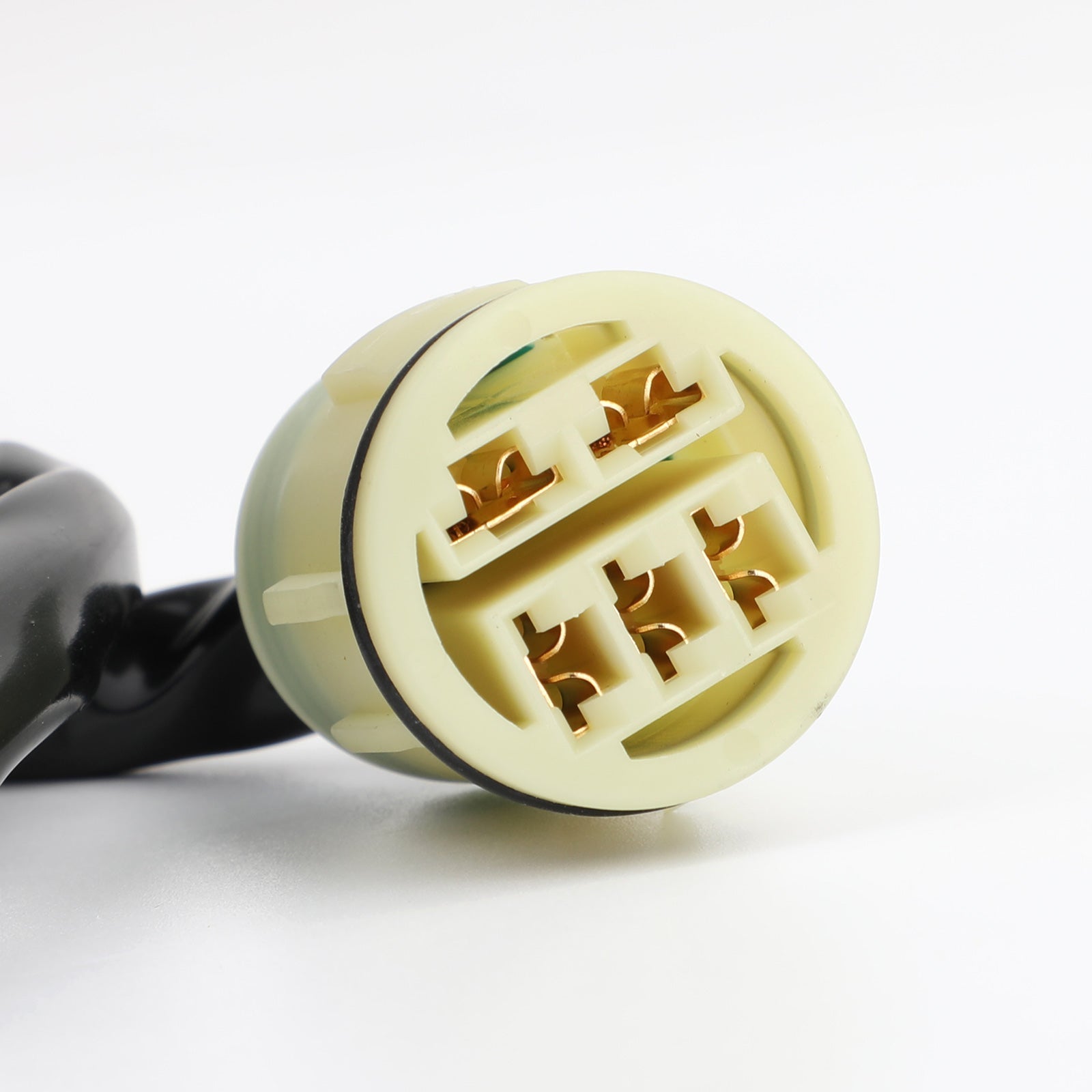

Number of pins: 5
Number of plugs: 1
Number of fixation holes: 3(+2)

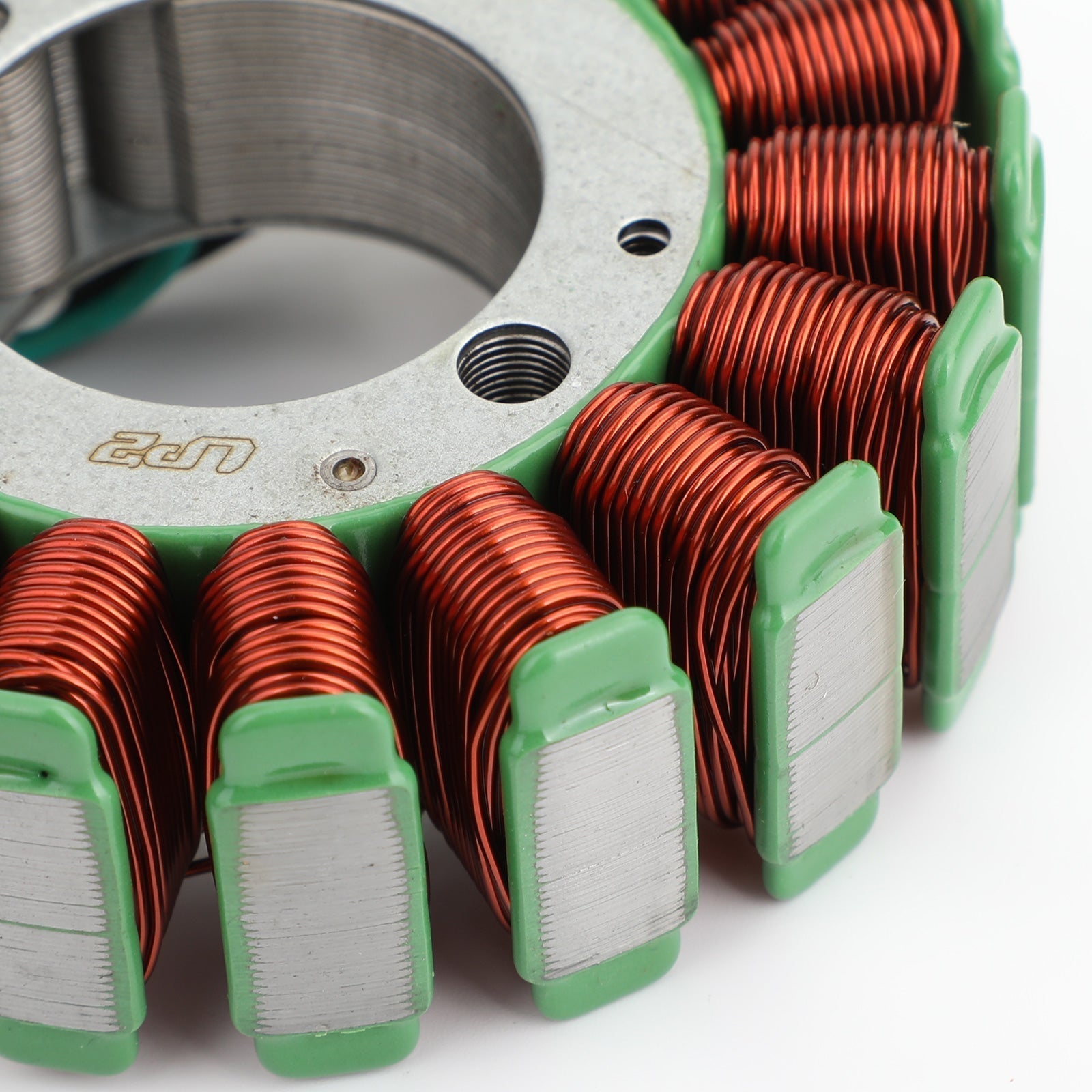

Number of poles: 18

FITMENT:
For Honda TRX400 Rancher 400 AT GPScape 2004-2007
For Honda TRX400FA FourTrax 400 AT 2004-2007

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
