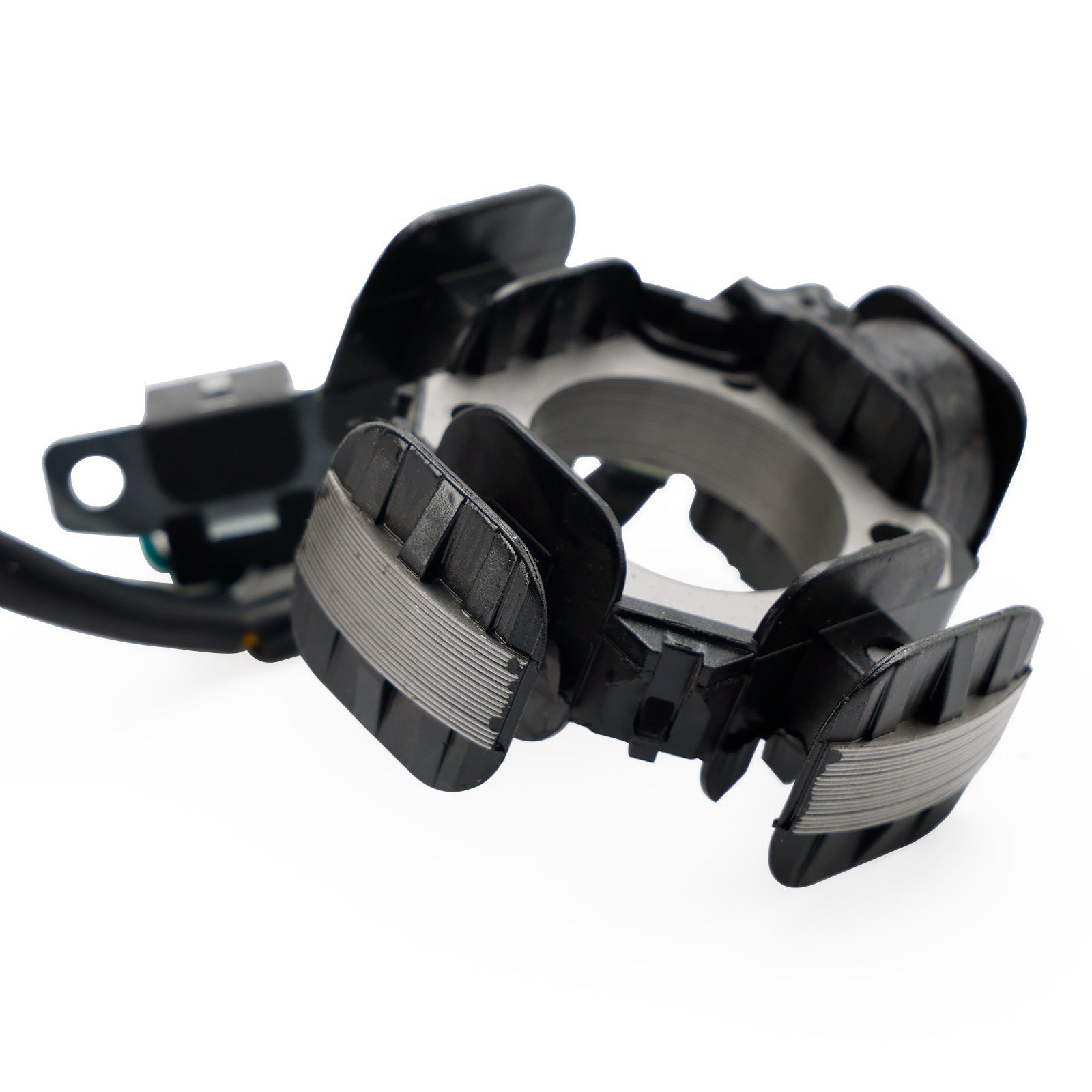

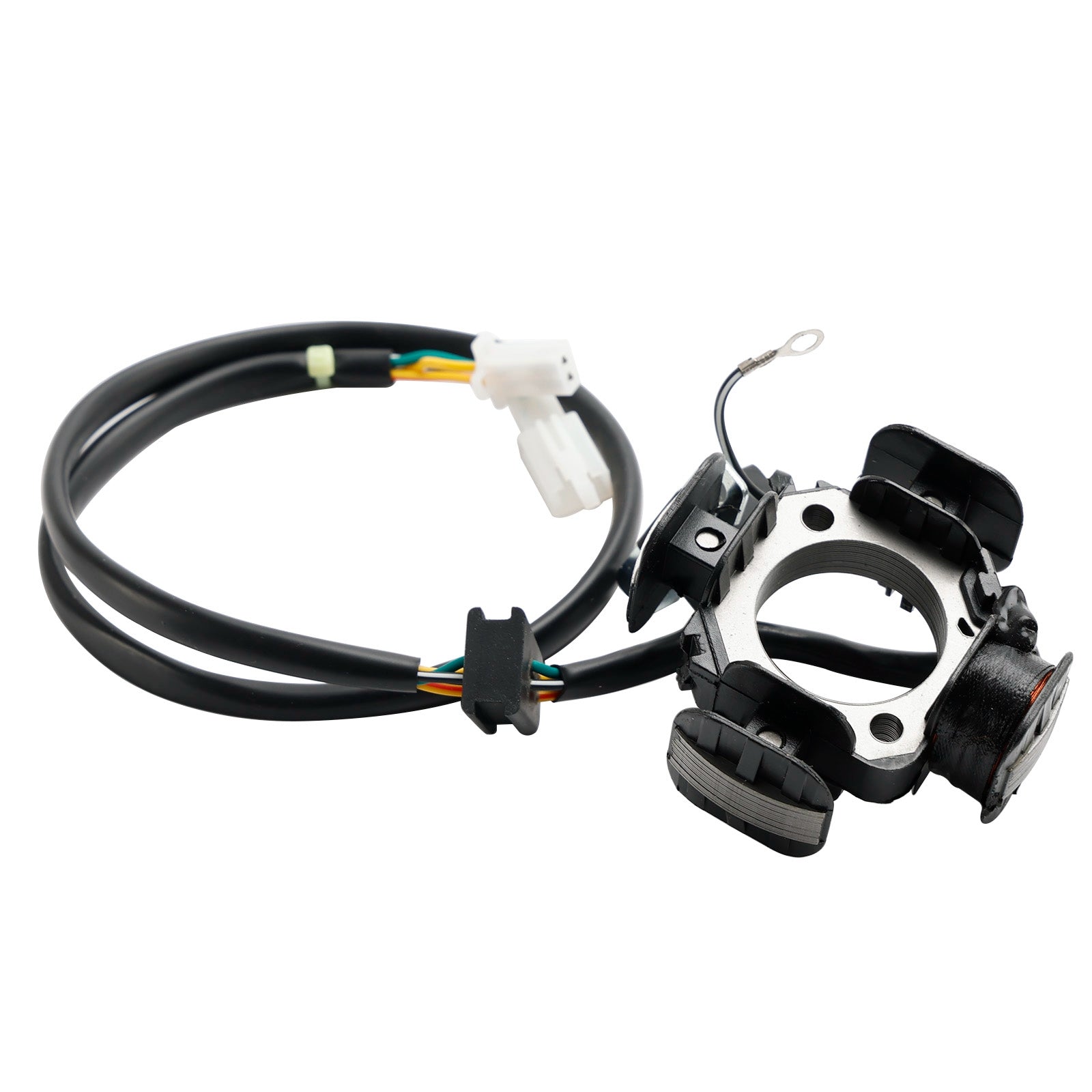

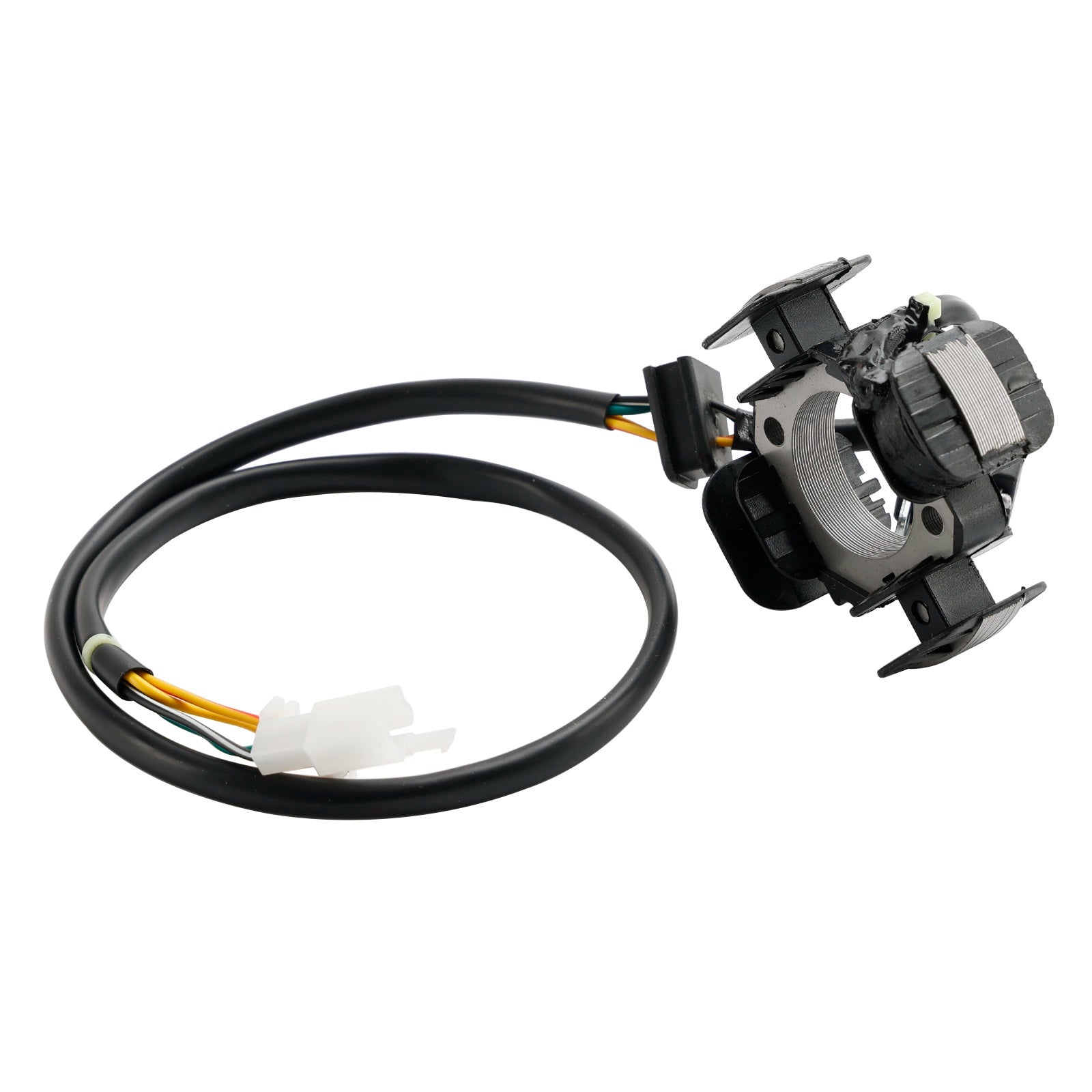

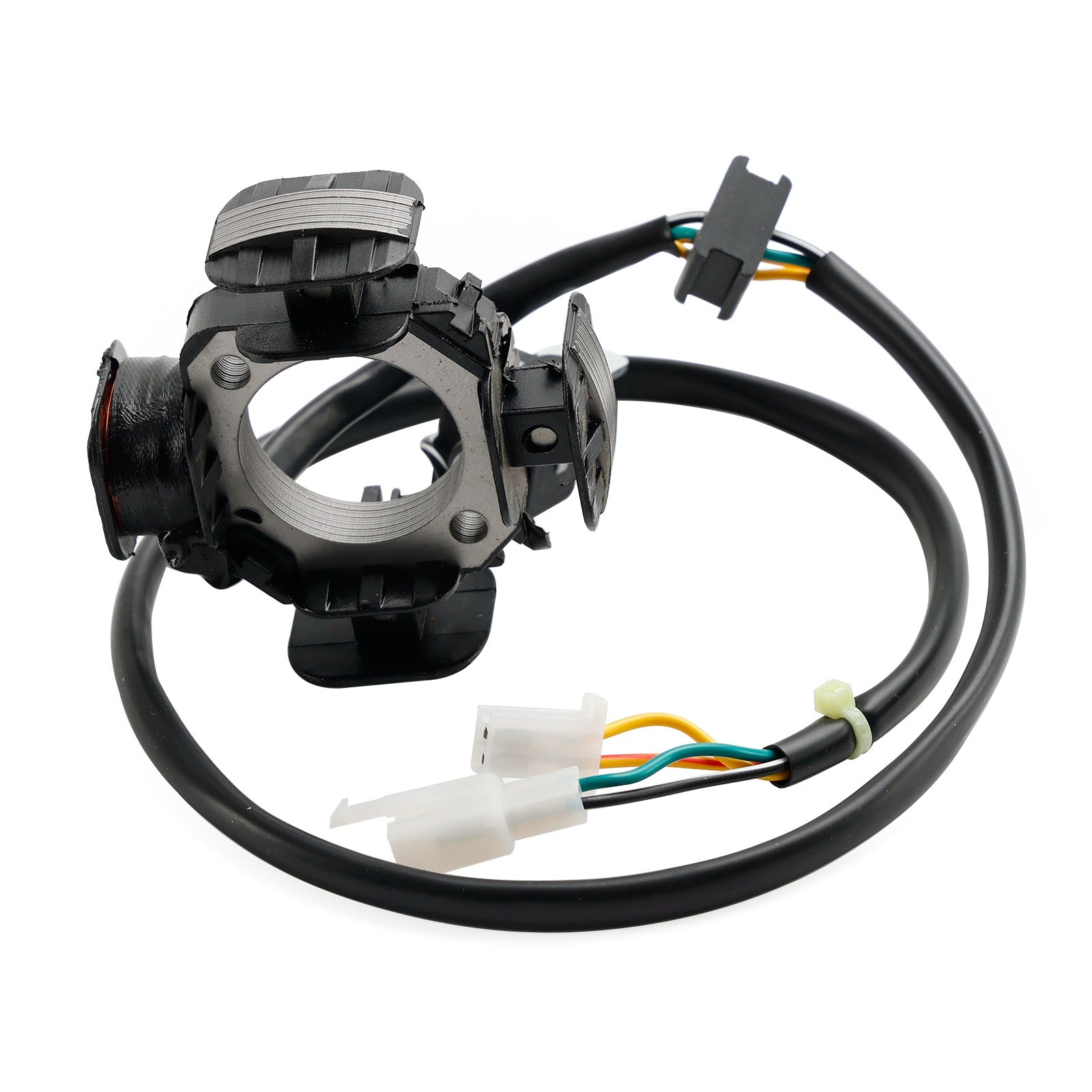

Magneto Generator Stator Fit for Suzuki DRZ125 DR-Z125L 2003-2024

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 4

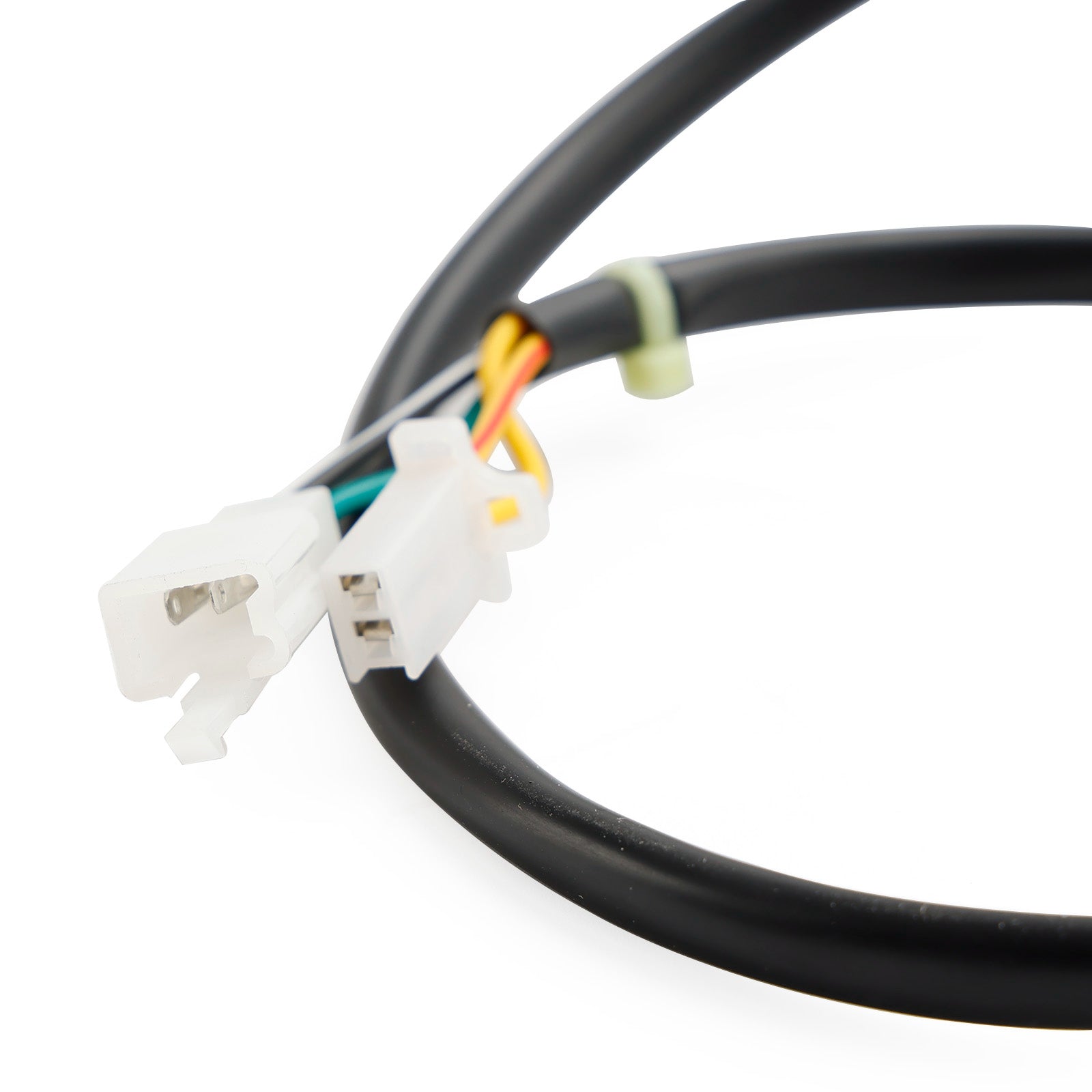

Number of plugs: 2
Number of pins: 2 + 2
Number of poles: 4

Replacement Part Number:
21003-S003
32101-08G00

Fits Make/Year/Model:
Fit for Kawasaki Motorcycle 2003 KLX125 - KLX125-A1
Fit for Kawasaki Motorcycle 2003 KLX125L - KLX125-B1
Fit for Kawasaki Motorcycle 2004 KLX125 - KLX125-A2
Fit for Kawasaki Motorcycle 2004 KLX125L - KLX125-B2
Fit for Kawasaki Motorcycle 2005 KLX125 - KLX125-A3
Fit for Kawasaki Motorcycle 2005 KLX125L - KLX125-B3
Fit for Kawasaki Motorcycle 2006 KLX125 - KLX125A6F
Fit for Kawasaki Motorcycle 2006 KLX125L - KLX125B6F

Fit for Suzuki Motorcycle 2003 DR-Z125
Fit for Suzuki Motorcycle 2003 DR-Z125L
Fit for Suzuki Motorcycle 2004 DR-Z125
Fit for Suzuki Motorcycle 2004 DR-Z125L
Fit for Suzuki Motorcycle 2005 DR-Z125
Fit for Suzuki Motorcycle 2005 DR-Z125L
Fit for Suzuki Motorcycle 2006 DR-Z125
Fit for Suzuki Motorcycle 2006 DR-Z125L
Fit for Suzuki Motorcycle 2007 DR-Z125
Fit for Suzuki Motorcycle 2007 DR-Z125L
Fit for Suzuki Motorcycle 2008 DR-Z125
Fit for Suzuki Motorcycle 2008 DR-Z125L
Fit for Suzuki Motorcycle 2009 DR-Z125
Fit for Suzuki Motorcycle 2009 DR-Z125L
Fit for Suzuki Motorcycle 2012 DR-Z125L2
Fit for Suzuki Motorcycle 2012 DR-Z125LL2
Fit for Suzuki Motorcycle 2013 DR-Z125L3
Fit for Suzuki Motorcycle 2013 DR-Z125LL3
Fit for Suzuki Motorcycle 2014 DR-Z125L4
Fit for Suzuki Motorcycle 2014 DR-Z125LL4
Fit for Suzuki Motorcycle 2015 DR-Z125L5
Fit for Suzuki Motorcycle 2015 DR-Z125LL5
Fit for Suzuki Motorcycle 2016 DR-Z125L6
Fit for Suzuki Motorcycle 2016 DR-Z125LL6
Fit for Suzuki Motorcycle 2017 DR-Z125L7
Fit for Suzuki Motorcycle 2017 DR-Z125LL7
Fit for Suzuki Motorcycle 2018 DR-Z125
Fit for Suzuki Motorcycle 2018 DR-Z125L
Fit for Suzuki Motorcycle 2019 DR-Z125
Fit for Suzuki Motorcycle 2019 DR-Z125L
Fit for Suzuki Motorcycle 2020 DR-Z125
Fit for Suzuki Motorcycle 2020 DR-Z125L
Fit for Suzuki Motorcycle 2021 DR-Z125
Fit for Suzuki Motorcycle 2021 DR-Z125L
Fit for Suzuki Motorcycle 2022 DR-Z125
Fit for Suzuki Motorcycle 2022 DR-Z125L
Fit for Suzuki Motorcycle 2023 DR-Z125
Fit for Suzuki Motorcycle 2024 DR-Z125L

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
