Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.

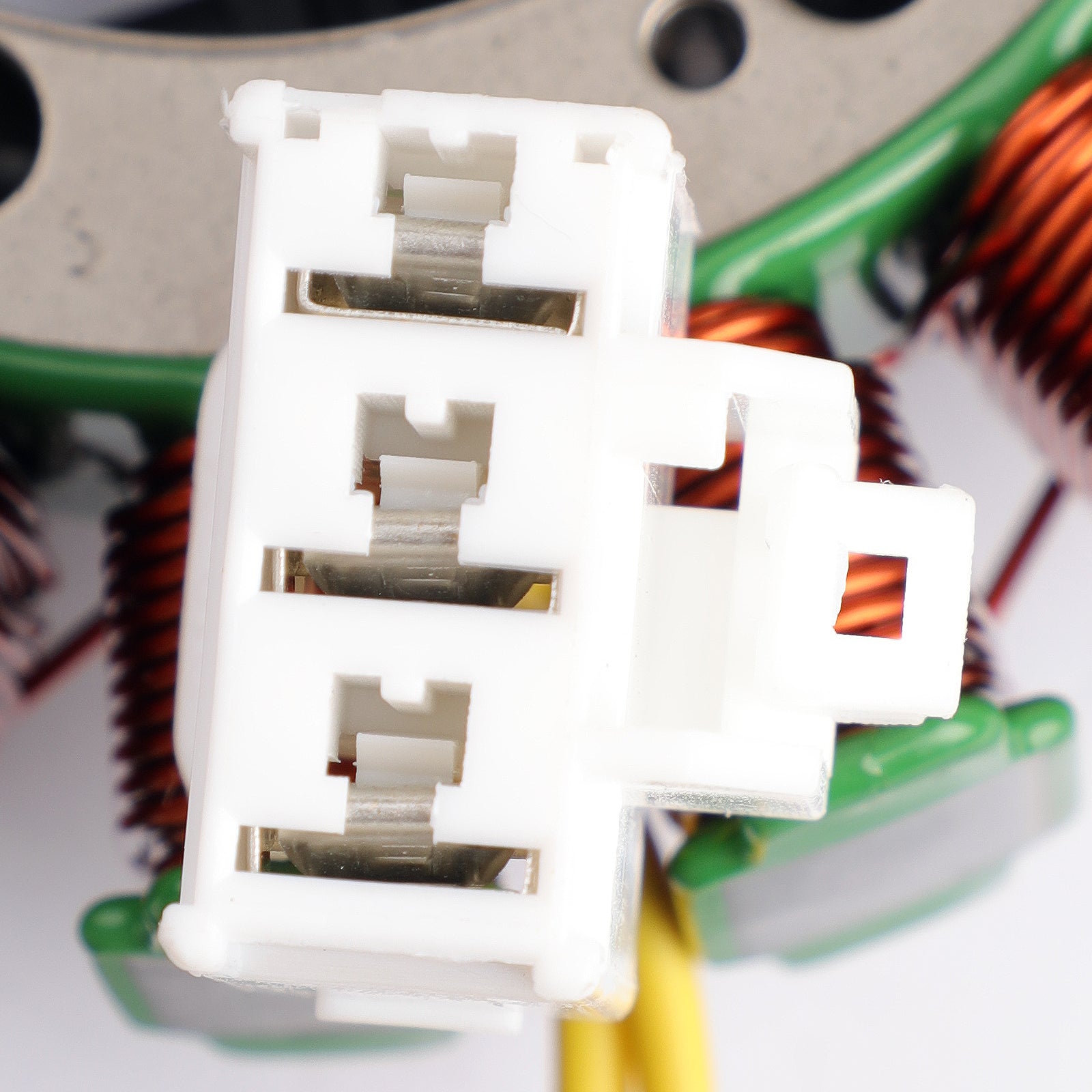

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

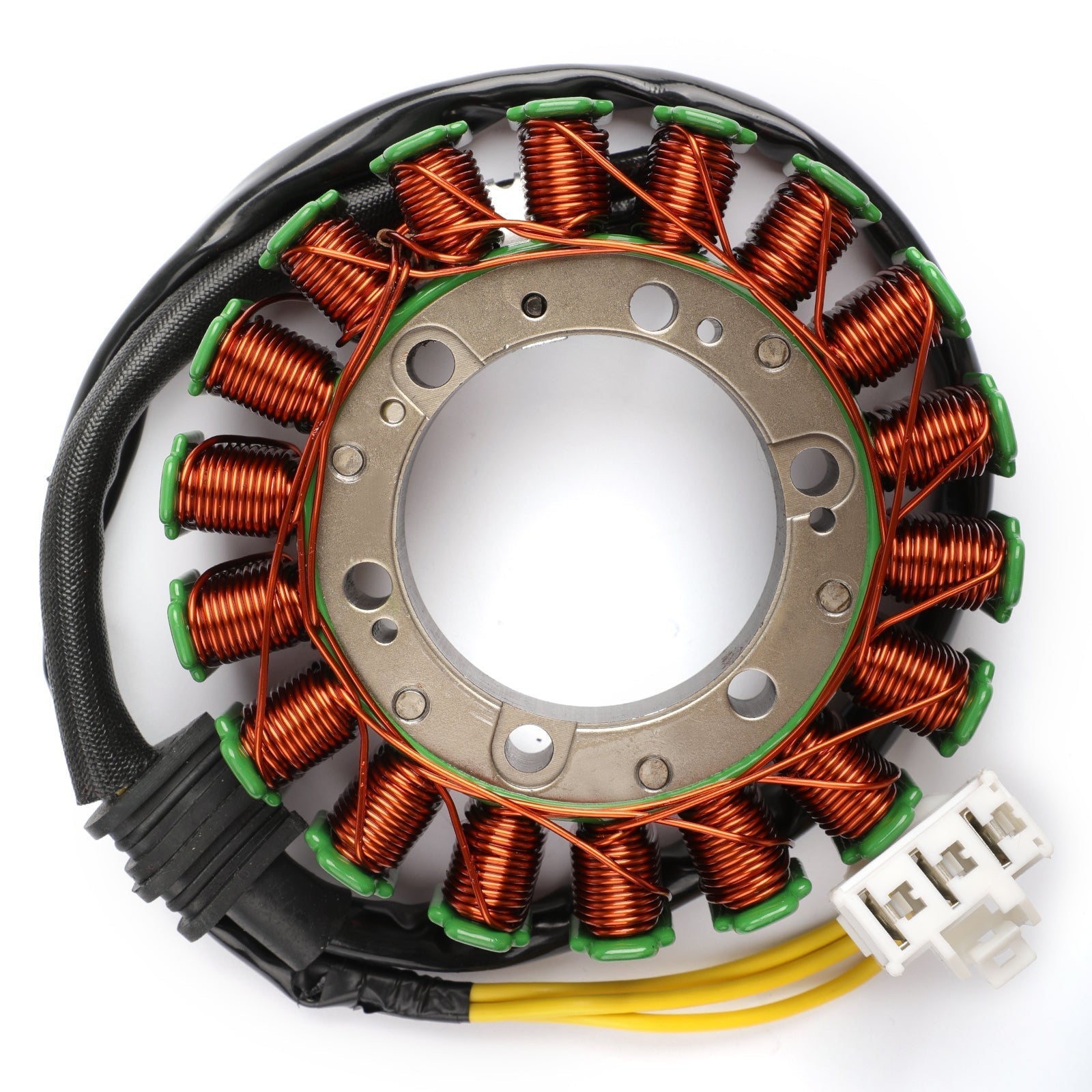

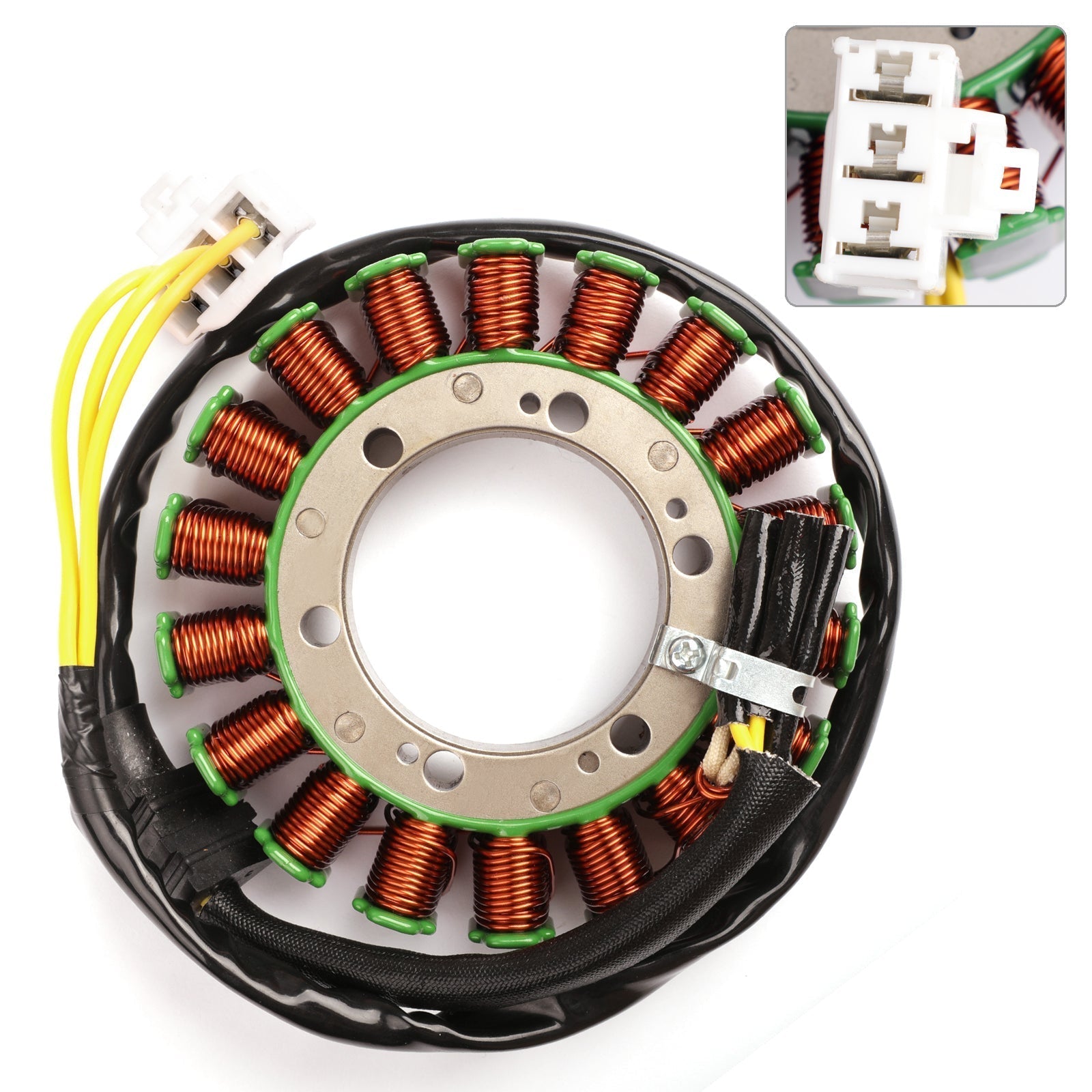

Type: Generator Stator Coil

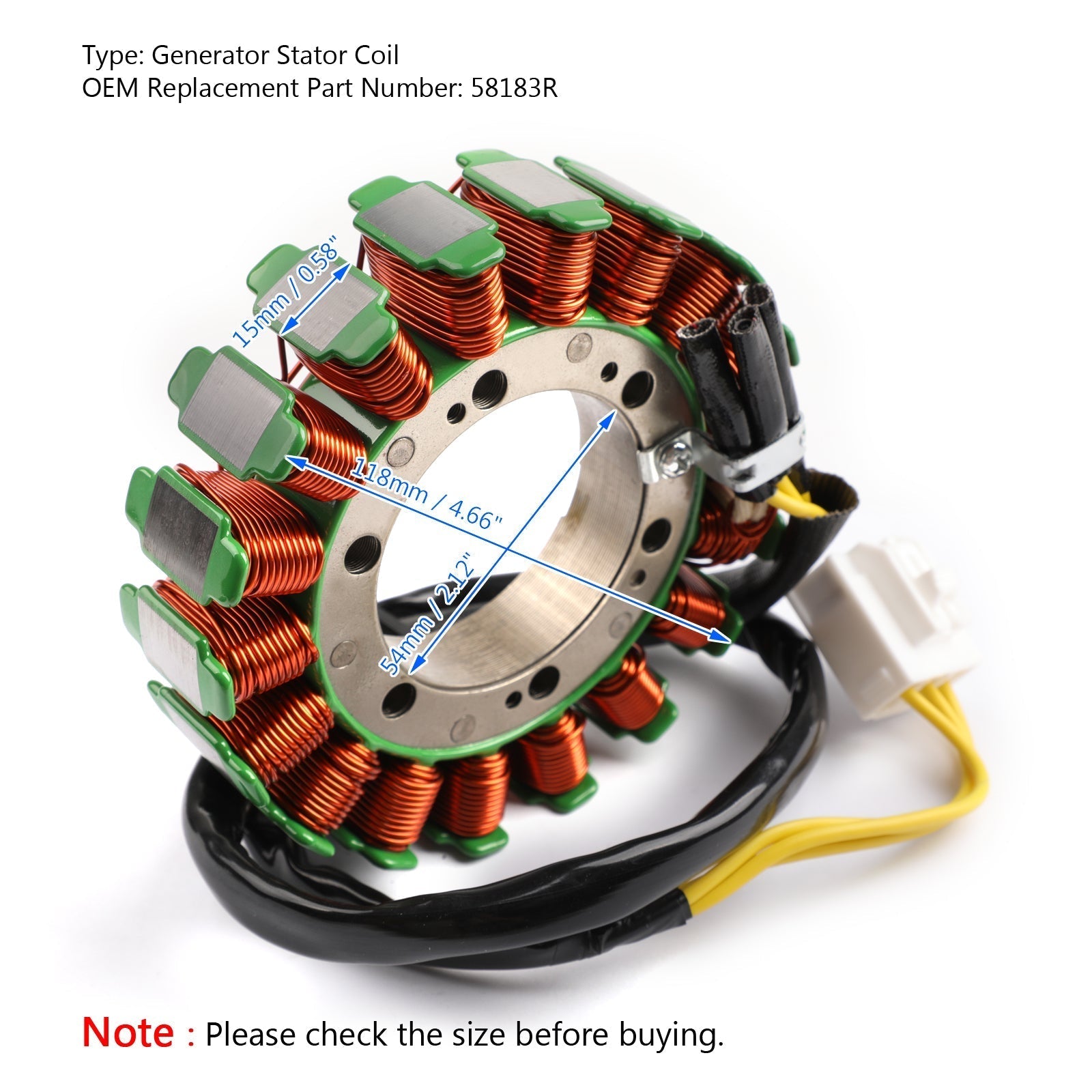

Dimensions :
Interior diameter : 54mm / 2.12in
Exterior diameter : 118mm / 4.66in
Thickness : 15mm / 0.58in

Other Specifications :
Number of wires : 3
Number of pins : 3
Number of plugs : 1
Number of fixation holes: 6(+3)

Replacement Part Number:
58183R

Fitments:
Fit for Aprilia SRV850 2012-2016
Fit for Aprilia Mana 850 2007-2016
Fit for Aprilia Mana 850GT 2009-2013

Fit for Gilera GP800 2008-2013
Fit for Gilera GP CENTENARIO 800 2009

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Includes:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
