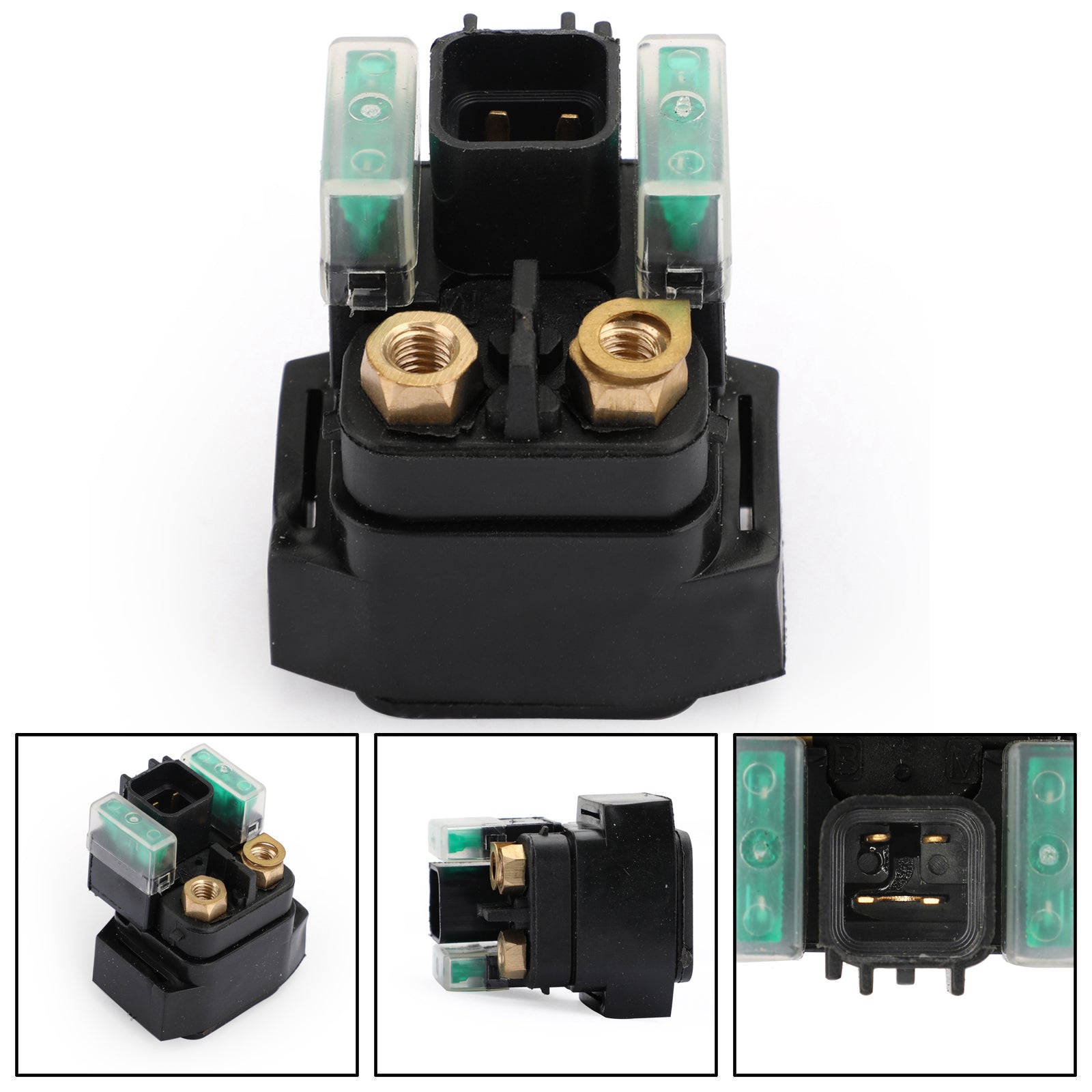

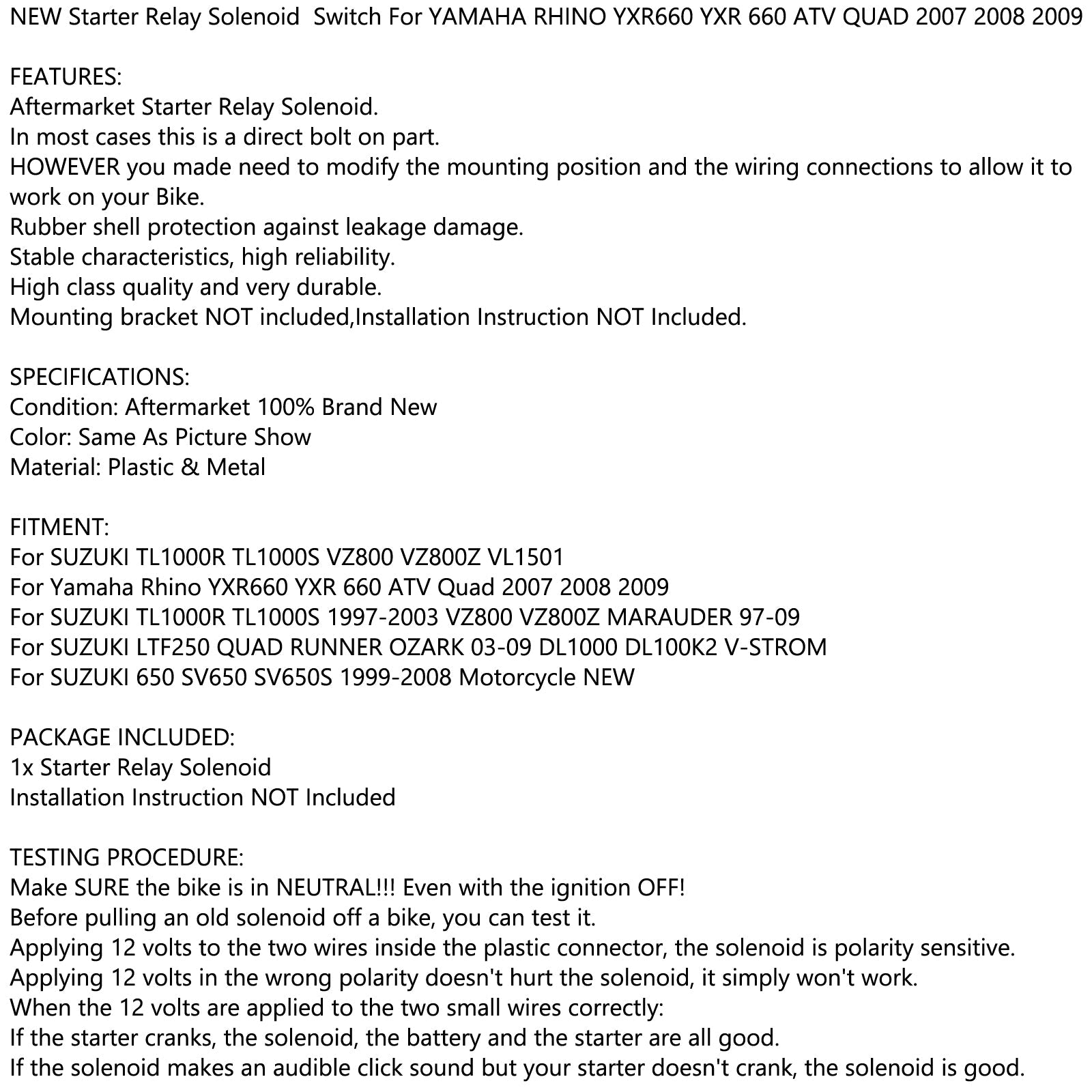

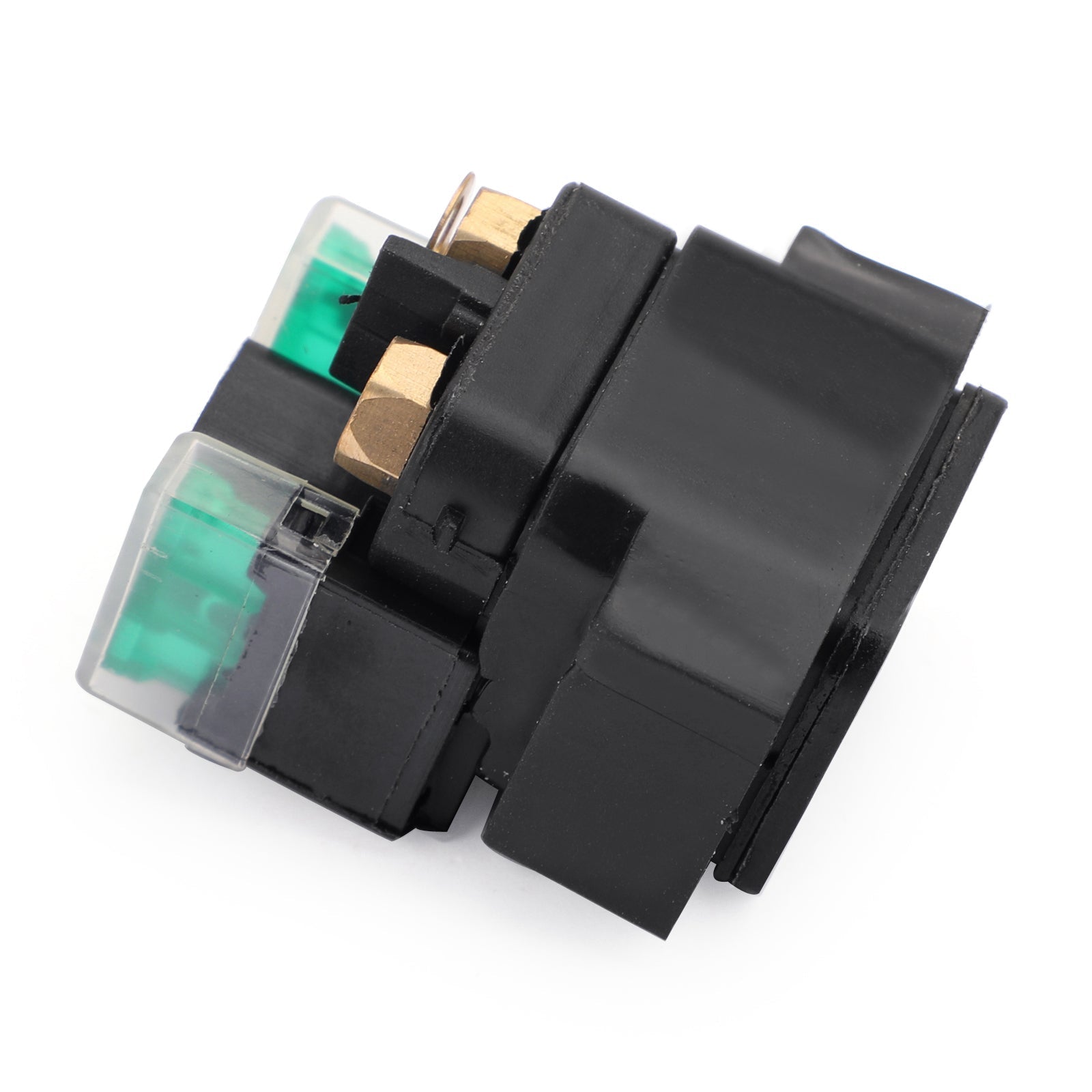

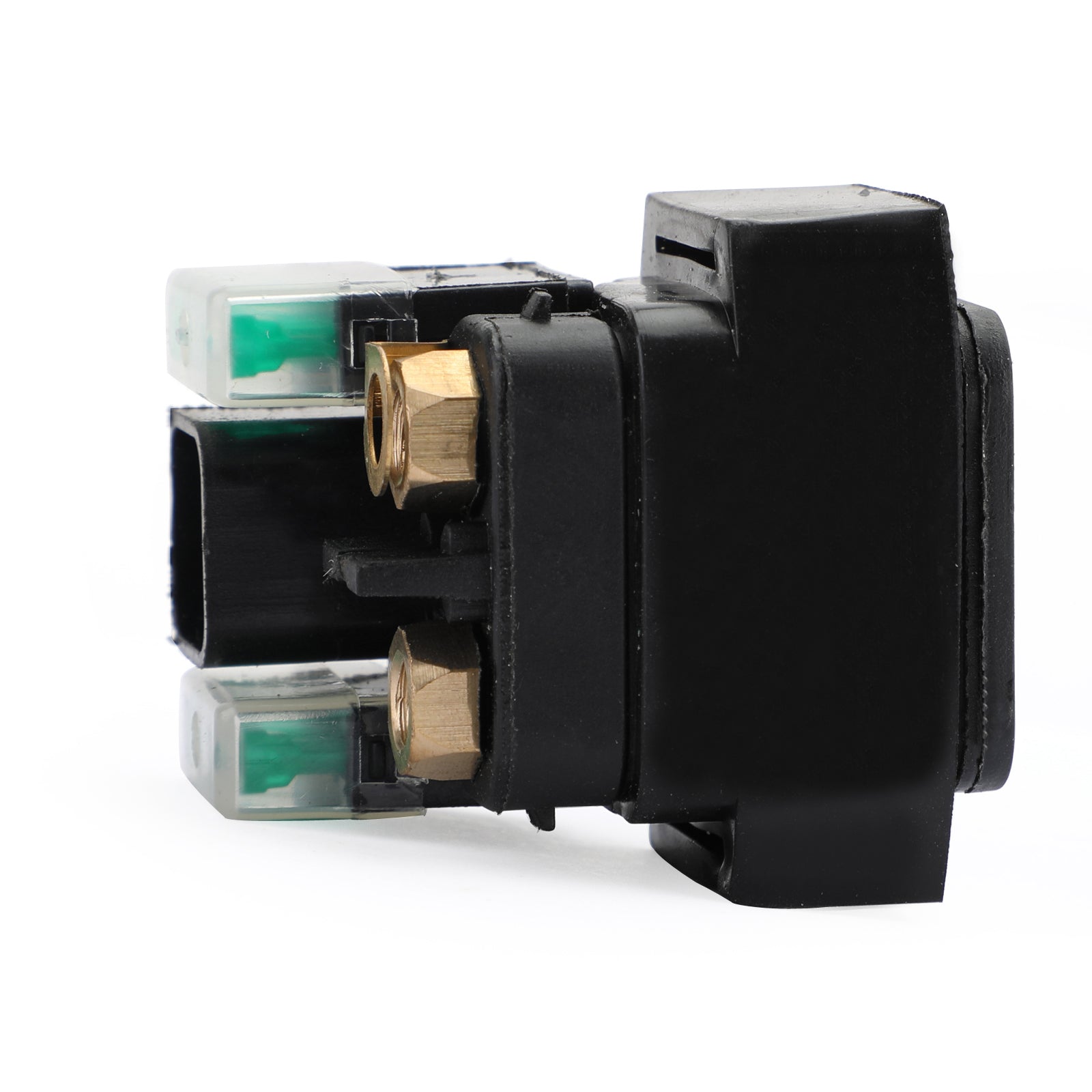

NEW Starter Relay Solenoid Switch For YAMAHA RHINO YXR660 YXR 660 ATV QUAD 2007 2008 2009

FEATURES:
Aftermarket Starter Relay Solenoid.
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycle.
Rubber shell protection against leakage damage.
Stable characteristics, high reliability.
High class quality and very durable.
Mounting bracket NOT included,Installation Instruction NOT Included.

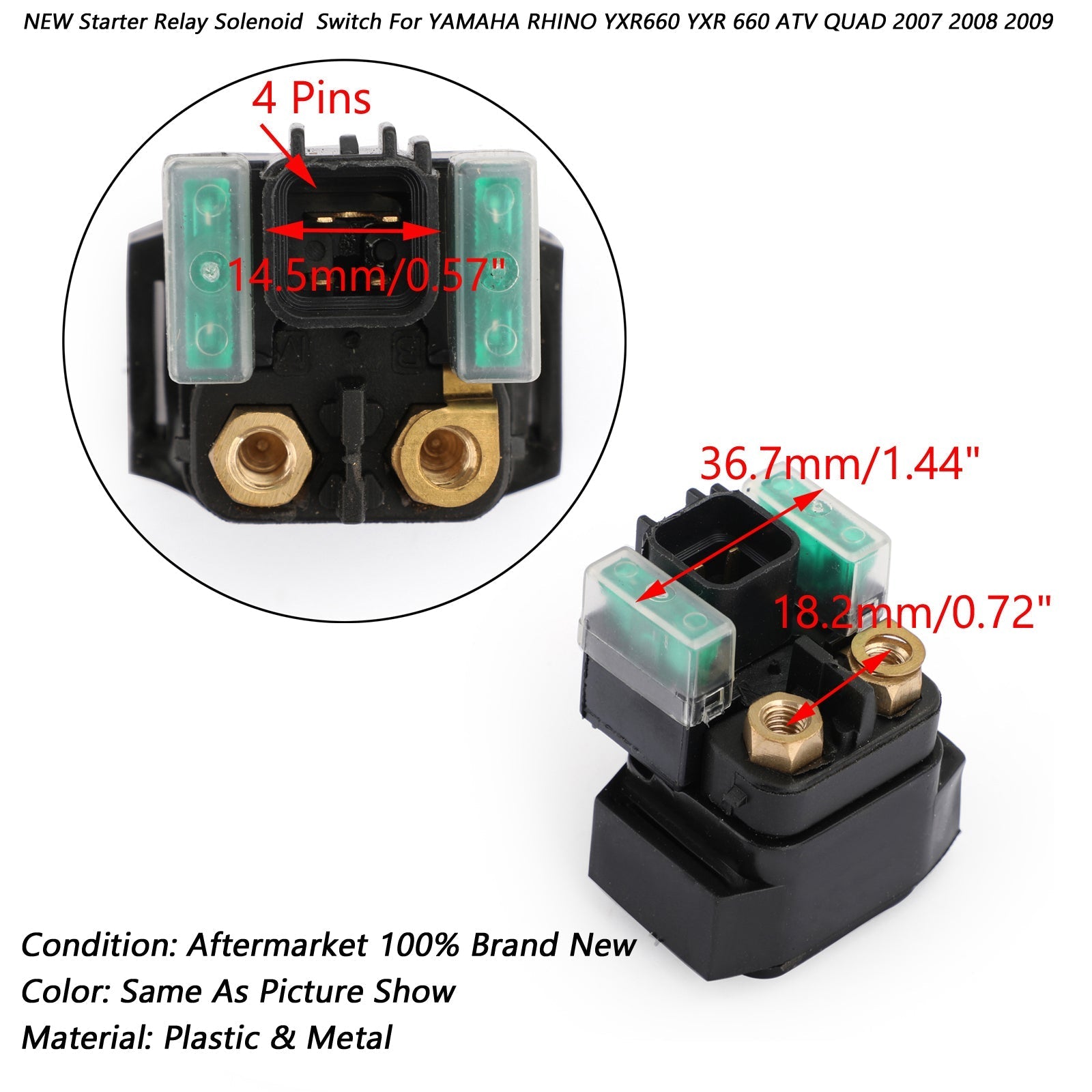

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal

FITMENT:
For SUZUKI TL1000R TL1000S VZ800 VZ800Z VL1501
For Yamaha Rhino YXR660 YXR 660 ATV Quad 2007 2008 2009
For SUZUKI TL1000R TL1000S 1997-2003 VZ800 VZ800Z MARAUDER 97-09
For SUZUKI LTF250 QUAD RUNNER OZARK 03-09 DL1000 DL100K2 V-STROM
For SUZUKI 650 SV650 SV650S 1999-2008 Motorcycle NEW

PACKAGE INCLUDED:
1x Starter Relay Solenoid
Installation Instruction NOT Included

TESTING PROCEDURE:
Make SURE the Motorcycle is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycle, you can test it.

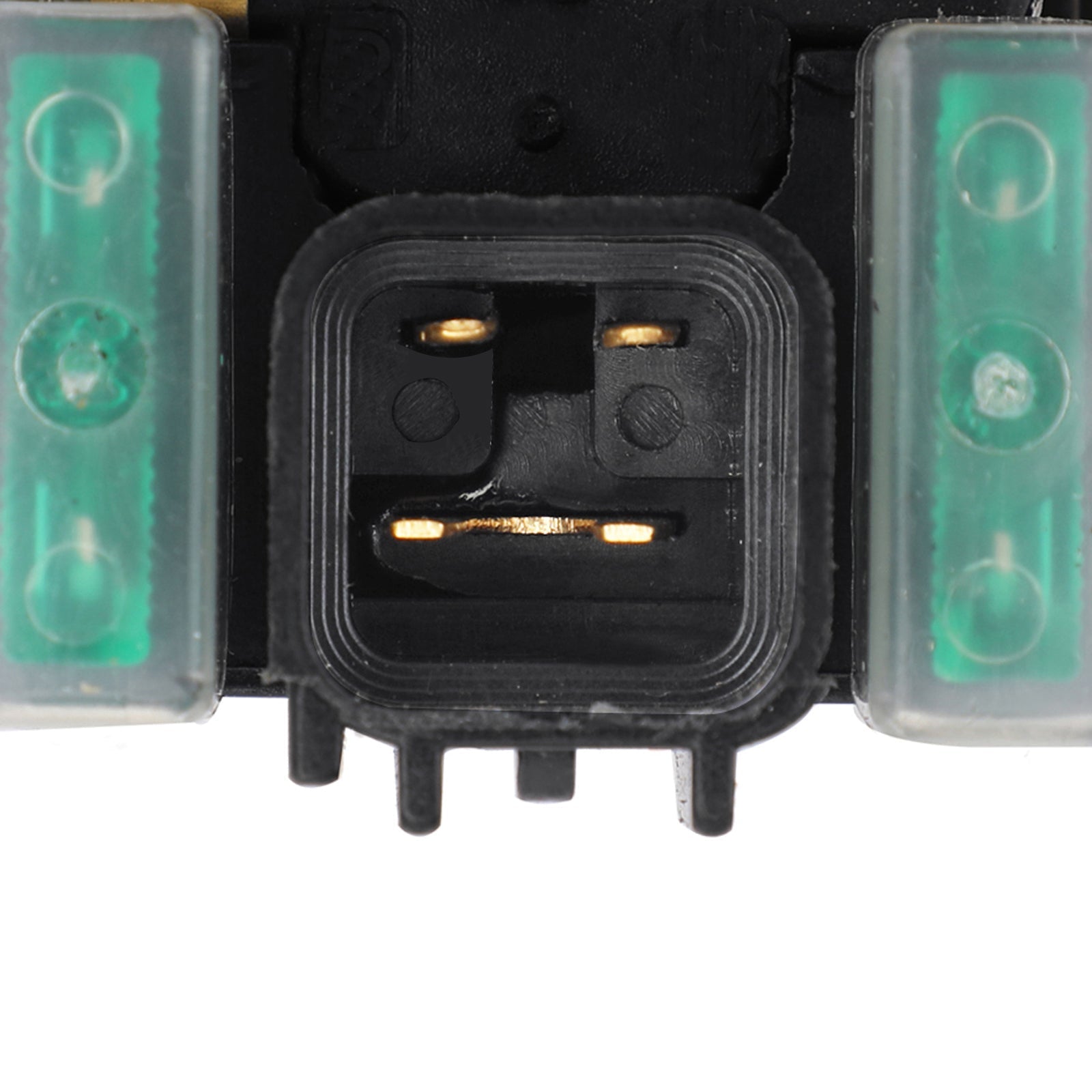

Applying 12 volts to the two wires inside the plastic connector, the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid, it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks, the solenoid, the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank, the solenoid is good.
