FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

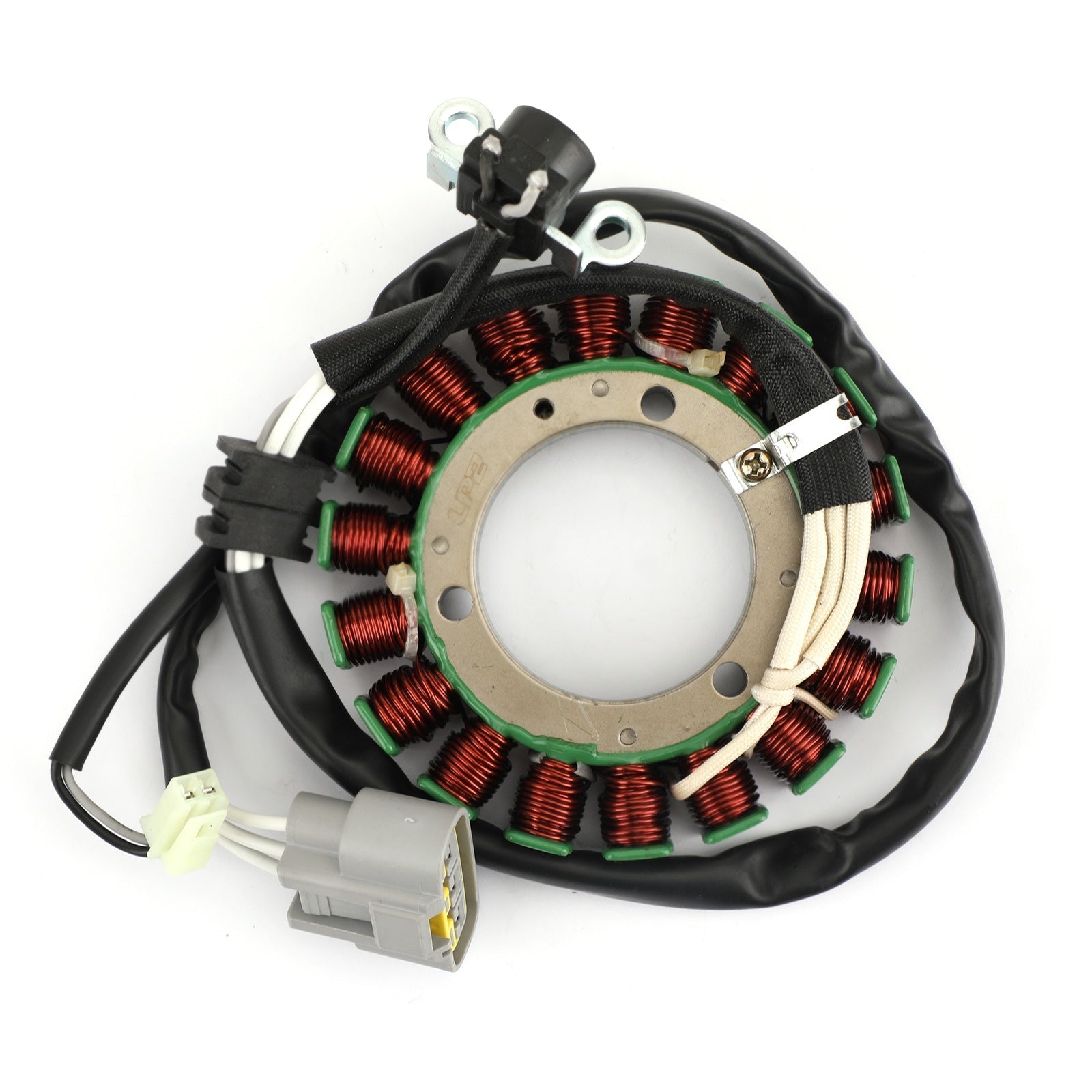

Pick up pulsar coil included.

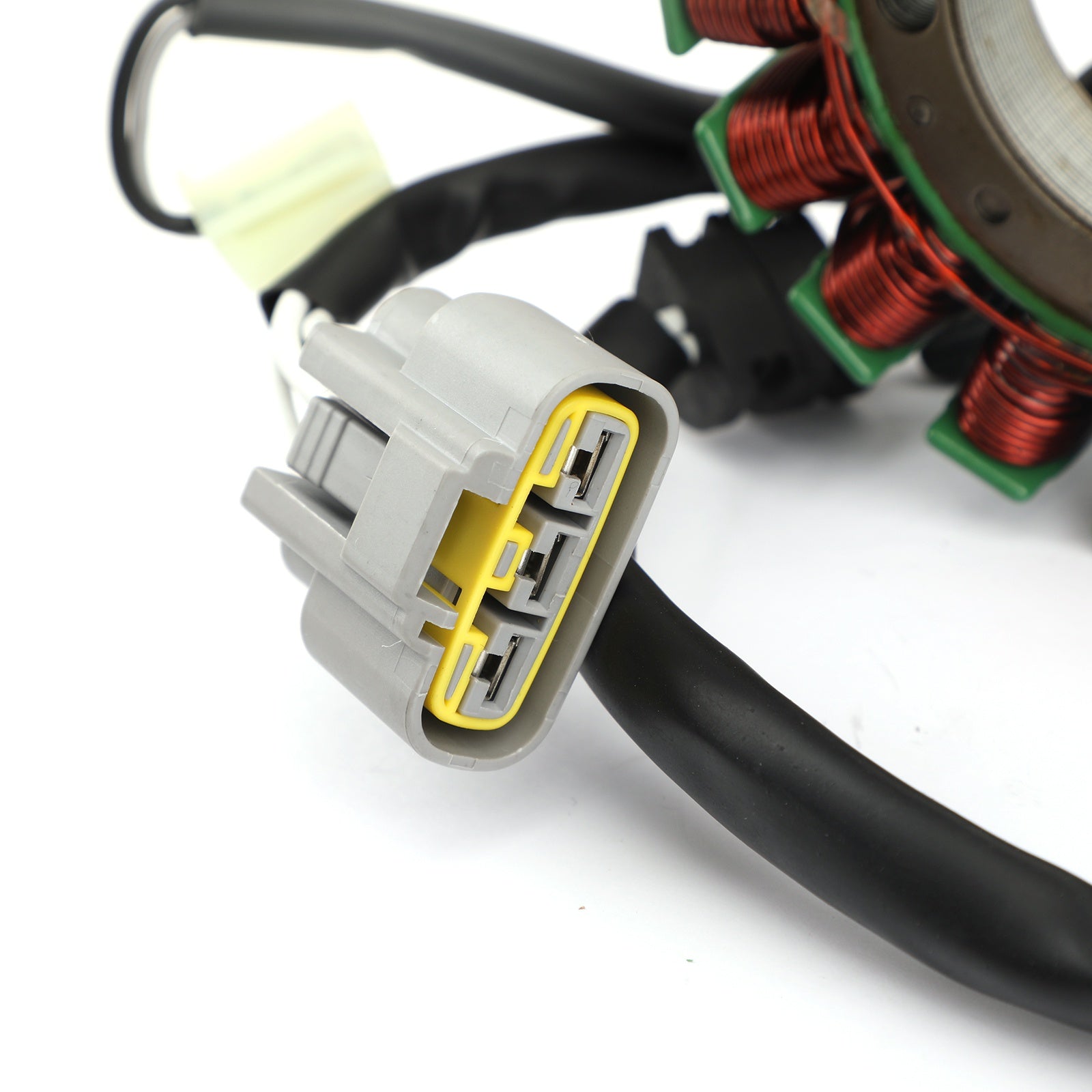

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

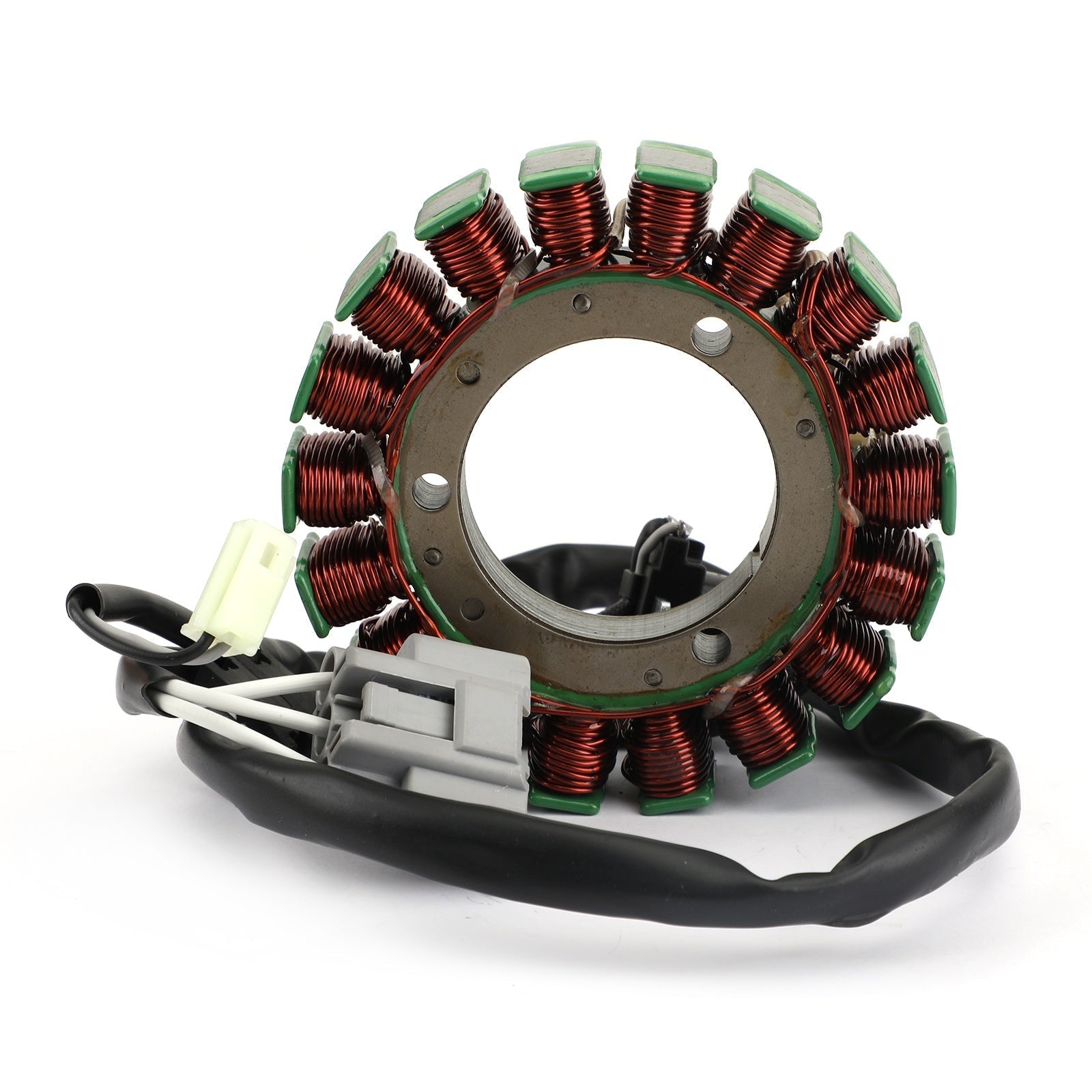

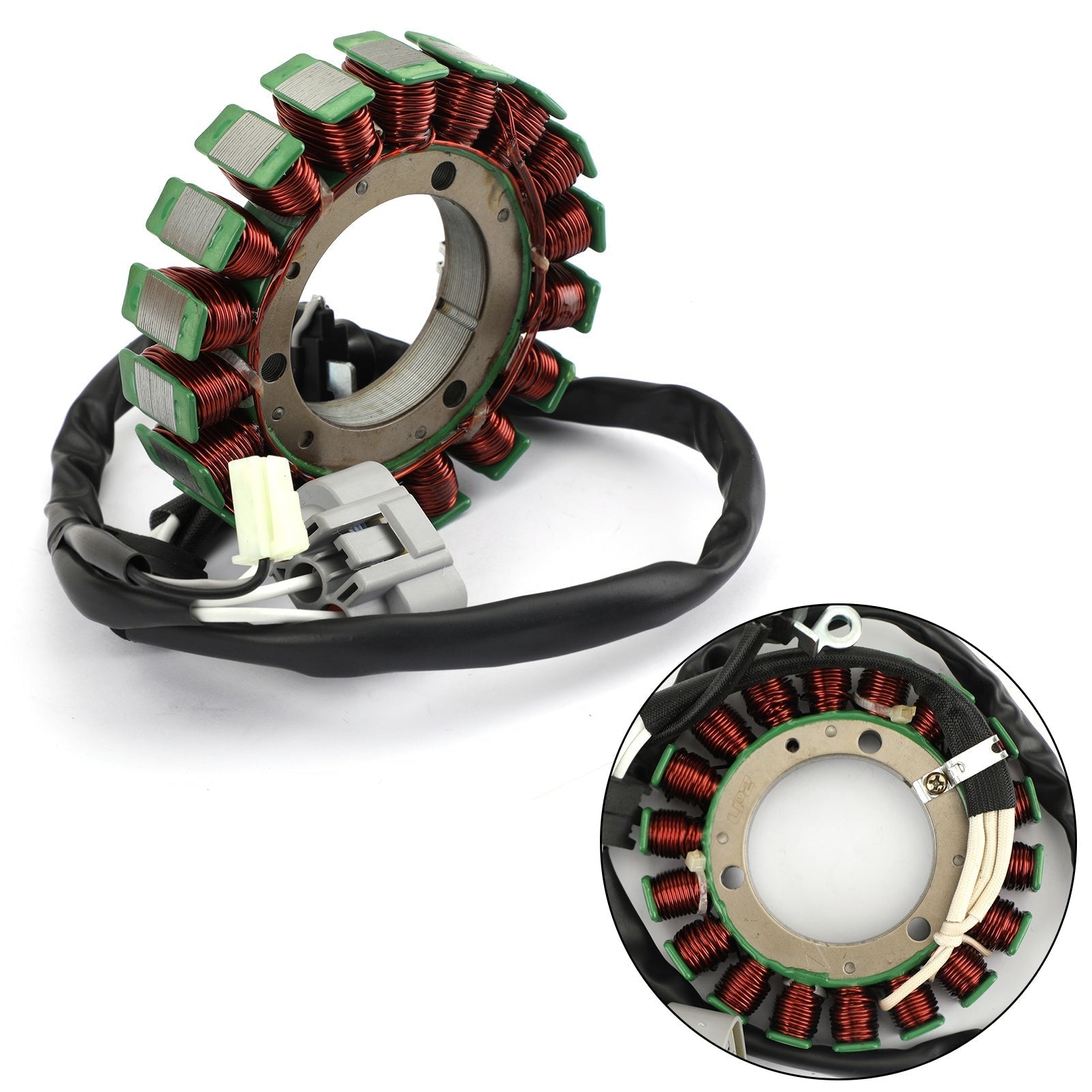

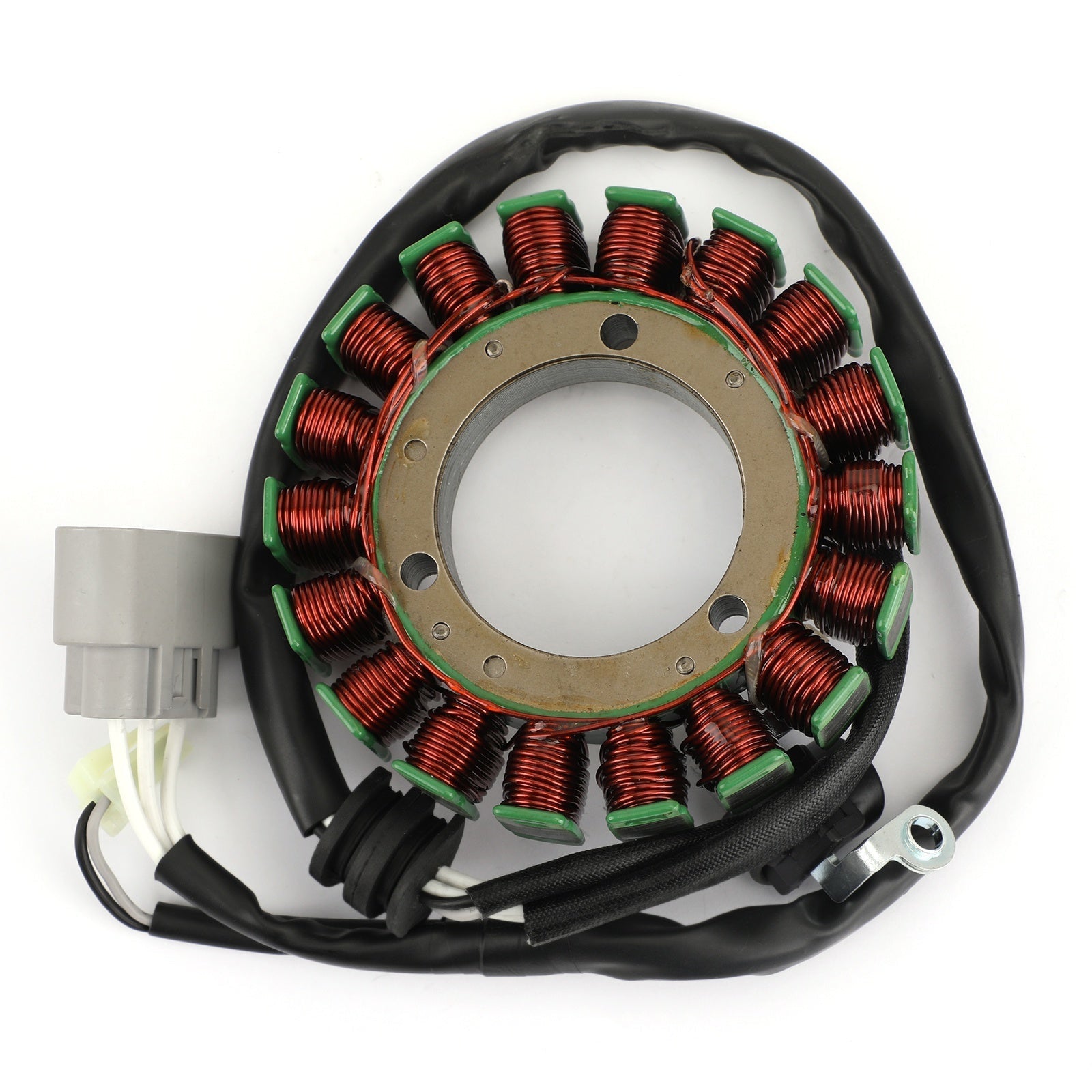

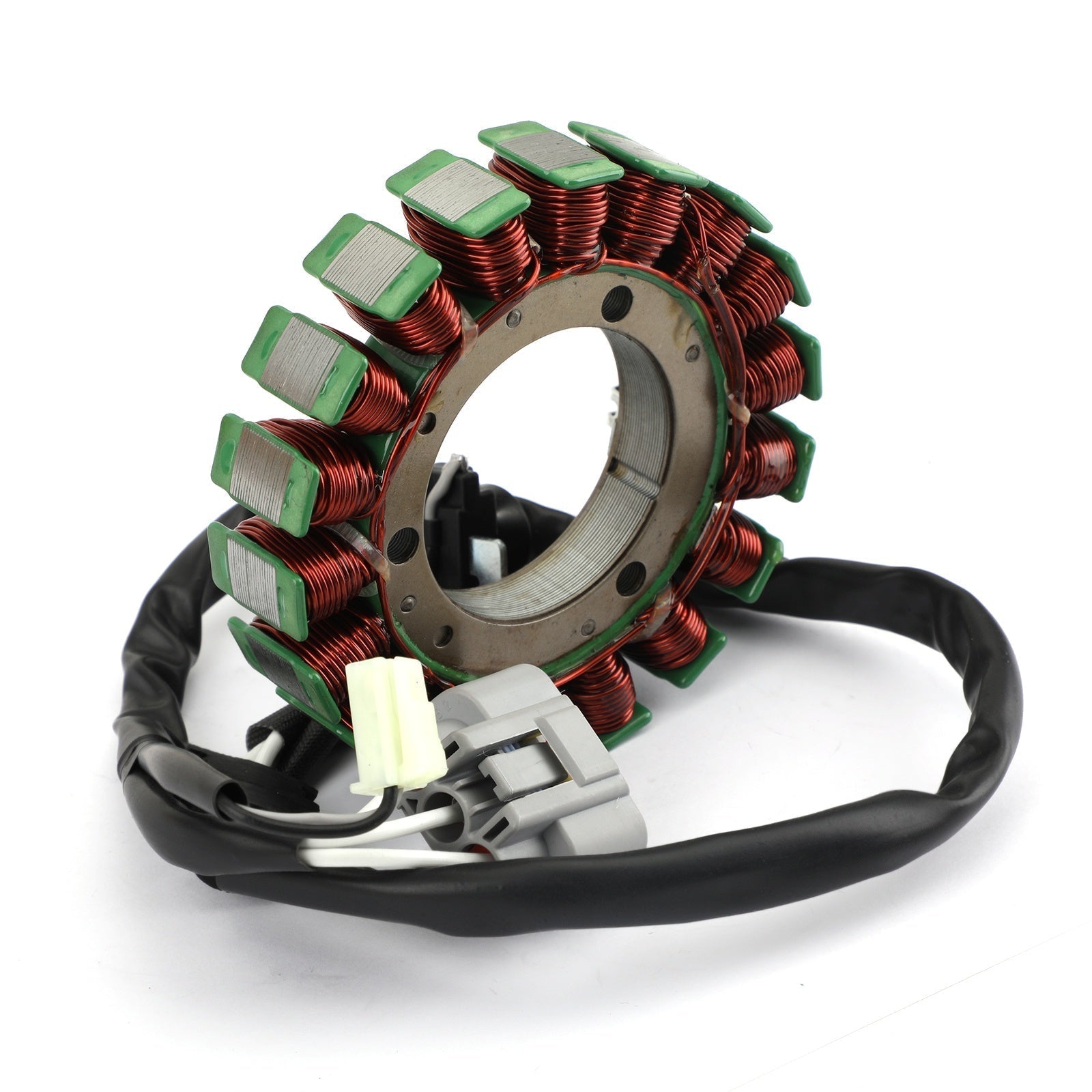

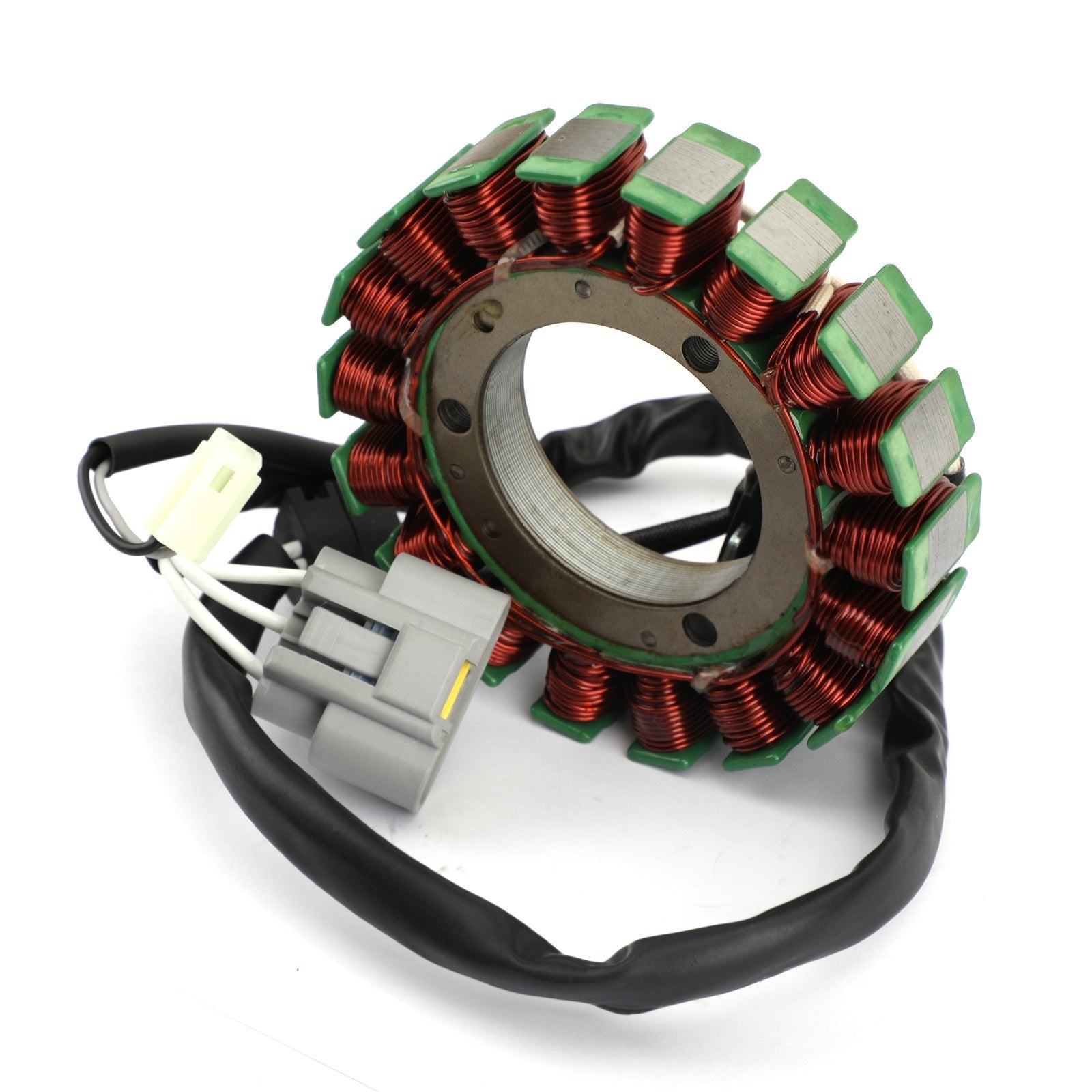

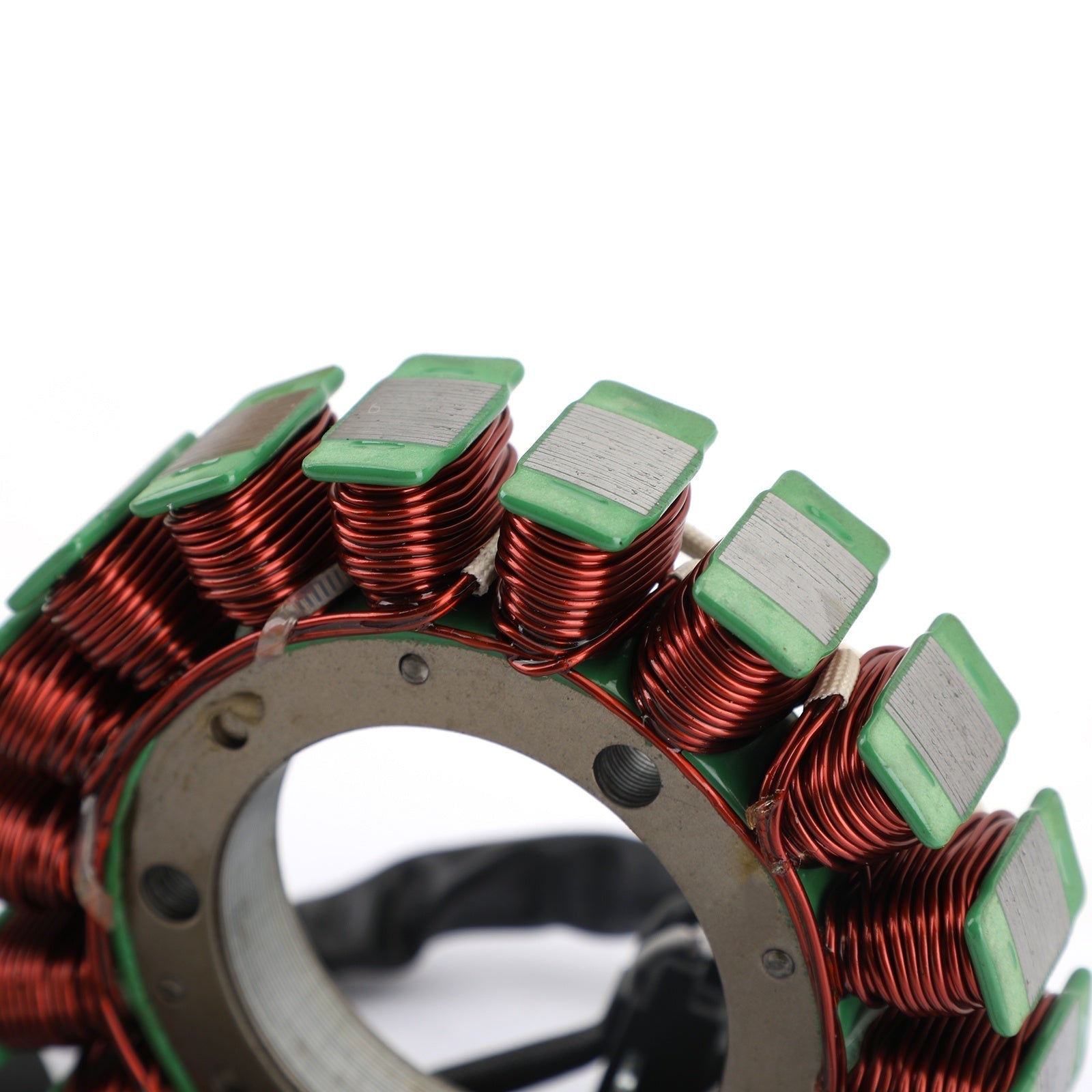

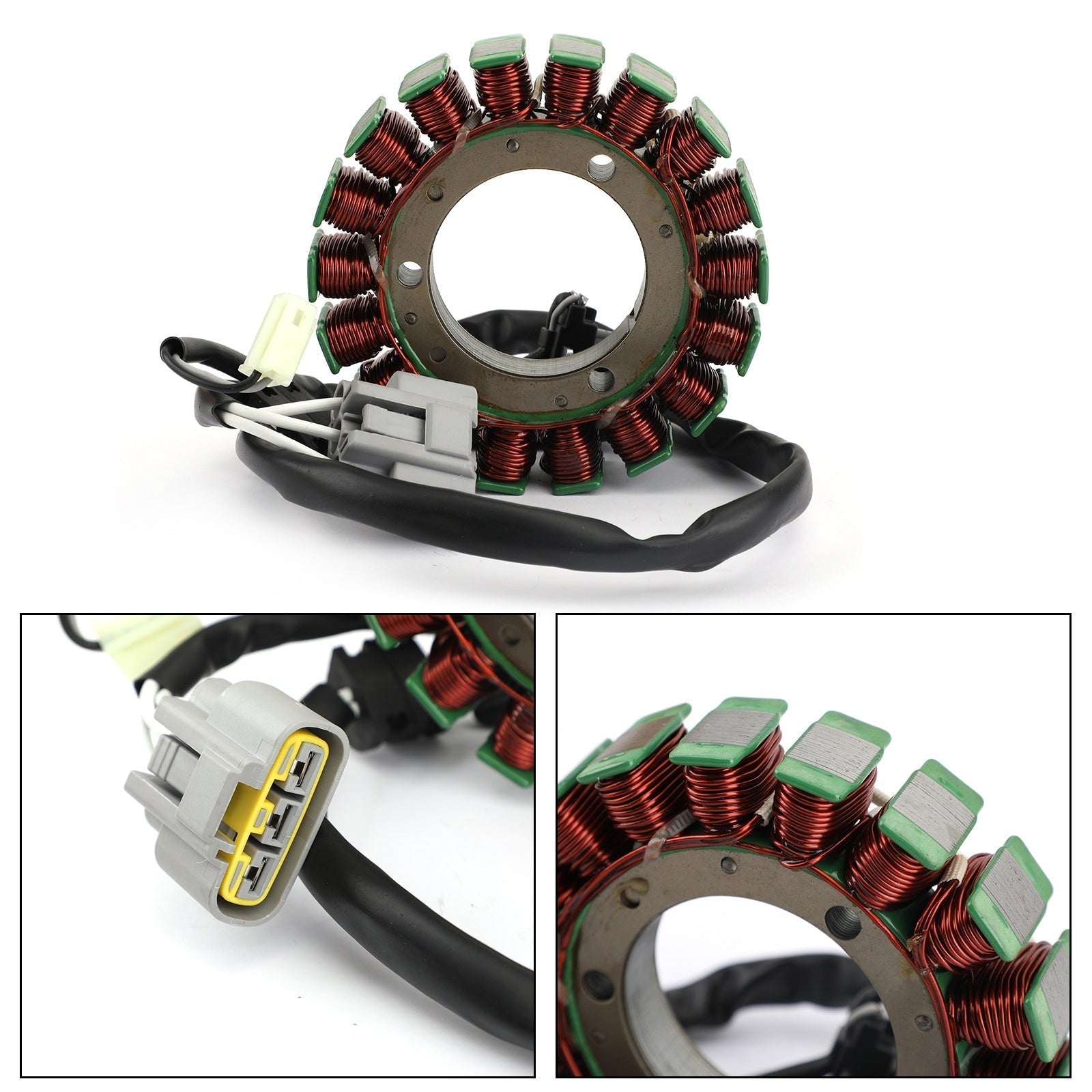

Type: Generator Stator Coil

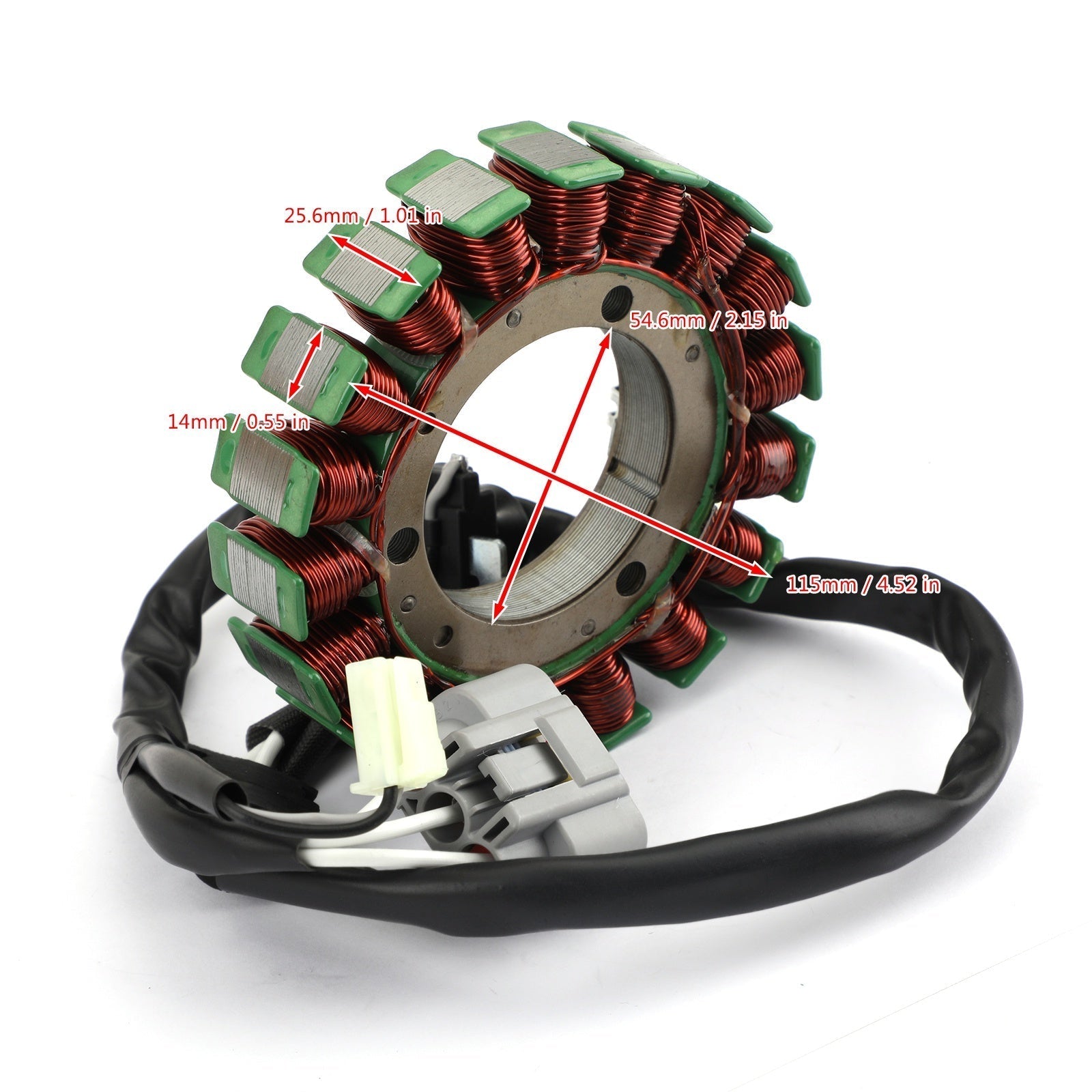

Dimensions :
Interior diameter : 54.6mm / 2.15 inches
Exterior diameter : 115mm / 4.52 inches
Pole's Thickness : 25.6mm / 1.01 inches
Pole's Width : 14mm / 0.55 inches

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 18

PART NUMBER(S):
1WS-81410-00

FITMENT:
Fits Yamaha XSR700/ MTM690 2016-2019
Fits Yamaha MTM690-U 2016-2017
Fits Yamaha MT07/ MTT690 MT-07 2014-2019
Fits Yamaha MT07A MT-07 2014-2019
Fits Yamaha MTT690 MT-07 Tracer 2016-2017
Fits Yamaha FZ07 FZ-07 2015-2017

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
