FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

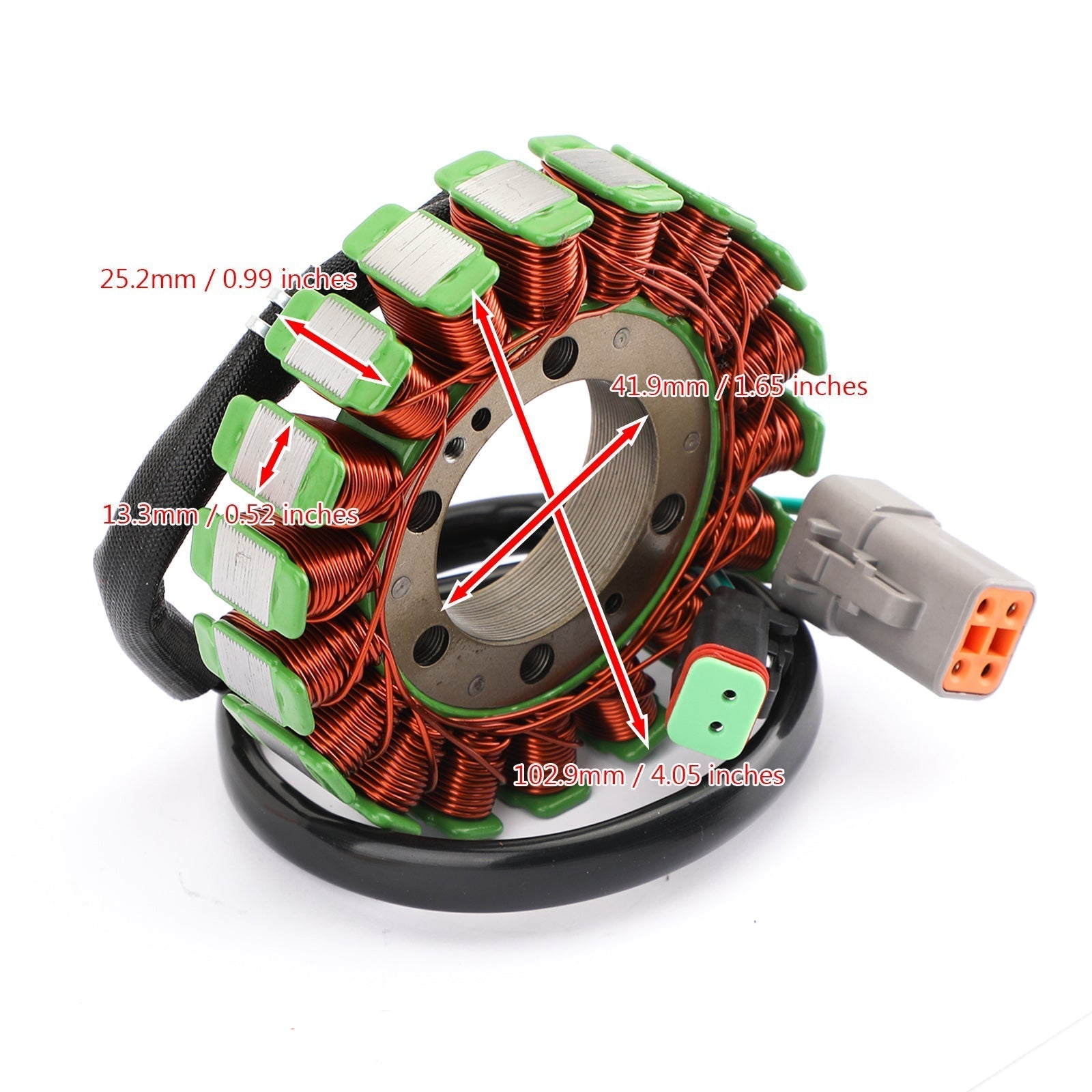

Dimensions :
Interior diameter : 41.9mm / 1.65 inches
Exterior diameter : 102.9mm / 4.05 inches
Pole's Thickness : 25.2mm / 0.99 inches
Pole's Width : 13.3mm / 0.52 inches

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 5(+2)
Number of poles: 18

PART NUMBER(S):
410922946
410922965
410922993
420889905

FITMENT:
Fits Ski-doo Grand Touring 700 Carb 2003
Fits Ski-doo MX Z 500 SS Trail Carb 2004-2007
Fits Ski-doo MX Z 800 HO Renegade PTEK Carb 2003-2007
Fits Ski-doo MX Z 600 HO Adrenaline Carb 2003-2007
Fits Ski-doo MX Z 800 HO Adrenaline PTEK Carb 2003-2007
Fits Ski-doo MX ZX 600 HO Carb 2003-2005/2007
Fits Ski-doo MX ZX 800 HO Renegade X Carb 2006-2007
Fits Ski-doo Summit 700 Carb 2003
Fits Ski-doo Summit 800 HO X Carb 2003
Fits Ski-doo Grand Touring 600 Carb 2003
Fits Ski-doo GSX 800 HO PTEK Carb 2004-2007
Fits Ski-doo MX Z 500 SS Adrenaline Carb 2004-2007
Fits Ski-doo MX Z 500 Trail Carb 2003/2006
Fits Ski-doo MX Z 600 Carb 2003
Fits Ski-doo MX Z 700 Carb 2003
Fits Ski-doo MX Z 800 Adrenaline Carb 2003/2006
Fits Ski-doo MX Z 800 HO Renegade X PTEK Carb 2005/2007
Fits Ski-doo Summit 800 HO Adrenaline Carb 2003-2006
Fits Ski-doo Legend 700 Carb 2003-2004
Fits Ski-doo MX Z 600 HO Renegade RER Carb 2003-2005
Fits Ski-doo MX Z 600 HO Trail RER Carb 2003-2005
Fits Ski-doo MX Z 600 Trail Carb 2003
Fits Ski-doo MX Z 700 Adrenaline Carb 2003
Fits Ski-doo MX Z 800 Renegade Carb 2003/2006
Fits Ski-doo MX ZX 800 Carb 2003
Fits Ski-doo Summit 700 Highmark Carb 2003
Fits Ski-doo Summit 800 HO Highmark Carb 2003
Fits Ski-doo Summit 800 HO Highmark X Carb 2003
Fits Ski-doo Summit 800 R HO X Carb 2006-2007
Fits Ski-doo Grand Touring Sport 500 Carb 2003
Fits Ski-doo Grand Touring Sport 700 Carb 2003
Fits Ski-doo GSX 500 SS Carb 2004-2005
Fits Ski-doo GSX 600 HO Carb 2004-2005
Fits Ski-doo GTX 800 HO LTD PTEK Carb 2006-2007
Fits Ski-doo Legend 500 Sport Carb 2003
Fits Ski-doo Legend 600 Carb 2003
Fits Ski-doo Legend 600 Sport Carb 2003
Fits Ski-doo Legend 700 sport Carb 2003
Fits Ski-doo MX Z 500 Trail RER Carb 2003
Fits Ski-doo MX Z 600 HO Adrenaline RER Carb 2003-2004
Fits Ski-doo MX Z 600 HO Trail Carb 2003-2004
Fits Ski-doo MX Z 600 Trail RER Carb 2003
Fits Ski-doo MX Z 700 Adrenaline RER Carb 2003
Fits Ski-doo MX Z 800 Renegade RER Carb 2003
Fits Ski-doo MX Z 800 Sport Carb 2003
Fits Ski-doo MX Z 800 Sport RER Carb 2003
Fits Ski-doo MX ZX 800 HO Carb 2004-2005
Fits Ski-doo Summit 600 HO Carb 2004-2005
Fits Ski-doo Summit 700 X Carb 2003
Fits Ski-doo GSX 500 Sport Carb 2006
Fits Ski-doo GTX 500 Sport Carb 2006
Fits Ski-doo GTX 500 SS Carb 2005
Fits Ski-doo GTX 600 HO Carb 2005
Fits Ski-doo GTX 800 HO Carb 2005
Fits Ski-doo MX Z 500 Adrenaline Carb 2003
Fits Ski-doo MX Z 500 Adrenaline RER Carb 2003
Fits Ski-doo MX Z 600 HO Renegade Carb 2003
Fits Ski-doo MX Z 600 HO Sport Carb 2003
Fits Ski-doo MX Z 600 HO Sport RER Carb 2003
Fits Ski-doo MX Z 600 RER Carb 2003
Fits Ski-doo MX Z 700 RER Carb 2003
Fits Ski-doo MX Z 800 Adrenaline RER Carb 2003
Fits Ski-doo MX Z 800 HO Renegade RER Carb 2003
Fits Ski-doo MX Z 800 HO X PTEK Carb 2005
Fits Ski-doo MX ZX 800 RER Carb 2003
Fits Ski-doo Summit 600 HO Adrenaline Carb 2003
Fits Ski-doo Summit 600 HO Adrenaline RER Carb 2003
Fits Ski-doo Summit 700 Adrenaline Carb 2003
Fits Ski-doo Summit 700 Adrenaline RER Carb 2003
Fits Ski-doo Summit 700 Highmark RER Carb 2003
Fits Ski-doo Summit 700 RER Carb 2003
Fits Ski-doo Summit 700 X RER Carb 2003
Fits Ski-doo Summit 800 HO Adrenaline RER Carb 2003
Fits Ski-doo Summit 800 HO Carb 2004
Fits Ski-doo Summit 800 HO Highmark RER Carb 2003
Fits Ski-doo Summit 800 HO Highmark X RER Carb 2003
Fits Ski-doo Summit 600 HO Adrenaline SDI EFI 2004
Fits Ski-doo MX ZX 600 HO Renegade EFI 2004
Fits Ski-doo MX ZX 600 HO RER Carb 2003-2004
Fits Ski-doo Legend 500 SS Carb 2004
Fits Ski-doo MX Z 500 SS Renegade Carb 2004
Fits Ski-doo MX Z 500 SS Trail R Carb 2004
Fits Ski-doo Summit 800 HO RER Carb 2004
Fits Ski-doo Skandic 600 WT Carb 2008-2010
Fits Ski-doo MX ZX 440 Racing Carb 2007
Fits Ski-doo GSX 500 SS Sport Carb 2007
Fits Ski-doo GTX 500 SS Sport Carb 2007-2008
Fits Ski-doo MX Z 800 HO Blizzard PTEK Carb 2007
Fits Ski-doo MX Z X-RS 800 HO Carb 2007
Fits Ski-doo Skandic 600 HO SUV SDI Euro EFI 2008
Fits Ski-doo Summit 800 R Adrenaline Carb 2007
Fits Ski-doo Summit XRS 800 R Carb 2007
Fits Lynx Rave RE 600 2008
Fits Lynx YETI 600 2008

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
