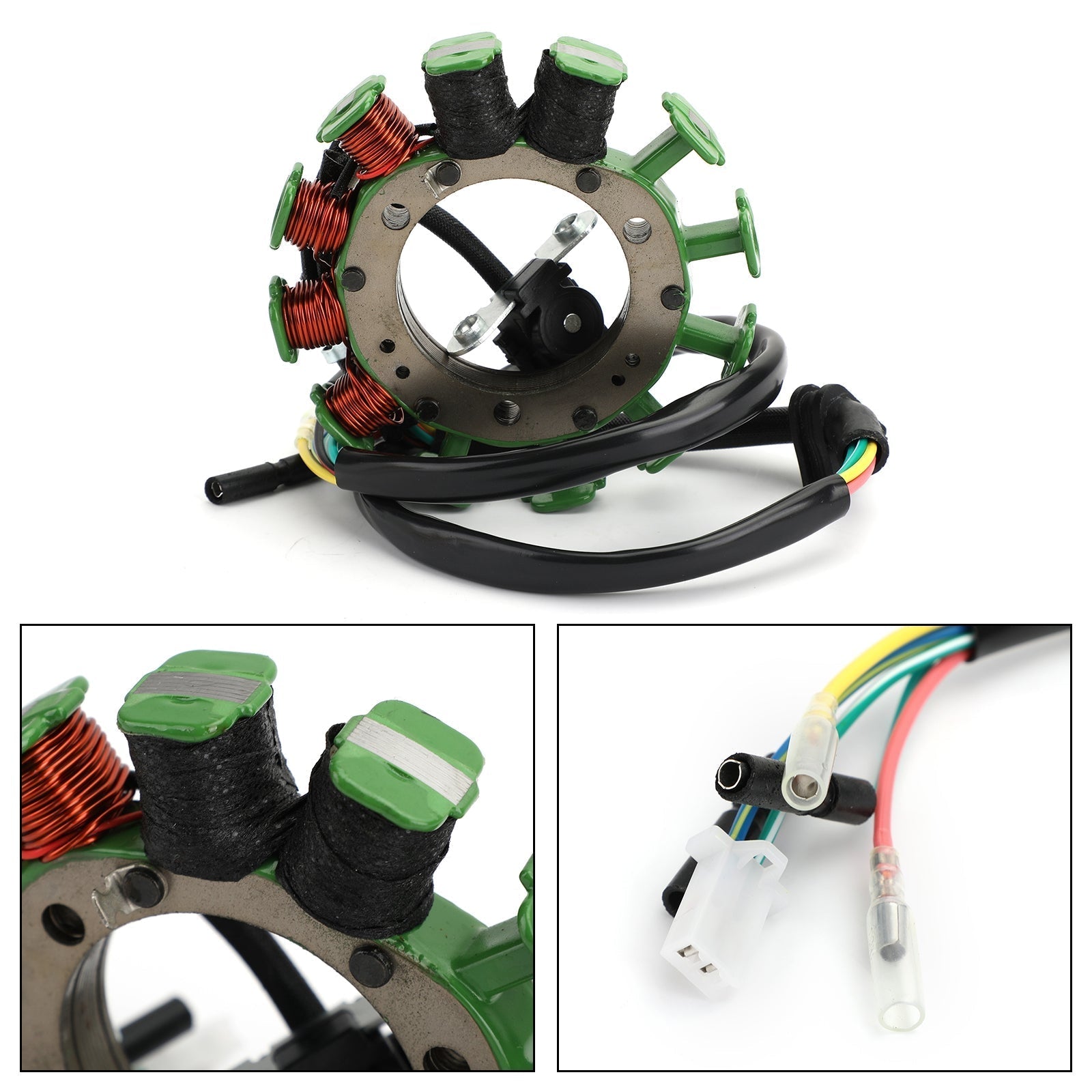

MAGNETO STATOR ASSY FOR HONDA XR 400R XR650 96-07 31120-KCY-671 / 31120-MBN-671
MAGNETO STATOR ASSY FOR HONDA XR 400R XR650 96-07 31120-KCY-671 / 31120-MBN-671
Regular price
$62.78
Sale price
$62.78
Regular price
Couldn't load pickup availability
Specifications
Specifications
Magneto Generator Stator Fit for Honda XR 400 XR400 R (USA) 1996-2004 XR 650 XR650 R (USA) 2000-2007
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Charging Coil
Number of wires : 6
Number of plugs : 1 + 4
Number of pins : 2 + 4
Number of poles : 6 + 6
Replacement Part Number:
31120-KCY-671
31120-MBN-671
Fits Models:
Fit for Honda XR400R (USA) 1996-2004
Fit for Honda XR650R (USA) 2000-2007
This stator does NOT fits Europe / Australia versions.
There is other version stator which part number is 31120-KCY-651 / 31120-MBN-651.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
