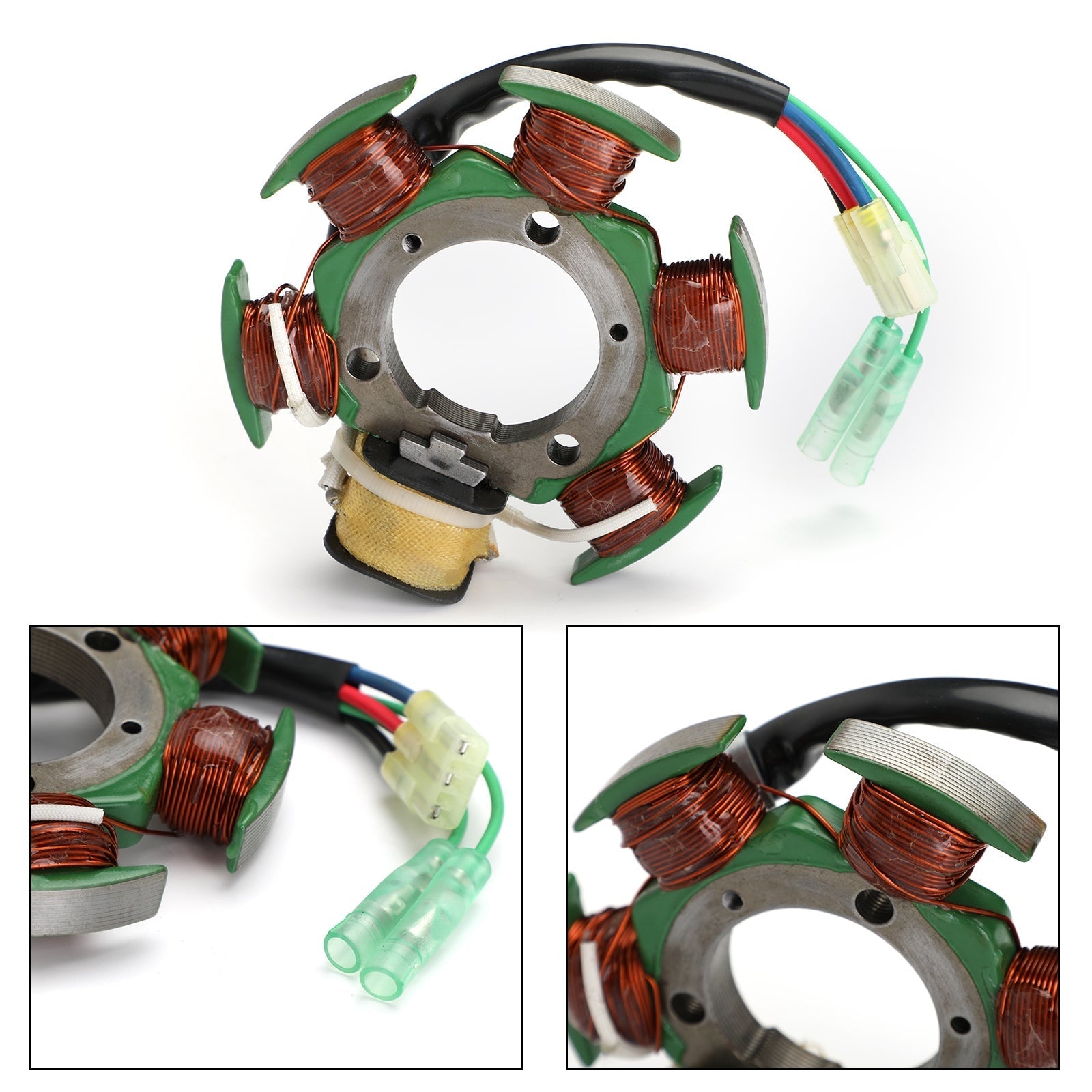

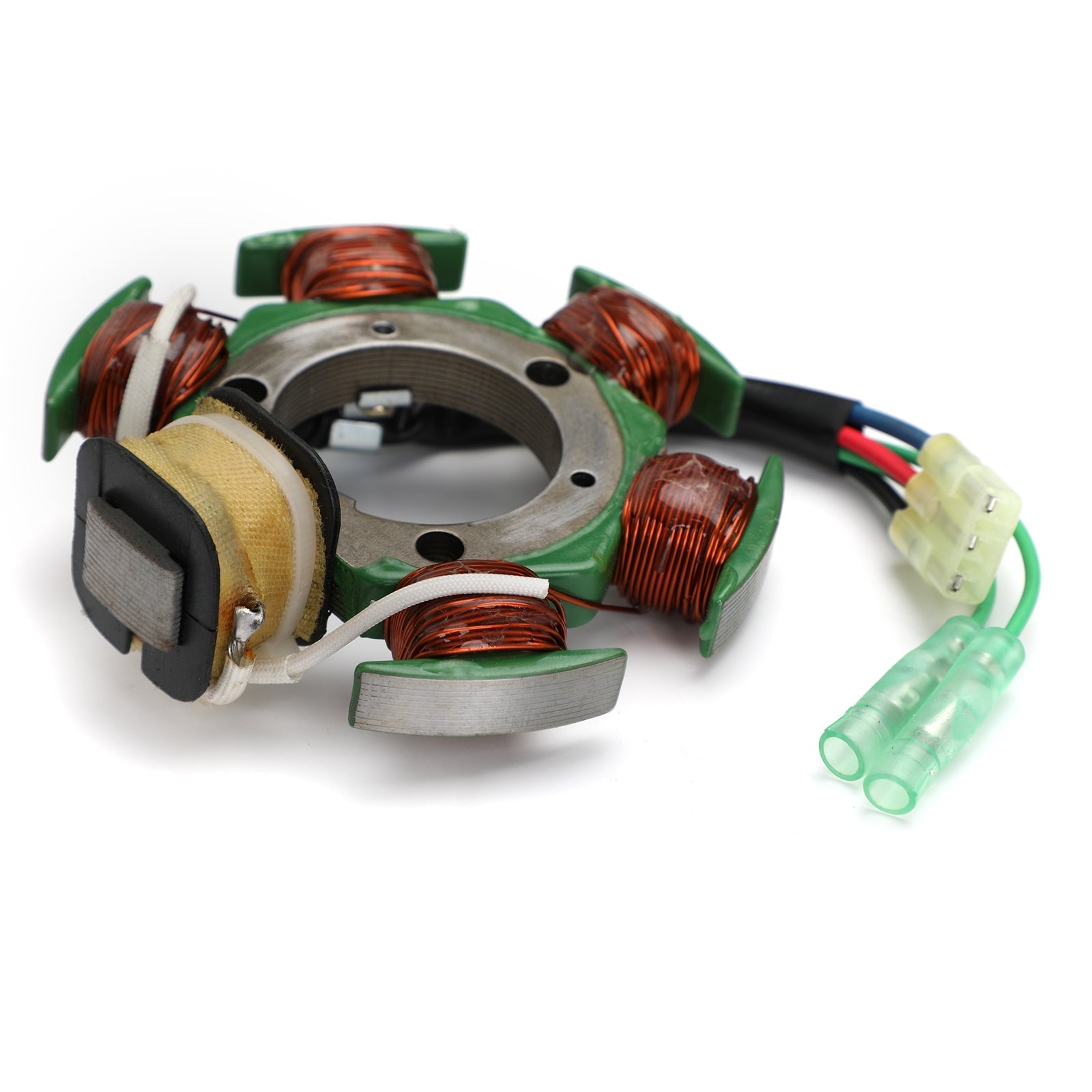

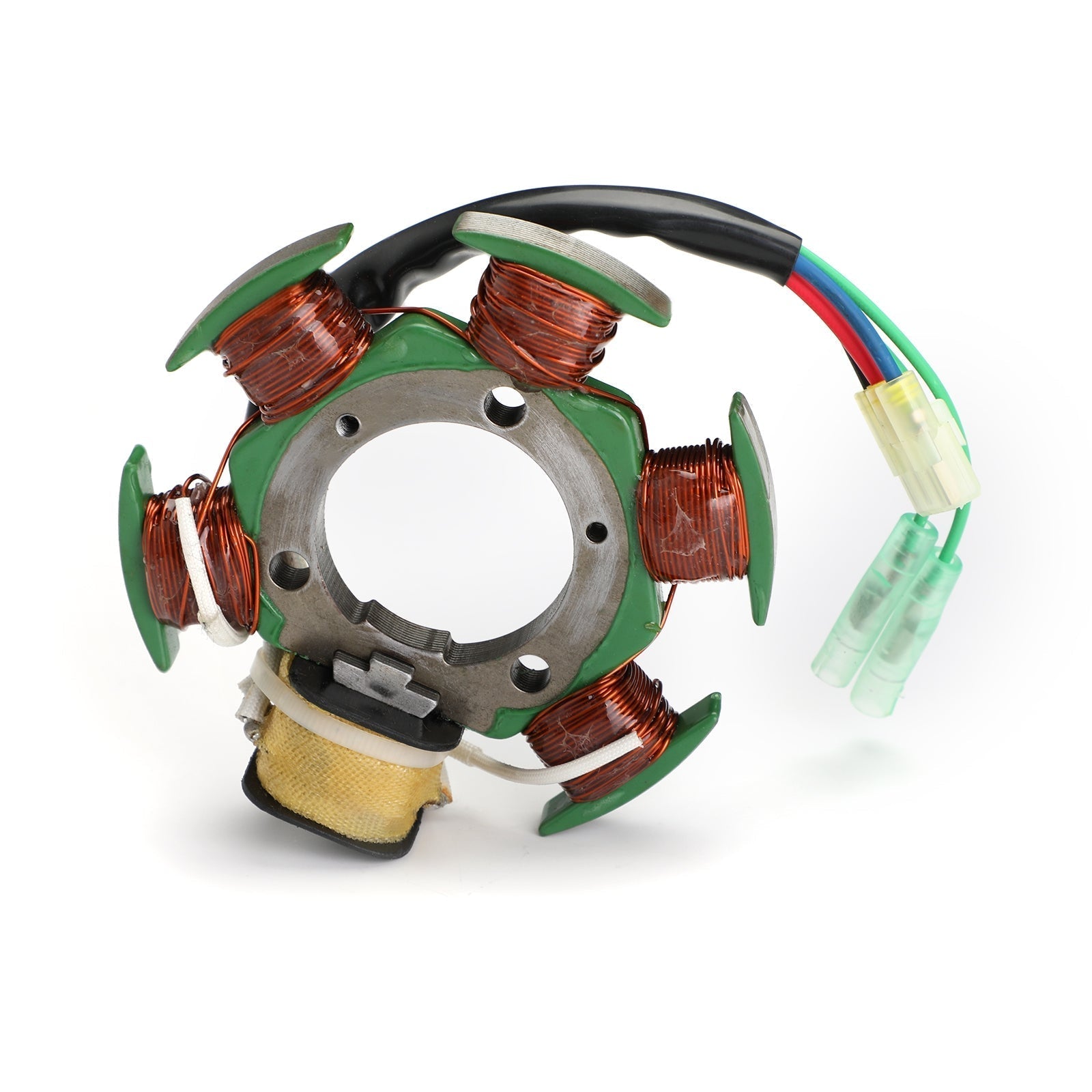

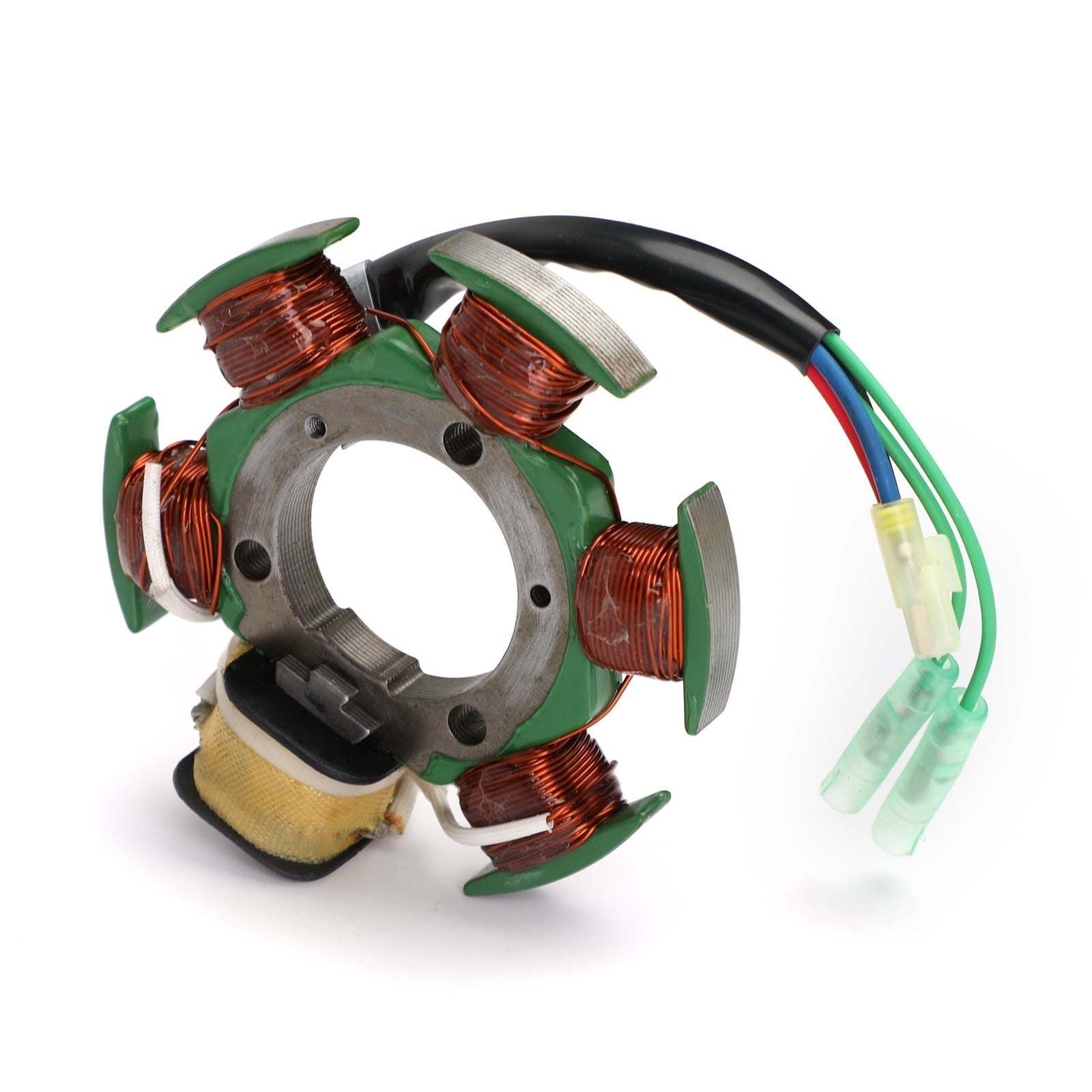

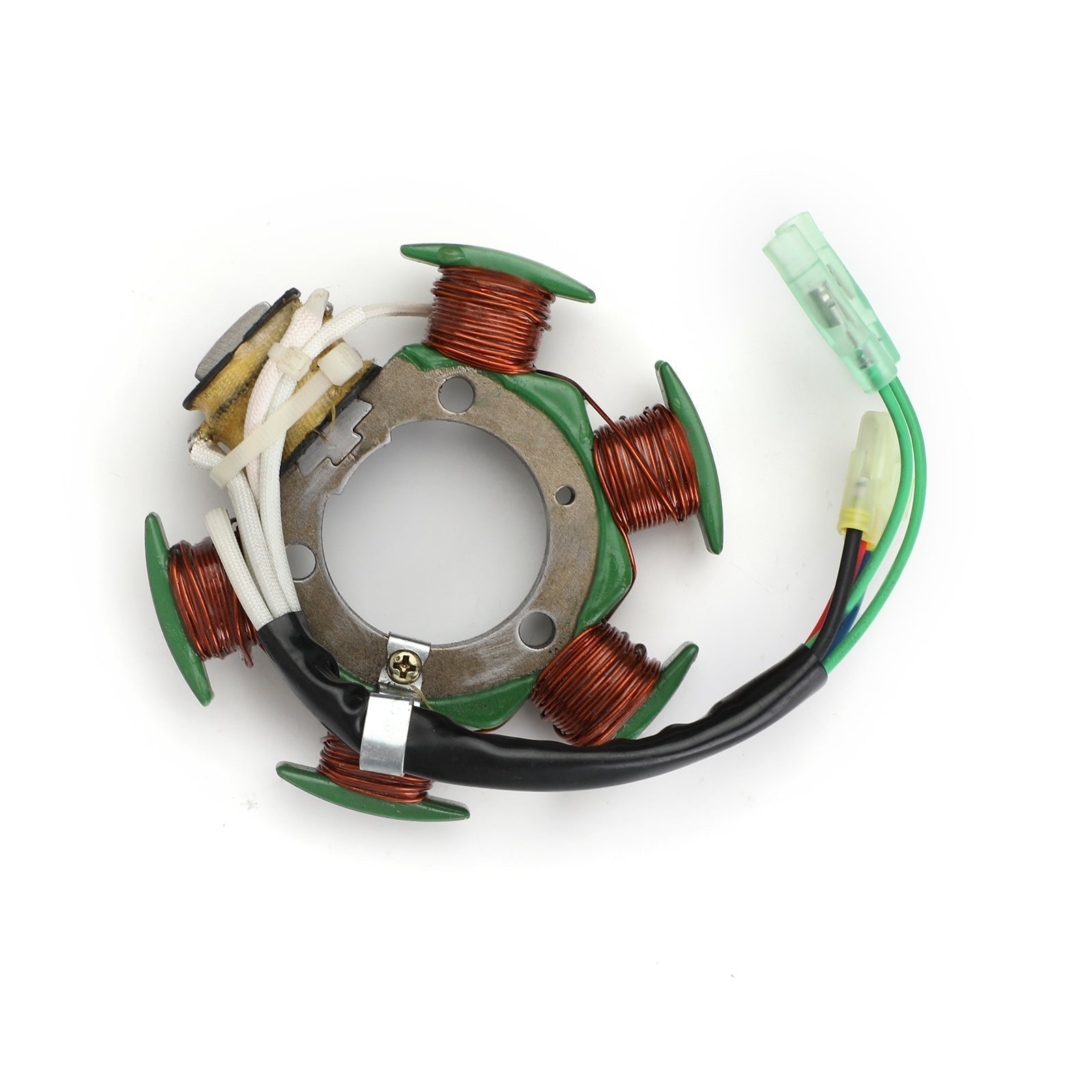

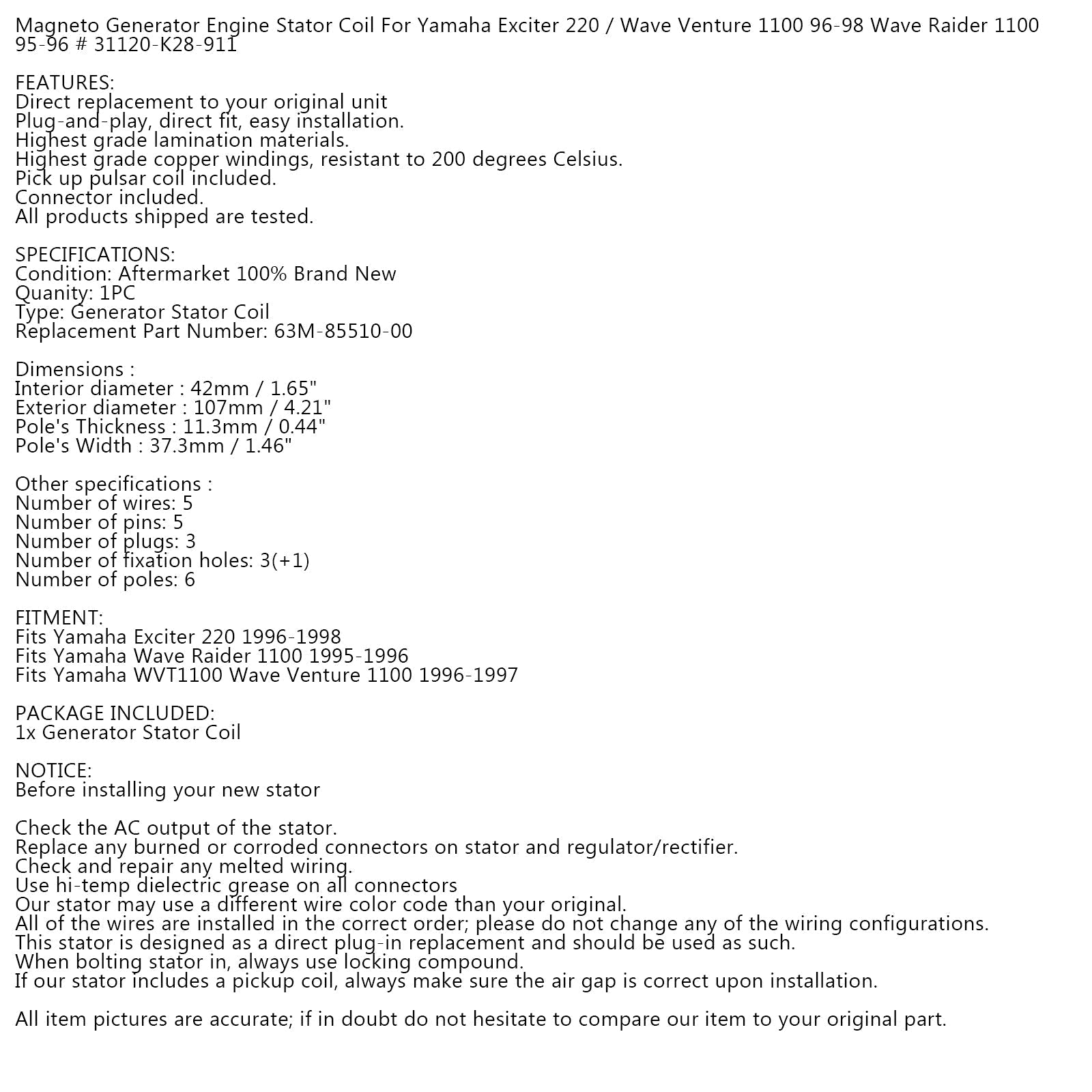

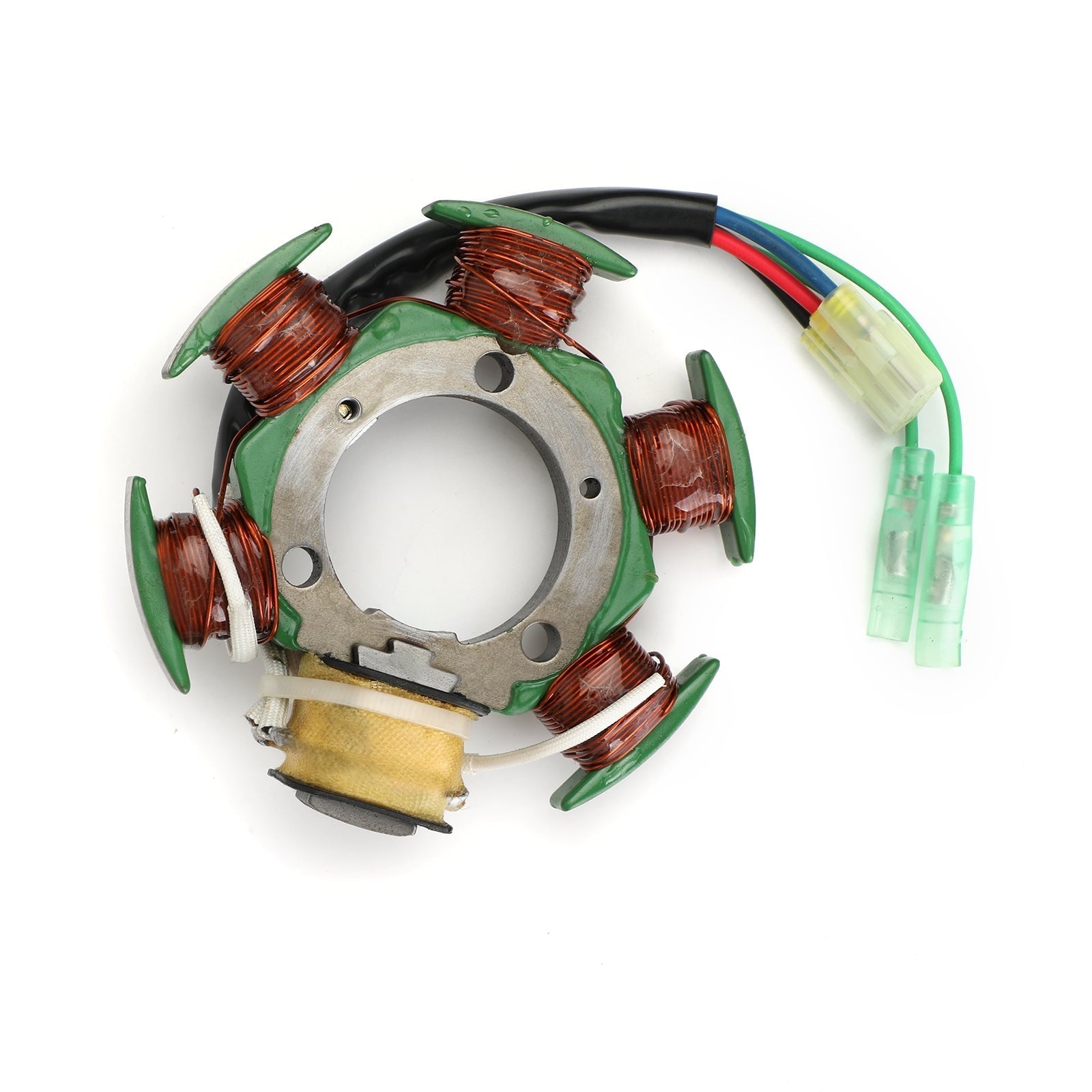

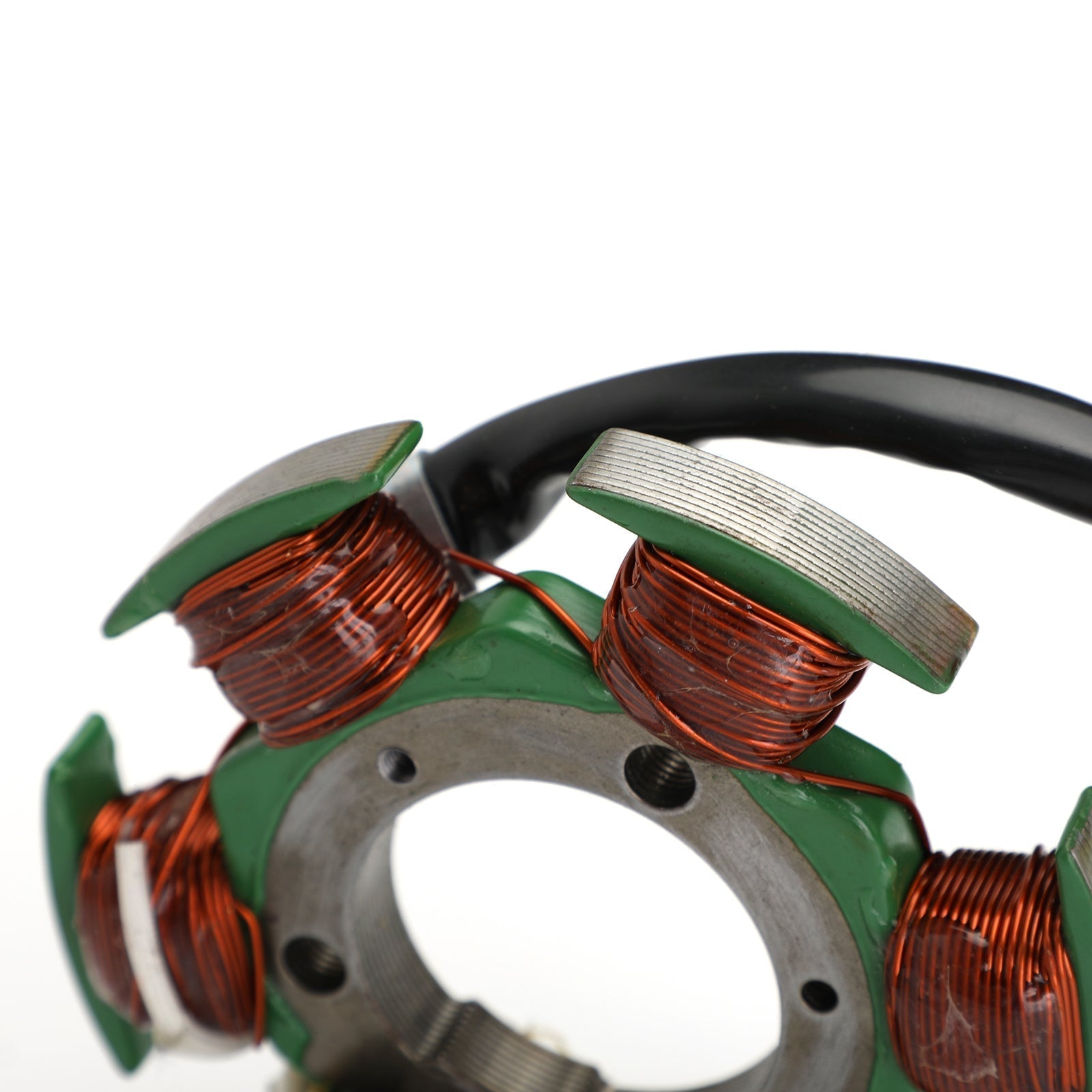

Magneto Generator Engine Stator Coil For Yamaha Exciter 220 / Wave Venture 1100 96-98 Wave Raider 1100 95-96 # 31120-K28-911

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 63M-85510-00

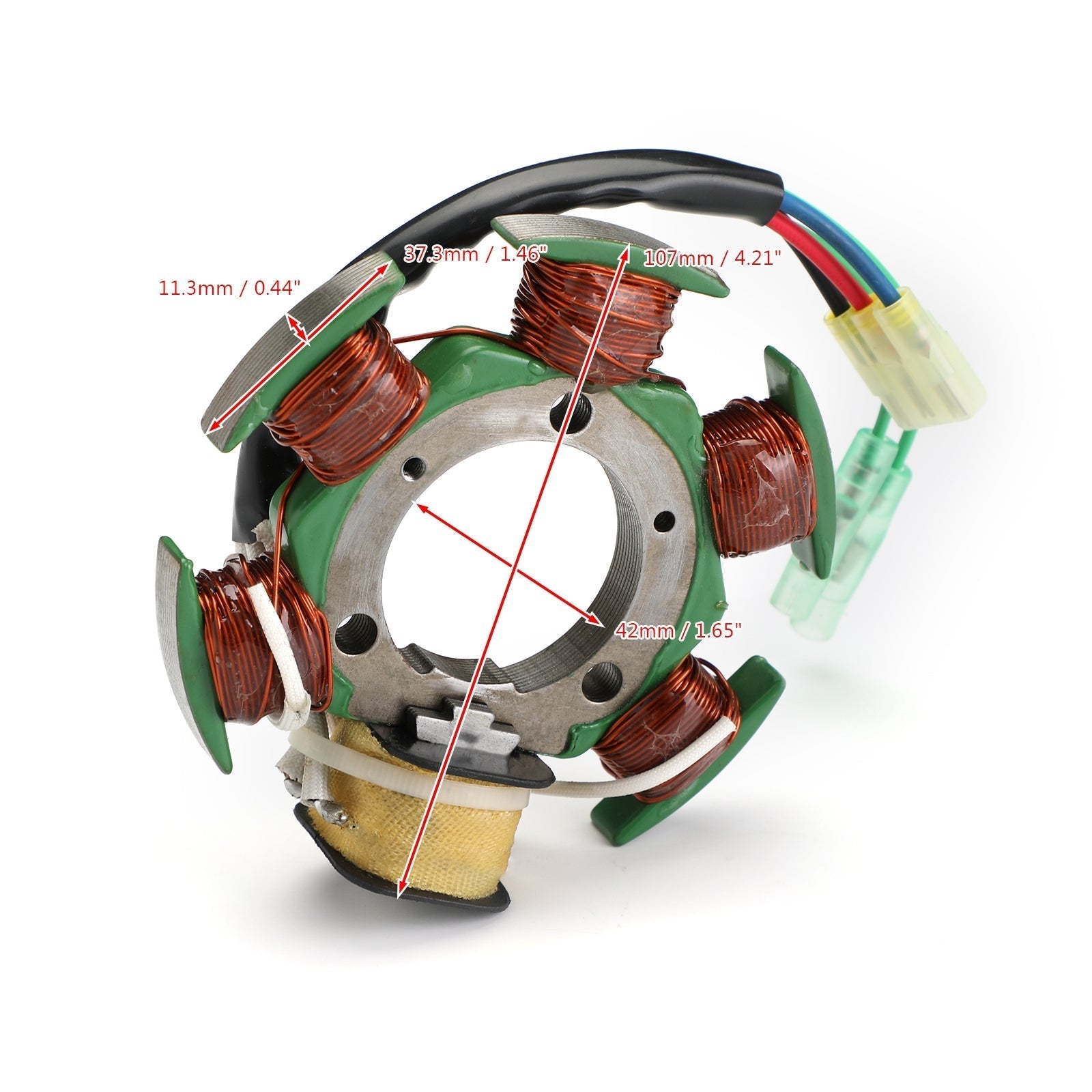

Dimensions :
Interior diameter : 42mm / 1.65"
Exterior diameter : 107mm / 4.21"
Pole's Thickness : 11.3mm / 0.44"
Pole's Width : 37.3mm / 1.46"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 3
Number of fixation holes: 3(+1)
Number of poles: 6

FITMENT:
Fits Yamaha Exciter 220 1996-1998
Fits Yamaha Wave Raider 1100 1995-1996
Fits Yamaha WVT1100 Wave Venture 1100 1996-1997

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
