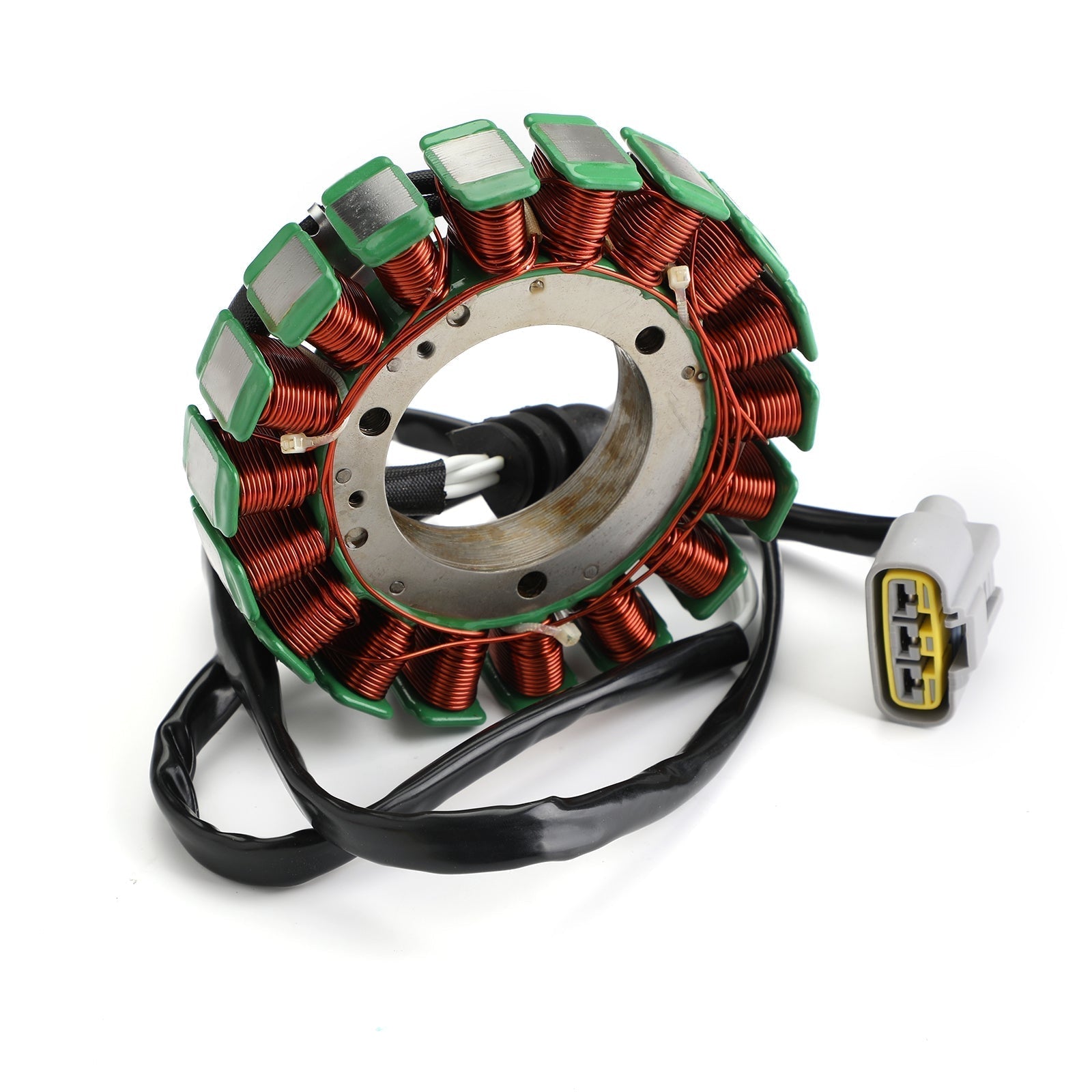

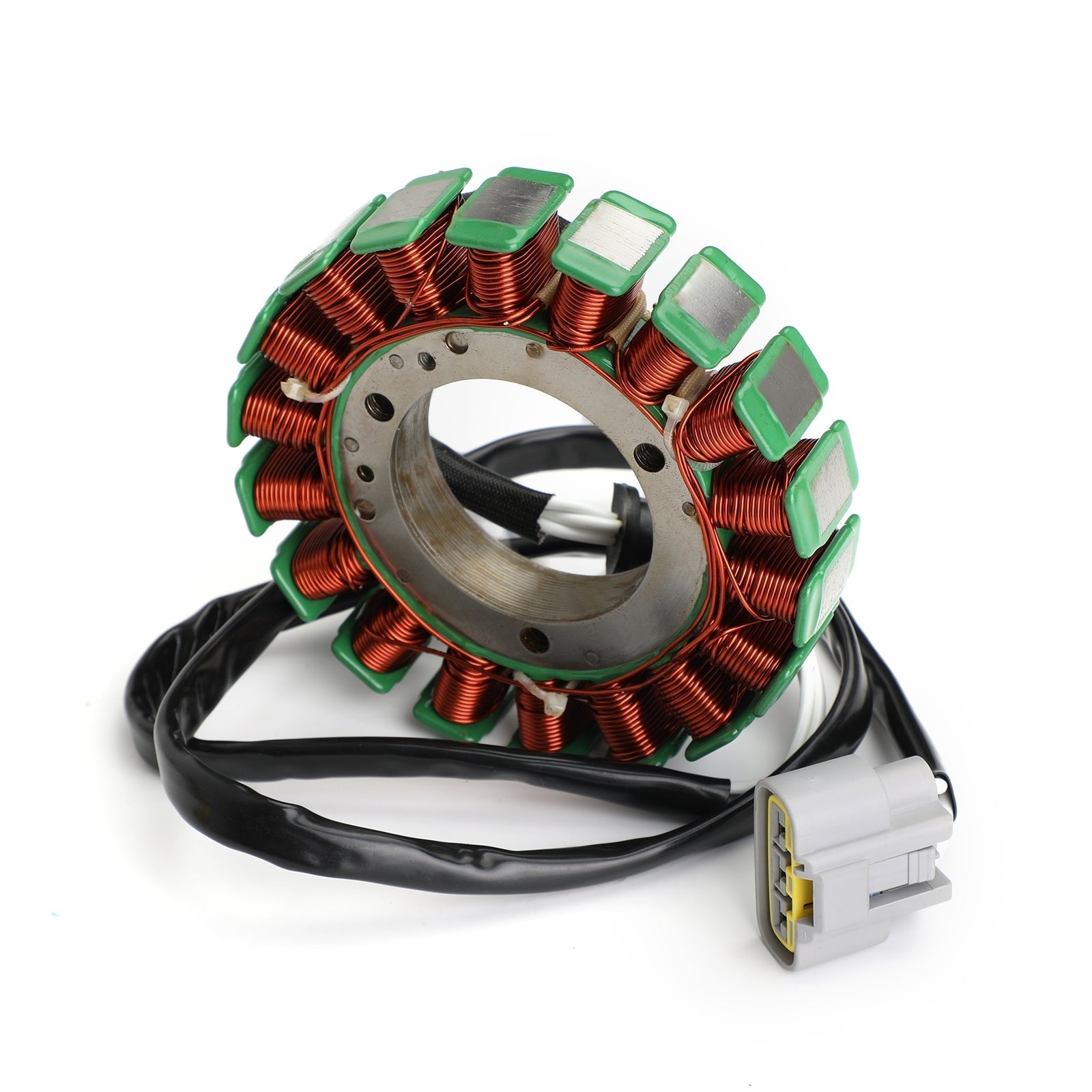

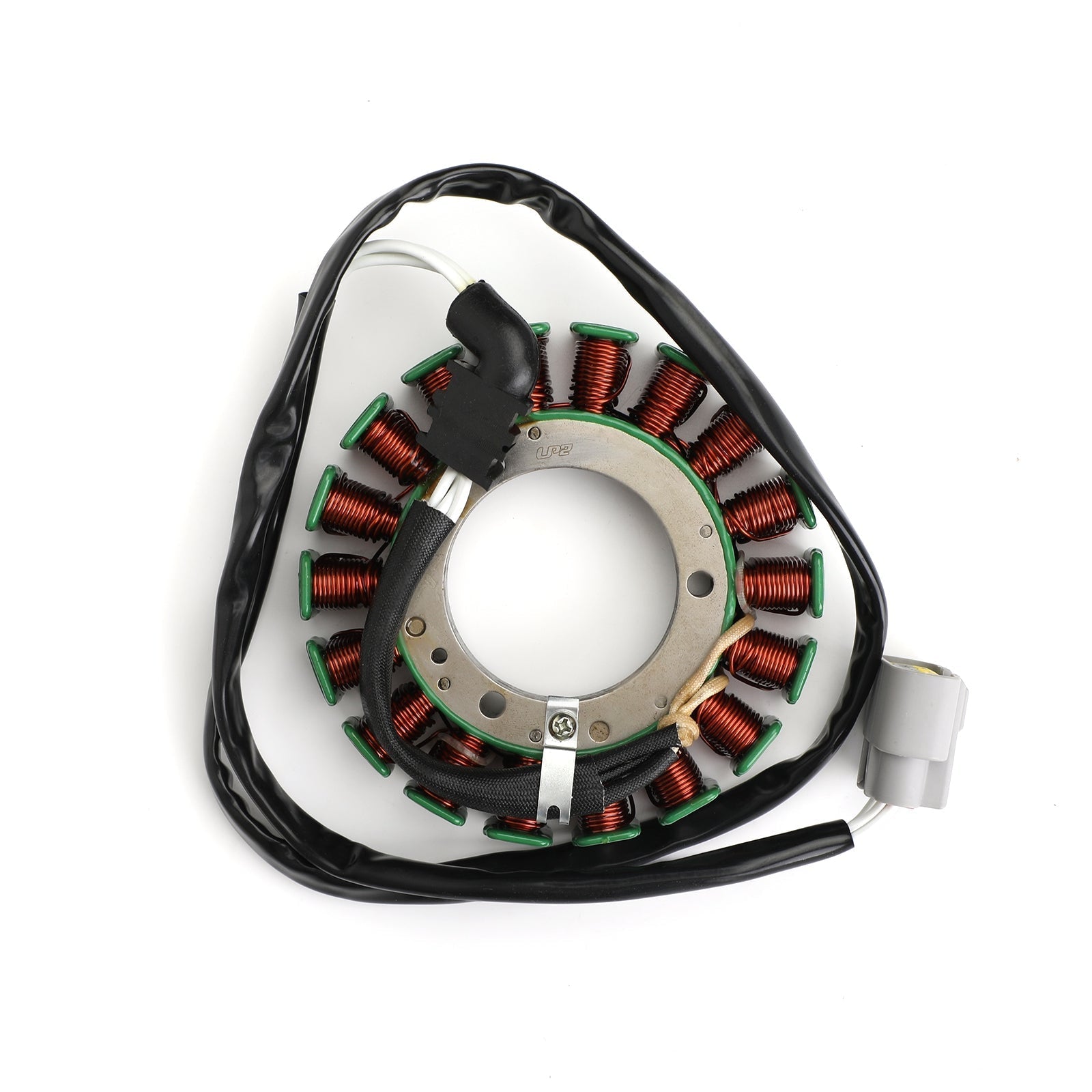

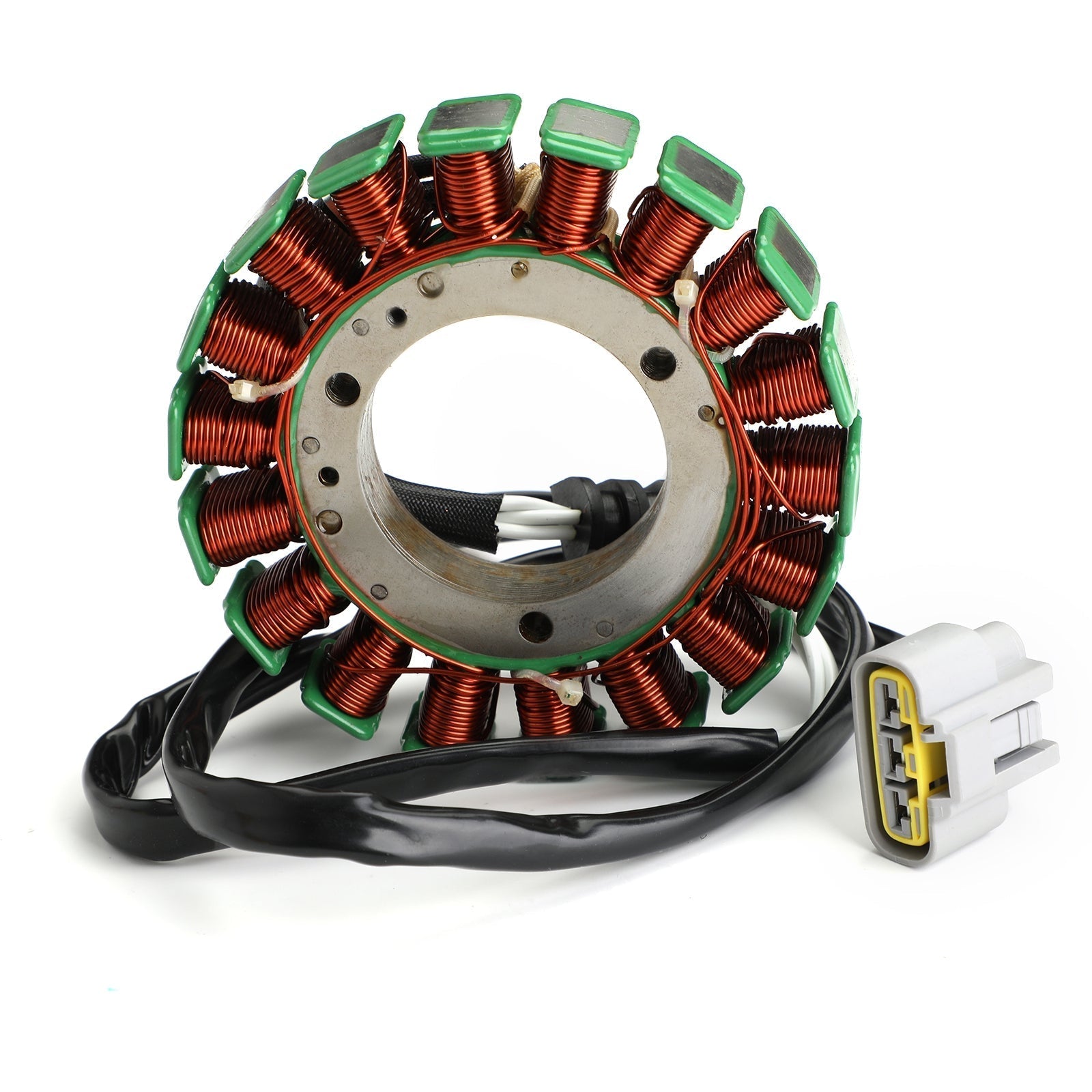

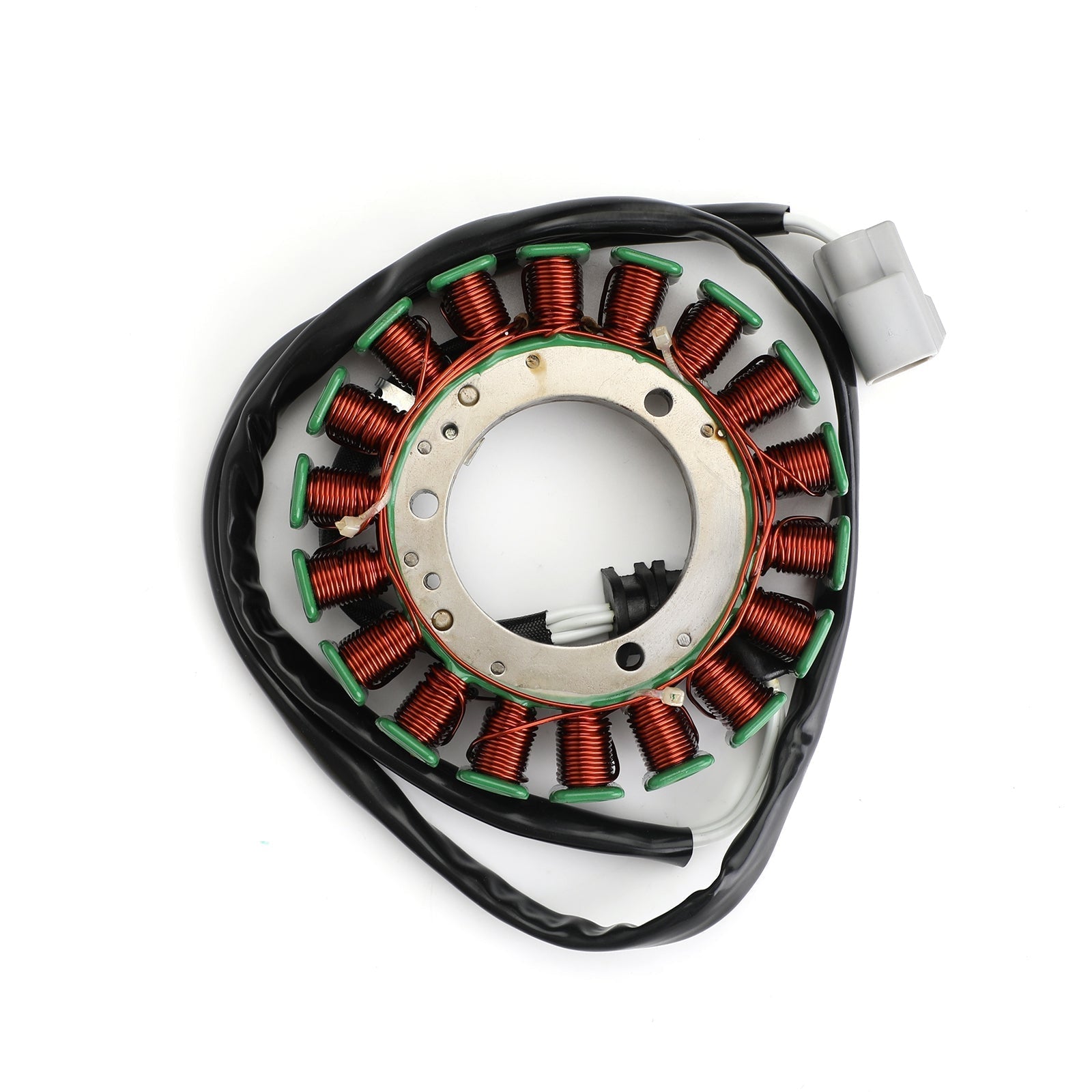

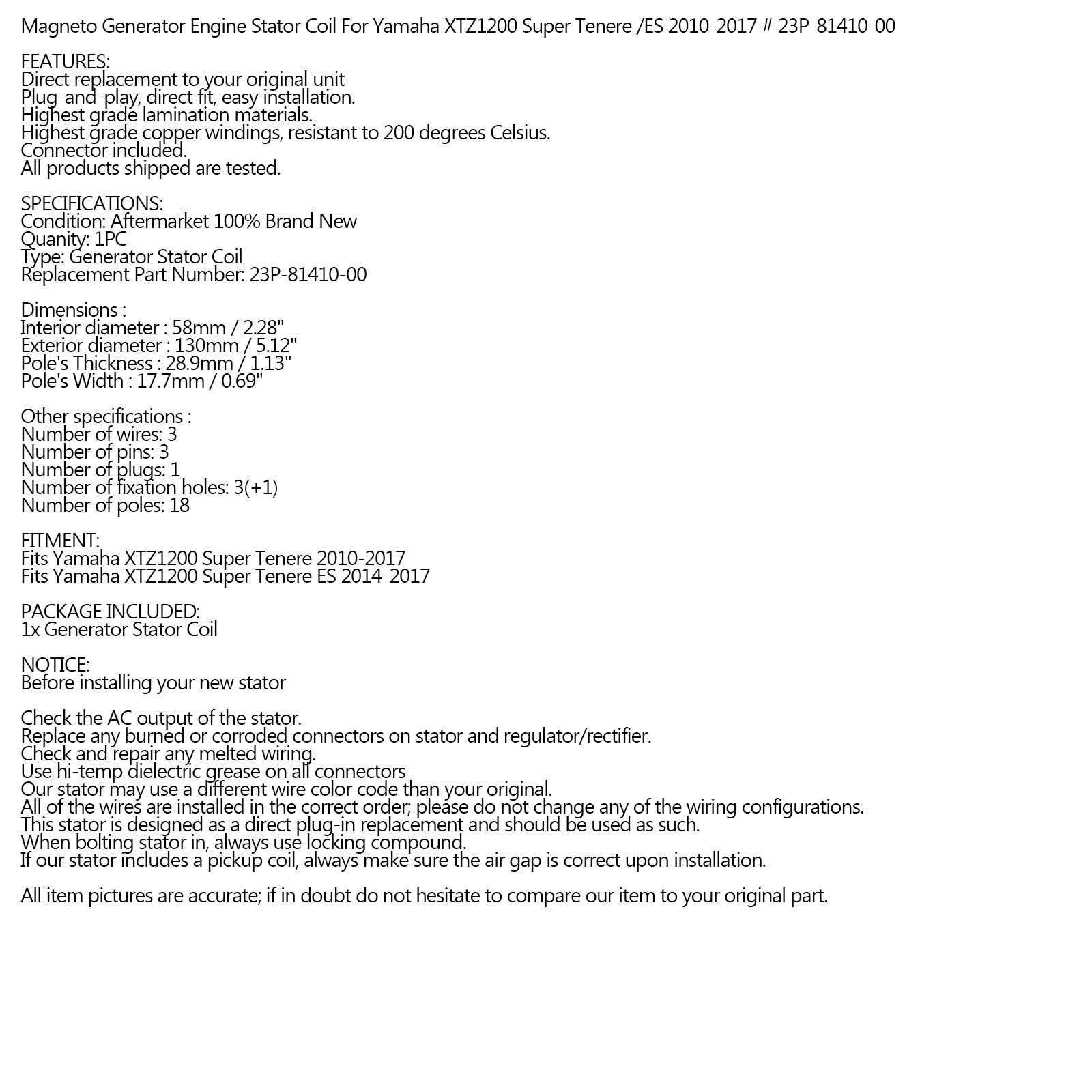

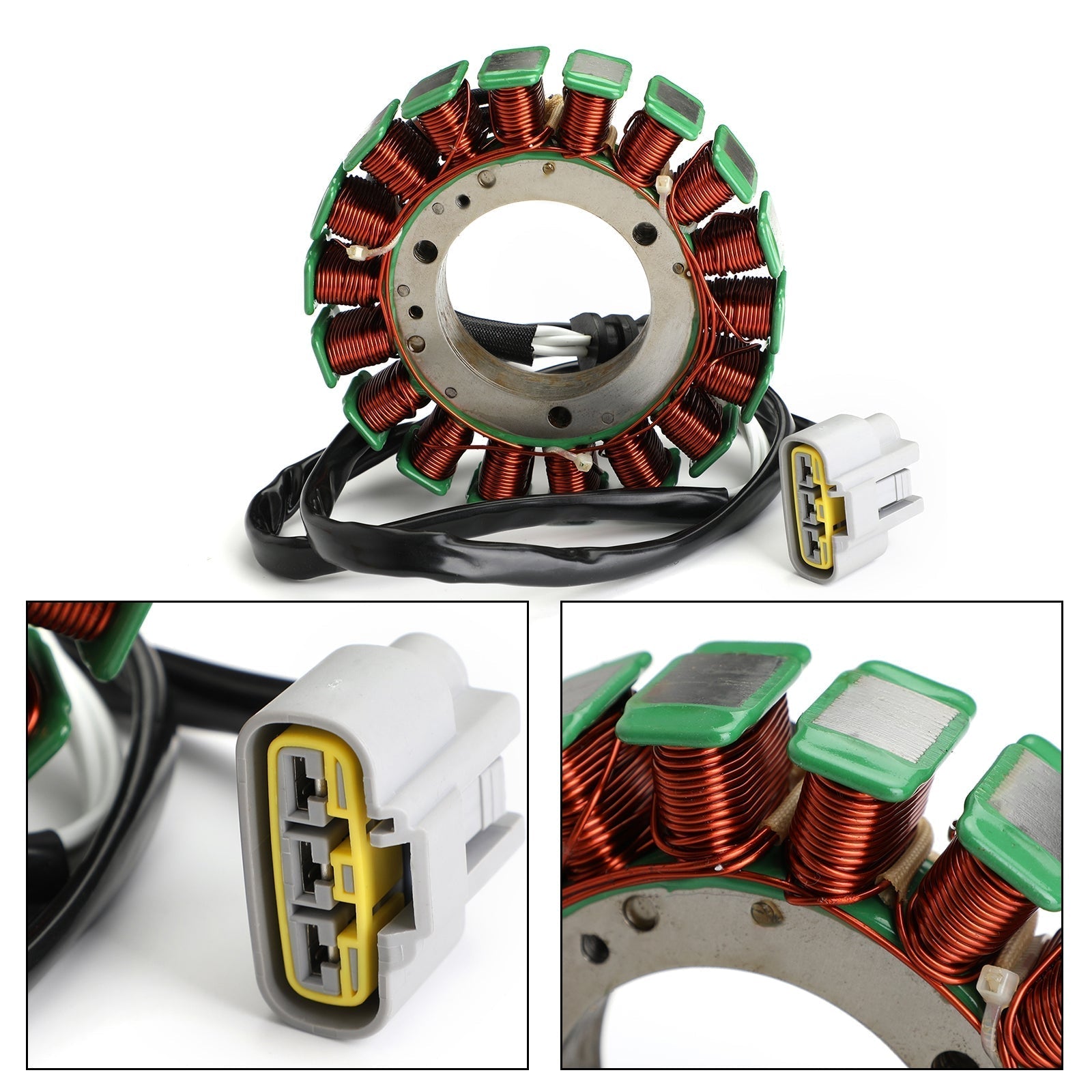

Magneto Generator Engine Stator Coil For Yamaha XTZ1200 Super Tenere /ES 2010-2017 # 23P-81410-00

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

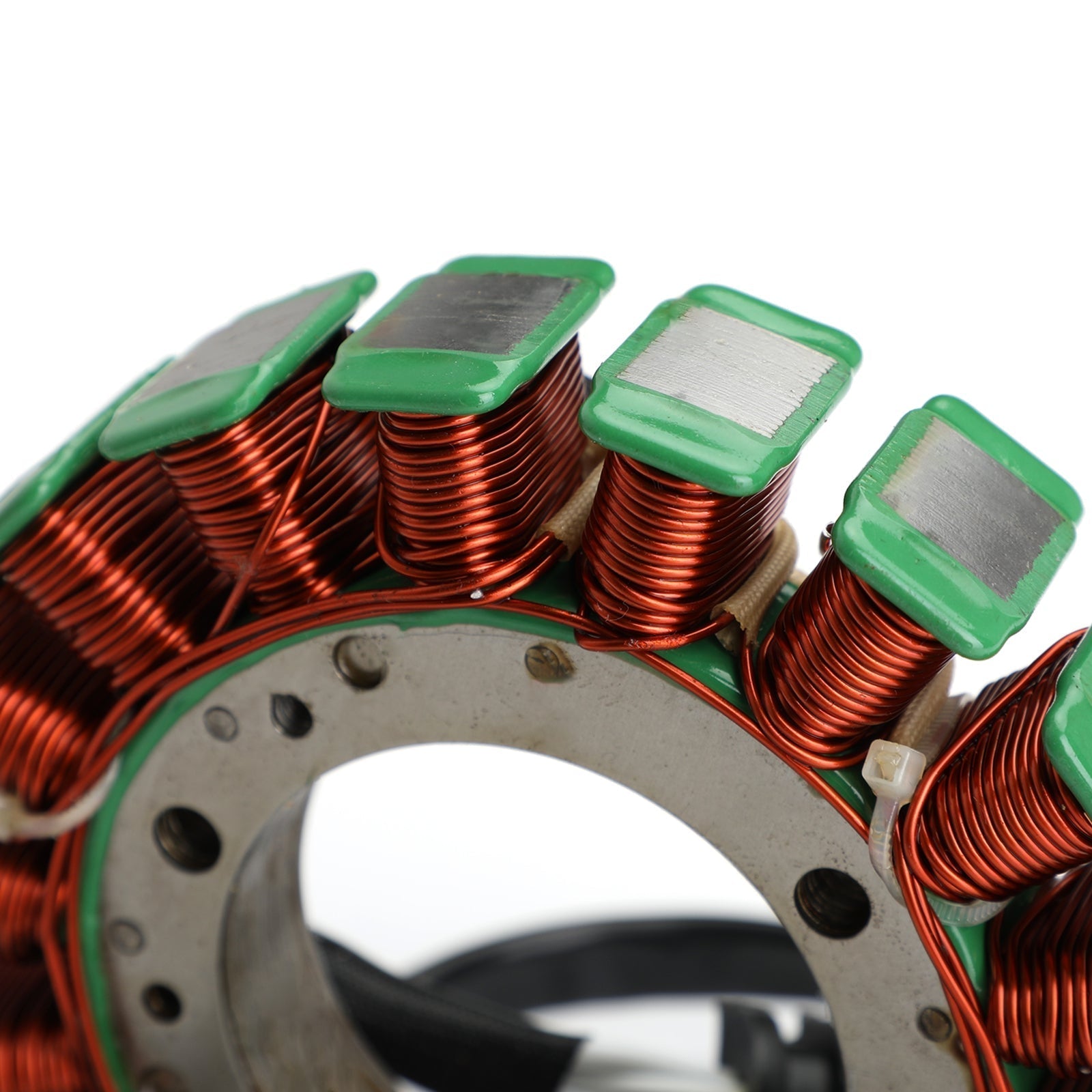

Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 23P-81410-00

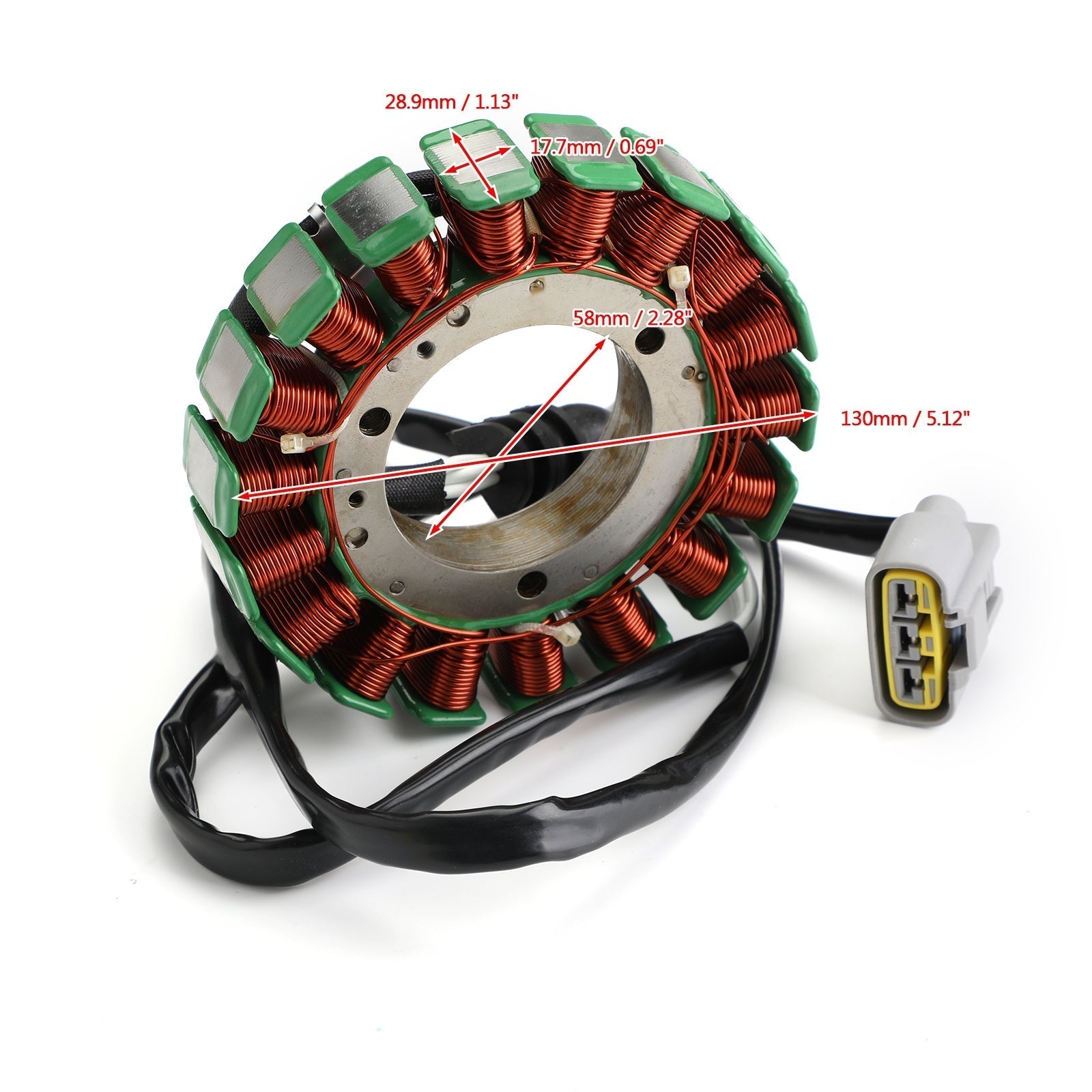

Dimensions :
Interior diameter : 58mm / 2.28"
Exterior diameter : 130mm / 5.12"
Pole's Thickness : 28.9mm / 1.13"
Pole's Width : 17.7mm / 0.69"

Other specifications :
Number of wires: 3

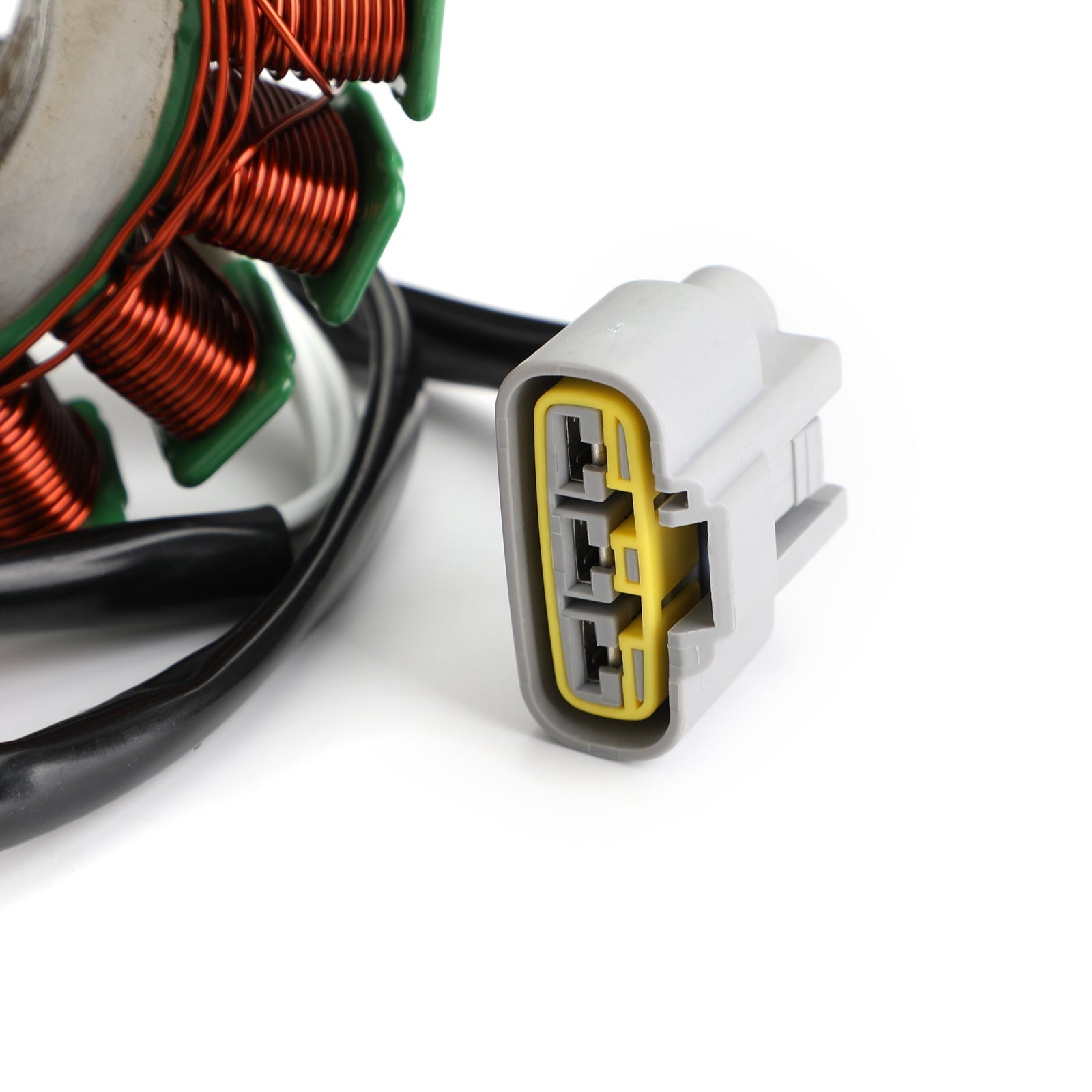

Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+1)
Number of poles: 18

FITMENT:
Fits Yamaha XTZ1200 Super Tenere 2010-2017
Fits Yamaha XTZ1200 Super Tenere ES 2014-2017

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
