FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

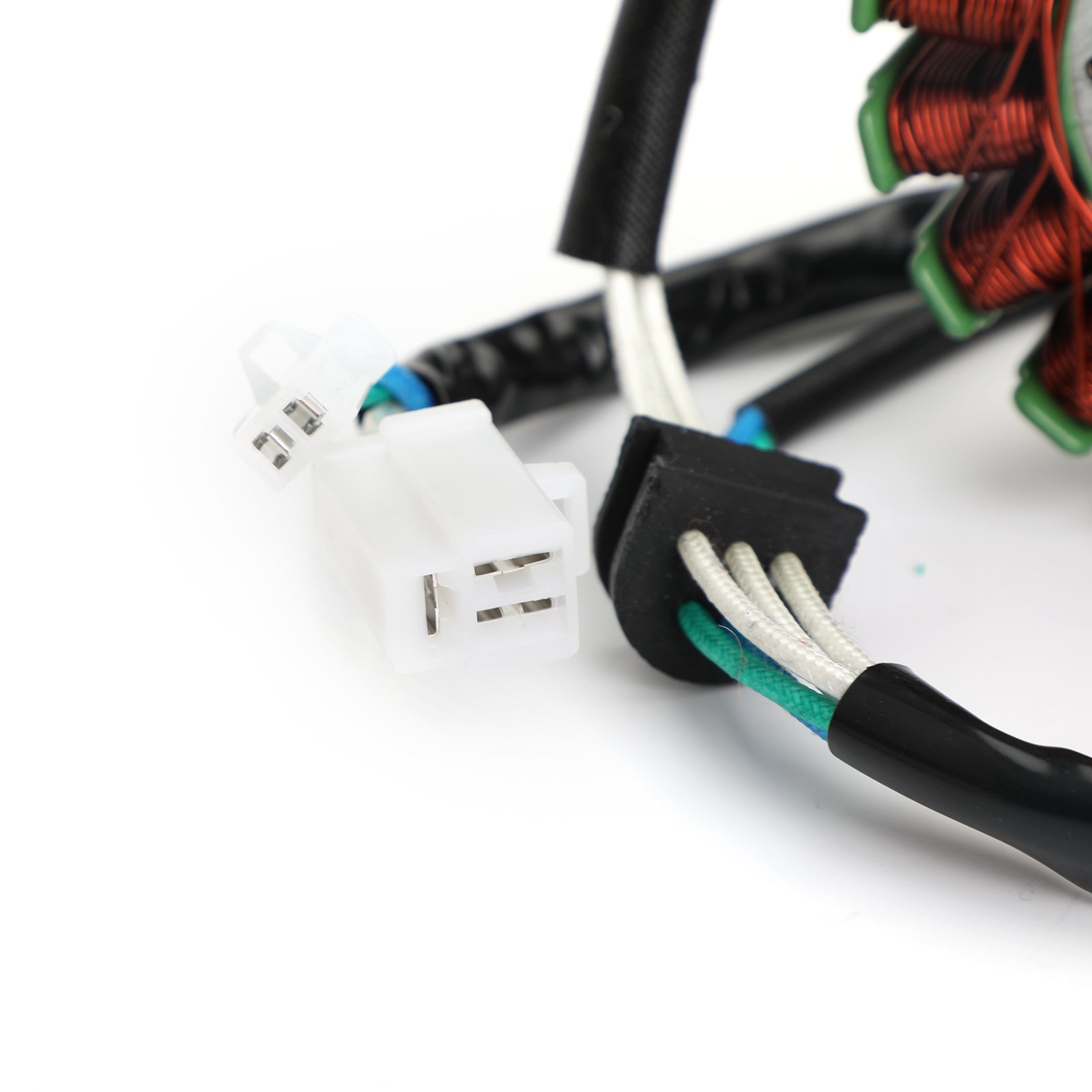

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

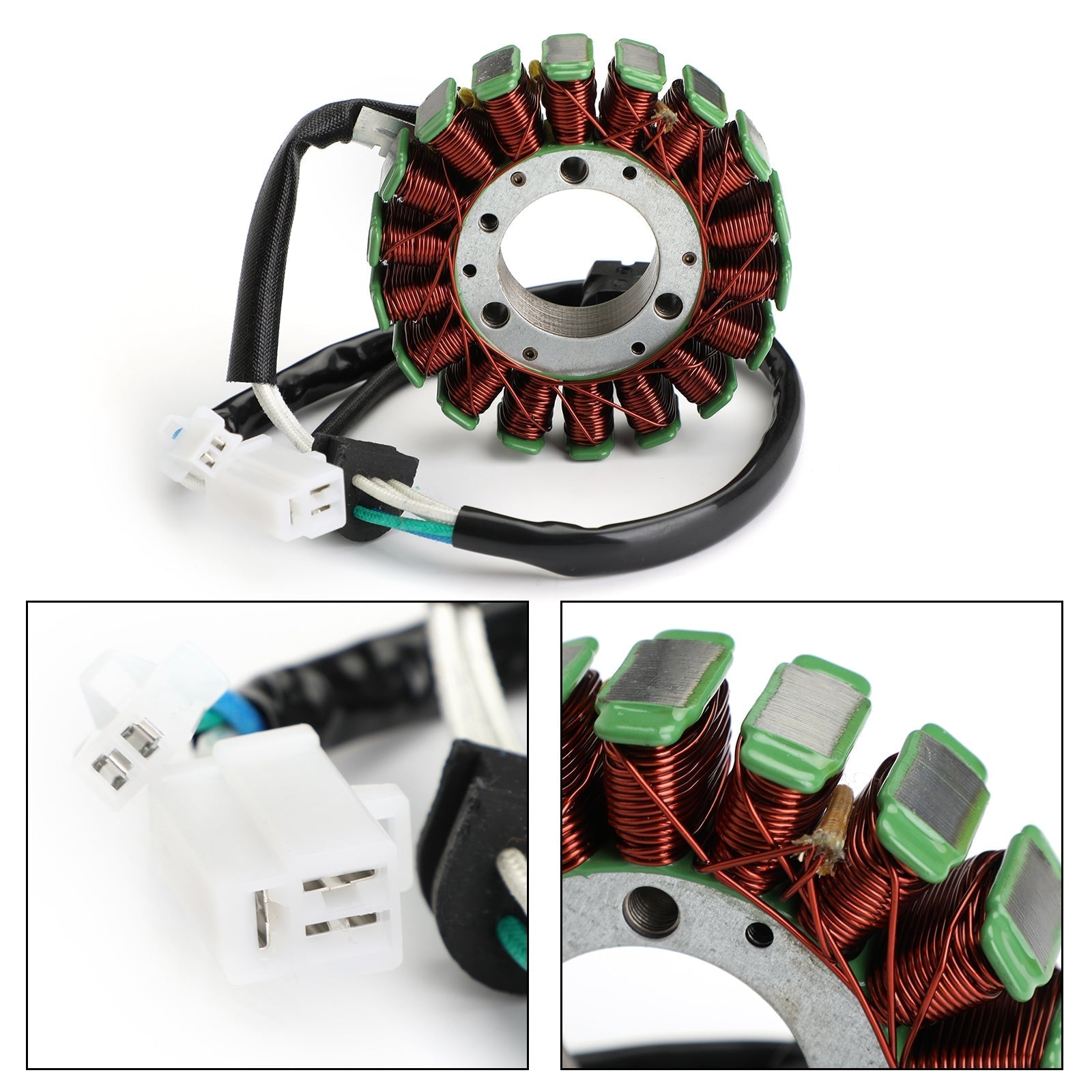

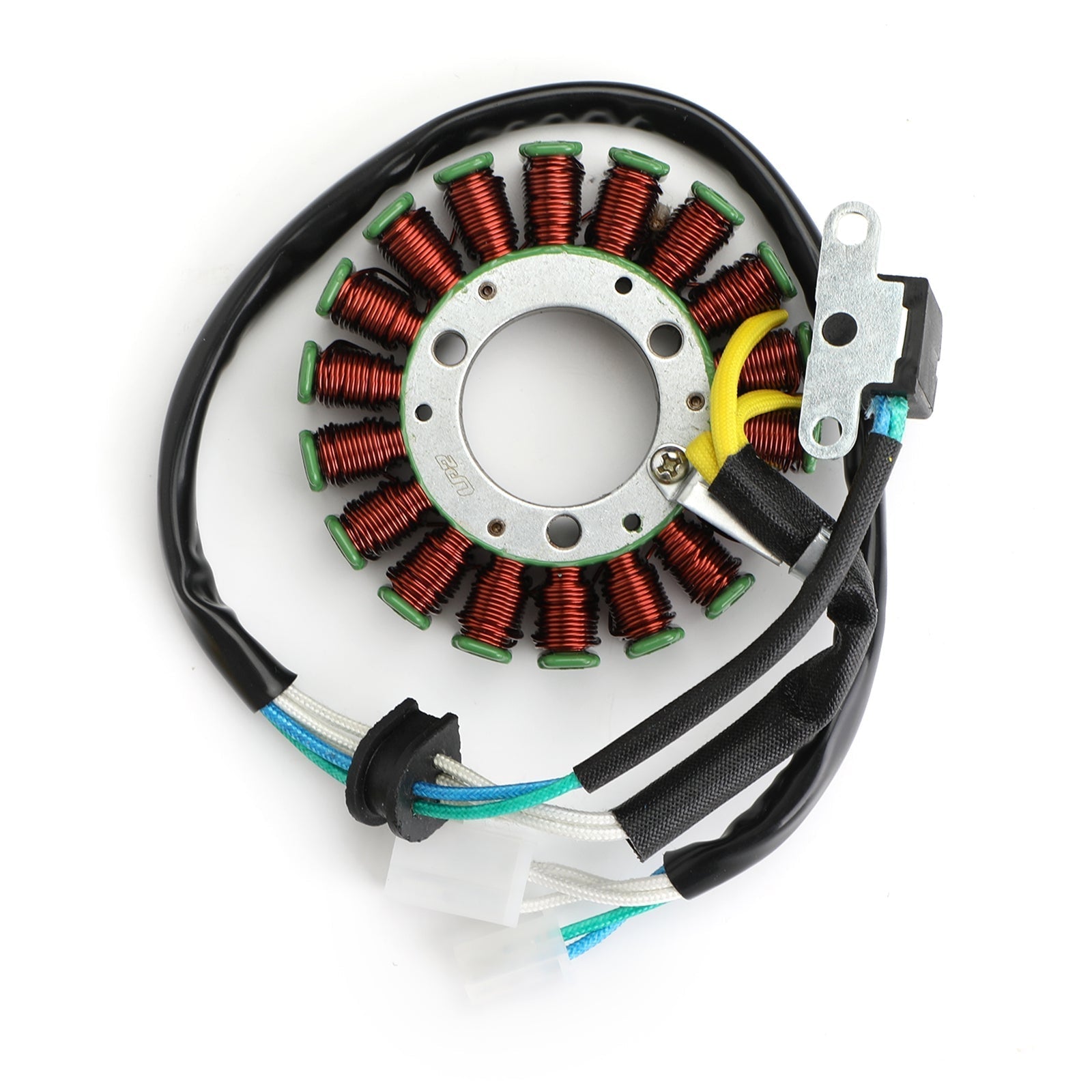

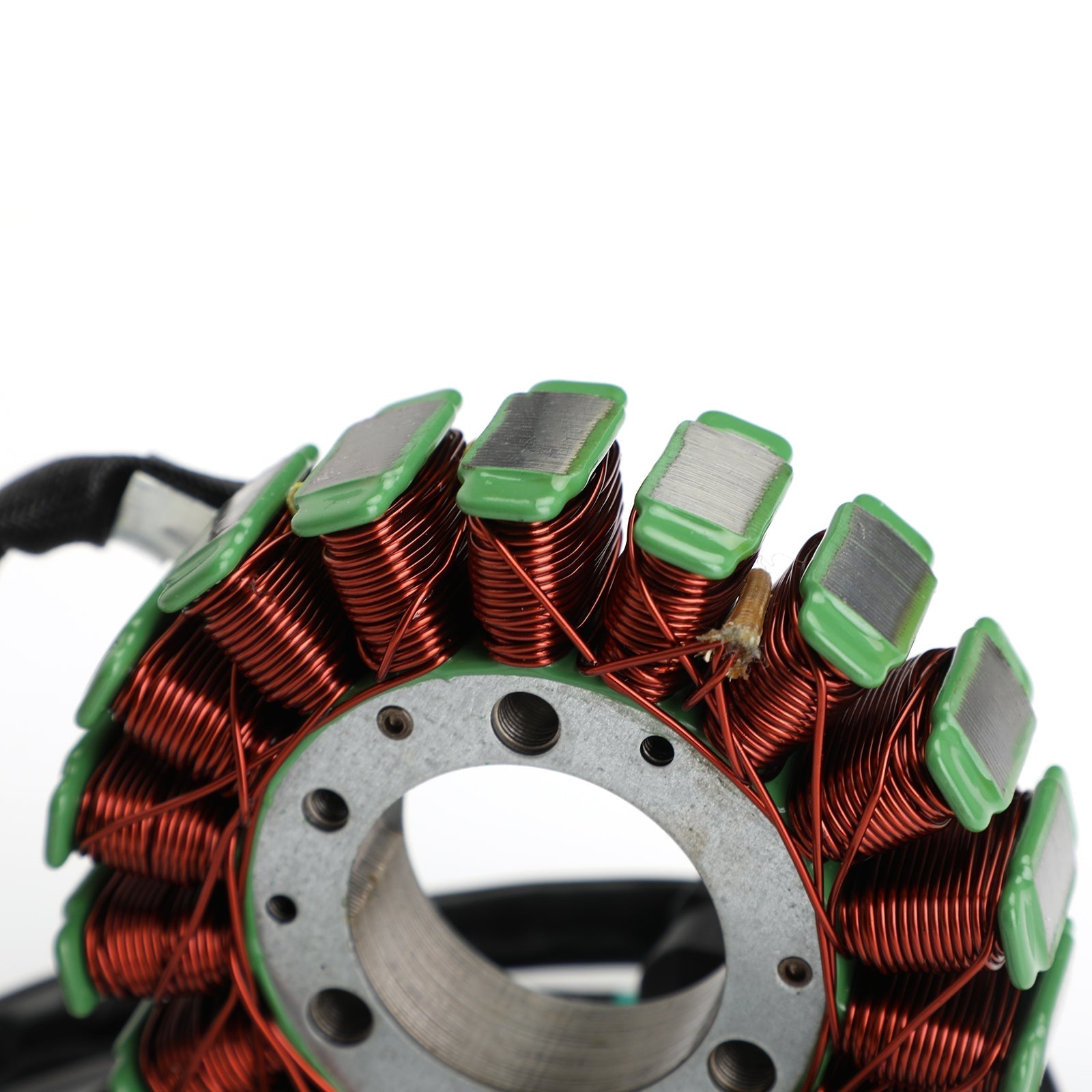

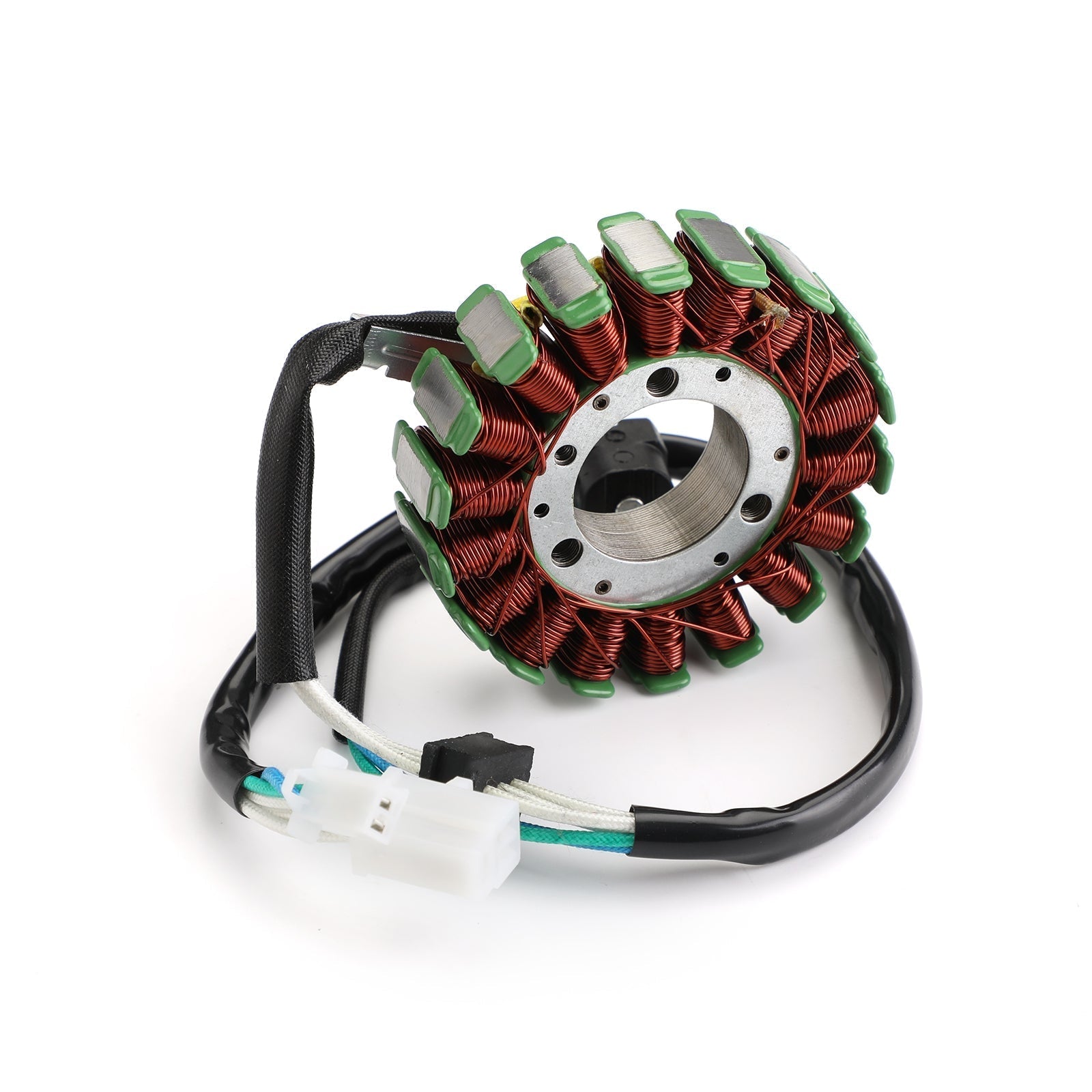

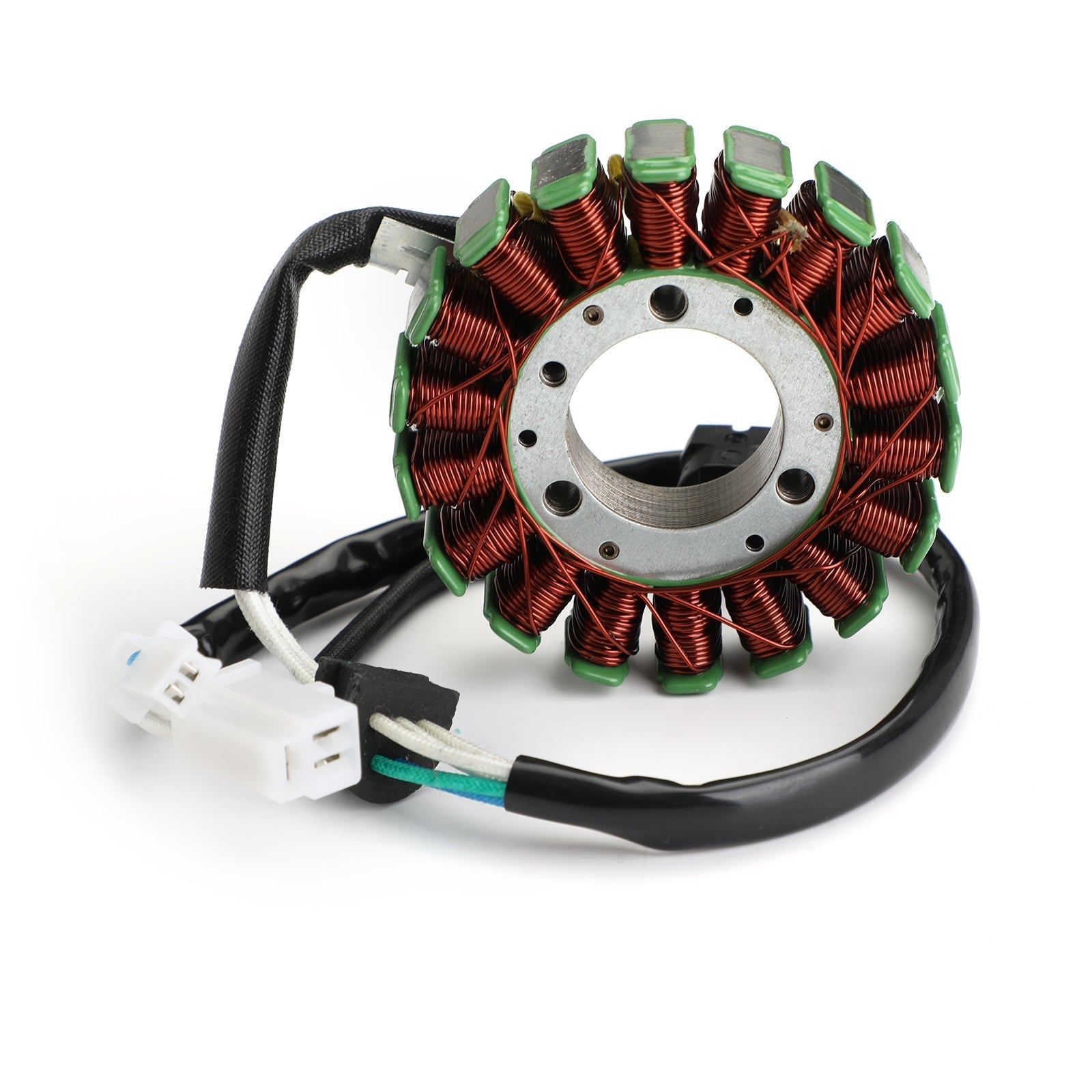

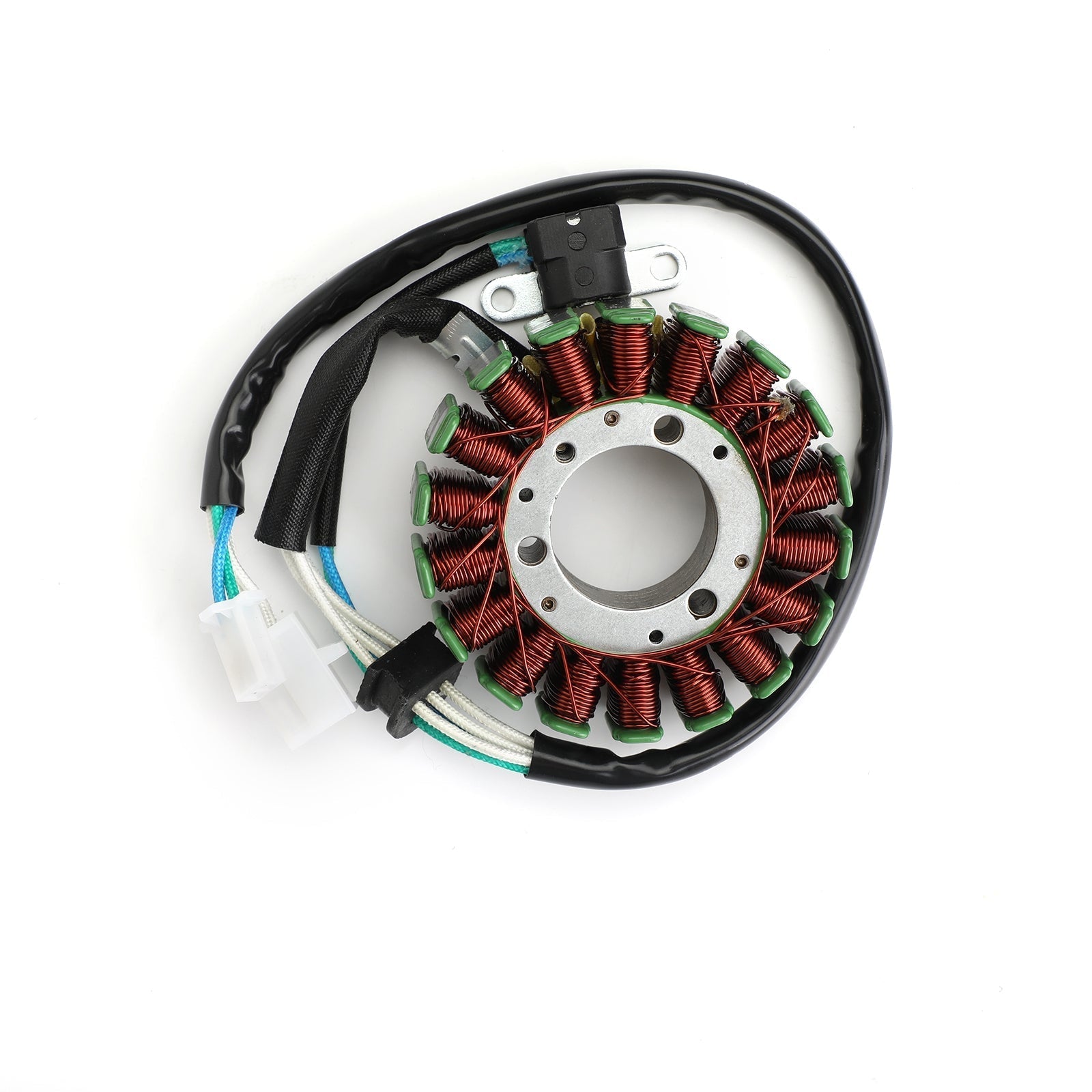

Type: Generator Stator Coil
Replacement Part Number: 4HC-81410-00, 4HC-81410-10

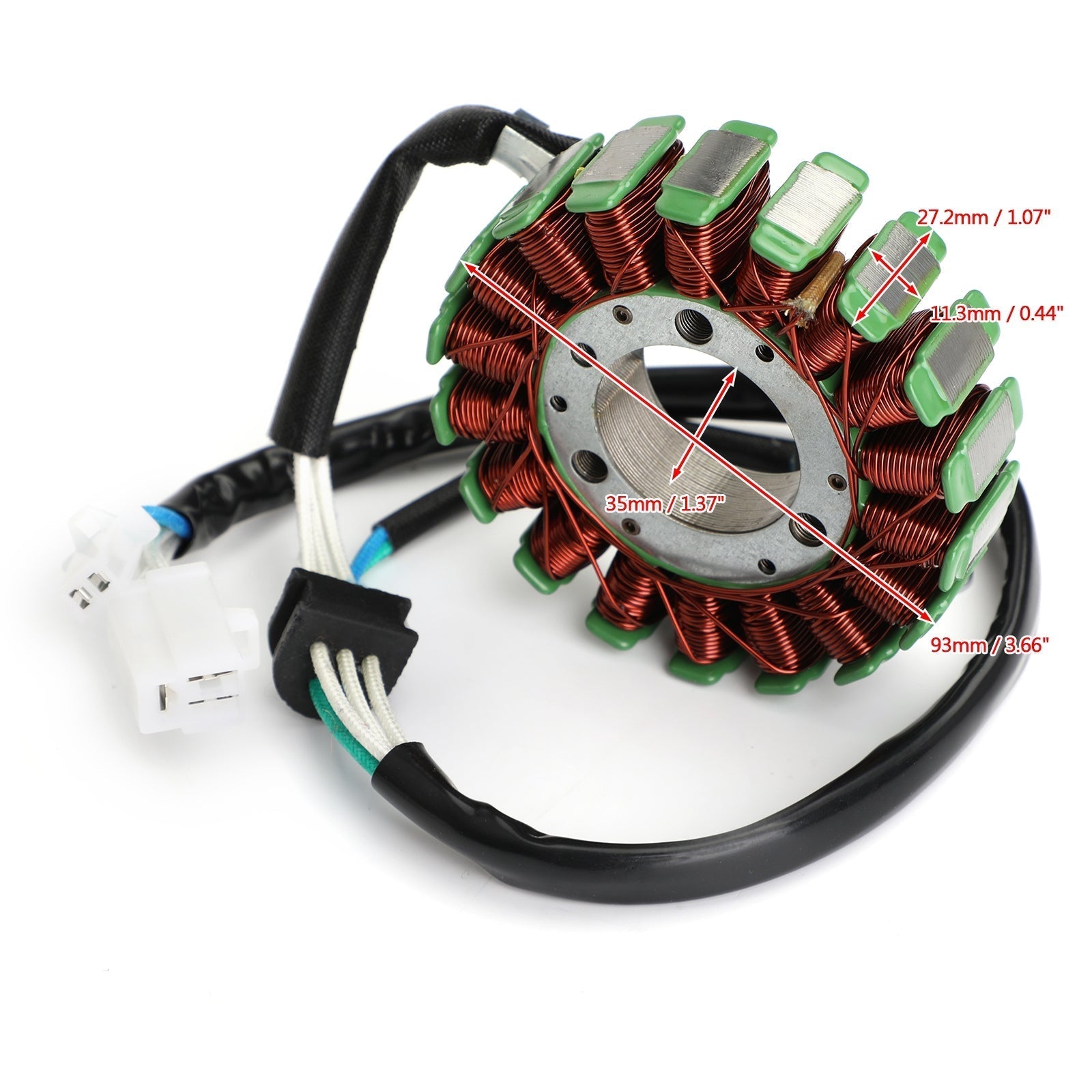

Dimensions :
Interior diameter : 35mm / 1.37"
Exterior diameter : 93mm / 3.66"
Pole's Thickness : 27.2mm / 1.07"
Pole's Width : 11.3mm / 0.44"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+3)
Number of poles: 18

FITMENT:
Yamaha YP250 (Majesty/ Skyliner) 1997-1999
Yamaha YP250A (Majesty (ABS)) 1998-1999
Yamaha YP250D Majesty DX 1998-1999
Yamaha YP250S (Majesty SV) 1998-1999

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
