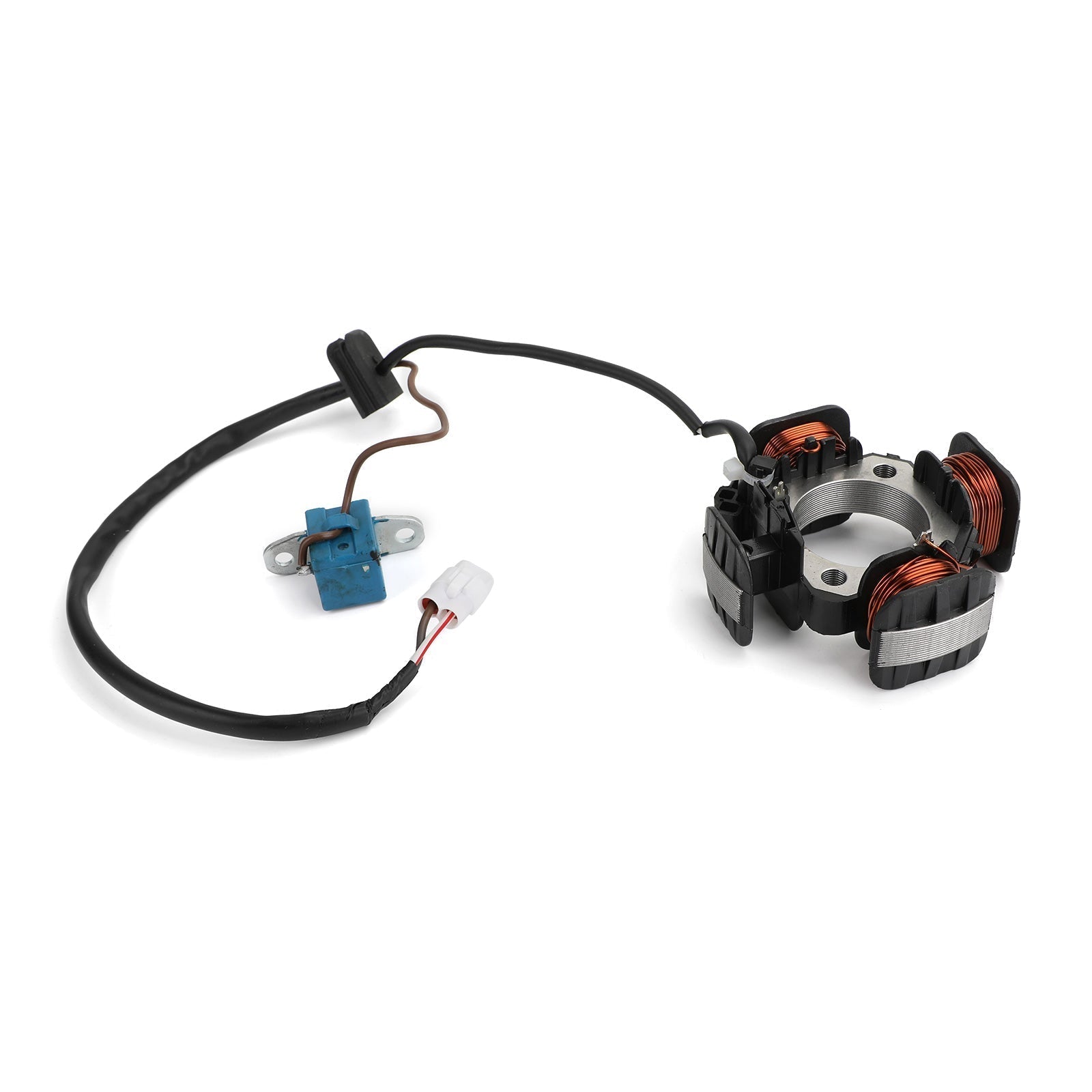

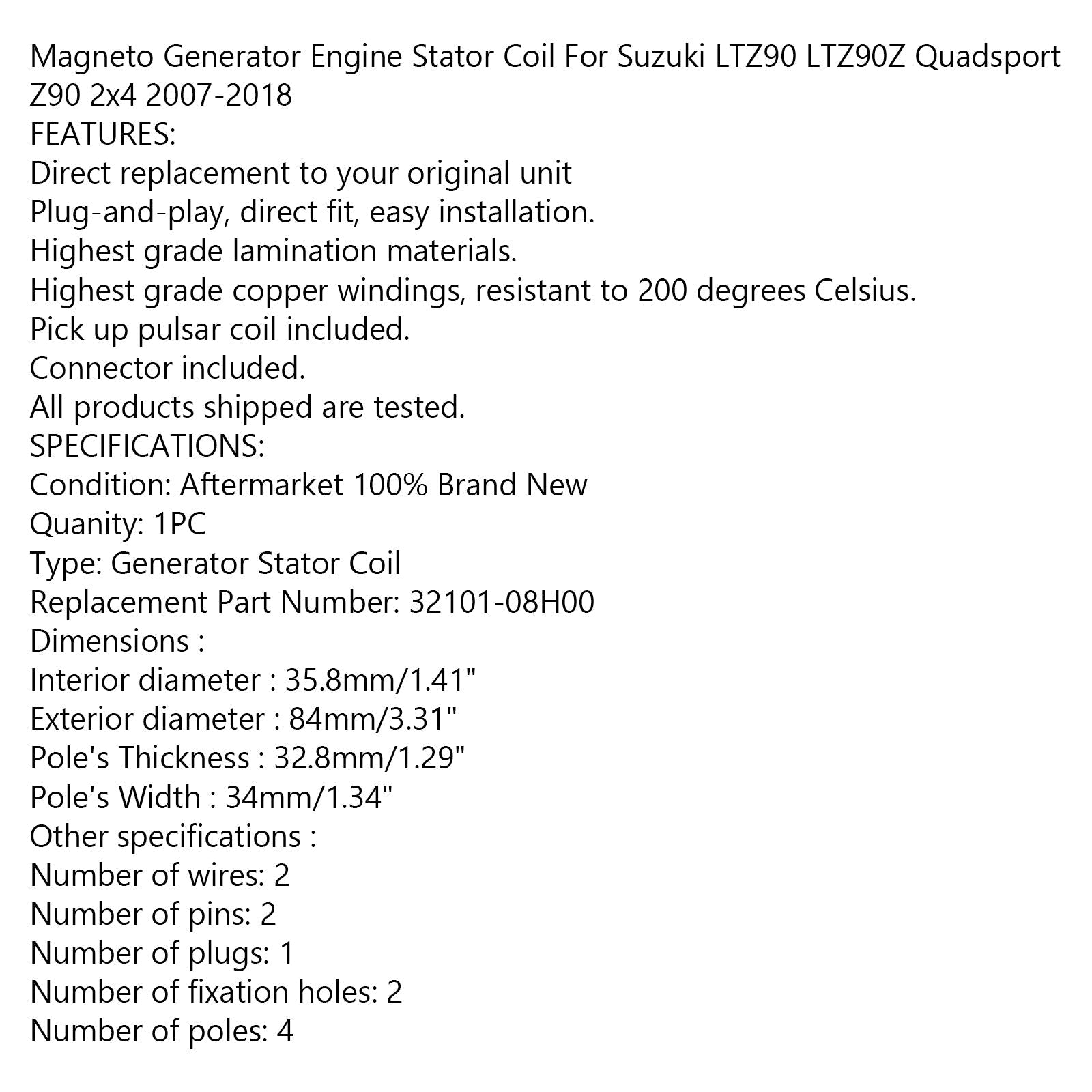

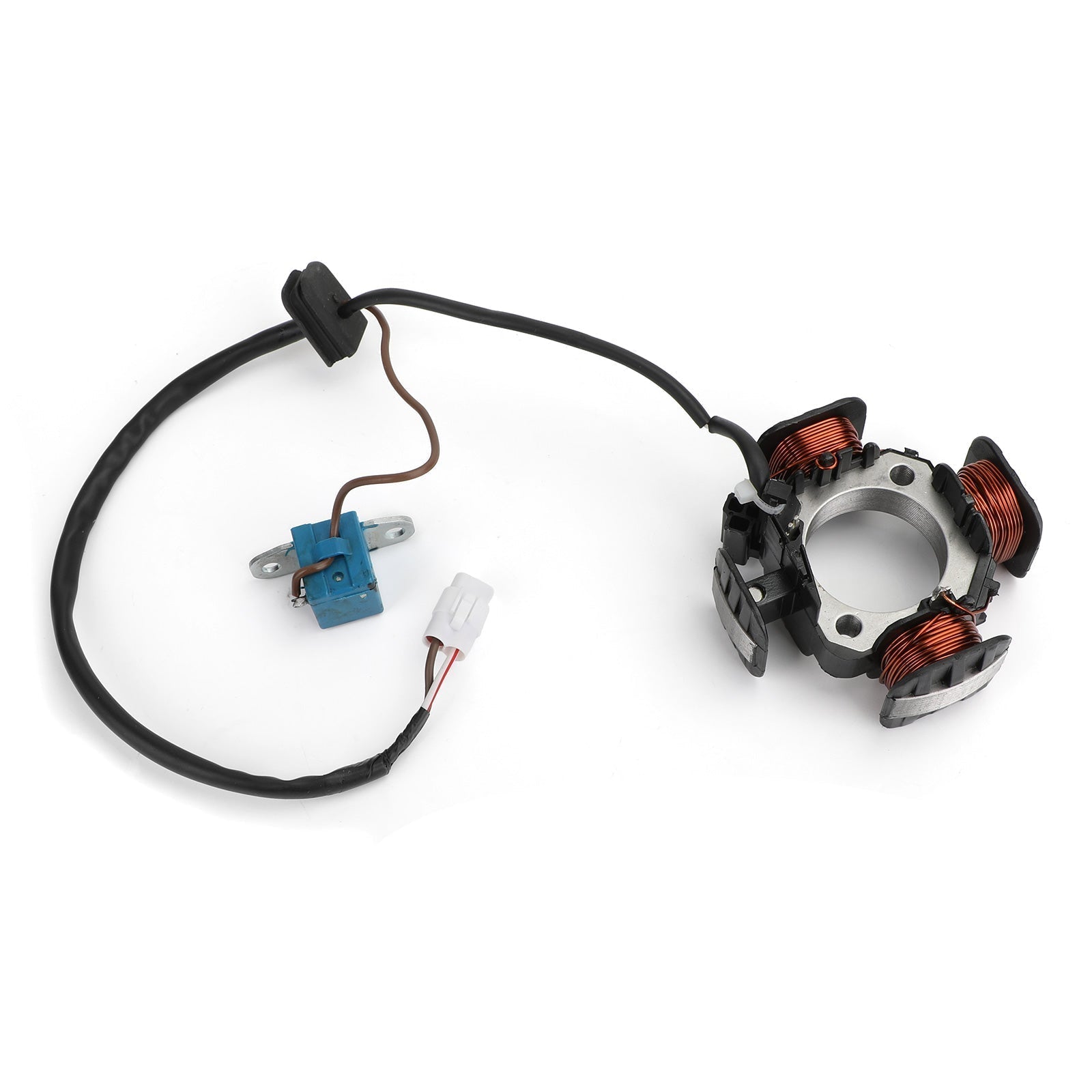

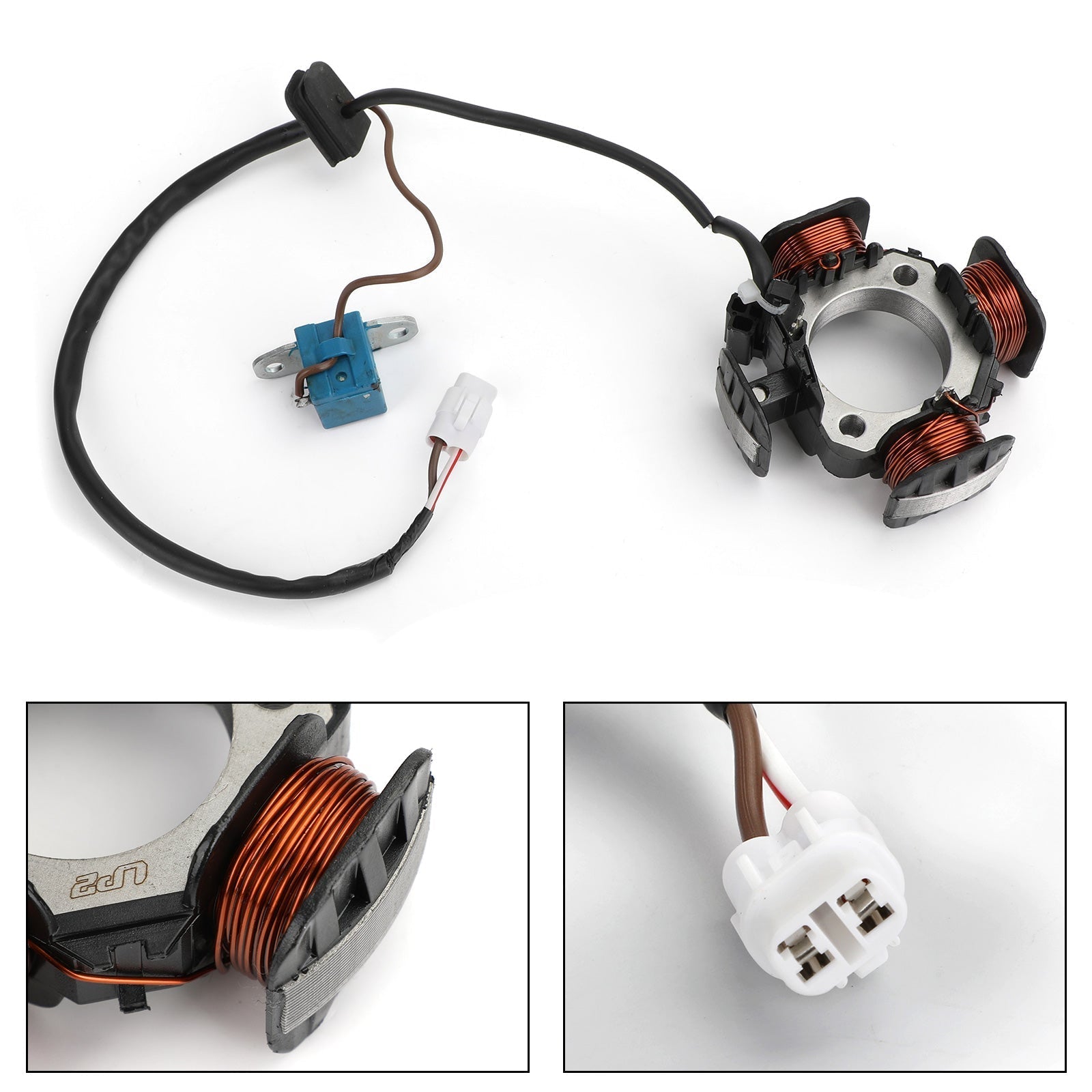

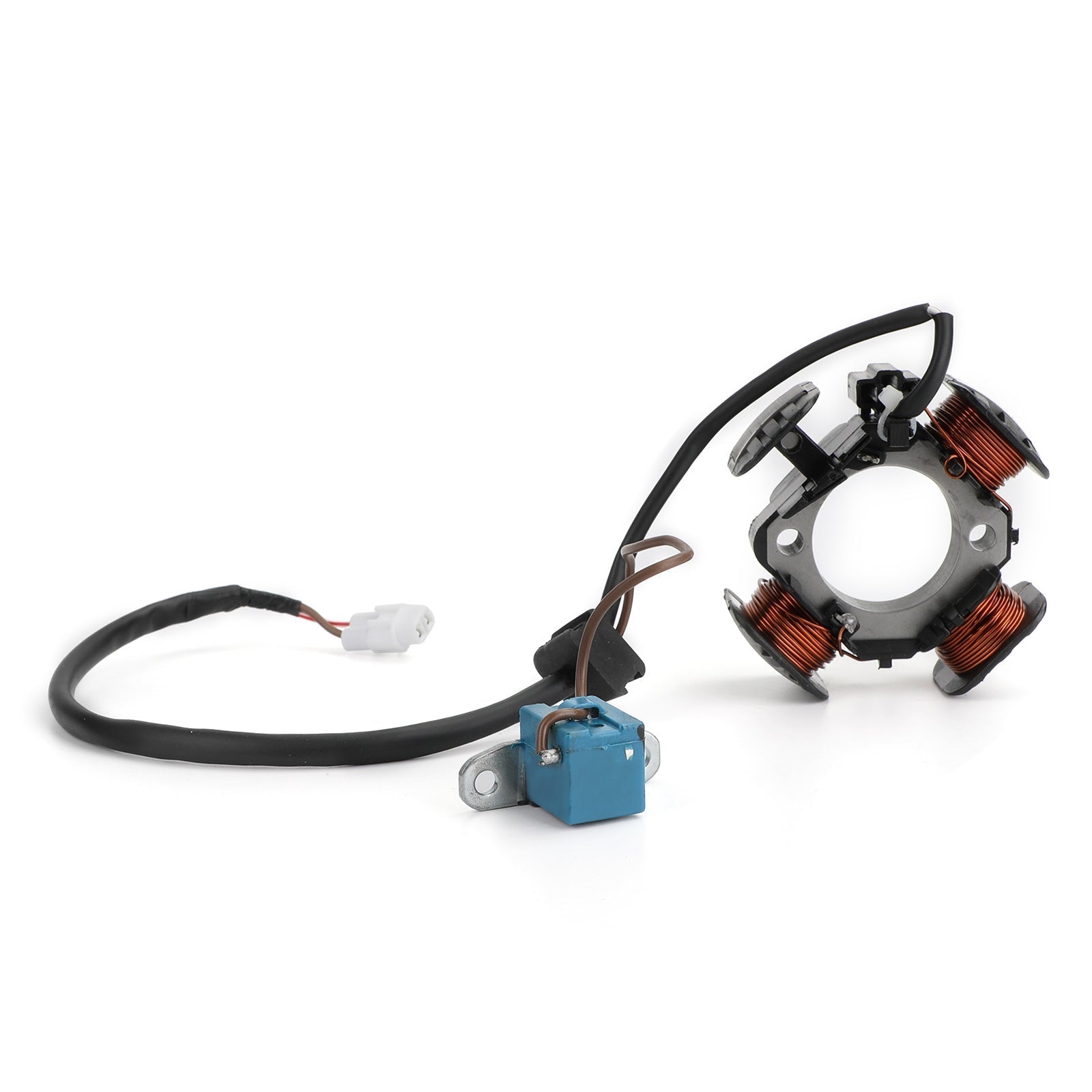

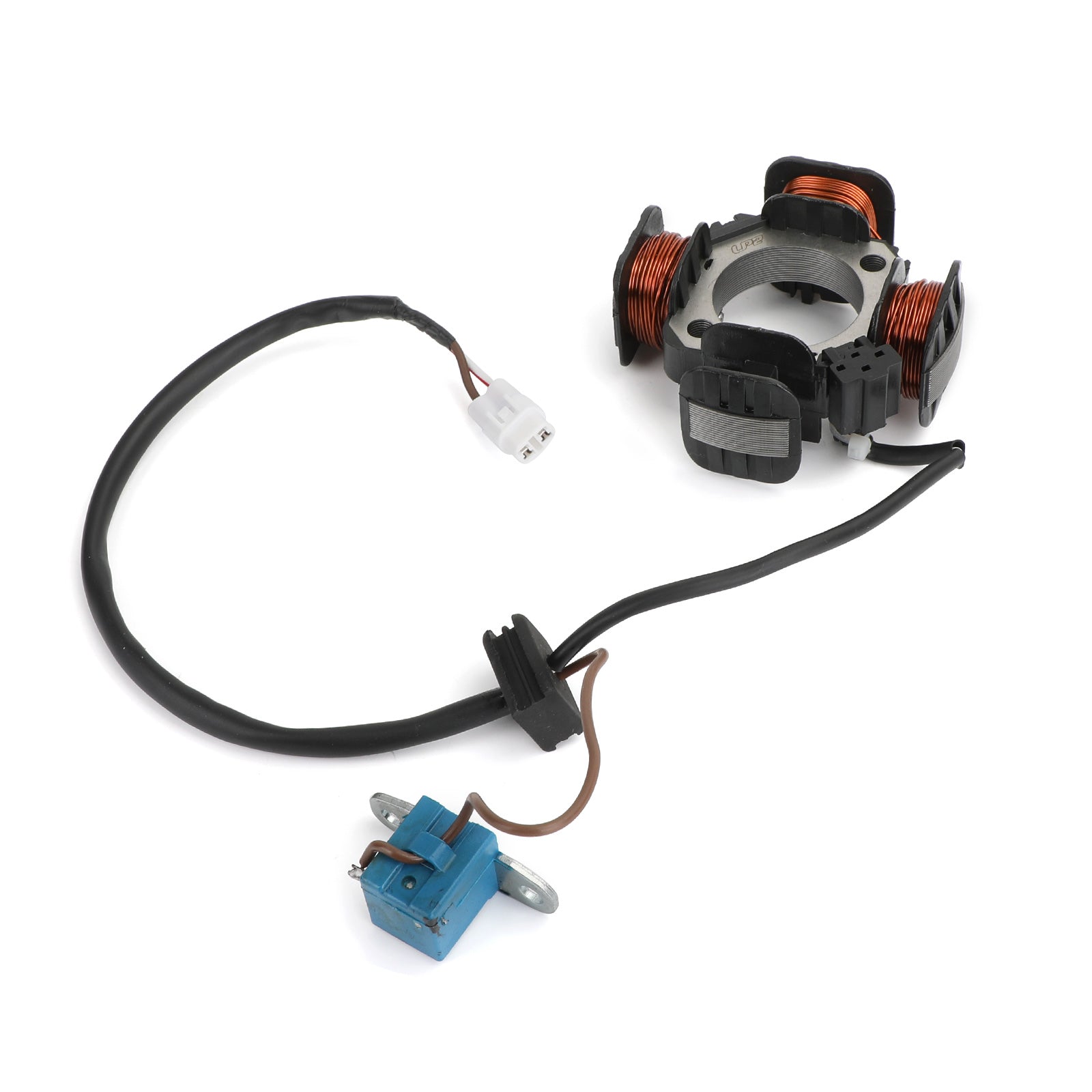

Magneto Generator Engine Stator Coil For Suzuki LTZ90 LTZ90Z Quadsport Z90 2x4 2007-2018

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

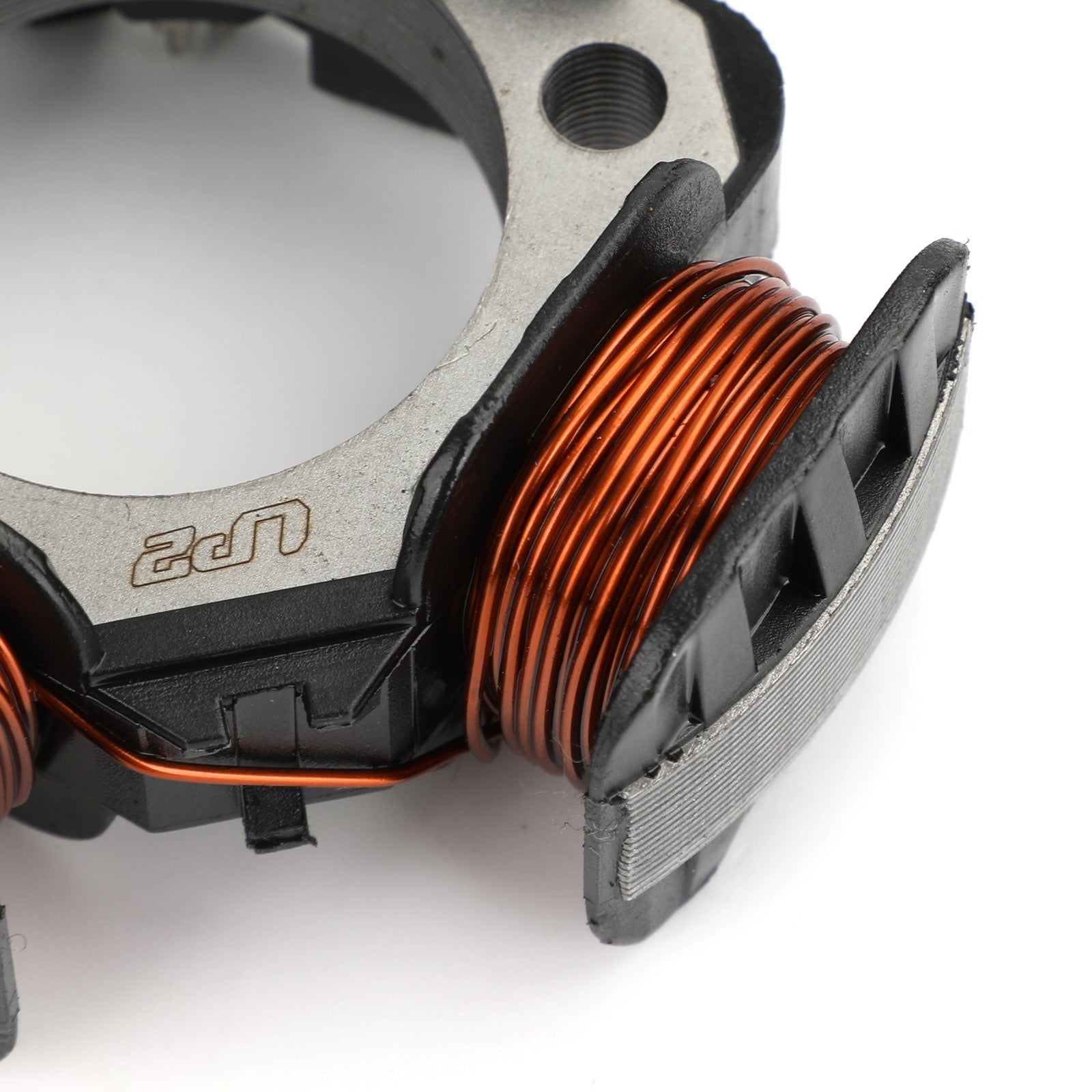

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

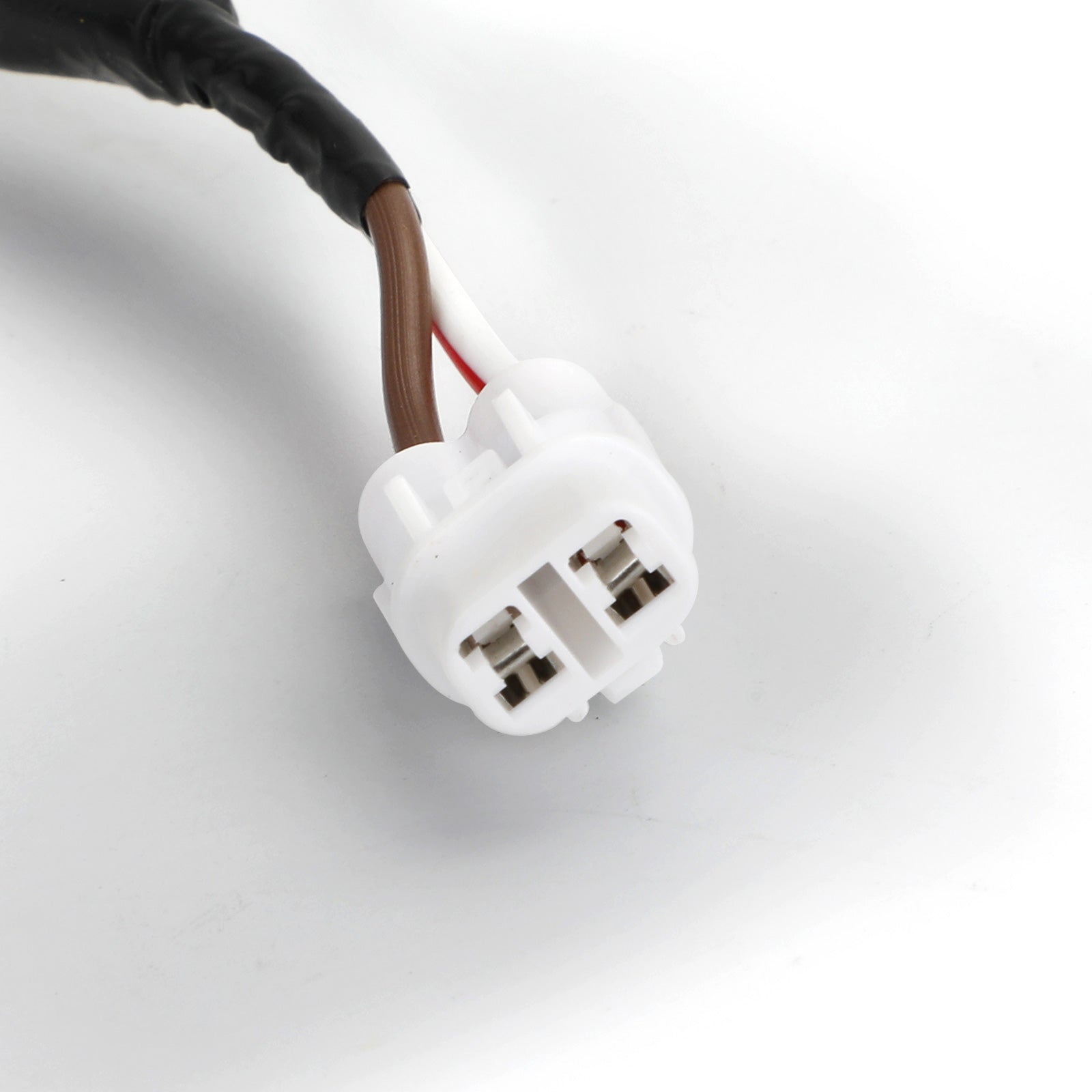

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 32101-08H00

Dimensions :
Interior diameter : 35.8mm/1.41"
Exterior diameter : 84mm/3.31"
Pole's Thickness : 32.8mm/1.29"
Pole's Width : 34mm/1.34"

Other specifications :
Number of wires: 2
Number of pins: 2
Number of plugs: 1
Number of fixation holes: 2
Number of poles: 4

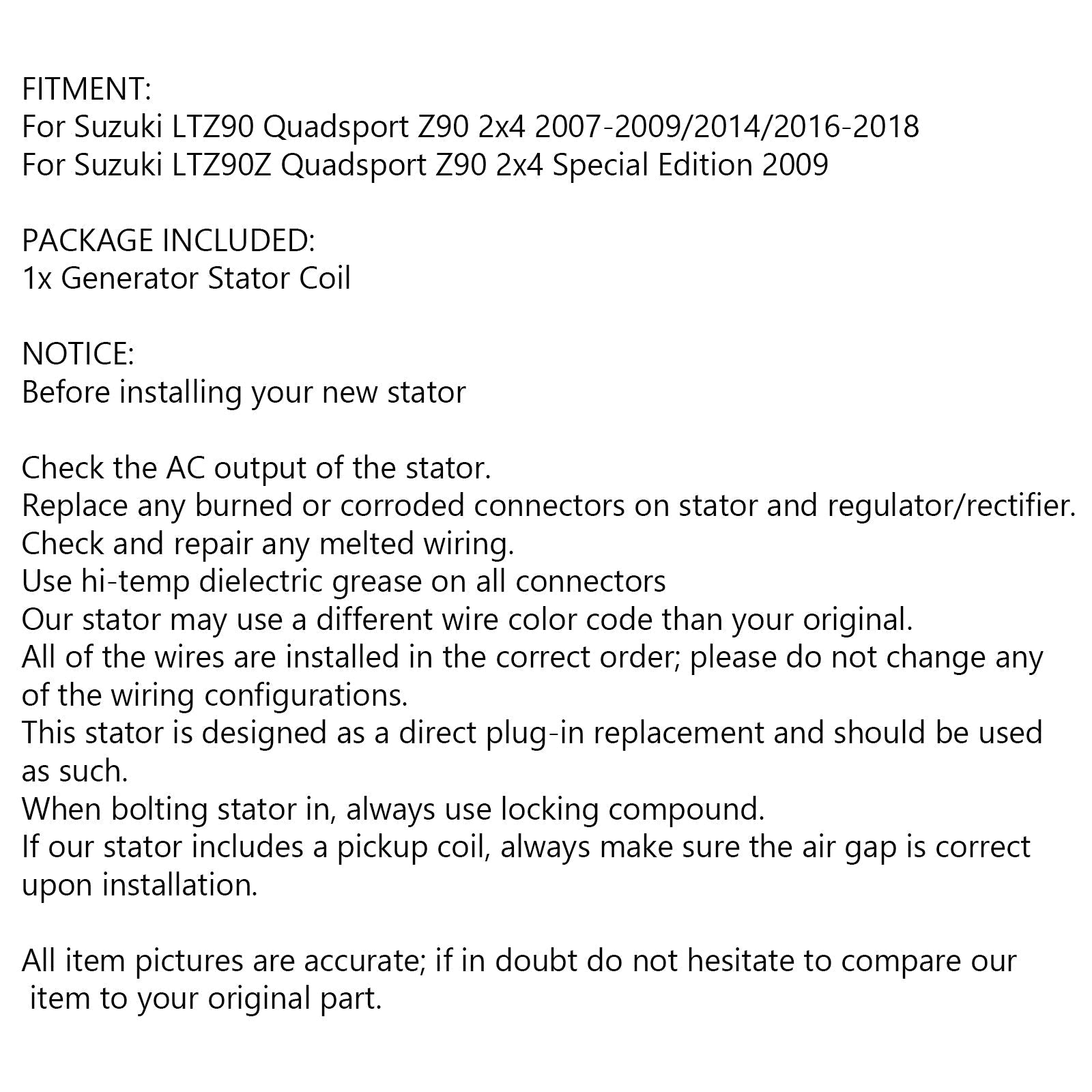

FITMENT:
For Suzuki LTZ90 Quadsport Z90 2x4 2007-2009/2014/2016-2018
For Suzuki LTZ90Z Quadsport Z90 2x4 Special Edition 2009

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
