FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

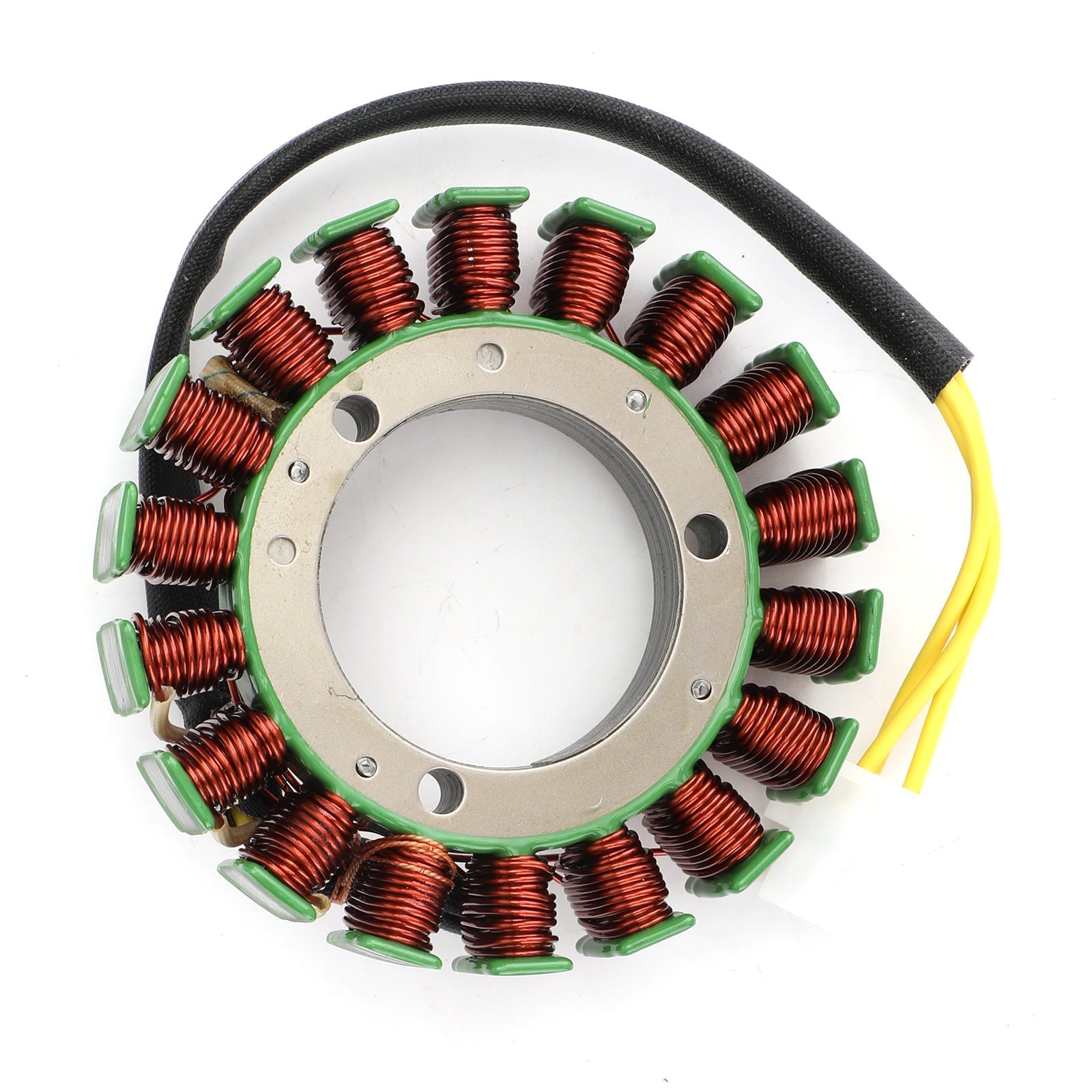

Type: Generator Stator Coil
Replacement Part Number:3005-053

Dimensions :
Interior diameter : 54mm / 2.12"
Exterior diameter : 114mm / 4.52"
Pole's Thickness : 25mm / 0.99"
Pole's Width : 13mm / 0.51"

Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Plug's L*W:16.4mm/0.64"*13.1mm/0.51"
Number of fixation holes: 3
Number of poles: 18
Fixation holes length: 52mm / 2.05"

FITMENT:
For Arctic Cat EXT 580 Deluxe EFI L/C 1998
For Arctic Cat EXT 580 EFI L/C 1997
For Arctic Cat Pantera 580 EFI L/C 1997-1998

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
