FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

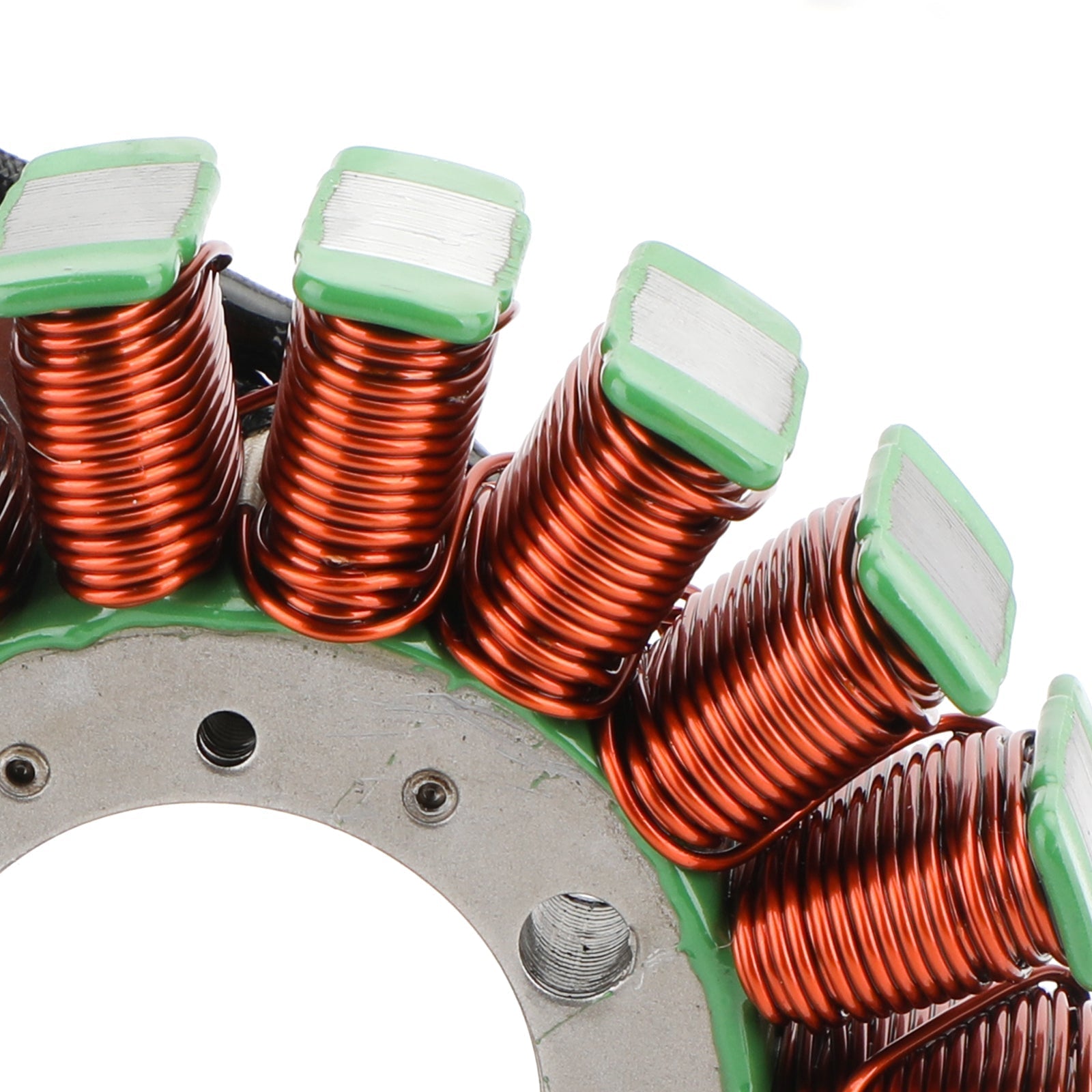

Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

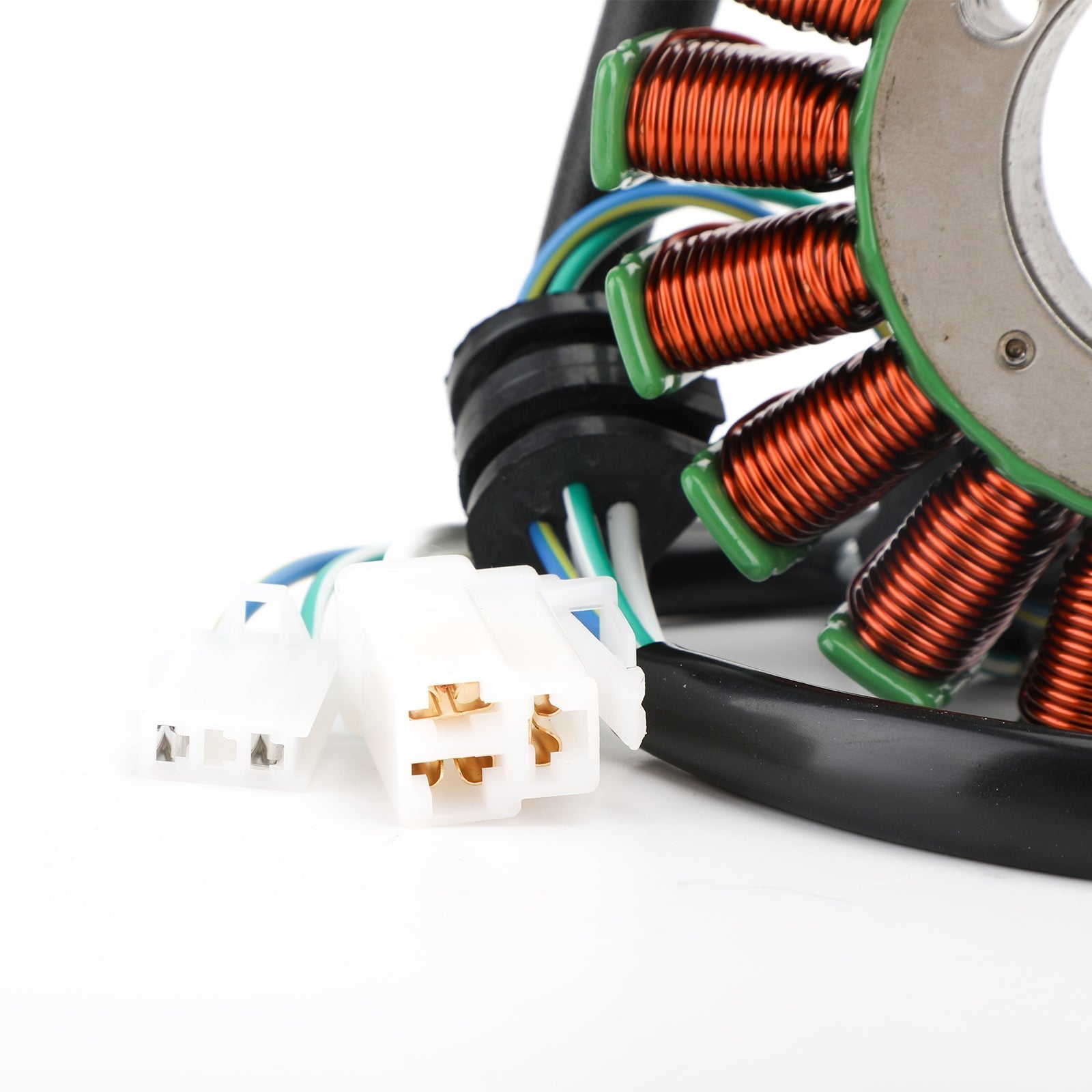

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quantity: 1 PC

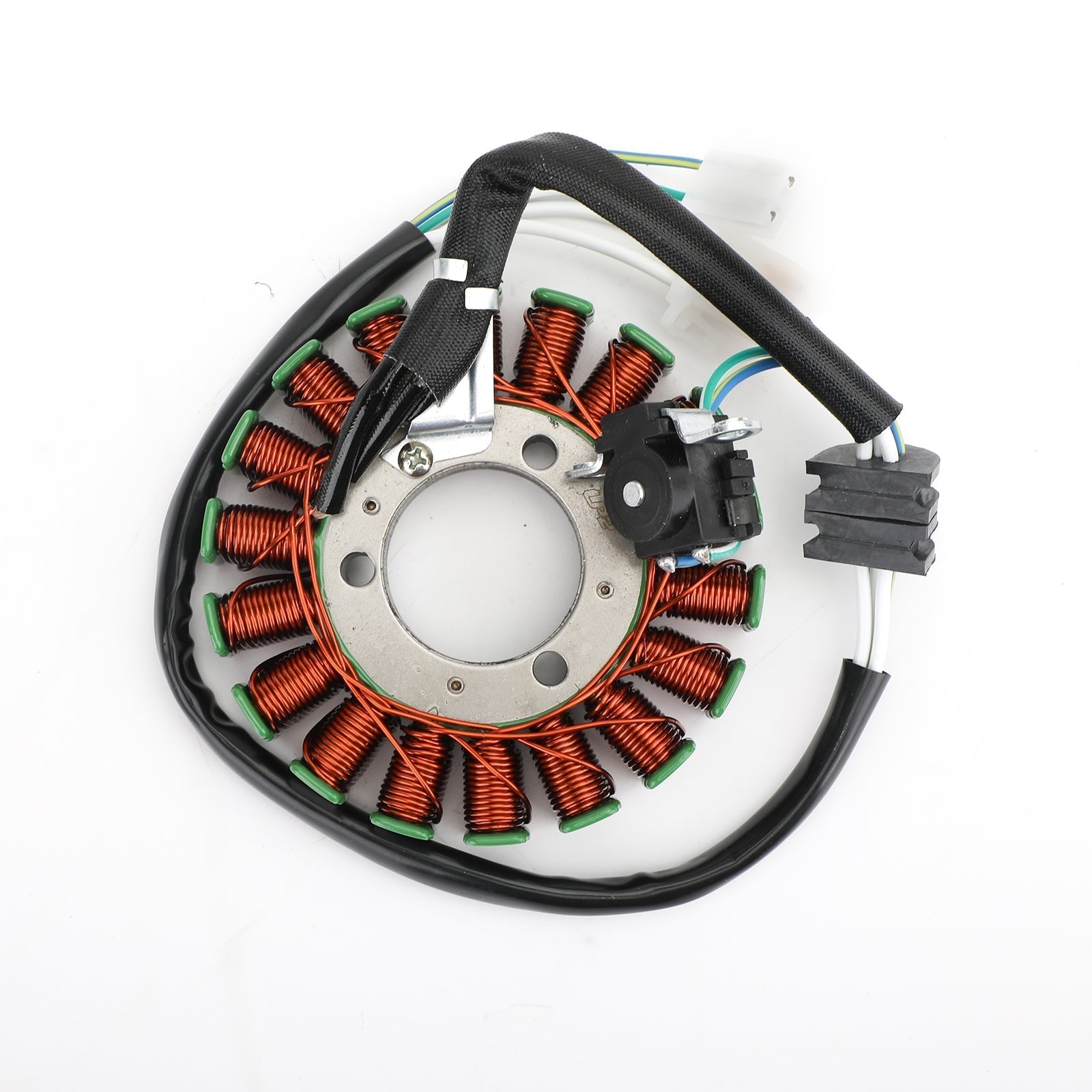

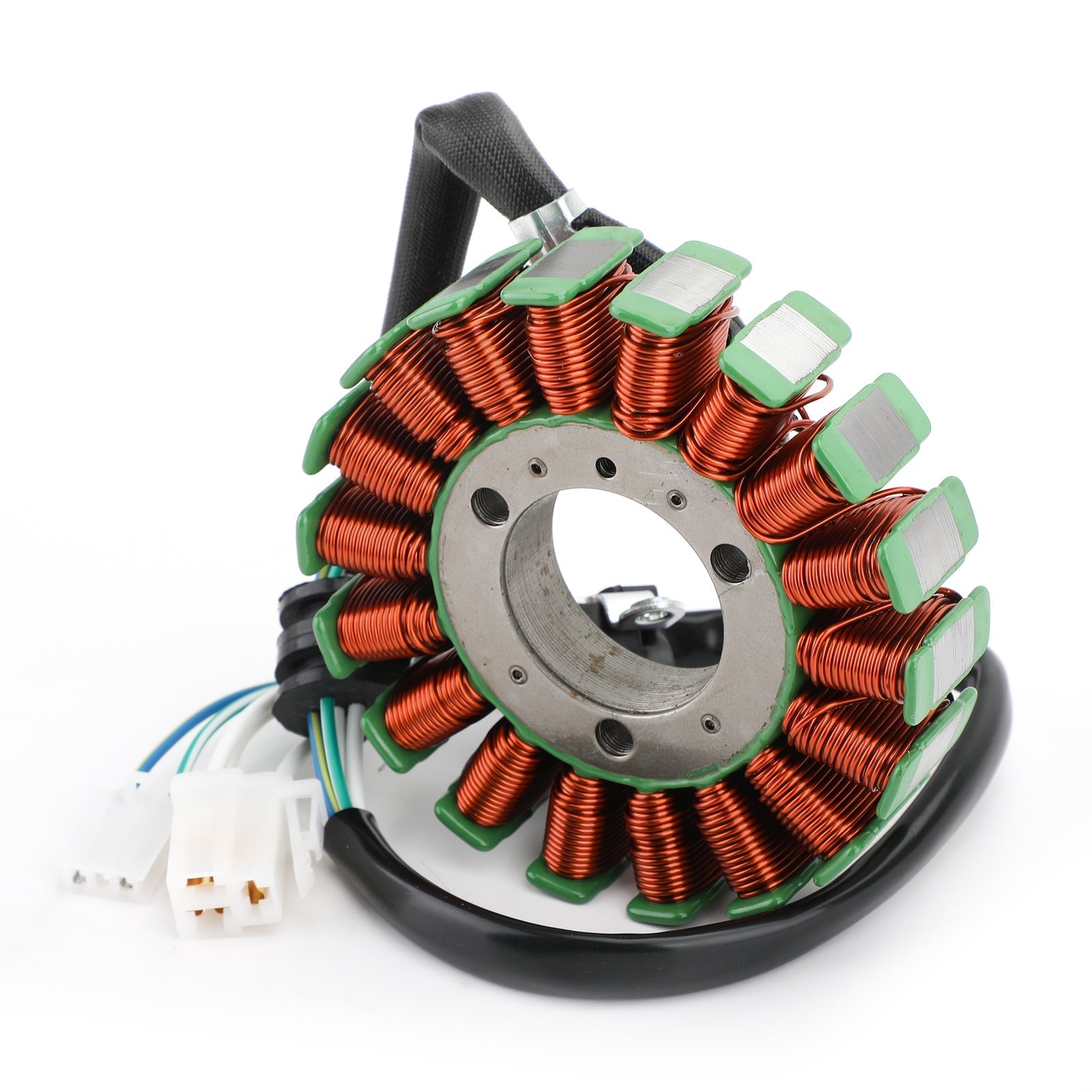

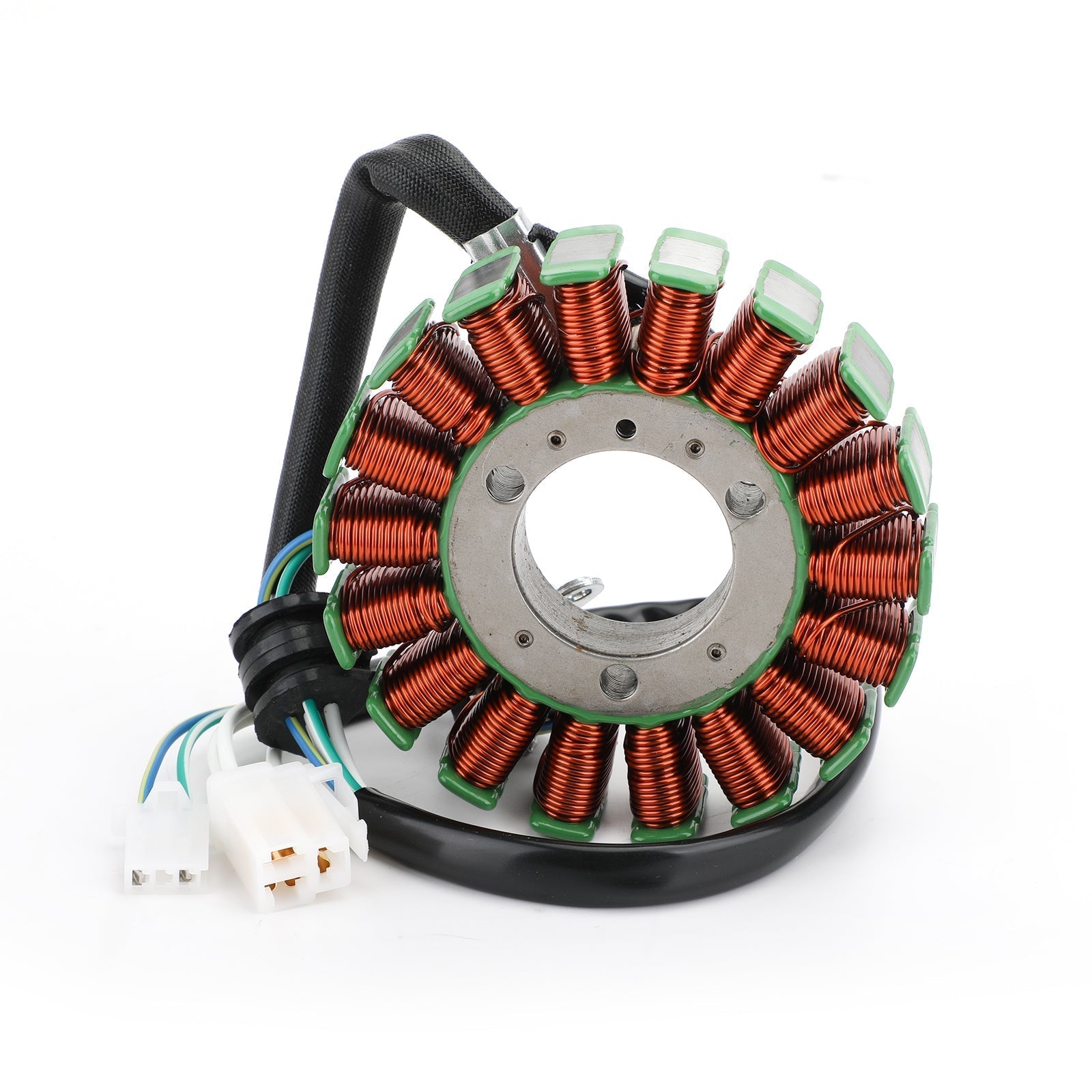

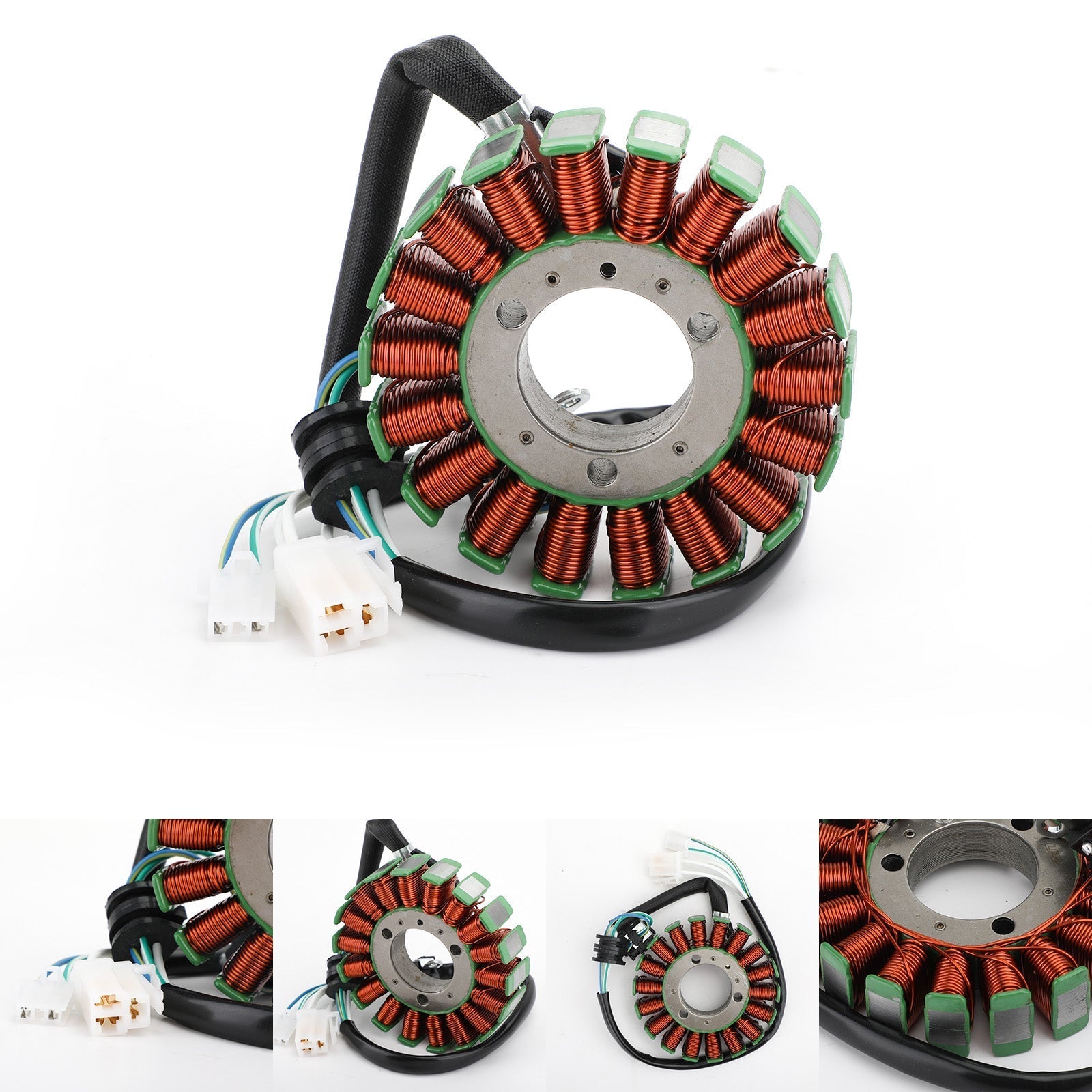

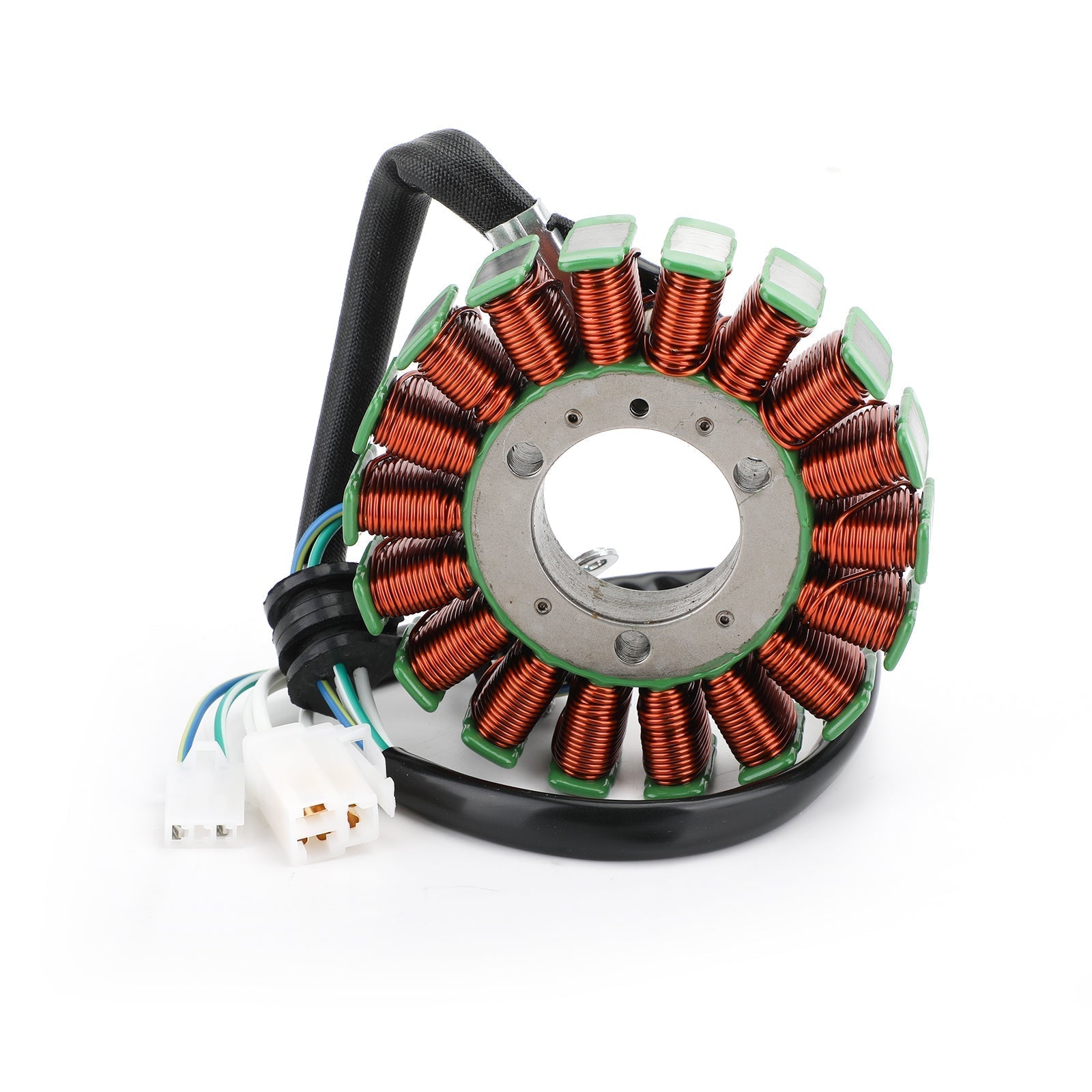

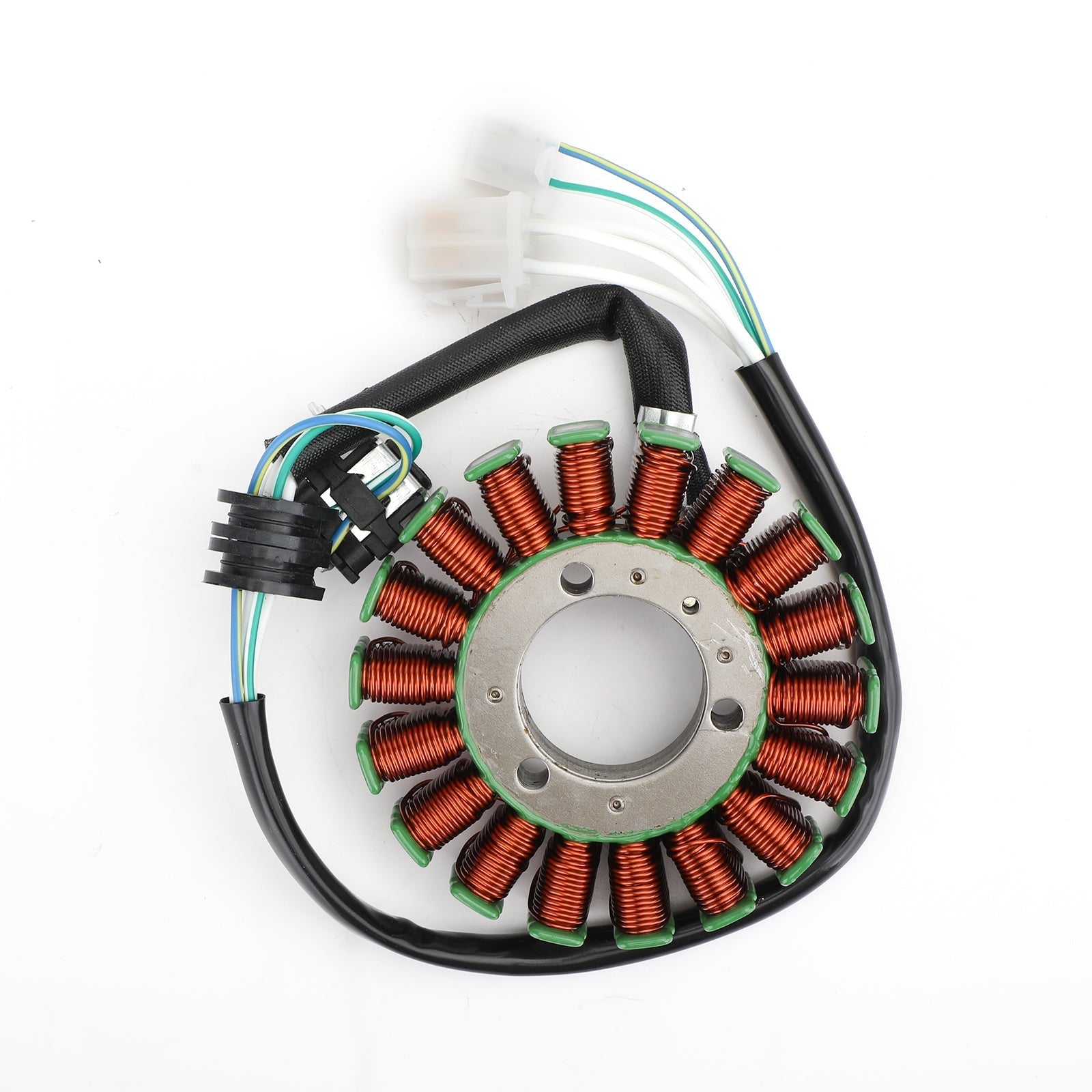

Type: Generator Stator Coil
Replacement Part Number: 1WD-H1410-00 / 1WD-H1410-01

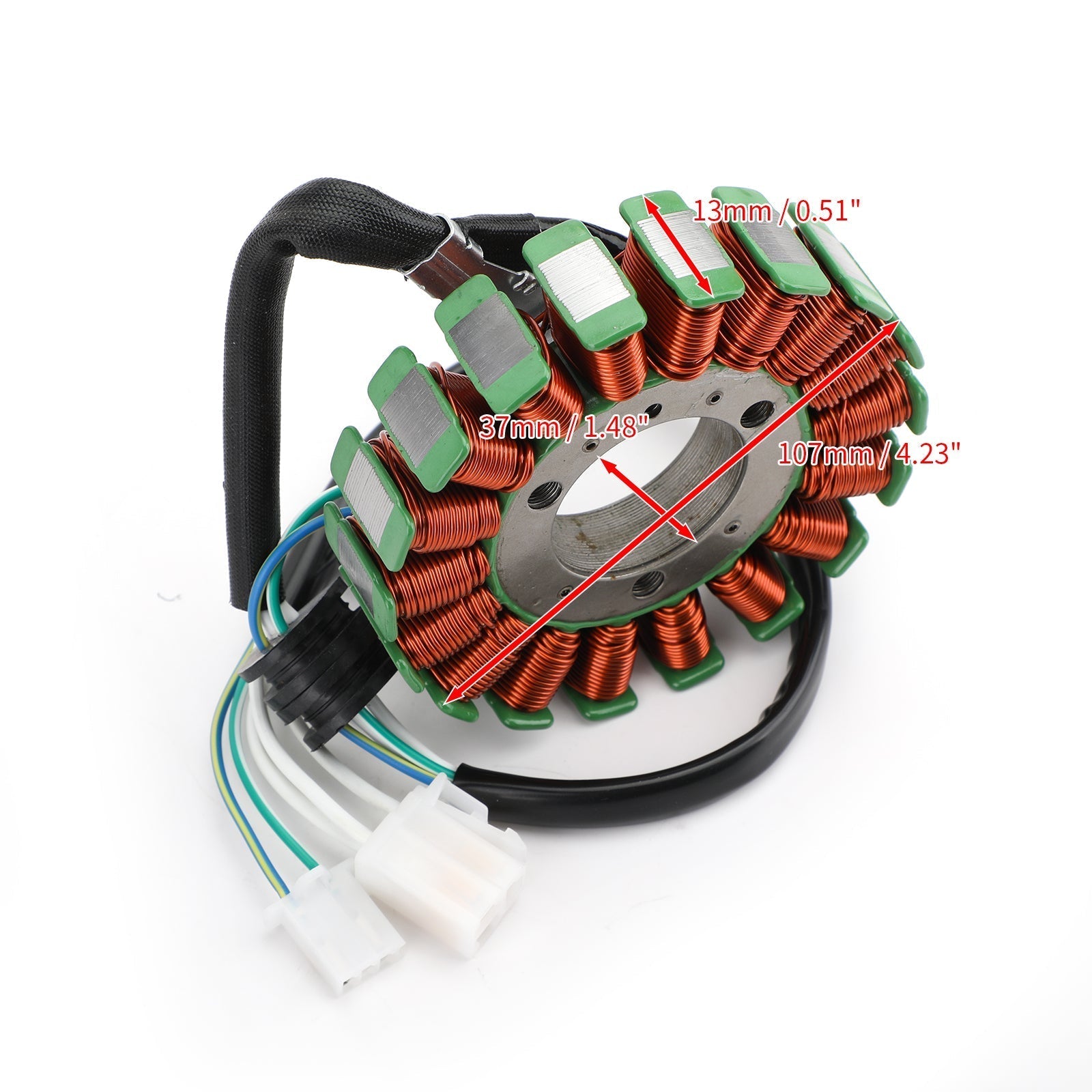

Dimensions :
Interior diameter : 37 mm / 1.48"
Exterior diameter : 107 mm / 4.23"
Thickness : 13 mm / 0.51"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Fixation holes length: 35 mm / 1.4"
FITMENT:
For Yamaha YZF R25 2015-2017
For Yamaha YZF R3 2015-2018
For Yamaha YZF R3A (ABS) 2015-2018
For Yamaha MTN320 MT-03 2016-2017
For Yamaha MTN320-A MT-03 (ABS) 2016-2018
For Yamaha MTN250 MT-25 2016-2017

PACKAGE INCLUDED:
1 x Generator Stator Coil

NOTICE:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
